ASAP: A LIGHTWEIGHT TOOL FOR AGILE PLANNING

Rasmus Rosenqvist Petersen

PLAN-IT

Vesterbro 116, 1 th, 5000 Odense C, Denmark

Uffe Kock Wiil

The Maersk Mc-Kinney Moller Institute, University of Southern Denmark

Campusvej 55, 5230 Odense M, Denmark

Keywords: Agile Planning, Electronic Task Cards, Interactive Displays, Automatically Generated Views, Spatial

Hypertext.

Abstract: Supporting planning tasks of agile teams is a challenge. In this paper, we present a lightweight planning

tool. ASAP is inspired by concepts and principles from spatial hypertext, which support information

analysis tasks. ASAP runs on a large interactive vertical display on which electronic task cards can be

organized into iterations and releases using card hierarchies and separators (a novel visual concept). Several

views of the evolving plan are automatically generated to assist the agile team with overviews of tasks,

estimates, and assignments. Views are instantly updated to reflect changes to the plan.

1 INTRODUCTION

Project planning in agile teams is a collaborative

process relying on face-to-face communication and

shared information to succeed. A commonly used

approach to planning involves teams using a large

table to plan iterations using paper cards to represent

tasks to be carried out. When a planning session is

over, the plan is somehow recorded, and the cards

are removed from the table. One downside to this is

that cards’ location on the table and their proximity

to other cards may contain important information for

the overall plan. When cards are removed from the

table, their arrangement is often lost and with it so is

the proximity and location information (Morgan et

al. 2007).

Our overall goal is to develop a software tool to

support agile planning, while preserving the benefits

of physical card based planning. Card based

planning is suggested by several agile development

methods and is used by many agile software teams.

During the development of ASAP, we have been

working closely with local software companies to

identify requirements for the planning tool, to get

feedback on suggested features, and to test various

versions of the planning tool. A number of important

overall requirements have come out of this

collaboration:

• A planning tool should support the work of the

agile team in a manner that resembles the

physical card based approach.

• A planning tool should be lightweight offering

only the features that are necessary to solve the

task at hand.

• A planning tool should visualize the

consequences of the planners’ actions allowing

them to make informed decisions regarding the

plan.

ASAP has been developed to fulfill these overall

requirements. It runs on a large interactive vertical

display on which electronic task cards can be moved

around freely and organized into iterations and

releases using card hierarchies and separators (a

novel visual concept). Generated plans can be

stored, printed, and retrieved again later for future

planning sessions.

Once paper cards become electronic, several new

opportunities arise. Different views can be

automatically generated based on the layout and the

attributes of the task cards. ASAP currently provides

overviews of tasks, estimates, and assignments.

Views in ASAP are instantly updated to reflect the

changes made by the planners. These views support

265

Petersen R. and Wiil U. (2009).

ASAP: A LIGHTWEIGHT TOOL FOR AGILE PLANNING.

In Proceedings of the 4th International Conference on Software and Data Technologies, pages 265-272

DOI: 10.5220/0002240202650272

 SciTePress

the planners by visualizing the current status of the

plan.

The remainder of the paper is structured as

follows. Section 2 reviews some well-known agile

software development methods to identify agile

planning practices and techniques. Section 3 looks at

existing software support for agile planning. Section

4 presents ASAP – including requirements, design

concepts and features, current status and future

plans, and evaluation. Section 5 summarizes the

paper.

2 AGILE PLANNING

A number of agile software development practices

and techniques focus on and involve planning. We

will briefly look at some of these to investigate what

types of activities ASAP should be able to support.

The Scrum agile software development method

suggests several work practices where planning

plays a role: pre-game planning and staging, sprint

planning, and the daily meeting (Larman 2004). Pre-

game planning and staging focuses on identifying

desired features which are recorded in the Product

Backlog and possibly one or more Release

Backlogs. Iterations (sprints) start with two sprint

planning meetings where the tasks for the upcoming

iteration are planned and estimated. At the daily

meeting the sprint plan is reviewed and tasks may

end up in the Sprint Backlog.

Extreme Programming (XP) is a well-known

agile method that includes 12 core practices –

including the Planning Game (Larman 2004). The

Planning Game is a meeting that occurs once per

iteration. The Planning Game is divided into two

parts. Release Planning Game focuses on

determining what features are included in the next

release, and when they should be delivered. Iteration

Planning Game focuses on planning the activities

and tasks of the developers in the upcoming

iteration.

The Crystal family of agile methodologies

(Cockburn 2005) includes the Blitz Planning

technique. Blitz Planning is based on paper task

cards laid out on a table surface. The overall idea is

to gather the right people, discuss the project details,

and end up with a project plan as a result of working

through ten predefined steps. Blitz Planning is a

variation of the XP Planning Game described above.

The two differ in three ways (Cockburn 2005):

• The planning game cards list user stories, and

the Blitz Planning cards list tasks.

• The planning game has the people assume there

are no dependencies between stories, while Blitz

Planning has people analyze the dependencies

between tasks.

• The planning game assumes fixed-length

iterations, while Blitz Planning does not assume

anything about iteration length.

Another technique included in the Crystal family

is the Daily Stand-up Meeting, which is quite similar

to Scrum’s daily meeting described above.

The above reviews show that planning is a

central activity in agile software development. If we

go one step deeper into the practices and techniques,

they suggest the use of cards and larges surfaces

(tables and whiteboards) to create and revise plans.

3 RELATED WORK

Over the last years, many commercial and open

source tools have become available to support agile

planning. Liu (2006) identified three categories of

planning support systems: form-based, combined

Wiki- and form-based, and board-based.

Form-based. The majority of tools that support

agile planning belong to this category. Typical

representatives of this category are browser based

and provide forms to store a predefined set of

information, e.g., effort estimates or priority

rankings. Form-based systems provide basic

functionality for creating and deleting as well as

editing and prioritizing project planning artifacts and

can derive supplementary information like total

efforts for iterations or remaining work effort from

existing data. Existing form-based tools comprise

commercial products like Rally (2009), VersionOne

(2009), and ScrumWorks (Danube 2009) as well as

open source products like XPlanner (2009).

Wiki- and Form-based. Tools like MASE (Maurer

2002) (University of Calgary) take the form-based

approach one step further and combine it with

another very popular way to share information

between people. Users can attach Wiki-pages to

stories that can be used to provide additional

information related to a task.

Board-based. This category comprises tools like

CardMeeting (2009), AgilePlanner (Liu 2006),

Distributed AgilePlanner (Morgan 2008), and

MasePlanner (Morgan and Maurer 2006). A

commonality of board-based systems is that they are

all mimicking card based planning to a certain

extent. They provide ways to create, edit, and delete

ICSOFT 2009 - 4th International Conference on Software and Data Technologies

266

cards and visually group those cards to indicate

relationships. CardMeeting attempts to bridge the

gap between browser based systems and physical

card based planning. It displays electronic index

cards in a web browser. It is primarily focused on

the visual aspect of card based planning. It does not

provide the iterations and progress tracking that

other agile planning tools have. AgilePlanner and its

successor Distributed Agile Planner (University of

Calgary) are card based tools for collocated and

distributed agile planning. Synchronous distributed

planning meetings are supported by providing a

shared workspace (displayed on vertical displays

and/or digital tabletops) for creating, organizing, and

editing electronic index cards. Changes made by one

team member become visible immediately on

connected clients all over the world. MasePlanner

(also from University of Calgary) builds on features

from MASE and AgilePlanner and is implemented

as an Eclipse plug-in with web services for remote

connectivity.

ASAP is a board-based agile planning tool

supporting collocated agile teams. The ability to

support well-known agile practices and techniques

such as Crystal Clear’s Blitz Planning and XP’s

Planning Game has played a major role in

determining the features of the tool.

ASAP is developed to run on large interactive

vertical displays. Many of University of Calgary’s

tools have special support for interactive horizontal

displays (such as rotation of cards). According to the

chosen lightweight strategy, it should be easy (and

inexpensive) to run ASAP in existing meeting

rooms. Very few meeting rooms have interactive

horizontal displays (tabletops), while interactive

vertical displays are more common. Commercial

tools like the Tool-Tribe Connector (www.tool-

tribe.dk) offer a simple, portable, and inexpensive

solution that turns any whiteboard into an interactive

surface. This allows ASAP to be used in any

meeting room equipped with a whiteboard.

The development of ASAP is inspired

bytechniques from spatial hypertext (Shipman et al.

2001). This makes the features and interaction in

ASAP different from existing board-based tools.

Task cards are easy to create, manipulate, and

organize. Besides the traditional spatial organization

of task cards on a surface, ASAP provides two

additional organization features – a hierarchical

view of the organization of tasks and subtasks and a

novel visual concept (the separator) used to separate

and group task cards.

4 THE ASAP APPROACH

This section presents ASAP including requirements,

design concepts and features, current status and

future plans, and evaluation.

4.1 Requirements

Based on interactions with local software companies

three overall requirements for agile planning tools

were identified:

• A planning tool should support the work of the

agile team in a manner that resembles the

physical card based approach. A computer tool

like ASAP should not alter a workflow that

works. It should simply support the existing

workflow (in this case board-based planning)

and, if possible, provide additional support for

the individual steps in the workflow enabling

the user to perform the tasks better and/or faster.

• A planning tool should be lightweight offering

only the features that are necessary to solve the

task at hand. There are many examples of tools

that provide a lot more features than necessary

to solve a given task. Let us consider Microsoft

Word. Typical Word users only make use of a

very limited subset of the features in Word (say

10 %) to solve most of their writing tasks (say

90 %). This can result in complex tools that are

difficult to use. The entry barrier becomes

higher for new users. The overhead of using the

tool may outweigh the benefits of the tool.

ASAP goes the other way and provides only the

most essential features for agile planning. A

lightweight planning tool that is intuitive and

easy to use will result in a much lower entry

barrier for new users and will be able to support

most of their planning needs.

• A planning tool should visualize the

consequences of the planners’ actions allowing

them to make informed decisions regarding the

plan. The agile team is in charge of the planning

process. The tool supports the team by using its

computing power to instantly visualize the

consequences of the individual steps in the

planning process.

In particular, two local software companies have

contributed to the generation of the above overall

requirements. Mikro Værkstedet (www.mikrov.dk)

is a small software development company (<50

employees) focusing on educational software. KMD

(www.kmd.dk) is a large software development

company (3000+ employees) focusing primarily on

ASAP: A LIGHTWEIGHT TOOL FOR AGILE PLANNING

267

software for the public sector.

Formal interviews have been conducted with

agile software development team managers at both

places regarding requirements for an agile planning

tool. Earlier versions of ASAP were discussed with

the same team managers to focus the development of

ASAP on the most essential features. Finally, the

team managers are currently using ASAP in ongoing

software development projects using agile practices.

First experiences from the use have been collected

and ASAP is currently being evaluated (see Section

4.4).

A set of functional requirements for ASAP have

been derived based on the overall requirements and

the desire to support existing agile planning

practices and techniques. These requirements are not

surprisingly somewhat overlapping with the agile

planning requirements presented by Liu (2006) and

Morgan (2008).

1. Supporting Agile Planning Objects. Creating,

editing, and deleting task cards are core agile

planning activities.

We have adopted the Crystal

Clear Blitz Planning notation of tasks instead of

user stories.

2. Organizing Agile Planning Objects. The

ability to move task cards around freely and

organize them into iterations and releases are

core agile planning practices.

3. Supporting Multiple Iterations. Agile teams

should be able to make both short term planning

(next iteration) and long term planning (future

iterations and releases).

4. Supporting Hierarchies of Planning Objects.

Breaking down tasks into subtasks is a well-

known strategy for handling complexity (divide

and conquer). Hierarchies also provide a way to

handle large projects with many tasks

(addressing the scalability issue).

5. Visualizing Consequences of Planning

Actions. Visualizing the consequences of the

planners’ actions allows them to make informed

decisions regarding the plan.

6. Supporting Estimation and Tracking. Adding

estimates to tasks cards allows the agile team to

get an overview of the duration of iterations.

Adding task status to Task Cards allows the

agile team to track the status of single tasks as

well as iterations.

7. Managing Team Members and Resources.

Assigning tasks to team members allows agile

teams to plan their resources.

8. Re-using Experiences from Past Planning

Sessions. Access to old planning sessions

allows the team members to include past

experiences in their current planning sessions.

We consider requirements 1 through 5 to be

essential to support agile planning the ASAP way.

Requirements 6 through 8 are also important, but

according to the chosen strategy they will be

provided in a lightweight manner.

4.2 Design Concepts and Features

The concepts used in ASAP are developed based on

the three overall and eight functional requirements

listed above. Figure 1 illustrates a planning session

with physical cards laid out on a table.

Several visual features can be observed in the

figure: The use of task cards, the large surface used

to organize the cards, the organization of cards into

hierarchies, the visual separation of cards, the

location of cards, the proximity of cards, etc. These

observations have influenced the design of concepts

and features in ASAP.

Hierarchy

Card

Separation

Surface

Figure 1: A planning session with physical cards on a

table.

The design of the user interface in ASAP is

based on well-known interaction principles (such as

direct manipulation, drag and drop, and cut and

paste), interaction features (such as menus, toolbars

and shortcut icons), and interaction metaphors

(Windows Explorer style hierarchies and Windows

desktop style surface).

Figure 2 provides a screenshot of the main

window in ASAP consisting of three parts – two

views as well as the menus and toolbar at the top.

The View to the left provides an overview of the

task hierarchy using an interaction metaphor similar

to the one used in Windows Explorer. The View to

the right provides a large surface (Space) on which

task cards can be organized freely using an

interaction metaphor similar to the one used by the

ICSOFT 2009 - 4th International Conference on Software and Data Technologies

268

desktop in Windows. Each central design concept

and tool feature of ASAP is explained below.

The Space (right hand View in Figure 2) is a

well-known concept adopted from spatial hypertext

(Shipman et al. 2001). A Space in ASAP is a large

2D surface used to organize electronic task cards.

The Hierarchy (left hand View in Figure 2)

provides a tree overview of the organization of tasks

and subtasks. The tree root reflects the name of the

planning session, nodes in the tree are tasks

containing subtasks, and leafs in the tree are tasks

with no subtasks. The Hierarchy View and the Space

View are synchronized in the sense that changes

made in one View are instantly reflected in the other

View. There are no limitations to the number of

nested hierarchies. The two Views are separated by a

divider that can be moved left or right to

expand/minimize the Views depending on the users’

preference.

Figure 2: The main window in ASAP.

The Task Card is the basic planning object used

in ASAP. It represents the paper equivalent. It is

overlaid with a grid (3 by 3 cells) in which each cell

is assigned specific meaning. The value of cells can

be changed by the user. Task Cards are created by

making a dragging gesture inside a Space that

resembles the shape of a Task Card. A Task Card is

deleted when pressing the “red cross” in the upper

right hand corner. The icon in the lower right hand

corner is used to create and traverse hierarchies. The

icon can have two different forms. A card with no

subtasks is depicted with an icon similar to an “H”.

If the user clicks the “H” icon, then a new subspace

is created and opened. The user can now add

subtasks in the subspace. A subspace offers exactly

the same functionality as a Space. A card with

subtasks is depicted with a different icon in the

lower right hand corner (see Figure 2). If the user

clicks this icon, then the subspace opens allowing

the user to manipulate the subtasks. We use the term

Space to cover both the top level Space and the

subspaces.

Task Cards can be configured using a Card

Editor. Since the optimal Task Card design may

differ depending on the project team and planning

task, a Card Editor allows for configuration

(personalization) of the Task Card layout. By default

the cell in the upper left hand corner is named

Person and is of type [PERSON], the cell in the

lower left hand corner is named Estimate and is of

type [TIME], and the cell in the middle is named

Task and is of type [TASK]. The Person and

Estimate cells are used for estimates and tracking

and for handling team members and resources.

A Separator (red vertical bar) is used to group

vertically dependent Task Cards visualizing the

horizontal separation of dependencies (e.g., a time

line). Separators are created by making a dragging

gesture inside a Space that resembles the shape of a

Separator. Separators can be assigned a name

(description), a date, and a type. Currently, the

following types of Separators exist: Separation,

iteration, walking skeleton, release, and milestone.

The Separator is a novel visual structuring concept

that is introduced to support the planning task by

visualizing dependencies and groupings among Task

Cards.

The Space is immediately parsed by a Spatial

Parser every time a change occurs. The algorithms

parsing the Separator(s) sort them according to their

position, and then apply methods to detect Task

Cards to the left, to the right, and between two

Separators. Spatial parsing is done along the y-axis

clarifying vertical dependencies. The algorithms

parse the Task Cards grouped together by

Separators, according to their y-coordinates. The

Card with the lowest y value is identified as the first

task in the grouping (e.g., iteration) and so forth. The

concept of a spatial parser is a well-known concept

adopted from spatial hypertext (Shipman et al.

2001).

Figure 3: The auto-generated Estimates View.

The Spatial Parser automatically generates

Views that are relevant to the planning task. The

generated Views visualize the consequences of the

planners’ actions. The Spatial Parser can currently

generate two types of Views. The Estimates View

ASAP: A LIGHTWEIGHT TOOL FOR AGILE PLANNING

269

(Figure 3) is auto-generated based on the layout of

Task Cards in the Space (and subspaces), the time

estimate of Task Cards, and the position of

Separators in the Space (and subspaces). When a

Task Card or Separator is moved or when a time

estimate is changed, the Estimates View is

immediately updated to show the revised Plan. The

time line at the top indicates the number of planning

units (hours, half days, or days) assigned to a task.

The cell of type TIME in the Task Card holds the

assigned time estimate of a task.

The Team Members View (Figure 4) is auto-

generated based on the cells of type PERSON and

TIME in the Task Card. The Team Members View

allows the names of team members to be added.

Once names are added, each task can be assigned to

a team member by updating the cell of type

PERSON. The View also shows the estimate of each

task as well as the total estimate of the tasks

assigned to a person. The Team Members View is

instantly updated when a task has been assigned to a

team member and when an estimate has been

changed.

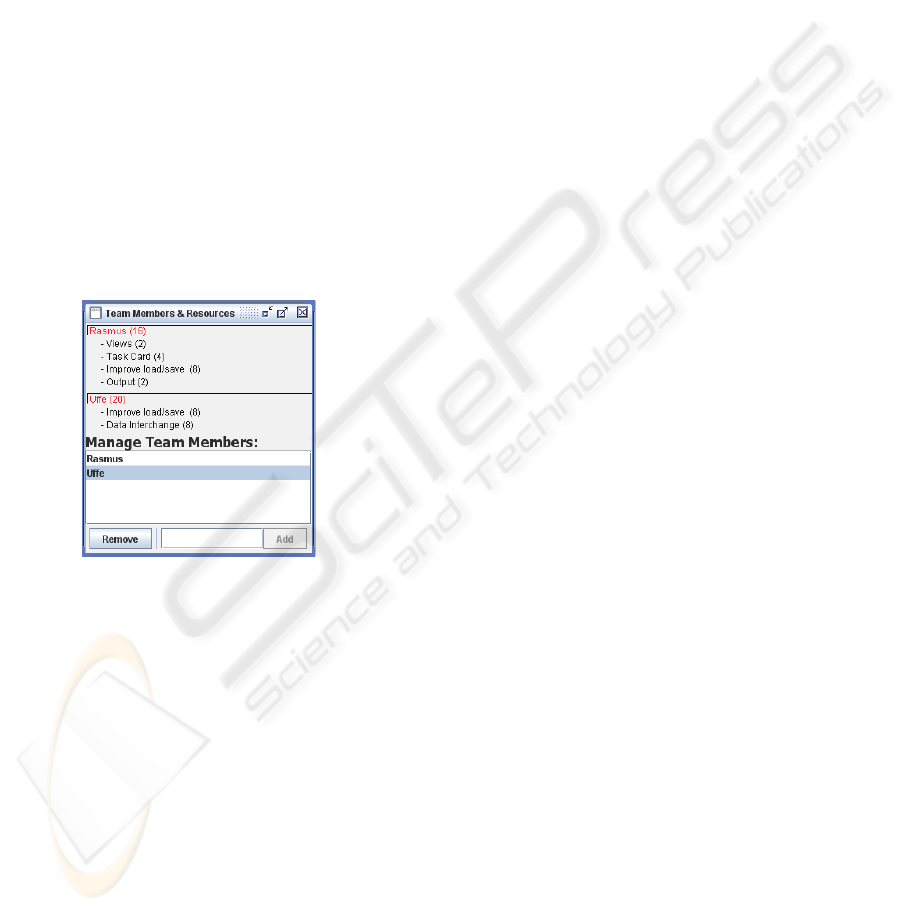

Figure 4: The auto-generated Team Members View.

A Planning Session is something that is not

normally finished in one go; most often, there is a

need to revise an existing plan. This implies the need

for storing Planning Sessions and continuing

(revising) them at a later time. ASAP allows

Planning Sessions to be stored and opened again

later. ASAP defines its own file type (*.psd –

planning session data) for this purpose. This

functionality is available both in the “File” menu

and on the toolbar through shortcut icons.

Plans can also be exported to XML. Visual

objects are serialized into an XML string which can

be saved in a text file. The XML format contains

information about Separators and Task Cards

including a unique ID, cell information, card

location, card size, font size, and other font

information. Information about cells, their type and

location is also stored. The use of XML as an

interchange format makes it possible to transform

the plan generated in ASAP into other formats that

can be imported by other agile planning tools or

third-party project management applications.

Finally, plans can be printed – either on paper

or to a PDF file. It is possible to print a single View

(i.e., current Space or Estimates View). A full print

of the plan consists of the following parts:

• An overview of the Task Cards in each Space –

the hierarchy (tree structure) is traversed and

printed in a depth-first manner: top Space, all

subspaces of the first Task Card, all subspaces

of the second Task Card, etc.

• An overview of the Estimates (as seen in the

Estimates View).

• An overview of the Team Members and their

assignments (as seen in the Team Members

View).

• A page for each team member with a list of

assigned tasks.

4.3 Current Status and Future Work

The current version of ASAP (March 2009) fulfills

most of the identified functional requirements for an

agile planning tool:

Requirements 1-5: Fully Supported. All the

desired features are supported.

Requirements 6-7: Partly Supported. Many of the

desired features are supported. ASAP supports

estimation and management of team members.

Requirement 8: Partly Supported. To some

extent, this feature is already available in the current

version. It is possible to load an old planning session

into ASAP and reuse it as a starting point for a new

planning session. In this way, experiences from an

earlier project can be reused.

Our immediate future work plans aim to fulfill

all the functional requirements:

• Estimation and Tracking. We plan to add

lightweight support for tracking (Cohn 2006).

• Management of Team Members and

Resources. We plan to add lightweight support

for management of resources.

• Sessions. We plan to add an additional level of

support allowing reuse from multiple past

planning sessions.

We also plan to investigate the following issues

in relation to ASAP:

ICSOFT 2009 - 4th International Conference on Software and Data Technologies

270

• Interchange. We consider interfacing to

existing project management tools (i.e.,

Microsoft Project) as well as existing

commercial agile planning tools.

• Collaboration. Currently we only provide

support for collocated meetings. We consider to

provide support for distributed planning

meetings also.

• History. We consider providing a history

feature like the one available in VKB (Shipman

et al. 2001). This would allow for unlimited

undo of actions as well as scrolling back in

history and possibly explore alternate planning

steps – see VKB history toolbar below.

4.4 Evaluation

ASAP has been developed to support agile planning

practices and techniques from well-known software

development methods. We have previously shown

(Petersen and Wiil 2008) that an earlier version of

ASAP (January 2008) can support the activities of

the Blitz Planning technique from the Crystal family

(Cockburn 2005). The current version is developed

to provide support for a broader set of planning tasks

as specified in the software development methods

reviewed in Section 2.

ASAP is developed as a lightweight planning

tool providing only the most essential features for

agile planning. Features are provided in an

independent manner that allows the planners to only

use the features that they need for the task at hand.

Features in ASAP can be divided into two

categories: basic features provided by the Space and

Hierarchy Views and additional features provided by

the Estimates and Team Members Views. Planners

engaged in simple planning tasks may only need the

basic features provided by the Space View. More

complex planning tasks require the use of additional

Views. Thus, planners only “pay” for what they use

in terms of tool complexity. There is no additional

overhead for features that are not being used.

ASAP is currently being used and evaluated in

software projects conducted at local software

companies.

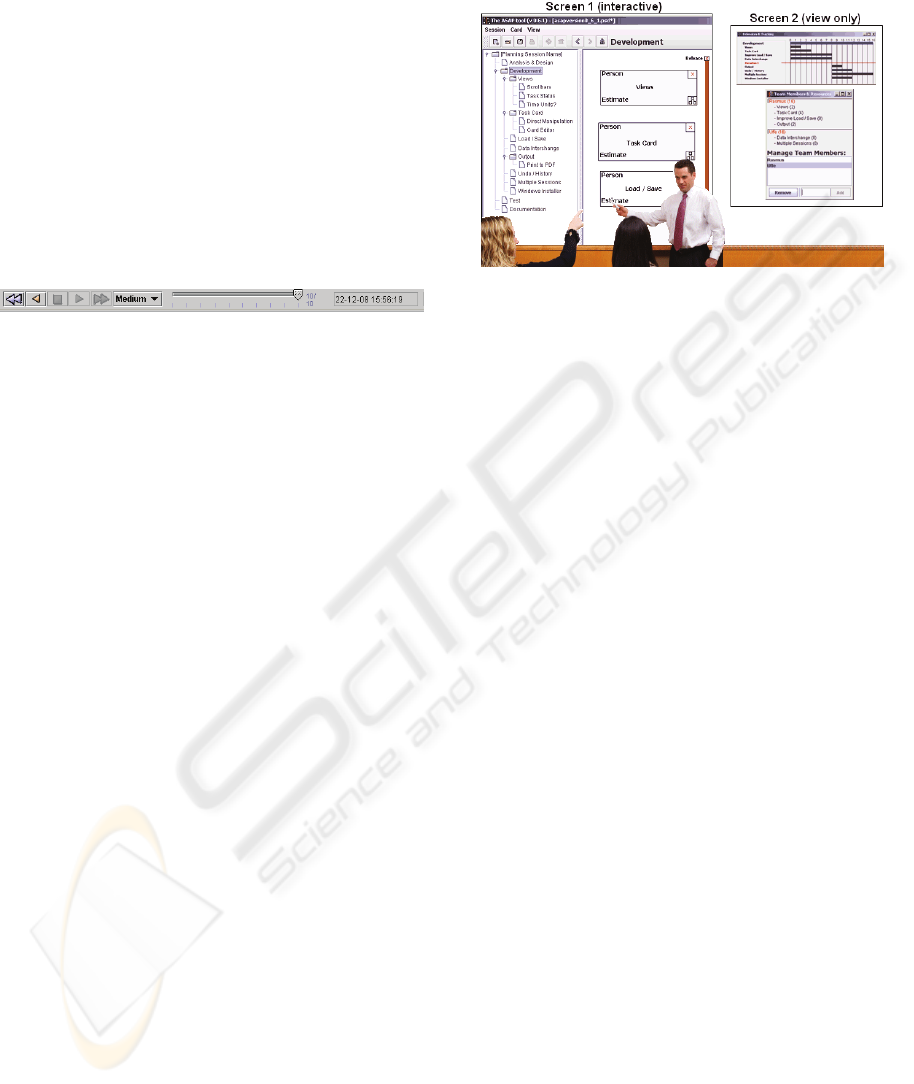

Figure 5 depicts a typical set up of ASAP in

planning sessions at the local software companies.

The main window of ASAP (providing the Space

and Hierarchy Views) is displayed on a large

interactive surface (e.g., a SMART Board

)

allowing the software team members to jointly plan

and interact with the planning objects. The

additional Views (Estimates and Team Members)

allowing the team members to instantly see the

consequences of their actions are displayed on a

Figure 5: Typical use of ASAP in a planning session.

separate screen.

The purpose of the evaluations is to explore the

borders of the applicability of our lightweight

approach to agile planning. Projects are monitored

with respect to project size and the required feature

intensity. We wish to find out if there is a limit to the

size of projects that ASAP can support (primarily in

terms of numbers of tasks). We also wish to find out

what features are being used in what types of

projects. Finally, we wish to find out if the features

provided by ASAP are sufficient for most agile

planning purposes.

Evaluations are still ongoing. However, first

results and feedback is positive and encouraging as

indicated below by statements from end users:

• “It is a good idea to base the interaction in

ASAP on well known concepts. The tool is

intuitive and easy to use.”

• “Plans are faster to make with ASAP than our

previous method. ASAP supports an effective

planning process.”

• “We believe that the plans generated with

ASAP are better than our usual plans. Plans are

easy to store, revise, and distribute.”

• “We always keep an overview of the plan

visible in the project room. It helps the team

members in their daily work.”

Thus, we are confident that the chosen

lightweight strategy turns out to be successful. We

have also received suggestions for improving the

tool:

• “We would like to track the progress of the

individual tasks and see the estimates of the

remaining time to complete the task.”

ASAP: A LIGHTWEIGHT TOOL FOR AGILE PLANNING

271

As mentioned in Section 4.3, this functionality

is already under development and will be part of

the next version.

• “It would be helpful to be able to create task

cards in different colors.”

• “A facility allowing the user to zoom in and out

of the spaces would be useful.”

The latter two features (colored task cards and

zooming) are already known from existing agile

planning tools. We have already considered both in

the past, but will do so again due to the comments

from the end users. We are trying to find the right

balance of features as part of the chosen lightweight

strategy – what features need to be there and what

can be omitted?

5 CONCLUSIONS

The ASAP approach to agile planning has been

developed based on different types of analysis work:

• Involving End Users. We have interacted with

software companies that practice agile planning

to get their input.

• Exploring Methods. We have explored

planning practices and techniques from several

agile software development methods.

• Studying Related Work. We have found

inspiration from existing agile planning tools.

Together, this resulted in three overall and eight

functional requirements that have guided the

development. Currently, most of the envisioned

features are supported and the tool is being used and

evaluated by local software companies.

ASAP is inspired by previous work on the use of

spatial hypertext to support the knowledge

management task known as information analysis

(Shipman et al. 2001). ASAP is based on the

Construct Space Tool (Wiil and Hicks 2001). The

work has so far resulted in two main contributions:

• We have developed a board-based agile

planning tool to help software teams plan their

projects. The tool offers only the features that

are necessary to solve the task at hand according

to the chosen lightweight strategy.

• Agile planning is viewed as a complex

knowledge management task. Specific features

have been developed to support the planning

requirements. The work has resulted in novel

ideas such as the visual Separator concept, the

Hierarchy View, and the use of the Spatial

Parser to auto-generate Views that are relevant

to the planning process.

We believe that the inspiration from several

fields combined with the chosen lightweight

approach has resulted in a tool that is well suited for

agile planning.

REFERENCES

CardMeeting. 2009. CardMeeting (Online:

http://www.cardmeeting.com).

Cockburn, A. 2005. Crystal Clear – A Human-Powered

Methodology for Small Teams. Addison Wesley.

Cohn, M. 2006. Agile Estimation and Planning. Prentice

Hall.

Danube. 2009. ScrumWorks (Online:

http://www.danube.com/scrumworks/basic).

Larman, C. 2004. Agile & Iterative Development – A

Manager’s Guide. Addison Wesley.

Liu, L. 2006. An Environment for Collaborative Agile

Planning. M.Sc. Thesis, Department of Computer

Science, University of Calgary.

Maurer, F. 2002. Supporting Distributed Extreme

Programming. Proceedings of XP/Agile Universe

2002, (Chicago, IL, August), pp. 13-22. LNCS 2418,

Springer.

Morgan, R. 2008. Distributed AgilePlanner: A Card Based

Planning Environment for Agile Teams. M.Sc. Thesis,

Department of Computer Science, University of

Calgary.

Morgan, R., and Maurer, F. 2006. MasePlanner: A Card-

Based Distributed Planning Tool for Agile Teams. In

Proceedings of ICGSE 2006, (Florianopolis, Brazil ,

October) pp. 132-138. IEEE Computer.

Morgan, R., Walny, J. Kolenda, H., Ginez, E., and Maurer

F. 2007. Using Horizontal Displays for Distributed &

Collocated Agile Planning. In Proceedings of XP

2007, (Como, Italy, June), pp. 38-45. LNCS 4536,

Springer.

Petersen, R. R, and Wiil, U. K. 2008. ASAP: A Planning

Tool for Agile Software Development. In Proceedings

of Hypertext 2008, (Pittsburgh, PA, June), pp. 27-32.

ACM Press.

Rally Software. 2009. Rally’s Agile Lifecycle

Management Solutions (Online:

http://www.rallydev.com/products.jsp).

Shipman, F. M., Hsieh, H, Maloor, P., and Moore, J. M.

2001. The Visual Knowledge Builder: A Second

Generation Spatial Hypertext, In Proceedings of

Hypertext 2001, (Aarhus, Denmark, September), pp.

113-122. ACM Press.

VersionOne. 2009. Agile Project Management Tools

(Online: http://www.versionone.com/products.asp).

Wiil, U. K., and Hicks, D. L. 2001. Tools and Services for

Knowledge Discovery, Management and Structuring

in Digital Libraries. In Proceedings of CE 2001,

(Anaheim, CA, August), pp. 580-589.

XPlanner. 2009. XPlanner Overview (Online:

http://www.xplanner.org/index.html).

ICSOFT 2009 - 4th International Conference on Software and Data Technologies

272
