RECOGNITION AND GENERATION OF EMOTIONS IN

AFFECTIVE e-LEARNING

Efthymios Alepis, Maria Virvou

Department of Informatics, University of Piraeus, 80 Karaoli & Dimitriou St., 18534, Piraeus, Greece

Katerina Kabassi

Department of Ecology and the Environment, Technological Educational Institute of the Ionian Islands

2 Kalvou Sq., 29100 Zakynthos, Greece

Keywords: e-Learning, Affective Interaction, Bi-modal interaction, Generation of emotions, OCC theory, Decision

making theories, Educational agents.

Abstract: This paper presents an educational system that incorporates two theories namely SAW and OCC in order to

provide an improved affective e-learning environment. Simple additive Weighting (SAW) is used for the

recognition of possible emotional states of the users, while the cognitive theory of emotions (OCC) is used

for the generation of emotional states by educational agents. The system bases its inferences about users’

emotions on user input evidence from the keyboard and the microphone, as two commonly used modalities

of human-computer interaction. The actual combination of evidence from these two modes of interaction

has been performed based on a sophisticated inference mechanism for emotions and a multi-attribute

decision making theory. At the same time, user action evidence from the two modes of interaction also

activates the cognitive mechanisms of the underlying OCC model that proposes emotional behavioural

tactics for educational agents who act for pedagogic purposes. The presented educational system provides

the important facility to authors to develop tutoring systems that incorporate emotional agents who can be

parameterized so as to reflect their vision of teaching behaviour.

1 INTRODUCTION

One of the major scientific challenges is the

exploration of how humans interact with their

environment and with each other. Perceiving,

learning and adapting to the world around us are

commonly labelled as intelligent behaviour (Pantic

& Rothkrantz, 2003). In many situations human-

computer interaction may be improved by

multimodal emotional interaction in real time

(Jascanu, 2008), (Bernhardt, 2008). Affective

computing has recently become a very important

field of research because it focuses on recognizing

and reproducing human feelings within human

computer interaction. Human feelings are considered

very important but only recently have started being

taken into account in software user interfaces. Thus,

the area of affective computing is not yet well

understood and needs a lot more research to reach

maturity.

In the last decade, education has benefited a lot

from the advances of Web-based technology.

Indeed, there have been many research efforts to

transfer the technology of ITSs and authoring tools

over the Internet. Past reviews (Lane, 2006,

Brusilovsky, 1999) have shown that all well-known

technologies from the areas of ITS have already

been re-implemented for the Web. Some important

assets include platform-independence and the

practical facility that is offered to instructors of

authoring e-learning courses at any time and any

place. However, this independence from real

instructors and classrooms may cause emotional

problems to students who may feel deprived of the

benefits of human-human interaction. This may

affect the educational process in a negative way. A

remedy for these problems may lie in rendering

human-computer interaction more human-like and

affective in educational software. To this end, the

incorporation of speaking, animated educational

agents in the user interface of the educational

application can be very important.

273

Alepis E., Virvou M. and Kabassi K. (2009).

RECOGNITION AND GENERATION OF EMOTIONS IN AFFECTIVE e-LEARNING.

In Proceedings of the 4th International Conference on Software and Data Technologies, pages 273-280

DOI: 10.5220/0002242802730280

 SciTePress

Indeed, the presence of animated, speaking

educational agents has been considered beneficial

for educational software (Johnson et. al., 2000,

Lester et. al., 1997). Instructors that may use

educational authoring tools should not necessarily be

computer experts and should be helped to develop

sophisticated educational applications in an easy and

cost-effective way (Virvou & Alepis, 2005).

Affective computing may be incorporated into

sophisticated educational applications by providing

adaptive interaction based on the user’s emotional

state. Regardless of the various emotional

paradigms, neurologists/psychologists have made

progress in demonstrating that emotion is at least as

and perhaps even more important than reason in the

process of decision making and action deciding

(Leon et al., 2007). Moreover, the way people feel

may play an important role in their cognitive

processes as well (Goleman, 1995).

Indeed, Picard points out that one of the major

challenges in affective computing is to try to

improve the accuracy of recognizing people’s

emotions (Picard, 2003). Ideally, evidence from

many modes of interaction should be combined by a

computer system so that it can generate as valid

hypotheses as possible about users’ emotions. It is

hoped that the multimodal approach may provide not

only better performance, but also more robustness

(Pantic & Rothkrantz, 2003).

In previous work, the authors of this paper have

implemented and evaluated with quite satisfactory

results from the users’ perspective, other educational

systems with emotion recognition capabilities

(Alepis et al. 2007). As a next step we have

extended our affective educational system by

employing fully programmed educational agents that

are able to express a variety of emotions.

Educational agents may be parameterized in

many aspects, the way they speak, the pitch, speed

and volume of their voice, their body-language, their

facial expressions and the content of their messages.

Educational agents are able to express specific

pedagogical emotional states by the incorporation of

the OCC (Ortony et. al., 1990) model. The resulting

educational system incorporates an affective

authoring module that relies on the OCC theory. The

system uses the OCC cognitive theory of emotions

for modelling possible emotional states of users-

students and proposing tactics to the instructors for

improving the interaction between the educational

agent and the student while using the educational

application. Through the incorporation of the OCC

model, the system may suggest that the tutoring

educational agent should express a specific

emotional state to the student for the purpose of

motivating her/him while s/he learns. Consequently,

the educational agent may become a more effective

instructor, reflecting the instructors’ vision of

teaching behaviour.

However, as yet there are no authoring tools that

provide parameterization in user interface

components such as speech-driven, animated

educational agents. The present educational system

provides the facility to authors to develop tutoring

systems that incorporate speaking, animated

emotional agents who can be parameterized by the

authors-instructors in a way that reflects their vision

of teaching behaviour in the user interface of the

resulting applications.

2 OVERVIEW OF THE SYSTEM

The educational application is installed either on a

public computer where both students and instructors

have access, or alternatively each student may have

a copy on his/her own personal computer. The

underlying reasoning of the system is based on the

student modelling process of the educational

application. The system monitors and records all

students’ actions while they use the educational

application and tries to diagnose possible problems,

recognise goals, record permanent habits and errors

that are made repeatedly. Help is provided through

the tutoring agents that not only support the

students’ educational process, but also interact

affectively with the students by expressing

emotional states. The incorporated model that

controls the tutoring agents’ behaviour is described

in section 4. The inferences made by the system

concerning the students’ characteristics are recorded

in their student model. Hence, the system offers

advice adapted to the needs of individual students.

The system’s database is used to hold all the

necessary information that is needed for the

application to run and additionally to keep analytical

records of the performance of all the students that

use the educational application.

While using the educational application from a

desktop computer, students are able to retrieve

information about a particular course. In the

example of Figure 1 a student is using the e-learning

system for a medical course about anatomy. The

information is given in text-form while at the same

time an animated agent reads it using a speech

engine. Students may choose specific parts of the

theory and the available information is retrieved

from the system’s database.

Figure 1 illustrates the main form of the

educational application on a desktop computer.

ICSOFT 2009 - 4th International Conference on Software and Data Technologies

274

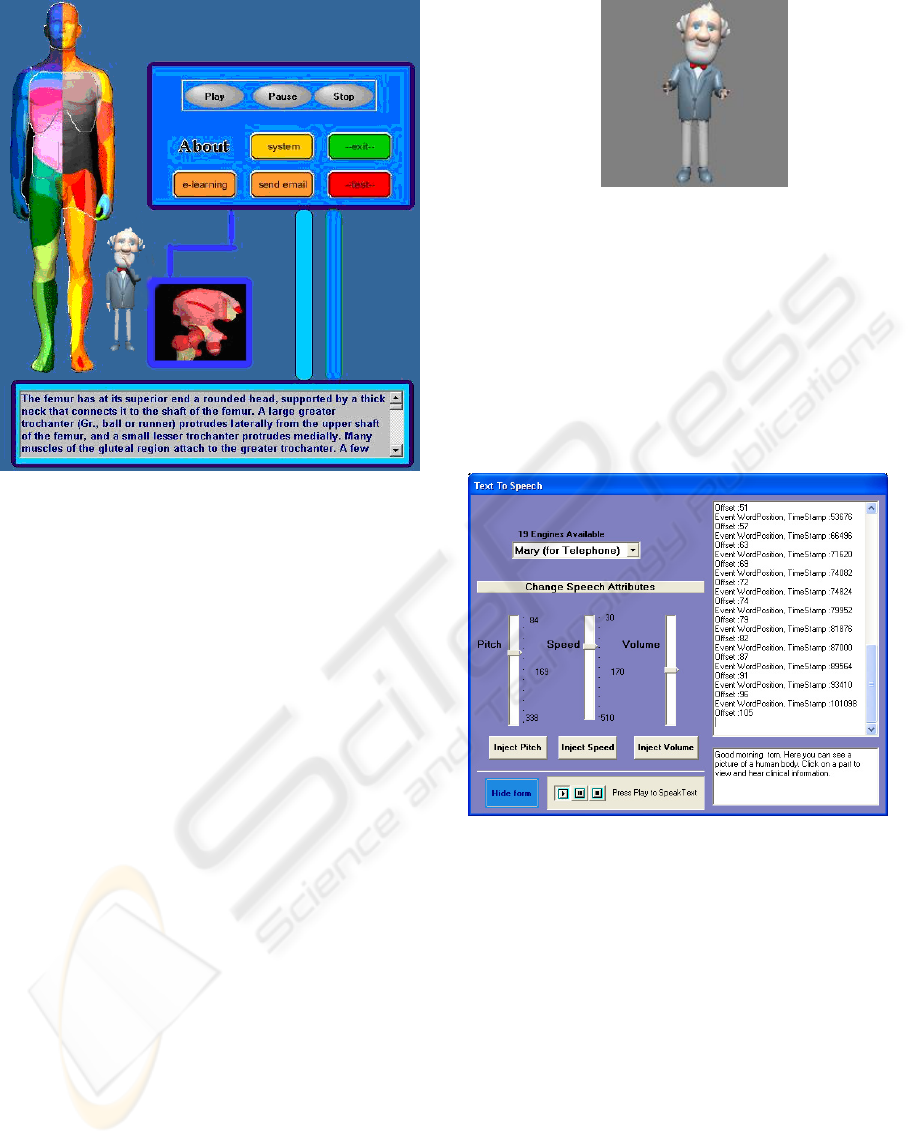

Figure 1: The main form of the application with the

presence of the tutoring agent.

Similarly, students are able to take tests that

include questions, answers, multiple-choice, etc,

concerning specific parts of the theory. The tutoring

agent is also present in these modes, in order to

make the interaction more human-like and to assist

the student by providing pedagogical assistance

when it is needed.

3 OVERVIEW OF THE

EDUCATIONAL AGENTS

The educational applications that result from the

authoring process described in this paper incorporate

a tutoring agent that is a cartoon-doctor. The

cartoon-doctor is a fully programmable agent who

can move around the tutoring text and can show

parts of the theory in real time (Figure 2). It has also

incorporated features of human body-language. The

educational agent may show patience while the

student reads the theory, boredom if the student is

not responding to the system, wonder if the student

makes an unexpected move, etc. The cartoon-

doctor’s behaviour is programmatically controlled

by an underlying mechanism that relies on the OCC

theory, described in the next section.

Instructors may choose from 27 available speech

engines that the system incorporates. These speech

engines are synthesisers that produce different

voices. The system also offers the facility of parame-

Figure 2: The cartoon-doctor.

terising these voices by changing the pitch, speed

and volume, as illustrated in figure 3. Thus, the

resulting tutoring system may use the voices

differently in different contexts to show enthusiasm,

when the student is doing particularly well, to

imitate whisper, when it judges that the student

needs help, or even to show anger when the student

is consistently careless and does not pay any

attention to the educational system.

Figure 3: Setting parameters for the voice of the tutoring

agent.

In order to produce an “angry” tone of speaking for

the animated agent, as an example, instructors may

increase the pitch the speed and the volume of the

speech engine. This may also be achieved by

selecting an appropriate speech engine from the ones

that are available. Additionally, the instructor may

use the form of Figure 4 that provides more specific

and detailed controls. In this form instructors have

also the ability to set the exact pronunciation of a

word by using phonemes.

RECOGNITION AND GENERATION OF EMOTIONS IN AFFECTIVE e-LEARNING

275

Figure 4: Detailed controls for the voice of the tutoring

character.

The system incorporates built in tools, to which only

the instructors have access. These tools help the

instructors modify the behaviour of the characters

further, with the agents’ emotion generation facility

as the final objective. Not only can the instructor

command the assistant to say something under

certain circumstances, but s/he can also add

commands in the text that will be spoken, in a way

that the agent may seem to express a specific

emotional state. These commands are understood by

the system and are interpreted into changing speech

attributes, body movements, facial expressions, etc.

4 EMOTION RECOGNITION

AND EMOTION GENERATION

4.1 Recognizing Emotional States

A user monitoring component has been used to

capture all user input data during the interaction with

the educational application. The monitoring

component is illustrated in figure 5. Input data

consist of audio information that has been collected

through the keyboard, as well as audio information

that has been collected through the microphone.

The analysis of the data collected by the

monitoring component, revealed some statistical

results that associated user input actions through the

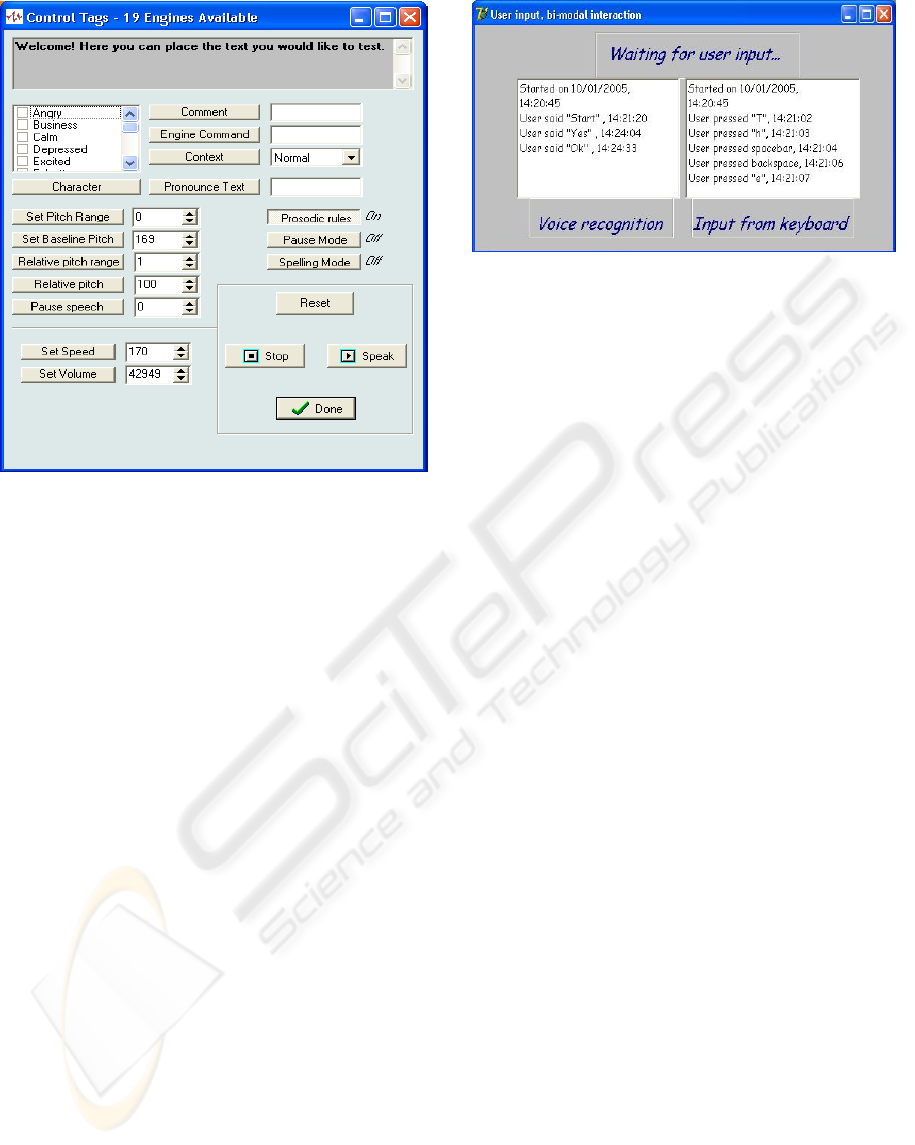

Figure 5: Snapshot of operation of the user modelling

component.

computer’s keyboard and microphone with possible

emotional states of the users. More specifically,

considering the keyboard we have the following

categories of user actions: a) user types normally b)

user types quickly (speed higher than the usual

speed of the particular user) c) user types slowly

(speed lower than the usual speed of the particular

user) d) user uses the “delete” key of the keyboard

often e) user presses unrelated keys on the keyboard

f) user does not use the keyboard.

Considering the users’ basic input actions

through the computer’s microphone we have 7

cases: a) user speaks using strong language b) users

uses exclamations c) user speaks with a high voice

volume (higher than the average recorded level) d)

user speaks with a low voice volume (low than the

average recorded level) e) user speaks in a normal

voice volume f) user speaks words from a specific

list of words showing an emotion g) user does not

say anything.

Therefore, whenever an input action is detected

the system records a vector of input actions through

the keyboard (k1, k2, k3, k4, k5, k6) and a vector of

input actions through the microphone (m1, m2, m3,

m4, m5, m6, m7).

All the above mentioned attributes are used as

Boolean variables. In each moment the system takes

data from the bi-modal interface and translates them

in terms of keyboard and microphone actions. If an

action has occurred the corresponding attribute takes

the value 1, otherwise its value is set to 0. Therefore,

for a user that speaks with a high voice volume and

types quickly the two vectors that are recorded by

the system are: k= (0, 1, 0, 0, 0, 0) and m= (0, 0, 1,

0, 0, 0, 0). These data are further processed by the

decision making model for determining the emotion

of the user.

A previous empirical study revealed the attributes

that are taken into account when evaluating different

emotions (Alepis & Virvou, 2006). However, these

ICSOFT 2009 - 4th International Conference on Software and Data Technologies

276

attributes were not equally important for evaluating

different emotions. In this study human experts

resulted that one input action does not have the same

weight while evaluating different emotions.

Therefore, the weights of the attributes (input

actions) were calculated in order to be used by the

decision making model.

For the evaluation of each alternative emotion the

system uses SAW (Fishburn, 1967, Hwang & Yoon,

1981) for a particular category of users. According

to SAW, the multi-attribute utility function for each

emotion in each mode is estimated as a linear

combination of the values of the attributes that

correspond to that mode.

The SAW approach consists of translating a

decision problem into the optimisation of some

multi-attribute utility function

defined on

The decision maker estimates the value of function

)(

for every alternative

and selects the

one with the highest value. The multi-attribute utility

function

can be calculated in the SAW method

as a linear combination of the values of the n

attributes:

()

UX wx

iij

∑

(1)

where X

is one alternative and x

is the value of the i

attribute for the X

alternative.

In view of the above, for the evaluation of each

emotion taking into account the information

provided by the keyboard is done using formula 2.

(2)

Similarly, for the evaluation of each emotion taking

into account the information provided by the second

mode (microphone) is done using formula 3.

(3)

is the probability that an emotion has

occurred based on the keyboard actions and

is the probability that refers to an emotional state

using the users’ input from the microphone

and

take their values in [0,1].

In formula 1 the k’s from k1 to k6 refer to the six

attributes that correspond to the keyboard. In

formula 2 the m’s from m1 to m7 refer to the seven

attributes that correspond to the microphone. The

w’s represent the weights of the attributes. These

weights correspond to a specific emotion and to a

specific input action and were calculated in the pre

mentioned empirical study.

In cases where both modals (keyboard and

microphone) indicate the same emotion then the

probability that this emotion has occurred increases

significantly. Otherwise, the mean of the values that

have occurred by the evaluation of each emotion

using formulae 1 and 2 is calculated.

The system compares the values from all the

different emotions and selects the one with the

highest value of the multi-attribute utility function.

The emotion that maximises this function is selected

as the user’s emotion.

4.2 Agents that Act Emotionally

Through the incorporation of the OCC theory, the

system may suggest that the educational agent

should express a specific emotional state to the

student for the purpose of motivating her/him while

s/he learns. Accordingly, the agent becomes a more

effective instructor.

In OCC theory, emotional states arise from

cognitive models that measure positive and negative

reactions of users to situations consisting of events,

agents and objects. Correspondingly, events match

user goals that are key elements in the OCC theory.

Table 1: Variables for calculating the intensity of events

for the OCC theory.

Event variables

•

a mistake (the user may receive an error message

by the application or navigate wrongly)

• many consecutive mistakes

• absence of user action for a period of time

• action unrelated to the main application

• correct interaction

• many consecutive correct answers (related to a

specific test)

• many consecutive wrong answers (related to a

specific test)

• user aborts an exercise

• user aborts reading the whole theory

• user requests help from the agent

• user takes a difficult test

• user takes an easy test

• user takes a test concerning a new part of the

theory

• user takes a test from a well known part of the

theory

44332211

11111

kwkwkwkwem

kekekekeke

+++=

44332211

11111

mwmwmwmwem

mememememe

+++=

6655

kwkw

keke

776655

111

mwmwmw

mememe

RECOGNITION AND GENERATION OF EMOTIONS IN AFFECTIVE e-LEARNING

277

Table 2: Variables for user actions through the

microphone and the keyboard.

Variables of user actions throu

h ke

board

and microphone

• user types normally

• user types quickly (speed higher than the

usual speed of the particular user)

• user types slowly (speed lower than the usual

speed of the particular user)

• user uses the backspace key often

• user hits unrelated keys on the keyboard

• user does not use the keyboard

• user speaks words from a specific list of

words showing an emotion

• user does not say anything

• user speaks with a low voice volume (lower

than the average recorded level)

• user speaks in a normal voice volume

• user speaks with a high voice volume (higher

than the average recorded level)

Tables 1 and 2 illustrate representative subsets of

intensity variables concerning user input actions and

application events that are used by the system’s

adapted OCC emotion model in order to propose an

emotional state as a educational tactic for the

animated agent. The variables illustrated in tables 1,

2 have been specified in our own implementation

and adaptation of OCC in our educational

application. The application’s user interface is multi-

modal, thus it is possible for the system to monitor

and record user actions such as speed of typing

through the keyboard as well as low voice volume

through the microphone etc. The proposed authoring

system integrates the OCC model by comprising a

subset of five basic emotional states, namely

happiness, sadness, anger, fear and surprise. Each

one of the above mentioned five emotional states

can be synthesized by the animated agent, as it is

illustrated in figure 6.

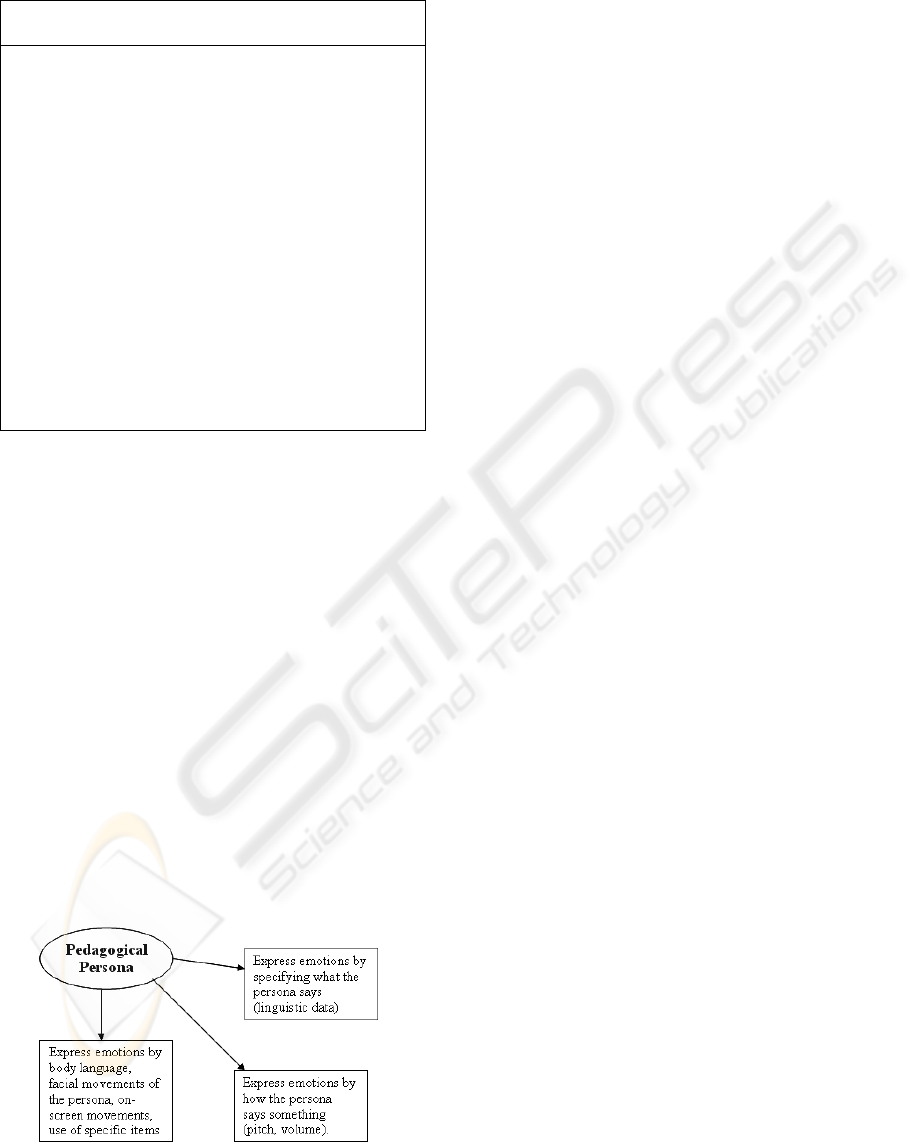

Figure 6: Events-Actions of the agent for the synthesis of

an emotional state.

As an example we describe a situation where a

student is taking a multiple choice test after having

read the corresponding theory of that lesson. The

“default” goal for each user is to succeed in

answering correctly the questions of each test. In our

example we assume that the difficulty level of the

test is high and the student has already answered a

couple of questions correctly. At this point in

accordance with the system’s incorporated OCC

model the student is pleased that s/he has answered

correctly the previous questions and is also

experiencing hope that s/he will continue answering

correctly. The corresponding intensity variables for

this event are illustrated in table 1 as “many

consecutive correct answers (related to a specific

test)” and “user takes a test concerning a new part of

the theory”. The second variable indicates that

succeeding in such a test is difficult, thus can invoke

admiration by the educational agent. The user’s hope

of continuing to answer correctly may then be

encouraged by the educational agent by expressing

admiration for the student’s success and encouraging

her/him to continue answering successfully. In this

case the student has a “goal” for answering

correctly. If the student continues her/his successful

course the educational agent will express happiness,

by saying something in a “happy voice” and/or by

smiling or doing a positive gesture. This behaviour

by the agent results by the analysis of the event

variables of the interaction as well as by the goals

both the student and the agent have set. The

incorporation of the OCC theory provides the

reasoning mechanism in deciding which emotional

state is more appropriate for the agent in each

sequence of events and user actions. Finally each

one of the possible OCC states are translated by

means of the five basic emotions the agent can

express (for example confirmed hope, joy and

admiration are OCC states that the agent expresses

as happiness). Intensity variables as well as user and

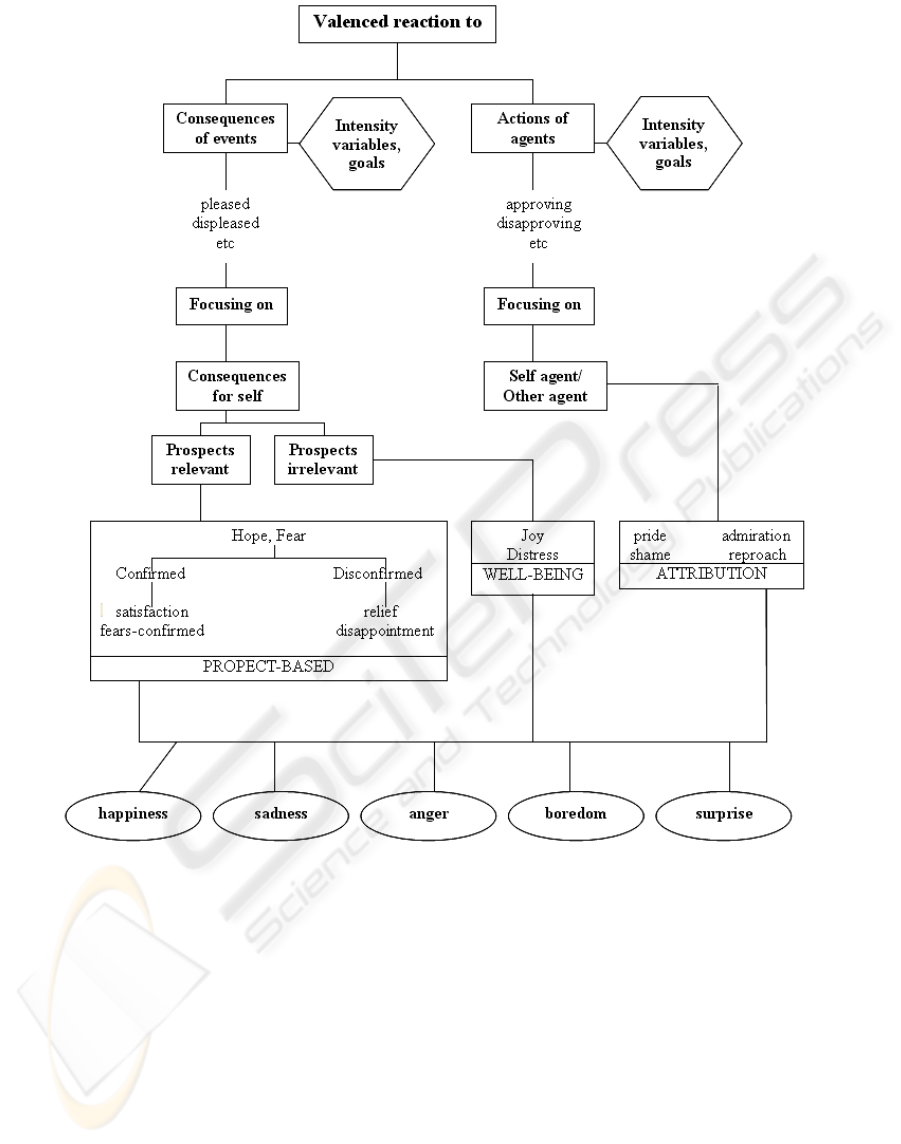

agents goals are illustrated in our simplified OCC

model in figure 7.

At this point we may also describe a situation

with a negative emotional state issue. A student has

already made many mistakes (consecutive mistakes

event variable) in taking a test concerning parts of

the theory that s/he is expected to know well. The

educational agent makes a remark about this,

advising her/him to be more attentive. More

consecutive mistakes will trigger the state of

reproach for the educational agent and finally will

conclude in the expression of the agent’s anger or

sadness. In both cases (positive and negative) other

event variables may be triggered at the same time.

ICSOFT 2009 - 4th International Conference on Software and Data Technologies

278

Figure 7: Incorporation of the OCC model for specifying the agent’s emotional state.

For example, if a user spends time without using the

educational application, the “absence of user action

for a period of time” variable is triggered and the

OCC model of the agent may suggest the expression

of the agent’s boredom. In addition, if the user

aborts taking a test this would trigger the “user

aborts an exercise” variable and the agent is going to

express sadness or anger.

5 CONCLUSIONS AND FUTURE

WORK

In this paper we have described how two theories,

one from the field of decision making and one from

the field of cognitive psychology, have been adapted

and incorporated into an affective educational

system. More specifically, we describe the

implementation of an affective educational

application that recognizes students’ emotions based

on keyboard and microphone input actions and

proposes tactics for the behaviour of educational

agents based on pedagogical procedures. The

resulting educational application employs a bi-modal

user interface.

It is among our future plans to evaluate the

affective educational system in order to determine

the degree of the system’s usefulness for the

students and also for their instructors. Furthermore,

we intend to enrich multi-modal interaction by

RECOGNITION AND GENERATION OF EMOTIONS IN AFFECTIVE e-LEARNING

279

incorporating a third mode of interaction, visual this

time (Stathopoulou & Tsihrintzis, 2005).

ACKNOWLEDGEMENTS

Support for this work was provided by the General

Secretariat of Research and Technology, Greece,

under the auspices of the PENED-2003 program.

REFERENCES

Alepis, E., Virvou, M., Kabassi, K., 2007. Knowledge

Engineering for Affective Bi-modal Human-Computer

Interaction, SIGMAP.

Alepis, Ε. & Virvou, Μ., 2006. Emotional Intelligence:

Constructing user stereotypes for affective bi- modal

interaction. In Lecture Notes in Computer Science:

“Knowledge-based Intelligent Information and

Engineering Systems”, Springer-Verlag Berlin

Heidelberg 2006, Volume 4251 LNAI - I, 2006, Pages

435-442

Bernhardt, D., Robinson, P. : Interactive control of music

using emotional body expressions, Conference on

Human Factors in Computing Systems – Proceedings,

pp. 3117-3122 (2008)

Brusilovsky, P., 1999. Adaptive and Intelligent

Technologies for Web-based Education. In C.

Rollinger and C. Peylo (eds.), Künstliche Intelligenz

(4), Special Issue on Intelligent Systems and

Teleteaching, 19-25.

Fishburn, P.C., 1967. Additive Utilities with Incomplete

Product Set: Applications to Priorities and

Assignments, Operations Research.

Goleman, D., 1995. Emotional Intelligence, Bantam

Books, New York .

Hwang, C.L., Yoon, K., 1981. Multiple Attribute Decision

Making: Methods and Applications. Lecture Notes in

Economics and Mathematical Systems 186, Springer,

Berlin/Heidelberg/New York.

Jascanu, N., Jascanu, V., Bumbaru, S., 2008. Toward

emotional e-commerce: The customer agent, Lecture

Notes in Computer Science (including subseries

Lecture Notes in Artificial Intelligence and Lecture

Notes in Bioinformatics) Volume 5177 LNAI, Issue

PART 1, pp. 202-209

Johnson, W. L, J. Rickel, and Lester, J., 2000. Animated

Educational Agents: Face-to-Face Interaction in

Interactive Learning Environments. International

Journal of Artificial Intelligence in Education, vol. 11,

pp. 47-78.

Lane, H.C. 2006. Intelligent Tutoring Systems: Prospects

for Guided Practice and Efficient Learning.

Whitepaper for the Army's Science of Learning

Workshop, Hampton, VA.

Leon, E., Clarke, G., Gallaghan, V., Sepulveda, F., 2007.

A user-independent real-time emotion recognition

system for software agents in domestic environments.

Engineering applications of artificial intelligence, 20

(3): 337-345.

Lester, J., Converse, S., Kahler, S., Barlow, S., Stone, B.,

and Bhogal, R. 1997. The Persona Effect: affective

impact of animated educational agents. In Pemberton

S. (Ed.) Human Factors in Computing Systems, CHI’

97, Conference Proceedings, ACM Press, pp. 359-366.

Pantic, M., Rothkrantz, L.J.M., 2003. Toward an affect-

sensitive multimodal human-cumputer interaction.

Vol. 91, Proceedings of the IEEE, Institute of

Electrical and Electronics Engineers, pp. 1370-1390.

Picard, R.W., 2003. Affective Computing: Challenges. Int.

Journal of Human-Computer Studies, Vol. 59, Issues

1-2, pp. 55-64.

Stathopoulou, I.O., Tsihrintzis, G.A., 2005. Detection and

Expression Classification System for Face Images

(FADECS), IEEE Workshop on Signal Processing

Systems, Athens, Greece.

Virvou, M. & Alepis, E. (2005). Mobile educational

features in authoring tools for personalised tutoring.

Computers & Education, Volume 44, Issue 1, January

2005, Pages 53-68.

ICSOFT 2009 - 4th International Conference on Software and Data Technologies

280
