CHOOSING THE ”BEST” SORTING ALGORITHM FOR OPTIMAL

ENERGY CONSUMPTION

Christian Bunse, Hagen H

opfner, Suman Roychoudhury and Essam Mansour

International University in Germany

Campus 3, 76646 Bruchsal, Germany

Keywords:

Energy awareness, Software engineering, Adaptivity, Mobile information systems.

Abstract:

Reducing the energy consumption of mobile systems in order to prolong their operating time has been an

active research topic for quite some time. Such systems are typically battery powered and thus, their uptime

depends on the energy consumption of the used hardware and software components. Novel strategies that

allow software systems to dynamically adapt themselves at runtime can be effectively used to reduce energy

consumption. The focus of this paper is based on a case study that uses an energy management component

that can dynamically choose the “best” sorting algorithm during a multi-party mobile communication. The

results indicate that Insertionsort is the most optimal sorting algorithm when in comes to saving energy.

1 INTRODUCTION

Mobile and embedded devices become more and

more important in all areas of the daily life. Nowa-

days, they also form the basis of the ubiquitous or

pervasive computing paradigm. Information is acces-

sible everywhere at any time via mobile phones, small

sensors collectively measure environmental parame-

ters, and micro controller based computers are em-

bedded in many devices starting from toys and end-

ing with cars or air planes. In fact, the landscape of

embedded computing changes dramatically. Unfortu-

nately, all these small components share a need for

a (mobile) power supply. As smaller the device, as

more the uptime depends of the efﬁcient usage of the

limited energy resource. Hence, all parts of a mobile

or embedded system have to be energy aware.

Recently signifcant research effort has been spent

on optimizing hardware related energy consumption.

Only littlesearch has been done regarding the energy

efﬁcient usage of hardware components by optimiz-

ing the underlying software. The aspect of software

optimization is addressed in this paper. Devices con-

tain several hardware components (e.g. CPU, external

memory, communication devices), which have differ-

ent levels of energy consumption. Therefore, the soft-

ware must be able to adapt itself to meet the under-

lying user requirements while conserving maximum

energy. In previous works (H

opfner and Bunse, 2007)

we therefore introduced the concept of resource sub-

stitution. Preliminary results (Bunse et al., 2009) have

shown that different implementations of algorithms

result in varying energy consumptions. In particu-

lar, we implemented various sorting algorithms be-

cause sorting efﬁciency is relevant to almost all appli-

cations. Furthermore, many database management al-

gorithms that implement join (e.g. Sort-Merge-Join)

or set operations implicitly use sorting algorithms.

Our experiments revealed that memory intensive im-

plementations consumed much more energy than in-

place implementations. However, if processing speed

is given priority over energy, Insertionsort performs

slower than Quicksort, thus resulting in a longer ex-

ecution time. Therefore the question is, how much

data can be sorted by an algorithm implementation

by keeping an optimal balance between energy com-

sumption and processing speed.

In this paper we present our approach for energy

saving software by choosing the appropriate algo-

rithm. Based on experimental results we introduce

trend functions for each implementation of the ex-

amined sorting algorithms. These trend functions are

then used to decide on which algorithm to use under

certain conditions or based on the users needs (faster

speed vs. saving energy). Furthermore, we describe a

dynamic optimization approach that changes the used

implementation at runtime.

The remainder of this paper is structured as fol-

lows: Section 2 describes the related work. Section 3

brieﬂy introduces the researched sorting algorithms.

Section 4 introduces the optimizer component and the

trend functions. Section 5 explains the experimental

199

Bunse C., Höpfner H., Roychoudhury S. and Mansour E. (2009).

CHOOSING THE ”BEST” SORTING ALGORITHM FOR OPTIMAL ENERGY CONSUMPTION.

In Proceedings of the 4th International Conference on Software and Data Technologies, pages 199-206

DOI: 10.5220/0002245401990206

 SciTePress

setup and the experiments performed as proof of con-

cept. Section 6 includes the interpretation of the ex-

perimental results. Section 7 discusses the validity of

these results. Section 8 summarizes and concludes the

paper and gives an outlook to future research.

2 RELATED WORK

Due to the orientation towards mobile- and embed-

ded systems, several research projects have been con-

ducted regarding the topic of energy consumption.

Optimizing energy consumption is one of the most

fundamental factors for an efﬁcient battery-powered

system. Research on energy consumption falls into

one of the following categories: (1) Hardware, or (2)

Software (Jain et al., 2005). Research that belongs to

the hardware category, attempts to optimize the en-

ergy consumption by investigating hardware usage,

such as (Chen and Thiele, 2008; Liveris et al., 2008),

and innovating new hardware devices and techniques,

such as (Tuan et al., 2006; Wang et al., 2006). Re-

search in second category attempts to understand how

the different methods and techniques of software af-

fect energy consumption. Research in this category

can be further classiﬁed according to the main factors

affecting energy consumption: networking, commu-

nication, application nature, memory management,

and algorithms. Concerning networking work such

as (Feeney, 2001; Senouci and Naimi, 2005), provide

new routing techniques that are aware of energy con-

sumption. Other efforts of this category focus on pro-

viding energy-aware protocols for transmitting data in

wireless networks (Seddik-Ghaleb et al., 2006; Singh

and Singh, 2002) and ad-hoc networks (Gurun et al.,

2006). Memory consumption is an important factor

concerning a system’s energy consumption. In this

regard work such as (Koc et al., 2006; Ozturk and

Kandemir, 2005) have provided energy-aware mem-

ory management techniques. In battery-powered sys-

tems, it is not sufﬁcient to analyze algorithms based

only on time and space complexity. Energy-aware al-

gorithms such as (Jain et al., 2005) supporting ran-

domness, (Potlapally et al., 2006) focusing on crypto-

graphic, and (Sun et al., 2008) investigating into wire-

less sensor networks were published.

3 SORTING ALGORITHMS

In the ﬁrst days of computing, sorting data (numbers,

names, etc.) was in focus of research. One reason

might be that although sorting appears to be “easy”,

its efﬁcient execution by machines is inherently com-

plex. Even today, sorting algorithms are still being

optimized or even newly invented. When it comes

to mobile systems and information retrieval, efﬁcient

sorting is a major concern regarding performance and

energy consumption. In the following we describe the

set of sorting algorithms that were used in the con-

text of this study. This set was deﬁned to include ma-

jor algorithms that are either used in form of library

functions (e.g., Quicksort), are easily programmable

(e.g., Bubblesort) or that are regularly taught to IT

students. In other words, our goal was to cover those

algorithms that are in widespread use. More details

on them can be found in standard text books on algo-

rithms and data structures such as (Lafore, 2002).

• Bubblesort belongs to the family of comparison-

based sorting. It works by repeatedly iterat-

ing through the list to be sorted, comparing two

items at a time and swapping them if they are

in the wrong order. The worst-case complexity

is O(n

)

and the best case is O(n). Its memory

complexity is O(n).

• Heapsort is a comparison-based sorting algo-

rithm and part of the selection sort family. Al-

though somewhat slower in practice on most ma-

chines than a good implementation of Quicksort,

it has the advantage of a worst-case time complex-

ity of O(nlogn).

• Insertionsort is a naive algorithm that belongs to

the family of comparison-based sorting. In gen-

eral insertion sort has a time complexity of O(n

)

but is known to be efﬁcient on data sets which

are already substantially sorted. Its average com-

plexity is O(n

/4) and linear (O(n)) in the best

case. Furthermore insertion sort is an in-place

algorithm that requires a linear amount O(n) of

memory space.

• Mergesort was invented by John von Neumann

and belongs to the family of comparison-based

sorting. Mergesort has an average and worst-case

performance of O(nlogn). Unfortunately, Merge-

sort requires three times the memory of in-place

algorithms such as Insertionsort.

• Quicksort was developed by Sir Charles Antony

Richard Hoare (Hoare, 1962). It belongs to the

family of exchange sorting. On average, Quick-

sort makes O(nlogn) comparisons to sort n items,

but in its worst case it requires O(n

) compar-

isons. Typically, Quicksort is regarded as one of

the most efﬁcient algorithms and is therefore typ-

n represents the size of input; the number of elements

to be sorted

ICSOFT 2009 - 4th International Conference on Software and Data Technologies

200

ically used for all sorting tasks. Quicksort’s mem-

ory usage depends on factors such as choosing the

right Pivot-element, etc. On average, having a re-

cursion depth of O(logn), the memory complexity

of Quicksort is O(logn) as well.

• Selectionsort belongs to the family of in-place

comparison-based sorting. It typically searches

for the minimum value, exchanges it with the

value in the ﬁrst position and repeats the ﬁrst two

steps for the remaining list. On average Selection-

sort has a O(n

) complexity that makes it inefﬁ-

cient on large lists. Selectionsort typically outper-

forms bubble sort but is generally outperformed

by Insertionsort.

• Shakersort (Brejov

a, 2001) is a variant of Shell-

sort that compares each adjacent pair of items in a

list in turn, swapping them if necessary, and alter-

nately passes through the list from the beginning

to the end then from the end to the beginning. It

stops when a pass does no swaps. Its complexity

is O(n

) for arbitrary data, but approaches O(n) if

the list is nearly in order at the beginning.

• Shellsort is a generalization of Insertionsort,

named after its inventor, Donald Shell. It belongs

to the family of in-place sorting but is regarded

to be unstable. It performs O(n

) comparisons

and exchanges in the worst case, but can be im-

proved to O(nlog

n). This is worse than the opti-

mal comparison-based sorts, which are O(nlogn).

Shellsort improves Insertionsort by comparing el-

ements separated by a gap of several positions.

This lets an element take “bigger steps” toward its

expected position. Multiple passes over the data

are taken with smaller and smaller gap sizes. The

last step of Shellsort is a plain Insertionsort, but

by then, the list of data is guaranteed to be almost

sorted.

4 OPTIMIZING ENERGY

To dynamically adapt/optimize the energy consump-

tion of a mobile and/or embedded system, we devel-

oped an architecture (see Figure 1) that closely fol-

lows the idea of the energy management component

presented in (Bunse and H

opfner, 2008). EMC aimed

at optimizing the communication effort of a system.

Here the focus is on using the “optimal” algorithm

concerning energy and processing speed.

At its core the experiment system deﬁnes a family

of sorting strategies (algorithms), encapsulates each

of these, and makes them interchangeable. This is

nicely supported by the strategy pattern deﬁned by

energyprofile

userpreferencesconcerning

Optimizer

theenergymanagement

(i.e.,determiningthedelta)

costviatrendfunction

application

Host 1

Host



Sorting

ComChannel

+Strategy()

Host2

geso

BlueTooth

Qu c so t

+Strategy()

se t o so t

+Strategy()

e geso t

+Strategy()

…

Figure 1: Algorithm-Energy Optimizer.

(Gamma et al., 1995). The strategy pattern supports

the development of software systems as a loosely cou-

pled collection of inter-changeable parts. The pattern

decouples a strategy from its host, and encapsulates it

into a separate class. It thus, supports the separation

of an object and its behaviour by organizing them into

two different classes. This allows switching to the

strategy that is needed at a speciﬁc time.

There are several advantages of applying the strat-

egy pattern for an adaptable software system. First,

since the system has to choose the most appropriate

strategy concerning performance and energy it is sim-

pler to keep track of them by implementing each strat-

egy by a separate class instead of embedding it in

the body of a method. Having separate classes al-

lows simply adding, removing, or changing any of

the strategies. Second, the use of the strategy pattern

also provides an alternative to sub-classing an object.

This also avoids the static behavior of sub-classing.

Changes therefore require the creation/instantiation

of a different subclass and replacing that object with

it. The strategy pattern allows switching the object’s

strategy, and it will immediately change how it be-

haves. Third, using the strategy pattern also elim-

inates the need for various conditional statements.

When different strategies are implemented within one

class, it is difﬁcult to choose among them without re-

sorting according to the conditional statements. The

strategy pattern improves this situation since strate-

gies are encapsulated as an object that is interchange-

able at runtime.

To select the most appropriate strategy/algorithm,

the optimizer has to be aware of the cost of its execu-

tion with respect to energy. Therefore, a cost model

is needed that provides a “rough” estimate of an al-

gorithms energy consumption based on the input size.

However, it has to be noted that the used cost model

instance is only valid for the actually used platform.

CHOOSING THE "BEST" SORTING ALGORITHM FOR OPTIMAL ENERGY CONSUMPTION

201

Basically we followed the empirical data gathered in

the context of (Bunse et al., 2009) concerning the en-

ergy consumption of sorting algorithms running on

AVR processors.

2000

4000

6000

8000

10000

12000

0 1000 2000 3000 4000 5000 6000 7000 8000 9000

Energy consumption trend

Number of data items

Quicksort

recursive Quicksort

Insertionsort

Mergesort

recursive Mergesort

Heapsort

Figure 2: Trend functions - excerpt.

We used the extrapolated trend functions of the

different sorting algorithms (see Figure 2) as a basis

for the cost functions. The trend function calculates

an estimation of the required energy for 1,000 execu-

tions

of an algorithm, based on the input size n. In

detail, the trend functions listed in Table 1 were ex-

trapolated, whereby the R

value that represents the

goodness of ﬁt was 1.

Table 1: Trend functions.

Algorithm trend function

Quicksort F(n) = n

1.1388

· 0.1533

RQuicksort F(n) = n

1.1771

· 0.1467

Insertionsort F(n) = n

1.0679

· 0.09121467

Mergesort F(n) = n

1.1035

· 0.1912

RMergesort F(n) = n

1.1384

· 0.3221

Heapsort F(n) = n · 0.2324 + 0.0286

Shellsort F(n) = n

· 0.0071 + n · 0.0047

+0.0939

Selectionsort F(n) = n

· 0.013 − n · 0.0236

+0.1908

Since our goal was to ﬁnd the optimal balance be-

tween sorting performance and energy consumption

it was not sufﬁcient to simply use the trend functions

as cost function. Due to the linear nature of the trend

function the result would always indicate Insertion-

sort as the most energy-efﬁcient algorithm. Keeping

these formulas and assumptions in mind the following

selection algorithm can be deﬁned:

1. By using the size n of the set as an input the

to level out measurement errors

energy-related costs for all algorithms are calcu-

lated and stored.

2. The minimum result and thus the most energy-

efﬁcient algorithm is identiﬁed.

3. Based on the algorithmic complexity, the mini-

mum value is compared to those values that are re-

lated to algorithms of “lower” complexity classes.

4. If the difference in energy-consumption is below

a predeﬁned threshold or delta the “faster” algo-

rithm is chosen.

The goal of an adaptive application (e.g., our

experimental system) is to optimize the Quality-of-

Service (QoS) perceived by the user. Unfortunately,

often optimization approaches either enforce prede-

termined (ﬁxed) policies or offer only limited mech-

anisms for controlling optimization. According to

(Sousa et al., 2008) those limitations prevent adap-

tive systems from addressing these important issues.

User goals often entail trade-offs among different as-

pects of quality (e.g., enhancing battery life or faster

execution times).

The Optimizer architecture (see Figure 1) allows

users to actually determine the trade-off between per-

formance and energy consumption, simply by chang-

ing the cost function delta. As larger the delta be-

comes as higher the sorting performance and as lower

the battery-lifetime of the system. Thus, the delta de-

termines the size of data-sets to be sorted by a speciﬁc

algorithm. In the context of our experiments we ex-

perimented with different delta values and observed

that deﬁning the delta as 1,200 provides the “best”

optimization results.

5 EXPERIMENTAL DESIGN

Our previous experiments provided some insight into

the area of software-related energy consumption. In

these experiments we collected data concerning the

energy consumption of sorting algorithms as well as

algorithms that apply them. The results show that en-

ergy consumption is driven by factors such as memory

consumption and performance leading to the fact that

the fastest algorithm (e.g., Quicksort) is not the most

efﬁcient algorithm concerning energy-consumption.

In this sense we developed a simple system (see

Figure 3). An embedded node wirelessly receives

data-sets, sorts them and sends the sorted set to an-

other recipient. The goal of the node is to primarily

sort data. However, since the node is battery powered

and the end-user expects short response times, sort-

ing is optimized according to response time and av-

erage energy consumption (i.e., maximize up-time).

ICSOFT 2009 - 4th International Conference on Software and Data Technologies

202

GalvanicSeparation

Computer

DataAcquisition

DigitalOscilloscope

&Logger

Energy

Calculation

ResultDB

Program

Pool

Evaluation

Board

MeasurementAdd‐On

Bluetooth

Communication

Host1

Host2

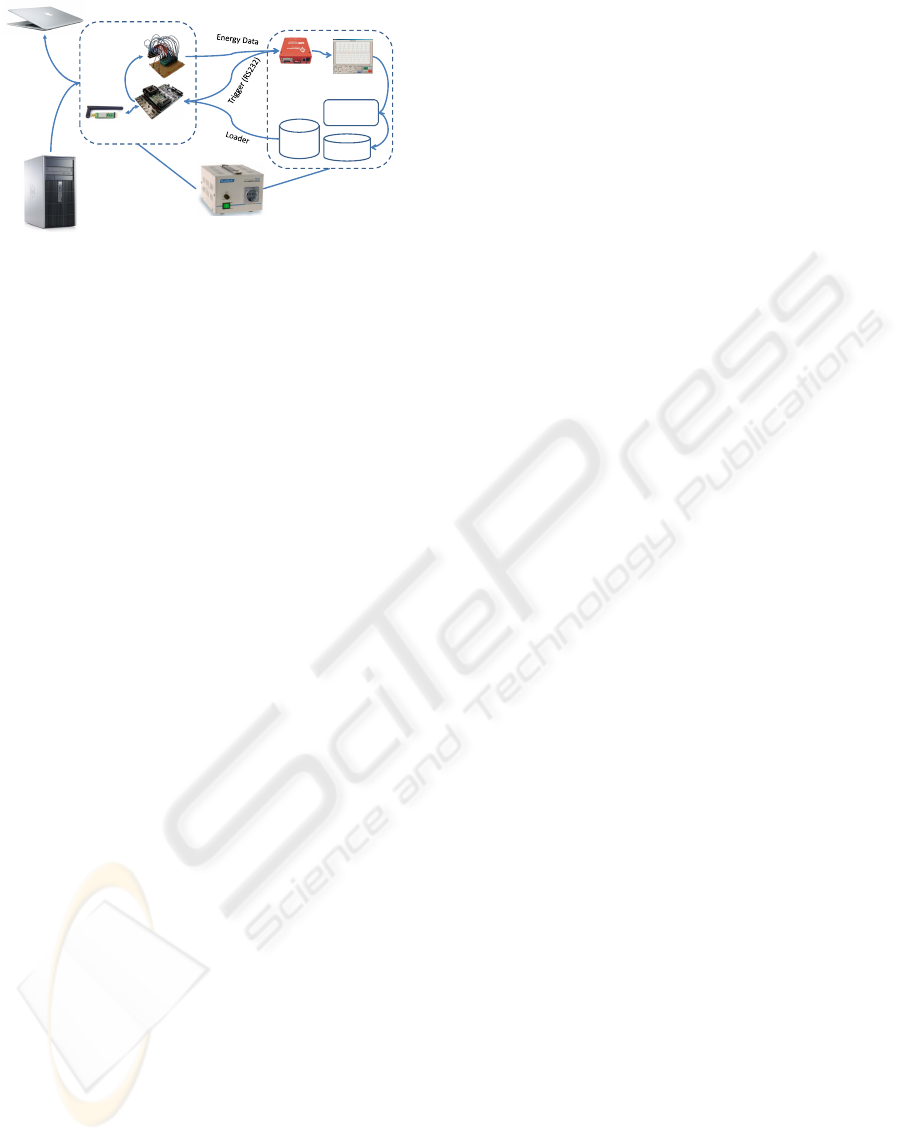

Figure 3: Experiment System Overview.

On application scenario for such a node is a wireless

sensor network that collects position or life-data of

cattle. Notes are communicating wirelessly (e.g., Zig-

Bee or Bluetooth), whereby the controller-node (i.e.,

the node that pre-processes the data) ﬁnally provides

the pre-processed data to a PC. In the context of our

experiments we use a simpliﬁed version for brevity of

illustration.

The system comprises a micro controller (i.e., AT-

Mega128, external SRAM, running on a STK500/501

board) and two Bluetooth interfaces (i.e., BlueSmirf

modules). The system establishes two data-

connections to different hosts via its Bluetooth mod-

ules. It reads values (variable size sets of unsorted

integers) via on data-connections, selects the most ap-

propriate sorting algorithm according to its optimiza-

tion goal, and transmits the sorted set to another host

via the second data-connection.

5.1 Experimental Runs

Within this experiment we compared three different

approaches to optimization concerning their perfor-

mance (time and size) and their energy consumption.

In the ﬁrst run the data was sorted by only using the

Quicksort algorithm, Thus, this run was optimized

for speed. In the second run,the data was sorted by

only using the Insertionsort algorithm. This repre-

sents an optimization for energy-efﬁciency (max. bat-

tery lifetime) based on our previously reported ﬁnd-

ings(Bunse et al., 2009). In the third run we then

made use of the algorithm optimizer/selector (see

Figure 1). The Optimizer aims at balancing speed

(performance) and energy efﬁciency to increase the

amount of sorted data and processing speed while at

the same time increasing battery lifetime through en-

ergy savings.

5.2 Data Collection

As described previously the experiment systems is

connected to two different hosts via Bluetooth (i.e.,

Figure 3 provides an overview). It receives sets (i.e.,

sequences of random integer values) of varying sizes

from the ﬁrst host. The actual size of a transmitted set

is limited to 1,000 elements but is randomly chosen.

According to the actual experimental run, the sys-

tem either applies a speciﬁc sorting algorithm (i.e.,

Quicksort or Insertionsort) or selects the “best” sort-

ing algorithm from a set of algorithms and applies the

selected algorithm to the received set. The sorted set

is then sent to Host 2 and the next data set is received.

This cycle is executed until the battery is empty.

Send and receive (Host 1 and Host 2) are syn-

chronized by the clock. This leaves sufﬁcient time

for sorting and retransmission. In addition the Blue-

tooth modules (externally powered) provide send/re-

ceive buffers to level out overlaps.

During the experimental runs the following data

was collected:

• The size of every set to be sorted (i.e., n). The size

was randomly chosen but limited to a maximum

of 1,000 elements.

• The number of sets sorted (i.e., N). This is the

overall number of successfully executed sorting

requests throughout the experimental run.

• The battery level (i.e., V ). V was measured at

ﬁxed time intervals, whereby we assume that the

actual voltage level of a battery indicates its status

and charge level.

• Run and Execution Time (i.e., P). Run and ex-

ecution time was measured by hosts one and two

(i.e., time when a set was sent and when the sorted

set was received). Times were not measured at the

target platform in order to not falsify the measure-

ments.

6 EVALUATION OF RESULTS

Initial measurement within the experimental runs

shows that optimization results are as expected. When

looking at the battery level V over time (i.e., up-time

of our system) it supports the initial assumption that

the uptime of a systems is directly related towards the

energy consumption related to the executed software

system. However, a closer look at Figure 4 shows

that a non-adaptive approach either results in an ex-

cellent or a poor energy efﬁciency. Interestingly, the

results for the adaptive are close to those of the non-

optimized Insertionsort variant.

When recalling the results of Figure 4 the question

arises why should we adapt the system or is optimiza-

tion really necessary. It seems that by choosing a spe-

ciﬁc algorithm better results can be achieved than by

CHOOSING THE "BEST" SORTING ALGORITHM FOR OPTIMAL ENERGY CONSUMPTION

203

4000

5000

6000

7000

8000

9000

10000

11000

12000

13000

Voltage (mV)

Time (hh:mm:ss)

Without Optimization - QS

Without Optimization - Ins

Optimized

Figure 4: Battery Lifetime.

dynamic adaption. Therefore, we have to examine the

performance of the different variants concerning the

amount of sorting requests and the amount of data.

Figure 5 supports the initial assumption concern-

ing the trade-off between energy efﬁciency and per-

formance. High-performing variants (i.e., Quicksort)

handle more sorting requests (i.e., N) in a shorter pe-

riod of time but result in a very limited V. Energy-

efﬁcient variants (i.e., Insertionsort) result in an opti-

mal V but handle signiﬁcantly less sorting requests.

Only adaptive (i.e., optimized) systems provide a

good balance of energy-efﬁciency and performance.

500

1000

1500

2000

2500

3000

3500

0:00:00

4:00:00

8:00:00

12:00:00

16:00:00

20:00:00

24:00:00

28:00:00

32:00:00

36:00:00

40:00:00

44:00:00

48:00:00

52:00:00

56:00:00

60:00:00

64:00:00

68:00:00

72:00:00

76:00:00

80:00:00

84:00:00

88:00:00

92:00:00

96:00:00

100:00:00

104:00:00

108:00:00

112:00:00

116:00:00

120:00:00

124:00:00

Fulfilled Sorting Requests

No Opt. - QS

Optimized

No Opt. - Ins

Figure 5: Request Performance.

This is also supported by Figure 6, which shows

the total number of elements that were sorted over

time. Measurement results expose a linear growth that

roughly represent the sums of sorting requests sizes.

The results conﬁrm our initial assumption that an op-

timization for speed (Quicksort variant) results in a

fast growing curve that covers a short time period.

Optimization for energy (Insertionsort variant) results

in a curve that spans a broad time range but that does

not grow as fast as the Quicksort related curve. Fi-

nally, the optimized system seems to combines the

advantages of the other approaches. It covers a broad

time range and sorts a high number of elements. In

others words, the optimized system variant provides

a well-balanced behavior regarding performance and

energy consumption.

20000000

40000000

60000000

80000000

100000000

120000000

0:00:00

4:00:00

8:00:00

12:00:00

16:00:00

20:00:00

24:00:00

28:00:00

32:00:00

36:00:00

40:00:00

44:00:00

48:00:00

52:00:00

56:00:00

60:00:00

64:00:00

68:00:00

72:00:00

76:00:00

80:00:00

84:00:00

88:00:00

92:00:00

96:00:00

100:00:00

Sorted Elements - Total

No Opt. - QS

No Opt. - Ins

Optimized

Figure 6: Total Number of Sorted Elements.

The ﬁndings concerning the effects of dynami-

cally choosing an algorithm at runtime are also sup-

ported by the fact that this approach sorts more data

in total than the other two approaches. Thus, opti-

mization does not provide results somewhere between

those of the non-adaptive systems but uses their syn-

ergy effects to provide even better results.

7 THREATS TO VALIDITY

The authors view this study as exploratory. Thus,

threats limit generalization of this research, but do not

prevent the results from being used in further studies.

Construct Validity is the degree to which the inde-

pendent and dependent variables accurately measure

the concepts they purport to measure. In speciﬁc, en-

ergy consumption is a difﬁcult concept to measure. In

the context of this paper it is argued that the chosen

approach (assessing the battery voltage level V ) is an

intuitively reasonable measure. Of course, there are

several other dimensions of the energy measurement

problem but this is future work.

Internal Validity is the degree to which conclu-

sions can be drawn about the causal effect of indepen-

dent variables on the dependent variable. In speciﬁc,

a history effect may result from measuring systems at

different times (varying context temperature). Addi-

tional experiments and runs have shown that the tem-

perature effect in a heated lab room can be neglected.

ICSOFT 2009 - 4th International Conference on Software and Data Technologies

204

External Validity is the degree to which the results

of the research can be generalized to the population

under study and other research settings. In speciﬁc,

the materials (platforms, software, etc.) may not be

representative in terms of size and complexity. How-

ever, experiments in a university context do not allow

the use of realistic systems for reasons such as cost,

availability, etc. However, the authors view this study

as exploratory and view its results as indicators that

allow further research.

In order to improve the empirical study and ad-

dress some of the threats to validity identiﬁed above,

the following actions can be taken:

• Improve data collection. Data collection can be

improved in several ways. First, by measuring

not only battery voltage as an indirect energy

consumption indicator but also the exact energy

consumption, in joule, of the platform regard-

ing each algorithmic run. Second, by increasing

the sampling/measurement frequency (e.g., have

sampling rates of 1 microsecond or below). A

third option would be to automate the whole ex-

perimental procedure, thereby making time col-

lection trivial.

• Improve the distinction of algorithmic complex-

ities. The actual experiment used random data

that was only comparable between runs. How-

ever, we did not made any distinction regarding

best-, worst- and average-case data. By separating

and explicitly distinguishing between these cases

would allow for ﬁne-grained analysis.

• Improve the generalizability of results by running

the experiment on different platforms. Currently,

results are limited to the AVR processor family

and can thus, only serve as an indicator of the gen-

eral situation. Therefore the experiment needs to

be replicated on different platforms to get more

and more reliable data.

8 SUMMARY

AND CONCLUSIONS

Given the rising importance of mobile and small

embedded devices, energy consumption becomes in-

creasingly important. Currents estimates by EU-

ROSTATS predict that in 2020 10-35 percent (de-

pending on which devices are taken into account) of

the global energy consumption is consumed by com-

puters and that this value will likely rise (Bunse and

opfner, 2008). Therefore, means have to be found

to reduce the energy consumption of such devices.

The focus of this paper is on dynamically adapt-

ing a simple system at runtime by algorithm substi-

tution as a means for energy saving. Following the

ideas of resource substitution strategies as presented

in (H

opfner and Bunse, 2007) we presented an Op-

timizer Component that follows the ideas of the dy-

namic energy management component EMC (Bunse

and H

opfner, 2008) and that can be plugged into other

component based systems.

At its core the optimizer uses the energy-related

trend functions of different sorting algorithms. In de-

tail, the optimizer uses the different trend functions

for determining the energy-related cost of a speciﬁc

algorithm with respect to the algorithm’s input-size.

It then compares the results and uses a user-deﬁned

delta for selecting the best algorithm.

Our initial results are based on a micro-controller

system (AVR processor family) that communicate

wirelessly by BlueTooth. The main system function-

ality is to receive data of varying size, sort it and to

send it to another host. The data collected for different

system variants was then used to examine if energy-

consumption and sorting performance can be signif-

icantly improved. The collected data reveals that by

optimization the amount of sorted data, battery life-

time. Moreover, the overall performance can be sig-

niﬁcantly increased. The experiments show the im-

pact of software onto a systems energy consumption

and a way to easily optimize a system in this regard.

To systematically evaluate the observed effects

and to rule out the aforementioned threats to validity

we currently prepare a case study for mobile informa-

tion systems running on a PDA or Smartphone.

REFERENCES

Brejov

a, B. (2001). ‘Analyzing variants of Shellsort’, Infor-

mation Processing Letters 79(5), 223–227.

Bunse, C. and H

opfner, H. (2008). Resource substitution

with components — Optimizing Energy Consump-

tion, in J. Cordeiro, B. Shishkov, A. K. Ranchordas

and M. Helfert, eds, ‘Proceedings of the 3rd Interna-

tional Conference on Software and Data Technologie’,

Vol. SE/GSDCA/MUSE, INSTICC, INSTICC press,

Set

ubal, Portugal, pp. 28–35.

Bunse, C., H

opfner, H., Mansour, E. and Roychoudhury, S.

(2009). Exploring the Energy Consumption of Data

Sorting Algorithms in Embedded and Mobile Envi-

ronments, in ‘Proceedings of the MDM Workshop

ROSOC-M 2009’. ( accepted for publication, forth-

coming.

Chen, J.-J. and Thiele, L. (2008). Expected system

energy consumption minimization in leakage-aware

DVS systems, in ‘ISLPED ’08: Proceeding of the thir-

teenth international symposium on Low power elec-

CHOOSING THE "BEST" SORTING ALGORITHM FOR OPTIMAL ENERGY CONSUMPTION

205

tronics and design’, ACM, New York, NY, USA,

pp. 315–320.

Feeney, L. M. (2001). ‘An Energy Consumption Model for

Performance Analysis of Routing Protocols for Mo-

bile Ad Hoc Networks’, Mobile Networks and Appli-

cations 6(3), 239–249.

Gamma, E., Helm, R., Johnson, R. and Vlissides, J.

(1995). Design Patterns: Elements of Reusable

Object-Oriented Software, Addison-Wesley Profes-

sional.

Gurun, S., Nagpurkar, P. and Zhao, B. Y. (2006) Energy

consumption and conservation in mobile peer-to-peer

systems, in ‘MobiShare ’06: Proceedings of the 1st in-

ternational workshop on Decentralized resource shar-

ing in mobile computing and networking’, ACM, New

York, NY, USA, pp. 18–23.

Hoare, C. A. R. (1962). ‘Quicksort’, Computer Journal

5(1), 10–15.

opfner, H. and Bunse, C. (2007). Resource Substitu-

tion for the Realization of Mobile Information Sys-

tems, in J. Filipe, M. Helfert and B. Shishkov, eds,

‘Proceedings of the 2nd International Conference on

Software and Data Technologie’, Vol. Software Engi-

neering, INSTICC, INSTICC press, Set

ubal, Portugal,

pp. 283–289.

Jain, R., Molnar, D. and Ramzan, Z. (2005). Towards un-

derstanding algorithmic factors affecting energy con-

sumption: switching complexity, randomness, and

preliminary experiments, in ‘Workshop on Discrete

Algothrithms and Methods for MOBILE Comput-

ing and Communications — Proceedings of the 2005

joint workshop on Foundations of mobile computing’,

ACM, New York, NY, USA, pp. 70–79.

Koc, H., Ozturk, O., Kandemir, M., Narayanan, S. H. K.

and Ercanli, E. (2006). Minimizing energy consump-

tion of banked memories using data recomputation, in

‘ISLPED ’06: Proceedings of the 2006 international

symposium on Low power electronics and design’,

ACM, New York, NY, USA, pp. 358–362.

Lafore, R. (2002). Data Structures and Algorithms in Java,

2nd edn, SAMS Publishing, Indianapolis, Indiana,

USA.

Liveris, N., Zhou, H. and Banerjee, P. (2008). A dynamic-

programming algorithm for reducing the energy con-

sumption of pipelined system-level streaming appli-

cations, in ‘ASP-DAC ’08: Proceedings of the 2008

conference on Asia and South Paciﬁc design automa-

tion’, IEEE Computer Society Press, Los Alamitos,

CA, USA, pp. 42–48.

Ozturk, O. and Kandemir, M. (2005). Nonuniform Bank-

ing for Reducing Memory Energy Consumption, in

‘DATE ’05: Proceedings of the conference on Design,

Automation and Test in Europe’, IEEE Computer So-

ciety, Washington, DC, USA, pp. 814–819.

Potlapally, N. R., Ravi, S., Raghunathan, A. and Jha, N. K.

(2006). ‘A Study of the Energy Consumption Char-

acteristics of Cryptographic Algorithms and Security

Protocols’, IEEE Transactions on Mobile Computing

5(2), 128–143.

Seddik-Ghaleb, A., Ghamri-Doudane, Y. and Senouci, S.-

M. (2006). A performance study of TCP variants

in terms of energy consumption and average good-

put within a static ad hoc environment, in ‘IWCMC

’06: Proceedings of the 2006 international conference

on Wireless communications and mobile computing’,

ACM, New York, NY, USA, pp. 503–508.

Senouci, S.-M. and Naimi, M. (2005) New routing for

balanced energy consumption in mobile ad hoc net-

works, in ‘PE-WASUN ’05: Proceedings of the 2nd

ACM international workshop on Performance evalu-

ation of wireless ad hoc, sensor, and ubiquitous net-

works’, ACM, New York, NY, USA, pp. 238–241.

Singh, H. and Singh, S. (2002) ‘Energy consumption of

tcp reno, newreno, and sack in multi-hop wireless net-

works’, ACM SIGMETRICS Performance Evaluation

Review 30(1), 206–216.

Sousa, J. P., Balan, R. K., Poladian, V., Garalan, D.

and Satyanarayanan, M. (2008). User guidance of

resource-adaptive systems, in ‘Proceedings of the 3rd

International Conference on Software and Data Tech-

nologie’, Vol. Software Engineering, INSTICC, IN-

STICC press, Set

ubal, Portugal, pp. 36–45.

Sun, B., Gao, S.-X., Chi, R. and Huang, F. (2008). Al-

gorithms for balancing energy consumption in wire-

less sensor networks, in ‘FOWANC ’08: Proceeding

of the 1st ACM international workshop on Founda-

tions of wireless ad hoc and sensor networking and

computing’, ACM, New York, NY, USA, pp. 53–60.

Tuan, T., Kao, S., Rahman, A., Das, S. and Trimberger, S.

(2006) A 90nm low-power FPGA for battery-powered

applications, in ‘FPGA ’06: Proceedings of the 2006

ACM/SIGDA 14th international symposium on Field

programmable gate arrays’, ACM, New York, NY,

USA, pp. 3–11.

Wang, L., French, M., Davoodi, A. and Agarwal, D. (2006)

‘FPGA dynamic power minimization through place-

ment and routing constraints’, EURASIP Journal on

Embedded Systems 2006(1).

ICSOFT 2009 - 4th International Conference on Software and Data Technologies

206
