QUALITY ANALYSIS OF A CROSS-DOMAIN

REFERENCE ARCHITECTURE

Liliana Dobrica

Faculty of Automatic Control and Computers, University Politehnica of Bucharest

Spl. Independentei 313, Romania

Eila Ovaska

VTT Technical Research Centre of Finland, Oulu, Finland

Keywords: Cross Domain Reference Architecture, Service, Quality, Analysis Methods, Scenarios.

Abstract: The content of this paper addresses the issue of how to perform in a systematic way quality analysis of a

cross domain reference architecture using scenarios. The cross domain reference architecture is designed

based on the domains requirements and features modelling and it includes domains core services and

constraints on how these services should be combined. We apply a method based on scenarios to analyse

modifiability at the architectural level. In order to handle complexity in analysis we propose categories of

change scenarios to be derived from each problem domain. Our main concerns are core services changes in

the scenarios interaction step.

1 INTRODUCTION

Nowadays many systems are used as subsystems in

various application domains. Due to the escalating

complexity level and the higher competition in the

world market, a coherent and integrated

development strategy is required. It becomes a

research priority the creation of a generic

architecture and a suite of abstract components with

which new developments in different application

domains can be engineered with minimal effort.

Generic architecture can be based on a core

architectural style. Given a core architectural style,

different components are created for different

application domains, while retaining the capability

of component reuse across these domains. The goal

of architectural analysis is to get measures of

compliance with regard to requirements

specification (Dobrica and Niemela, 2002). It is very

important to identify which are the relevant

properties of each domain and how analysis

techniques and methods could be applied to a cross

domain reference architecture (RA). There are two

categories of properties related to software systems,

the general one, like performance, satisfaction of

real-time requirements, reliability, etc. and specific

to development process (Bosch, 2000). Among the

specific properties that deserve special attention are

kinds of variation which can be covered by the

architecture and properties that are preserved for all

variants of an architecture in specific domains,

stability of services interfaces with respect to

evolution in products.

The open problem of an architectural analysis

method is how to take better advantage of

architectural concepts to analyze for quality

attributes in a systematic way (Bass et al., 1998).

The RA must be generic and adaptable to the

multiple composed domains. One objective of the

evaluation is to minimize possible changes in

functionality required by various domain specific

services. It is also very important to identify

potential risks and to verify that the quality

requirements of the embedded systems domains

have been addressed in the RA design (Graff et al.,

2005). Analysis could be associated with the design

in an iterative improvement of the RA when the

system of systems is initiated from requirements

specification, or for the re-engineering of an existent

complex embedded system due to the evolution

process.

Modifiability is one of the main quality drivers

for cross-domain RA design. The analysis of this

quality attribute could be combined with other run-

time quality requirements (performance, reliability,

security, etc.) of the domains. In this paper we

157

Dobrica L. and Ovaska E. (2009).

QUALITY ANALYSIS OF A CROSS-DOMAIN REFERENCE ARCHITECTURE .

In Proceedings of the 4th International Conference on Software and Data Technologies, pages 157-162

DOI: 10.5220/0002246001570162

 SciTePress

evaluate modifiability of a cross-domain reference

architecture for embedded systems applications. In

the next section we define the cross domain

approach for architecture development, then we

discuss about an appropriate quality analysis

method. Finally we explain our view on a concrete

example and we perform modifiability analysis. Our

aim is to associate design with analysis in an

iterative improvement of the complex systems

architecture. We argue with experiences in the

software architectures design and analysis for

various domains (Dobrica and Niemela, 2008)

(Dobrica and Ovaska, 2009) and other researchers’

recent studies that will be revealed during the paper.

2 BACKGROUND

A system is a collection of cooperating services that

deliver required functionality. These services may be

executed in a networked environment and may be

recomposed dynamically. A cross domain approach

consists of three levels for architecture development

of a software system (Dobrica and Ovaska, 2009)

(Figure 1). The RA level includes core services and

focuses on commonality analysis. Also the RA

includes rules or constraints on how core services

should be combined to realize a functional goal.

Domain architecture level includes domain specific

services and requires variability management

concerns. The last level is for product architectures.

On this level rules for product derivation and

configuration are included.

Reference Architecture

(cross domain)

Core Services

Domain Architecture

Domain Specific Services

Variability

management

Product Architecture

Concrete Services

Rules for product

derivation and

configuration

Commonality

Figure 1: Architecture development approach.

A feature model is a prerequisite of design

(Dobrica and Ovaska, 2009). This model is essential

for both variability management and product

derivation, because it describes the requirements in

terms of commonality and variability, as well as

defining dependencies. Features may be mandatory,

optional, alternative or optional alternative. The

features model specifies dependencies called

composition rules. The requires rule expresses the

presence implication of two features and the

mutually exclusive rule captures the mutual

exclusion constraint on feature combinations.

Reference Architecture

Styles and

Patterns

Core Services

Quality

Attributes

Service

Taxonomy

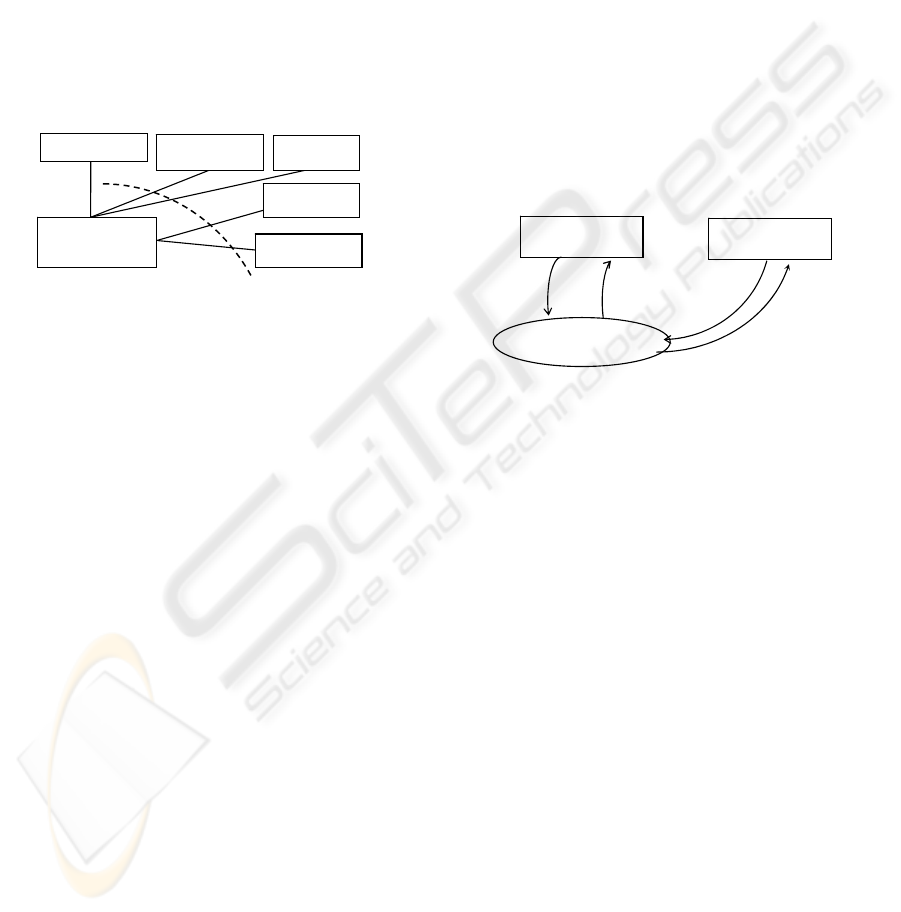

Figure 2: Reference architecture realization.

RA is defined by quality attributes, architectural

styles and patterns and abstract architectural models

(Figure 2). Quality attributes clarify their meaning

and importance for core service components.

Services have to meet many quality attributes.

Interdependencies and tradeoffs also exist between

them. The styles and patterns are the starting point

for architecture development. Architectural styles

and patterns are utilized to achieve qualities. A style

defines a class of architectures and is an abstraction

for a set of architectures that meet it. A pattern is

architectural when it is a documented description of

a style or a set of styles that expresses a fundamental

structural organization schema applied to high-level

system subdivision, distribution, interaction, and

adaptation (Buschman et al., 1996). In this way the

RA creates the framework from which the

architecture of new products is developed. It

provides generic architectural services and imposes

an architectural style for constraining specific

domain services in such a way that the final product

is understandable, maintainable, extensible, and can

be built cost-effectively. Potential reusability is

highest on RA level. Core services and the

architectural style are reused in every domain. RA is

build based on a service taxonomy, that defines the

main categories called domains. Root features that

have been abstracted from requirements characterize

services. A service taxonomy guides the developers

on a certain domain and getting assistance in

identifying the required supporting services and

features of services.

3 ANALYSIS METHOD

Scenario-based assessment is particularly

appropriate for qualities related to software

development. Software qualities such as

maintainability, reusability, modifiability,

adaptability and portability can be expressed very

naturally through change scenarios. The use of

scenarios for evaluating architectures is

recommended as one of the best industrial practices

ICSOFT 2009 - 4th International Conference on Software and Data Technologies

158

(Kazman, 2000). Our method is based on the SAAM

(Kazman et al., 1996), but improved through the

introduction of guidelines for analysis. The method

consists of five important steps. These are:

1. Deriving of Change Categories from the

Problem Domain. Figure 3 presents five categories

of the change scenarios derived from the problem

domains. It may be possible that a change scenario

related to one of these categories requires other

changes in the other categories. It is recommended

to consider this possibility in the scenario

development process. Usually it occurs when the

problem domain is organized so that it is easy to

identify the main sources for the addition of

subsequent features in the domain.

Software

technology

Domain-specific

Hardware

Functional

requirements

Non-functional

requirements

General- purpose

Hardware

Problem domain of

embedded system

CHANGES

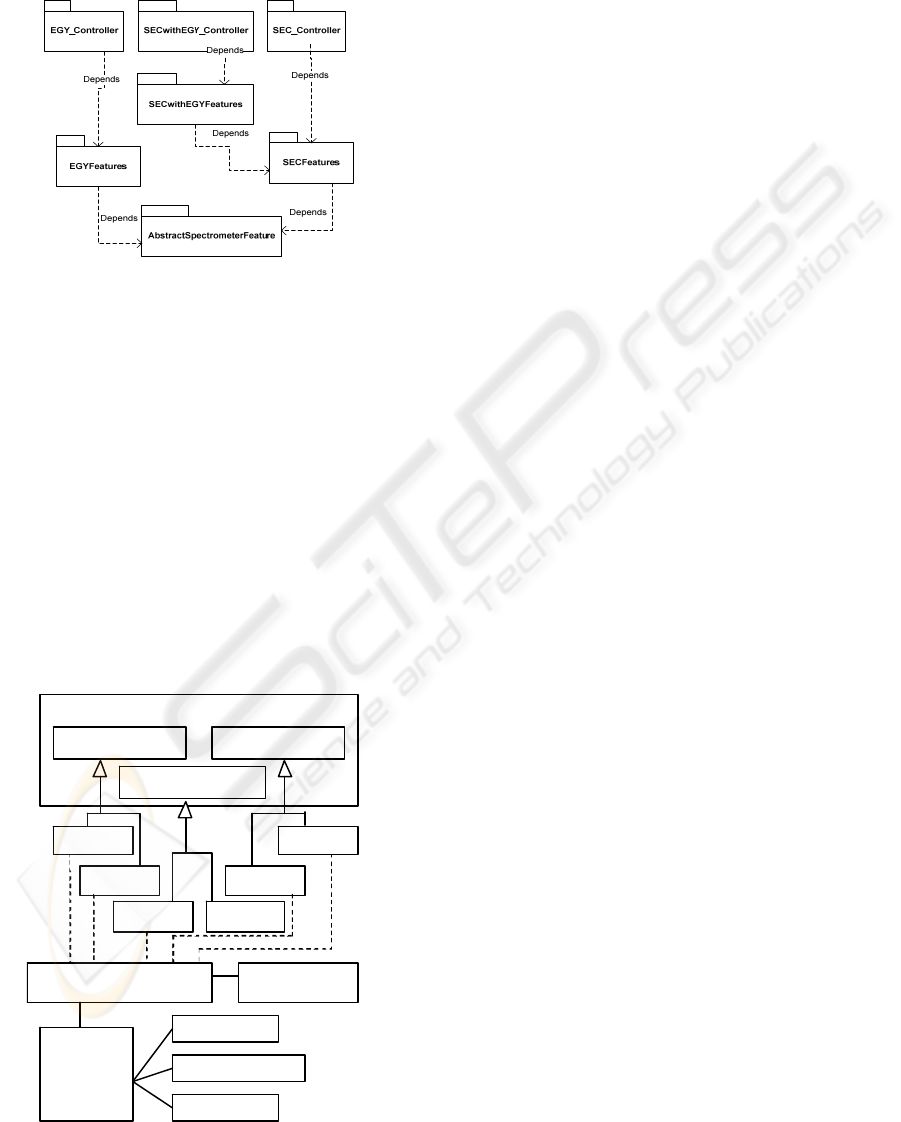

Figure 3: Categories of scenarios.

2. Scenarios Identification. Scenarios should

illustrate the kinds of anticipated changes that will

be made to the system. A common problem of the

scenario development is when to stop generating

scenarios. Using a set of standard quality attribute-

specific questions we ensure proper coverage of an

attribute by the scenarios. The boundary conditions

should be covered. A standard set of quality-specific

questions allows the extracting of the information

needed to analyze that quality in a predictable,

repeatable fashion. For analyzing the modifiability

we must look for possible changes in the problem

domain defined requirements.

3. Architecture Description could be performed in

parallel with the previous one. Architecture

description may use multiple views. For a common

level of understanding a small and simple lexicon

could be used in describing structures.

4. Evaluate the Effect of the Scenarios on the

Architecture Elements. The effect is estimated by

investigating which services are affected by that

scenario. The cost of the modifications associated

with each change scenario is predicted by listing the

services that are affected and counting the number of

changes. The objective is to get a measurement of

the quality of the core and domain services with

respect to the anticipated variability in functional or

non-functional characteristics.

5. Scenario Interaction. The result of the effects

evaluation represents the input for this step. The

activity is to determine which scenarios interact,

meaning that they affect the same service. High

interactions of unrelated scenarios indicate a poor

separation of concerns. Also if any of the scenarios

affect a core service this is no more part of the RA,

but a domain specific.

4 THE CASE STUDY

An analysis method is very difficult to discuss on an

abstract level. Instead, one needs a concrete

example. In this section we present a case study of

cross domain reference architecture. Our example is

abstracted from our experiences with the

architecture design of a scientific on-board silicon

X-ray array (SIXA) spectrometer control software.

Parameters

Start

Stop

Measurement

Controller

Command

Interface

commands

Physical devices

(Detectors)

Science data

data reports

Figure 4: Context view of the required system.

Figure 4 introduces the context view of a

measurement controller. External elements that

interface with our measurement controller are a

command interface and physical devices (detectors)

representing sensors and actuators. The system is

programmed and operates using a set of commands

sent from a command interface. The role of the

spectrometer controller is to control the following

measurement modes: (a) Energy Spectrum (EGY),

which consists of three energy-spectrum observing

modes: Energy-Spectrum Mode (ESM), Window

Counting Mode (WCM) and Time-Interval Mode

(TIM). (b) SEC, which consists of single event

characterization observing modes: SEC1, SEC2 and

SEC3. Each mode could be controlled individually.

A coordinated control of the analog electronics is

required when both measurement modes are on. The

analysis of requirements for domain engineering has

a result in a features model, that has been structured

in packages (Figure 5). The abstract features

encapsulated in three main abstract domains

MeasurementController, DataManagement and

DataAcquisition, are completely reused in all the

derived products. The AbstractSpectrometerFeatures

package has the highest degree of reusability but

also the highest degree of dependability. The

QUALITY ANALYSIS OF A CROSS-DOMAIN REFERENCE ARCHITECTURE

159

abstract features depend on the commonality

between EGY and SEC features. A change in the

problem domain of one of the three products is

mostly reflected in the degree of reusability of the

abstract domain features.

Figure 5: Mapping features into packages.

The sets of products that could be derived from

the domain specific services during application

engineering are: (1) P1 – EGYController includes

specific services of a standalone control of EGY

mode; (2) P2 – SECController includes specific

services of a standalone control of SEC mode; (3) P3

– SECwithEGY Controller includes specific services

of coordinated control.

The architecture model is documented around

multiple views describing conceptual and concrete

levels, for each view a static and dynamic

perspective being offered. Architecture

documentation addresses specific concerns for

measurement control, data acquisition control and

data management. The views are illustrated with

diagrams expressed in UML-RT, a real-time extension

<<Domain>

Me as ure ment

<<Domain>

MeasurementControl

<<Domain>>

DataManagement

<< D om ai n >>

DataAcqui sitionControl

<< Se rvice >>

<<Service>>

EGY_DM

<<artifact>>

V ari abilit yMa nageme ntTool

EGY_Controller

SEC_Controller

SECwithEGYController

<<artifact>>

RepositorySchema

<<Service>>

EGY_DAC

<<Service>>

SEC_DAC

<<artifa ct>

RulesFor

Product

Derivation

And

Configuration

<< Se rvice >>

SAC

<<Service>>

SEC_DM

Figure 6: Measurement cross domain RA.

of UML. The conceptual level considers a functional

decomposition of the architecture into domains. The

concrete level considers a more detailed functional

description, where the main architectural elements

are packages, capsules, ports, protocols. Conceptual

View is the result of a functional-based

decomposition, and it includes relations between

different domains. The architectural components are

large functional (domain) entities, and the

connectors are “uses”, “command” or ”passes-

data-to” relations. This structure is useful for

understanding the interactions between entities in

the problem space, for understanding the cross-

domain perspective, and hence thereafter, the

possibilities for creating a system of systems. It

includes: (1) Measurement Controller Subsystem

(MCS) which has the main role in controlling

acquisition and dumping science data. (2)

Housekeeping (HK) forms the reports and sends

them to command interface when requested the

command interface subsystem. It uses services

provided by PMS. (3) Command Interface

Subsystem (CIS) hides the hardware buses’

interfaces from the rest of the software. (4) On-board

clock (OBC) maintains an on-board clock used for

time-stamping spectra in data files. It includes

services for timing the start/stop of spectra and

targets and other timing related services. (5).

Memory Management Subsystem (MMS) provides

services for handling the storages in RAM and

EEPROM areas. (6) Parameter Management

Subsystem (PMS) provides services for initiating,

changing and reading the on-board parameters in

EEPROM. (7) StartUp implements the power up and

watchdog timer start-up. (8) Communication buffer

management (BUFMAN) provides services for

allocating/deallocating transmit buffers. (9) CPU

specific services provides highly optimized high

speed assembly language services (high speed word

copy, interrupt enable/disable). (10) Hardware

encapsulation modules control specific hardware

(analog electronics, watchdog timer).

In a detailed functional decomposition view the

main elements are packages, components, ports and

protocols. The static relations between components

are association, specialization, generalization, etc.

Considering the dynamic relations, statechart

diagrams and sequence diagrams are also part of this

view. In this view abstract components are included

based on a recursive control architecture style (Selic,

1998). The MeasurementControl domain includes

services that are responsible for starting and

stopping the operating mode for data acquisition

according to the commands received from the

command interface, and according to the events

ICSOFT 2009 - 4th International Conference on Software and Data Technologies

160

generated in other parts of the software. The

DataAcquisitionControl domain includes services

that collect events (science data) to the spectra data

file during the observation of a target. This domain

includes as well as hides data acquisition details.

DataManagement domain includes services that

provide interfaces for storing science data - opening/

closing/writing the data files, hiding data storing

details. This domain also provides services for

controlling the transmission of stored data to the

command interface.

5 MODIFIABILITY ANALYSIS

One of the most important quality attribute for our

system from a developer viewpoint is modifiability.

Thus we have applied the analysis method

introduced above for modifiability evaluation of the

RA. We have defined change scenarios for different

categories of changes. For each category we’ll

exemplify in the following with a scenario. The

effect of the scenarios on the service components

and the required views of the architecture are

analyzed.

5.1 Change Scenarios Effects

1. General Purpose Hardware Changes Scenario.

“Change the central processing unit (CPU)”.

Effect on the architecture: CPU specific services

provide highly optimized high speed assembly

language services (high speed word copy, interrupt

enable/disable, etc.) The services are not applicable

at the level of description.

Result: Not applicable to the available views.

2. Domain-specific Hardware Changes Scenario.

“Add a hard disk for SEC product”.

Effect on the architecture: The SEC_controller

and SECwithEGY_controller contain a hard disk for

data storage. This scenario requires a lot at the

architectural level, most of them related to the Data

Management domain.

Result: Multiple changes in detailed functional

decomposition, localized in the SEC_DM specific

domain service.

3. Technology Changes Scenario. “Change the

generator polynomial (different from CCITT

polynomial) for 16 bit CRC sum of errors handlers”.

Effect on the architecture: MMS consists of

service functions for managing the storage RAM and

EEPROM. It also includes a state for refreshing

RAM and the memory error exceptions handlers

(double and single bit).

Result: Modification in one component in the

conceptual view.

4. Functional Requirements Changes Scenario.

“How is the architecture affected when the operation

mode is changed?”

Effect on the architecture: The operation modes

is one of the variability among domains. This is

encapsulated into DataAcquisition and

DataFileManagement. The measurement control

domain is decoupled from the operation mode of

different products, which is encapsulated into the

DataAcquisition domain.

Result: No change to the RA – abstract concrete

or features of measurement control.

5. Non-functional Requirements Changes. “How

is the average SRG-bus speed of 744kbit/sec on

reading data from disk, which is time critical,

maintained? “

Alternative solutions: (1) Change the hard disk:

Use Fast disk: Optimal disk interleaving factor and

storing the data file in sequential sectors on the disk.

(2) Send filler blocks to the bus while waiting for the

disk – a sufficient number of filler blocks could be

reserved in the vector word sent in advance to BIUS.

(3) Use a busy bit of SRG-bus. (4) Optimize disk

driver – If the disk drive has been changed, the

software has to be tuned separately for the new disk.

Result: Not applicable to the available views.

5.2 Scenarios Interaction

A good architecture design must provide a good

localization of changes. Most of the changes

required by scenarios were applied to one service

component, which indicates a good decoupling of

concerns. The most important change was the

addition of the hard disk, a variability among

domains. This scenario required changes to the

domain specific services. By structuring the RA in

abstract services, which encapsulate abstract features

of the domains and concrete components, which in

turn represents specialization of the variable

features, the effects of the change scenarios are

minimized and localized.

6 RELATED WORK

At this moment various architecture analysis

methods, such as scenario-based architecture

analysis (SAAM) (Kazman et al. 1996), architecture

QUALITY ANALYSIS OF A CROSS-DOMAIN REFERENCE ARCHITECTURE

161

tradeoff analysis (ATAM) (Kazman et al., 1998),

architecture level analysis of modifiability

(ALMA)(Bengtsson et al., 2004), or software

architecture reliability analysis using failure scenario

(SARAH) (Tekinerdogan, 2008). Our study of the

existing state-of-art research into the quality analysis

methods reveals that the methods are distinguished

by taking into account the evaluation techniques

(qualitative or questioning, such as scenarios;

quantitative or measuring, like metrics, etc.), the

number of considered quality attributes and their

interaction for tradeoff decisions, the stakeholders’

involvement, and how detailed the architecture

design is at the moment the method is applied to the

architecture-based development process. Our

method is based on the SAAM (Kazman et al., 1996)

and ALMA, but improved through the introduction

of guidelines for analysis. This is because the

analysis is performed iteratively with design towards

improvement. Another important novelty of our

approach is that the method is specifically focused

on a cross domain RA quality analysis that is on the

first abstraction level of architecture development.

Our main concerns are core services changes in the

scenarios interaction step.

7 CONCLUSIONS

For the moment, only scenarios could be used in RA

analysis for modifiability. One problem with

scenario-based analysis is that the result and the

expressiveness of the analysis are dependent on the

selection of the scenarios and their relevance for

identifying critical assumptions and weaknesses in

the architecture. There is no fixed minimum number

of scenarios whose evaluation guarantees that the

analysis is meaningful. According to this, we tried to

use five categories of possible changes in general

hardware, specific hardware, functionality, non-

functional requirements and software technology. A

helpful strategy in scenario elicitation is the analysis

of commonality and variability. This is not a part of

the analysis method, but it is considered a pre-

condition of it. One aim of the analysis should be to

show how flexible a RA is in order to handle the

anticipated changes provided by the variability of

domains. Another aim is to analyze which is the

potential of the RA to be adapted to changes in

common features.

The results of the analysis depend not only on

the views of the architecture, but also on the level of

detail of the services descriptions. By using only the

conceptual view the effects of the change scenarios

are reduced. On the detailed functional

decomposition view, which has been developed with

the help of a CASE tool, the effect is more relevant.

The interaction of unrelated scenarios is lower and it

reveals a good separation of concerns when the

domains decomposition is detailed.

ACKNOWLEDGEMENTS

This work is supported by the Romanian research

grant CNCSIS IDEI no. 1238/2008.

REFERENCES

Bass L., P. Clements, R. Kazman. 1998, Software

Architecture in Practice. Addison-Wesley.

Bengtsson PO., J. Bosch, 2004, Architecture Level

Modifiability Analysis, Procs of the ICSR5.

Bosch J, 2000, Design and Use of Software Architectures

- Adopting and Evolving a Product-Line Approach,

Addison Wesley.

Buschmann F., R. Meunier, and H. Rohnert, 1996,

Pattern-Oriented Software Architecture:A System of

Patterns. John Wiley and Sons.

Dobrica L., E. Niemelä, 2002, A Survey on Software

Architecture Analysis Methods, IEEE Trans on Soft.

Eng, vol 28(7).

Dobrica L., E. Niemelä, 2008, Quality and Value Analysis

Method for Product Line Architectures, Procs of

ICSOFT 2008, 64-71.

Dobrica, L., Ovaska E., 2009, A service based approach

for a cross domain reference architecture development,

Procs of the 4th International Conference on

Evaluation of Novel Approaches to Software

Engineering (ENASE), 9-10 mai, 33-44, 2009,

INSTICC Press.

Gamma E., R. Helm, R. Johnson, and J. Vlissides, 1994,

Design Patterns: Elements of Reusable Object-

Oriented Software, Addison Wesley.

Graaf B, vanDijk H, van Deursen A., 2005, Evaluating an

embedded software reference architecture – industrial

experience report, CSMR 2005, 354-363.

Kazman R., G. Abowd, L. Bass, P. Clements, 1996

Scenario-based Analysis of Software Architecture.

IEEE Software, pp. 47-55.

Kazman R., S. J. Carriere and S. G. Woods, 2000, Toward

a Discipline of Scenario-Based Architectural

Engineering, Annals of Software Engineering, Vol. 9.

Selic B., Recursive control, in: R. Martin, et al. (Eds.),

Patterns Languages of Program Design—3, Addison-

Wesley, 1998, pp. 147–162.

B., Sozer H., and M. Aksit. 2008, Software Architecture

Reliability Analysis using Failure Scenarios; Journal

of Systems and Software, 81, 558-575.

ICSOFT 2009 - 4th International Conference on Software and Data Technologies

162
