ROBOT AUDITORY SYSTEM BASED ON CIRCULAR

MICROPHONE ARRAY FOR HOME SERVICE ROBOTS

Keun-Chang Kwak

Dept. of Control, Instrumentation, and Robot Engineering, Chosun University

375 Seosuk-dong Dong-gu, Gwangju, 501-759, Korea

Keywords: Robot auditory system, Circular microphone array, Home service robots, Sound source localization,

Speaker recognition, Speech enhancement.

Abstract: In this paper, we develop robot auditory system including speaker recognition, sound source localization,

and speech enhancement based on circular microphone array for home service robots. These techniques are

concerned with audio-based Human-Robot Interaction (HRI) that can naturally interact between human and

robot through audio information obtained from microphone array and multi-channel sound board. The robot

platform used in this study is wever, which is a network-based intelligent home service robot. The

experimental results show the effectiveness of the presented audio-based HRI components from the

constructed speaker and sound localization database.

1 INTRODUCTION

During the past few years, we have witnessed a

rapid growth in the number and variety of

applications of robots, ranging from conventional

industrial robots to intelligent service robots.

Conventional industrial robots perform jobs and

simple tasks by following pre-programmed

instructions for humans in factories. On the other

hand, the main objective of the intelligent service

robot is to adapt for the necessities of life as

accessibility to human life increases. While

industrial robots have been widely used in many

manufacturing industries, intelligent service robots

are still in elementary standard. Although the

intelligent robots have been brought to public

attention, the development of intelligent service

robots remains as a matter to be researched further.

Recently, there has been a renewal of interest in

Human-Robot Interaction (HRI) for intelligent

service robots. Among various HRI components, we

especially focus on audio-based HRI including

speech enhancement, speech recognition, speaker

recognition, sound source localization, sound source

separation, and gender/age classification. We shall

deal with some of audio-based HRI components.

The robot platform used in this paper is wever,

which is a network-based intelligent home service

robot equipped with multi-channel sound board and

three low-cost condenser microphones. Finally, we

shall show the performance of the developed

techniques such as speaker recognition, sound

localization, and speech enhancement among audio-

based HRI components from the databases

constructed in u-robot test bed.

2 AUDIO-BASED HRI

In this section, we present text-independent speaker

recognition based on MFCC (Mel-Frequency

Cepstral Coefficients) and GMM (Gaussian Mixture

Model), sound source localization based on ESI

(Excitation Source Information), and speech

enhancement based on PBF (Phase-error Based

Filter) with circular microphone array equipped with

intelligent service robot.

2.1 Speaker Recognition

Firstly the EPD (Endpoint Detection) algorithm is

performed to analyze speech signal obtained from

speaker. Here the speech signal is detected by log

energy and zero crossing. After detecting signal, the

feature extraction step is performed by six stages to

obtain MFCC. These stages consist of pre-emphasis,

frame blocking, hamming window, FFT (Fast

Fourier Transform), triangular bandpass filter, and

475

Kwak K. (2009).

ROBOT AUDITORY SYSTEM BASED ON CIRCULAR MICROPHONE ARRAY FOR HOME SERVICE ROBOTS.

In Proceedings of the 6th International Conference on Informatics in Control, Automation and Robotics - Robotics and Automation, pages 475-478

DOI: 10.5220/0002248504750478

 SciTePress

cosine transform. For simplicity, we use 11 MFCC

parameters except for the first order. In what follows,

we construct GMM (Reynolds and Rose, 1995)

frequently used in conjunction with text-independent

speaker recognition to represent speaker’s individual

model in robot environments. Figure 1 shows the

signal detected by log energy and zero crossing rate.

Figure 2 shows the block diagram for feature

extraction.

0.2 0.4 0.6 0.8 1 1.2 1.4 1.6 1.8 2 2.2

-1

Amplitude

(a) End-point detection

0.2 0.4 0.6 0.8 1 1.2 1.4 1.6 1.8 2 2.2

-40

-20

Log energy (dB)

(b) Log energy

0.2 0.4 0.6 0.8 1 1.2 1.4 1.6 1.8 2 2.2

ZCR

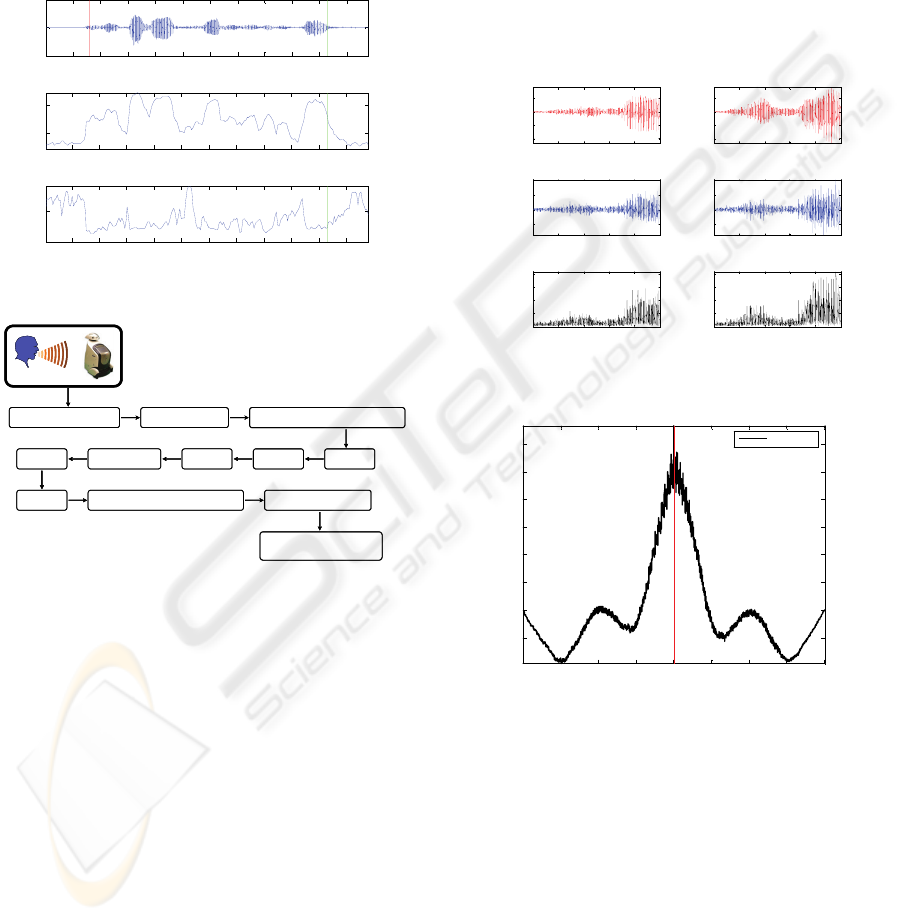

Figure 1: Endpoint detection.

FFTabslogresampleIFFT

Hamming windowing

real first 11 coefficients normalization

MFCC of length 11

take frameslow-pass filter

FFTabslogresampleIFFT

Hamming windowing

real first 11 coefficients normalization

MFCC of length 11

take frameslow-pass filter

Figure 2: Block diagram for feature extraction.

2.2 Sound Source Localization

Sound source localization is performed by excitation

source information and reliable angel estimation to

determine the time-delay between each two

microphones from speech source when robot’s name

is called. The time-delay based on excitation source

information is comprised on two main stages. The

first stage is to estimate time-delay from speech

signals collected by three microphones. For this, the

segmented signals by the endpoint detection should

be detected. Here the speech signal of robot’s name

used in this study is wever. In order to perform time-

delay estimation based on excitation source

information, we firstly need to obtain linear

prediction residual. This error includes the important

information about excitation source during speech

production. The linear prediction residual has a large

value around the instants of glottal closure for

voiced speech. However, these residuals should be

transformed to derive critical information from short

segments of linear prediction residual due to large

fluctuations in amplitude. In the second stage, the

values of linear prediction residual are transformed

by computing the Hilbert envelop of linear

prediction residual signal (Raykar and

Yegnanarayana, 2005). Figure 3 shows linear

prediction residual and Hilbert envelope. Figure 4

shows time-delay estimation from transformed

signals obtained by Hilbert envelope.

0 50 100 150 200 250

-2

-1

x 10

Time (ms)

Speech Frame 1

Speech Signal

0 50 100 150 200 250

-2

-1

x 10

Time (m s)

Speech Frame 2

Speech Signal

0 50 100 150 200 250

-1000

1000

2000

Time (ms)

LP Residual

0 50 100 150 200 250

-1000

1000

2000

Time (m s)

LP Residual

0 50 100 150 200 250

500

1000

1500

2000

Time (ms)

Hilbert Envelope

0 50 100 150 200 250

500

1000

1500

2000

Time (m s)

Hilbert Envelope

Figure 3: Linear prediction residual and Hilbert envelope.

1000 2000 3000 4000 5000 6000 7000 8000

-2

x 10

Time (samples)

Delay = 11

Figure 4: Time-delay estimation.

2.3 Speech Enhancement

This section present multi-microphone signal

processing for speech recognition based on phase-

error based filtering (Aarabi and Shi, 2004). This

filtering performs time-frequency masking in the

STFT (Short-time Fourier Transform) domain. For

each pair of input frames, their phase-error spectrum

is computed and used to modulate the amplitude

spectrum. High error yields lower masking values.

This has the effect of reducing time-alignment

mismatch for each frequency bin, which is supposed

ICINCO 2009 - 6th International Conference on Informatics in Control, Automation and Robotics

476

to be related to reverberation and noise. Therefore,

this method involves obtaining time-varying, or

alternatively, time-frequency, phase-error filters

based on prior knowledge regarding the time

difference of arrival of the speech source of interest

and the phase of the signals recorded by the

microphones. Figure 5 shows the signals obtained

from three microphones and enhanced signal,

respectively.

0.5 1 1.5 2 2.5 3

x 10

-1

signal of mic. 1

0.5 1 1.5 2 2.5 3

x 10

-1

signal of mic. 2

0.5 1 1.5 2 2.5 3

x 10

-1

signal of mic. 3

0.5 1 1.5 2 2.5 3

x 10

-1

enhanced signal

Figure 5: Speech enhancement by three microphones.

3 EXPERIMENTAL RESULTS

In this section, we use speaker database to

evaluation the performance of the presented speaker

recognition system (Kwak et al., 2007). Figure 6

shows “wever” equipped with three microphones

and sound boards shown in Figure 7. The database is

constructed by audio recording of 20 speakers. The

data set consists of 30 sentences for each speaker

and channel. For simplicity, we use only single

microphone and 2200 sentences. The recording was

done in u-robot test bed. The audio is stored as a

mono, 16bit, 16kHz, and WAV file. The

experimental results within 3 meter showed a good

recognition performance of 94.5% recognition rate.

However, the recognition performance at 4 and 5

meter showed 87.5% and 83%, respectively (see

Figure 8).

mic 1

mic 2

mic 3

mic 1

mic 2

mic 3

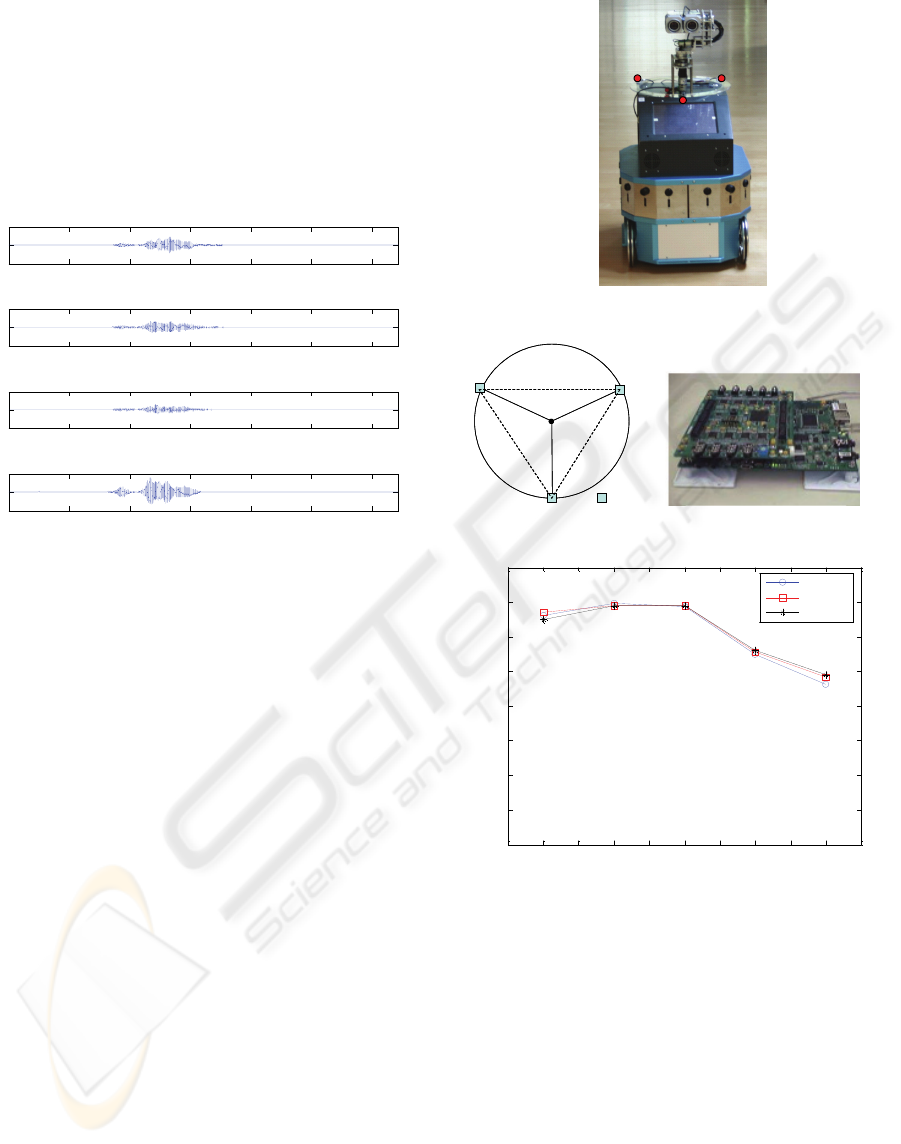

Figure 6: Robot platform-“wever”.

cml 32=

: microphone

120

cml 32=

: microphone

120

Figure 7: Arrangement of microphones and sound board.

0.5 1 1.5 2 2.5 3 3.5 4 4.5 5 5.5

100

distance (meter)

recognition rates

64 GMM

128 GMM

256 GMM

Figure 8: Recognition performance.

On the other hand, the localization success rate is

considered as performance measure for sound

localization. The localization success rate is

computed by FOV (Field of View) of robot camera

because sound localization is used with face

detection when robot moves toward caller. The

database used in this study was constructed in u-

robot test bed environment that is similar with home

environment to evaluate the sound localization

algorithm (Kwak et al., 2008). The data set (M1 and

M2) consists of 72 speeches at each meter from 1

meter to 3 meter. The localization success rate of the

presented method is 92.3%. The presented method

showed a better localization performance (about

ROBOT AUDITORY SYSTEM BASED ON CIRCULAR MICROPHONE ARRAY FOR HOME SERVICE ROBOTS

477

20%) in comparison to that of TDOA and GCC-

PHAT (see Figure 9 and 10).

0 10 20 30 40 50 60 70 80

-200

-150

-100

-50

100

150

200

number of trial

angle

actual angle

estimated angle

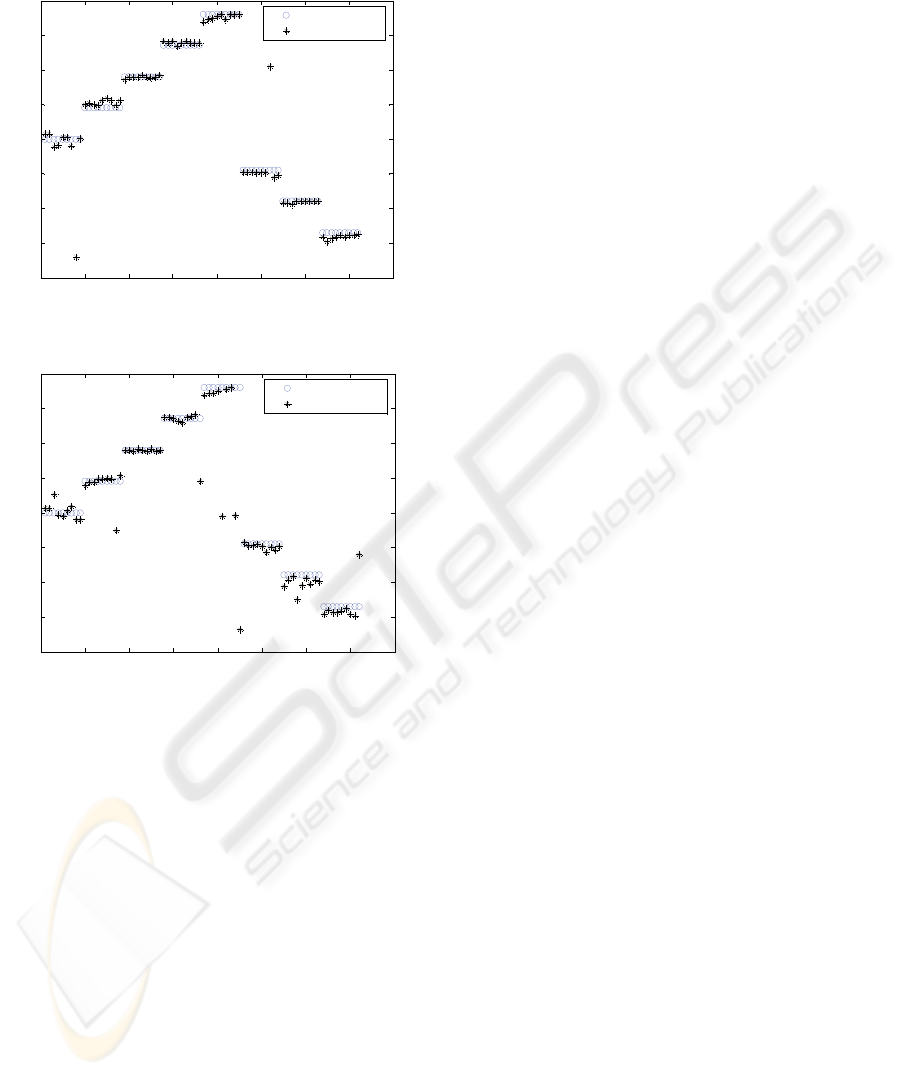

Figure 9: Actual angles and estimated angles (M1 set).

0 10 20 30 40 50 60 70 80

-200

-150

-100

-50

100

150

200

number of trial

angle

actual angle

estimated angle

Figure 10: Actual angles and estimated angles (M2 set).

4 CONCLUSIONS

We have developed some of audio-based HRI

components for intelligent home service robots.

These components are composed of speaker

recognition based on MFCC-GMM, sound source

localization based on ESI and reliable angle

estimation, and speech enhancement based on PBF.

We have showed the usefulness and effectiveness of

the developed techniques through the performance

obtained from the constructed databases. On the

basis of these components, we shall continuously

develop other techniques such as sound source

separation, gender/age classification, and fusion of

information obtained from multi-microphones for

humanlike robot auditory system.

REFERENCES

Reynolds, D. A., Rose, R. C., 1995. Robust text-

independent speaker identification using Gaussian

mixture speaker models. IEEE Trans. on Speech and

Audio Processing, vol. 3, no. 1, pp. 72-83.

Kwak, K. C., Kim, H. J., Bae, K. S., Yoon, H. S., 2007.

Speaker identification and verification for intelligent

service robots. In International Conference on

Artificial Intelligence (ICAI2007), Las Vegas, May.

Raykar, V. C., Yegnanarayana, B., Prasanna, S. R. M.,

Duraiswami R., 2005. Speaker localization using

excitation source information in speech. IEEE Trans.

on Acoustic, Speech, and Signal Processing, vol. 13,

no. 5, pp. 751-761.

Kwak, K. C., Kim, S. S., 2008. Sound source localization

with the aid of excitation source information in home

robot environments. IEEE Trans. on Consumer

Electronics, vol. 54, no. 2, pp. 852-856.

Aarabi, P., Shi, G., 2004. Phase-based dual-microphone

robust speech enhancement. IEEE Trans. on Systems,

Man, and Cybernetics, vol. 34, no. 4, pp. 1763-1773.

ICINCO 2009 - 6th International Conference on Informatics in Control, Automation and Robotics

478
