MODEL-DRIVEN DEVELOPMENT OF SOFTWARE

CONFIGURATION MANAGEMENT SYSTEMS

A Case Study in Model-driven Engineering

Thomas Buchmann, Alexander Dotor and Bernhard Westfechtel

Angewandte Informatik 1, Universit

at Bayreuth, D-95540 Bayreuth, Germany

Keywords:

Model-driven development, Software conﬁguration management, Software product line.

Abstract:

Software conﬁguration management (SCM) is the discipline of controlling the evolution of large and complex

software systems. Current SCM systems are themselves large and complex. Usually, their underlying models

are hard-wired into the program code, which is written manually. In contrast, we present a modular and model-

driven approach to software conﬁguration management which (a) reduces development effort by replacing

coding with creating executable models and (b) provides a product line supporting the conﬁguration of an

SCM system from loosely coupled, reusable components. In addition to improving SCM support, our intent

is to use our system as a large case study for evaluating languages and tools for model-driven development.

1 INTRODUCTION

Software conﬁguration management (SCM) is the dis-

cipline of controlling the evolution of large and com-

plex software systems. A wide variety of SCM tools

and systems has been implemented, ranging from

small tools such as RCS (Tichy, 1985) over medium-

sized systems such as CVS (Vesperman, 2006) or

Subversion (Collins-Sussman et al., 2004) to large-

scale industrial systems such as Adele ClearCase

(White, 2003). The current state of practice is charac-

terized as follows:

• SCM systems are large. For example, even the

code base of the GNU CVS project comprises

about 300,000 lines of code. CVS is still a rather

small tool compared to a commercial system for

large enterprises such as ClearCase.

• SCM systems are similar. For example, almost

all commercial and open source systems are based

on version graphs, which are used to manage the

evolution of software objects.

• The underlying models are deﬁned only implicitly

by the program code, i.e., the model is hard-wired

into the respective system.

• SCM systems are hard to adapt to modiﬁed re-

quirements. For example, although Subversion

provides similar functionality as CVS (at least

from a bird’s eye view), the developers of Sub-

version decided to start over from scratch.

These observations have motivated us to launch a

project for developing a model-driven and modular

SCM system (MOD2-SCM (Buchmann et al., 2008)):

• The system is based on an explicit domain model

for SCM. This makes it easier to communicate

and reason about the model.

• The model is executable. Thus, development ef-

fort is reduced by generating code from the model.

• The system is designed to support a product line

for SCM systems. To this end, the executable

domain model is composed from loosely coupled

components which may be conﬁgured by deﬁning

the features of the respective target system.

In addition to improving SCM support, our intent

is to use our system as a large case study for evalu-

ating languages and tools for model-driven develop-

ment. The research is built on the hypothesis that

model-driven development improves the software de-

velopment process. However, this cannot be simply

taken for granted. Rather, the hypothesis has to be

checked carefully, and both achievements and limita-

tions have to be identiﬁed.

309

Buchmann T., Dotor A. and Westfechtel B. (2009).

MODEL-DRIVEN DEVELOPMENT OF SOFTWARE CONFIGURATION MANAGEMENT SYSTEMS - A Case Study in Model-driven Engineering.

In Proceedings of the 4th International Conference on Software and Data Technologies, pages 309-316

DOI: 10.5220/0002250303090316

 SciTePress

2 APPROACH

In our approach, we follow a model-driven product

line engineering process (Figure 1). In product line

Domain Engineering

Develop Executable Domain Model

Application Specific Requirements

Executable Domain Model

Feature Model

SCM Domain

Configured SCM System

Feature Configuration

Configure SCM System

Configure Features

Analyze Domain

Application Engineering

Figure 1: Engineering process.

engineering, a distinction is made between domain

and application engineering (Pohl et al., 2005). In do-

main engineering, the domain is analyzed, and soft-

ware is developed to support the respective domain.

In application engineering, a speciﬁc application, i.e.,

an instance of the product line, is created. While do-

main engineering requires a full-ﬂedged development

process, application engineering is reduced in our ap-

proach to a conﬁguration process. The steps of the

engineering process are described below:

Analyze Domain. The SCM domain is analyzed by

investigating and classifying SCM systems. The

result of this analysis is documented by a fea-

ture model, which is based on FODA (Feature-

Oriented Domain Analysis (Chang et al., 1990)).

The feature model describes mandatory, optional,

and alternative features of the SCM systems to be

built with the product line.

Develop Executable Domain Model. An exe-

cutable domain model is developed for the feature

model. To this end, we use Fujaba (Z

undorf,

2001), an object-oriented modeling language and

CASE tool. The domain model comprises both

a structural model, deﬁned by class diagrams,

and a behavioral model, deﬁned by story dia-

grams (similar to UML 2.0 interaction overview

diagrams).

Conﬁgure Features. From the feature model, fea-

tures are selected for the SCM system to be built.

This results in a feature conﬁguration.

Conﬁgure SCM System. The executable domain

model is conﬁgured automatically according to

the selected feature conﬁguration.

3 RELATED WORK

About a decade ago, a few research projects were ded-

icated to the development of a uniform version model.

E.g., in ICE (Zeller and Snelting, 1997) version mod-

els were represented with logical expressions for ex-

pressing visibilities and constraints.

(van der Lingen and van der Hoek, 2003) pro-

poses a component-based architecture for SCM sys-

tems. Components may be viewed as variation points

offering different policies for storage, hierarchy, lock-

ing, distribution, etc.

Only a few approaches have been dedicated to

model-driven product lines of SCM systems. In Bam-

boo (Whitehead and Gordon, 2003; Whitehead et al.,

2004), version models are deﬁned in an extended ER

data model (Containment Modeling Framework). An

SCM system is generated from a CMF model.

The PhD thesis of Kov

se (Kov

se, 2005) investi-

gates a product line approach to the model-driven de-

velopment of versioning systems. The user of the

product line deﬁnes a version model as a UML pro-

ﬁle; stereotypes and tagged values are used to param-

eterize the behavior of modeling elements.

Among the approaches described above, only

Bamboo and the work of Kov

se combine model-

driven development and software product line engi-

neering. MOD2-SCM is unique with respect to be-

havioral modeling of SCM systems: In all systems

discussed above, behavior has to be programmed. In

MOD2-SCM, behavior is modeled with story dia-

grams, from which Fujaba generates executable code.

4 FEATURE MODEL

A feature is a property that is relevant to some stake-

holder and is used to capture commonalities or to dis-

tinguish among products in a product line. A feature

model consists of one or more feature diagrams. Fig-

ure 2 shows a feature diagram for a part of the SCM

domain. The diagram was created with FeaturePlugin

for Eclipse (Antkiewicz and Czarnecki, 2004). Filled

and unﬁlled circles represent mandatory and optional

features, respectively. An unﬁlled fork denotes an

exclusive-or selection, i.e., exactly one of the child

features (unﬁlled squares) has to be selected. Finally,

in the case of a ﬁlled fork at least one of the child fea-

tures has to selected; here, a ﬁlled square indicates a

mandatory child feature. Crosses and ticks represent

a feature conﬁguration (Section 6).

The feature diagram distinguishes between the

Client (not considered further) and the Server. With

respect to the History, the alternatives Base (no his-

ICSOFT 2009 - 4th International Conference on Software and Data Technologies

310

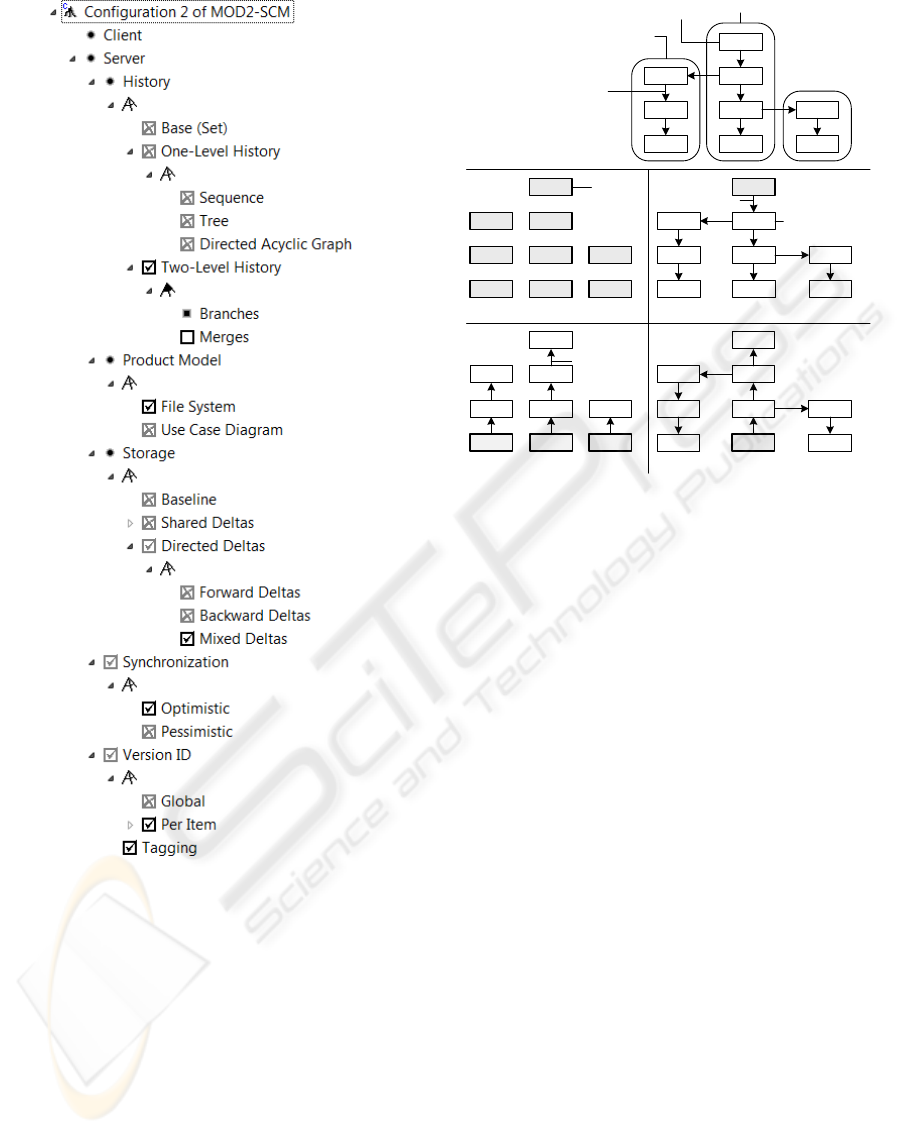

Figure 2: Feature model and feature conﬁguration

tory), One-Level History (with subfeatures Sequence,

Tree, Directed Acyclic Graph) and Two-Level History

are provided. In the latter case, Branches are manda-

tory, and

Merges are optional. Product Model refers

to the types of items under version control, e.g.,

File

System

or Use Case Diagram. Storage is used to con-

trol the storage mechanism:

Baseline if deltas are not

used,

Shared Deltas, and Directed Deltas as shown in

Figure 3. With respect to

Synchronization, we dis-

tinguish between

Optimistic and Pessimistic. Finally,

Version ID contains a feature group for Global or Per

Item

system-deﬁned identiﬁcation, and an optional

feature

Tagging for user-deﬁned names.

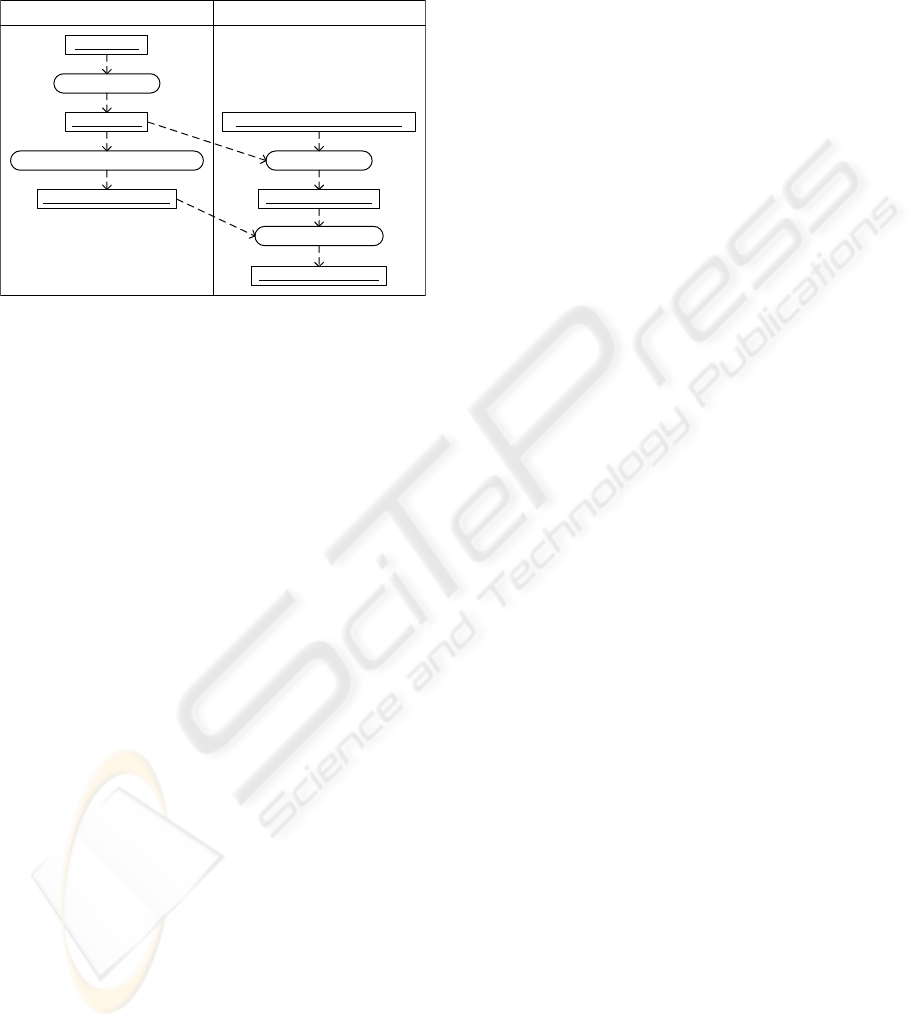

a) Version Graph

1.3.1.1

1.3.1.2

1.2.1.1

1.2.1.2

1.2.1.3

1.1

1.2

1.3

1.4

Trunk

Side Branch

Version

Successor Relationship

Baseline

b1) No Deltas

1.1

1.2.1.1 1.2

1.31.2.1.2 1.3.1.1

Reconstructed

b2) Forward Deltas

1.1

1.2.1.1 1.2

1.31.2.1.2 1.3.1.1

Forward Delta

1.41.2.1.3 1.3.1.2 1.41.2.1.3 1.3.1.2

b3) Backward Deltas

1.1

1.2.1.1 1.2

1.31.2.1.2 1.3.1.1

Backward

Delta

b4) Mixed Deltas

1.1

1.2.1.1 1.2

1.31.2.1.2 1.3.1.1

1.41.2.1.3 1.3.1.2 1.41.2.1.3 1.3.1.2

Figure 3: Logical organization of a version graph (a) and

alternative physical organizations (b)

In a product line, it is essential to provide for

orthogonal feature combination. For example, Fig-

ure 3 illustrates that the history model and the stor-

age model may be combined in an orthogonal way.

Figure 3a displays an RCS/CVS-like version graph,

which has explicit branches (two-level history). Part b

of the ﬁgure illustrates alternative physical organi-

zations (ways of storing versions). Thus, a version

graph may be stored in different ways. Conversely, a

given storage model may be combined with different

version graphs (not shown here).

5 EXECUTABLE DOMAIN

MODEL

This section presents cutouts of the executable

domain model realizing the feature model deﬁned

above. The presentation demonstrates

• how the features are mapped into the executable

domain model,

• how the domain model supports orthogonal com-

bination of features, and

• how the behavioral model may be deﬁned in a

high-level graphical notation.

Figure 2: Feature model and feature conﬁguration.

tory), One-Level History (with subfeatures Sequence,

Tree, Directed Acyclic Graph) and Two-Level History

are provided. In the latter case, Branches are manda-

tory, and Merges are optional. Product Model refers

to the types of items under version control, e.g., File

System or Use Case Diagram. Storage is used to con-

trol the storage mechanism: Baseline if deltas are not

used, Shared Deltas, and Directed Deltas as shown in

Figure 3. With respect to Synchronization, we dis-

tinguish between Optimistic and Pessimistic. Finally,

Version ID contains a feature group for Global or Per

Item system-deﬁned identiﬁcation, and an optional

feature Tagging for user-deﬁned names.

In a product line, it is essential to provide for

a) Version Graph

1.3.1.1

1.3.1.2

1.2.1.1

1.2.1.2

1.2.1.3

1.1

1.2

1.3

1.4

Trunk

Side Branch

Version

Successor Relationship

Baseline

b1) No Deltas

1.1

1.2.1.1 1.2

1.31.2.1.2 1.3.1.1

Reconstructed

b2) Forward Deltas

1.1

1.2.1.1 1.2

1.31.2.1.2 1.3.1.1

Forward Delta

1.41.2.1.3 1.3.1.2 1.41.2.1.3 1.3.1.2

b3) Backward Deltas

1.1

1.2.1.1 1.2

1.31.2.1.2 1.3.1.1

Backward

Delta

b4) Mixed Deltas

1.1

1.2.1.1 1.2

1.31.2.1.2 1.3.1.1

1.41.2.1.3 1.3.1.2 1.41.2.1.3 1.3.1.2

Figure 3: Logical organization of a version graph (a) and

alternative physical organizations (b).

orthogonal feature combination. For example, Fig-

ure 3 illustrates that the history model and the stor-

age model may be combined in an orthogonal way.

Figure 3a displays an RCS/CVS-like version graph,

which has explicit branches (two-level history). Part b

of the ﬁgure illustrates alternative physical organi-

zations (ways of storing versions). Thus, a version

graph may be stored in different ways. Conversely, a

given storage model may be combined with different

version graphs (not shown here).

5 EXECUTABLE DOMAIN

MODEL

This section presents cutouts of the executable do-

main model realizing the feature model deﬁned

above. The presentation demonstrates

• how the features are mapped into the executable

domain model,

• how the domain model supports orthogonal com-

bination of features, and

• how the behavioral model may be deﬁned in a

high-level graphical notation.

5.1 Package Diagram

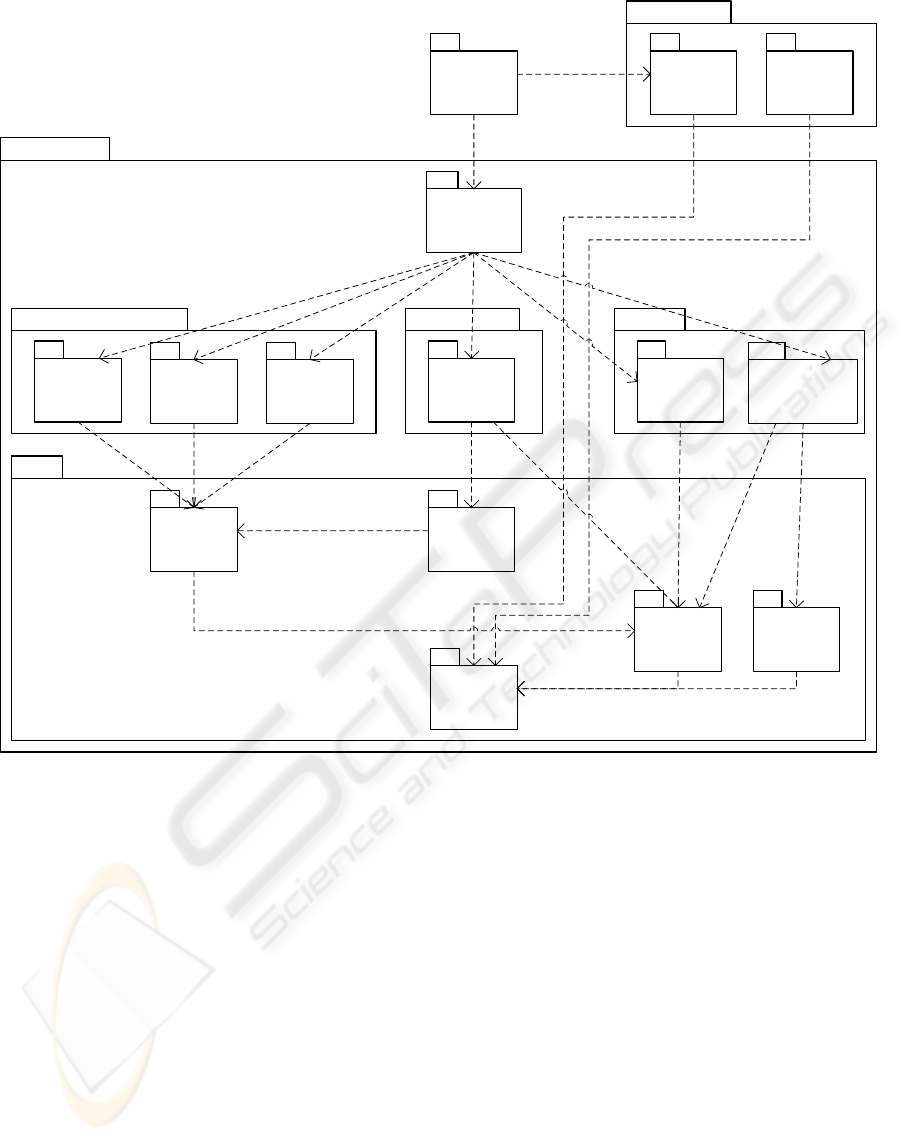

Figure 4 displays the model architecture as a pack-

age diagram, using UML 2.0 notation. In addition

MODEL-DRIVEN DEVELOPMENT OF SOFTWARE CONFIGURATION MANAGEMENT SYSTEMS - A Case Study

in Model-driven Engineering

311

Product

Storage Delta

Core

Versions

Versioned

Items

Versioned Items

Base

{feature =

Base}

History {feature = Per Item}

Sequence

{feature =

Sequence}

Branches

{feature =

Branches,

Tagging}

Baseline

{feature =

Baseline}

Storage

Directed Deltas

{feature =

Directed Deltas}

Single Item

Configurable

Server

Version Model

File System

{feature =

File System}

Product Model

CVS

Workspace

Manager

Use Cases

{feature =

Use Cases}

<<import>>

<<import>> <<import>> <<import>>

<<import>>

<<import>> <<import>> <<import>>

<<import>> <<import>> <<import>> <<import>> <<import>>

<<import>>

Figure 4: Package diagram with feature annotations.

to nesting, packages are related by public imports,

which work transitively. Packages are related to the

feature model by tagged values: The tag feature is

assigned the supported feature(s) as value(s). Some

features are still missing because they have not been

implemented yet.

Version Model contains the nested package Core,

which provides basic, generic functionality on top of

which higher-level packages are built. Generic means

that the Core addresses common rather than discrimi-

nating features. Basic implies that the assumptions to

be met by higher-level packages are minimized.

Discriminating features are introduced above the

Core. History deals with version graphs and currently

supports the features Base, Sequence, and Branches.

So far, all subpackages support the identiﬁcation of

versions per item, i.e., identiﬁcation by global num-

bers such as e.g. in Subversion is not supported yet.

Storage provides storage of baselines and directed

deltas. Versioned Items is built on top of the Core sub-

package of the same name. Its subpackage Single Item

adds a storage to the version set (in the Core package,

versioned items are still completely independent from

the storage mechanism). Finally, Conﬁgurable Server

provides a uniform interface to the server managing

the repository.

The Version Model depends neither on the Storage

nor on the Product model. For the latter, two sample

alternatives (ﬁle systems and use case diagrams) are

provided. Finally, CVS Workspace Manager offers a

CVS-like workspace manager, relying on the ﬁle sys-

tem, branches, and mixed deltas.

5.2 Class Diagrams

In the next step, the model architecture is reﬁned into

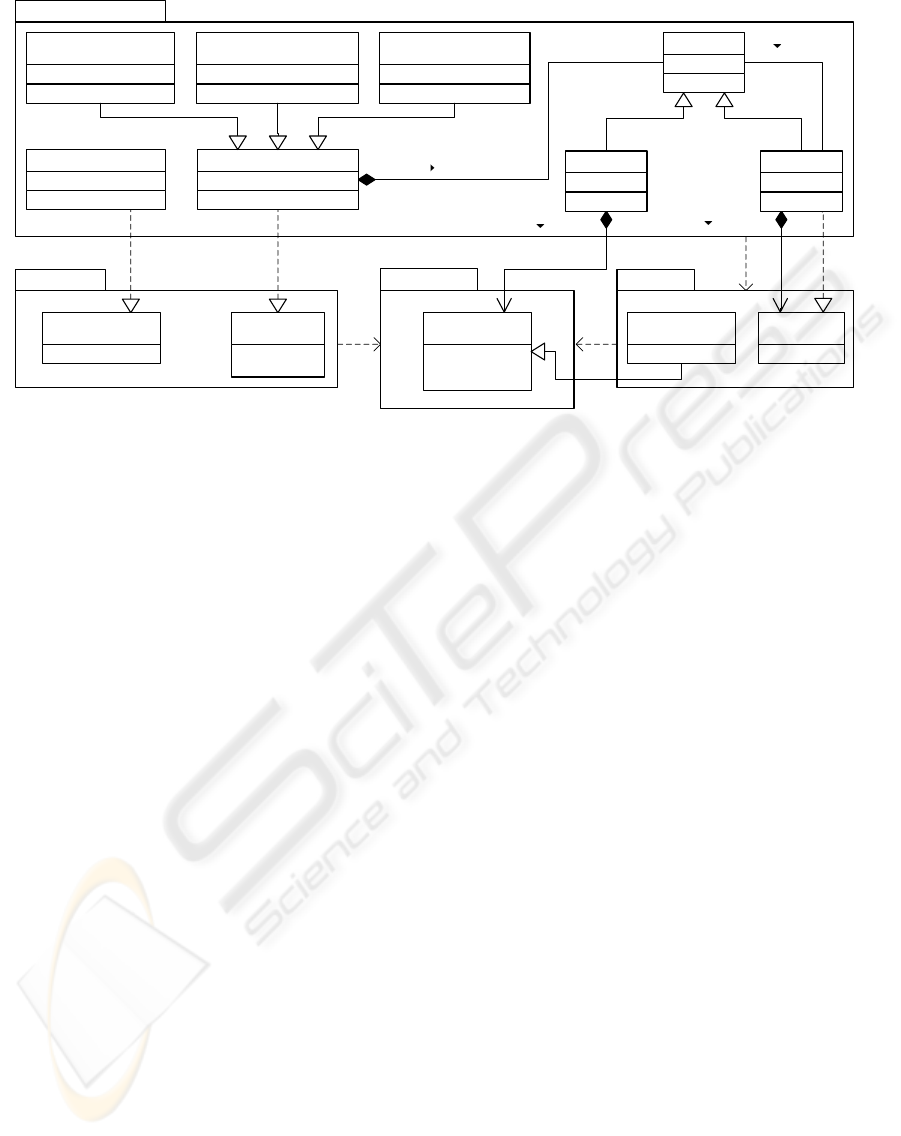

a set of class diagrams. As an example, Figure 5

shows a class diagram (extending over multiple pack-

ICSOFT 2009 - 4th International Conference on Software and Data Technologies

312

Storage.DirectedDeltas

Core.Delta

Core.Storage

+duplicate()

+getItemId()

+setItemId()

«interface»

IProductItem

+compare()

«interface»

IDeltifiableItem

+apply()

«interface»

IDelta

+store()

+restore()

«interface»

IStorage

+createStorage()

«interface»

IStorageFactory

Core.Product

contains

decorates

StorageItem

+storageId

ForwardDeltaStorage

{feature = Forward Deltas}

BackwardDeltaStorage

{feature = Backward Deltas}

MixedDeltaStorage

{feature = Mixed Deltas}

DeltaStorageDeltaStorageFactory

hasNext

stores

BaselineItem

+apply()

DeltaItem

<<import>>

0..1

Figure 5: Class diagram for the storage model

5.2 Class Diagrams

In the next step, the model architecture is reﬁned into

a set of class diagrams. As an example, Figure 5

shows a class diagram (extending over multiple pack-

ages) for the storage model, which relies on minimal

assumptions regarding the items to be stored. The

interface

IProductItem of package Product deﬁnes a

few methods to be supported by each class of storable

items:

duplicate() for copying an item, and get() and

set() methods for an item identiﬁer, which is used to

uniquely identify the item to be versioned. The sub-

package

Storage of package Core introduces an in-

terface

IStorage with store() and restore() methods,

which refer to

IProductItems, and an interface for a

storage factory, offering a

createStorage() method.

Please note that

Storage is still independent of the

Delta package, which introduces an interface IDelti-

ﬁableItem

extending IProductItem with a compare()

method, and an interface IDelta, which is used to rep-

resent (directed) deltas between deltiﬁable items and

offers an

apply() method.

Implementations of storages are provided in the

subpackage

Storage of package Version Model.In

the subpackage

Storage.DirectedDeltas, the abstract

class

DeltaStorage partially implements the interface

IStorage by means of some auxiliary methods to be

called by its subclasses. A delta storage stores a set

of storage items, each of which is identiﬁed uniquely

by an externally assigned storage identiﬁer. The ab-

stract class

StorageItem is reﬁned into the subclasses

Baseline, which wraps a product item, and DeltaItem,

which both extends and decorates a delta. Each of

the features

Forward, Backward, and Mixed Deltas is

supported by a respective subclass of

DeltaStorage.

Finally, the package offers a factory class for creating

one of these storages.

The storage model is orthogonal to the history

model. The package

DirectedDeltas knows how to

store a new item relatively to a predecessor item.

Here, the term “predecessor” does not refer to a suc-

cessor relationship in a version graph. Rather, it

merely implies that this item must be already present

when the new item is to be stored. Furthermore, the

storage identiﬁer must be supplied by the caller of

the

store() method. Its meaning — actually a version

identiﬁer — is not known to the storage.

5.3 Story Diagrams

The next step consists in the realization of the meth-

ods deﬁned in class diagrams. In Fujaba, a method

may be programmed by a story diagram, from which

executable Java code is generated. A story diagram is

an activity diagram with nodes of two kinds: A state-

ment activity consists of a fragment of Java code, al-

lowing for seamless integration of textual and graph-

ical programming. A story pattern is a communica-

tion diagram composed of objects and links; objects

may be decorated with method calls. Elements with

dashed lines represent optional parts of story patterns.

A crossed element denotes a negative application con-

dition. In addition to method calls, a story pattern

may describe structural changes: Objects and links to

Figure 5: Class diagram for the storage model.

ages) for the storage model, which relies on minimal

assumptions regarding the items to be stored. The

interface IProductItem of package Product deﬁnes a

few methods to be supported by each class of storable

items: duplicate() for copying an item, and get() and

set() methods for an item identiﬁer, which is used to

uniquely identify the item to be versioned. The sub-

package Storage of package Core introduces an in-

terface IStorage with store() and restore() methods,

which refer to IProductItems, and an interface for a

storage factory, offering a createStorage() method.

Please note that Storage is still independent of the

Delta package, which introduces an interface IDelti-

ﬁableItem extending IProductItem with a compare()

method, and an interface IDelta, which is used to rep-

resent (directed) deltas between deltiﬁable items and

offers an apply() method.

Implementations of storages are provided in the

subpackage Storage of package Version Model. In

the subpackage Storage.DirectedDeltas, the abstract

class DeltaStorage partially implements the interface

IStorage by means of some auxiliary methods to be

called by its subclasses. A delta storage stores a set

of storage items, each of which is identiﬁed uniquely

by an externally assigned storage identiﬁer. The ab-

stract class StorageItem is reﬁned into the subclasses

Baseline, which wraps a product item, and DeltaItem,

which both extends and decorates a delta. Each of

the features Forward, Backward, and Mixed Deltas is

supported by a respective subclass of DeltaStorage.

Finally, the package offers a factory class for creating

one of these storages.

The storage model is orthogonal to the history

model. The package DirectedDeltas knows how to

store a new item relatively to a predecessor item.

Here, the term “predecessor” does not refer to a suc-

cessor relationship in a version graph. Rather, it

merely implies that this item must be already present

when the new item is to be stored. Furthermore, the

storage identiﬁer must be supplied by the caller of

the store() method. Its meaning — actually a version

identiﬁer — is not known to the storage.

5.3 Story Diagrams

The next step consists in the realization of the meth-

ods deﬁned in class diagrams. In Fujaba, a method

may be programmed by a story diagram, from which

executable Java code is generated. A story diagram is

an activity diagram with nodes of two kinds: A state-

ment activity consists of a fragment of Java code, al-

lowing for seamless integration of textual and graph-

ical programming. A story pattern is a communica-

tion diagram composed of objects and links; objects

may be decorated with method calls. Elements with

dashed lines represent optional parts of story patterns.

A crossed element denotes a negative application con-

dition. In addition to method calls, a story pattern

may describe structural changes: Objects and links to

be created or deleted are decorated with the stereo-

type <<create>> (green) or <<destroy>> (red),

respectively. Furthermore, := and == denote attribute

assignments and equality conditions, respectively.

In the following, we present one example to il-

lustrate the style of programming with story patterns.

The store() method of class MixedDeltaStorage (Fig-

ure 6) is supplied with the item to be stored and an

externally assigned storage identiﬁer. Please note that

MODEL-DRIVEN DEVELOPMENT OF SOFTWARE CONFIGURATION MANAGEMENT SYSTEMS - A Case Study

in Model-driven Engineering

313

MixedDeltaStorage::store(item : IProductItem; storageID : String; context : Map) : Boolean

1 : Check if new item

is actually deltifiable

[failure]

newItem := (IDeltifiableItem) item;

String predID := (String) context.get("predID");

IDeltifiableItem predDeltaItem :=

(IDeltifiableItem) this.restore(predID, context);

[success]

5 : Retrieve storage id

of predecessor item

and restore the

predecessor

predDelta := (Delta) predItem

6 : Succeeds if the

predecessor item

is stored as a delta,

and fails otherwise

7 : Store new delta

as forward delta

[success]

this predDelta : Delta

storageID == predID

<<create>>

newDelta : Delta :=

new Delta(newItem.compare(predDeltaItem))

storageID := storageID

stores

<<create>>

hasNext

this

<<create>>

stores

<<create>>

hasNext

newDelta : Delta :=

new Delta(predDeltaItem.compare(newItem))

storageID := predID

<<create>>

newBaseline : Baseline

storageID := storageID

oldBaseline : Baseline

<<destroy>>

oldFirstDelta : Delta

hasNext

<<destroy>>

stores

<<create>>

hasNext

[failure]

8 : Store old baseline as delta,

store new item as baseline,

and maintain reconstruction chain

true

this

stores

<<create>>

newBaseline : Baseline

storageID := storageID

stores

anItem : StorageItem

2 : Store first item

as baseline

true

[success]

this

stores

anItem : StorageItem

storageID == storageID

[failure]

3 : Has storageID

already been used?

false

[success]

predItem := this.selectPredItem(context)

[failure]

4 : Retrieve predecessor

item via context

parameter

false

[failure]

[success]

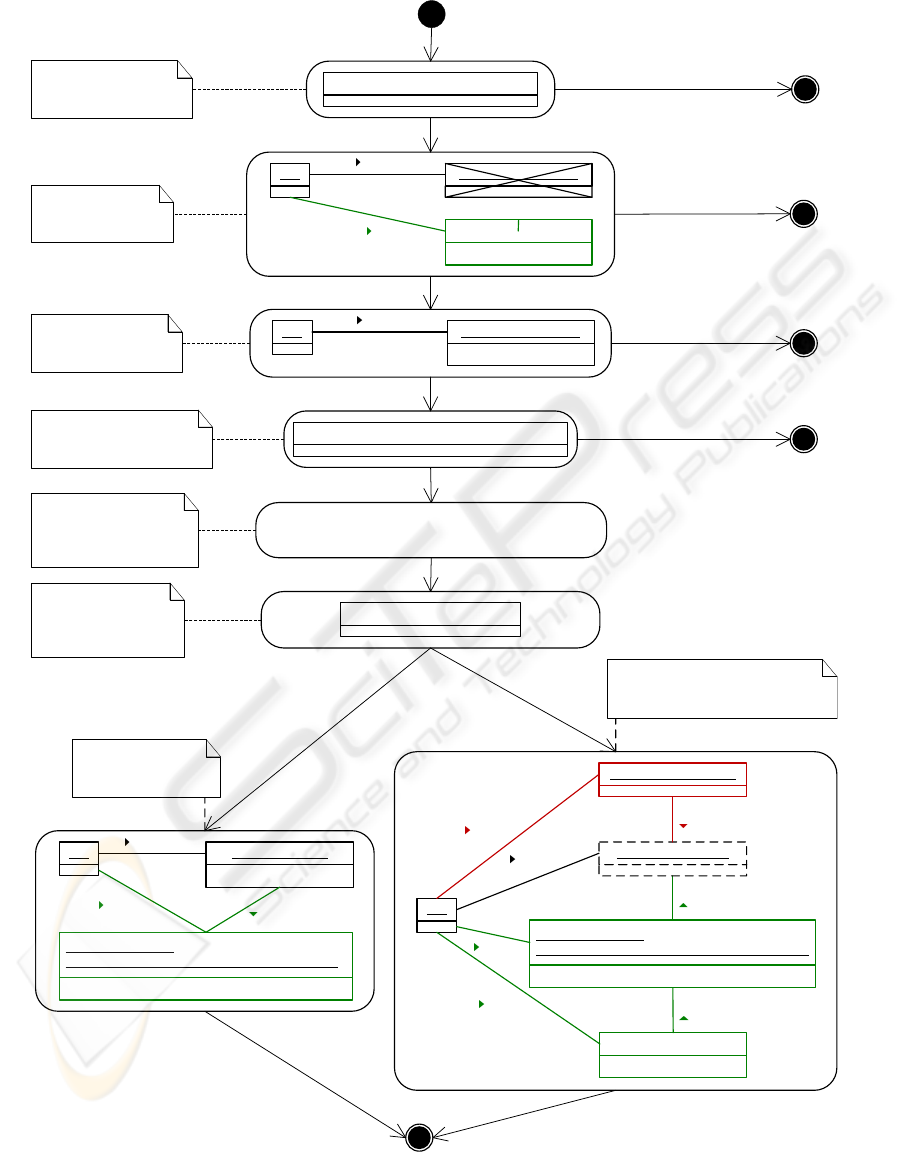

Figure 6: Story diagram for storing an item (mixed deltas).

ICSOFT 2009 - 4th International Conference on Software and Data Technologies

314

only deltiﬁable items can be stored; furthermore, the

storage identiﬁer must not have been used before. If

the item is the ﬁrst one to be stored, it is stored as a

baseline. Otherwise, the item is stored as a forward

delta if its predecessor is a delta, and as a backward

delta it its predecessor is a baseline.

The method store() does not assume a speciﬁc his-

tory model. Rather, it calls the method selectPred-

Item(), which retrieves the predecessor item (if any)

from the context parameter. This is a minimal as-

sumption in the case of directed deltas: The context

relative to which the new item is to be stored has to

be known. Conversely, the method for adding a new

version (not shown) does not depend on the storage

model. Rather, it merely calls the store() method of

the generic interface IStorage.

6 CONFIGURATION PROCESS

In the ﬁrst step of the conﬁguration process shown on

the right-hand side of Figure 1, the application engi-

neer describes a feature conﬁguration for the feature

model of Section 4. Ticks and crosses in Figure 2

represent selected and disabled features, respectively.

The ﬁgure displays a CVS-like conﬁguration (two-

level history without merge relationships, ﬁle system

as product model, mixed deltas, optimistic synchro-

nization, version identiﬁcation per item, and tagging).

The second step – conﬁguring the SCM sys-

tem – is performed automatically. When a server

is created, the selected features are used to in-

stantiate respective factories supporting these fea-

tures. For example, for the sample feature conﬁg-

uration instances of BranchedHistoryFactory (pack-

age Branches) and DeltaStorageFactory (package Di-

rectedDeltas) are created. These speciﬁc factories im-

plement generic interfaces on which the rest of the

code depends.

The server is independent from the product model

since it depends only on generic interfaces. For ex-

ample, when a version is added to the repository, an

item is passed to the server which is accessed through

generic interfaces. Therefore, the server need not be

conﬁgured with respect to the product model.

7 DISCUSSION

7.1 Executable Domain Model

The main reason for using Fujaba consists in its sup-

port for executable models. The added value com-

pared to other CASE tools is provided by story dia-

grams and their compilation into executable code. In

contrast, code generation from class diagrams is sup-

ported by numerous other CASE tools, as well, e.g.,

EMF (Steinberg et al., 2009).

More speciﬁcally, story patterns are those ele-

ments of story diagrams which signiﬁcantly raise the

level of abstraction above conventional programming

languages such as Java. In contrast, the control ﬂow

does not raise the level of abstraction. Some devel-

opers may prefer graphical over textual notation of

control ﬂow. On the other hand, it is easy to lose ori-

entation in large story diagrams with complex control

ﬂow. Thus, a modeler using Fujaba should keep the

principles of structured programming in mind.

7.2 Model Architecture and Design

The executable domain model has to be designed for

reuse and change. To this end, we have applied estab-

lished object-oriented design principles and patterns

to minimize the coupling of components. In addition,

we have invested signiﬁcant effort in the design of a

model architecture, which deﬁnes the overall struc-

ture at a larger scale than the rather ﬁne-grained level

on which design patterns operate. In this paper, we

have used a UML package diagram to represent the

model architecture. With the help of packages, the

coupling between architectural units cannot be con-

trolled adequately for the following reasons:

• Public imports work transitively. Thus, the dia-

gram does not tell which packages in the transitive

closure are actually used.

• A public element may always be referenced

through its full qualiﬁed name. These depen-

dencies are not reﬂected in the package diagram,

which cannot constrain the use of elements.

• An imported element may even be modiﬁed in

an importing namespace ((Object Management

Group, 2007), p. 143). Thus, the deﬁnition of an

element may be spread over multiple packages.

7.3 Feature Modeling and

Conﬁguration

We have applied feature modeling to deﬁne common

and discriminating features of SCM systems. The un-

derlying concepts are simple to understand; a feature

model is an intuitive and useful means to deﬁne the

capabilities of a product line. So far, we have deﬁned

no constraints on the combination of features (apart

from those constraints which are expressed directly

in the feature diagram itself). In fact, an essential

MODEL-DRIVEN DEVELOPMENT OF SOFTWARE CONFIGURATION MANAGEMENT SYSTEMS - A Case Study

in Model-driven Engineering

315

goal of our project consists in building a product line

for SCM systems where features may be combined as

freely as possible.

We have annotated the domain model manually

with features such that elements of the domain model

may be traced back to the feature model. These an-

notations are performed at a coarse-grained level, i.e.,

coarse-grained units such as packages or classes are

decorated with features rather than ﬁne-grained units

such as attributes, associations, methods, parameters,

story patterns, etc. This approach keeps the multi-

variant architecture manageable.

Currently, code is generated for the complete do-

main model supporting all features. A feature con-

ﬁguration is used to ﬁx the parameters passed to the

method which is responsible for creating a server (see

Section 6). While this approach, which has been re-

alized on top of Fujaba, supports ﬂexible selection of

features even at runtime, it also requires to deliver the

code for the complete product line to each individual

customer. This can be avoided by modifying the Fu-

jaba compiler such that only the code for the selected

features is generated (Buchmann and Dotor, 2009).

8 CONCLUSIONS

We presented a model-driven and modular approach

to the development of SCM systems. Furthermore,

we discussed the experiences we have gained so far

in applying model-driven product line engineering to

this application domain. Development of the product

line is still under way. Currently, the domain model

consists of 87 classes and interfaces with 283 meth-

ods. The code base comprises 19,284 lines of (almost

exclusively generated) Java code.

REFERENCES

Antkiewicz, M. and Czarnecki, K. (2004). FeaturePlugin:

Feature modeling plug-in for Eclipse. In Burke, M. G.,

editor, Proceedings of the 2004 OOPSLA Workshop

on Eclipse Technology eXchange (ETX 2004), pages

67–72, British Columbia, Canada. ACM Press.

Buchmann, T. and Dotor, A. (2009). Constraints for a ﬁne-

grained mapping of feature models and executable do-

main models. In Proceedings of the First Interna-

tional Workshop on Model-Driven Product Line En-

gineering (MDPLE 2009), Twente, The Netherlands.

http://www.feasiple.de/workshop en.html.

Buchmann, T., Dotor, A., and Westfechtel, B. (2008).

MOD2-SCM: Experiences with co-evolving models

when designing a modular SCM system. In Proceed-

ings of the 1st International Workshop on Model Co-

Evolution and Consistency Management, Toulouse,

France.

Chang, K. C., Cohen, S. G., Hess, J. A., Novak, W. E.,

and Peterson, A. S. (1990). Feature-oriented domain

analysis (FODA) feasibility study. Technical Report

CMU/SEI-90-TR-21, Software Engineering Institute,

Carnegie Mellon University, Pittsburgh, Pennsylva-

nia.

Collins-Sussman, B., Fitzpatrick, B. W., and Pilato, C. M.

(2004). Version Control with Subversion. O’Reilly &

Associates, Sebastopol, California.

Kov

se, J. (2005). Model-Driven Development of Version-

ing Systems. PhD thesis, University of Kaiserslautern,

Kaiserslautern, Germany.

Object Management Group (2007). OMG Uniﬁed Model-

ing Language (OMG UML), Infrastructure, V 2.1.2.

Needham, Massachusetts, formal/2007-11-04 edition.

Pohl, K., B

ockle, G., and van der Linden, F. (2005). Soft-

ware Product Line Engineering: Foundations, Princi-

ples and Techniques. Springer, Berlin, Germany.

Steinberg, D., Budinsky, F., Paternostro, M., and Merks,

E. (2009). EMF Eclipse Modeling Framework. The

Eclipse Series. Addison-Wesley, Upper Saddle River,

NJ, 2nd edition.

Tichy, W. F. (1985). RCS – A system for version control.

Software: Practice and Experience, 15(7):637–654.

van der Lingen, R. and van der Hoek, A. (2003). Dissecting

conﬁguration management policies. In (Westfechtel

and van der Hoek, 2003), pages 177–190.

Vesperman, J. (2006). Essential CVS. O’Reilly & Asso-

ciates, Sebastopol, California.

Westfechtel, B. and van der Hoek, A., editors (2003). Soft-

ware Conﬁguration Management: ICSE Workshops

SCM 2001 and SCM 2003, LNCS 2649, Portland,

Oregon. Springer.

White, B. A. (2003). Software Conﬁguration Management

Strategies and Rational ClearCase. Object Technol-

ogy Series. Addison-Wesley, Reading, Massachusetts.

Whitehead, E. J., Ge, G., and Pan, K. (2004). Automatic

generation of hypertext system repositories: a model

driven approach. In 15th ACM Conference on Hy-

pertext and Hypermedia, pages 205–214, Santa Cruz,

CA. ACM Press.

Whitehead, E. J. and Gordon, D. (2003). Uniform com-

parison of conﬁguration management data models. In

(Westfechtel and van der Hoek, 2003), pages 70–85.

Zeller, A. and Snelting, G. (1997). Uniﬁed versioning

through feature logic. ACM Transactions on Software

Engineering and Methodology, 6(4):397–440.

undorf, A. (2001). Rigorous object oriented software de-

velopment. Technical report, University of Paderborn,

Germany.

ICSOFT 2009 - 4th International Conference on Software and Data Technologies

316
