TOWARDS ASYNCHRONOUS SIGNAL PROCESSING

Dariusz Kościelnik and Marek Miśkowicz

Department of Electronics, AGH University of Science and Technology, al. Mickiewicza 30, Cracow, Poland

Keywords: Asynchronous circuits, Analog-to-digital converters, Asynchronous Sigma-Delta modulation.

Abstract: A challenging problem of today’s ADC design is a development of low voltage, low power and possibly

high performance converters. The ever growing demand for decreasing the supply voltage of semiconductor

devices due to scaling the feature size of VLSI technology has pushed the design of analog integrated circuit

to its limits. The same problem concerns the analog-to-digital converters since lowering supply voltage

results in a reduction of a voltage increment corresponding to the least significant bit (LSB) in signal

amplitude quantization. In the paper, an important alternative to conventional ADCs is presented. To

overcome problems with decreasing accuracy of amplitude quantization, a new class of asynchronous ADCs

is discussed where the mapping of an analog signal into time domain rather than into amplitude domain is

used. The asynchronous ADCs are not controlled by any global clock but self-timed. The local reference

clock is used only to quantize time intervals that represent the converted signal amplitude. The design of

asynchronous Sigma-Delta analog-to-digital converter (ASD-ADC) with serial output interface is discussed

in details. The ASD-ADC together with the loss-free asynchronous analog signal recovery method

developed recently provides possibility to establish the asynchronous digital signal processing chain.

1 INTRODUCTION

The ever growing demand for extending digital

functionality on a single chip results in scaling the

feature size of VLSI technology in order to increase

the integration density of semiconductor devices.

Scaling the CMOS transistor dimensions into

nanoscale (<100 nm) enables faster operation of

circuits on the one hand, but needs decreasing the

supply voltage of devices to maintain reliable

operation on the other. As a result of this, a design of

analog and mixed signal systems has to cope with an

ever increasingly challenging technological

environment. For example, with the operating

voltage of 1V, the output signal swing is only 0.3V,

which is unacceptably low signal swing for many

applications (Matsuzawa, 2007).

In the context of analog-to-digital converters

(ADCs), the technology

scaling increases the

maximum conversion rate, but unfortunately

decreases at the same time

the signal-to-noise ratio

(SNR). The latter is caused simply by a reduction of

voltage increment corresponding to the least

significant bit (LSB) in a signal amplitude

quantization. This is currently the most serious

problem of a classical ADC design that will be even

more critical in future with further scaling of CMOS

process technology feature size (e.g., in the 45 nm

technology, the maximum operating voltage of

around 1 V will be used).

To maintain a high SNR despite the

low-voltage

operation of classical ADCs, the power consumption

needs to be increased (Matsuzawa, 2007). However,

the latter is in general unacceptable in portable

equipment and in wireless sensor networking

(WSNs) due to constraints on energy resources.

Efficiency of power consumption becomes a

primary criterion of designing ADCs for many

applications. The representative examples are

environmental monitoring and biomedicine. In

particular, the ADCs for WSNs in biomedical

applications (pulse-oximetry, ECG, PCG, EEG,

blood pressure, etc.) need only modest precision

(

bit8

≤

), and modest speed ( kHz40≤ ) but has to be

very energy-efficient (Yang and Sarpeshkar, 2006).

Summing up, the challenging problem of today’s

ADC design is a development of low voltage, low

power and possibly high performance ADCs whose

SNR does not decrease with supply voltage

reduction.

178

KoÅ

Zcielnik D. and MiÅ

Zkowicz M.

TOWARDS ASYNCHRONOUS SIGNAL PROCESSING.

DOI: 10.5220/0002251101780183

In Proceedings of the 6th International Conference on Informatics in Control, Automation and Robotics (ICINCO 2009), page

ISBN: 978-989-674-001-6

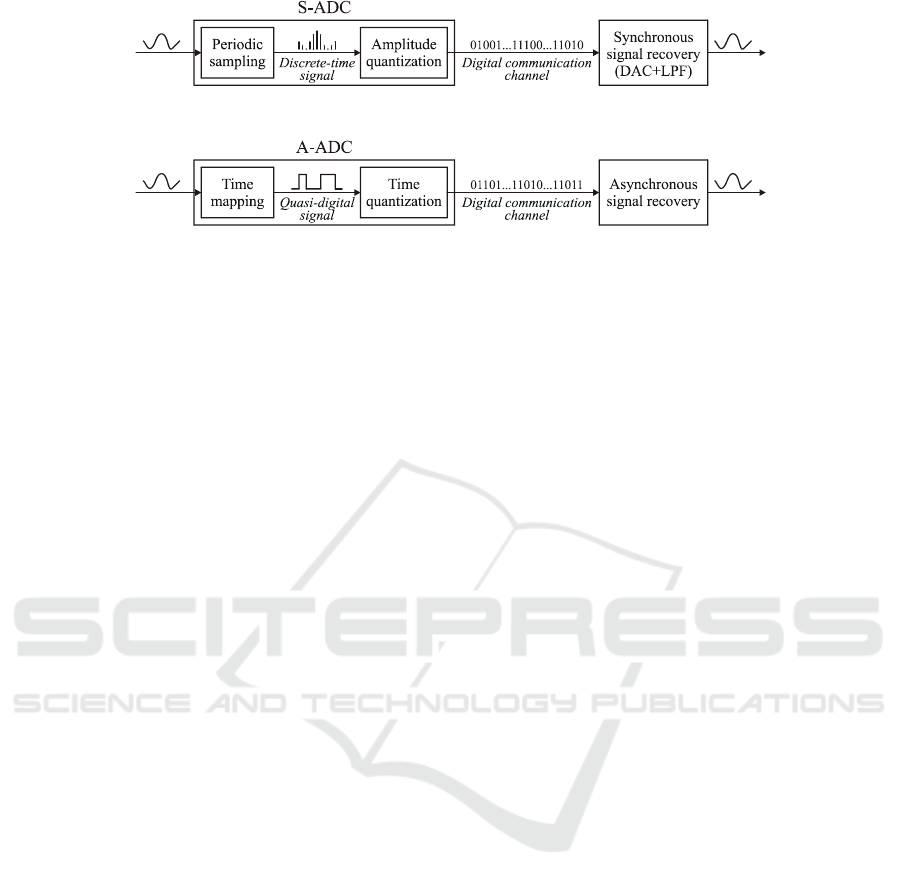

Figure 1: Traditional synchronous signal processing chain (digital numbers represent amplitude information).

Figure 2: Asynchronous signal processing chain (digital numbers represent time information).

2 ASYNCHRONOUS ADCS

To overcome problems with decreasing accuracy of

amplitude quantization, a new class of ADCs called

asynchronous analog-to-digital converters (A-

ADCs) was proposed recently where the mapping of

an analog signal into time domain rather than into

amplitude domain is used (Allier et al., 2003). In

general, the concept of time-encoding of a signal

amplitude is not new since it was used for example

in the well-known dual-slope ADCs, and in the

frequency-to-code converters. A time-based energy-

efficient ADC developed recently also uses the time

as an intermediate signal variable (Yang and

Sarpeshkar, 2005). In the asynchronous ADCs, the

time is used as the ADC output signal so binary

words that appear on the converter output irregularly

represent a sequence of time intervals instead of a

series of signal amplitude samples.

2.1 Sync Versus Async ADCs

The principle of asynchronous analog-to-digital

converters (A-ADCs) is completely different from

classical ADCs that are synchronous devices

controlled by a global clock. In the synchronous

ADCs (S-ADCs), the periodic sampling and the

amplitude quantization are applied. Instead, in the

A-ADCs, the analog signal is mapped into timing

(quasi-digital) parameters that are further quantized

according to the resolution of a reference clock.

Thus, the A-ADC operation consists in a redefinition

of domains at which the signal is sampled and

quantizated. The A-ADC does not include sample-

and-hold circuits, and is not controlled by any global

clock but self-timed. The local reference clock is

used only to quantize time intervals that represent

the converted signal amplitude. The clockless

architecture is attractive for energy-efficient design

since a global clock is the primary component of

power consumption in contemporary electronic

instrumentation. The invention of A-ADCs

announces thorough revision of the whole signal

processing chain and a development of a new

processing area called asynchronous signal

processing. The synchronous and the asynchronous

signal processing chains are presented in Figs. 1-2.

2.2 State of Art of A-ADCs Design

Although various techniques have been

accommodated to the design of low power ADCs,

the asynchronous clockless architectures based on

event-based sampling have been studied in the

context of ADCs in a few works only. Initially, the

well-known advantages of the asynchronous design

(i.e. low energy consumption, immunity to

metastable behavior, reduction of the circuit average

activity and electromagnetic interferences) have

inspired researchers to improve operation of

conventional synchronous ADCs by adoption of

solutions intrinsic for the asynchronous technology.

Such converters are locally asynchronous, but

globally synchronous since the sampling scheme is

still time-triggered and periodic (Sayiner et al.,

1996; Roza, 1997, Kinniment et al., 2000).

A postulate of a fully asynchronous ADC based

on the level-crossing sampling and the asynchronous

design has been introduced by Allier et. al (2003).

The purpose of a (fully) asynchronous ADC design

is a thorough revision of the whole signal processing

chain. In (Allier et al., 2005), the CMOS

implementation of LC-ADC with experimental

results is reported. The performance index (Figure of

Merit) of the LC-ADC is twice higher than that of a

classical synchronous ADCs. A significant

performance improvement achieved in the LC-ADC

stems from reducing the activity of the asynchronous

converter by a substitution of the periodic sampling

by the level-crossing scheme. The average rate of

the level-crossing sampling operations are lower

than the frequency of the periodic sampling because

TOWARDS ASYNCHRONOUS SIGNAL PROCESSING

179

the former are triggered if the input signal crosses

prespecified levels disposed along the amplitude

domain (compare Figs. 3a-3b), see (Miśkowicz,

2006) for details.

Akopyan et al. (2006) have designed a level-

crossing flash ADC (LCF-ADC) dedicated to real-

time monitoring and control applications where the

analog signal reconstruction is not required. Instead,

only the actual reports about a state of the observed

object are generated. Since in the LCF-ADC the

time is not tracked explicitly (i.e. the converter does

not record the times at which the samples are taken),

the power consumption is reduced additionally due

to eliminating the circuitry that deals with time

tracking. The architectures of the LCF-ADC and the

LC-ADC are completely different. The latter adopts

the feedback-based approach (Allier et al., 2003;

Allier et al., 2005), and the former utilizes a parallel

flash-type topology (Akopyan et al., 2006).

(

)

max

=Δ

T T

((i+1)T)

(iT)

(

)

i-2

)

i-1

)

i-2

)

i- 1

Figure 3: Comparison of the periodic (a) and the level-

crossing sampling (b) schemes for the same sampling

resolution, i.e.

Δ=

max

Summing up, several advantages of

asynchronous ADCs in relation to conventional

synchronous ADCs can be displayed as follows. The

asynchronous ADCs are a low-cost alternative to

conventional converters due to lower energy

consumption, simple architecture, and elimination of

the global clock and the sample-and-hold circuits.

2.3 Time vs. Amplitude Quantization

Although the time quantization is in general a

complementary process to the amplitude

quantization, certain differences might be

distinguished. Whereas the analog signal amplitude

is bounded and usually a non-monotone function,

the time is a magnitude with unceasingly growing

values. As a result, each quantization of the

amplitude can be referred to a certain absolute

reference level (usually zero). Instead, a

quantization of time has to be always related to the

relative reference which is the most recent event

(i.e. a beginning of the present time interval). Next,

whereas the amplitude is a fully analog magnitude,

the frequency/time is considered as ‘quasi-digital’

domain since these parameters combine both analog

and digital signal properties (Kirianaki et al., 2002).

Furthermore, the time quantization is usually

characterized by a non-redundant conversion time.

Instead, the quantization of the amplitude takes a

non-zero conversion time, sometimes is slow (e.g. in

conventional successive-approximation ADCs), or

the conversion time is variable and dependent on the

input signal level (e.g. in delta-encoded ADCs).

Finally, the frequency references (e.g. crystal

oscillators) are more stable than the voltage

reference sources (that are sensitive to the

temperature and the technological process tolerance)

so the time quantization is in general more accurate

than the quantization in the amplitude domain.

3 ASD-ADC CONCEPT

In this paper, we present a concept of analog-to-

digital conversion based on the asynchronous

Sigma-Delta modulation. The architecture of

asynchronous Sigma-Delta ADC (ASD-ADC) with

serial output interface is shown in Fig. 4.

Figure 4: The architecture of ASD-ADC with serial output

interface (TxD).

A two-level conversion scheme is utilized in the

ASD-ADC. First, the analog signal x(t) amplitude is

converted to an asynchronous square wave z(t) with

modulated frequency and duty cycle in the

asynchronous Sigma-Delta modulator (ASDM) (Fig.

5). The asynchronous square wave z(t) is a quasi-

digital signal since it is discrete in the amplitude and

continuous in the time. The widths of successive

pulses of z(t) depend on the mean value of converted

analog signal amplitude in the corresponding time

windows defined by these pulses. The width of

pulses has both a lower, and an upper bound.

To provide the digital output, the pulse widths

ICINCO 2009 - 6th International Conference on Informatics in Control, Automation and Robotics

180

are next quantized by the n-bit time-to-digital

converter (TDC). The quantization is based on

counting periods of a reference clock during each

pulse of the square wave on the ASDM output.

Finally, the digital code on the ASD-ADC output

represents time information that encodes the analog

signal amplitude. The ASD-ADC belongs to a class

of the mean value converters that are immune to

noise due to integration in the ASDM. The

asynchronous serial transmitter on the ASD-ADC

output transmits the digital words consisting of a

number of n bits of data preceded by the Start bit

and completed with the Stop bit.

Figure 5: The waveforms on integrator output y(t), and on

ASDM output z(t) for a given signal x(t).

Figure 6: The timing of control signals in the time-to-

digital converter (TDC).

Thus, transition times of the square wave z(t) on

the output of the ASDM are non-uniformly spaced.

The output quantity, which is a sequence of lengths

of time intervals

kkk

ttt −=Δ

between consecutive

transitions, depends on the input signal behavior.

The input signal x(t) has to be bounded (i.e.

ctx ≤)(

) so either the upper

max

tΔ , or the lower

bound

min

tΔ for

tΔ are also bounded (Lazar and

Toth, 2005) as follows:

maxmin

)]1(2[])1(2[ tTtTt

Δ=−

≤

Δ≤+=Δ

(1)

where

+kk

tt are time instants of the kth and the

(k+1)th transitions, respectively,

is the

self-oscillation period (i.e. the time between

consecutive slopes of z(t) if the modulator is fed by

the zero input signal), and

bc=

is the maximum

modulation depth. The

denotes the integration

constant, and the

, b are the parameters of the

Schmitt trigger (see Fig. 4). The ASDM input/output

characteristics is given by (Kościelnik, Miśkowicz,

2008):

]})1(1[2{1

−+=Δ , (2)

where

, )1;1(

−

∈

is the modulation

depth in the kth time window

),(

1+kk

of the ASDM

defined as the ratio between the amplitude b on the

output signal z(t), and the mean signal value

the input signal x(t) in the time interval

),(

1+kk

3.1 ASDM Modulator

The asynchronous Sigma-Delta modulator (ASDM)

consists of the lowpass filter (integrator), and the

Schmitt trigger operating in a negative feedback

loop (Fig. 4). For zero input signal x(t), the square

wave z(t) on the ASDM output oscillates with the

self-oscillation period (T) and ½ duty cycle. The

ASDM does not require any clocking and can

operate at low current and supply voltage since the

corresponding analog circuitry is extremely simple.

The idea of the asynchronous Sigma-Delta

modulation was formulated in the 60s (Roza, 1997).

However, a use of ASDM for signal conversion

became especially attractive because the loss-free

analog signal recovery based on ASDM output

signal was developed recently (Lazar and Toth,

2005). In (Kościelnik, Miśkowicz, 2008), the ASD-

ADC with the charge-pump integrator and with the

single output data buffering is presented. In the

present paper, we report the advanced version of the

digital interface with the double data buffering

providing the rate-based flow control.

3.2 LC-ADC vs. ASD-ADC

Our approach is motivated by several advantages of

the proposed solution comparing to level-crossing-

based ADCs (LC-ADCs) as follows.

First, in the ASD-ADC the information about the

analog signal behavior is embedded only in a

sequence of timing parameters. In other words, a

digital output includes the timing information about

the square wave on the output of the ASDM.

Instead, in LC-ADCs, the digital data on the

converter output have to include both the timing and

the one-bit amplitude information about the level-

crossing specification (Allier et al., 2003).

Second, due to integrating input properties of the

ASDM, the ASD-ADC is characterized by low

TOWARDS ASYNCHRONOUS SIGNAL PROCESSING

181

susceptibility to noise making it suitable for noisy

industrial environments. Instead, the LC-ADCs are

sensitive to non-idealities in VLSI settings of a

regular grid of amplitude levels triggering sampling

operations.

Third, unlike LC-ADCs where the maximum

time interval being encoded and digitized is

unbounded and thus has to be arbitrary controlled by

time-out, the maximum time interval in the ASD-

ADC is bounded and controlled via design process.

Finally, the sampling theorem has been

developed for ASD-based conversion by Lazar and

Toth (2005) causing to exploit the ASD-ADC in

applications where the exact recovery of original

analog signal is required (e.g. audio/speech signal

conversion). Thus, the ASD-based conversion

supports a loss-free time-encoded signal processing.

3.3 TDC Architecture

The architecture of the time-to-digital converter

(TDC) is shown in Fig. 4. The TDC consists of the

n-bit counter (CT) with setup register (SR) used for

programming initial states of the CT, the reference

generator (RG), the control module (CM) that

produces control signals for data transfer (WRCT,

WRBUF, WRTDR, TDRCTR), the intermediate

buffer (TBUF), and the transmitting buffer (TDR)

with the serial output TxD. The timing of control

signals in the TDC is shown in Fig. 6.

3.3.1 Initial State of Counter

The counting of the reference clock periods T

starts

from an assumed initial state of the counting module

defined by the number whose value is less than zero

because the

tΔ is bounded by the

min

tΔ . Thus,

only the differences

min

Δ−Δ might be quantized

(Lazar and Toth, 2005). We have defined the

optimal number M that guarantees the best

resolution of the ASD-ADC. This number is

negative and defined as

4TTM −= . The optimal

initial number corresponds simply to the minimum

pulse width that equals T/4 as follows from the

formula (1) (Fig. 7).

3.3.2 Serial Output Interface

Unlike in conventional ADCs, the digital data

appear on the ASD-ADC output irregularly

according to the current variations of the analog

signal amplitude. Therefore, the serial interface has

to provide data flow control. The core of our concept

of the TDC consists in the use of a double data

buffering in the digital interface since the digital

words appear in bursts of two words on the ASD-

ADC output. This corresponds to the use of rate-

based flow control (Verissimo, Rodrigues, 2001).

The double data buffering enables overlapping a

serial transmission of the ith digital word, a storage

of the (i+1)th word, and a simultaneous quantization

of the (i+2)th pulse. Thus, the serial output interface

consists of two data buffers (TBUF and TDR) (Fig.

4). Each digital word obtained as result of counting

is recorded and stored in the intermediate buffer

(TBUF) as soon as transmission of the previous

digital word is completed (Figs. 6 and 8). If so, the

given digital word is transferred from the

intermediate buffer (TBUF) to the transmitting

buffer (TDR), which causes serial transmission of

the digital word to start.

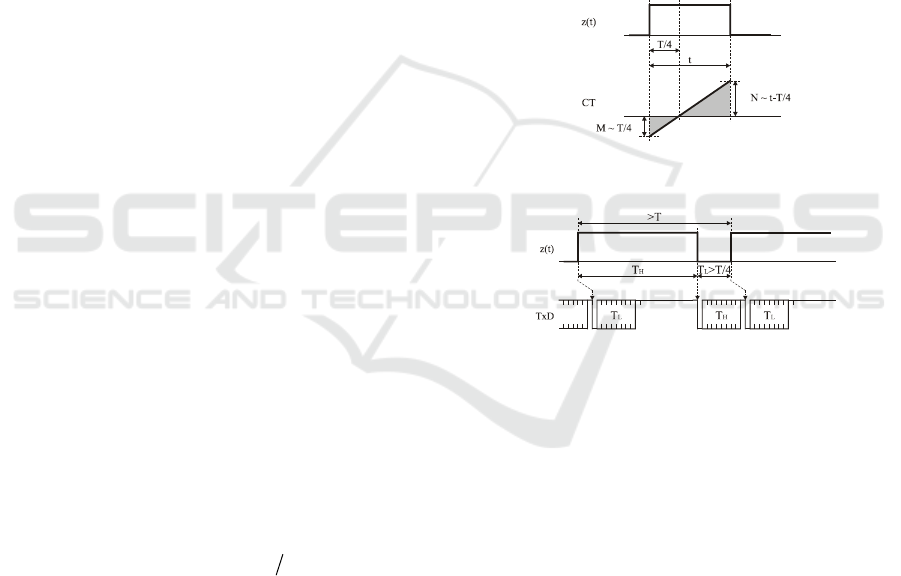

Figure 7: Counting periods of the reference clock starting

from the negative initial state.

Figure 8: Serial asynchronous transmission on ASD-ADC

double-buffered output port (TxD) with overlapping of

transmission, storage and quantization processes (T

denotes the digital word representing a positive pulse, and

represents a negative one).

3.3.3 Bit Rate on Serial Output Port

With double data buffering the minimum

transmission bit rate p on the ASD-ADC serial

output port is defined as:

Tkp /2=

, where k is the

number of data bits of a digital word transmitted

including control bits (Start bit, Stop bit, and an

optional Parity bit).

3.3.4 Benefits of Double Data Buffering

By applying extra data buffering with the

intermediate buffer TBUF, two benefits are

achieved. First, the transmission bit rate on the serial

output port is reduced due to shortening time

intervals between successive digital words

transmitted. The reduction of the transmission rate

ICINCO 2009 - 6th International Conference on Informatics in Control, Automation and Robotics

182

equals (1+

) where 0<

<1 is the maximum

modulation depth of the ASDM so the best reduction

can approach 100%. For example, with typical value

=0.5, the reduction is equal to 50%. Slowing down

the transmission bit rate saves energy consumption.

Second, the transmission bit rate is independent of

the converted analog signal amplitude (

4 CONCLUSIONS

The ASD-ADC is an universal analog-to-digital

converter that may be used in many applications.

However, due to energy efficiency, the ASD-ADC is

dedicated to use in portable devices, especially in

sensors for environmental monitoring and for

biomedical applications that need a long battery life.

In the latter, both the wireless or skin-surface

communication between sensing devices mounted

on the body for health monitoring may be used

(Kaldy et al., 2007). In such applications, the

sensors transmit data to acquisition centers at a

remote side where the signals are processed,

analyzed and recovered if needed. Usually, the

acquisition centers access practically unlimited

power. Thus, with the invention of the ASD-ADCs,

energy-expensive components of signal processing

chain are moved from the ADC to the locations

where the energy and processing resources are

available. The solution presented in the paper may

be summarized as follows.

(1) The asynchronous Sigma-Delta analog-to-digital

converter (ASD-ADC) together with the

asynchronous analog signal recovery method (Lazar

and Toth, 2005) provides possibility to establish the

asynchronous digital signal processing chain where

the ASD-ADC output data can be transmitted via a

digital communication channel. (2) Complex and

energy-expensive components of signal processing

chain are moved from ADC to data acquisition

center where the energy and processing resources

are available. (3) The ASD-ADC digital output

represents only timing information. (4) Due to

higher stability of time/frequency references, the

time quantization is more accurate than the

voltage/current quantization. (5) Decreasing supply

voltage in general does not degrade Signal-to-Noise

Ratio (SNR) of the ASD-ADC. (6) With a double

data buffering providing the rate-based flow control

at the ASD-ADC output interface, the transmission

rate is reduced even twice compared to

(conventional) single-buffered interface; slowing

down the transmission bit rate saves energy

consumption. (7) With counting reference clock

periods from the negative initial state, the dynamic

range of the ASD-ADC is extended. (8) Finally, the

ASD-ADC has excellent DC specification.

REFERENCES

Matsuzawa, A., 2007, Design challenges of analog-to-

digital converters in nanoscale CMOS, IEICE Trans.

Electron., vol. E90-C, no 4, pp. 779-85.

Yang, H.Y., Sarpeshkar, R., 2006, A Bio-Inspired Ultra-

Energy-Efficient Analog-to-Digital Converter for

Biomedical Applications, IEEE Trans. on Circuits and

Systems-I, vol. 53, no 11, pp. 2349-2356.

Yang, H.Y., Sarpeshkar, R., 2005, A time-based energy-

efficient analog-to-digital converter, IEEE Journal of

Solid-State Circuits, vol. 40, no 8, pp. 1590–1601.

Sayiner, N., Sorensen, H.V., Viswanathan, T.R., 1996, A

level-crossing sampling scheme for A/D conversion,

IEEE Trans. on Circuits and Systems II, vol. 43, no 4,

pp. 335-9.

Roza, E., 1997, Analog-to-digital conversion via duty-

cycle modulation, IEEE Trans. on Circuits and

Systems-II, vol. 44, no 11, pp. 907–914.

Kinniment, D., Yakovlev, A., Gao B., 2000, Synchronous

and asynchronous A-D conversion, IEEE Trans. on

VLSI Systems, vol. 8, no 2, pp. 217-220.

Allier, E., Sicard, G., Fesquet L., Renaudin, M., 2003, A

new class of asynchronous A/D converters based on

time quantization”, In ASYNC’03, IEEE Intern.

Symposium on Asynchronous Circuits and Systems,

pp. 196-205.

Allier, E., Goulier, J., Sicard, G., Dezzani, A., André, E.,

Renaudin, M., 2005, A 120nm low power

asynchronous ADC, In ISLPED 2005, International

Symposium on Low Power Electronics and Design, pp.

60-65.

Miśkowicz, M., 2006, Send-on-delta concept: an event-

based data reporting strategy, Sensors, vol. 6, no 1, pp.

49-63.

Akopyan, F., Manohar, R., Apsel, A. B., 2006, A level-

crossing flash asynchronous analog-to-digital

converter, In ASYNC’06, IEEE International

Symposium on Asynchronous Circuits and Systems,

pp. 12-22.

Kościelnik, D., Miśkowicz, M., 2008, Asynchronous

Sigma-Delta analog-to digital converter based on the

charge pump integrator, Analog Integrated Circuits &

Signal Processing, vol. 55, no 3, pp. 223–238.

Lazar, A.A., Tóth, L.T., 2005, Perfect recovery and

sensitivity analysis of time encoded bandlimited

signals, IEEE Trans. on Circuits and Systems-I, vol.

51, no 10, pp. 2060-2073.

Verissimo P., Rodrigues L., 2001, Distributed Systems for

System Architects, Kluwer Academic Publishers.

Kaldy, C., Lazar, A.A., Simonyi, E.K., Toth, Laszlo T.,

2007, Time Encoded Communications for Human

Area Network Biomonitoring, Technical Report, Depart-

ment of Electrical Engineering, Columbia University.

TOWARDS ASYNCHRONOUS SIGNAL PROCESSING

183
