A SELF-ADAPTIVE ARCHITECTURE FOR AUTONOMIC

SYSTEMS DEVELOPED WITH ASSL

Emil Vassev

, Mike Hinchey

and Aaron Quigley

Lero – The Irish Software Engineering Research Centre, University College Dublin, Ireland

Lero – The Irish Software Engineering Research Centre, University of Limerick, Ireland

Keywords: Autonomic Systems, Software Architecture, Adaptive Architecture, ASSL, Runtime.

Abstract: We address the need to realize a runtime self-modifiable architecture for autonomic systems, specified and

generated with the ASSL (Autonomic System Specification Language) framework. This framework

generates such systems with a special hierarchical multi-granular architecture composed of singleton

classes. Base ASSL is designed to support runtime evolving systems, whereas in this approach, we extend

the generated architecture to allow for both code generation and code management at runtime. We provide a

tailored algorithm to demonstrate how this approach can be applied to customized ASSL models specified

to trigger runtime changes in the structure of the generated autonomic systems.

1 INTRODUCTION

Ongoing developments demonstrate that many

information systems are moving towards service-

oriented architectures running on grids that may

include thousands of geographically distributed

systems. In addition, such systems are dependent on

multi-site collaboration and fast, reliable access to

shared resources and data. The success of such

systems depends on their ability to follow changes in

the business environment and requirements by

reacting and adapting so as to better handle their

service-level objectives. In practice, such reaction

and adaptation is typically a manual process of

identification, redesign and change. By contrast,

autonomic computing (AC) (Murch, 2004) is widely

regarded as a suitable approach to the development

of software systems capable of self-management. In

general, AC strives to fulfill two main objectives –

self-regulation and complexity hiding.

The Autonomic System Specification Language

(ASSL) (Vassev, 2008) is a tool dedicated to AC

development that addresses the problem of formal

specification and code generation of autonomic

systems (ASs) within a framework. The work

described here is motivated by the need to

complement the ASSL framework with suitable

constructs and in-built mechanisms for specifying

and generating runtime evolving ASs. With such

extents, ASSL can generate ASs capable of

architecture self-modification at runtime. ASSL

currently defines statements allowing runtime

changes in the AS structure but those are not

implemented at the level of code generation, and

thus, generated systems do not have the ability to

change their structure at runtime.

The rest of this paper is organized as follows. In

Section 2, we review related work on adaptive

architectures for software systems. As a background

to the remaining sections, Section 3 provides a brief

description of the ASSL framework. Section 4

presents both the current and the future adaptive

ASSL architecture for ASs. In addition, this section

presents our algorithm for AS architecture evolution

at runtime. Finally, Section 5 presents some

concluding remarks and future work.

2 RELATED WORK

Considerable research effort has been directed at the

question of self-adaptation of systems, from

rewriting schemes to multi-agent systems. Kitano

proposes an approach to evolving architectures of

artificial neural networks using a special matrix

rewriting system that manipulates adjacency

matrices (Kitano, 1990).

Oreizy et al. propose an architecture-based

approach to self-adaptation. In their approach, new

software components are dynamically inserted into

163

Vassev E., Hinchey M. and Quigley A. (2009).

A SELF-ADAPTIVE ARCHITECTURE FOR AUTONOMIC SYSTEMS DEVELOPED WITH ASSL.

In Proceedings of the 4th International Conference on Software and Data Technologies, pages 163-168

 SciTePress

deployed, heterogeneous systems without requiring

a system restart. The architecture changes rely on

autonomous analysis that includes feedback of

current performance. Changes are encoded in the

system behavior by the application developers. In

the case of major changes, the system can request

and require human approval (Oreizy et al., 1999).

Rainbow (Garlan et al., 2004) is a framework

that relies on adaptation mechanisms to specify

adaptation strategies for multiple system concerns.

These help Rainbow to integrate a reusable

infrastructure into software architectures to support

self-adaptation of software systems. The adaptation

strategies let developers of self-adaptation

capabilities choose what aspects of a system to

change and how to adapt the system.

Brogi et al. target the problem of adapting

heterogeneous software components (Brogi et al.

2006). Their approach is based on a special

adaptation methodology where components are

presented with interfaces extended with protocol

information to describe their interaction behavior. In

addition, a high-level notation is used to express the

intended connection between component interfaces.

In this approach, a special adaptor is specified as a

component-in-the-middle to help two components

interact successfully, considering certain constraints.

A special compositional adaptation approach is

tackled by McKinley et al. where to improve the

system’s fit to its environment, both algorithms and

structural components are exchanged with other

systems (McKinley et al., 2004). Here, by adopting

new algorithms, a system can address concerns

unforeseen during development.

In general, adaptive software provides some of

the functionality required for building AC systems,

as it allows system behavior or structure to be

changed at runtime to fulfill high-level objectives

(Murch, 2004). Research in autonomic architectures

consists of general architectures for individual

components or complete ASs, based on the

integration of advanced technologies such as grid

computing, web services, and multi-agent

technologies, e.g., intelligent swarm systems

(Truszkowski et al., 2004).

The work presented here is an AC approach

where the ASSL framework is extended to provide

more suitable constructs for exploiting the benefits

of AC. Note that in our approach both formal

notation and tools help ASs adapt at runtime by

changing their structure if necessary. Moreover, we

also consider runtime exchange of structures and

algorithms together with code generation and hot

plugging of system components.

3 ASSL

The ASSL framework is a development environment

that delivers a powerful combination of ASSL

notation and ASSL tools (Vassev, 2008). The tools

allow specifications written in the ASSL notation to

be edited and validated. ASSL can generate an

operational implementation per a valid specification.

3.1 Multi-tier Specification Model

In general, ASSL considers ASs as composed of

autonomic elements (AEs) interacting over

interaction protocols. To specify ASs, ASSL

exposes a multi-tier specification model that exposes

a judicious selection of infrastructure elements and

mechanisms needed by an AS. By their nature, the

ASSL tiers are abstractions of different aspects of

the AS in question, including self-management

policies, communication interfaces, execution

semantics and actions. There are three major tiers,

each composed of sub-tiers (cf. Figure 1).

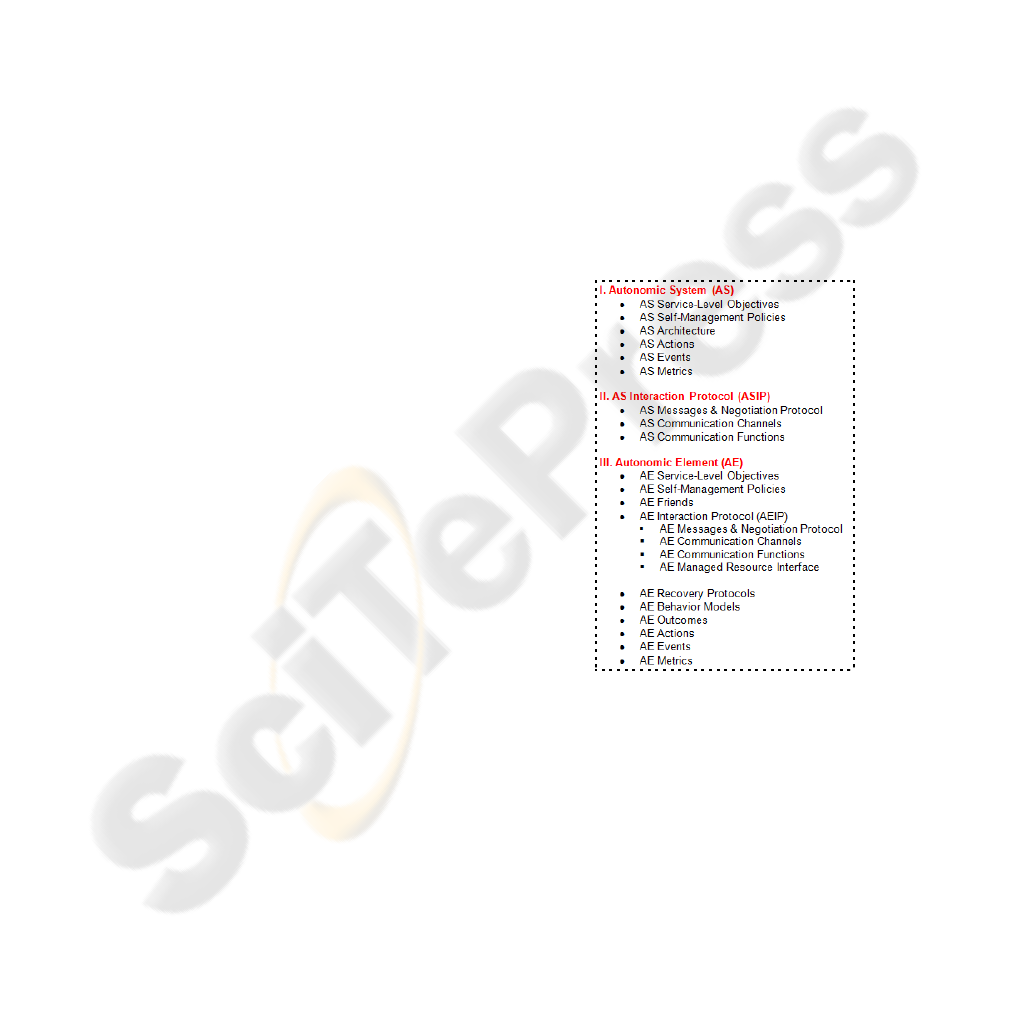

Figure 1: ASSL multi-tier specification model.

Here, the AS tier forms a general and global AS

perspective, where we define the general system

rules, e.g., service-level objectives (SLO) and self-

management policies; the AS Interaction Protocol

(ASIP) tier defines the means of communication

between AEs; and the AE tier forms a unit-level

perspective, where we define interacting sets of

individual AEs with their own behavior.

ICSOFT 2009 - 4th International Conference on Software and Data Technologies

164

3.2 ASSL Runtime-Evolving Systems

Initially, ASSL was conceived as a software

development approach that provides a means for

modifying the internal structure of an AS at runtime.

Moreover, the original idea is that an AS specified

with ASSL should have a runtime-evolving

specification; i.e., a specification that can be updated

dynamically to keep up with any architectural

changes. Here, an ASSL-generated AS should carry

its specification and change it at runtime; i.e., both

implementation and specification evolve together.

ASSL currently allows for the specification of

ASs evolving over time. The evolution of such

systems takes place in the ASSL actions (specified at

the action tiers; cf. Figure 1) of the system. Via a

finite set of special ASSL statements — CHANGE,

REMOVE, ADD and CREATE, the ASSL actions can

prompt changes in the tiers and sub-tiers of the AS

under consideration (Vassev, 2008). ASSL currently

supports these statements at the level of ASSL

specification but not at the level of code generation.

4 ASSL ARCHITECTURE

FOR AUTONOMOUS SYSTEMS

By using the ASSL framework, we specify an AS

(autonomic system) at an abstract formal level. Next,

that formal model is translated into a Java program

consisting of packages and classes that inherit names

and features from the ASSL specification.

4.1 Current Architecture

The current ASSL architecture (cf. Figure 2) for ASs

conforms to the ASSL multi-tier specification model

(cf. Section 3.1). Here, every AS is generated with:

 a global AS autonomic manager (implements

the AS tier specification) that takes care of the

AS-level policies and SLO;

 a communication mechanism (implements the

specification of both ASIP and AEIP tiers)

that allows AEs to communicate;

 a set of AEs (implement the AE tier

specification) where each AE takes care of its

own self-management policies and SLO.

AS Autonomic

Manager

ASSL Channels

AS Policies, AS SLO, AS Events, AS Actions, AS Metrics

Figure 2: ASSL architecture for ASs – a design view

Both the AS manager and distinct AEs embed a

special control loop (cf. Figure 2) generated by the

framework to allow an AS manage critical situations

with a sort of problem-solution mapping. In

addition, the generated AS manager and the AEs

orchestrate the self-management policies of the AS.

Here, the AS manager coordinates the AEs via AS-

level self-management policies, SLO, events, actions

and metrics (cf. Figure 1).

4.1.1 AS Class Model

Figure 3: AS UML class diagram.

The ASSL architecture model for ASs (depicted in

Figure 2) is mapped to a hierarchically organized set

of Java classes. The ASSL framework generates a

Java class with optional supplementary classes for

each ASSL-specified tier. The generated tier classes

are grouped into distinct tier Java packages derived

from the ASSL specification model.

A SELF-ADAPTIVE ARCHITECTURE FOR AUTONOMIC SYSTEMS DEVELOPED WITH ASSL

165

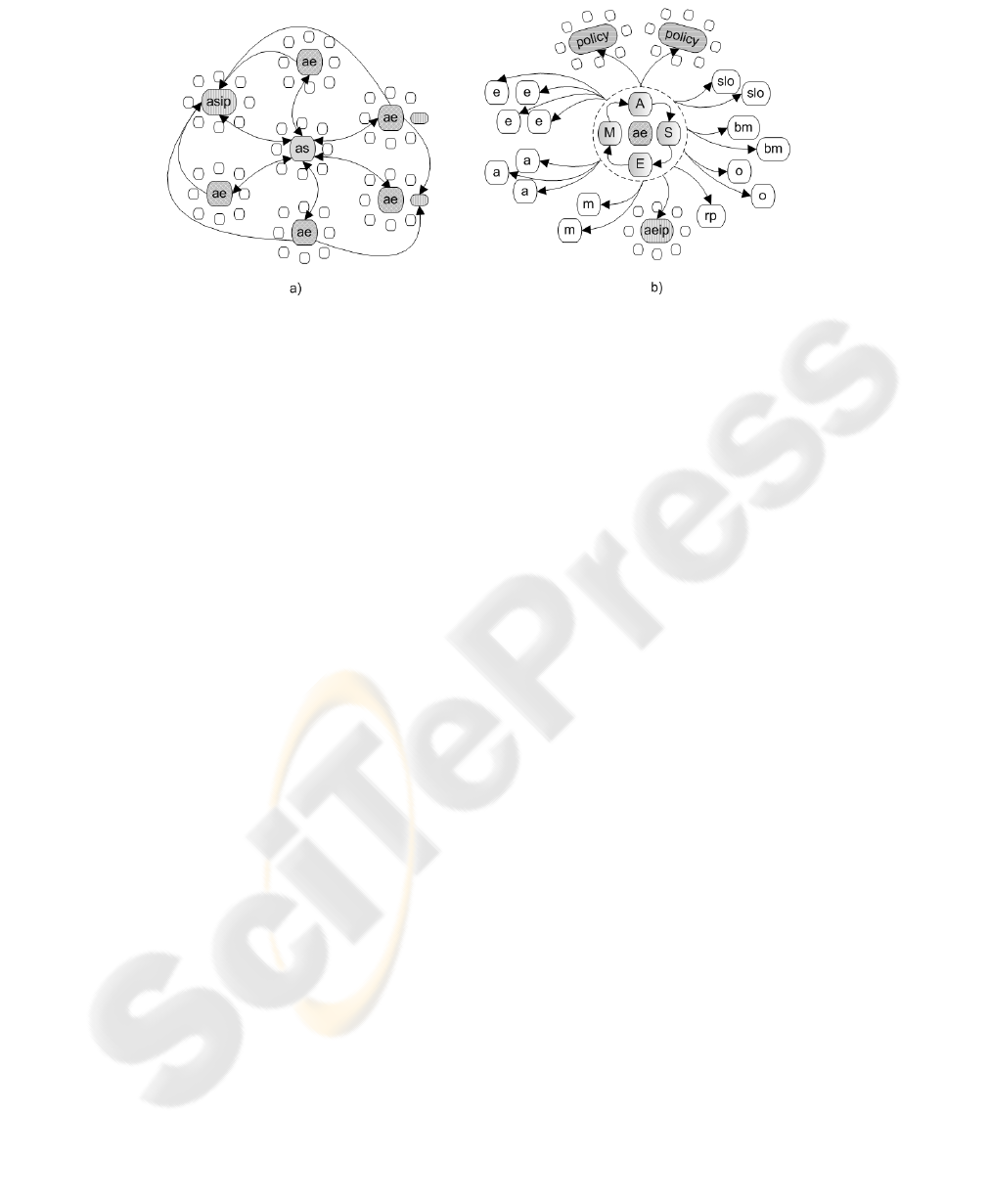

Figure 4: (a) AS runtime object model; (b) AE runtime object model.

Figure 3 presents a UML diagram depicting the class

structure of ASs generated with ASSL. Here an

ASSL-generated AS has, at a minimum, a main AS

class (mapped to the AS tier and presenting the AS

manager; cf. Figure 2) and classes implementing the

AS manager’s control loop (classes denoted as

AS_ASSLMONITOR, AS_ASSLANALYZER, AS_ASSLSIMULATOR, and

AS_ASSLEXECUTOR). In addition, the AS class maintains

collections (pools) of references to tier instances.

The latter are objects instantiated from the classes

generated for the AS tiers/sub-tiers specified in the

ASSL specification.

As shown in Figure 3, such tier classes are nested

in proper packages. Each generated AE has a similar

class structure nested in a proper AE package. In

addition, all the classes generated by the ASSL

framework and mapped to ASSL tiers are

implemented as singletons; i.e., they define only

private constructors and ensure a single instance.

4.1.2 AS Object Model

Instead of building a monolithic application for each

ASSL-specified AS, the ASSL framework strives to

organize generated ASs in a granular fashion. Here,

at runtime, an ASSL-generated AS has a multi-

granular structure composed of tier instances. All the

tier instances form together the runtime object model

of an AS (cf. Figure 4). Similar to the ASSL

specification model (cf. Section 3.1), the AS runtime

object model has a hierarchical composition where

tier instances are grouped around instances of their

host tiers (nesting other sub-tiers). Figure 4(a)

depicts the runtime object model of an AS generated

with ASSL and Figure 4(b) presents the runtime

object model for AEs composing that AS. Note that,

both Figure 4(a) and Figure 4(b) present generic

object models. Thus, concrete models have an

arbitrary number and types of nodes derived from

their corresponding ASSL specification. As depicted

by Figure 4, each node is a tier instance that

possibly can be grouped around a host tier instance.

For example, the AS node acts as a host tier instance

for the nodes generated for the AS-level sub-tiers

such as SLO, policies, actions, events, and metrics.

Note that the AS node organizes around itself other

host tier instances, such as AE nodes (generated for

the AEs specified at the AE tier) and the ASIP node

(cf. Section 3.1). Here both the AE nodes and the

ASIP node have their own surrounding nodes, these

being instances of sub-tiers specified at the AE tier

and at the ASIP tier respectively. The presence of

host tier nodes (AEs and ASIP) in the global AS

runtime object model (cf. Figure 4(a)) makes that

model multi-granular where we distinguish different

levels of granularity.

Figure 4(b) presents the granular structure of the AE

runtime object model. Here, at the core of the AE we

can see four objects forming the AE control loop. As

depicted, the latter is composed of the objects: M

(monitor), A (analyzer), S (simulator), and E

(executor). The AE node coordinates the tier

instances of the sub-tiers specified for that AE; i.e.,

metrics (m nodes), events (e nodes), actions (a

nodes), self-management policies (policy nodes),

service-level objectives (slo nodes), behavior models

(bm nodes), outcomes (o nodes), recovery protocols

(rp nodes), and its private interaction protocol (aeip

node). Here both the policy nodes and the aeip node

are host tier instances themselves.

4.2 Proposed Architecture

As mentioned previously, the starting point for this

work is the fact that ASSL allows the specification

of ASs evolving over time, but not for the code

generation of the same (cf. Section 3.2). Here our

ICSOFT 2009 - 4th International Conference on Software and Data Technologies

166

primary goal is to augment the architecture model

for ASSL-generated ASs (cf. Section 4.1) with the

necessary components that allows for both code

generation and code management at runtime. To

meet these requirements we augment both the AS

object model and the AE object model with a code

generator (CG) and a code manager (CM).

Figure 5 represents the new runtime object

model for AEs generated with ASSL. Compared to

the model presented in Section 4.1, this model has

two more host nodes (note that these are not host tier

nodes) — CM and CG, organizing objects needed to

make the AE capable of self-modification at

runtime. Here at runtime, the CG generates the

needed code and compiles it by using a java

compiler (javac). The CM is responsible for

integrating the generated code in the currently

running AS by relying on the Java VM hosting that

AS. Note that both the CG and the CM access the

ASSL specification, and thus, the latter should be

carried with the generated AS and its AEs.

Moreover, the new architecture requires a CG-CM

pair be deployed with every generated AE and also

with the main AS package (AS host tier node; cf.

Figure 4.a). Note that the CG is the original ASSL

code generator (Vassev, 2008), but deployed with

every generated AE and with the AS manager. The

deployed CMs are responsible for maintaining the

runtime structure of the associated AE/AS object

model, which includes adding new tier instances,

deleting tier instances, and replacing tier instances.

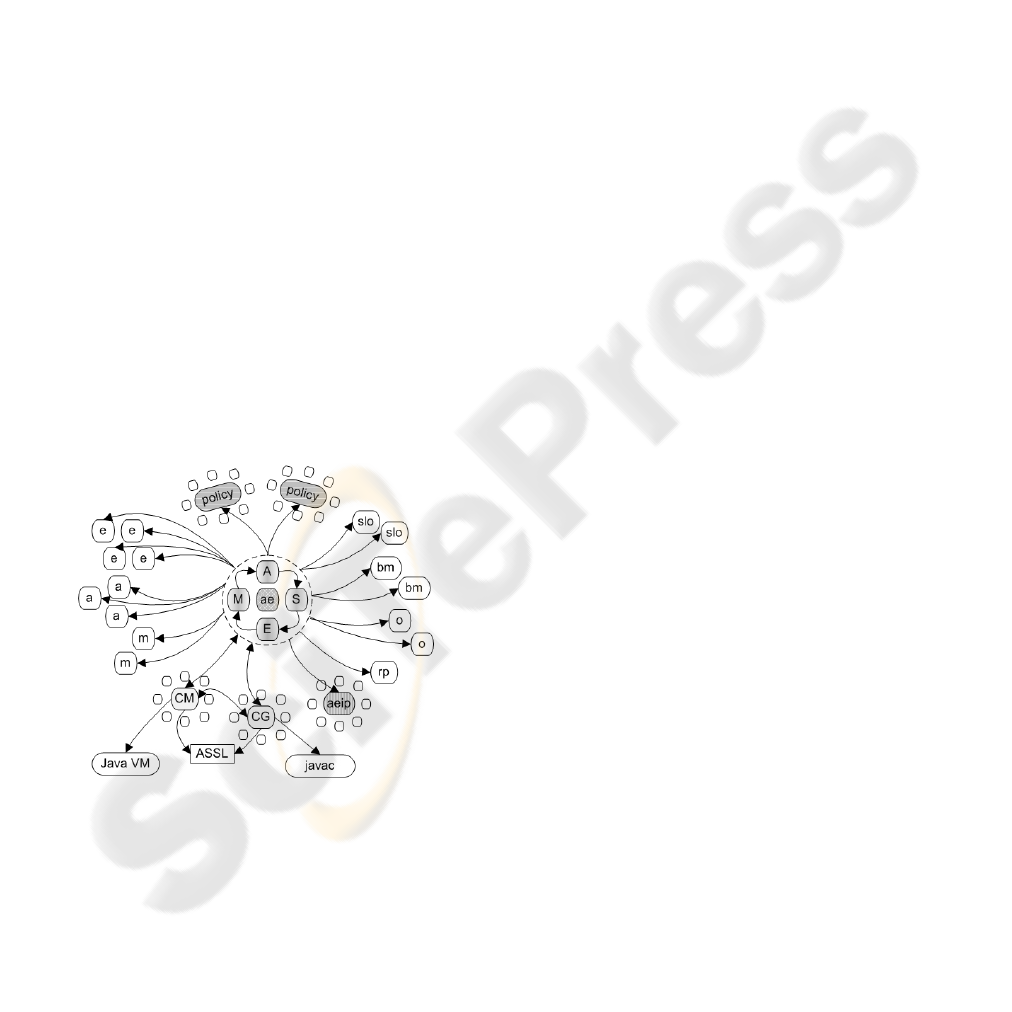

Figure 5: New AE runtime object model.

It is important to note that there are two cases where

both code generation and code management are

required at runtime:

1) The ASSL-generated AS calls an action

that performs one of the ASSL statements CHANGE,

REMOVE, ADD or CREATE, these triggering changes

in the AS structure (cf. Section 3.2). Here while

generating an AS, the ASSL framework does not

generate the Java code for such statements but

embeds a system call to a runtime CG with a

reference to the ASSL specification block specifying

structural changes in the AS.

2) An AE receives an ASSL message

carrying the specification of a specific tier or sub-

tier (AEs can negotiate and exchange ASSL

messages in the form of ASSL-specified tiers/sub-

tiers (Vassev, 2008)). Thus, if such a message has

been received, a runtime CG can generate the

necessary code and then compile it.

Once the code is generated, the associated CM

integrates the generated code by instantiating objects

and plugging those into the running AS.

Plugging/unplugging objects at runtime (known as

hot-plugging) is a difficult task. However, there a

few key features of the ASSL-generated code, which

facilitate this task:

1) As we have mentioned before, all the tier

objects (instances) instantiate singleton classes; i.e.,

there is one object per tier class. This reduces the

number of objects that CMs need to take care of at

runtime, and also, the tier objects reference to each

other via a singleton class access point.

2) All the host tier instances (as, ae, asip, aeip,

policy, etc., cf. Figures 4 and 5) maintain pools of

references to associated tier instances (singleton

class instances, cf. the following example).

Moreover, access to those pools is provided via

predefined put(), get(), and remove() public methods,

and tier instances do not keep local reference copies

to other tier instances. Hence, only host tier pools

keep references to tier instances.

3) An ASSL-generated system is generated

as a complex multi-threaded Java application, where

some of the tier instances (e.g., event tier instances)

run as synchronized Java threads. Thus, an ASSL-

generated AS can be easily synchronized on a

―pause‖ system event; i.e., the entire AS can transit

to a ―pause‖ state where all the threads can be put on

hold, thus allowing CMs make the needed code

changes at runtime.

The following is an example of adding an event tier

instance to the EVENTS pool of an AE.

EVENTS.put("NODEFIXED", generatedbyassl.as.

aes.ae1.events.NODEFIXED.getInstance());

Adding a new tier instance to, or deleting an old one

from an AS should be split into three steps – 1) put

the AS on ―pause‖; 2) use the public methods put()

and remove() to add or delete references to a tier

instance to/from all the referee host tier pools; 3) if

this is about deleting only (not replacing) then

generate a stub (dummy instance) and replace the

old tier instance with the latter, thus keeping the AS

runtime object model consistent.

A SELF-ADAPTIVE ARCHITECTURE FOR AUTONOMIC SYSTEMS DEVELOPED WITH ASSL

167

In order to make hot plugging possible, we

should make CMs know at runtime the host tier pools

that keep or must keep references to the tier instance

that is about to be added, replaced, or deleted. A

possible solution is to make existing tier instances

know all the referencing host tier pools. For new tier

instances this information should be derived by CGs

from the ASSL specification while generating code

for the same. The following is the hot plugging

algorithm for replacing an old tier instance with a

new one. Algorithms for hot plugging in adding or

deleting tier instances can be deducted from this one.

1) A CG generates the code for a new tier

class with all necessary supplementary classes that

must replace an old tier instance.

2) That CG compiles the generated code by

using a javac Java compiler.

3) The same CG notifies its paired CM that a

specific tier instance is going to be replaced.

4) A CM (paired with the CG) loads the

generated tier classes into the currently running Java

VM running the AS and creates all the needed objects

to create the replacement tier instance.

5) That CM puts the AS on hold; i.e., makes

the latter transit to a ―pause‖ state.

6) The same CM asks the tier instance to be

replaced for the referee host tier pools keeping a

reference to it.

7) The same CM asks each referee host tier

pool to replace the old reference with the one of the

new tier instance.

8) The same CM deletes the old tier instance

through the Java VM garbage collector.

9) The same CM restarts the AS; i.e., makes

the latter transits to a ―running‖ state.

Both runtime code generation and hot plugging of

tier instances will introduce certain overhead to the

overall performance of an AS. Here, the problem is

the tradeoff between the AC objectives (SLO and

self-managing policies) that an AS must constantly

follow and the need of restructuring to better follow

these objectives. We are planning benchmark

analysis to better understand the overall impact.

5 CONCLUSIONS

This paper presents our approach to the realization

of a self-modifiable architecture, for ASs specified

and generated with ASSL. The latter supports

specification of special ASSL actions allowing for

AS evolution at runtime. Via a finite set of special

ASSL statements - CHANGE, REMOVE, ADD and

CREATE, such ASSL actions can prompt changes in

the tiers and sub-tiers of an ASSL-specified AS.

However, ASSL currently does not support these

statements at the level of code generation, and thus,

the ASs are generated without the ability to modify

their structure at runtime. Moreover, ASSL-specified

AEs can exchange ASSL messages in the form of

ASSL tiers, which can be used to modify the

runtime structure of an AS.

To allow for runtime modifications in the

structure of an AS, we propose to add a special

runtime code generation mechanism and a special

code management mechanism to the architecture of

the ASSL-generated ASs. These mechanisms allow

for runtime code generation of ASSL specifications

and hot plugging of the generated code. The

structure granularity of the ASs and key features of

the generated code help to ensure that the difficult

task of hot plugging is straightforwardly achieved.

Future work is primarily concerned with further

development of the proposed mechanisms and

evaluation of the degree of complexity and

computational overhead these mechanisms bring to

the entire system.

It is our belief that allowing ASSL-generated

ASs to evolve in structure at runtime will enable

broad scale development of autonomic systems.

REFERENCES

Brogi, A., Canal, C., and Pimentel, E., 2006. On the

semantics of software adaptation. In Science of

Computer Programming, vol. 61(2). Elsevier.

Garlan, D., Cheng, S., Huang, A., Schmerl, B., Steenkiste,

P., 2004. Rainbow: Architecture-Based Self-

Adaptation with Reusable Infrastructure. In IEEE

Computer. IEEE Computer Society Press.

Kitano, H., 1990. Designing Neural Networks Using

Genetic Algorithms with Graph Generation System. In

Complex Systems, vol. 4(4).

McKinley, P. K., Sadjadi, S. M., Kasten E. P., Cheng, B.

H. C., 2004. Composing Adaptive Software. In IEEE

Computer, vol. 37 (7). IEEE Computer Society Press.

Murch, R., 2004. Autonomic Computing: On Demand

Series. IBM Press, Prentice Hall.

Oreizy P., Gorlick, M. M., Taylor, R. N., Heimbigner, D.,

Johnson, G., Medvidovic, N., Quilici, A., Rosenblum,

D. S., Wolf, A. L., 1999. An Architecture-Based

Approach to Self-Adaptive Software. In IEEE

Intelligent Systems. IEEE Computer Society Press.

Truszkowski, W., Hinchey, M., Rash, J., Rouff, C., 2004.

NASA's Swarm Missions: The Challenge of Building

Autonomous Software. In IT Professional, vol. 6(5).

IEEE Computer Society Press.

Vassev, E., 2008. Towards a Framework for Specification

and Code Generation of Autonomic Systems, PhD

Thesis. Department of Computer Science and Software

Engineering, Concordia University, Montreal, Canada.

ICSOFT 2009 - 4th International Conference on Software and Data Technologies

168
