FROM AN ABSTRACT OBJECT-ORIENTED DOMAIN MODEL

TO A META-MODEL FOR THE DOMAIN

Model Driven Development of a Manufacturing Execution System

Antoine Schlechter, Guy Simon and Fernand Feltz

Centre de Recherche Public Gabriel Lippmann, rue du Brill, Belvaux, Luxembourg

Keywords: MDE, Model Driven Engineering, MDSD, Model Driven Software Development, Meta-Modeling.

Abstract: Despite a broad agreement on the benefits of model driven approaches to software engineering, the use of

such techniques is still not very widespread. We think this is due to the appearing discouraging difficulty of

meta-modeling. This paper presents a new method to easily obtain a meta-model from an abstract object-

oriented domain model. The method is applied to the development of a Manufacturing Execution System.

1 INTRODUCTION

Since quite a while, model-driven approaches to

software engineering such as Model Driven Engi-

neering (MDE), Model Driven Software Develop-

ment (MDSD) or Model Driven Architecture

(MDA) have been advertised to be the solution to

the ever-increasing complexity in software devel-

opment. These techniques offer an easy way to do-

main-specific abstraction and to a high degree of

automation in the coding process. Abstraction and

automation lead to higher productivity, easier exten-

sibility and better quality of the software.

Although there are success stories about MDA,

MDSD and MDE, the adoption of such techniques in

industry is not yet very widespread. (Atkinson, C.,

Kühne, T., 2003) see the reasons in a still incom-

plete and not yet fully understood theoretical foun-

dation of MDE. Other research such as (Selic, B.,

2008) and (CHAMDE, 2008) investigated this issue

from a more practical point of view and identified

mainly two kinds of reasons. On the one hand we

find so called technical reasons like bad tool support,

missing tool documentation, insufficient interopera-

bility between tools, lack of user-friendliness, and

others. On the other hand, a lot of programmers

simply feel comfortable with their current proven

methods of software development. They often only

see the discomfort, the difficulty, the threats and

dangers but not the benefits in new technology. This

lack of awareness, education, and training is often

referred to as cultural problems.

Although not all of the tool requirements from

(Kent, S., 2002) are fully achieved, there are tool

chains such as EMF, GMF and oaw (Eclipse Project)

that provide most of the needed functions for MDE

at least for smaller-scale projects. In fact, (Thörn, C.,

Gustafsson, T., 2008) find in a survey among several

SMEs that the importance of tool support is “surpri-

singly low” when it comes to suggest improvements

to current practices, whereas “methodology”, “in-

creased awareness” and “training” are all mentioned

significantly more often.

We are convinced, that the most important ob-

stacle to the adoption of MDE is the appearing dis-

couraging difficulty of meta-modeling, that is due to

the lack of methods about how to address the speci-

fication of a meta-model or domain specific lan-

guage (DSL) at the center of each model-driven ap-

proach.

In fact, there are papers that present special me-

ta-models or domain specific languages (references

in van Deursen, A. et al., 2000). Besides, (Luoma, J.

et al., 2004), (Mernik, M. et al., 2005), (van Deur-

sen, A. et al., 2000) identify several high level pos-

sibilities to define a meta-model or a DSL. Unfortu-

nately, it remains unclear how to effectively bridge

the gap between the domain analysis and the explicit

definition of the meta-model or DSL.

In our approach, we build a first version of a me-

ta-model from a traditional object-oriented domain

model. As experienced object-oriented software de-

velopers should feel comfortable building domain

models following for instance the principles of Do-

main Driven Design (DDD)(Evans, E., 2004), meta-

modeling should become easier for them.

317

Schlechter A., Simon G. and Feltz F. (2009).

FROM AN ABSTRACT OBJECT-ORIENTED DOMAIN MODEL TO A META-MODEL FOR THE DOMAIN - Model Driven Development of a Manufacturing

Execution System.

In Proceedings of the 4th International Conference on Software and Data Technologies, pages 317-320

DOI: 10.5220/0002252903170320

 SciTePress

+updateState(in signal : string)

+updateVariables(in event : InputEvent)

#state : string

Job

Variable

+inputDate : Date

InputEvent

+id : long

Entity

+jobNumber : int

+producedLots : int

ProductionJob

+cycles : int

+activePrints : int

+pieces : int

PiecesCounter

+activePrints : int

PrintsEvent

+cycles : int

CycleEvent

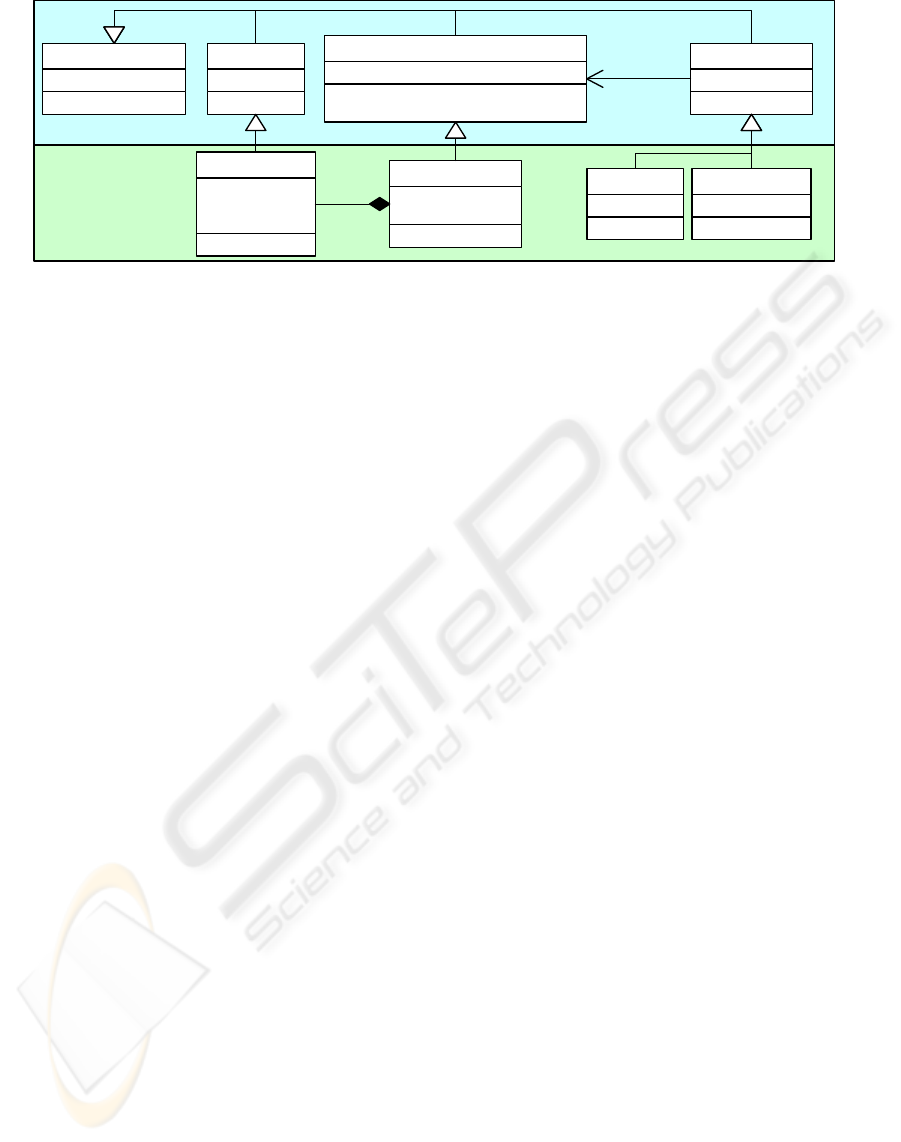

Figure 1: UML Class diagram with an extract of the abstract domain model (upper part) and some concrete example sub-

classes for a simple MES (lower part).

We will present and illustrate our method using

the development of a Manufacturing Execution Sys-

tem (MES) as an example. First of all we introduce

the “ubiquitous language” (DDD) for MES, its re-

presentation as an object-oriented domain model and

the software system architecture (section 2). Based

on the architectural description we outline a model-

driven approach and explain its benefits (section 3).

The meta-model at the center of the approach will be

defined based on the object-oriented domain model

(section 4).

2 OBJECT-ORIENTED DOMAIN

MODEL

Manufacturing Execution Systems deal with the

collection, evaluation, analysis, interpretation and

visualization of data from production in order to

better control the production processes. The central

objects of interest in MES are jobs. A job produces a

product. Products have resource requirements used

to determine what resources should be assigned to a

job for the production of a given product. Jobs use

time on resources, have an internal state and may

contain several sets of values, so called variables, to

represent data from quality control and process mon-

itoring for instance. Input events may change the

state and the variables of jobs. The history of a job’s

state is stored in a series of slots. Of course, all these

objects may have attributes. Besides these domain

specific objects, there are simple persistent data enti-

ties.

For the sake of simplicity, we will not go into de-

tail for all of these aspects. An extract from the ab-

stract domain model for MES containing only enti-

ties, jobs, variables and input events is depicted at

the top of Figure 1. For the implementation of a con-

crete MES, these abstract classes have to be specia-

lized.

As an example, we assume that there is only one

kind of job called ProductionJob that contains exact-

ly one variable PiecesCounter used to count the pro-

duced pieces. In order to calculate the produced

pieces, we need to know the number of currently

active prints in a mold (=pieces produced per cycle).

Additionally, we need input events to change the

number of active prints (PrintsEvent) and to enter a

number of cycles (CycleEvent). The respective

classes are represented at the bottom of Figure 1.

As manufacturing execution systems are typi-

cally installed between already existing IT-Systems

at the customer’s factory, the attributes of these con-

crete subclasses should be defined to be compatible

with the data from the existing systems. In order to

keep the implementation of the interfaces between

the MES and the surrounding software as simple as

possible, we propose a layered architecture with a

service layer as an outer layer. The services coordi-

nate the access to domain objects in persistent sto-

rage via a data mapper with the necessary calls to

services and object methods from the domain model

(Patterns from Fowler, 2003).

The service layer provides services for the crea-

tion and retrieval of jobs and input events respec-

tively (Figure 2). The definitions of these services

contain quite a lot of redundancy when compared to

the class diagram in Figure 1. They follow very

strict and simple patterns depending on the abstract

super-class, the name and attributes of the classes

and possible relations between classes. At every

modification we need to keep them consistent with

the data structures, which makes their implementa-

tion and maintenance a time-consuming, repetitive

and error-prone task. In fact, most of these services

can completely be generated with a little more in-

formation than provided by a standard UML class

diagram.

ICSOFT 2009 - 4th International Conference on Software and Data Technologies

318

ProductionJob createProductionJob(int jobNumber, int producedLots)

ProductionJob getProductionJobByJobNumber(int jobNumber)

Collection<ProductionJob> getProductionJobsByState(String state)

void createPrintsEventForProductionJobByJobNumber(int jobNumber, int prints)

Collection<PrintsEvent> getPrintsEventsByProductionJobJobNumber(int jobNumber, Interval p)

Figure 2: Some services offered by the JobManager and the InputEventManager in the service layer.

3 DOMAIN SPECIFIC MODEL

Universal modeling languages like the UML are

well suited to describe a given software solution.

Often, the models are simply abstract representations

of the code of an application, thus usually leaving

out functional details or spreading these details over

a lot of different types of models. Domain specific

modeling languages are designed to capture the es-

sence of a domain and the respective models are

abstractions of the real world problem to be solved.

From such models, we can generate all the abstract

models of a solution. In addition, it is often possible

to generate some functional details or even a com-

plete application. For illustration, we will now

present a possible domain specific model for our

example MES-System.

ProductionJob

jobNumber: Integer

producedLots: Integer

PiecesCounter

cycles: Integer

activePrints: Integer

pieces: Integer

«custom»

-update

«overwrite»

Prints

activePrints: Integer

Cycle

cycles: Integer

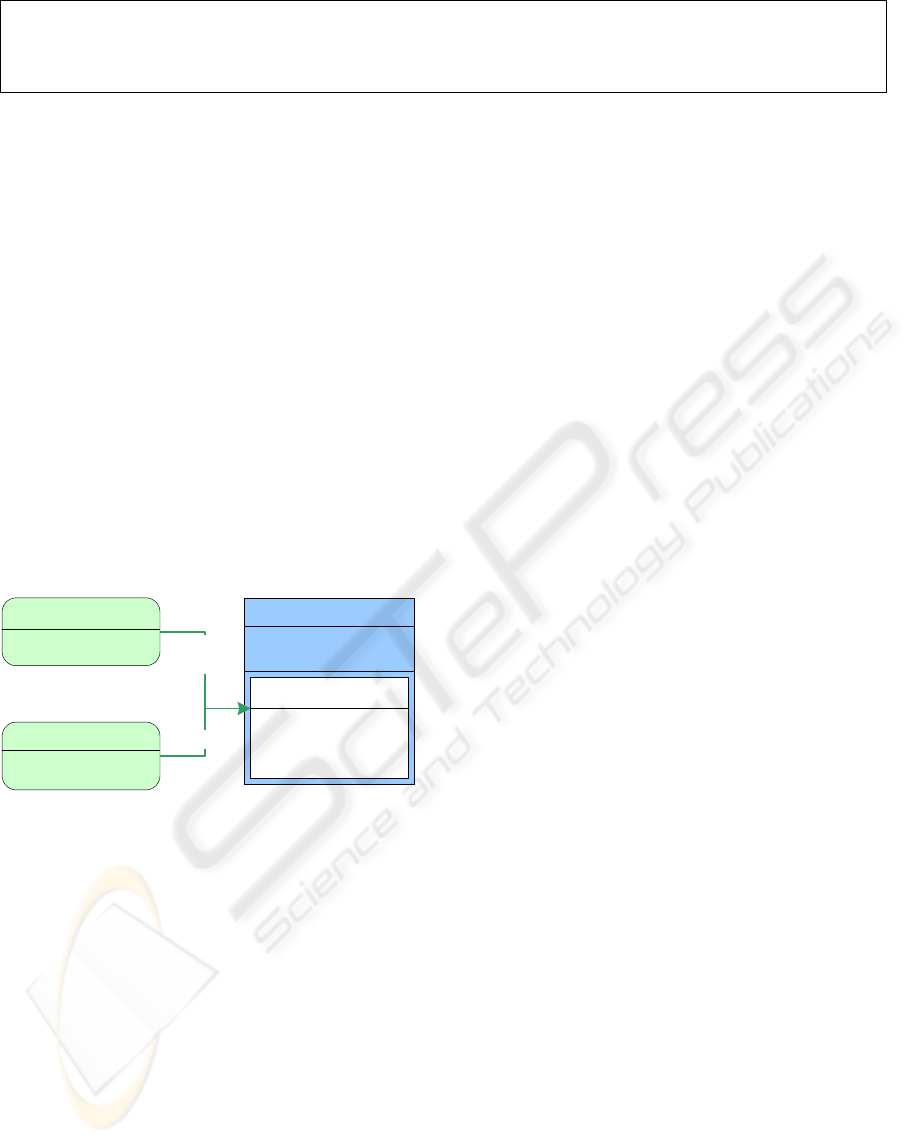

Figure 3: Extract from an MES model corresponding to

the object model in the lower part of Figure 1.

In order to distinguish between the different class

hierarchies in Figure 1, we model the subclasses

using different representations. In Figure subclasses

of the InputEvent class are drawn as green rounded

rectangles, and subclasses of the Job class are mod-

eled as blue rectangles containing a white rectangle

for each owned subclass of the Variable class. The

attributes of the classes are modeled just like in

UML within the class representing shapes.

Additionally, the new model contains relations

between input events and variables that indicate if

and how an event updates a variable. In our exam-

ple, the Cycle event will update the PiecesCounter

variable in a custom way that is manually specified

in the generated code. The Prints event will over-

write the activePrints attribute of the PiecesCounter

variable with the value of its attribute.

It should be clear, that the domain model in the

lower part of Figure 1 and the services in Figure 2

can be generated consistently from this new model.

Besides, the update relations can be used to generate

the major part of the updateVariables() method of

the ProductionJob class together with the needed

supporting methods within the different input events.

Moreover, this new model contains less technical

and more domain specific details. Due to its intuitive

meaning, it is easier to read and understand for do-

main experts.

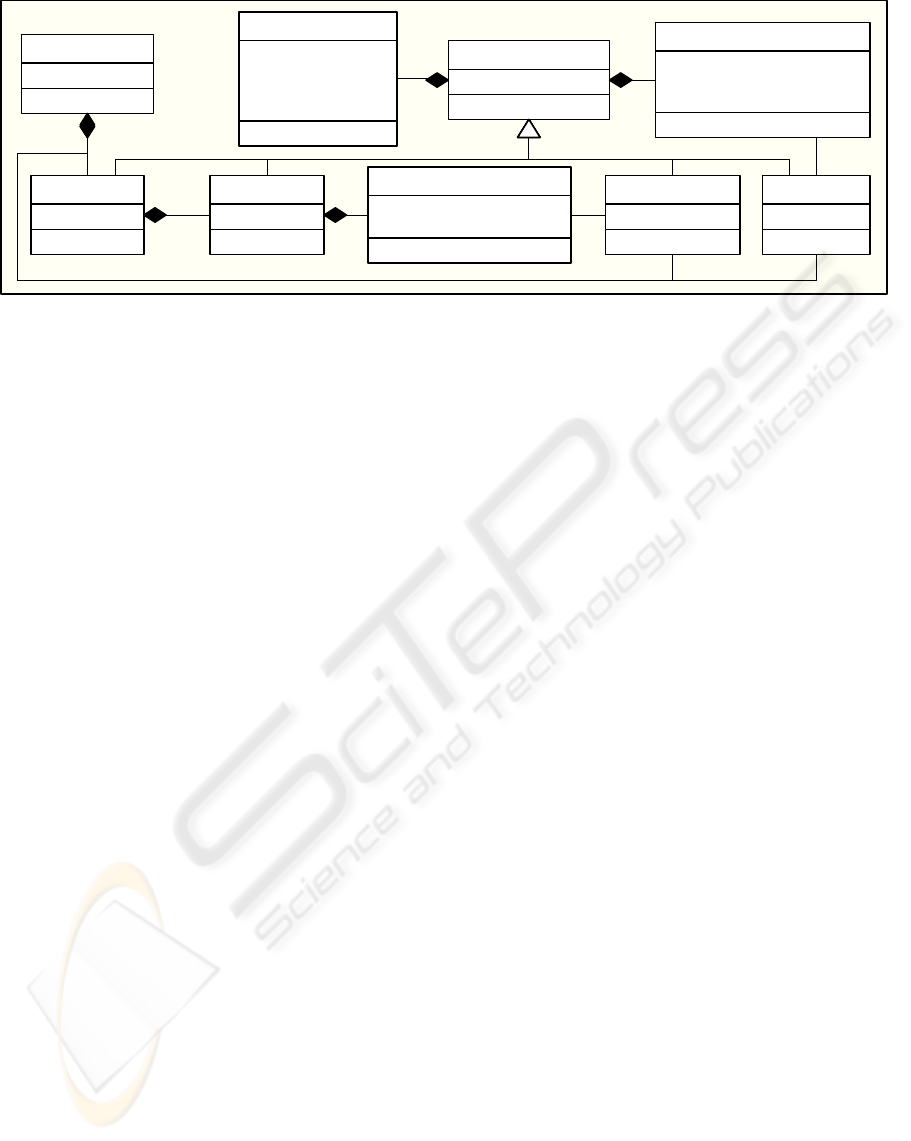

4 FROM A DOMAIN MODEL TO

A META-MODEL

After the presentation of a possible domain specific

model and its advantages, we need to formally de-

fine the corresponding meta-model.

As a first step, we basically just take the classes

of our abstract object oriented domain model in the

upper part of Figure 1 and put them as meta-classes

in the meta-model in Figure. This leaves us with the

meta-classes JobClass, VariableClass, InputE-

ventClass and EntityClass in our meta-model. In-

stances of these meta-classes represent subclasses of

the domain classes Job, Variable, InputEvent and

Entity. For instance, the blue rectangle representing

the ProductionJob in Figure is an instance of the

meta-class JobClass.

All these instances have a name (e.g. “Produc-

tionJob”) and may have attributes (e.g. jobNumber).

To capture these commonalities, we introduce the

super-(meta)class AbstractEntityClass. It has a

string-type attribute name to take the names and may

be associated to several PropertyClasses that

represent the attributes. For instance, ProductionJob

is an instance of JobClass, that is an AbstractEnti-

tyClass with name=”ProductionJob”. Its attribute

jobNumber with type “Integer” is an instance of

PropertyClass with name=“jobNumber” and

type=PropertyType::-Integer.

The additional attributes unique and searchable

of PropertyClass indicate whether an attribute of a

FROM AN ABSTRACT OBJECT-ORIENTED DOMAIN MODEL TO A META-MODEL FOR THE DOMAIN - Model

Driven Development of a Manufacturing Execution System

319

domain object can be used as an identifier for this

domain object and whether it can be used to lookup

and retrieve instances of this domain object. They

are used to control which accessing services are

generated. The service getProductionJobByJob-

Number() (Figure 2) for instance is generated be-

cause the attribute jobNumber of ProductionJob is

marked to be unique and searchable.

Finally, we would like to associate simple data

entities to our model elements in order to build nor-

malized data structures. Each such association in a

domain specific model is an instance of the ToEnti-

tyRelation meta-class. The attributes of this meta-

class are used to control the cardinalities and other

options of the associations.

As models need a single point of entry for further

treatment, all top-level elements of a model are

owned by a model-object of type MESDescription.

The only substantial addition to the meta-model

when compared to the abstract domain model is the

VariableUpdateRelation meta-class used to model

which input event updates which variable and how.

5 CONCLUSIONS

We presented a method to design a meta-model

starting from an abstract object-oriented domain

model. Models conforming to this meta-model can

be used to generate a concrete specialization of the

domain model together with supporting code, where

all elements are guaranteed to be consistent with one

another. Several important goals of model driven

software development such as higher productivity,

easier extensibility and better quality can be

achieved using this simple method. The method can

be easily applied by is easily understandable by faci-

litates model driven engineering for experienced

object-oriented developers.

REFERENCES

Atkinson, C., Kühne, T., 2003. Model-driven develop-

ment: a metamodeling foundation. In IEEE Software.

Vol. 20. No. 5. Sept-Oct 2003.

CHAMDE, 2008: 1

Int. Workshop on Challenges in

Model Driven Software Engineering. Sept 28

. Toul-

ouse. France. (see Posse, Rutle, and Mohagheghi)

Eclipse, 2009: Eclipse Modeling Project EMF,GMF, oaw:

http://www.eclipse.org/modeling/ (2

april 2009)

http://www.openarchitectureware.org/ (2

april 2009)

Evans, E., 2004. Domain-Driven Design Tackling Com-

plexity in the Heart of Software. Boston. Addison-

Wesley.

Fowler, M, 2003. Patterns of Enterprise Application Ar-

chitecture. Boston. Addison Wesley.

Kent, S., 2002. Model Driven Engineering. In Proceedings

of the Third International Conference on Integrated

Formal Methods. LNCS Vol. 2335, 2002.

Luoma, J., Kelly, S., Tolvanen, J-P., 2004. Defining Do-

main-Specific Modeling Languages: Collected Expe-

riences. In Proc. of the 4th OOPSLA Workshop on

Domain-Specific Modeling (DSM’04), Technical Re-

ports, TR-33, University of Jyväskylä, Finland 2004.

Mernik, M., Heering, J., Sloane, A. M., 2005. When and

How to Develop Domain-Specific Languages. In ACM

Computing Surveys. Vol. 37. Issue 4. Dec 2005.

Selic, B., 2008. Personal Reflections on Automation, Pro-

gramming Culture, and Model-based Software Engi-

neering. In Automated Software Engineering. Vol. 15.

Issue 3-4. Dec 2008.

Thörn, C., Gustafsson, T., 2008. Uptake of Modeling

Practices in SMEs Initial Results from an Industrial

Survey. In 2008 Int. Workshop on Models in Software

Engineering. Leipzig. Germany. 2008.

van Deursen, A., Klingt, P., Visser, J., 2000. Domain Spe-

cific Languages. In ACM SIGPLAN Notices. Vol. 35.

Issue 6. June 2000.

VariableClass EntityClassJobClass

+name : string

AbstractEntityClass

MESDescription

InputEventClass

+cardinality : CardinalityType

+bidirectional : bool = false

+optional : bool = false

ToEntityRelation

+name : string

+type : PropertyType

+unique : bool

+searchable : bool

PropertyClass

+updateType : UpdateType

+customTypeName : string

VariableUpdateRelation

Figure 4: Extract from the MES meta-model.

ICSOFT 2009 - 4th International Conference on Software and Data Technologies

320
