MANAGING BUSINESS PROCESS FLEXIBILITY AND REUSE

THROUGH BUSINESS PROCESS LINES

Nicola Boffoli, Marta Cimitile and Fabrizio Maria Maggi

Computer Science Department, University of Bari,Via Orabona 4, Bari, Italy

Keywords: Business Process Lines, Process Flexibility, Process Reuse.

Abstract: The ever greater pressure of competition to which enterprises are subjected has made the process continuous

improvement a crucial issue today. For this reason it should be useful to compose the business processes

reusing previously modeled business process parts characterizing them according to the current market

needs. This work presents an approach based on the use of Business Process Lines (BPL) to compose and

characterize a business process according to different contexts reusing existing process parts. The approach

has been applied to realize a BPL for the Software extraordinary maintenance. This BPL can be used to

model different process variants of the Software extraordinary maintenance processes corresponding to

different context profiles. The results demonstrate the approach applicability in a real case and underline

that it allows to reuse and specialize the same process parts for many different contexts.

1 INTRODUCTION

Working in a highly competitive and ever changing

environment, enterprises have to improve their

processes continuously. It often happens that the

existing business processes become inadequate due

to the natural changeability and competitiveness of

the business world. For this reason it’s necessary to

modify the business processes to tailor them

according to different context factors (objectives,

technologies, industrial standards, quality programs,

budget, workers, tools, cultural factors) (Lindvall,

2000). Unfortunately, changing well defined and

predictable processes often results very complex. In

particular it can imply high costs and risks, above all

in critical environments (small companies, strict

schedule, poor resources). That’s why it’s necessary

to define new approaches aiming to reduce the costs

and mitigate the risks in process modeling, updating

and continuous improvement. This work addresses

this problem proposing an approach to make

business processes reusable and flexible whenever

the context changes. Our idea is that the reusability

can be obtained individuating a number of process

parts to be reused in different operative contexts. On

the other hand, we suppose that the flexibility could

be improved composing and characterizing these

process parts to obtain different variants of the same

process for different contexts.

For this purpose it is useful :

 Characterize all the possible operative contexts

where the process could be executed;

 Identify all the process variants of the business

process to be used in the different operative

contexts;

 Identify the common parts of the different

process variants;

 Identify their variable parts;

 Determine the composition rules driving the

process engineer to choice the process parts

suitable for a given context and integrate them

in the corresponding process variant.

We can realize all this using the concept of BPL

defined in (Boffoli, 2008) that transfers to the

business processes the peculiarities typical of the

Software Product Lines paradigm (Clements, 2001).

A BPL is a set of similar business processes sharing

a common part and characterized by different variant

parts. Each process of a BPL can be applied in a

specific context and is modeled composing

activities, inputs and outputs needed in that specific

context. Besides a conceptual definition of BPL, the

proposed approach is also composed by a logical

and an operative model. These models drive the

process engineer to quickly identify and characterize

a business process according to his own needs. In

this way, the approach allows to reuse process parts

Boffoli N., Cimitile M. and Maggi F. (2009).

MANAGING BUSINESS PROCESS FLEXIBILITY AND REUSE THROUGH BUSINESS PROCESS LINES.

In Proceedings of the 4th International Conference on Software and Data Technologies, pages 61-68

DOI: 10.5220/0002257800610068

 SciTePress

and to make flexible the processes adapting them

quickly to the environment changes.

The remainder of this paper is structured as

follows: section 2 recalls the related works; section 3

describes the BPL approach; in section 4 the BPL

approach is applied in a real case; section 5

completes the paper providing some conclusive

insights and final remarks and showing prospective

works.

2 RELATED WORKS

In the last years many authors have addressed the

issues of process flexibility and reuse (Adams,

2006), (Kim, 2007) proposing approaches to support

dynamic evolution in the business processes. In

(Reichert, 2005), (Pesic, 2007) the authors propose

methods to realize a workflow management system

supporting flexible process changing. In particular

ADEPT (Reichert, 2005) provides powerful

mechanisms that allows to change process models

(by inserting, moving or deleting activities) during

execution. On the other hand DECLARE (Pesic,

2007) uses constraints based process model

languages for the development of declarative models

describing loosely structured processes.

Nevertheless these works regard the process

flexibility at run-time and propose approaches to

manage different process instances and different

possible control flows inside an only one process.

Our approach on the contrary aims to select different

process models according to the different context

characteristics. Of course the above mentioned

works can be used for the workflow management

systems specification. Nevertheless, dealing with

processes at execution level, they can’t be used by

domain experts to model business processes and

define process requirements. Our idea is on the

contrary to support managers (that in general are not

technicians) through a repertoire of process parts at a

higher abstraction level to compose a business

process model for the process requirements

specification.

In literature there are also approaches addressing

the issue of process flexibility suggesting methods

based on the adoption of Knowledge Bases (XU Ru-

Zhi, 2005), (Malone, 2003). In particular in (XU Ru-

Zhi, 2005) the authors propose a reuse-oriented

process components framework for the reuse and

retrieval of process components. It uses a facet-

based process component classification scheme and

XML based process description for the selection of

the process component contained in a repository.

Even if this approach allows the component reuse, it

doesn’t offer a support to the process

characterization according to the context

peculiarities. Our approach on the contrary allows to

model, through the BPL, the operative context and

the relationships between different context profiles

and the specific elements to be inserted in the

process model. In this way, it allows to analyze

better the contexts, the processes and the

relationships among them, and to store and transfer

the knowledge contained in these relationships.

Finally MIT Library (Malone, 2003) is a large

collection of business processes about different

application domains. Here is just mentioned a

context modeling but the approach isn’t operative at

all.

3 THE BPL APPROACH

To describe the BPL approach we introduce a

conceptual model, a logical model and an operative

model. The conceptual model explains the BPL

definition and its conceptual meaning. In the logical

model we introduce functions useful to select,

specialize and integrate existing process parts to

obtain the process variant more suitable for a

specified context. Basing on the logical model, the

operative model is implemented by using decision

tables that support the process engineer to identify

the suitable process variant.

3.1 BPL Conceptual Model

A BPL is a set of similar business processes sharing

a common part (commonality) and characterized by

a variant part (variability) depending on the specific

context where the process will be applied. So, a BPL

works integrating a set of process assets, i.e. atomic

reusable parts of a business process (one or more

activities with their IN/OUT). In particular the

commonality is a set of invariant assets and the

variability is a set of variant assets selected

according to a fixed context profile. Commonality

and variability are then integrated in order to obtain

a process variant to be applied in the fixed context.

The assets integration rules are driven by their

IN/OUT artefacts allowing to establish the

succession of the process assets: the outputs of the

previous asset are the inputs of the successive one.

When a BPL is selected the invariant assets and

all the candidate variant assets are specified. The

BPL is selected on the basis of the process that has

to be modeled: for example if we are interested to

ICSOFT 2009 - 4th International Conference on Software and Data Technologies

the process “Sell” we will use a “Sell BPL”. The

invariant assets of the “Sell BPL” can be for

example “Obtain Order”, “Deliver product” and

“Receive Payment”. Each one of these process

assets is composed by the basic activities, inputs and

outputs needed for its own purpose within the “Sell”

process. Afterwards, to identify a specific process

variant the variant assets has to be selected among

the candidate variant assets on the basis of a specific

context. For example if we want to sell via

electronic store the asset “Organize the web site” has

to be selected. The process assets (variant or

invariant) have to be then specialized on the basis of

the context itself. The specialization aims to specify

the behaviour of each process asset applying on it

some specializing actions. In particular, an asset can

be specialized adding IN/OUT artefacts to an

activity, specializing an artefact, specializing an

activity, adding an attribute to an artefact (size,

compilation guideline, quality standards etc.),

adding an attribute to an activity (required skills,

tools, hardware or software resources etc.). For

example if we want to sell via electronic store the

activity “Receive Payment” can be specialized in

“Receive online Payment”. Finally the process assets

selected and specialized are integrated in the

required process variant. The conceptual model

activities are synthesized in Figure 1.

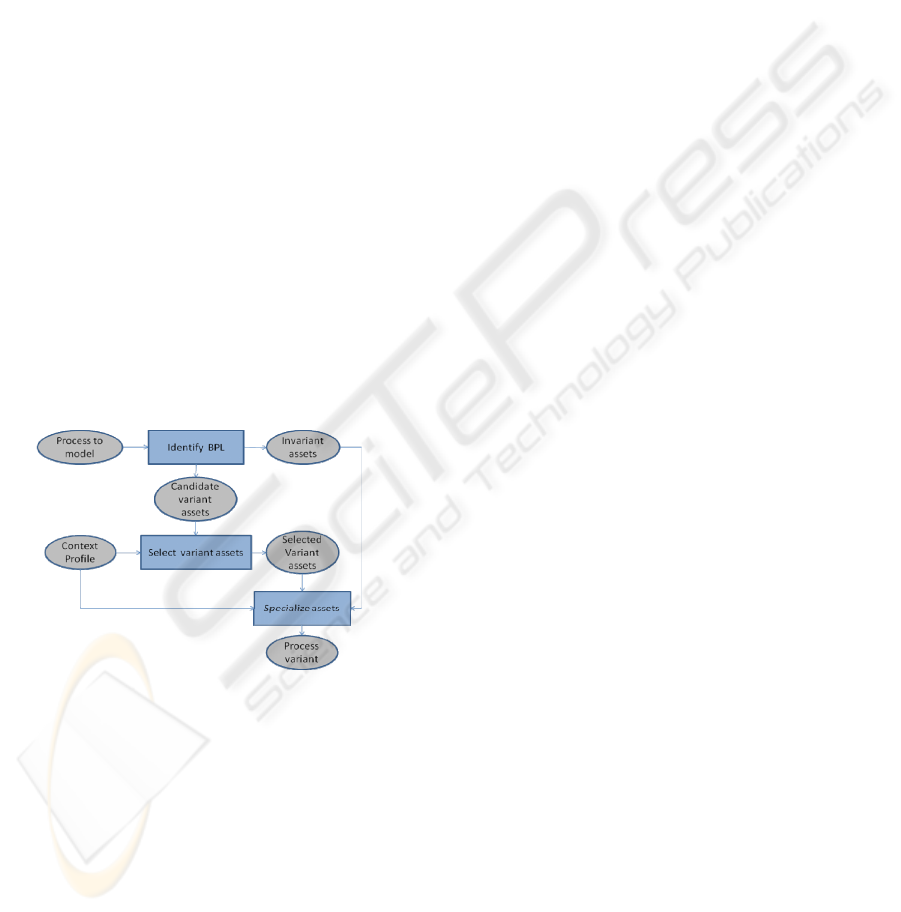

Figure 1: Conceptual Model.

3.2 BPL Logical Model

To chose the suitable process variant of a BPL to be

applied in a specific context profile, we need a

function f associating to a specific context profile

the process variant specific for the given context:

f: CP Æ S (1)

where

 CP is the set of all the possible context profiles.

An element cpCP is represented as a vector of

instantiated diversity factors DF

i=1, …, r.

Each DF

is a factor characterizing a particular

aspect of the environment and has a definition

domain [DF

]={df

, df

, …, df

} where each

j=1,...q is an instance of DF

. So we can say

that the set CP is: CP= [DF

] x [DF

] x ...... x

[DF

 S is the set of all the possible process variants

of the considered BPL.

f can be detailed in this way:

f(cp)=

Φ(

σ(cp, K), σ(cp, χ(cp)))

(2)

If A is the set of all the process assets associated to

the BPL, in (2):

 K = {ia

,ia

…..ia

} A is the set of invariant

assets realizing the commonality;

 χ:CPÆ CVA=A-K is the function associating

to each fixed cpCP the set of variant assets

{va

,va

…..va

}CVA realizing the process

variability according to the fixed context cp.

CVA=A-K is the set of the candidate variant

assets associated to the BPL;

 σ is the function including the assets

specialization rules on the basis of the context

profile cp. It associates to a set of assets

another set of assets specialized according to

the fixed context profile. In particular σ(cp,

{asset

,asset

…..asset

}) = {σ

(cp,asset

),…, σ

(cp,asset

)}, where σ

, σ

,...,

are transformations specializing respectively

the assets asset

, asset

,..., asset

according to

the context profile cp.

 Φ includes the integration rules useful to

compose the commonality to the variability

specialized according to the context profile cp.

So, f(cp) = Φ(σ(cp, K), σ(cp, χ(cp))) =

Φ(σ(cp, {ia

,ia

…,ia

}), σ(cp, {va

,va

..,va

})) =

Φ({σ

(cp, ia

), σ

(cp, ia

), ..., σ

(cp,ia

)},

{σ

n+1

(cp, va

), ..., σ

n+m

(cp,va

)}) identifies the

process variant suitable for the context profile cp.

3.3 BPL Operative Model

A process variant of a BPL is obtained performing

two main activities:

 Variability Selection to select, according to a

specific context profile, the suitable variant

assets.

 Asset Specialization to specialize each process

asset basing on the fixed context profile.

These activities can be driven through a decision

tables system.

MANAGING BUSINESS PROCESS FLEXIBILITY AND REUSE THROUGH BUSINESS PROCESS LINES

A decision table is a tabular representation of the

decision-making task, where the state of a set of

conditions implies the execution of a set of actions

(Maes, 1988), (Fayyad, 1996), (Vanthienen, 1998).

In general a decision table has four quadrants:

conditions (Cond), conditional states (S), actions

(Act) and rules (x). The table is defined so that each

combination of conditions and conditional states

corresponds to a set of actions to execute.

According to the variability selection and asset

specialization activities, two different kinds of

decision tables are proposed: the variability

selection tables and the asset specialization tables.

A variability selection table implements the

function χ of the logical model. It allows to select

the suitable variant assets composing the variability

characteristic of a specified context profile. So this

kind of decision table is structured as follows

(Figure 2):

 the CONDITION quadrant contains the

diversity factors DF

i=1,...r driving the variant

assets selection;

 the CONDITIONAL STATE quadrant contains

the possible value of each diversity factor:

[DF

]={df

, df

, …, df

};

 the ACTION quadrant contains all the

candidate variant assets (CVA) that can be

selected to realize the process variability;

 the RULE quadrant identifies the relationships

between each context profile and the variant

assets to realize the corresponding process

variability.

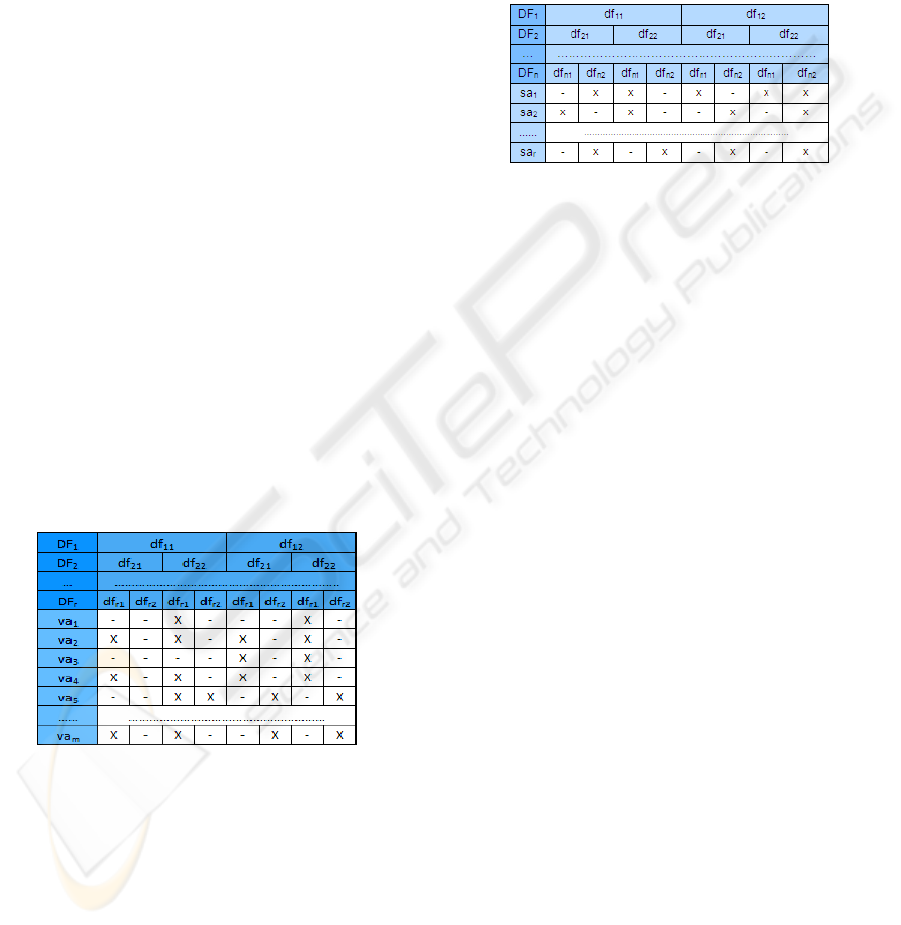

Figure 2: Variability Selection table.

An asset specialization table implements a

function σ

of the logical model. It allows to

specialize a process asset (variant or invariant) on

the basis of specified context profile, executing a set

of specializing actions. So this kind of decision table

is structured as follows (Figure 3):

 the CONDITION quadrant contains the

diversity factors DF

i=1,...r driving the asset

specialization;

 the CONDITIONAL STATE quadrant contains

the possible values of each diversity factor:

[DF

]={df

, df

, …, df

};

 the ACTION quadrant contains the actions to

specialize the asset according to the specified

context profile;

 the RULE quadrant identifies the relationships

between each context profile and the

specializing actions to be applied.

Figure 3: Asset Specialization table.

Finally the function Φ of the logical model

allows to compose the process assets selected and

specialized through the above described decision

tables. The assets integration rules are driven by

their IN/OUT artefacts as explained before.

4 CASE STUDY: A BPL FOR

SOFTWARE EXTRAORDINARY

MAINTENANCE

A Software extraordinary maintenance process is a

sequence of activities aiming to identify and remove

obsolete components of a software application, to

increase the components maintainability and to

extract knowledge for their improvement.

Over the years Software extraordinary

maintenance processes have been characterized by

continuous changes followed by the variable size

and complexity of software products. For this reason

the Software extraordinary maintenance processes

represent a field of interest for the BPL application.

So, according to the proposed approach, we will

formalize the Software extraordinary maintenance

processes using a BPL. The proposed BPL is

obtained by the literature analysis but it can be

improved and changed with use.

4.1 BPL Definition

Starting from the analysis of Software the

maintenance processes (Rugaber, 1994), (Rugaber,

1995), (Rugaber, 2006), we have extracted their

common parts. In this way we have identified the

ICSOFT 2009 - 4th International Conference on Software and Data Technologies

invariant assets realizing the BPL commonality

(Table 1).

Table 1: Invariant assets.

Inventory

Data Classification

Data Reconstruction

Afterwards to define the variability selection

table we have modeled the context defining a

number of diversity factors and for each factor all

the possible values. The identified diversity factors

are shown in Table 2.

Table 2: Software extraordinary maintenance diversity

factors.

Diversity Factors Values

Documentation

State

Updated, Obsolete

Code Readability Good, Not Good

Variable Naming Good, Not Good

Maintenance Cost Low, High

Code Complexity #McCabe>7,#McCabe<=7

Dead Data Present, Not Present

Dead Instructions Present, Not Present

# KNOTS >3, <=3

Information Hiding Yes, No

Data Banker Yes, No

System

Performance

Improvement

Required, Not Required

In vivo Y, N

Kind of Database

Redesign

Structure, Type, Structure and

Type

Finally we have identified the candidate variant

assets that can be selected for each possible context

profile (Table 3).

Table 3: Candidate variant assets.

Database Redesign

Legacy Restoring

Data Migration

Restoring Equivalence Test

Requirements Reconstruction

Structure Chart Reconstruction

Procedures Reengineering

Residual Database Emptying

Metadata Cleaning

Reengineering Equivalence Testing

Documentation Reconstruction

Each process asset is represented as one or more

activities and their IN/OUT. For example the asset

=“Data Migration” is represented as in Figure 4.

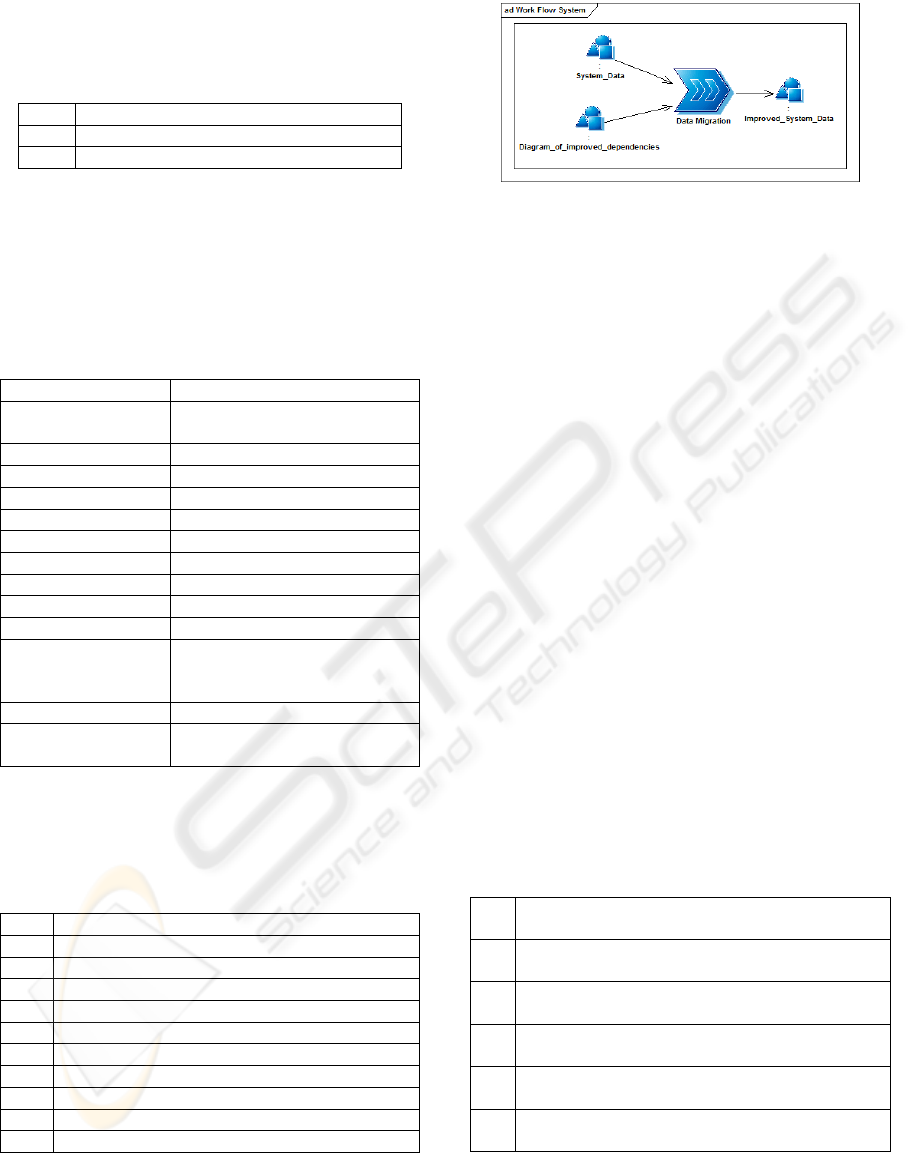

Figure 4: “Data Migration” asset.

In this way we can realize the variability

selection table (Figure 5). It encloses the rules to

associate to each possible context profile the related

variant assets. These ones have to be composed with

the BPL invariant assets to obtain the process variant

specific for the specified context profile.

For example, considering the column 12 of the

variability selection table, we have that for the

context profile cp*= (Updated, Good, Good, Low,

#McCabe<=7, Not Present, Not Present,

#KNOTS>3, Yes, Yes, Structure and Type, Not

Required, No) the variant assets to select are:

“Database Redesign”, va

= “Legacy Restoring”, va

“Data Migration”,

= “Restoring Equivalent Test”.

So to obtain the process variant specific for the

given context profile we have to compose these

assets with the invariant assets of the commonality

(

= “Inventory”, ia

= “Data Classification” and ia

“Data Reconstruction”).

Moreover, to define the asset specialization

tables, for ech process asset we have identified the

specializing actions corresponding to each possible

context profile. For example for the asset “Data

Migration” the specializing actions shown in Table 4

are identified.

Table 4: Specializing action for the asset “Data

Migration”.

ADD List of DB improvements AS INPUT of

Data Migration activity

ADD List of Control Rules AS INPUT of Data

Migration activity

ADD List of Conversion Rules AS INPUTof

Data Migration activity

ADD System Administrator AS SKILL of Data

Migration activity

ADD Domain Expert AS SKILL of Data

Migration activity

ADD Mirror System AS SOFTWARE

RESOURCE of Data Migration activity

MANAGING BUSINESS PROCESS FLEXIBILITY AND REUSE THROUGH BUSINESS PROCESS LINES

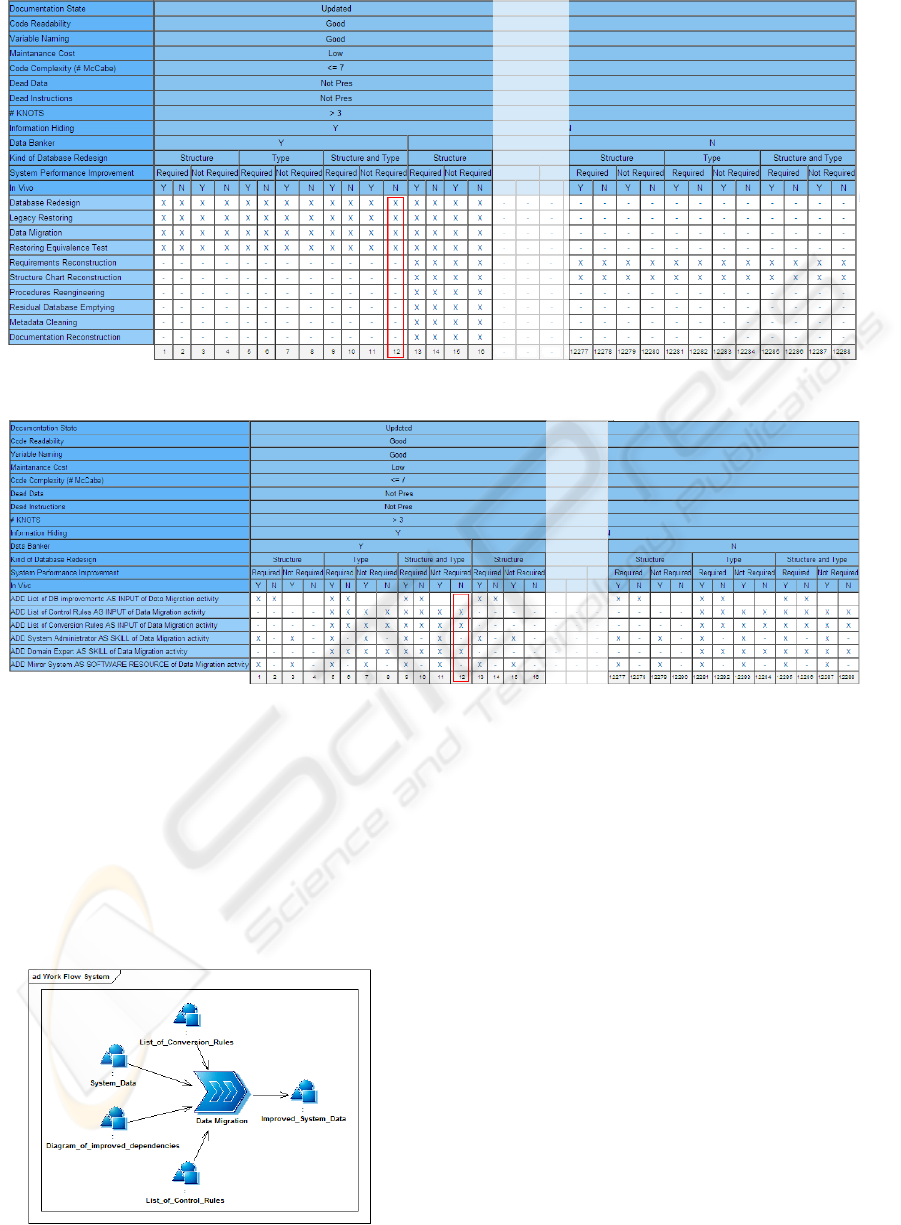

Figure 5: Sample of Variability Selection table.

Figure 6: Sample of Asset Specialization table.

The asset specialization table (Figure 6) encloses

the rules to associate to each context profile, the

actions to be executed to specialize the behaviour of

the considered asset.

According to the context profile cp* considered

before (column 12), we need to add List of Control

Rules and List of Conversion Rules as inputs of Data

Migration activity and to require a Domain Expert as

skill for the activity execution (Figure 7).

Figure 7: Specialized “Data Migration” asset.

4.2 BPL Application

The obtained BPL can be used to model some

variants of the Software extraordinary maintenance

process.

According to the context profile cp* considered

before (column 12) we have obtained the process

variant represented in Figure 8. The process includes

the BPL commonality and the variant assets

identified on the basis of the context profile cp*

using the variability selection table. Each asset is

specialized with the related asset specialization

tables before being integrated in the process variant.

4.3 Discussion

In table 5 some synthesis data for the considered

case study are reported. In the defined BPL the

commonality is composed by 3 invariant assets and

there are 11 candidate variant assets. For each asset

there are on average 7,3 specializing actions. The

BPL manages 12288 different contexts. Each asset is

ICSOFT 2009 - 4th International Conference on Software and Data Technologies

reused on average 6353,4 times in the different

contexts. On the one hand, these data show that each

variant asset is reused many times. It gives a

measure of the capacity of the proposed approach to

reuse the same assets in different contexts. On the

other hand, the flexibility is assured by the large

number of specialization actions related to each

considered assets. So starting from 14 assets and

their specializations, the proposed approach allows

to consider 12288 different contexts.

Moreover the BPL approach gives other effective

advantages:

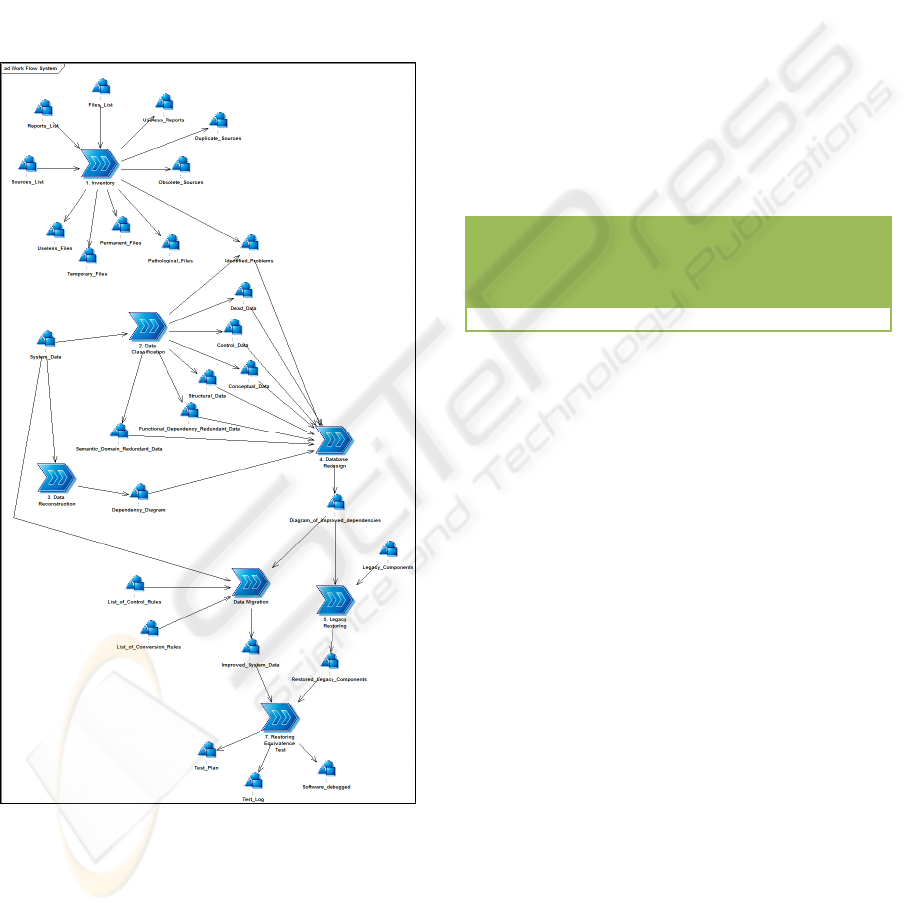

Figure 8: Example of process variant.

 a BPL can be easily maintained and

continuously improved. The decision tables

system can easily evolve when new

experiences are acquired. For example in the

proposed case study it is possible, on the basis

of user feedbacks add new conditions or new

actions to the decision tables;

 a BPL reduces the engineering effort to model

and modify a business process: modeling a

little number of assets, it allows to obtain many

process variants suitable to different specific

contexts;

 a BPL increases the total number of business

processes that can be effectively modeled and

managed allowing to consider all the possible

context profiles;

 a BPL increases process quality and reduces

risk in process execution. In fact the

consistency of the business processes extracted

from a BPL is assured by the consistency of the

decision tables system implementing it.

Moreover the reusable process parts used to

obtain the process variants are already

validated in other similar contexts.

Table 5: Synthesis data.

Specializati

on Actions

for each

asset

Variant

Assets

Invariant

Assets

Context

Variant

#Reuse

7,3 11 3 12288 6353,4

5 CONCLUSIONS

The work proposes an approach to manage business

process reuse and flexibility based on the use of

BPL. The approach has been applied in a real case

defining a Software extraordinary maintenance BPL.

The BPL is obtained by a Software extraordinary

maintenance literature analysis. It supports and

facilitates the reuse and the specialization of a set of

identified assets in different contexts. In particular

the composition of 14 assets allows to identify

different process variants suitable for 12288

different contexts. Moreover the conditions and

consequently the context profiles could be increased

or improved with use. The BPL gradual increasing

and changing allow to adequate the BPL to new

market needs. These results prove that the BPL

approach reduces the effort to model, update and

continuously improve the business processes,

making them flexible to the context changes.

Moreover reusing processes parts already applied

and improving continuously the decision tables

reduce the risk of errors and increase the processes

quality.

As future works, we will conduct empirical

investigations to generalize the obtained results, to

improve the proposed model and to confirm it

MANAGING BUSINESS PROCESS FLEXIBILITY AND REUSE THROUGH BUSINESS PROCESS LINES

empirically. In particular we would use the business

processes placed at disposal by (Malone, 2003) to

define and apply a certain number of BPL. That’s

why we are interested to share our research

experience with other researchers.

REFERENCES

Adams, M., ter Hofstede, A. H. M., Edmond, D., van der

Aalst, W. M. P., 2006. Implementing Dynamic

Flexibility in Workflow using Worklets. BPM Center

Report BPM-06-06. BPMcenter.

Boffoli, N., Caivano, D., Castelluccia, D. Maggi, F. M.,

Visaggio, G., 2008. Business Process Lines for SOA

Development through the Software Product Lines

Paradigm. In Proceedings of 12th Conference on

Software Product Line (SPLC). IEEE Computer

Society.

Clements, P., Northrop, L., 2001. Software Product Lines:

Practices and Pattern, SEI Series in Software

Engineering. Addison–Wesley.

Fayyad, U.M., Piatetsky-Shapiro, G., Smyth, P.,

Uthurusamy, R., 1996. Advances in Knowledge

Discovery and Data Mining, AAAI Press.

Kim, D., Kim, M., Kim, H., 2007. Dynamic Business

Process Management based on Process Change

Patterns. In Proceedings International Conference on

Convergence Information Technology (ICCIT 2007),

IEEE Computer Society.

Lindvall, M., Rus, I., 2000. Process Diversity in software

Development. IEEE Computer Society.

Maes, R., Van Dijk, J.E.M., 1988. On the Role of

Ambiguity and Incompleteness in the Design of

Decision Tables and Rule-Based Systems. The

Computer Journal.

Malone, T. W., Crowston, K., Herman, G. A., 2003.

Organizing Business Knowledge-The MIT Process

Handbook, MIT Press Cambridge.

Pesic, M., Schonenberg, H., van der Aalst W. M. P., 2007.

DECLARE: Full Support for Loosely-Structured

Processes. In Proceedings of 11th IEEE International

In Enterprise Distributed Object Computing

Conference (EDOC 2007). IEEE Computer Society.

Reichert, M., Rinderle, S., Dadam, P., 2005. Adaptive

Process Management with ADEPT2. In Proceedings

of the 21st International Conference on Data

Engineering (ICDE). IEEE Computer Society.

Rugaber, S., DeBaud, J.M., Moopen, B., 1994. Domain

Analisys and Reverse Engineering. In Proceedings of

the International Conference on Software

Maintenance (ICSM94). IEEE Computer Society.

Rugaber, S., Stirewalt, K., Wills, L. M., 1995. Direct

Interleaving. In Proceedings of the Conference on

Software Maintenance (ICSM95). IEEE Computer

Society.

Rugaber, S., Harel, N., Govindharaj, S., Jerding, D. 2006.

Problems Modeling Web Sites and User Behavior. In

Proceedings of the Eighth IEEE international

Symposium on Web Site Evolution. IEEE Computer

Society.

XU Ru-Zhi, He Tao, CHU Dong Sheng, XUE Yun-Jiao,

QIAN Le-Qiu, 2005. Reuse-Oriented Process

Component Representation Retrieval. In Proceedings

of the 5st International Conference on Computer and

Information Technology (CIT05). IEEE Computer

Society.

Vanthienen, J., Mues, C., Wets, G., Delaere, K., 1998. A

tool-supported approach to inter-tabular verification.

Expert Systems with Applications.

ICSOFT 2009 - 4th International Conference on Software and Data Technologies
