HOW TO DEAL WITH REPLICATION AND RECOVERY

IN A DISTRIBUTED FILE SERVER

I. Arrieta-Salinas, J. R. Ju´arez-Rodr´ıguez, J. E. Armend´ariz-I˜nigo and J. R. Gonz´alez de Mend´ıvil

Departamento de Ingenier´ıa Matem´atica e Inform´atica, Universidad P´ublica de Navarra, 31006 Pamplona, Spain

Keywords:

Replication, Crash-Recovery Model, Group Communication Systems, Virtual Synchrony, Distributed File

Server, Testing.

Abstract:

Data replication techniques are widely used for improving availability in software applications. Replicated

systems have traditionally assumed the fail-stop model, which limits fault tolerance. For this reason, there

is a strong motivation to adopt the crash-recovery model, in which replicas can dynamically leave and join

the system. With the aim to point out some key issues that must be considered when dealing with replication

and recovery, we have implemented a replicated ﬁle server that satisﬁes the crash-recovery model, making

use of a Group Communication System. According to our experiments, the most interesting results are that

the type of replication and the number of replicas must be carefully determined, specially in update intensive

scenarios; and, the variable overhead imposed by the recovery protocol to the system. From the latter, it would

be convenient to adjust the desired trade-off between recovery time and system throughput in terms of the

service state size and the number of missed operations.

1 INTRODUCTION

Data replication is a well-known technique used for

improving performance and enhancing fault tolerance

in software applications. Two major classes of repli-

cation approaches are known in the literature, in terms

of who can propagate updates: active replication

(or state-machine) techniques (Schneider, 1993), in

which any replica can propagate a received update

request; and passive replication (or primary-backup)

approaches (Budhiraja et al., 1993), where only the

replica that acts as primary is in charge of receiving

and propagating all updates, whereas the others act

as backups. Replicated systems have traditionally as-

sumed the fail-stop model (Schneider, 1984). Its main

advantage resides in its simplicity, since replicas only

fail when they crash, remaining forever in this state.

Nevertheless, as replicas cannot connect to the sys-

tem during normal operation, only the crash of a mi-

nority of replicas is tolerated. For this reason, there

is a strong motivation to consider the crash-recovery

model, in which replicas can dynamically leave and

join the system. Despite being a desirable feature,

this requires a recovery protocol, where joining repli-

cas obtain the necessary changes to update their stale

state. In this context, Group Communication Systems

(GCS) (Chockler et al., 2001) greatly simplify the job

of ensuring data consistency in the presence of fail-

ures. A GCS features a membership service that mon-

itors the set of alive members and notiﬁes member-

ship changes by means of a view change, along with

a communication service that allows group members

to communicate among themselves.

The recovery of outdated replicas can be carried

out in many ways. The simplest one would consist of

a total recovery, by transferring the entire service state

to the joining replica. This is mandatory for repli-

cas that join the system for the ﬁrst time, but it may

also be adequate if most of the data have been up-

dated since the replica failed. However, total recov-

ery can be highly inefﬁcient if the size of the service

state is big or there have not been many updates since

the joining replica went down. In such situations, it

may be more convenient to perform a partial recov-

ery, transferring only the changes occurred during the

joining replica’s absence. Partial recovery is possible

thanks to virtual synchrony (Chockler et al., 2001);

however,this property provided by the GCS expresses

delivery guarantees that have nothing to do with pro-

cessing. As a consequence, the real state at the join-

ing replica may differ from the last state it is assumed

it had before crashing, due to the fact that it may

147

Arrieta-Salinas I., R. Juárez-Rodríguez J., E. Armendáriz-Iñigo J. and R. Gonzalez de Mendivil J. (2009).

HOW TO DEAL WITH REPLICATION AND RECOVERY IN A DISTRIBUTED FILE SERVER.

In Proceedings of the 4th International Conference on Software and Data Technologies, pages 147-152

DOI: 10.5220/0002258001470152

 SciTePress

not have processed all delivered messages, causing

the amnesia phenomenon (Cristian, 1991; de Juan-

Mar´ın, 2008). Thus, the joining replica will have to

obtain two types of lost messages: forgotten messages

that were delivered but not applied before failure, and

missed messages that were delivered at the system

during the disconnection period.

In this paper we present a replicated system that

takes advantage of the properties provided by GCSs

to support the crash-recovery model. As far as the

type of replicated service is concerned, special atten-

tion has been paid to databases (Bernstein et al., 1987;

Kemme et al., 2001). With the aim to study problems

that may arise when the operation is not performed in-

side the boundaries of a transaction, we have focused

on non-transactional services. In particular, we have

implemented a replicated ﬁle server allowing clients

to remotely execute basic operations over a structure

of directories and ﬁles. Moreover,the ﬁle server man-

ages a lock system to block ﬁles and temporarily pre-

vent other clients from accessing them. We compare

the performance of passive and active replication for

the ﬁle server, depending on the workload and rate of

reads and writes. This paper also assesses the over-

head introduced by the recovery process, analyzing

total and partial recovery in a variety of reconﬁgura-

tion scenarios. We intend to determine the circum-

stances in which partial recovery performs better than

total recovery, and discuss the advantages of a combi-

nation of both approaches.

The rest of the paper is organized as follows. Sec-

tion 2 depicts the system model. Section 3 details the

replication protocols we have used, whereas Section 4

includes our recovery alternatives. Section 5 presents

the evaluation of our solutions for replication and re-

covery. Finally, conclusions end the paper.

2 SYSTEM MODEL

The implemented application consists of a replicated

system supporting the crash-recovery model, which

provides high availability for a ﬁle server. The system

is partially synchronous, i.e. time bounds on message

latency and processing speed exist, but they are un-

known (Dwork et al., 1988).

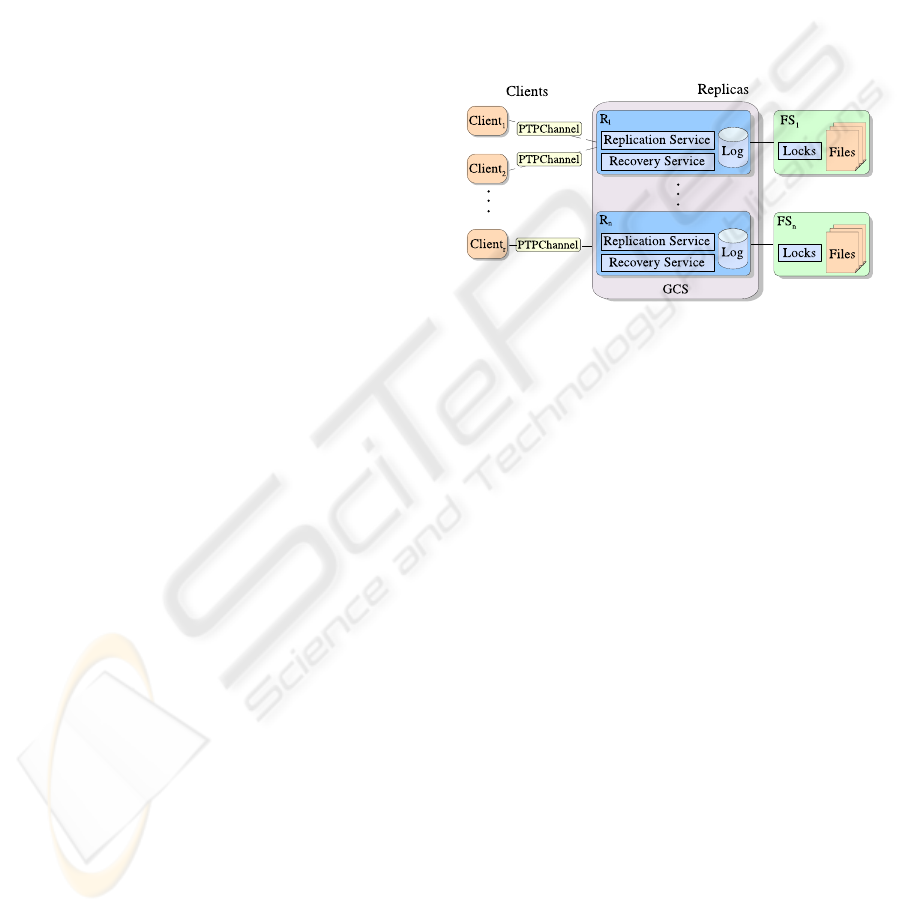

The system model is shown in Figure 1. Replicas

communicate among themselves using a GCS, which

guarantees the properties of virtual synchrony. As for

the group composition, we shall consider a primary

partition service (Chockler et al., 2001). Each replica

manages an instance of the replicated service (in this

case, a ﬁle server). Replicas also run a replication

protocol to ensure data consistency and a recovery

protocol, which handles the dynamic incorporation of

replicas. Each one is equipped with a persistent log.

When a client C

wants to execute an operation at

the replicated system, it must build a request req

uniquely identiﬁed by the pair formed by the client

identiﬁer i and a local sequence number j that is incre-

mented for each new request. C

submits req

to one

of the replicas using an asynchronous quasi-reliable

point-to-point channel (Schiper, 2006) and waits for

the corresponding result; hence, it will not be able to

send other requests in the meantime. In order to cope

with crashes of replicas, req

is periodically retrans-

mitted to other replicas.

Figure 1: System model.

3 REPLICATION

Our replication protocols are based on the speciﬁca-

tions given in (Bartoli, 1999), which provides the im-

plementation outline for a passive replication proto-

col, along with the required modiﬁcations to trans-

form it into an active replication protocol.

The algorithm for passive replication for a replica

supporting the fail-stop model is presented in Fig-

ure 2. R

handles a local counter for update opera-

tions (updateCnt), as well as a list of pairs hi, resulti

denoted lastU pd, containing the result of the last

update operation executed on behalf of each client

. During initialization, R

applies the deterministic

function electPrimary(), which ensures that all alive

replicas agree on the same primary.

When R

receives a read request, it directly exe-

cutes it and sends the result back to the client (lines

7-9). On the contrary, if the request contains an up-

date, backups forward it to the primary, whereas the

primary sends an Uniform Multicast message (with

FIFO order) by means of the GCS, containing the up-

date request (lines 11-12). Uniform Multicast (Bar-

toli, 1999) enables each replica that applies an update

to concludethat every other replica in the current view

will eventually apply that update or crash, thus avoid-

ing false updates. It is worth noting that read requests

ICSOFT 2009 - 4th International Conference on Software and Data Technologies

148

1. Initialization:

2. p := electPrimary() //Primary ID

3. updCnt := 0 //Counter for updates

4. lastUpd :=

0 // hi, resulti tuples

6. a. Upon receiving (Request hreq

i) from PTPChannel

7. ⋆ if (type(req

) = read) then

8. ⋄ result

:= execute(req

)

9. ⋄ send(result

) to C

10. ⋆ else // write operation

11. ⋄ if (p = R

) then UFmulticast(Update hreq

12. ⋄ else send(Request hreq

i) to p

13. b. Upon receiving (Update hreq

i) from the GCS

14. ⋆ if (sender(U pdatehreq

i) = p) then

15. ⋄ result

:= lastUpd(i)

16. ⋄ if (k < j) then

17. • result

:= execute(req

)

18. • updCnt + +

19. • lastUpd(i) := result

20. • if (local(req

)) then send(result

) to C

21. ⋄ else if ( j = k) then

22. • if (local(req

)) then send(result

) to C

23. c. Upon receiving a vchg(V) from the GCS

24. ⋆ p := electPrimary()

Figure 2: Passive replication protocol at replica R

are executed as soon as they are received for the sake

of efﬁciency; thus, it is not ensured that a query will

always reﬂect the latest system state.

Upon receiving an update request req

from the

GCS, it is necessary to check that it was sent from the

current primary (line 14), since the multicast primi-

tive only guarantees FIFO order, so if there has been

a change of primary, updates sent by the previous and

the current primary may arrive to replicas in different

order. Then, R

checks whether req

is duplicated,

by looking up at lastU pd the last operation executed

on behalf of client C

(line 15). If req

is not du-

plicated, then R

executes it, increments updateCnt,

and if it is the one who received the request from C

it sends the result (lines 16-20). In case the dupli-

cate is the last request of C

and R

is the replica

who received that request then it responds to C

, be-

cause C

might not have received the result (lines 21-

23). Finally, upon receiving a view change, function

electPrimary() is invoked, so as to choose a primary

among surviving replicas (lines 23-24).

Transforming this protocol into an active one is

pretty straightforward: all replicas act as if they were

primary. Any replica that receives a request contain-

ing an update multicasts it, using Uniform Total Order

(Bartoli, 1999) to guarantee that all replicas receive

the same sequence of messages.

4 RECOVERY

Supporting the crash-recovery model does not only

require discarding replicas that left the system as in

the fail-stop model, but it also entails dealing with

replica (re)connections. In the latter, upon a view

change event, a recovery process must be performed

to transfer the necessary information to the joining

replica R

, which will apply it to become up-to-date.

In our model, during the recovery process all updated

replicas continue processing incoming client requests.

The ﬁrst step of the recovery process is to obtain

the list of updated replicas and choose a recoverer

among them. This can be done either by exchanging

dedicated messages, as presented in (Bartoli, 1999),

or by using the information about views (Kemme

et al., 2001). Our model considers the latter option, as

it does not require to collect multicast messages from

all view members to know which replicas are updated.

In our case, replicas keep a list of updated replicas

during normal operation: when a view change report-

ing on the leaving of a replica is delivered, that replica

is deleted from the list of updated replicas; when R

ﬁnishes its recovery, it multicasts a message to in-

form on its successful recovery to all alive replicas,

which will include it in the list. Upon starting the

recovery process, R

is delivered the list of updated

replicas, chooses one of them to act as recoverer R

and sends a recovery request to R

. Upon receiving

that request, R

obtains the recovery information and

sends it to R

, not via the GCS but using a dedicated

quasi-reliable point-to-point channel. If a timeout ex-

pires and R

has not received the recovery informa-

tion, it will choose another updated replica as recov-

erer. The transferred recovery information depends

on the type of recovery. In the following we detail the

types of recovery we have used in our system.

Total Recovery: R

must send the service state (in

our case, the whole structure of ﬁles and directories in

the ﬁle server, along with the information regarding

current locks), as well as the content of lastU pd.

Partial Recovery: In this case each replica must

keep a persistent log to record information about ap-

plied updates. In our model we have not considered

persistent delivery, as not all GCSs support it and

its implementation is complex. If there is no persis-

tent delivery, replicas must store recovery information

during normal processing, that is, after processing

an update operation the replica persistently stores the

corresponding information, even if the current view is

the initial view. This requires to introduce a new vari-

able in the replication algorithm (Figure 2) denoting

a persistent log (LOG), and include a new action after

line 18 of Figure 2, in which hupdCnt, req

, result

HOW TO DEAL WITH REPLICATION AND RECOVERY IN A DISTRIBUTED FILE SERVER

149

is stored in the log. We assume that update opera-

tions are idempotent, so as to avoid inconsistencies

during the recovery process. Before sending the re-

covery request, R

restores its volatile state using the

information from its local log. Then it sends a recov-

ery request to R

, containing the sequence number of

the last applied update. R

responds with the informa-

tion related to updates with a higher sequence number

than the one of the last update applied at R

, thus in-

cluding all forgotten and missed updates.

5 EVALUATION

Our testing conﬁguration consists of eight computers

connected in a 100 Mbps switched LAN, where each

machine has an Intel Core 2 Duo processor running

at 2.13 GHz, 2 GB of RAM and a 250 GB hard disk

running Linux (version 2.6.22.13-0.3-bigsmp). The

ﬁle server initially includes 200 binary ﬁles of 10 MB

each. The persistent log for partial recovery is imple-

mented with a local Postgresql 8.3.5 database. Each

machine runs a Java Virtual Machine 1.6.0 execut-

ing the application code. Spread 4.0.0 has been used

as GCS, whereas point-to-point communication has

been implemented via TCP channels. In our experi-

ments we compare the performance of the implemen-

tations of passive and active replication to ﬁnd the in-

ﬂuence of a number of parameters on the saturation

point of the system. On the other hand, we assess the

cost of the recovery process and compare total and

partial recovery, considering the recovery time, the

impact of recovery on the system’s throughputand the

distribution in time of the main steps of the recovery

process.

5.1 Replication Experiments

We have evaluatedthe behavior of our replication pro-

tocols for the ﬁle server in a failure free environment,

depending on the following parameters: number of

replicas (from 2 to 8), replication strategy (active and

passive), percentage of updates (20%, 50% and 80%),

number of clients (1, 5, 10, 20, 30, 40, 50, 60, 80,

100, 125 and 150), number of operations per second

submitted by each client (1, 2, 4, 10 and 20) and oper-

ation size (10, 25, 50 and 100 KB). A dedicated ma-

chine connected to the same network executes client

instances. Each client chooses randomly one of the

replicas and connects to it in order to send requests

(read or write operations over a randomly selected

ﬁle) at a given rate during the experiment. Each ex-

periment lasts for 5 minutes.

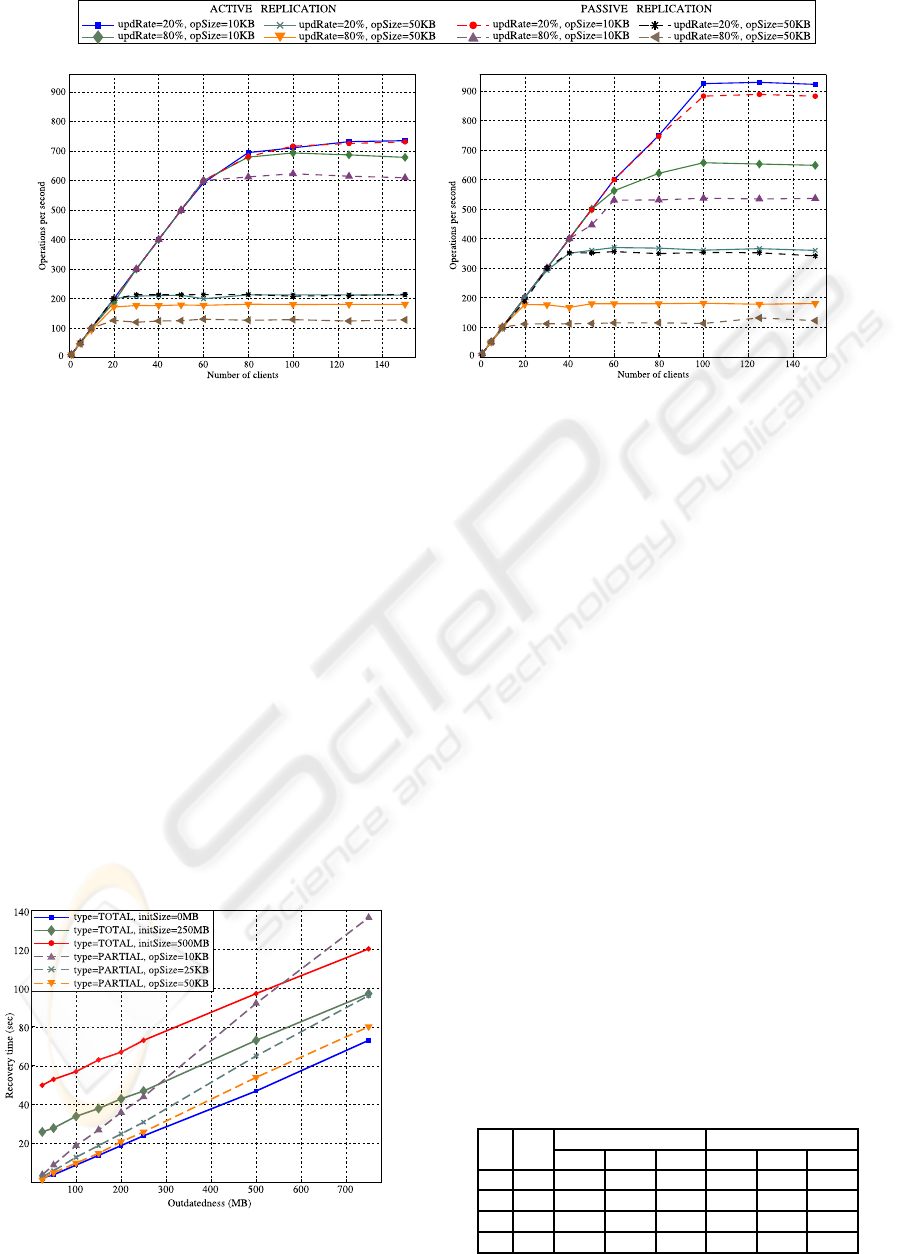

Figure 3(a) shows the system performance ob-

tained with 4 replicas while incrementing the num-

ber of clients, each one sending 10 requests per sec-

ond. There is a proportional increase of the system

throughput as the number of clients grows, until a sat-

uration point is reached. As expected, system per-

formance is inversely proportional to the operation

size (due to the execution cost itself and network la-

tency), and to the update rate (as read requests are lo-

cally processed, whereas updates must be propagated

and sequentially applied at all replicas). In addition,

active and passive replication have almost the same

throughput levels when there is a low rate of updates,

as reads are handled in the same way. In contrast, pas-

sive replication is more costly if there is a high rate

of updates, since the primary acts as a bottleneck. We

shall remark that, as the constraint of uniform delivery

is responsible for the most part of multicast latency,

the cost of update multicasts is the same in passive

replication, where only FIFO order is needed, and ac-

tive replication, which requires total order. In fact,

Spread uses the same level of service for providing

Uniform Multicast, regardless of the ordering guaran-

tees (Stanton, 2009).

Figure 3(b) results from executing the same ex-

periments as in Figure 3(a), but in this case with 8

replicas in the system. From the comparison between

both ﬁgures we can conclude that an increase in the

number of replicas improves performance when there

is a low rate of updates, since read requests are han-

dled locally and therefore having more replicas allows

to execute more read requests. On the contrary, when

there is a high rate of updates, performance does not

improve, and it even becomes worse if the operation

size is small, as the cost of Uniform Multicast incre-

ments with the number of replicas. However, if the

operation size is big, the cost of Uniform Multicast is

masked by the execution costs.

5.2 Recovery Experiments

In the following we present how the recovery experi-

ments were run. The system is started with 4 replicas,

and then one of them is forced to crash. The crashed

replica is kept ofﬂine until the desired outdatedness is

reached. At that moment, the crashed replica starts

the recovery protocol. Figure 4 depicts the recovery

time depending on the recovery type. In this case, no

client requests are being issued during recovery. To-

tal recoveryhas been tested with different initial sizes;

therefore, the recovery process must transfer the ini-

tial data in addition to the outdated data. The results

show that, in total recovery, the recovery time is pro-

portional to the total amount of data to be transferred.

ICSOFT 2009 - 4th International Conference on Software and Data Technologies

150

(a) With 4 replicas. (b) With 8 replicas.

Figure 3: System throughput. Each client submits 10 requests per second.

On the other hand, in partial recovery the initial size

has no effect on the recovery time, since only the out-

dated data have to be transferred. In this case, opera-

tion size has a relevant impact on the recovery time: if

the operation size is small, a greater number of oper-

ations have to be applied, which takes more time than

applying less operations of bigger size. We can infer

that, when the total size of the service state is small,

total recovery is more efﬁcient, especially if the re-

covering replica has missed a lot of operations. On

the contrary, if the service state is big in relation with

the outdated data, partial recovery is more convenient.

We have performed the same recovery experi-

ments as in Figure 4, but with clients sending requests

at different rates during recovery, so as to evaluate

the impact of attending client requests on the recov-

ery process. Table 1 shows the recovery time for an

outdatedness of 100, 250 and 500 MB with total and

partial recovery. During recovery, there are 10 clients

Figure 4: Recovery results (no clients during recovery).

sending 10 requests per second each, with different

operation sizes and update rates. In general, we can

conclude that the recovery time is proportionally af-

fected by the workload, as the recoverer has to pro-

cess requests while retrieving the recovery informa-

tion, and the network is also being used by the repli-

cation protocol. Furthermore, when there is a high

update rate, the recovery process takes longer because

the recovering replica must apply updates that were

delivered during the previous steps of the recovery

process, so as to catch up with the rest of the sys-

tem. In the same way, the recovery process has an

impact on the system’s overall performance. In gen-

eral, the average response time for client requests is

incremented in a 60% during the recovery process.

Finally, we have measured the relative time to ex-

ecute the four main steps of the recovery process:

reading the recovery information at the recoverer and

sending it to the recovering replica (read), obtaining

the information from the network (receive), applying

the information (apply) and processing updates re-

ceived at the recovering replica during the previous

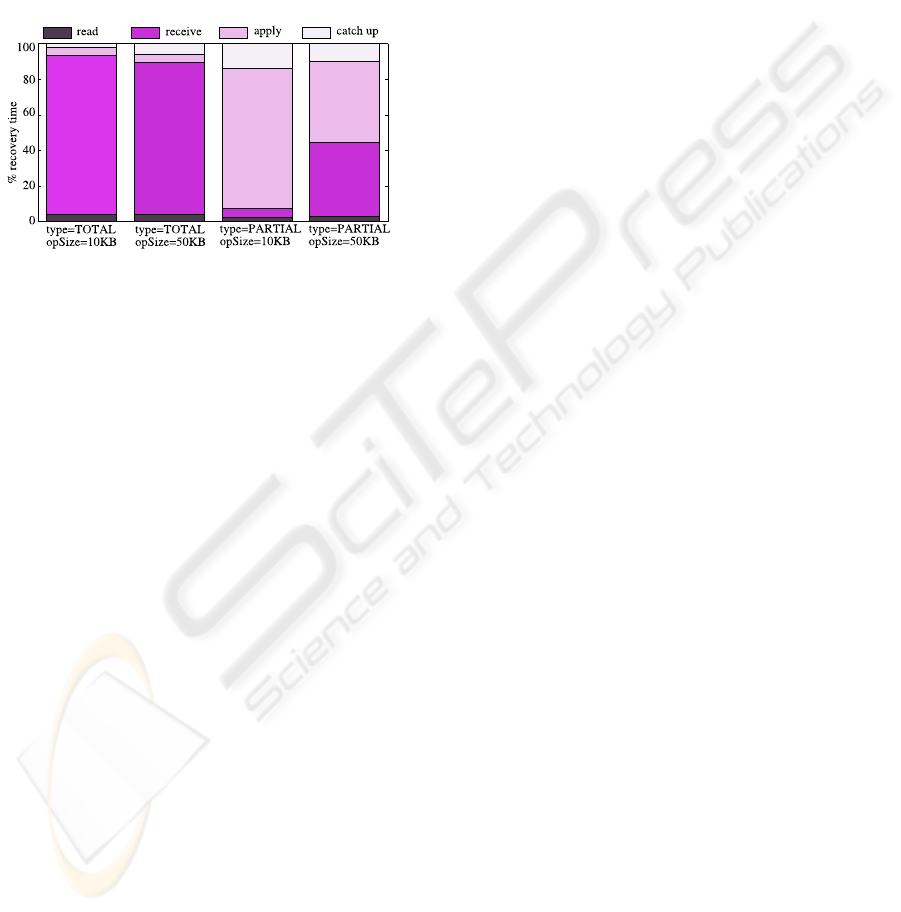

steps (catch up). Figure 5 shows the percentage dis-

tribution in recovery time for each of the aforemen-

tioned steps. The interesting information conveyed

by this ﬁgure is that, in total recovery, the recovering

Table 1: Recovery time (in seconds). There are 10 clients

during recovery, each sending 10 requests per second.

Upd. Op. Total recovery Partial recovery

Rate Size 100MB 250MB 500MB 100MB 250MB 500MB

20% 10KB 9 29 51 21 50 101

80% 10KB 10 30 53 25 70 129

20% 50KB 9 31 52 11 28 57

80% 50KB 12 34 58 17 32 71

HOW TO DEAL WITH REPLICATION AND RECOVERY IN A DISTRIBUTED FILE SERVER

151

replica spends most of the recovery process waiting

for the recovery information, because the recoverer

sends entire ﬁles (of 10 MB each) that need a con-

siderable amount of time to be transmitted through

the network, whereas writing each ﬁle on its local ﬁle

server is a very fast task. In contrast, in partial re-

covery the major bottleneck is the apply task, as the

recovery information consists in small parts of ﬁles,

that are transmitted faster than the time needed by the

recovering replica to write each piece of ﬁle.

Figure 5: Percentage distribution in recovery time for each

of the main recovery steps.

6 CONCLUSIONS

We have presented a replicated ﬁle server that satisﬁes

the crash-recovery model by implementing some of

the most representative replication and recovery tech-

niques that make use of GCSs. When comparing our

replication protocols, we have detected that in passive

replication the primary acts as a bottleneck that lim-

its system throughput, whereas in active replication

the total order multicast deﬁnes the order of updates

execution. The latency increase of this communica-

tion primitive is irrelevant since the cost of uniform

delivery (needed by both protocols) is much greater.

Moreover, the cost of uniform delivery dependson the

number of replicas, so this parameter must be care-

fully chosen, specially if the workload is write inten-

sive. On the other hand, one of the key aspects for

an efﬁcient fault tolerance is performing the recovery

process as quickly as possible, while minimizing its

impact on the service provided. Since total and partial

recovery perform differently depending on the size of

data and the number of missed operations, the recov-

ery process could be improved by devising a com-

bined solution, in which the recoverer would decide

between total and partial recovery using a threshold

based on the two aforementioned factors. Further-

more, it would be convenient to establish the desired

trade-off between recovery time and system through-

put, according to the necessary system requirements.

Finally, we shall point out that in our model request

processing continues at updated replicas during re-

covery, which might be a problem in scenarios with

high workload, as recovering replicas may not be fast

enough to catch up with the rest of the system. It

would be interesting to implement a solution to avoid

this drawback without incurring unavailability peri-

ods, such as the one proposed in (Kemme et al., 2001),

that divides the recovery process into rounds.

ACKNOWLEDGEMENTS

This work has been supported by the Spanish Govern-

ment under research grant TIC2006-14738-C02-02.

REFERENCES

Bartoli, A. (1999). Reliable distributed programming in

asynchronous distributed systems with group commu-

nication. Technical report, Universit`a di Trieste, Italy.

Bernstein, P. A., Hadzilacos, V., and Goodman, N. (1987).

Concurrency Control and Recovery in Database Sys-

tems. Addison Wesley.

Budhiraja, N., Marzullo, K., Schneider, F. B., and Toueg, S.

(1993). Distributed Systems, 2nd Ed. Chapter 8: The

primary-backup approach. ACM/Addison-Wesley.

Chockler, G., Keidar, I., and Vitenberg, R. (2001).

Group communication speciﬁcations: a comprehen-

sive study. ACM Computing Surveys, 33(4):427–469.

Cristian, F. (1991). Understanding fault-tolerant distributed

systems. Commun. ACM, 34(2):56–78.

de Juan-Mar´ın, R. (2008). Crash Recovery with Partial Am-

nesia Failure Model Issues. PhD thesis, Universidad

Polit´ecnica de Valencia, Spain.

Dwork, C., Lynch, N. A., and Stockmeyer, L. J. (1988).

Consensus in the presence of partial synchrony. J.

ACM, 35(2):288–323.

Kemme, B., Bartoli, A., and Babao˘glu,

O. (2001). Online

reconﬁguration in replicated databases based on group

communication. In DSN, pages 117–130. IEEE-CS.

Schiper, A. (2006). Dynamic group communication. Dist.

Comp., 18(5):359–374.

Schneider, F. B. (1984). Byzantine generals in action: Im-

plementing fail-stop processors. ACM Transactions

on Computer Systems, 2(2):145–154.

Schneider, F. B. (1993). Distributed Systems, 2nd Ed.

Chapter 7: Replication Management Using the State-

Machine Approach. ACM/Addison-Wesley.

Stanton, J. R. (2009). The Spread communication toolkit.

Accessible in URL: http://www.spread.org.

ICSOFT 2009 - 4th International Conference on Software and Data Technologies

152
