REFACTORING OF C/C++ PREPROCESSOR

CONSTRUCTS AT THE MODEL LEVEL

aszl

o Vid

acs

Research Group on Artiﬁcial Intelligence

University of Szeged and Hungarian Academy of Sciences, Szeged, Hungary

Keywords:

Reverse engineering, Refactoring, Graph transformation, Preprocessor.

Abstract:

Preprocessor directives are usually omitted from the analysis of C/C++ software, yet they play an important

role especially in program transformations. Here a method is presented for refactoring preprocessor constructs

at the model level. Refactorings are carried out on program models derived from a reverse engineering process

of real-life software. We present a metamodel of preprocessing on which a graph transformation approach is

used to elaborate refactorings. The method is presented through the elaboration of the add parameter refactor-

ing both at schematic and concrete level. Safe transformations are assured by visual control and validated by

the evaluation of OCL expressions. The usability of the idea is validated by successful experiments.

1 INTRODUCTION

In this paper we will carry out the refactoring of

C/C++ preprocessor constructs at the model level.

Our aim is to investigate transformations of reverse

engineered program models derived from real-life

C/C++ software, with the emphasis on the safety of

the transformations.

In the past ﬁfteen years refactoring has become

an increasingly important technique for improving

the design of existing code (Opdyke, 1992). It is a

program transformation which preserves program be-

haviour, while the quality of the program becomes

better from some point of view (reusability, maintain-

ability, readability, ﬂexibility). Nowadays refactoring

is a well-known technique mainly due to the trend

of model-driven development, including the empha-

sis on iterative development. Hence the strong need

for tool support has resulted in an increasing num-

ber of refactoring tools, primarily for object-oriented

languages like Smalltalk (Roberts et al., 1997), Java

(jFactor, 2009), and for C++ (Slickedit Homepage,

2009); and for various kind of languages, many of

them listed in the refactoring catalog (Refactoring

Catalog, 2009). A refactoring by deﬁnition is a small

transformation, but successively applied refactorings

may lead to a larger modiﬁcation. Therefore refactor-

ings are usually applied together as composite refac-

torings. For example in an Add parameter refactoring,

when a new parameter is added to a function, one has

to consider modifying the call sites of the function.

Although refactoring in the C/C++ language is es-

sential and affects many software developer compa-

nies, the tool support still has to be improved. One

of the main reasons for this is that two languages

actually have to be refactored: the C or C++ lan-

guage itself, and the preprocessor language. The pre-

processor has a textual syntax and works on tokens,

while the C/C++ compiler uses a grammar with typ-

ical programming language constructs like variables

and functions. Preprocessor constructs are usually

neglected by C/C++ analyzer tools, but in the case

of refactoring a tool is not usable unless it can han-

dle them. In contrast to most studies, this current

work uses the preprocessor as a separate language,

so the preprocessor constructs are treated as the main

subject of refactoring. Of course preprocessor refac-

torings may be used later in C/C++ language refac-

torings as well. There are many points which have

to be considered before a refactoring can be applied

(e.g. the so-called preconditions have to be fulﬁlled).

The model-driven trend in software engineering al-

lows one to carry out refactorings at the model level,

including verifying the preconditions. In addition, the

modiﬁed model may be further validated so that the

concrete refactoring may be reﬁned.

Our aim is to perform a sequence of refactorings on

a reverse-engineered program model. The transfor-

mations on the preprocessor metamodel will be de-

scribed by graph transformations, which make them

easy to understand and handle (Gogolla, 2000). The

Columbus and the USE systems were used to imple-

232

Vidács L. (2009).

REFACTORING OF C/C++ PREPROCESSOR CONSTRUCTS AT THE MODEL LEVEL.

In Proceedings of the 4th International Conference on Software and Data Technologies, pages 232-237

DOI: 10.5220/0002258302320237

 SciTePress

ment our approach, which allows us to handle reverse-

engineered program models and validate the transfor-

mations using OCL expressions. The paper is orga-

nized as follows: Section 2 contains our main contri-

bution including a short description of the preproces-

sor metamodel, the graph transformation approach for

refactoring, the reverse engineering process and the a

case study on the add parameter refactoring. After,

related works are discussed in Section 3, then in Sec-

tion 4 we draw some pertinent conclusions.

2 REFACTORING ON THE C/C++

PREPROCESSOR

METAMODEL

Refactoring is a way of improving the internal qual-

ity of the code (Mens and Tourw

e, 2004), but inter-

nal quality is usually not among the top priorities of

a typical software development team. Even when it is

time to improve the maintainability or to correct the

bad design of a former phase of the development, the

estimated cost of a change may discourage refactor-

ing activities. On the other hand, when refactoring is

done on program code, testing after each refactoring

step requires a great deal of effort, and in the worst

cases major modiﬁcations may remain untested. Our

intention here is to carry out controlled and validated

refactoring steps (safe refactoring), then spend more

time and effort on higher level or integration testing.

In this work refactorings were performed on pro-

gram models produced by the Columbus Reverse En-

gineering Framework (Ferenc et al., 2002). Colum-

bus builds a graph representation of C/C++ programs,

which includes information about the use of prepro-

cessor directives like macro deﬁnitions and calls. The

graph representation conforms with a preprocessor

metamodel. The model-level transformations are re-

alized using the USE system (Gogolla et al., 2007).

In this section graph transformation as a method for

refactoring will be brieﬂy described, followed by the

necessary description of the preprocessor metamodel.

In the remaining part the add parameter refactoring is

investigated in detail. The scope of the current work

covers the macro-related refactorings only.

2.1 Graph Transformations

The graph transformation approach is a natural way

to express formal refactoring (e.g. refactoring at the

model level). A graph transformation rule is usually

given by two states of the graph (before and after the

transformation), which corresponds to the usual view

of a refactoring. Actually, there is a good correspon-

dence between the notions and terms of refactoring

and graph transformations (Mens and Tourw

e, 2004).

Mens et al. (Mens et al., 2005) give details on us-

ing graph transformations for refactoring and provide

helpful illustrative examples. In addition to the gen-

eral approach, efforts have been made towards apply-

ing this approach in domain speciﬁc environments as

well (Taentzer et al., 2007).

Our current work began along similar lines as that

presented in (Vid

acs et al., 2006). We use a single

pushout approach for graph transformation rules pos-

sessing a left and a right hand side. Instead of using

the rather complicated NAC (Negative Application

Condition), we provide preconditions as OCL expres-

sions. Despite the NAC concept being an integral part

of the graph transformation theory, we will omit it be-

cause OCL is the natural way to express preconditions

and it is also ﬂexible enough to handle complex cases.

The deﬁnitions of directed, attributed graphs are used

in the usual way. A program graph is a directed, la-

belled, attributed graph where nodes, attributes and

edges correspond to the metamodel we shall employ.

Not all graphs that correspond to the deﬁnition above

represent valid C/C++ preprocessor constructions, but

in the reverse engineering context we shall assume

that the starting graph is a well-formed graph and that

this property is preserved because of the conditions of

the transformations.

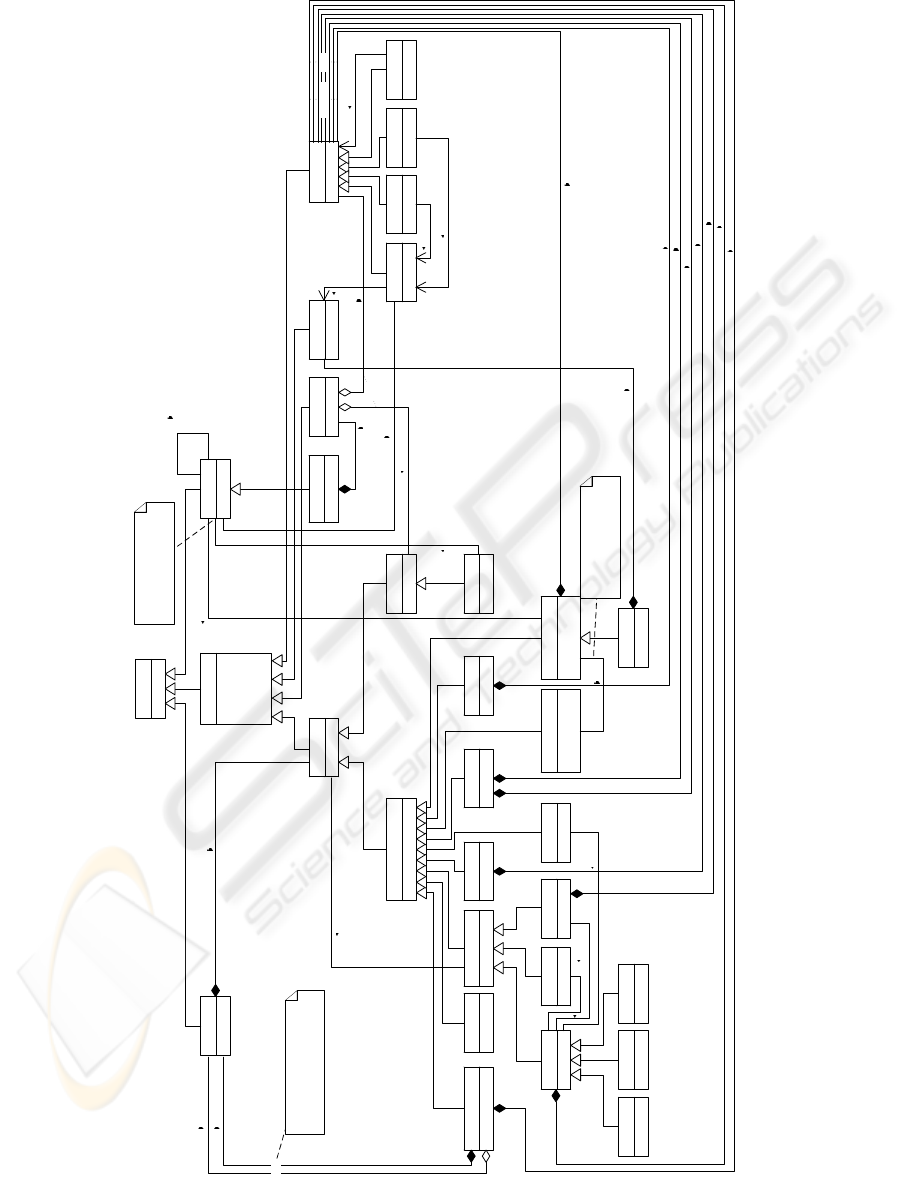

2.2 The Preprocessor Metamodel

Here we used the Columbus Schema for C/C++ Pre-

processing as a preprocessor metamodel, which is

represented in Figure 1 as an UML Class Diagram

(Vid

acs et al., 2004). The structure of the metamodel

follows the structure of a source ﬁle. From a prepro-

cessor point of view, a ﬁle consists of elements which

can be either preprocessor directives or other text ele-

ments. There are classes which describe both object-

like and function-like (parameterized) macro deﬁni-

tions. Macro expansions can be tracked with the help

of reference (DeﬁneRef ) objects. A DeﬁneRef ob-

ject links the position of the call (such as an Id) to

the position of the macro deﬁnition. Also, function-

like macro expansions contain an ordered list of ar-

guments (Argument objects), which are matched to

macro parameters (in this case the reference object

is called FuncDeﬁneRef ). The structure of the macro

body (replacement list) is described using the Direc-

tiveText class and its descendant classes, with the help

of associations between them. A macro deﬁnition

may contain further macro calls, so that a sequence

of expansions takes place during the full expansion of

REFACTORING OF C/C++ PREPROCESSOR CONSTRUCTS AT THE MODEL LEVEL

233

{OR}

Base

id : Integer

Positioned

path : String

line : Integer

col : Integer

endLine : Integer

endCol : Integer

Element

Directive

File

name : String

Include

isExternal : Boolean

Null Conditional

enabled : Boolean

IfGroup ElifElse Endif

If Ifdef Ifndef

Error Pragma

Undef

name : String

isExternal : Boolean

Line

Define

name : String

isExternal : Boolean

DefineRef

{ordered}

contains

0..1

includes

undefines

{ordered}

dependsOn

0..1

refersToNext

FuncDefineRef

Argument

Text

name : String

1..*

{ordered}

consistsOf

DirectiveText

name : String

DirectiveId Stringize Concat

Parameter

name : String

0..1

refersToParameter

FuncDefine

{ordered}

hasParameter

refersToDefinition

refersToId

refersToDirectiveId

hasFileNameIncl

hasConstExpressionIf

hasConstExpressionElif

hasDirectiveText

hasPragmaText

hasLineNo

hasReplacement

{ordered}

concatenates

hasFileNameLine

hasArgument

stringizes

{multiplicity:

*: static instances

0..1: dynamic instances}

{multiplicity:

*: static instances

0..1: dynamic instances}

1..*

{ordered}

consistsOf

shared: static instances

composite: dynamic instances

{OR}

0..1

belongsTo

{ordered}

belongsTo

Defined

checks

{ordered} {OR}

Figure 1: The preprocessor metamodel.

ICSOFT 2009 - 4th International Conference on Software and Data Technologies

234

a macro. Since each expansion step requires a De-

ﬁneRef object, a full expansion is represented by a

sequence of reference objects, which is described by

the refersToNext relation. For a detailed description

of the schema see (Vid

acs et al., 2004).

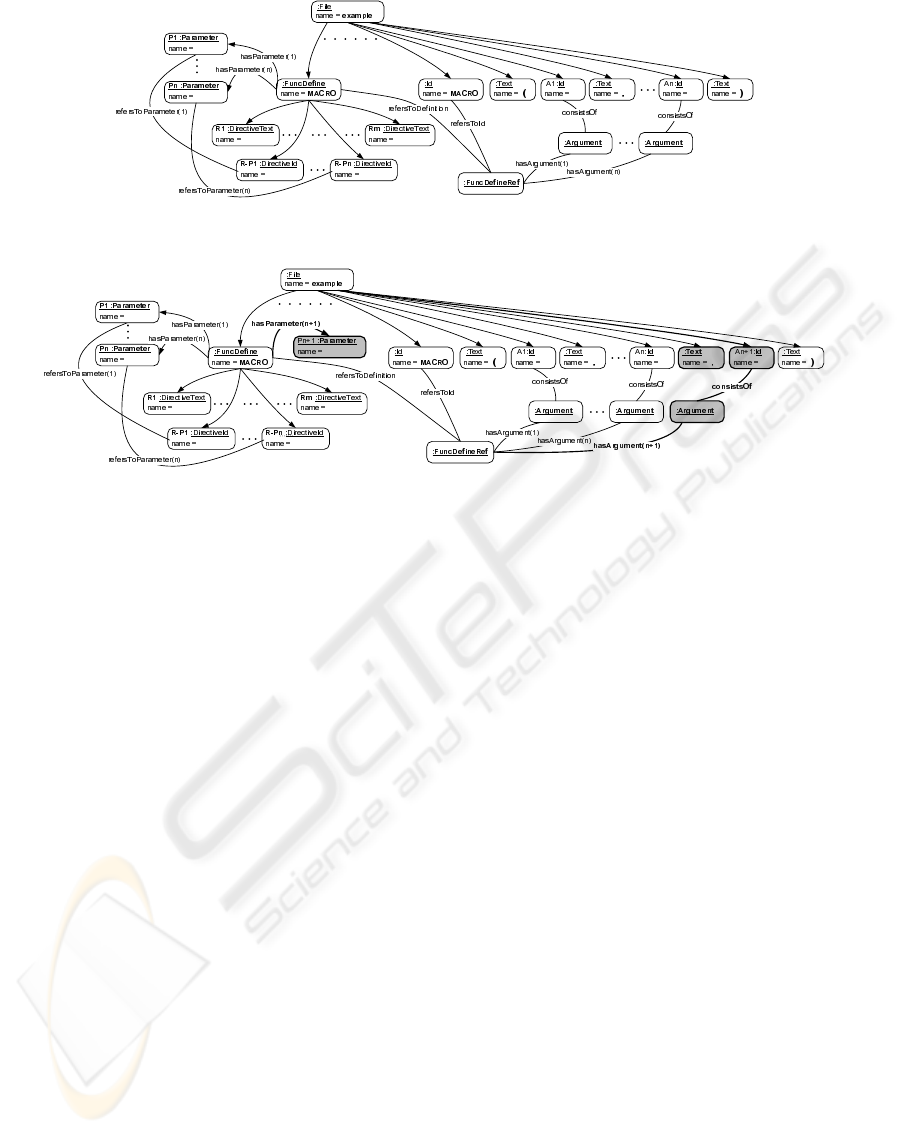

2.3 Add Parameter Refactoring

The add parameter refactoring allows a method to

process more information than it could previously.

It may be a part of a complex refactoring, and it

may implement a new feature as well. The object-

oriented version of this refactoring (add parameter

to a method) is described in (Fowler, 2002). In the

object-oriented case there are several alternatives to

consider such as whether to introduce a parameter

object, or whether to get the required information

through an object which has already been passed to

the method. The proposed mechanics of changes

in the code include the following steps: declare a

new method with the additional parameter, copy the

method body from the old one to the new one, com-

pile the code, call the new method from the body of

the old one, compile and test. Next, modify each call

site of the old method to call the new one, compile

and test it for each case, remove the old method, and

ﬁnally compile and test.

In our case, we suggest the following steps:

• Check for alternatives, and avoid an excessively

long parameter list

• Check for preconditions

• Determine the concrete type of the transformation

rule and process

• Modify the call sites: add a new argument

• Check each call site by hand

Unlike code refactoring, the operations listed

above are automated at the model level, except for the

ﬁrst and the last one.

Alternatives. In a rare case an alternative may be to

get the required information from an existing parame-

ter either by concatenation of an appropriate string or

another parameter, or by using the stringize operator.

One possibility is to get an enumerator name from an

existing string parameter, or to get the string form of a

case label. Some preprocessor implementations sup-

port variadic macros (variable parameter list), which

in some cases make it unnecessary to add a new pa-

rameter. However a good reason for not making use

of this refactoring is the long parameter list bad smell,

which can be avoided by restructuring macros.

Preconditions. The applicability of the refactoring

depends on the way the macros are deﬁned. There

are four types of macros based on the place of their

deﬁnition:

• Standard macros - deﬁned by the preprocessor

standard, e.g. FILE , LINE

• Environment macros - deﬁned by the compiler en-

vironment, e.g. GCC VER for GCC or MSC VER

for Microsoft Visual Studio.

• Command line macros - deﬁned as command line

parameters, applied to the actual source ﬁle only.

• Ordinal macros in the source code

In the metamodel the type of a macro is repre-

sented by the isExternal attribute. The value is true in

the case of standard macros, environment macros, and

command line deﬁned macros. Naturally, refactorings

may only be applied to the non-external deﬁnitions.

The new parameter name has to fulﬁll some con-

ditions. There should not exist a parameter with the

same given name. The replacement text of the macro

must be checked for the new parameter name to see

whether a preprocessing token already exists with the

same text. These conditions can be checked locally.

(Note that there is no need to check whether the new

name conﬂicts with an already deﬁned macro name.)

Concrete Type of Transformation. A general

refactoring in most cases can be formalized in many

ways depending on the speciﬁc needs. Similarly,

a graph transformation can be presented as a trans-

formation rule schema and a set of concrete trans-

formations. The add parameter refactoring includes

three types of transformations: function-like, object-

like and variadic macros. Due to space limitations

only the ﬁrst one is elaborated here. The schematic

graph transformation rule for the add parameter to a

function-like macro is presented in two ﬁgures. Fig-

ure 2 contains the left hand side of the transforma-

tion and Figure 3 contains the right hand side after

the refactoring. The macro deﬁnition part is shown

on the left hand side of both ﬁgures, while on the

right hand side of each ﬁgure there is an example call

of the macro. In Figure 3 the new nodes are shown

in grey and the new edges are depicted in bold. The

schematic program code corresponding to both sides

of the transformation is the following for the left hand

side:

#define MACRO(P1, ... Pn) \

R1 ... R_P1 ... R_Pn ... Rm

...

MACRO (A1, ... An)

and for the right hand side it is:

#define MACRO(P1, ... Pn, Pn+1) \

R1 ... R_P1 ... R_Pn ... Rm

...

MACRO (A1, ... An, An+1)

REFACTORING OF C/C++ PREPROCESSOR CONSTRUCTS AT THE MODEL LEVEL

235

Figure 2: Add parameter transformation - left hand side of the rule.

Figure 3: Add parameter transformation - right hand side of the rule (result).

The new parameter is included in the deﬁnition

as the last parameter in the ordered association. Note

that the new parameter is not automatically used in the

macro body. Similar to object-oriented refactoring,

the use of the new parameter has to be coded by hand.

At the model level just one new node (Parameter) and

one new edge are added (hasParameter).

Call Sites. In addition to the new parameter, each

call site of the macro deﬁnition must be changed. Ac-

cording to the metamodel, each DeﬁneRef object cre-

ates a link between macro deﬁnitions and macro calls.

The refersToId relation indicates the position of the

call, while the refersToDeﬁnition relation indicates

the called deﬁnition. With a type A transformation

the macro deﬁnition usually has DeﬁneRef objects,

which are traversed. For each of them the pointed

macro call is identiﬁed and at the end of the argument

list a new placeholder argument is inserted. Finding

an appropriate argument is easier than that for a typed

language: in the preprocessor language everything is

text, so any token is a valid argument. However it

is recommended that an argument be inserted with a

name which refers to the actual refactoring. The new

argument is linked to the FuncDeﬁneRef object via a

new Argument object. For each call site three nodes

and three edges are added to the model.

Implementation. The method has been imple-

mented using an experimental tool setup including

the Columbus reverse engineering framework and the

USE model transformation tool. Experiments were

performed on small but real life programs. Details

are omitted from here due to space constraints. First

results show the limitations of the approach in trans-

forming large size programs.

3 RELATED WORK

In the previous sections we mentioned some research

papers on refactoring, along with some of the avail-

able tools. The graph transformation approach to for-

mal refactoring is also a well-known method. A re-

markable summary of this topic can be found in the

paper by Mens et al. (Mens and Tourw

e, 2004). The

graph representation of a program plays an essential

role in the formalism. The two key issues here are pre-

conditions and behaviour preservation. Bottoni et al.

(Bottoni et al., 2004) use a similar formalism, the fo-

cus being on the coordination of a change in different

model views of the code using distributed graph trans-

formations. Most contributions try to be language in-

dependent, but for a refactoring to be applicable in

case of real-life programs, language dependent details

must be elaborated on. Although researchers have

made good progress in this area, those in the industry

sector use more or less the same solutions as before:

language speciﬁc refactorings are implemented sep-

arately. Fanta and Rajlich (Fanta and Rajlich, 1998)

report that transformations are surprisingly complex

and hard to implement. Two reasons they give for

this are the nature of object-oriented principles and

the language speciﬁc issues. In our approach, instead

ICSOFT 2009 - 4th International Conference on Software and Data Technologies

236

of using traditional graph transformation approaches

we investigate language speciﬁc issues; we omitted

NACs and used OCL to check conditions instead.

In the rest of this section we will concentrate on

the preprocessor side. People working on C or C++

analyzers are confronted by the problem of preproces-

sor directives. The usual approach is to work on pre-

processed code, or to recognize (partially handle) di-

rectives (Understand for C++ Homepage, 2008). Sev-

eral preprocessor-related refactorings can be found in

(Garrido and Johnson, 2002), which have no connec-

tion with the C language itself but with the prepro-

cessing directives. The key aspects of such refactor-

ings were presented at a conceptual level only, using

source code examples. Dealing with directives is eas-

ier, when preprocessor constructs form complete syn-

tactical units. Vittek (Vittek, 2003) introduced a tool

which implements some preprocessor-safe refactor-

ings on C++, while he acknowledged that there are

unhandled cases caused by complex code construc-

tions of the two languages. What makes this paper

special are three points. The ﬁrst is that directives

are the main subject of refactoring at the model level.

Secondly, the graph transformation approach is sup-

ported by OCL. Thirdly, we have tried to narrow the

gap between academic research and industry by work-

ing on reverse-engineered program models.

4 CONCLUSIONS

Each modiﬁcation of an existing program holds the

possibility of making errors. So does refactoring, the

technique for improving the quality of existing pro-

gram code. In this paper a method was introduced

to carry out program refactoring at the model level

to assure the safety of modiﬁcations. The subjects

of the refactorings were the preprocessor directives,

which are usually omitted from C/C++ program anal-

ysis, however ignoring directives may lead to errors

in analysis and transformation. As a demonstration of

the approach, the add parameter refactoring for pre-

processor macros was investigated at schematic and

concrete level. Experiments were performed on re-

verse engineered models derived from several small,

but real-life C/C++ programs. Future plans include

the performance improvement by separating the de-

sign and validation and the execution of refactorings.

ACKNOWLEDGEMENTS

This work was supported, in part, by grants no. RET-

07/2005, OTKA K-73688 and TECH 08-A2/2-2008-

0089.

REFERENCES

Bottoni, P., Parisi-Presicce, F., and Taentzer, G. (2004).

Specifying integrated refactoring with distributed

graph transformations. LNCS, 3062:220–235.

Fanta, R. and Rajlich, V. (1998). Reengineering object-

oriented code. In Proceedings of ICSM 2008, page

238, Washington, DC, USA. IEEE Computer Society.

Ferenc, R., Besz

edes,

A., Tarkiainen, M., and Gyim

othy,

T. (2002). Columbus - reverse engineering tool and

schema for C++. In ICSM 2002, pages 172–181, Mon-

treal, Canada. IEEE Computer Society.

Fowler, M. (2002). Refactoring Improving the Design of

Existing Code. Addison-Wesley.

Garrido, A. and Johnson, R. (2002). Challenges of refac-

toring C programs. In Proceedings of IWPSE 2002,

pages 6–14. ACM.

Gogolla, M. (2000). Graph Transformations on the UML

Metamodel. In GVMT’2000, pages 359–371. Carleton

Scientiﬁc, Waterloo, Ontario, Canada.

Gogolla, M., B

uttner, F., and Richters, M. (2007). USE: A

UML-based speciﬁcation environment for validating

UML and OCL. Sci. Comp. Program., 69(1-3):27–34.

jFactor (2009). Homepage of jFactor. http://old.instantia-

tions.com/jfactor/.

Mens, T. and Tourw

e, T. (2004). A survey of software refac-

toring. IEEE Transactions on Software Engineering,

30(2):126–139.

Mens, T., Van Eetvelde, N., Demeyer, S., and Janssens, D.

(2005). Formalizing refactorings with graph transfor-

mations. JSME: Research and Practice, 17:247–276.

Opdyke, W. F. (1992). Refactoring Object-Oriented Frame-

works. PhD thesis, Urbana-Champaign, IL, USA.

Refactoring Catalog (2009). Refactoring catalog.

http://www.refactoring.com/catalog/.

Roberts, D., Brant, J., and Johnson, R. (1997). A refac-

toring tool for Smalltalk. Theor. Pract. Object Syst.,

3(4):253–263.

Slickedit Homepage (2009). Homepage of Slickedit.

http://www.slickedit.com/.

Taentzer, G., M

uller, D., and Mens, T. (2007). Specifying

domain-speciﬁc refactorings for AndroMDA based on

graph transformation. In AGTIVE, pages 104–119.

Understand for C++ Homepage (2008). Understand for

C++ Homepage. http://www.scitools.com.

Vid

acs, L., Besz

edes, A., and Ferenc, R. (2004). Columbus

Schema for C/C++ Preprocessing. In Proceedings of

CSMR 2004, pages 75–84. IEEE Computer Society.

Vid

acs, L., Gogolla, M., and Ferenc, R. (2006). From

C++ Refactorings to Graph Transformations. In Proc.

ICGT’2006 Workshop SETRA’2006, pages 127–141.

Vittek, M. (2003). Refactoring browser with preprocessor.

In Proceedings of CSMR 2003, pages 101–110, Ben-

evento, Italy.

REFACTORING OF C/C++ PREPROCESSOR CONSTRUCTS AT THE MODEL LEVEL

237
