SOCIAL PATTERNS FOR QUALITY CONTROL

IN MULTI-AGENT SYSTEMS

Thi-Thuy-Hang Hoang and Manuel Kolp

Information System Unit, Louvain School of Management, Université Catholique de Louvain

Place des Doyens, 1, 1348 Louvain-la-Neuve, Belgium

Keywords: Social pattern, Multi-agent system, Quality requirement.

Abstract: Modern softwares are not only required to perform some specific functions but also have to satisfy all the

quality constraints described by the initial requirements. In this paper, we focus on some useful social

patterns that will facilitate the developers’ task when dealing with quality constraint in multi-agent systems.

These patterns define some agents and their interactions that help to monitor and to react to any changes of

quality at the runtime.

1 INTRODUCTION

Nowadays, software plays a crucial role in every

corner of the modern life. The numerical era requires

people to be equipped with at least a minimal

knowledge of information technology. Online

shopping, e-newspapers, cyber games, social

networking, etc. become daily activities. Daily bank

transactions, administrative obligations… are also

computerized. This electronic life has transformed

people into e-citizen, e-learner, e-banker, e-shopper,

etc.

Being an emerging development paradigm that

has some advantages over traditional development

techniques such as structured and object-oriented,

agent-oriented software development has become a

modern buzzword in software engineering. Software

agents, with certain autonomy and intelligence, are

expected to substitute human agents in a lot of tasks.

Moreover, they are designed to live in a virtual

society of agents who interact with each others to

exchange their knowledge, to reason about the

environment and to act towards individual goals as

well as social goals.

It is known that the agent-oriented paradigm

favours extensibility and interoperability. But these

qualities cannot be automatically attained by just

choosing to use an agent-oriented software

development methodology. A good analysis of

requirements and a sound design could help any

software system to have these qualities even if they

are not built using agent-oriented software

development methodology. Analysis and design are

among the deciding factors contributing in the deve-

lopment of quality software.

Extensibility and interoperability are only two

among many other quality requirements. Quality

requirements are also considered as non-functional

requirements (Chung, Nixon, Yu and Mylopoulos,

2000) describing HOW the system will do, in

contrast to functional requirements describing

WHAT the system will do. In goal-based approach,

quality requirements are described as a subset of

soft-goals (Castro, Kolp and Mylopoulos, 2002)

whose satisfaction conditions are not defined in a

clear-cut way. Recently, (Jureta, Mylopoulos and

Faulkner, 2008) revisited the core ontology of

requirement engineering by redefining a list of basic

concepts: goal, soft-goal, quality constraint, plan,

and domain assumption. According to this, quality

constraints are well defined and verifiable while

soft-goals are abstract qualities whose verifiability is

ill-defined and usually subjective. Another attempt

to clarify the role of quality requirements in the

goal-based approach (Hoang, 2008), (Hoang and

Kolp, 2009) separates quality requirements from

soft-goals. Based on the measurability, quality

requirements are classified into measurable, partly

measurable, heuristically measurable and

immeasurable. When quality requirements are not

immeasurable, one can still find some measurements

that can provide some idea about the fulfilment of

such quality requirements. This might be directly

applied in any system to reduce the number of viola-

tions of quality requirements.

However, in a multi-agent system, the global

goal is designed to be attained only by the indivi-

duals’ collaborations governed by the individuals’

336

Hoang T. and Kolp M. (2009).

SOCIAL PATTERNS FOR QUALITY CONTROL IN MULTI-AGENT SYSTEMS.

In Proceedings of the 4th International Conference on Software and Data Technologies, pages 336-343

DOI: 10.5220/0002259403360343

 SciTePress

goals. The system is a ‘society’ where individuals

are free, to a certain extent, to choose what they do.

As a consequence, more questions about the quality

requirements must be asked on those systems than

on traditional systems. It is also more difficult to

deal with quality requirements in a multi-agent

system than in a traditional system.

In this paper, we will present a catalogue of

social patterns that help software developers to

design and build quality-aware agent software.

Social patterns are design patterns (Gamma, Helm,

Johnson and Vilssides, 1995) to which some

additional dimensions have been added: social,

intentional, structural, communication and dynamic

(Kolp, Do, Faulkner and Hoang, 2005). For object-

oriented approach, design patterns have been being

very useful tools for designing good software

system. Therefore it is quite natural to bring the

existing design patterns and to create new design

patterns for multi-agent systems, as done by a

number of works (Gamma, Helm, Johnson and

Vilssides, 1995), (Kolp, Do, Faulkner and Hoang,

2005), (Aridor and Lange, 1998).

We adopt i* (pronounced as eye-star) notions

(Yu, 1995) to describe relations between agents. The

essentials of i* are dependencies between pairs of

agents. In a dependency, the agent that depends on

the other is called the depender and the dependee is

the one that is depended upon. The depender

depends on the dependee to have access to a

resource, to do a task or to achieve a goal (soft-goal

or hard-goal). Besides, we use also the Agent

Unified Modelling Language (AUML) (Bauer, 1999)

to model agents’ structure using class diagrams and

agents’ interaction using sequence diagrams and

collaboration diagrams.

This paper will be organized into four main

parts. This introduction is followed by a section that

positions the proposed patterns inside our current

research. The third part describes the patterns. An

example application of a high availability printing

service will be presented in the fourth part before the

final remarks and conclusions.

2 QUALITY-AWARE

AGENT-ORIENTED

SOFTWARE

One of our research objectives about agent

technology (Castro, Kolp and Mylopoulos, 2002) is

to establish a complete quality-aware development

process for multi-agent systems. The resulted

process should cover all the main development

phases ranging from early and late requirements to

architectural and detailed designs and can be

extended to the verification and the deployment of

the system.

There are evidences showing that using agent

notion and goal-based analysis might reduce the gap

between the requirements and the final system

(Castro, Kolp and Mylopoulos, 2002). This is

because the notion of agents and their goals provide

a modelling language for capturing requirements

and are the reflection of real stakeholders and their

intentions in analysing requirements. Later on,

agents and goals become main elements of the

system design reflected in the final product using

agent-oriented programming languages (JACK,

2002), (Bellifemine, Poggi and Rimassa, 2001). This

makes client requirements the principal force that

drives the development process.

An example of a complete goal-based

development process is defined by the Tropos

project (Castro, Kolp and Mylopoulos, 2002).

However, the current Tropos process does not deal

with the quality requirements. In (Hoang, 2008),

(Hoang and Kolp, 2009), quality requirements are

added into the goal-based analysis. The main

objective of this research is to capture the quality

requirements, to analyze and refine all the

requirements and to design the final system that

meets the functional requirements and is aware of all

the quality requirements. The following section is

one of the possible measures for the very last stage

of design and implementation of the system.

A well designed system should satisfy most of

the initial requirements including quality

requirements. However, it is quite common that

some quality requirements are left unsatisfied by the

design and needs to be controlled at the runtime.

Moreover, qualities may be influenced by external

conditions that do not exist at the design time. As a

consequence, quality control is needed to assure the

quality of offered services at the runtime. T o deal

with quality requirements, in the earlier development

stages (Hoang and Kolp, 2009), we use the enriched

i* notions to add the notion of quality requirements.

Quality requirements are captured as early as other

requirements. Then, they are analyzed, decomposed

and operationalized during the process. As

mentioned above, it is common that after some

design iterations (i.e. architectural design and

detailed design), some quality requirements are left

unsatisfied as in the simplified example in Fig. 1.

We analyze an online store namely E-Shop in

which there is a Banking Agent that checks the

shop’s banking account for payment arrivals. Any

received payment must be reported immediately to

Order Manager. Since fast shipping is always an

important factor for gaining the confidence of clients,

SOCIAL PATTERNS FOR QUALITY CONTROL IN MULTI-AGENT SYSTEMS

337

Depender

Dependee

Resource

Task

Goal

Softgoal

Quality

(b)

Banking

Agent

Bank

Payment

Receipt

Order

Mgr

Promptness

Payment

Notified

Shop

(a)

Figure 1: E-shop example (a) modelled by a enriched version of i* notion (b).

we impose (through the requirement analysis) that

any orders should be shipped as soon as the payment

is received. To do that Promptness quality

requirement is required for Payment Receipt

(resource) and Payment Notified (goal). We decided

to look at it closely to detect any suspect delay

between deposit time figuring in the payment receipt

and the notification time to Order Manager and to

adjust, at the runtime, the interval between two

consecutive checks.

Above is a very simple example where quality

requirements are easily measured and assured at

runtime. In real systems, there could be many

quality requirements interacting positively and/or

negatively with each others. This is why we try to

introduce, in the following section, a set of simple

social patterns that would facilitate the job of the

designers in a systematic way. As we will see, those

patterns would increase the awareness of the quality

of its services. In the final product, the quality

control mechanism can be integrated into a

subsystem called Quality Management Subsystem

that can be switched on or off at any time.

3 SOCIAL PATTERNS FOR

QUALITY CONTROL

It is known that quality requirements could be

favourably treated by choosing the right options

during the analyse as well as the design of the

system. However, in most cases, it is impossible to

find a design solution that fulfils all the quality

requirements. Based on the fact that almost any

quality requirements can be at least heuristically

measured, we then have a possibility to monitor in

order to react whenever any quality requirement is

violated at the runtime. The following is the

description of some social patterns for designing the

Quality Management Subsystem that can be built as

a sub-system inside the system-to-be.

Quality

requirements to be monitored are those of the final

system but not those of the development process.

Usually, quality requirements of the development

process such as: low cost, time constraint, etc. are

usually fulfilled by the choices in means-ends

analysis, designs’ structures and implementation

styles.

The desired subsystem is built based on the

following remarks:

 Qualities can be measured at least heuristically

or partly. Judgments of human agents can be also

considered as a measurement.

 A quality metric can use more than one source

of signal. As a consequence, a quality meter can be

subscribed to all the necessary sources.

 Signal sources can be states, variable values,

etc. Changes in signal needed for the measurement

of a quality requirement are usually detected at

places having that quality requirement.

 For a quality requirement, there can be more

than one quality managers (who keep track of the

quality fulfillment and decide to carry out necessary

actions). This implies that quality violations can be

reported to more than one manager.

 Monitoring continuously necessary signals can

be very costly. Hence, the subsystem must offer the

polling (or sampling) mode in its implementation.

This means that not every changes of signal will be

taken into account. Only when the signal is needed,

the current value can be pulled out from the signal

source.

In the next section, we will detail the proposed

patterns that facilitate the designer in designing the

quality management subsystem as well as in

incorporating this subsystem into the system-to-be.

The description of the following social patterns

follows SKwyRL Social Pattern Framework (Kolp,

Do, Faulkner and Hoang, 2005).

3.1 Social Dimension

The subsystem will have the following possible roles

played by agents. Notice that each agent in the

system can play many roles at the same time.

 Signal Source. emits signals used in the

measurement of some quality requirements on the

system. Signal source can be also human, for exam-

ple, users of a website that fill in an evaluation form

about their satisfaction.

ICSOFT 2009 - 4th International Conference on Software and Data Technologies

338

 Signal Manager. maintains a currently updated

list of available signal sources together with the

type of signal and possible modalities of

acquisition (pulling and/or pushing).

 Quality Meter. combines different signals to

calculate indicative values reflecting the

fulfilment degree of quality requirements.

 Quality Manager. responsible for detecting any

quality violations using the indications given by

quality meters as well as for checking required

conditions before doing some actions.

 Quality Assurer. agents that are required to fulfill

some quality requirements for its attributes, plans

or operations. They are the ones that trigger the

procedure of quality control.

The social dimension identifies not only the

relevant agents and roles but also the intentional

dependencies between these roles/agents. The

following paragraphs are intentional dependencies

between agents inside each of the described social

patterns.

3.1.1 Signal Pushing Pattern

This pattern specifies the interactions between a

Signal Source and Quality Meter. It is favourable for

cases where every change in the signal is pushed to

the Meter. Main interactions are summarized in the

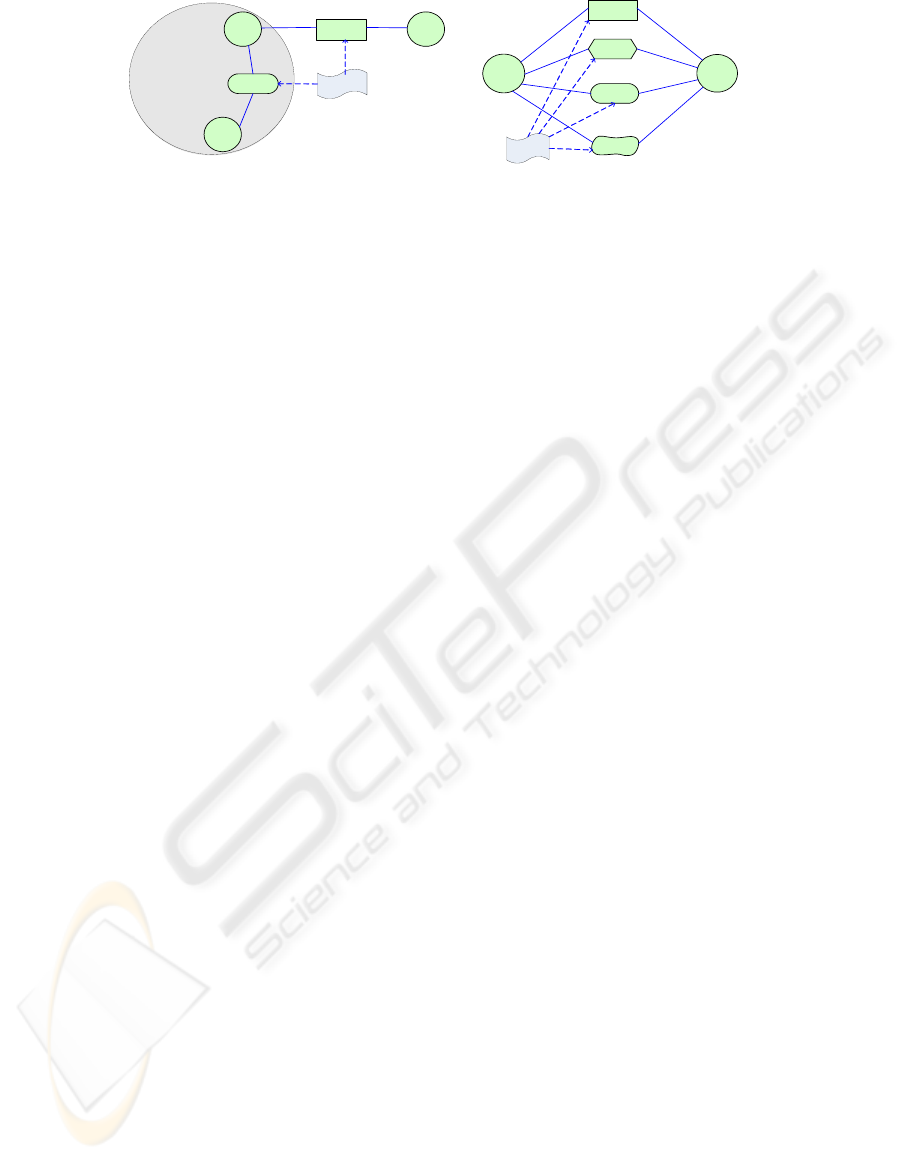

social diagram in Fig.2.

For the meter, in order to receive the signal from

the signal source, every Quality Meter needs to

subscribe itself to Signal Sources. At the Signal

Source, there is a list of current subscribers to which

the Signal Source must send any change in signal.

Signal Sources are discovered by Quality Meters

with the help of Signal Manager who keeps track of

a signal directory.

3.1.2 Signal Pulling Pattern

Contrary to the pushing pattern presented above

Quality Meters play an active role in the Signal

Pulling Pattern presented in this section. The signal

is acquired only by demand determined by the

monitoring strategy of the signal monitor. The social

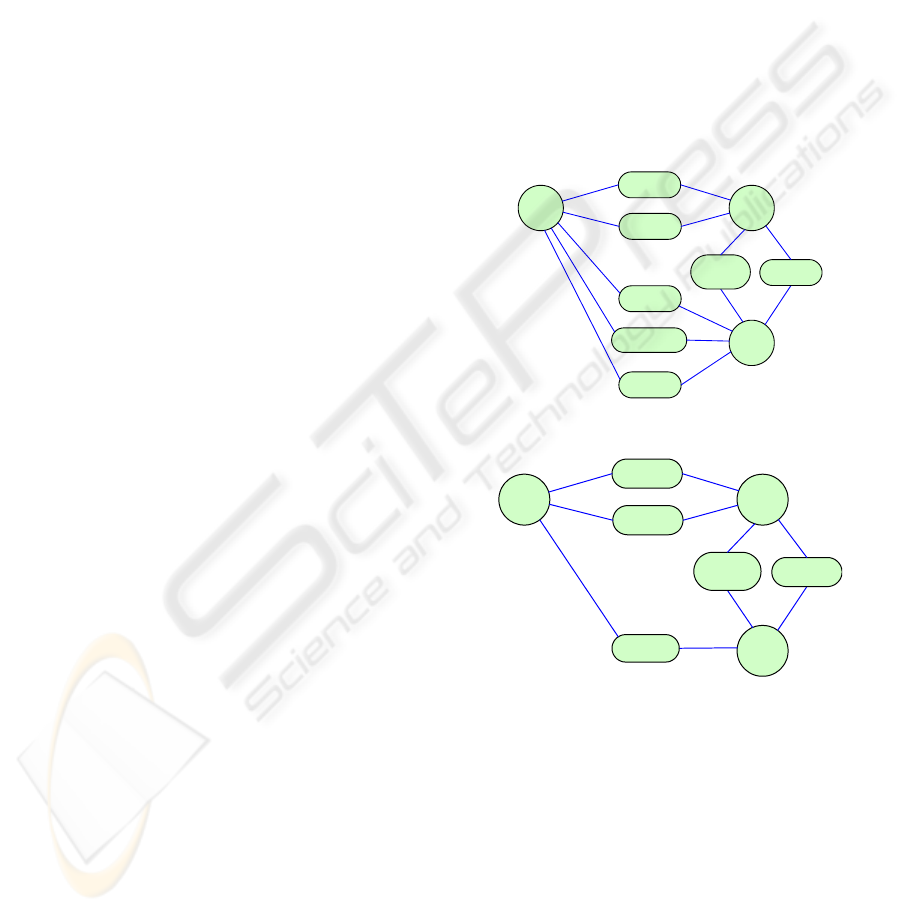

diagram is as in Fig.3.

For a Quality Meter, first he has to connect to the

Signal Source and keep this connection. Depending

on the monitoring strategy usually supported by a

schedule, the monitor will pull the current value of

the signal from the signal source. In this pattern, the

Signal Manager helps Quality Meters to discover

and to keep track of the availability of Signal Sources.

One could argue that the two above patterns are

similar to the well-known Observer pattern

(Gamma, Helm, Johnson and Vilssides, 1995) with a

Matchmaker pattern (Kolp, Do, Faulkner and

Hoang, 2005). However, in the context of multi-

agent systems and quality control subsystem, we can

point out here some reasons of not to separate these

patterns:

 The presence of a Signal Manager is

mandatory, since it guarantees and verifies the

availability of signal sources. Without this, quality

requirements cannot be correctly controlled.

 Signal sources may not be agents in the system-

to-be. This implies that the pushing mode might

not be available. Quality meters must sense itself

any changes in the signal.

 The presence of all the three agents Signal

Source, Signal Manager and Quality Meter

represents the existence constraint of these agents

inside the system-to-be.

Signal

Source

Signal

Manager

Quality

Meter

Registered

Unregistered

Signal

Located

Signal

Availablity

Checked

Signal

Value Pushed

Unsubcribed

Subcribed

Figure 2: Signal Pushing Pattern.

Signal

Source

Signal

Manager

Quality

Meter

Registered

Unregistered

Signal

Located

Signal

Availablity

Checked

Signal

Value Pulled

Figure 3: Signal pulling pattern.

3.1.3 Quality Assurance Pattern

This pattern focuses on the interventions into the

normal execution of an agent in order to control the

fulfilment of any quality requirement. There are

three types of interventions:

Precondition check: when agent is about to take

an action, it needs to verify whether the

preconditions on the quality are met. The

preconditions define the states of the world,

including the state of the quality fulfilment at which

the action can be carried out. If the current state is

not favourable for the requested action, the quality

SOCIAL PATTERNS FOR QUALITY CONTROL IN MULTI-AGENT SYSTEMS

339

manager could carry out some additional plans to

bring the system into a favourable state. If he has

already tried every possible plan without success, he

will have to notify the plan executer to cancel the

requested plan.

Intermediate check: during the execution of an

action, it is possible that the fulfilment of a quality

requirement required is violated. The cause may

come not only from the plan itself but also from

other agents in their continuously changing

environment. This is also possible that at each stage

of the action, the quality requirements are different.

In either case, intermediate checks are very

important. These checks can be carried out by

predefining a list of several check points, usually

vulnerable points to the quality fulfilment, together

with conditions to be satisfied at each check point.

When a condition is not met, the managers will try

to do additional work to satisfy the condition. In this

case, the plan executor is notified and may decide to

continue with the plan or to start with other plans or

to give up.

Post-condition check: carried out when the plan

is done. This can confirm that the plan has been

carried out successfully and that all the quality

requirements are fulfilled.

The pre-condition and the post-conditions have

usually been known before the plan is started, while

the intermediate conditions are variable in

accordance to the operations really carried out by the

plan.

Quality

Manager

Quality

Assurer

Precondition

Checked

Precondition

Checked

Intermediate

Condition

Checked

Figure 4: Quality assurance pattern.

The social diagram is presented in Fig.4. Here

we omit the relation between Quality Manager and

Quality Meter which can be characterized by the

well-known Observer pattern in which Quality

Manager is the observer that observes measurements

carried out by Quality Meter.

3.1.4 Total Quality Manager Pattern

In a complex system, when the number of quality

requirements becomes large, we need to distribute

the responsibility among several Quality Manager.

This partition can be made based on:

 Topology Setup. a system may operate on

different geometrical or logical sites. Therefore, to

control and assure each quality requirement, one can

eventually put a Quality Manager on each site.

 Quality Relations. a quality requirement can

usually be split into several sub-quality

requirements. For example, Security can be split into

Confidentiality, Integrity, etc. One can create a

quality manager for each of the sub-quality

requirements.

 Manager Hierarchy. one can also decide to put

quality managers in to a hierarchy where lower-rank

managers have to report to their direct higher

manager.

Since our ultimate objective is to build systems

in which every quality requirement could be

controlled and assured, we include here the Total

Quality Manager pattern that does the aggregating

job among the managers. Top Managers will be the

ones that communicate the overall status of quality

fulfilment to system administrators.

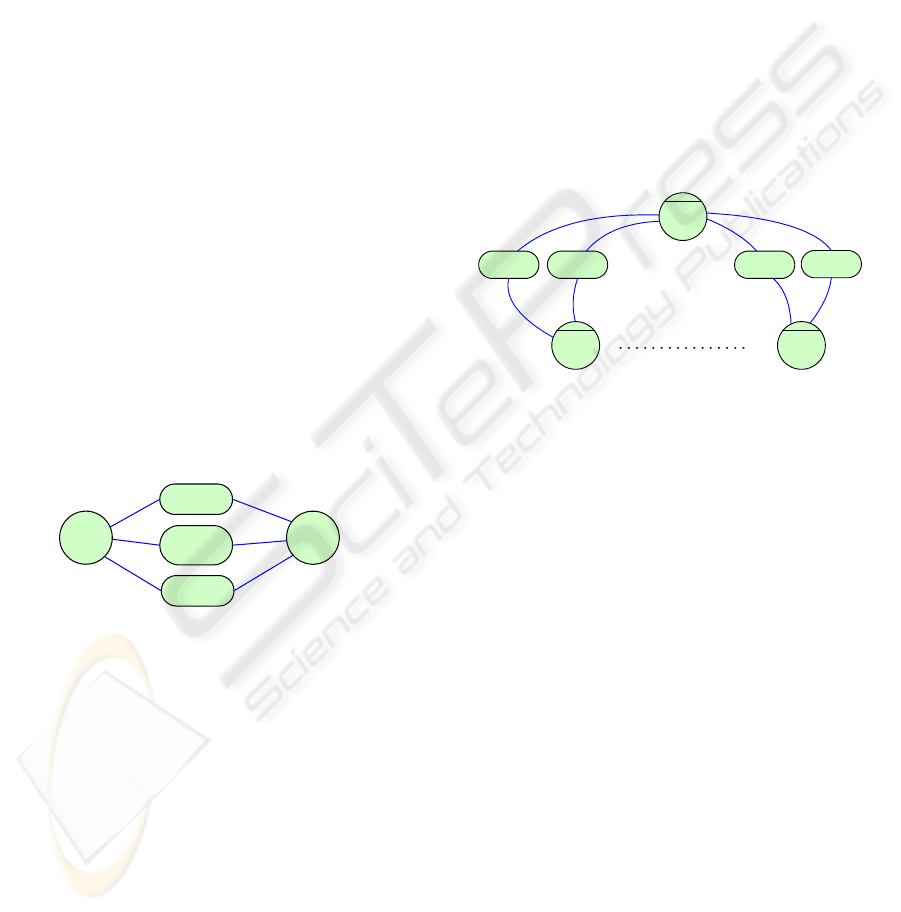

Manager

Level n+1

Manager

Level n

Manager

Level n+1

Report

Updated

Command

Executed

Report

Updated

Command

Executed

Figure 5: Total quality manager.

With this pattern, one can have a total control of

the Quality Management Subsystem even in a very

complex system. Quality managers can be organized

in to several levels depending on the organizational

structure of the system. However, the designer

should limit the maximum height of the manager

hierarchy to reduce the loss of control and the

latency of the subsystem due to the overhead of the

heavy organization. Furthermore, the system’s

designer could also decide to give different manager

roles to a single manager agent when needed.

As an immediate use, this hierarchical structure

can provide a simple way to attach and to detach any

part of or the whole quality control subsystem

from/to the main system when needed. This is useful

when the operation of the system becomes

sufficiently stable and the agility of some services

becomes occasionally necessary.

3.2 Intentional Dimension

Having identified the interdependencies between

agents, we now focus in the rationale of each

agent/role. To keep the paper concise, we show here

only some important abstract services offered by the

above agents.

ICSOFT 2009 - 4th International Conference on Software and Data Technologies

340

Table 1: Agents’ services in quality control.

Service Names Informal description Agent

FindSignalSrc

Find all signal sources that

match the specified

description.

Signal

Manager

AvailCheck

Check the availability of a

signal source

Signal

Manager

ConflictResolve

Resolve any conflict in

fulfilment of quality

Quality

Manager

StateReport

Report the fulfilment to the

superior

Quality

Manager

QualityAssure

Take necessary actions to

guarantee the quality

Quality

Manager

... ... ...

Among the above services, ConflictResolve and

QualityAssure are two of the most important. While

the latter tries to fulfil a quality requirement, the

former verifies if the fulfilment of that quality

requirement will be harmful to the others in the

system. Some trade-offs could be made because, in a

complex system, quality requirements are usually

contradictory when being fulfilled.

In SKwyRL, services are defined formally using

the formal Tropos language which is skipped in this

paper. Services are operationalized into plans that

are described in the structural dimension.

3.3 Communication Dimension

Communication dimension emphasizes the exchange

of events between the agents.

Quality Assurer

Quality Manager

Check Precondition

Check failed

Plan that has

quality requirement

Check quality fulfillment

Check failed

At vulnerable points

Check Postcondition

Check failed

At the end of

plan's execution

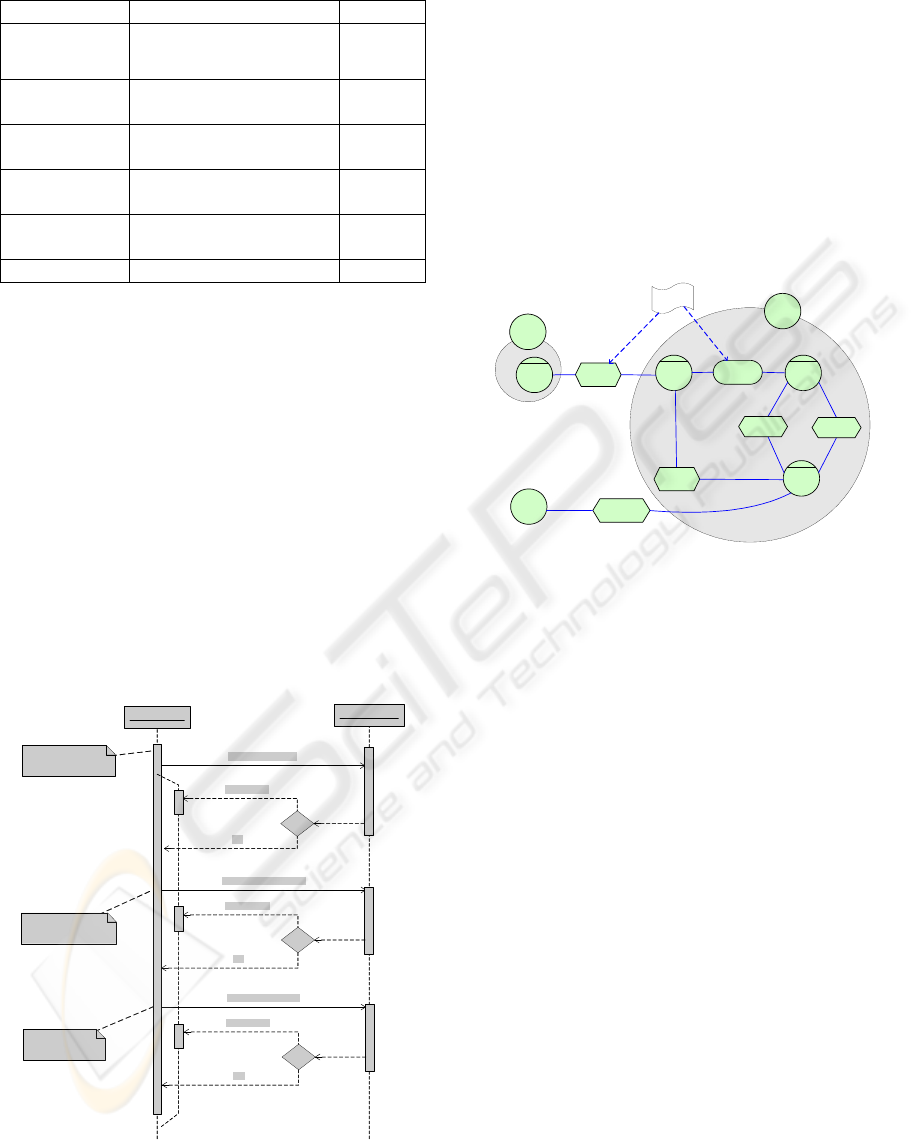

Figure 6: Quality assurance.

Figure 6 shows an execution of a plan that the

agent Quality Assurer carries out. Since it is required

that the execution must satisfy some quality

requirements, Quality Assurer has to verify the

fulfilment of those requirements at the beginning of

the plan, during the plan (e.g. at predefined

checkpoints) and after the plan.

We skip the descriptions of others plans as well

as the definition of the described social patterns in

the structural dimension, where services are

decomposed into agents’ Belief, Event and Plan, and

in the dynamic dimension, where the relationships

between plans and events are elaborated. We will

now take a look at a simple example into which the

described patterns are applied.

Editor

Queue

Printer

Locator

Printer

Driver

Printer

Located

Printer

Manager

Printer

Send Print

Command

Add

Document

Printer

Put job

In queue

Availability

Agent

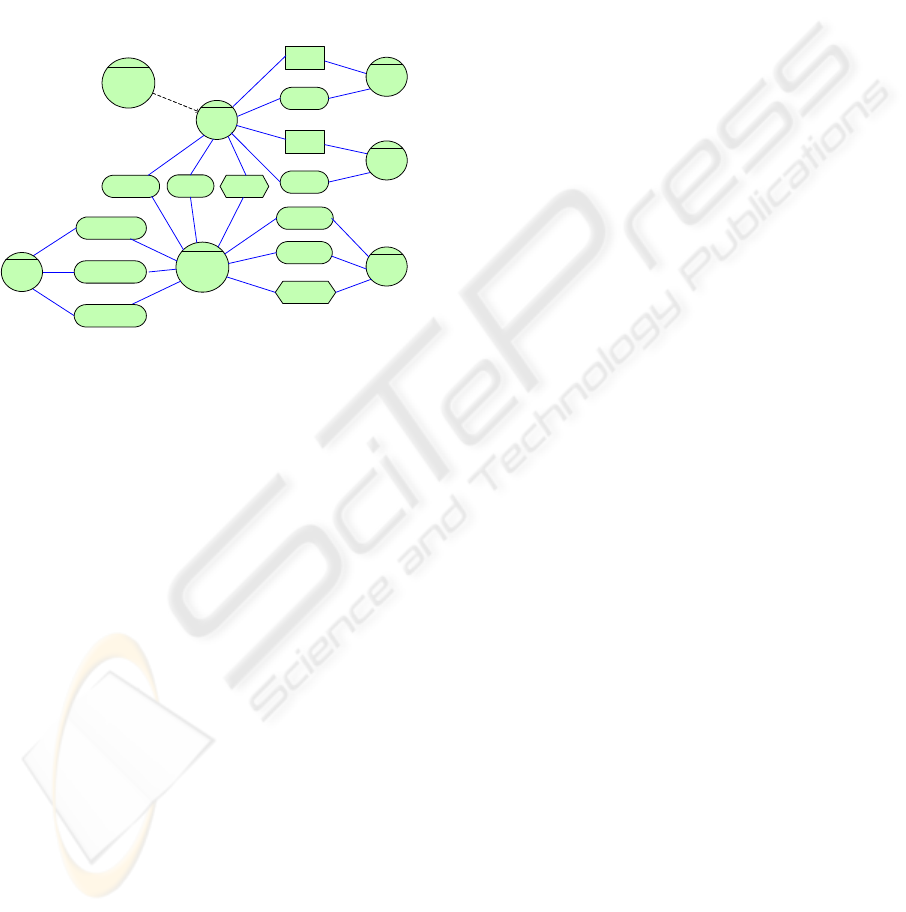

Figure 7: Highly-available print service.

4 HIGH AVAILABILITY PRINT

SERVICE

We consider an example about a printing service

inside a network where there is a requirement that

states: some printers must be turned on so that

editors are able to print a document at anytime as

described in the architectural design in Fig

7. First,

we must identify the signal sources that can provide

indicators of printers’ availability:

 Printer State. standby, stopped, started,

connected or disconnected. This availability signal

can be monitored directly from the printers.

 Printer Driver State. absent, present or defected.

When a printer driver is present and operational, it

can give greater details about the printer, if the

printer is online.

 Print Queue State. details of a number of

documents in the queue which could make the

printing of the newly introduced document

unavailable during a period of time.

For the availability signal, since the printers may

be disconnected accidently from the network, they

cannot notify themselves their absence to the printer

manager, therefore we decide to check the

SOCIAL PATTERNS FOR QUALITY CONTROL IN MULTI-AGENT SYSTEMS

341

availability of each printer by using the pulling

scheme.

Since, these signals can be the indicators of other

quality requirements of the system such as: Energy

Efficiency and can be inputs for many quality

metrics in the system, we may also implement some

intermediate agents that relay and transform the

signal before the final signal is provided to the

quality managers and quality executors. The first

part of the subsystem is the monitoring part by

which the Printer Availability Manager senses the

availability state of the system’s printers.



Availabilty

Meter 1

Printer

Availability

Manager

Availability

Detected

Unsubscribed

Notify

Violation

Pinging

Status

Subscribed

Availability

Detected

Printer

Status

Queue

System

Security

Manager

Unsubscribed

Changes

In Queue

Subscribed

Precondition

Checked

Agent

Printer

Driver

Printer

Postcondition

Checked

Intermediate

Condition Checked

Figure 8: Highly-available print service.

In Fig.8, three identified signal sources are

added. For Printers and Printer Drivers, we use the

Signal Pulling Pattern to get the status of the printers

and printer drivers. All the printers physically

installed in the system are pinged by the agents

Availability Meter1 at every small interval of time

(e.g. 0.5 seconds). The drivers of joinable printers

are also probed at a larger interval (e.g. 5 seconds).

The third useful signal used to determine the

availability of the printer is the length of the Print

Queue. Because this signal can be used directly by

the Printer Availability Manager and this signal is

changed by precise events, we use the pushing

pattern to report the queue status. Using this

structure, the Printer Availability Manager has, at

every moment, the availability of all the printers

available inside the system with the precision of at

least 5 seconds (equals to the interval between two

consecutive probing of printer driver).

We now detail the Printing Plan of the Print

Agent of the Editor. Before printing, the Print Agent

refers to the Printer Availability Manager to check

whether the document can be printed in an expected

time, e.g. 2 minutes. At the Manager side, it checks

the printer capabilities and the size of the print queue

to estimate the expected delay. If the delay is greater

than the requested delay, it tries to start a standby

printer. If it finds a way to respect the delay, it

returns a positive answer to the editor to begin the

printing job. If it fails to make the printing system

available, it sends a negative answer to the

requesting Print Agent and sends a detailed report to

the human manager about the overload problem.

A portion of the class diagram focusing on the

quality management subsystem is shown in Fig.9.

The main class in Availability control is the agent

Printer Availability Manager. It subscribes itself to

the Print Queue and the Availability Meter 1 to

receive the update of the Queue state and Printer’s

state. From the received data, it can estimate the

maximum delay for a new job requested by any

Print Agent. Print Agent has a reference to the Print

Queue to send printing jobs when it is possible. At

the Printer Driver end, each driver has a reference to

the corresponding Printer. We include an additional

agent Printer Monitor that can be considered as

another metric that combines information from

Printer Driver and Printer Queue. The Printer

Monitor has references to all the Printers and their

software drivers in order to ping and query the

configuration of the Printers. It also has a reference

to some Meters, the Availability Meter1 in this case,

to notify any changes in the Availability and the

configuration of Printers and Printer Drivers.

The Print Agent may have references to many

other quality managers at the same time for

example: Energy Saving Manager and Printing

Quality Manager to assure the quality of its printing

plan. In Fig.9, we omit other details and only keep

the most important parts necessary in the Printer

Availability Management Subsystem.

The printing plan of the Print Agent is triggered

when the user hits the print command in the editor’s

interface. It first determines the maximum delay that

this job can allow by consulting the user or taking

the delay in the global configuration of the system. It

then asks the Printer Availability Manager to check

the delay constraint using the current state of

Printers and the Print Queue. It will try to do some

additional things to try to assure that the printing job

will be finished in time.

If the Printer Availability Manager fails to make

the print plan finish in time, the Editor will show a

notice to the user and ask for the new instruction. If

the printing plan is approved, the Print Agent

connects to the Print Queue and starts to send the

data to the Print Queue. During and after the

transmission, the editor continues to refer to the

Printer Availability Manager to update the expected

finish time of the current job depending on the actual

state of the printers and the time used for the

transmission, if the delay constraint is violated, the

manager will try to intervene again and the user will

be also notified. Normally, the expected due time

ICSOFT 2009 - 4th International Conference on Software and Data Technologies

342

Print Agent

Printer Availability

Mgr.

Printer Monitor

Print Queue Printer

SubmitPrintRequest

[ Deadline failed] StartPrinter

Deadline Failed

Has more printer

Delay returned

Send Data Packets

Notify Change

New events

VerifyDeadline

[ Deadline failed] StartPrinter

Deadline Failed

Has more printer

Delay returned

Has more data

Deadline accepted

GetExpectedDelay

Delay Returned

<<Agent>>

Print Agent

Render()

SendData()

Plan:

<<Agent>>

Printer AvailabilityMgr.

EstimateJobDuration()

UpdateState()

Plan:

EstimateFinishTime

StartAPrinter

<<Agent>>

Printing Quality Mgr.

<<Agent>>

Print Queue

Loc: PrinterLocator

QueueDocument()

PrinterConnect()

Plan:

LocatePrinters

-PrinterQualityMgr1

-PrinterAvailMgr

<<Agent>>

Availability Meter 1

ComputeJobTime()

Notify()

Plan:

DetectChanges

-PrintQueue

<<Agent>>

Printer Monitor

PingPrinter()

ProbeDriver()

Plan:

MonitorPrinters

Prin t er Printer Driver

-Printer List *

-PrinterList

-SubscriberList

(a)

(b)

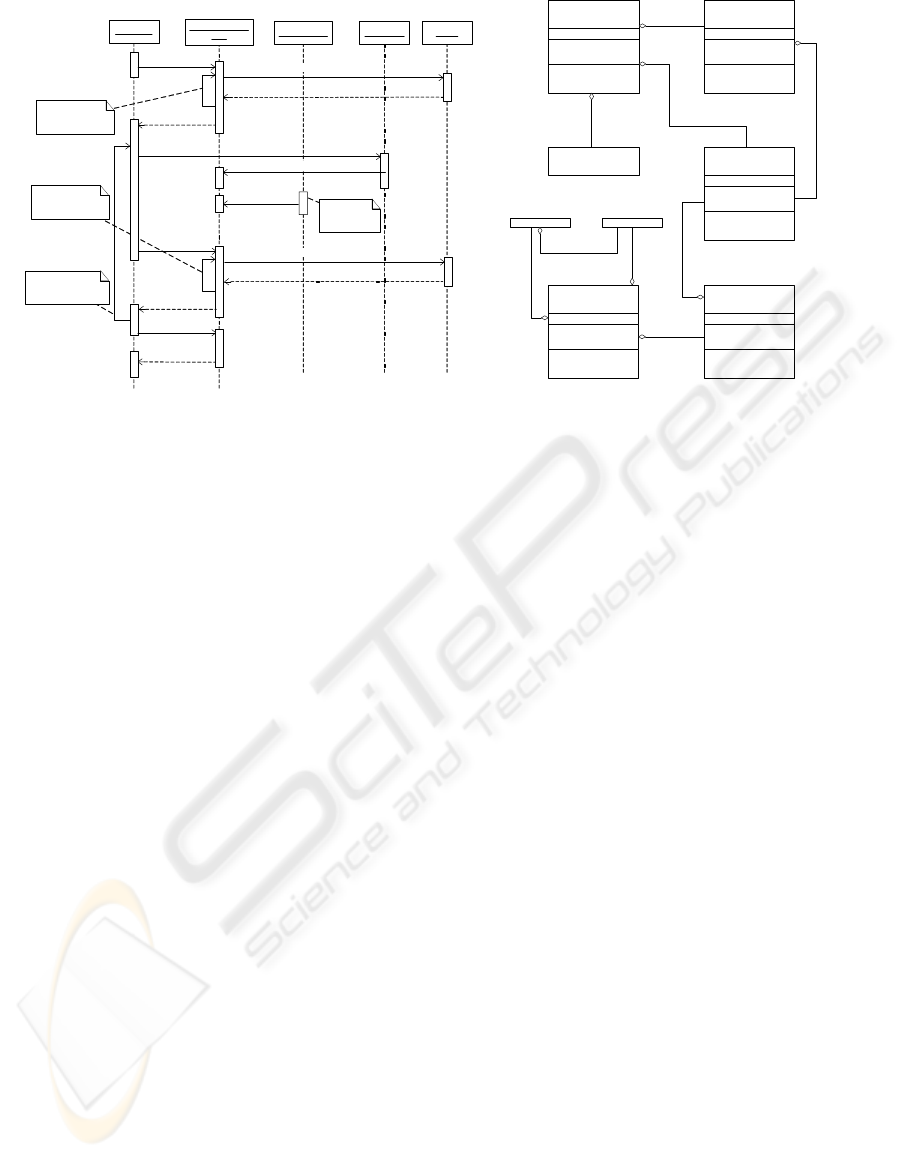

Figure 9: Top-level interaction of Printing Plan (a) and the Agent Diagram (b).

after the transmission is not far from the reality,

since the print job is already in the Print Queue,

unless one of the printers fails or is accidentally

stopped. When this happens, the Printer Availability

Manager will try to make more printers available to

guarantee the deadlines.

Figure 9a shows the top level of the Printing

Plan of the Print Agent. More details can be also

added using lower-level of sequence diagram or

using the plan diagram.

5 CONCLUSIONS

Multi-agent framework has been gaining its

popularity. However, there are still not many

commercial products that are implemented using the

multi-agent technology. The too flexible structure of

agent-based systems may not encourage the software

industry to adopt the agent-oriented methodology.

Flexibility is not the only quality that is required by

software quality. Indeed, qualities such as security,

availability, traceability, etc. have become vital for

modern software.

This paper is an attempt to help multi-agent

systems to cope efficiently and systematically with

quality requirements. The proposed social patterns

together with a sound development process could

give the agent-oriented framework a bigger role in

the continuously-growing industry of software.

REFERENCES

Chung, L., Nixon, A. B., Yu, E., 2000. Mylopoulos J.,

Non-functional Requirements in Software

Engineering, Kluwer Academic Publishers.

Castro, J., Kolp M., Mylopoulos, J., 2002. Towards

Requirements-Driven Information System

Engineering: The Tropos Project, Information System

Journal, 27: 365-389.

Jureta, I. and Mylopoulos, J. and Faulkner, S., 2008.

Revisiting the Core Ontology and Problem in

Requirements Engineering, Proceedings of the 2008

16th IEEE International Requirements Engineering

Conference: 71-80.

Hoang, T.T.H, 2008. Quality-aware agent-oriented

software development, internal report, Louvain School

of Management, Université catholique de Louvain.

Hoang, T.T.H and Kolp, M., 2009. Goal, Soft-goal and

Quality requirement, submitted for publication.

Gamma, E. and Helm, R. and Johnson, R. and Vlissides,

J., 1995. Design patterns: elements of reusable object-

oriented software, Addison-Wesley.

Kolp, M., Do, T.T., Faulkner, S. and Hoang, HTT, 2005.

Introspecting Agent-Oriented Design Patterns,

Advances in Software Engineering and Knowledge

Engineering, 3.

Aridor, Y. and Lange, D.B., 1998. Agent design patterns:

elements of agent application design, Proceedings of

the second international conference on Autonomous

agents, p108—115.

Yu E., 1995. Modeling strategic relationships for process

reengineering, PhD Thesis University of Toronto.

Bauer, B., December 1999. Extending UML for the

Specification of Agent Interaction Protocols, OMG

document ad/99-12-03, FIPA submission to the

OMG’s Analysis and Design Task Force (ADTF) in

response to the Request of Information (RFI) entitled

“UML2.0 RFI”.

Agent Oriented Software Pty. Ltd., Mars 2002. JACK

Intelligent AgentsTM User Guide.

Bellifemine, F., Poggi, A. and Rimassa, G., 2001.

Developing Multi-agent Systems with JADE, Springer.

SOCIAL PATTERNS FOR QUALITY CONTROL IN MULTI-AGENT SYSTEMS

343
