A QUERY LANGUAGE FOR SERVICE DISCOVERY

Andrea Zisman, George Spanoudakis

Department of Computing, City University London, Northampton Square, London EC1V 0HB, U.K.

James Dooley

School of Computer Science and Electronic Engineering, University of Essex, Colchester CO4 3SQ, U.K.

Keywords: Service Discovery, Structural, Behavioural, Constraints.

Abstract: To support the discovery of services during development and execution time of service-based systems, it is

necessary to have ways of expressing the characteristics of the services to be discovered and the

applications that will use them. In this paper, we present SerDiQueL, an XML-based query language that

allows for the description of service discovery queries expressing structural, behavioural, quality, and

contextual characteristics of services to be discovered. The language supports the identification of services

during both development and execution of service-based systems and is supported by prototyped query

processors performing similarity analysis between services and queries.

1 INTRODUCTION

Service discovery is an important activity for service

oriented computing. Over the last few years various

approaches (Hausmann et al., 2004) (Li and

Horrock, 2003) (Shen and Su, 2005) have been

proposed to support identification of services that

can fulfill the functionality and quality aspects of

service-based systems during the design,

deployment, and use of these systems. Some of these

approaches support the identification of services

during the development of service-based systems

(viz. static service discovery), while other

approaches allow for the identification of services

during the execution time of these systems (viz.

dynamic service discovery).

The need for static service discovery arises when

it is necessary to develop systems that are

constructed as composition of services available in

different service registries. The need for dynamic

service discovery arises when it is necessary to

identify services during execution time of these

systems due to unavailability or malfunctioning of

services participating in the systems; changes in the

context, structure, behaviour, and quality of these

services; changes in the context of the system; or

availability of new services.

In any of the above situations, it is necessary to

have ways of expressing the characteristics of the

services to be discovered. More specifically, for

static service discovery, it is necessary to have a

query language that allows the representation of

structural, behavioural, and quality aspects of a

service-based system being developed in order to

identify services that match these aspects and use

these services in the design of the system. For

dynamic service discovery, it is necessary to have a

query language that can express not only structural,

behavioural, and quality aspects, but also contextual

aspects of deployed services that need to be replaced

in service-based systems and contextual aspects of

the environment where a system is executed.

For an example of static service discovery,

consider the development of a service-based system

that assists users to plan a trip. In this case, it may be

necessary to identify services that allow to check for

availability of flights, calculate the cost of a flight,

get the details of a flight, and book a flight, in this

exact order, with some specific parameters and a

restriction that the time to execute those actions by

the service should not be more than two seconds.

For an example of dynamic service discovery,

consider a service-based system that schedules

journalists’ daily tasks. Suppose this application has

a service that identifies the whereabouts of

Zisman A., Spanoudakis G. and Dooley J. (2009).

A QUERY LANGUAGE FOR SERVICE DISCOVERY.

In Proceedings of the 4th International Conference on Software and Data Technologies, pages 55-65

DOI: 10.5220/0002260400550065

 SciTePress

journalists. Assume that this service fails. In this

case, it may be necessary to discover services that

can identify journalists at a certain location.

In this paper we present SerDiQueL, an XML-

based service discovery query language allowing the

description of service requests expressing structural,

behavioural, quality, and contextual characteristics

of the systems and services to be identified during

both static and dynamic service discovery.

SerDiQueL supports queries that can be performed

in both push and pull modes during the execution of

service-based systems.

SerDiQueL is composed of three sub-queries.

The first sub-query describes structural

characteristics of the services to be discovered that

comply with the application being developed, or

services already being used by a system. The second

sub-query expresses behavioural characteristics of

services and systems representing the existence of a

certain functionality or sequence of functionalities,

the sequence and order in which certain

functionalities should be executed, pre-conditions,

and dependencies between functionalities. The third

sub-query represents extra constraints. These extra

constraints may involve (i) quality characteristics,

(ii) contextual characteristics, or (iii) extra structural

and behavioural conditions that cannot be

represented in the structural and behavioural sub-

queries of the language. Examples of these extra

constraints are the time or cost to execute a certain

operation in a service, the specific receiver of a

message, the provider of a service, or the number of

parameters in a service operation.

SerDiQueL has been developed as part of a large

programme of research to support service discovery

in static (Kozlenkov et al., 2007) and dynamic

pull/push modes (Zisman et al., 2008). The language

supports the representation of service queries that

are executed by a service discovery framework. In

this paper, we discuss the language and give a brief

overview of the framework. In our work, we assume

services specified from different perspectives such

as interface (WSDL (WSDL)), behavioural

(BPEL4WS (BPEL4WS)), quality, context, and

textual descriptions in XML format. The similarities

between service queries and service specifications

are computed by using distance functions.

The remainder of this paper is structured as

follows. Section 2 presents an overview of our

framework to support static and dynamic service

discovery. Section 3 describes SerDiQueL and gives

example queries to illustrate it. Section 4 presents

related work. Finally, Section 5, provides an overall

discussion, concluding remarks, and future work.

2 OVERVIEW OF SERVICE

DISCOVERY FRAMEWORK

Our service discovery framework has been

developed to support both static (Kozlenkov et al.,

2007) and dynamic identification of services

(Zisman et al., 2008). In the case of static service

discovery, our framework advocates an iterative

process in which service-based systems are

developed based on available services. More

specifically, the framework supports the

identification of services that provide functional and

non-functional characteristics of service-based

systems during the design phase of these systems.

The identified services are used to formulate and

amend the design models of these systems. The

reformulations of the design models may trigger new

service discovery iterations. In the case of dynamic

service discovery, our framework advocates

identification of services in both reactive and

proactive ways, based on subscribed service

requests, to replace services in a service-based

system during execution time.

In both cases, the framework assumes services

described from different perspectives by a set of

XML-based facets. These facets include (i) textual

facets describing general information of the services

in an XML format, (ii) structural facets describing

operations of services with their data types using

WSDL (WSDL), (iii) behavioural facets describing

behavioural models of services in BPEL4WS

(BPEL4WS), (iv) quality of service facets describing

non-functional aspects of services, and (v) context

facets describing quality aspects of a service that

change dynamically.

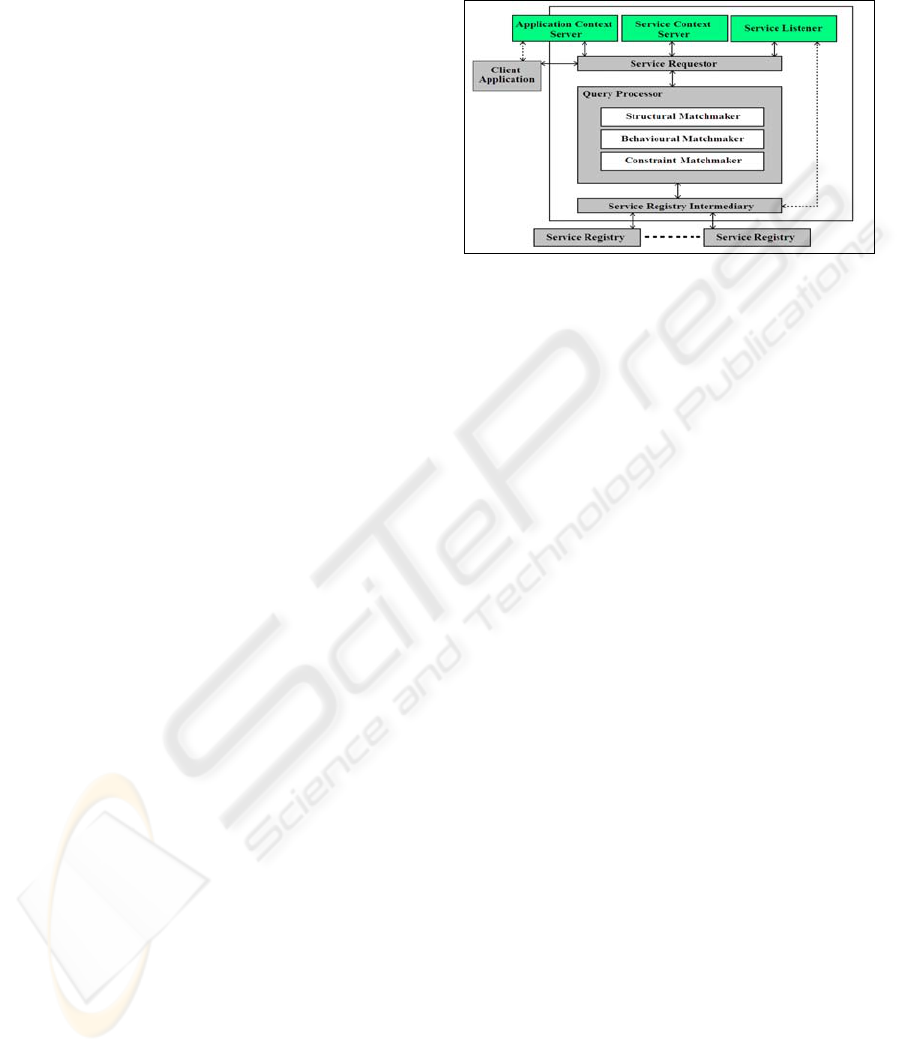

Figure 1 shows the overall architecture of our

service discovery framework. As shown in the

figure, the main components of the framework are:

(a) service requestor, (b) query processor, and (c)

service registry intermediary. The framework also

uses external service registries and, is invoked by an

external client application, and uses special servers

and listeners to support notification of changes in

services and application environment.

The external client application supports the

creation of service requests to be executed both

statically and dynamically. These service requests

may contain structural, behavioural, quality, and

contextual characteristics. The service requestor

receives a service request from the client

application, as well as context information about the

services and application environment in the case of

dynamic service discovery. It prepares service

queries to be evaluated, organises the results of a

ICSOFT 2009 - 4th International Conference on Software and Data Technologies

query, and returns these results to the client

application. In addition, it manages push query

execution mode subscriptions, receives information

from listeners about services that become available

or about changes to existing services, in the case of

dynamic service discovery. The query processor is

responsible to parse the different parts of a query

and evaluate these parts against service

specifications in the various service registries. As

shown in the figure, the query processor is formed

by three sub-components, namely (i) structural, (ii)

behavioural, and (iii) constraint matchmakers. Each

of these sub-components is responsible to evaluate a

different part of a query (see Section 3).

Our framework assumes that constraints in a

query can be contextual or non-contextual. A

contextual constraint is concerned with information

that changes dynamically during the operation of the

service-based system and/or the services that the

system deploys, while a non-contextual constraint is

concerned with static information related to

structural, behavioural, and quality aspects of the

services and systems. The non-contextual constraints

can be hard or soft. A hard constraint must be

satisfied by all discovered services for a query and

are used to filter services that do not comply with

them. A soft constraint does not need to be satisfied

by all discovered services, but are used to rank

candidate services for a query.

The evaluation of a query is executed in a two-

stage process. In the first stage, the constraint

matchmaker is invoked in order to evaluate hard

constraints in the query. This is a filtering stage,

which selects candidate services from the registries

that match exactly the hard constraints of a query.

The second stage is an optimization stage in which

the candidate services returned from the first stage

are matched against structural, behavioural, and soft

constraints in a query. When a query does not have

hard constraints, the structural, behavioural, and soft

constraints parts of a query are matched against all

the services in the registries. The above matching is

executed by the structural, behavioural, and

constraint matchmakers, respectively and is based on

the computation of structural, behavioural, and

constraint distances.

In the case of static service discovery, the

matching in the second stage of the process returns

n-best services for a query (n can be specified in a

query or can be equal to ten by default). The

identified best services are used by the designer of a

service-based system under development to select

the services to be used by the system. Details of the

static discovery process and distance measures are

beyond the scope of this paper, but can be found in

(Kozlenkov et al., 2007) (Zisman and Spanoudakis,

2006).

Figure 1: Architecture overview of framework.

In the case of dynamic service discovery, the

matching in the second stage of the process returns

the best service for a query also based on the

computation of structural, behavioural, and

constraint distances as described in (Zisman et al.,

2008). The dynamic service discovery supports both

pull and push modes of query execution. For the

push mode of query execution, the framework

assumes a proactive approach in which services are

identified in parallel to the execution of a service-

based system based on subscriptions of application

environment, services, and queries associated with

these services, so that replacement services can be

identified, when notification of changes in services

and application environments are pushed to listeners

(Zisman et al., 2008). These notifications of changes

are supported by the use of service context server,

application context server, and service listeners.

The service registry intermediary supports the

use of different service registries and the discovery

of services stored in different types of registries. It

provides an interface to access services from various

registries. The framework allows accessing services

from registries organized as faceted structure, as

proposed in the SeCSE project (SECSE). More

specifically, in the registries, a service is specified

by a set of XML-based facets, namely (i) textual

facets, (ii) structural, (iii) behavioural, (iv) quality of

service, and (v) context facets.

3 SerDiQueL

SerDiQueL is an XML-based language that allows

for the specification of structural, behavioural,

quality, and contextual characteristics of services to

A QUERY LANGUAGE FOR SERVICE DISCOVERY

be discovered or service-based systems being

developed. The language has been developed based

on requirements for supporting both static and

dynamic service discovery identified by industrial

partners in the areas of telecommunications,

automotive, software, media, and banking in the

European research projects (GREDIA) (SECSE),

and the framework described in Section 2. These

requirements point out the need for:

• Generating service discovery queries from

design models of service-based systems

specifying functional and non-functional

properties of such systems;

Figure 2: Overview schema of SerDiQueL.

3.1 Structural Sub-query

• Generating service discovery queries from

characteristics of services that have already

been deployed in systems, but may need to be

replaced;

The structural sub-query describes structural aspects

of (i) a service-based system being developed (in the

case of static service discovery) or (ii) a service that

needs to be replaced and is being used by a service-

based system (in the case of dynamic service

discovery).

• Providing service discovery queries that

express arbitrary logical combinations of

prioritised functional, non-functional, and

contextual properties of required services, and

similarity-based queries of the form "find a

service that is similar to service X";

The description of structural aspects for case (i)

is based on design models of this system. Our

service discovery framework assumes design models

expressed in UML class and sequence diagrams

represented as XMI documents, due to the

popularity of using UML for designing software

systems in general, and service-based system in

particular (Deuble et al., 2005) (Gardner, 2004).

However, the structural sub-query could be based on

other types of design models representing the

functionality of a system.

• Efficient matching of service discovery queries

against different types of service specifications

and return of services with varying degrees of

match with the queries;

• Supporting service discovery in both pull and

push execution mode (based on subscriptions);

• Proactive dynamic service discovery to increase

efficiency especially at runtime;

• Integrating discovered services into an iterative

design process in which service-based systems

design models may be re-formulated after the

discovery of services.

In order to support the definition of structural

aspects of a system under development based on

UML models, we have developed a UML 2.0 profile

(Kozlenkov et al., 2007). The profile defines a set of

stereotypes for different types of UML elements

such as messages in sequence diagrams, or

operations and classes defining the types of

arguments in the messages in the class diagrams.

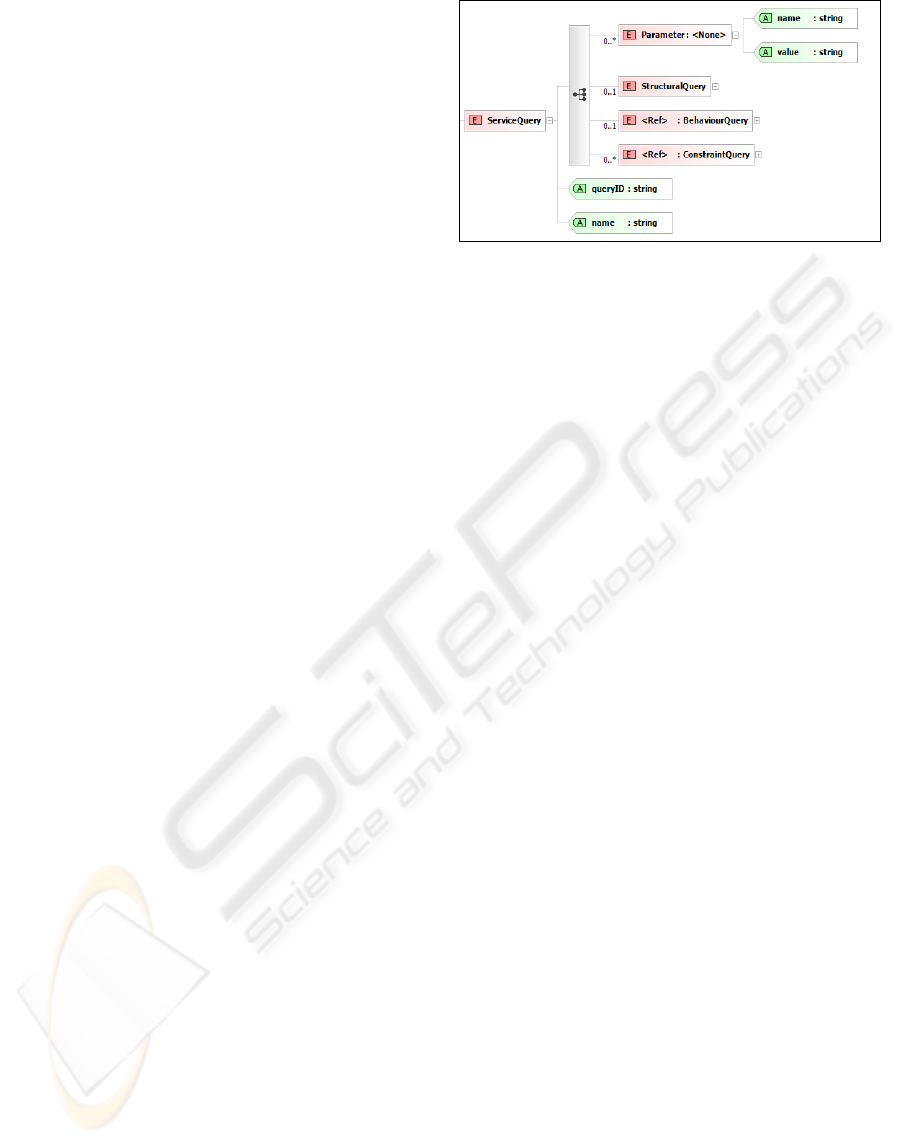

Figure 2 presents the overall XML schema of

SerDiQueL. As shown in the figure, a query

specified in the language (ServiceQuery) has three

elements representing structural, behavioural, and

constraint sub-queries. The division of a query into

these three sub-queries is to (i) allow the

representation of these three types of information

and (ii) support the representation of queries with

arbitrary combinations of these types of information.

A ServiceQuery also has a unique identifier, a name,

and one or more elements describing different

parameters for a query. A parameter element is

defined by a name and a value. Examples of

parameters that can be used in a query are: (a) name

of the query, (b) type of the query (e.g., static or

dynamic), (c) mode of execution (push or pull), (d)

author of the query, and (e) number of n-best

services to be returned by a query.

For example, messages in a sequence diagram

may be stereotyped as: (i) query messages

representing service operations needed in identified

services; (ii) context messages representing

additional constraints for the query messages (e.g. if

a context message has a parameter p1 with the same

name as a parameter p2 of a query message, then the

type of p1 should be taken as the type of p2); (iii)

bound messages representing concrete service

operations that have been discovered in previous

query executions.

In our framework, structural sub-queries for a

service-based system being developed are automatic

generated from the class and sequence diagrams of a

ICSOFT 2009 - 4th International Conference on Software and Data Technologies

Figure 3: XML Schema for behavioural sub-query.

system based on the selection of messages from the

designer of the system. The description of structural

aspects of a service-based system based on design

models of these systems supports the representation

of operations being searched in different services

together with the representation of the input and

output parameters of these operations and their

respective data types. This is important to assist with

the matching of structural aspects of the systems

with structural aspects (interface descriptions) of

available services. Moreover, it supports the

development of a service-based system based on the

characteristics of available services instead of on

requirements that may never be able to be fulfilled

by existing services.

The description of structural aspects for case (ii)

is represented as the WSDL (WSDL) specification

of the service to be replaced. In this case,

SerDiQueL supports a complete representation of

the structural aspects of a service to be identified as

interface descriptions. In the framework, structural

sub-queries for a service that needs to be replaced

during execution time are automatic generated based

on the notification that a service became

malfunctioning, unavailable, or there have been

changes in the characteristics of the service or in the

context of the application environment. In both static

and dynamic service discovery, structural sub-

queries are matched against interface descriptions of

services specified as WSDL considering the names

of the operations and the data types of the

parameters of the operations. Details of the matching

process is found in (Zisman et al., 2008).

3.2 Behavioural Sub-query

The behavioural sub-query is matched against

behavioural service specifications. In our

framework, the matching of the behavioural sub-

queries is executed based on the comparisons of

paths representing the query and service

specification. More specifically, the behaviour

matching is executed by (i) transforming

behavioural service specifications into state

machines, (ii) extracting all the possible paths from a

service statemachine, (iii) transforming the

behavioural sub-query into paths, and (iv) verifying

if the paths representing the query can be matched

against a path of the statemachine of a service.

Given its popularity, we assume behavioural service

specifications represented in BPEL4WS

(BPEL4WS). However, the behaviour sub-query can

be matched against other types of behavioural

service specifications that can be represented as or

transformed into statemachines.

The behavioural sub-query is based on temporal

logic supporting the representation of behavioural

aspects of required services. In particular, it supports

the description of queries that verify (a) the

existence of a certain functionality, or a sequence of

functionalities, in a service specification; (b) the

order in which certain functionalities should be

executed by a service; (c) dependencies between

functionalities; (d) pre-conditions; and (e) loops.

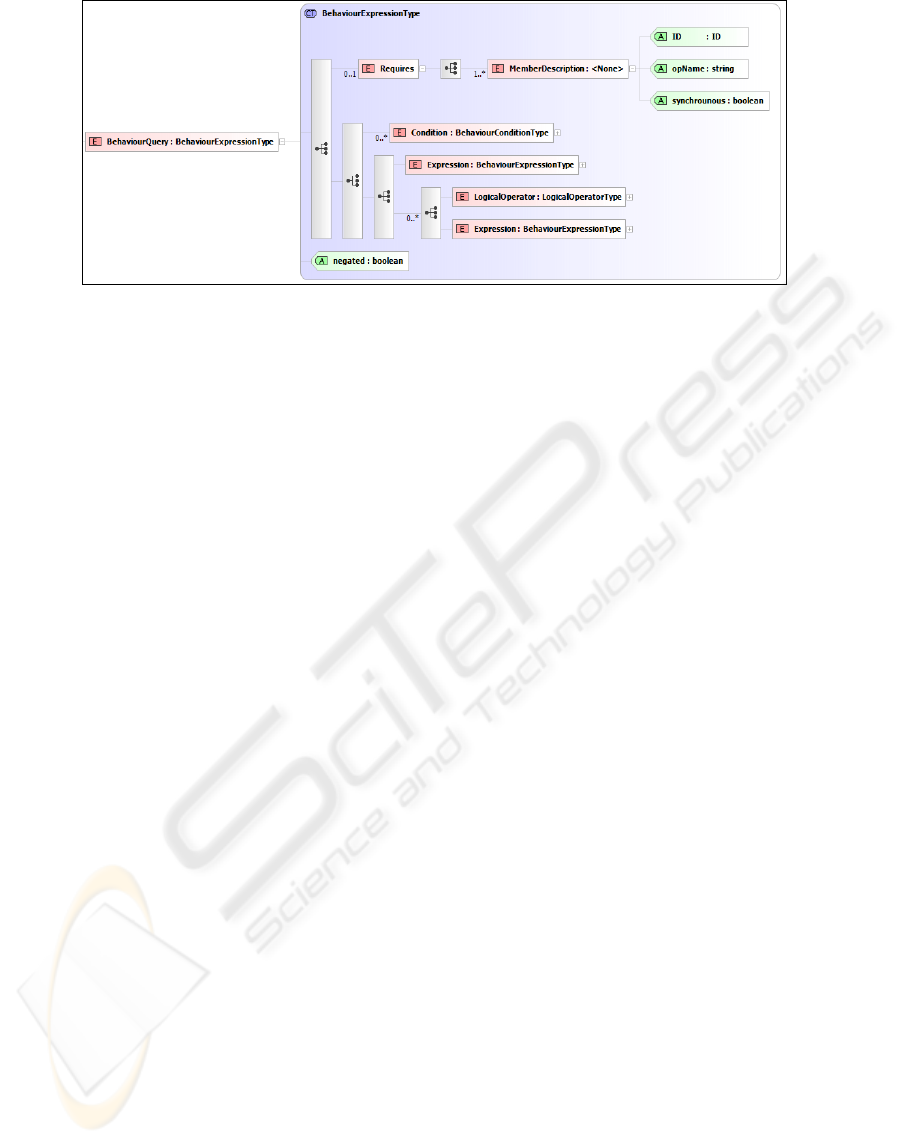

Figure 3 shows a graphical representation of the

SerDiQueL’s XML schema for behavioural sub-

queries. As shown in the figure, a behavioural sub-

query is defined as (a) a single condition, a negated

condition, or a conjunction of conditions, or (b) a

sequence of expressions separated by logical

operators. A behavioural sub-query also allows for

the specification of requires elements.

Requires elements define one or more service

operations that need to exist in service

specifications, represented as members (element

MemberDescription). These member elements are

used in various conditions and expressions of a

query. The existence of requires elements in service

specifications are verified as an initial step during

A QUERY LANGUAGE FOR SERVICE DISCOVERY

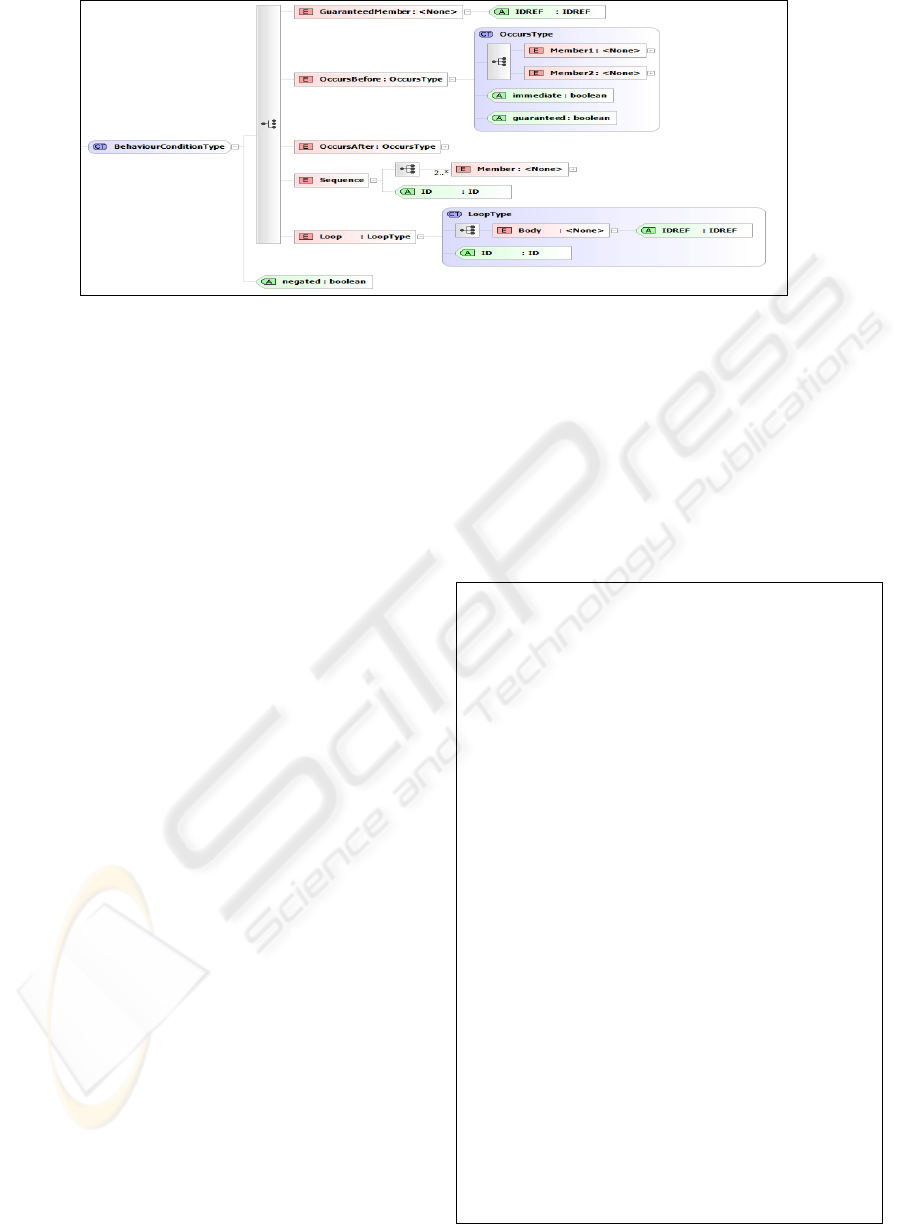

Figure 4: XML Schema for behavioral Sub-query.

the execution of a sub-query, in a fail-fast processing

mode, instead of being verified during the analysis

of the conditions and expressions that use these

elements, providing optimization for the sub-query

execution process. A member element has three

attributes, namely (a) ID, indicating a unique

identifier for the member within a query; (b)

opName, specifying the name of an operation

described in the structural sub-query, (for the case of

dynamic service discovery, this attribute may also

contain the port type for this operation for the

WSDL description in the structural sub-query); and

service operation needs to be executed in a

synchronous or asynchronous mode in the service.

A condition can be negated and is defined as

GuaranteedMember, OccursBefore, OccursAfter,

Sequence, or Loop elements, as shown in Figure 4.

A GuaranteedMember represents a member element

(i.e., service operation) that needs to occur in all

possible traces of the execution in a service. This

element is defined by attribute IDREF that

references requires, sequence, or loop elements. The

OccursBefore and OccursAfter elements represent

the order of occurrence of two member elements

(Member1 and Member2). They have two boolean

attributes, namely (a) immediate, specifying if the

two members occur in sequence or if there can be

other member elements in between them, and (b)

guaranteed, specifying if the two members need to

occur in all possible traces of execution in a service.

A Sequence element defines two or more members

which must occur in a service in the order

represented in the sequence. It has an identifier

attribute that can be used by the guaranteed member

element. A Loop element specifies a sequence of

members that are executed several times. It has a

unique identifier and is defined as a statement that

references other elements.

Expressions are defined as sequences of requires

elements, conjunctions of conditions, or other nested

expressions connected by logical operators AND

and OR. The definition of requires elements within

an expression (E1) supports the cases where the non-

existence of requires elements in a service does not

invalidate the selection of this service, if other

expressions in the sub-query that are disjointed with

the expression are matched against the service.

<tnsb:BehaviourQuery>

<tnsb:Requires>

<tnsb:MemberDescription ID="login"

opName="locS.login" synchrounous="true" />

<tnsb:MemberDescription ID="getLocation"

opName="locS.retrieveJournalistLocation"

synchrounous="true”/>

<tnsb:MemberDescription ID="getAllJournalists"

opName="locS.getJournalistList"

synchrounous="true" />

<tnsb:MemberDescription ID="select"

opName="locS.selectJournalist"

synchrounous="true" /> </tnsb:Requires>

<tnsb:Expression>

<tnsb:Condition> <tnsb:GuaranteedMember

IDREF="login"/>

</tnsb:Condition></tnsb:Expression>

<tnsb:LogicalOperator

operator="AND"/><tnsb:Expression> <tnsb:Condition>

<tnsb:Sequence ID="getJournalistLocation">

<tnsb:Member IDREF="getAllJournalists" />

<tnsb:Member IDREF="select" />

<tnsb:MemberIDREF="getLocation"/>

</tnsb:Sequence></tnsb:Condition>

<tnsb:Condition>

<tnsb:OccursBefore immediate'"false"

guaranteed="false">

<tnsb:Member1 IDREF="login" />

<tnsb:Member2 IDREF="getAllJournalists" />

</tnsb:OccursBefore>

</tnsb:Condition> </tnsb:Expression>

</tnsb:BehaviourQuery>

Figure 5: Example of behavioural sub-query.

ICSOFT 2009 - 4th International Conference on Software and Data Technologies

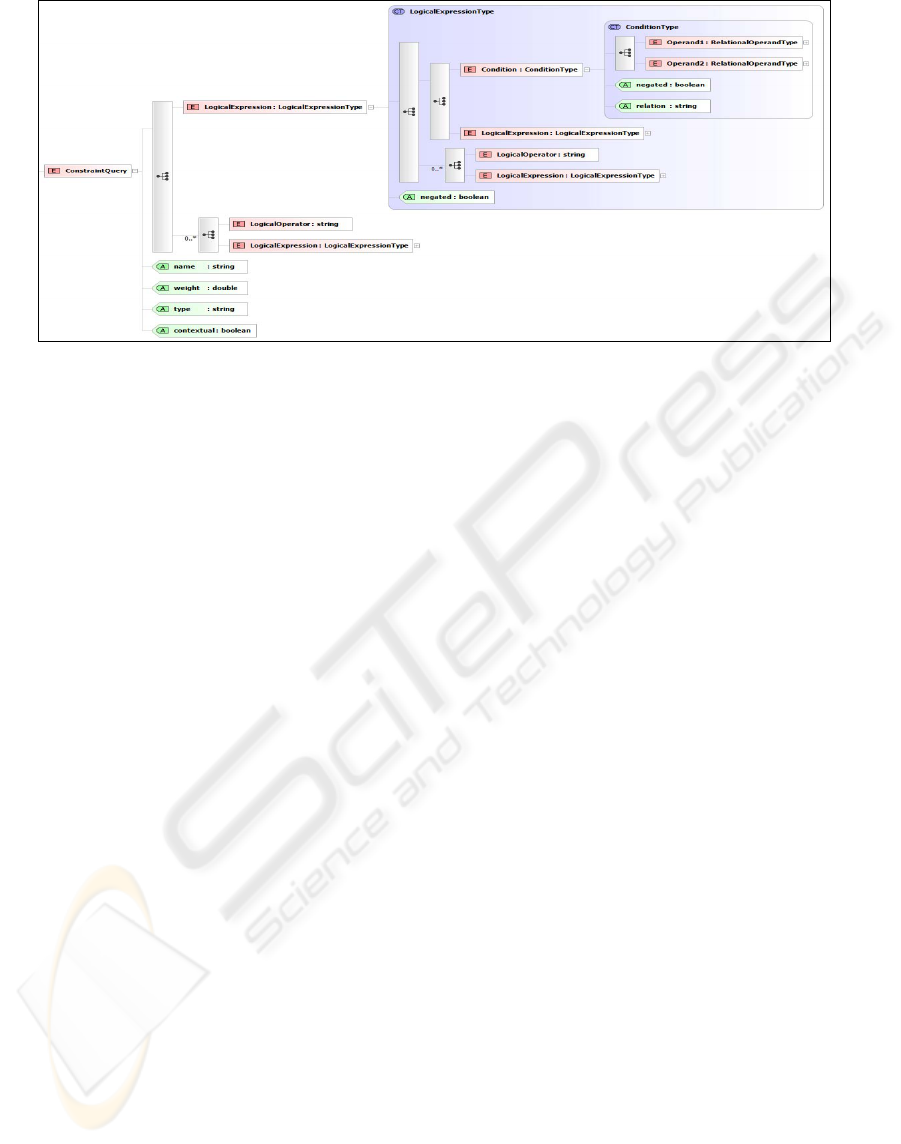

Figure 6: XML schema for constraint sub-query.

As an illustration consider the example described

in Section 1 for the service-based system that

schedules journalists’ tasks and assume that service

S1 which identifies the location of journalists fails.

In this case, consider a query for identifying a

service to replace S1 with the following behavioural

conditions: (i) the service needs to have operations

similar to operations login, getJournalistList,

selectJournalist, and retrieveJournalistLocation; (ii)

a user of the service always need to be authenticated;

(iii) operations getJournalistList, selectJournalist,

and retrieveJournalistLocation need to be executed

in this order; and (iv) operation login should be

executed before operation getJournalistList. Figure

5 shows the description of the behavioural sub-query

in SerDiQueL. As shown in the figure, the above

conditions are described by the use of the elements

Requires (case i), GuaranteedMember (case ii),

Sequence (case iii), and OccursBefore (case iv).

3.3 Constraints Sub-query

The constraint sub-query described different types of

extra conditions that need to be fulfilled by a

service.

These extra conditions may include (a) quality

aspects, (b) contextual aspects, or even (c) extra

structural and behavioral aspects of a service that

cannot be represented by the structural and

behavioural sub-queries.

As described in Section 2, a constraint can be

classified as contextual or non-contextual. The non-

contextual constraints in a sub-query can be

evaluated against any type of service specification

(facet) in the service registries. The contextual

constraints are evaluated against context facets.

These context facets are associated with services and

describe context information of the operations in

these services. Context information is specified as

context operations that are executed at run-time. The

framework assumes the existence of context services

that provide context information. Details of the

context constraint matching are described in

(Spanoudakis et al., 2007).

Figure 6 shows a graphical representation of

SerDiQueL’s XML schema for specifying

constraints. As shown in the figure, a constraint sub-

query is defined as a single logical expression, a

negated logical expression, or a conjunction or

disjunction of two or more logical expressions,

combined by logical operators.

A constraint sub-query has four attributes,

namely (a) name, specifying a description of the

constraint; (b) type, indicating whether the constraint

is hard or soft; (c) weight, specifying a weight in the

range of [0.0, 1.0]; and (d) contextual, a boolean

attribute indicating whether the constraint is

contextual or non-contextual. The weight is used to

represent prioritisations of the parameters in a query

for soft constraints. When the value of the contextual

attribute is true, the query may contain

ContextOperand elements. If the value is false, the

query may contain NonContextOperand.

A logical expression is defined as a condition, or

logical combination of conditions, over elements or

attributes of service specifications (for non-

contextual constraints) or over context aspects of

service operations (for contextual constraints). A

condition can be negated and is defined as a

relational operation (equalTo, notEqualTo, lessThan,

greaterThan, lessThanEqualTo, greaterThanEqualTo,

notEqualTo) between two operands, which can be

non-contextual, contextual, constants, or arithmetic

expressions.

A QUERY LANGUAGE FOR SERVICE DISCOVERY

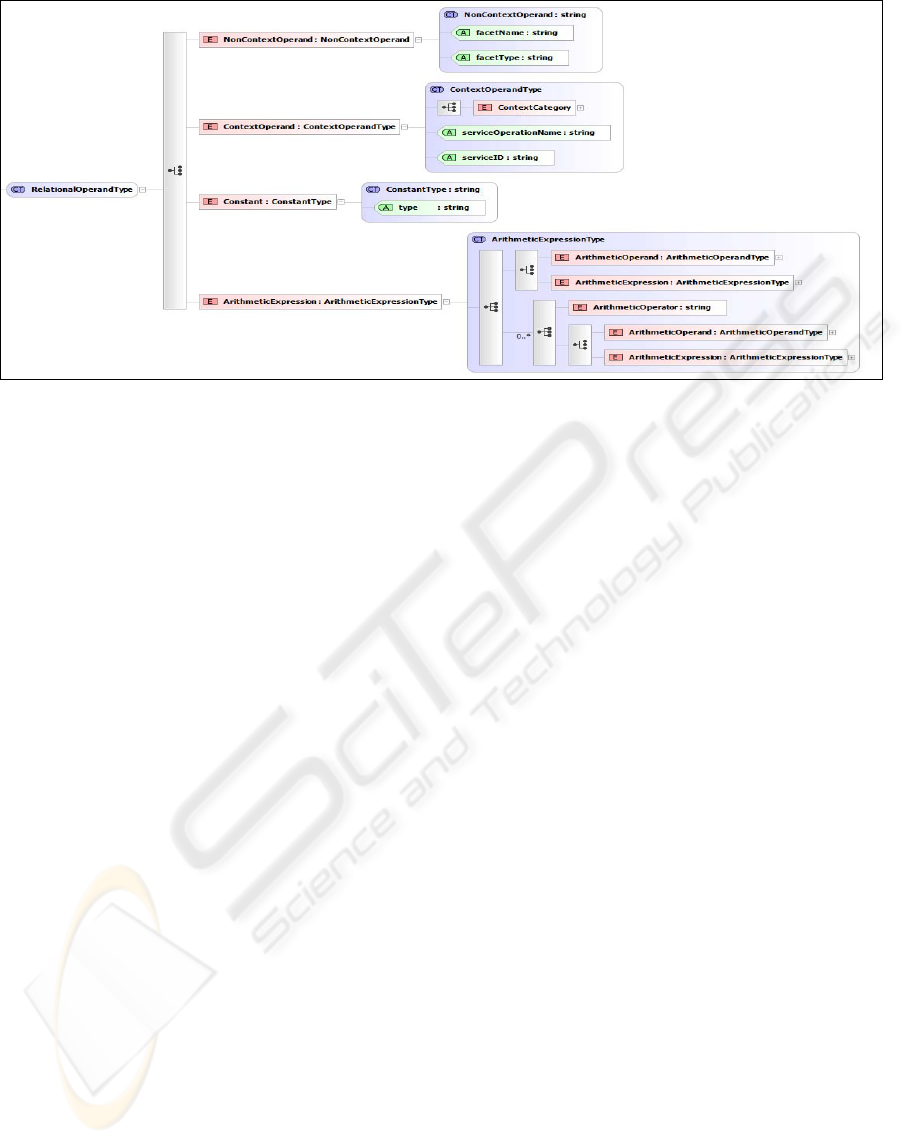

Figure 7: XML schema for constraint sub-query.

As shown in Figure 7, a non-contextal operand

(element NonContextOperand) has two attributes,

namely (a) facetName, specifying the name of the

service specification and (b) facetType, specifying

the type of the service specifications to which the

constraint will be evaluated. The operand contains

an XPath expression indicating elements and

attributes in the service specification referenced in

facetName attribute. Therefore, the constraints can

be specified against any element or attribute of any

facet in the registries.

A contextual operand (element ContextOperand)

specifies operations that will provide context

information at runtime. More specifically, a

contextual operand describes the semantic category

of context operations instead of the signature of the

operation represented by sub-element

ContextCategory. This is due to the fact that context

operations may have different signatures across

different services. A contextual operand is defined

by (a) attribute serviceOperationName, specifying

the name of the service operation associated with the

contextual operand, and (b) attribute serviceID,

specifying the identifier of a service that provides

the operation. The value of attribute serviceID is

specified when the context operand provides the

specification of a context operation of a known

service. This is normally the case when the context

operation is associated with a service-based system

for which the value of a context aspect of the system

needs to be dynamically identified during the

evaluation of a query (e.g., location of a mobile

device application). In this case, attribute serviceID

referes to the service-based system itself. Otherwise,

the value of serviceID is specified as “any” (see

Figure 7).

A ContextCategory element represents the

semantic category of an operation, instead of its

actual signature. It is defined as a relation between

two categories (Category1 and Category2). These

categories can be either a reference to a document or

a constant. A document category (element

Document) has an attribute type indicating if the

document is an ontology or a context facet, and

contains an XPath expression referencing elements

in the document. In the case of an ontology

document, an attribute with the URL indicating the

location of the ontology that describes the context

operation is used. The language can support

different ontologies for describing context operation

categories since it does not make any assumption of

the structure and meaning of the ontologies used,

apart from the fact that the ontologies need to be

described in XML. A context category in a query is

evaluated against context facets of candidate

services. This evaluation verifies if a candidate

service has a context operation with semantic

category that satisfies the categories specified in a

query.

Arithmetic expressions define computations over

the values of elements or attributes in service

specification or context information. They are

defined as a sequence of arithmetic operands or

other nested arithmetic expressions connected by

arithmetic operators. The arithmetic operators are:

addition, subtraction, multiplication, and division

operators. The operands can be contextual, non-

contextual, constants, or functions.

ICSOFT 2009 - 4th International Conference on Software and Data Technologies

<tnsa:ConstraintQuery name="C1" type="SOFT"

contextual="false" weight="0.5">

<tnsa:LogicalExpression>

<tnsa:Condition relation="EQUAL-TO">

<tnsa:Operand1>

<tnsa:NonContextOperand facetName="OSem"

facetType="Beh">

//BPEL/process/sequence/*[1]/@operation

</tnsa:NonContextOperand> </tnsa:Operand1>

<tnsa:Operand2>

<tnsa:Constant

type="String">login</tnsa:Constant>

</tnsa:Operand2></tnsa:Condition>

</tnsa:LogicalExpression>

</tnsa:ConstraintQuery>

<tnsa:ConstraintQuery name="C2" contextual="true"

type="SOFT" weight="0.5">

<tnsa:LogicalExpression>

<tnsa:Condition relation="LESS-THAN">

<tnsa:Operand1>

<tnsa:ContextOperand

serviceOperationName="retrieveJournalistLocatio

serviceID="any">

<tnsa:ContextCategory relation="EQUAL-TO">

<tnsa:Category1>

<tnsa:Document

location="http://eg.org/CoDAMoS_Extended.xml"

type="ONTOLOGY">string(/owl:Class/@rdf:ID)

</tnsa:Document></tnsa:Category1>

<tnsa:Category2> <tnsa:Constant type="STRING">

GREDIA_RELATIVE_TIME</tnsa:Constant>

</tnsa:Category2></tnsa:ContextCategory>

</tnsa:ContextOperand></tnsa:Operand1>

<tnsa:Operand2>

<tnsa:Constant type="STRING">SECONDS-5

</tnsa:Constant></tnsa:Operand2>

</tnsa:Condition></tnsa:LogicalExpression>

</tnsa:ConstraintQuery>

Figure 8: Example of SerDiQueL query.

A function supports the execution of a complex

computation over a series of arguments. The results

of these computations are numerical values that can

be used as an operand in an arithmetic expression. A

function has a name and a sequence of one or more

arguments. Each of these arguments may be also a

contextual or non-contextual operand, constant, or

arithmetic expression.

In order to illustrate, consider service S1 that

identifies the location of journalists in the example

in Section 1. Assume two constraints for the service

to be identified to replace S1, namely: (a) contextual

constraint specifying that the time to retrieve the

location of a journalist should not be more than 5

seconds, and (b) non-contextual constraint

concerned with the fact that a user is authenticated

before accessing other functionalities of the service.

Figure 8 shows these two constraints in

SerDiQueL. Constraint C1 verifies if the first

operation in the service’s behavioural specification

is the operation login (case (a)). Constraint C2

specifies that any candidate service that can identify

the location of journalists (i.e., services that match

operation retrieveJournalistLocation) needs to have a

context operation classified in the category

GREDIA_RELATIVE_TIME in ontology

http://eg.org/CoDAMos_Extended.xml, and the

result of executing this operation has to less than

SECONDS-5 for this service to be accepted.

4 RELATED WORK

Several query languages have been proposed to

support web services discovery (Beeri et al., 2006)

(Pantazoglou et al., 2006) (Pantazoglou et al., 2007)

(Papazoglou et al., 2002) (Yunyao et al., 2005). In

(Beeri et al., 2006), the authors propose BP-QL a

visual query language for business processes

expressed in BPEL. SeDiQueL also supports

querying BPEL specifications. However, it differs

from BP-QL since it supports the specification of

structural, quality, and contextual conditions in the

query, and the behavioural conditions can be

matched against other types of behavioural service

specifications. The query language proposed in

(Papazoglou et al., 2002) is used to support

composition of services based on user’s goals.

NaLIX (Yunyao et al., 2005), a language developed

to allow querying XML databases based on natural

language, has also been adapted to cater for service

discovery. In (Pantazoglou et al., 2006), the authors

propose USQL (Unified Service Query language),

an XML-based language to represent syntactic,

semantic, and quality of service search criteria.

SeDiQueL is more complete, since it accounts for

the representation of behavioral aspects of the

application being developed and services to be

discovered, as well as context characteristics of

services and application environments. An extension

of USQL that incorporates behavioral based on

UML sequence diagrams has been proposed in

(Pantazoglou et al., 2007). The behavioural sub-

query of SerDiQueL is not restricted only to the

representation of sequence of operations.

Semantic matchmaking approaches have been

proposed to support service discovery based on logic

reasoning of terminological concept relations

represented on ontologies (Hausmann et al., 2004)

(Klein and Bernstein, 2004) (Klusch et al., 2006) (Li

and Horrock, 2003). In (Hausmann et al., 2004), the

A QUERY LANGUAGE FOR SERVICE DISCOVERY

discovery of services is addressed as a problem of

matching requests specified as a variant of

Description Logic (DL). The work in (Klein and

Bernstein, 2004) extends existing approaches by

supporting explicit and implicit semantics using

logic based, approximate matching, and IR

techniques. Our work differs from the above

approaches as it supports explicit and separate

representation of service requests based on various

types of characteristics for both static and dynamic

discovery.

In (Hall and Zisman, 2004) the authors advocate

the use of behavioural models of services to increase

the precision of the discovery process. Similarly, in

(Shen and Su, 2005) the authors use service

behaviour signatures to improve service discovery.

These approaches do not support service discovery

based on quality and contextual characteristics of the

services.

Context awareness in service discovery has been

proposed in (Bormann et al., 2005) (Choonhwa and

Helal, 2003) (Doulkeridis et al., 2006). In

(Doulkeridis et al., 2006), context information is

represented by key-value pairs attached to the edges

of a graph representing service classifications. This

approach does not integrate context information with

behavioural and quality matching and, since context

information is stored explicitly in the service

repository, this repository must be updated following

context changes. The approach in (Bormann et al.,

2005) uses ontologies to express service queries,

service descriptions, and context information.

Context information in this approach can also be

used as an implicit input to a service.

Overall, most of the proposed approaches

support service discovery for certain criteria whilst

SerDiQueL allows the specification of

comprehensive queries structural, functional,

quality, and contextual characteristics of services

and service-based applications at the same time.

5 CONCLUSIONS, DISCUSSION

AND FUTURE WORK

In this paper we have described SerDiQueL, a query

language for specifying service discovery queries

that can be executed during the development and

execution of service-based systems. SerDiQueL

allows the representation of structural, behavioural,

quality, and contextual characteristics of the services

to be discovered and the service-based systems

needing them.

A parser for SerDiQueL has been implemented

in Java. We have used SerDiQueL in a service

discovery framework that we have developed to

support static and dynamic service discovery. The

use of SerDiQueL in this framework has shown that

the language can support the description of

comprehensive queries expressing different

characteristics of the services to be discovered.

In particular, the representation of the structural

criteria in the query is flexible and can accommodate

both the description of design models of the systems

being developed and the services to be replaced in

them. The behavioural sub-query supports the

specification of different behavioural criteria of

services and service-based systems and is not

constrained by the use of proprietary languages (e.g.,

BPEL4WS). The language also supports behavioural

sub-queries to be evaluated in a fail-fast mode,

optimizing the matching of these sub-queries with

service specifications. The behavioural sub-query

does not support control structures and conditional

loops, since these types of operators require

knowledge of the state values of the services during

query evaluation, which in general are not available.

The constraint sub-query can specify a wide

spectrum of complex conditions ranging from

quality and contextual criteria, to extra structural and

behavioural aspects that cannot be specified in the

structural and behavioural sub-queries. The language

supports the use of different ontologies for

describing context operation categories and different

types of context operations for which values can be

extracted from a context server. In addition, the

constraint sub-query allows for the description of

any type of quality aspects that are described by

service specifications.

We have used SerDiQueL to describe service

discovery queries in both design and execution time

of service-based systems in different applications in

the telecommunication, automotive, software,

media, and banking domains with positive results.

More specifically, the use of SerDiQueL to support

the development of service-based systems has

shown an average precision of 91% for services with

very low distance to queries (less than 0.1 in a scale

between [0.0 and 1.0]), and a recall of 94% for

services with distance of up to 0.5 with queries.

Initial evaluation of the performance of matching

queries specified in SerDiQueL with structural,

behavioural, quality, and contextual constraints

against service specifications of the types described

in this paper, has shown average times of (i) 8,522

msec when matching 20 services; (ii) 18,153 msec

ICSOFT 2009 - 4th International Conference on Software and Data Technologies

for 40 services, and (iii) 28,754 msec for 60

services.

We are currently investigating the use of

SerDiQueL in other service discovery frameworks

and developing an editor to support the specification

of SerDiQueL queries.

ACKNOWLEDGEMENTS

The work reported in this paper has been funded by

the European Commission under the Information

Society Technologies Programme as part of the

project and GREDIA (contract FP6-34363).

REFERENCES

Bormann, F., et al., 2005. Towards Context-Aware

Service Discovery: A Case Study for a new Advice of

Charge Service. In 14th IST Mob. & Wireless Comm.

Summit.

Beeri C., Eyal A., Kamenkovich S., Milo T., 2006.

Querying Business Processes. In 32

International

Conference on Very Large Databases, Korea.

BPEL4WS. http://www128.ibm.com/developerworks/

library/specification/ws-bpel/

Choonhwa L., Helal, S., 2003. Context Attributes: An

Approach to Enable Context-awareness for Service

Discovery. In Symposium on Applications & the

Internet.

Deubler M., Meisinger M., Kruger I., 2005. Modelling

Crosscutting Services with UML Sequence Diagrams.

In ACM/IEEE 8th International Conference on Model

Driven Engineering Languages and Systems.

Doulkeridis, C., Loutas, N., Vazirgiannis, M., 2006. A

System Architecture for Context-Aware Service

Discovery. In Electr. Notes Theor. Comp. Sci. 146(1):

101-116.

Gardner T., 2004. UML Modelling of Automated Business

Processes with a Mapping to BPEL4WS. In 2

European Workshop on OO and Web Services

(ecoop).

GREDIA Project. http://www.gredai.eu

Hall, R.J., Zisman, A., 2004. Behavioral Models as

Service Descriptions. In International Conference on

Service Oriented Computing, New York.

Hausmann, J.R., Heckel, R., Lohman, M., 2004. Model-

based Discovery of Web Services. In Int. Conf. on

Web Services.

Klein, M., Bernstein, A., 2004. Toward High-Precision

Service Retrieval. In Internet Computing, 30-36.

Klusch, M., Fries, B., Sycara, K., 2006. Automated

Semantic Web Service Discovery with OWLS-MX. In

International Conference on Autonomous Agents and

Multiagent Systems.

Kozlenkov, A., Spanoudakis, G., Zisman, A., Fasoulas,

V., Sanchez, F., 2007. Architecture-driven Service

Discovery for Service Centric Systems. In

International Journal of Web Services Research,

special issue on Service Engineering, 4(2), April-June.

Li, L., Horrock, I., 2003. A Software Framework for

Matchmaking based on Semantic Web Technology. In

Workshop on E-Services & the Semantic Web.

Pantazoglou, M., Tsalgatidou, A., Athanasopoulos G.,

2006. Discovering Web Services in JXTA Peer-to-

Peer Services in a Unified Manner. In 4

International

Conference on Service Oriented Computing.

Pantazoglou, M., Tsalgatidou, A., Spanoudakis, G., 2007.

Behavior-aware, Unified Service Discovery. In

Proceedings of the Service-Oriented Computing: a

look at the inside Workshop, SOC@Inside.

Papazoglou, M., Aiello, M., Pistore, M., Yang, J., 2002.

XSRL: A Request Language for web services,

http://citeseer.ist.psu.edu/575968.html

SECSE Project. http://secse.eng.it

Shen, Z., Su, J., 2005. Web Service Discovery based on

Behavior Signatures. In Int. Conf. on Service

Computing.

Spanoudakis, G., Mahbub, K., Zisman, A., 2007. A

Platform for Context-Aware Run-time Service

Discovery. In IEEE Int. Conf. on Web Services, USA.

WSDL. http://www.w3.org/TR/wsdl

Yunyao, L.Y., Yanh, H., Jagadish, H., 2005. NaLIX: an

Interactive Natural Language Interface for Querying

XML. In SIGMOD, Baltimore.

Zisman, A., Spanoudakis, G., 2006.UML-based Service

Discovery Framework. In 4th International

Conference on Service Oriented Computing, ICSOC,

USA.

Zisman, A., Spanoudakis, Dooley, J., 2008. A Framework

for Dynamic Service Discovery. In IEEE International

Conference on Automated Software Engineering, ASE,

Italy, September.

A QUERY LANGUAGE FOR SERVICE DISCOVERY
