ON PRIVACY IN BUSINESS PROCESSES

Observing Delegation of Personal Data by using Digital Watermarking

Sven Wohlgemuth, Isao Echizen, Noboru Sonehara

National Institute of Informatics, 2-1-2 Hitotsubashi, Chiyoda-ku, Tokyo 101-8430, Japan

G¨unter M¨uller

Institute of Computer Science and Social Studies, Albert-Ludwigs University of Freiburg, Germany

Keywords:

Privacy, Business processes, Usage control.

Abstract:

Privacy in business processes for personalized services is currently a matter of trust. Business processes require

the delegation of personal data and users are not able to control their delegation and so their usage. Existing

privacy-enhancing technologies consider access control but not usage control of personal data. Current work

on usage control considers especially formalization of usage rules, so called obligations, and their enforce-

ment by using mechanisms of Digital Rights Management, secure logging of access requests for an ex post

enforcement, and the non-linkable delegation of access rights to personal data. However, either these enforce-

ment mechanisms do not consider a delegation of personal data or they assume trustworthy data consumers

or data providers respectively. We investigate on digital watermarking in order to observe the enforcement of

obligations for a delegation of personal data without mandatory trusting in service providers.

1 INTRODUCTION

Business processes for personalized services require

the collection and delegation of personal data. De-

pending on the purpose of the data usage, service

providers act as a data consumer (DC) or as a data

provider (DP). As a data consumer they collect, use,

and save personal data. As a data provider they del-

egate personal data to other service providers. An

example for such a change of roles are customer

loyalty programs (Customer Relationship Manage-

ment - CRM). The challenge faced is whether the re-

quirements of the European data protection directive

(European Commission, 1995) and the Japanese Act

on the Protection of Personal Information (Japanese

Government, 2005) are fulﬁlled so that users are able

to enforce respectively control the enforcement of the

agreed rules for using personal data.

Anonymity services and identity management

systems focus on the collection of personal data and

Concerning a delegation of personal data, the corre-

sponding user has to give his agreement in advance. The

data provider has to inform the user before a delegation

about the personal data to be delegated, the purpose of the

delegation, and about the recipients.

so on the access to it. Identity management systems

protect users against an undesired proﬁling by using

pseudonymity. If they are applied on a delegation of

personal data, users will lose the control on their per-

sonal data (Wohlgemuth and M¨uller, 2006). Current

work on usage control focuses either on the formaliza-

tion of obligations (Hilty et al., 2005), on enforcement

of obligations by using mechanisms of Digital Rights

Management (DRM)(Pretschner et al., 2008), on au-

dits concerning the usage of personal data by secure

logging (Accorsi, 2007), and on protocols for a non-

linkable delegation of rights in order to get access to

personal data at service providers (Wohlgemuth and

M¨uller, 2006). However, DRM mechanisms do not

consider delegation (Rosenblatt et al., 2001), secure

logging does not consider delegation when authorized

data consumers have got access to personal data, and

non-linkable delegation of rights assumes trustworthy

data providers in order to enforce delegated access

rights of service providers as data consumers.

Our contribution is a scheme for observing dele-

gations of personal data. This scheme makes use of

digital watermarking but without the need of trust-

worthy service providers, i.e. data providers. Since

this scheme abstracts from watermarking algorithms

Wohlgemuth S., Echizen I., Sonehara N. and Müller G. (2009).

ON PRIVACY IN BUSINESS PROCESSES - Observing Delegation of Personal Data by using Digital Watermarking.

In Proceedings of the International Conference on e-Business, pages 27-32

DOI: 10.5220/0002260600270032

 SciTePress

by focussing on the model for embedding and detect-

ing watermarks, it is suitable for any medium format

and presents thereby also an approach for enhancing

DRM to a controlled delegation of digital content.

Section 2 describes a privacy threat in case of non-

compliant data providers in the case study of CRM.

Section 3 presents our approach for observing a del-

egation of personal data. Section 4 investigates on

the use of digital watermarking for our scheme and

presents the conceptional weaknesses of digital wa-

termarking concerning mandatory trustworthy service

providers. Section 5 presents our scheme DETEC-

TIVE for using watermarking to observe delegations

of personal data. Section 6 reports on related work.

Section 7 concludes the result of our work so far.

2 DELEGATION OF PERSONAL

DATA IN CRM

An instance of CRM are loyalty programs. Participat-

ing users get discounts on services if they use their

loyalty card at the service providers of this loyalty

program. At the same time, these service providers

collects personal data about their users, e.g. customer

number, goods or services, payment, time, location,

and amount of discount by means of loyalty points,

and delegates this data to the provider of the loyalty

program. A loyalty provider offers on behalf of the

participating service providers personalized services

and advertisements to the users and manages their dis-

counts.

In practice, loyalty program providers publish

their privacy policy as part of their general terms

and conditions.

If users want to participate in a

loyalty program, they have to accept their general

terms and conditions and thereby give loyalty pro-

gram providers full authority to process their personal

data. A loyalty program provider collects personal

data of users whenever they use their loyalty card

while buying goods and services of the participating

service providers. We assume that a user and the loy-

alty program provider have agreed on a privacy policy

and so obligations for delegations of his personal data

d to service provider 2 and d’ to service provider 3.

Additional delegations of d and d’ are not allowed.

A violation of these obligations has occurred if

personal data has been delegated to non-authorized

service providers. Figure 1 shows an exemplary ﬂow

of personal data according to the model of (Pretschner

cf. the privacy policies of PAYBACK at

http://www.payback.de and Miles & More at

http://www.milesandmore.com

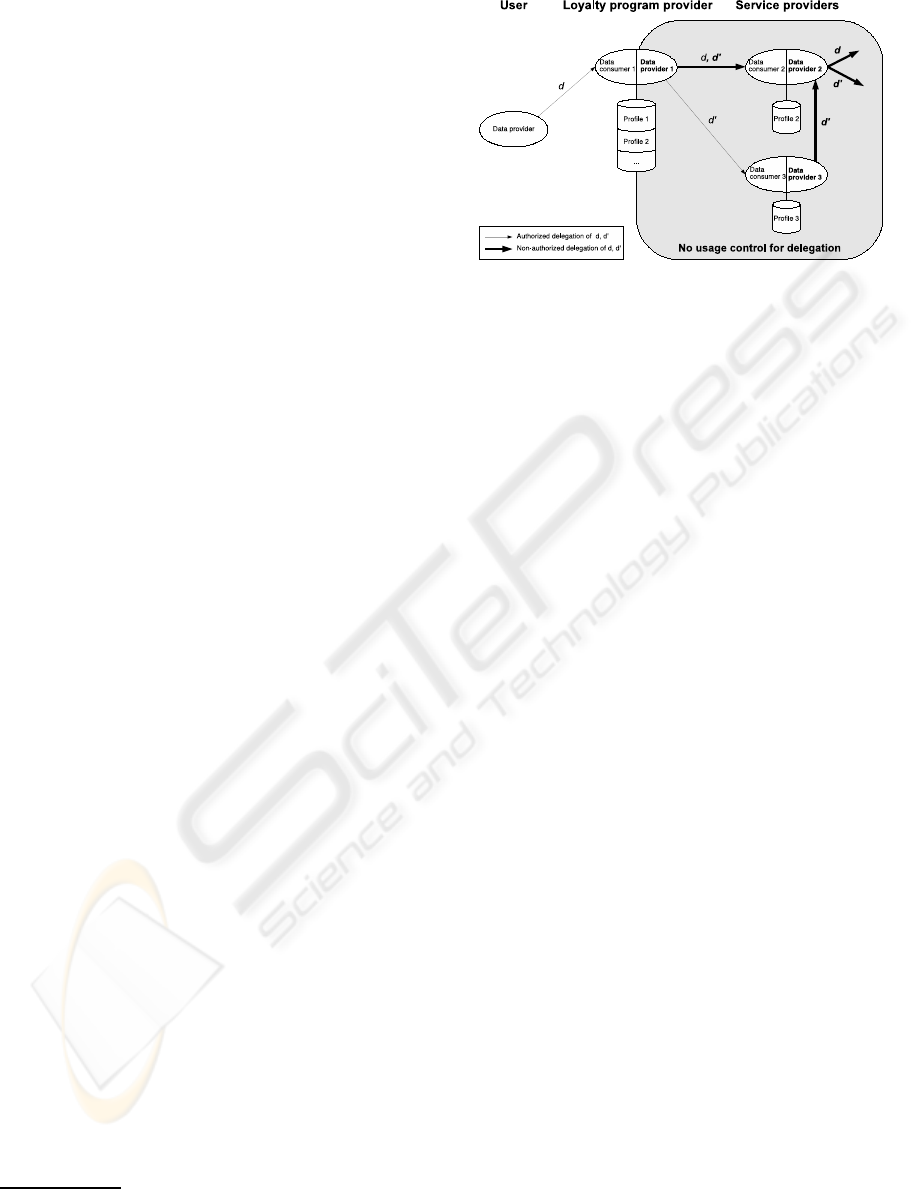

Figure 1: Delegation of personal data in contrary to obliga-

tions.

et al., 2006) and two violations. The ﬁrst violation

stems from the loyalty program provider, since he has

delegated d’ in addition to d to service provider 2.

The second violation stems from service provider 3,

since he has delegated d’ to service provider 2. Also,

the second delegation may happen indirectly by link-

ing user’s transactions, e.g. if the user uses the same

identiﬁer in several transactions with service provider

2 and service provider 3. The challenge is to detect

the permitted information ﬂow and to identify untrust-

worthy data providers.

3 OBSERVING DELEGATION OF

PERSONAL DATA

Since it is unlikely that service providers will give

users some control on their information systems, we

treat them as a black box. Our approach considers the

fact that personal data has been delegated and focuses

on the observation of delegations of given personal

data between data providers and data consumers. In

order to identify these participants, all delegations of

given personal data should be traceable. Secondly,

in order to prevent indirect information ﬂows, users’

transactions should be non-linkable as far as obliga-

tions do not consider the delegation of identifying

data. Traceability in this context means that an in-

formation ﬂow should be uniquely mapped to a data

provider, data consumer and the corresponding user.

Data providers should not be able to repudiate a dele-

gation but they should be able to prove that they have

not delegated given personal data.

We propose to tag an information ﬂow between

two parties and to get a proof for data providers and

data consumers concerning the delegation and receipt

of given personal data. The tag for personal data d

consists of data provider’s identity ID

, data con-

sumer’s identity ID

, the corresponding user’s iden-

ICE-B 2009 - International Conference on E-business

tity ID

User

, and of a link

obligations

to the agreed obliga-

tions: tag = (ID

, ID

User

, link

obligations

). The

obligations are indirectly part of a tag by a link to

them (link

obligations

), since they should be modiﬁable

due to a change of the business process or an ex-

change of the authorized service providers. The tag

should be sticky to d similar to (Karjoth et al., 2002)

so that d

∗

= (d, tag) is going to be delegated while

assuring the integrity of d

∗

. If d

∗

is going to be del-

egated further in compliant to the obligations, the tag

has to be updated by replacing ID

with the iden-

tity of the former data consumer and by adding the

new data consumer ID

′

. A sequence of tags for the

same personal data describes an information ﬂow by

a delegation chain. In the following we apply sym-

metric and asymmetric digital watermarking schemes

on the scenario in order to ﬁnd out their suitability for

our approach.

4 DIGITAL WATERMARKING

AND DELEGATION

Digital watermarking aims for detecting unauthorized

copies of digital content (Cox et al., 2008). Recent ap-

proaches consider watermarks for text, e.g. by mak-

ing use of the structure of XML messages (Zhou et al.,

2005). The main characteristic of digital watermark-

ing schemes is the use of a symmetric watermarking

key in order to produce noise to embed watermarks

in (Cox et al., 2008). If one knows this key and the

watermarking algorithm, he is able to embed, detect,

and remove watermarks. Since neither data providers,

data consumers nor users should be able to forge a

digital watermark, e.g. in order to obscure a delega-

tion, the watermarking algorithms and the watermark-

ing key are to be kept secret from them. For this rea-

son, a Trusted Third Party (TTP) has to be introduced

in order to embed and detect digital watermarks so

that solely the TTP knows these secrets.

Figure 2 shows the application of digital water-

marking in combination with the use of a TTP. For

simplicity, user’s proﬁles are not shown. The user

has already disclosed d* to service provider 1 with

the obligation that he is allowed to delegate d

′

to ser-

vice provider 3. According to the symmetric scheme,

service provider 1 requests the TTP to embed the tag

for the authorized delegation and sends ID

User

from

user’s authentication, ID

= ID

and d

∗

. The

TTP gets ID

= ID

SP 3

and link

obligations

from ser-

vice provider 3. The TTP returns the embedded tag

by d

′∗

to service provider 1 who redirects it to service

provider 3. Thus both service providers get d

′∗

. If one

of them delegates it to service provider 2, neither user

nor arbiter can decide whether service provider 1 or

service provider 3 has violated this obligation. Also,

service providers have got no proof that they have not

violated the obligations. In addition, every participant

has to trust the TTP that she will embed and detect

digital watermarks according to her policy.

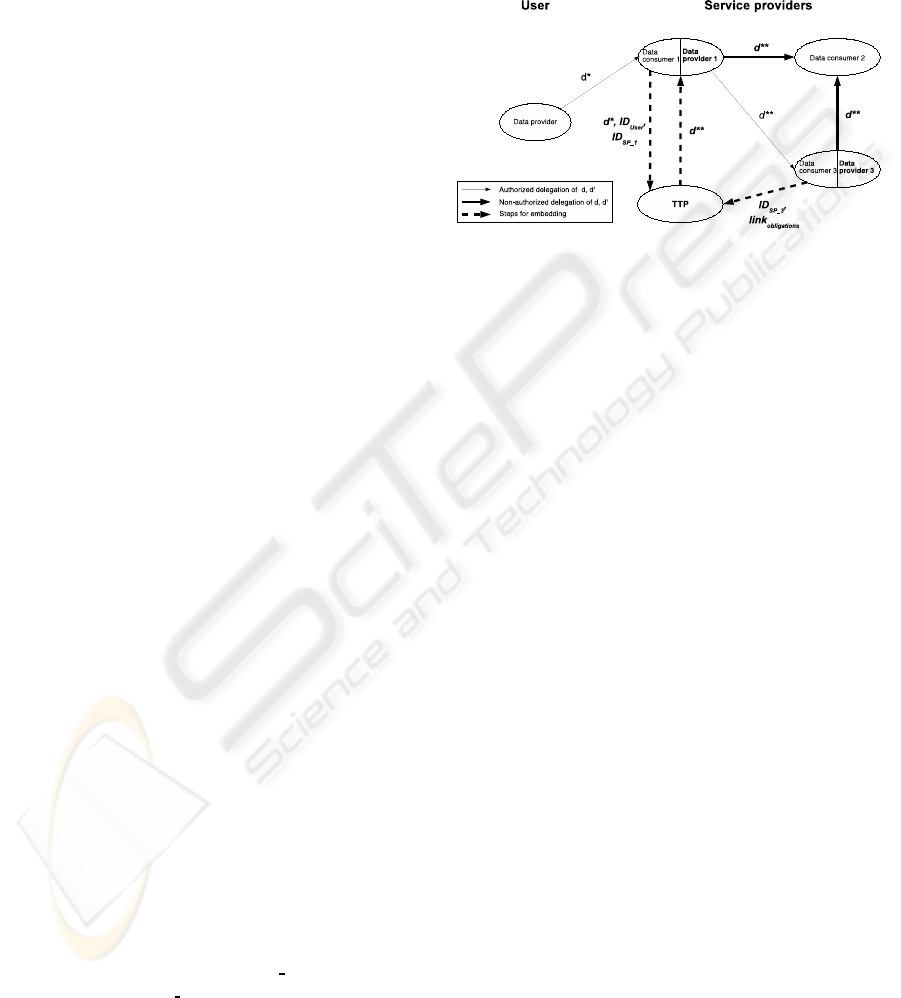

Figure 2: Applying digital watermarking on delegation of

personal data d.

Asymmetric ﬁngerprinting (Pﬁtzmann and

Schunter, 1996) solves this problem of undecidabil-

ity. In principle, asymmetric ﬁngerprinting combines

a digital watermarking scheme with cryptographic

commitments and the digital signature of the data

consumer. Data providers embed the watermarks

consisting of a random ID

chosen by data con-

sumers together with a text, here the obligations. The

protocol of (Pﬁtzmann and Schunter, 1996) assures

by using commitments that only data consumers

get the watermark. The obligations are signed by

data consumers and sent to the data provider. This

is the proof of the data provider that the given data

consumer will get this data with the watermark.

However,asymmetric ﬁngerprinting assumes con-

ﬂicting interests between providers and consumers.

This contradicts with our trust model, i.e. service

providers may violate user’s obligations, since they

have an interest to collude. A solution is again

the introduction of a TTP who checks whether ser-

vice providers as provider and consumer have run

the asymmetric ﬁngerprinting protocol as expected by

verifying the results of the protocol.

5 DETECTIVE: DELEGATION OF

PERSONAL DATA WITH

DIGITAL WATERMARKS

With DETECTIVE, we propose a modiﬁcation for

the asymmetric ﬁngerprinting scheme so that it can

be used without a TTP. Concerning the embedding

and verifying of digital watermarks, the main differ-

ON PRIVACY IN BUSINESS PROCESSES - Observing Delegation of Personal Data by using Digital Watermarking

ence of DETECTIVE to the scheme of (Pﬁtzmann

and Schunter, 1996) is the integration of users’ agree-

ment by means of delegated access rights to the re-

quested personal data. Thus our scheme should gen-

erate only valid digital watermarks if the delegated

access rights of data consumers to the correspond-

ing personal data are used. We modify the proto-

cols of (Pﬁtzmann and Schunter, 1996) and combine

them with our previous work: the DREISAM proto-

cols for a non-linkable delegation of rights (Wohlge-

muth and M¨uller, 2006). The outcome of a proto-

col run of DREISAM is an anonymous one-show cre-

dential for the data consumer which is linked to his

identity which is represented by his cryptographic se-

cret key k

.(Camenisch and Lysyanskaya, 2001) An

anonymous credential consists of user’s access right

to personal data stored by a data provider and of his

obligations for a further delegation of personal data.

If a data consumer wants to get access on this per-

sonal data, he will show his anonymous credential to

the given service provider as the data provider. The

messages of a showing protocol’s run are written in a

transcript which is used for solving disputes and de-

anonymizing a dishonest participant.(Camenisch and

Lysyanskaya, 2001)

Our scheme consists of three protocols: init, tag,

and verify. The init protocol generates the crypto-

graphic key pair (pk

, sk

) of the data consumer

if necessary and broadcasts it via an authentic chan-

nel, e.g. a public-key infrastructure. If the ser-

vice provider acting as a data consumer has not

got rights from the user, this service provider starts

one run of the DREISAM protocol with the results

anonymousCredential(rights, DC, DP, obligations,

CA) and transcript(DP, DC, anonymousCredential).

If the data has not been disclosed, the user discloses

it to the requesting service providers and embeds a

watermark by running the tag protocol.

The tag protocol involves two service providers,

one as a data provider and the other as a data con-

sumer. The data provider uses a symmetric water-

marking scheme in order to embed the identity of the

data consumer together with user’s identity in his per-

sonal data d. In order to distinguish between the ser-

vice provider as data provider and the service provider

as data consumer, the data provider uses the identity

of the data consumer k

as cryptographic commit-

ments, embeds them in the personal data, and com-

putes a commitment of the watermark. This commit-

ment is not the resulting watermark. Otherwise the

service provider who is acting as the data provider

would also have it. Therefore, the data consumer

opens his commitments. The result is the product

of data provider’s commitment with the opened data

consumer’s commitments. This is the watermark of

the personal data. On the other side, the data provider

needs a conﬁrmation that he has got the identity of

the data consumer, i.e. his commitments, and the

rights which the data consumer has got from the user.

This requirement of non-repudiation by the data con-

sumer is fulﬁlled by the digital signature on the tran-

script and the commitments concerning k

. After

getting this signature, the data provider will compute

the commitment of the embedded data and send it as

a commitment to the data consumer. Figure 3 shows

the tagging function.

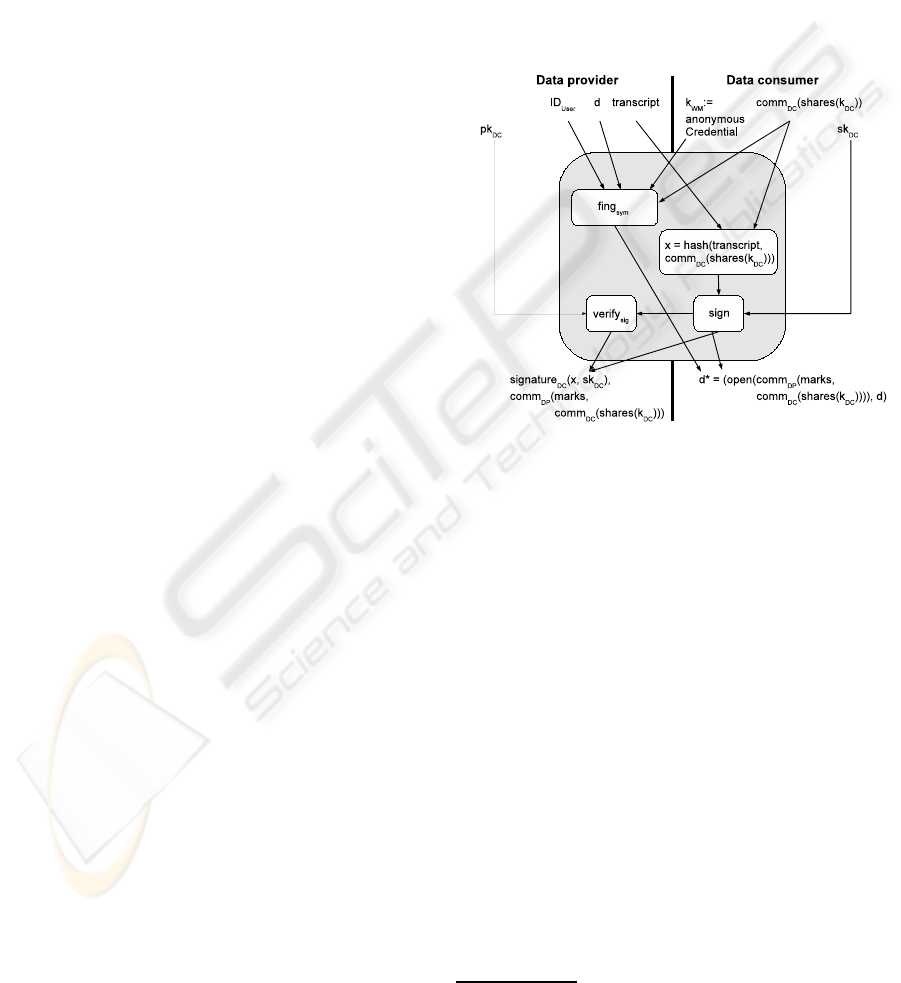

Figure 3: Tagging personal data with delegated rights

based on (Pﬁtzmann and Schunter, 1996; Wohlgemuth and

M¨uller, 2006).

The tag protocol is as follows:

1. The data consumer chooses the right which

the user has delegated to him by means

of anonymousCredential(rights, DC, DP, obligat-

ions,CA) as the watermarking key k

for

a given watermarking algorithm and sends

transcript(DP, DC, anonymousCredential) to the

data provider.

2. The data consumer sends his identity k

means of commitments comm

(shares(k

)) to

the data provider. The data provider cannot use

, e.g. for impersonation the data consumer.

The data consumer sends the commitments of

l − 1 shares to the data provider,

so that k

will

be embedded at various places in d. The data con-

sumer shows the correctness of his commitments

and their relationship to the shares of k

by using

the veriﬁable secret sharing scheme of (Pedersen,

1992).

l < n shares are at least necessary to reconstruct the

key(Pedersen, 1992).

ICE-B 2009 - International Conference on E-business

3. The data provider embeds comm

(shares(k

))

in the representation d and stores these places as

marks. Afterwards, he computes a commitment

comm

(marks, comm

(shares(k

))). The re-

sult is the tagged personal data as the commitment

of the data provider.

4. The data consumer computes the hash value of

transcript(DP, DC, anonymousCredential) and

his identity (comm

(shares(k

))). Afterwards,

he signs the hash value with his signature key

and sends it with the digital signature to the

data provider.

5. The data provider veriﬁes the digital signature. If

it is valid, he saves it with the commitments of the

data consumer. Then he sends his commitment of

the watermark to the data consumer.

6. The data consumer opens data provider’s commit-

ments. This results is the valid watermark of d.

Since only the data consumer is able to open his

commitments, the data provider has not got this

watermark.

The enforcement of running the tag protocol de-

pends on the correctness of the veriﬁcation. Dishon-

est service providers who either does not embed a wa-

termark or modify respectively remove a watermark

must be identiﬁed by running the verify protocol. Ei-

ther the user or an arbiter starts the verify protocol.

The assumption is that one of those has found per-

sonal data and want to check whether the data con-

sumer where this data has been found has the autho-

rization to use it. At the beginning of the verify proto-

col, they re-construct the delegation chain of personal

data under investigation by delegated access rights. If

the user has delegated the corresponding rights to this

service provider, then there is no violation of the obli-

gation and the veriﬁcation is ﬁnished. Otherwise the

obligation has violated and the aim of the verify pro-

tocol is to identify the dishonest service provider who

has non-authorized acted as a data provider.

The user or the arbiter extract all watermarks of

the found personal data by using the anonymous cre-

dentials of the delegation chain as the watermarking

keys. By mapping these watermarks to the delega-

tion chain via the anonymous credentials, the veriﬁer

knows the last data consumers of the chain. In the

worst case, this is the watermark which has been cre-

ated between the user and the ﬁrst service provider

by the init protocol. If one of these watermarks is

identical to the found one, the user request the the

digital signature of the data consumer from the cor-

responding data provider and checks it. In the next

step, the user requests the data consumer to open his

commitments. The veriﬁer compares these opened

commitments with those found in the watermark. If

the digital signature and the commitments of the data

consumer are correct, then the data consumer has vio-

lated the obligation. Otherwise, the data provider has

violated the obligations.

6 RELATED WORK

Current work on enforcement of a policy for infor-

mation ﬂows concentrate on formal methods (Mantel,

2001) or on encryption (Casassa Mont and Pearson,

2005). However formal methods consider an infor-

mation ﬂow via covert channels or an indirect path

from a data provider to a data consumer. In addition,

a corresponding veriﬁcation of a system implies that

this system doesn’t change afterwards. Otherwise, it

has to be veriﬁed again.

Obligations for a delegation of personal data are

realized by sticky policies (Karjoth et al., 2002). An

implementation of sticky policies for delegation of

personal data is the adaptive privacy management

system (Adaptive PMS) by (Casassa Mont and Pear-

son, 2005). Sticky policies are linked to certain per-

sonal data at the time of their collection by an encryp-

tion scheme. A data consumer will get the decryption

key from a TTP, if he is authorized by the sticky pol-

icy. After the decryption of the personal data, these

data consumers are able to delegate the decrypted per-

sonal data further.

7 CONCLUSIONS

We have shown that using digital watermarking and

asymmetric ﬁngerprinting schemes for observing a

delegation of personal data results in the introduction

of a TTP. By modifying the asymmetric ﬁngerprint-

ing scheme by adding data consumer’s rights to get

this personal data, we have proposed a scheme where

users will be able to control the delegation of per-

sonal data according to their delegated rights. Since

the suitability of watermarking schemes depends on

the existenceof watermarking algorithms, our scheme

may also be used for personal data which is repre-

sented by images, e.g. x-ray images in case of elec-

tronic health records (EHR). The model of EHR ser-

vices is the same as the model of CRM. Especially

the providers of EHR should not be seen as trustwor-

thy in contrary to doctors or nursery services. Cur-

rent technical infrastructures and services for EHR,

e.g. for the German electronic health card (gematik -

Gesellschaft f¨ur Telematikanwendungen der Gesund-

heitskarte mbH, 2008), uses encryptionof patient data

ON PRIVACY IN BUSINESS PROCESSES - Observing Delegation of Personal Data by using Digital Watermarking

in order to protect them against non-authorized use by

the EHR provider. Consequently, the EHR provider

cannot use this data and so cannot offer additional ser-

vices.

In the next step we will specify the cryptographic

protocols of our scheme and apply a proof-of-concept

implementation on the use case of EHR. The proof-

of-concept implementation of DETECTIVE will be

evaluated against attacks on the protocol layer, i.e. on

the tagging and detecting protocol. Attacks will be

derived from the German IT Baseline Protection Cat-

alogue and from the Japanese Act on the Protection of

Personal Information. Secondly, the evaluation will

consider the economic requirements of services based

on electronic health records and investigate on its fea-

sibility for personal data as, e.g., x-ray images in the

EHR scenario.

ACKNOWLEDGEMENTS

This work has been funded by the Japan Society for

the Promotion of Science (JSPS). The cooperative

work between the University of Freiburg and the Na-

tional Institute of Informatics has been done within

their Memorandum of Understanding.

REFERENCES

Accorsi, R. (2007). Automated Privacy Audits to Com-

plement the Notion of Control for Identity Manage-

ment. In Policies and Research in Identity Manage-

ment. IFIP.

Camenisch, J. and Lysyanskaya, A. (2001). Efﬁcient non-

transferable anonymous multi-show credential system

with optional anonymity revocation. In EUROCRYPT

2001, volume 2045 of Lecture Notes in Computer Sci-

ence, pages 91–118. Springer.

Casassa Mont, M. and Pearson, S. (2005). An Adaptive Pri-

vacy Management System for Data Repositories. In

Kazikas, S., Lopez, J., and Pernul, G., editors, Trust-

Bus 2005, volume 3592 of Lectures Notes in Com-

puter Science, pages 236–245, Heidelberg. Springer.

Cox, I. J., Miller, M. L., Bloom, J. A., Fridrich, J.,

and Kalker, T. (2008). Digital Watermarking and

Steganography. Morgan Kaufmann.

European Commission (1995). Directive 95/46/EC of the

European Parliament and of the Council of 24 October

1995 on the protection of individuals with regard to

the processing of personal data and on the free move-

ment of such data. Ofﬁcial Journal of the European

Communities, L 281(395L0046):31–50.

gematik - Gesellschaft f¨ur Telematikanwend-

ungen der Gesundheitskarte mbH (2008).

Ubergreifendes Datenschutzkonzept der

Gesundheitstelematik Version 0.9.0.

http://www.gematik.de/upload/gematik

DS Daten-

schutzkonzept

V0.9.0 3803.pdf.

Hilty, M., Basin, D., and Pretschner, A. (2005). On Obli-

gations. In de Capitani di Vimercati, S., Syverson, P.,

and Gollmann, D., editors, 10th European Symposium

on Research in Computer Security (ESORICS 2005),

volume 3679 of Lecture Notes in Computer Science,

pages 98–117. Springer.

Japanese Government (2005). Act on the

Protection of Personal Information.

http://www5.cao.go.jp/seikatsu/kojin/foreign/act.pdf,.

Karjoth, G., Schunter, M., and Waidner, M. (2002). Privacy-

enabled Services for Enterprises. In International

Workshop on Trust and Privacy in Digital Business

(Trustbus 2002), pages 483–487.

Mantel, H. (2001). Information Flow Control – Bridging a

Gap. In FME 2001, volume 2021 of Lecture Notes in

Computer Science, pages 153–172. Springer.

Pedersen, T. P. (1992). Non-Interactive and Information-

Theoretic Secure Veriﬁable Secret Sharing. In

CRYPTO 1991, volume 576 of Lecture Notes in Com-

puter Science, pages 129–140. Springer.

Pﬁtzmann, B. and Schunter, M. (1996). Asymmetric Fin-

gerprinting. In Eurocrypt 1996, volume 1070 of

Lecture Notes in Computer Science, pages 84–95.

Springer.

Pretschner, A., Hilty, M., and Basin, D. (2006). Dis-

tributed Usage Control. Communications of the ACM,

49(9):39–44.

Pretschner, A., Hilty, M., Sch¨utz, F., Schaefer, C., and Wal-

ter, T. (2008). Usage Control Enforcement: Present

and Future. IEEE Security and Privacy, 6(4):44–53.

Rosenblatt, B., Trippe, B., and Mooney, S. (2001). Digital

Rights Management: Business and Technology. John

Wiley & Sons.

Wohlgemuth, S. and M¨uller, G. (2006). Privacy with Dele-

gation of Rights by Identity Management. In Interna-

tional Conference on Emerging Trends in Information

and Communication Security (ETRICS 2006), volume

3995 of Lectures Notes in Computer Science, pages

175–190. Springer.

Zhou, X., Pang, H., Tan, K., and Mangla, D. (2005).

WmXML: A System for Watermarking XML Data.

In Proceedings of the 31st international conference on

Very Large Data Bases, pages 1138–1321.

ICE-B 2009 - International Conference on E-business
