Optimization of Digital Wireless Transceiver

Embedded System Built on Xilinx FPGA

Konstantin Tafintsev, Victor Barinov, Alexander Bahtin and Vyacheslav Litvinov

Moscow Institute of Electronic Technology (Technical University)

Telecommunication Systems Department

Pas. 4806 bld. 5, Zelenograd, 124498 Moscow, Russia

Abstract. FPGA is becoming the most popular technology for developing new

wireless systems. It makes design flow easier to realize even in a small

company or academic institution with limited resources (human and/or budget).

But when system is ready to enter production stage some drawbacks may stop

its further progress. A short description of the wireless transceiver project for

mobile vehicles is presented. Drawbacks are highlighted. The most critical of

them, that reduces market attractiveness, is cost. To reduce cost a decision has

been made to replace expensive Virtex4 by cheaper Spartan3 FPGA. This

required making some changes in architecture. But the most part of previously

created software and firmware were reused in new design.

1 Introduction

Today we can see a rapid growing market demand of high-rate wireless

communication lines for mobile vehicles: cars, trains, ships, even more for unmanned

vehicles. This communication line could be used to create ad-hoc type networks.

Typical requirements for wireless transceivers of this communication line are

following:

• Data rate up to 10 Mbits per second for uplink (to base station or control site);

• Data rate up to 100 kbits per second for downlink (control commands to mobile

vehicle);

• Traffic types: high resolution color video, voice, control commands and

telemetry;

• Vehicle speed from 0 up to 1000 km/h.

Existing and successfully selling technologies such as WiFi and WiMAX were

tried to solve the problem but they do not fit requirement and are unusable. Fast

movement of communicating objects causes OFDM signal structure totally degraded.

Mobile WiMAX is not stable for today also. These technologies are too complex and

have excessive functionality for asynchronous managed or ad-hoc networks.

Furthermore implementations of WiFi and WiMAX modules presented at the market

do not allow measuring power and other characteristics overload baseband and

network layer logic required for cross layer optimization.

Taﬁntsev K., Barinov V., Bahtin A. and Litvinov V. (2009).

Optimization of Digital Wireless Transceiver Embedded System Built on Xilinx FPGA.

In Proceedings of the International Workshop on Networked embedded and control system technologies: European and Russian R&D cooperation,

pages 26-30

 SciTePress

Worth mentioning that flexible and energy efficient ad-hoc networks needed cross

layer interaction, another words, tight communication between baseband processing

and software implementing network management should be enabled.

The challenge we have stated to ourselves is to create wireless digital

communication line for mobile vehicles with parameters and characteristics described

above.

2 Existing System

There is a short description of currently existing wireless transceiver that was

designed at our labs. The transceiver uses super heterodyne architecture that

implemented in two parts: analogue front-end and digital baseband processing

coupled with control unit based on embedded system with embedded Linux OS

running on PowerPC 405 CPU (Fig.1).



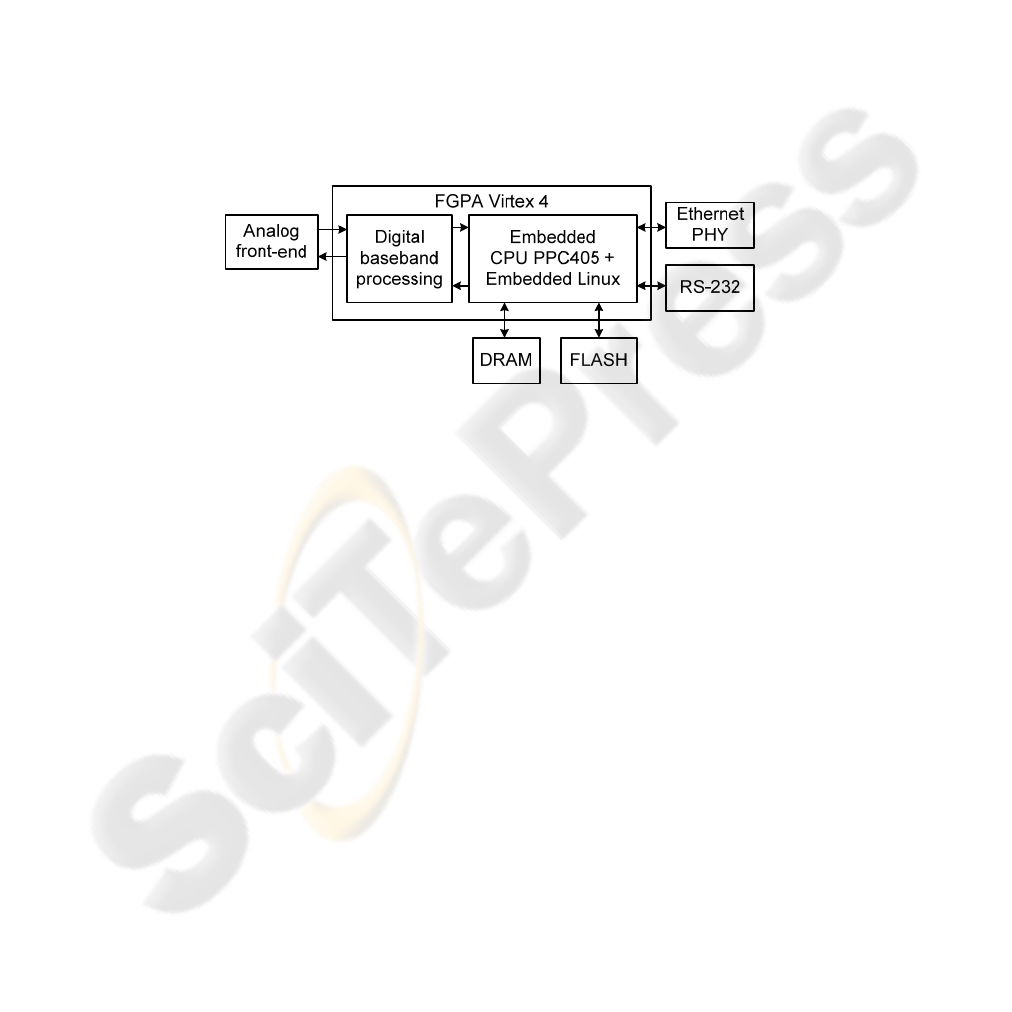

Fig. 1. Wireless transceiver embedded system.

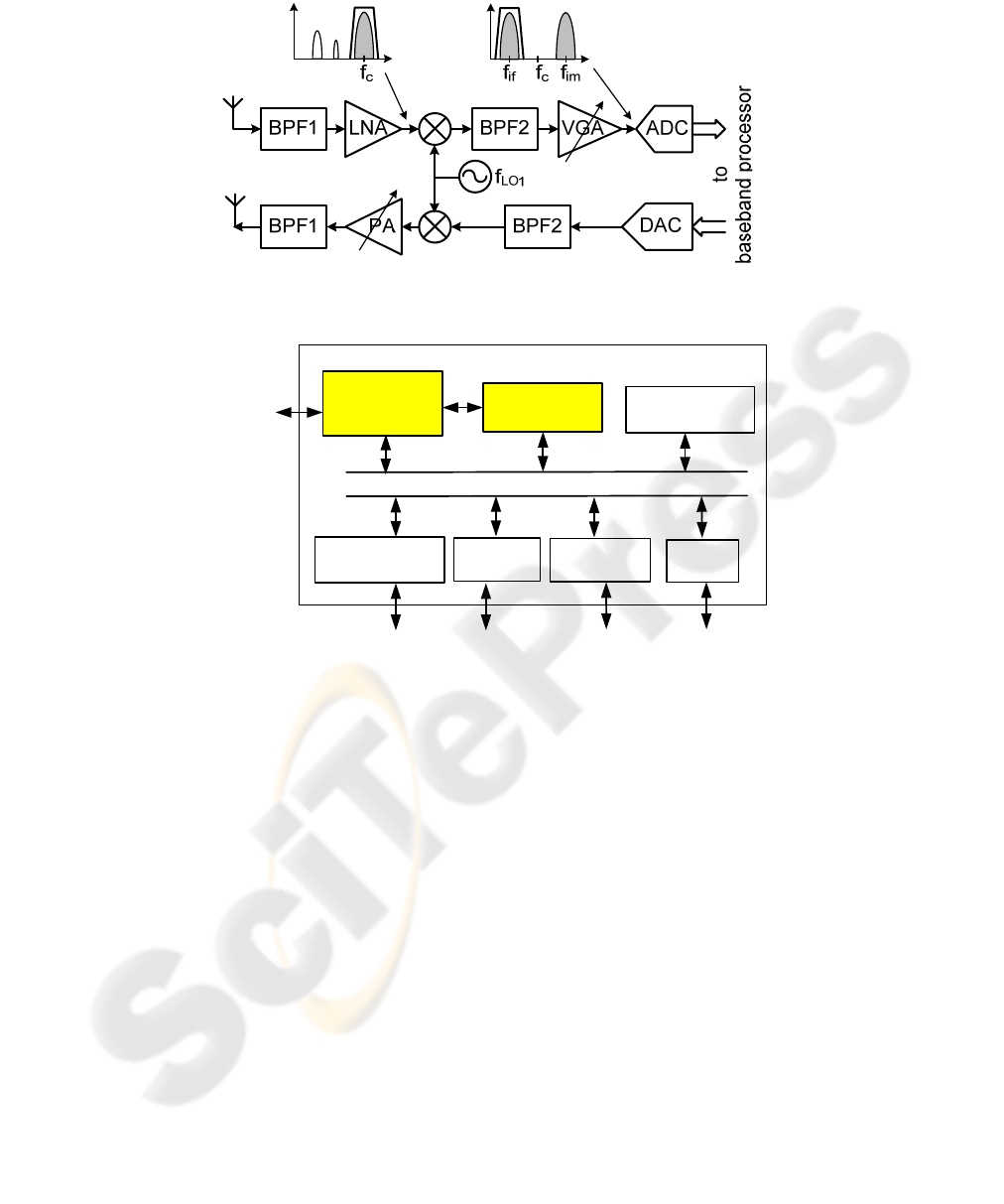

Analog front-end made as digital-IF heterodyne architecture [1] and is presented

on Fig.2. This architecture has some advantages and disadvantages:

Pluses.

• only single channel ADC and DAC are used,

• quadrature modulation/demodulation is in digital domain,

• absence of quadrature imbalance due to demodulation made in digital domain.

Minuses.

• high sample rates and dynamic range of AD/DA converters is required to

digitize IF,

• extra band pass filtering stage (BPF2) for image rejection,

• reduced ability of miniaturization due to a big amount of external components.

Fig. 2. Wireless transceiver analog front-end. f

– carrier frequency; f

– intermediate

frequency; f

– image center frequency; f

LO1

– local oscillator frequency.

FIFO, frame

formatting

Baseband

processing

SW-core

HW core

Ethernet MAC

PPC405 CPU

HW-core

RS-232

DDR RAM

controller

FLASH

controller

Virtex IV FX FPGA

Analog

Front-end

External com

onents: FLAS

, DRAM, Eth PHY etc.

CONTROL

DATA

Fig. 3. Existing embedded system architecture for wireless transceiver based on Xilinx Virtex

IV FPGA.

Main drawback of described transceiver is its cost. Main part of the transceiver is a

Virtex 4 FPGA. This FPGA is very comfortable for engineer and is as flexible as it

allows changing design and debugging in a very simple way. However, the price of

Virtex 4 is few thousand dollars and it really disappoints potential customer.

Another one disadvantage is high sample rates of converters and additional

bandpass filter stage for image rejection. The SAW filters are used in this

architecture. They are expensive too and can not be used in reconfigurable SDR.

3 Modified Transceiver Architecture



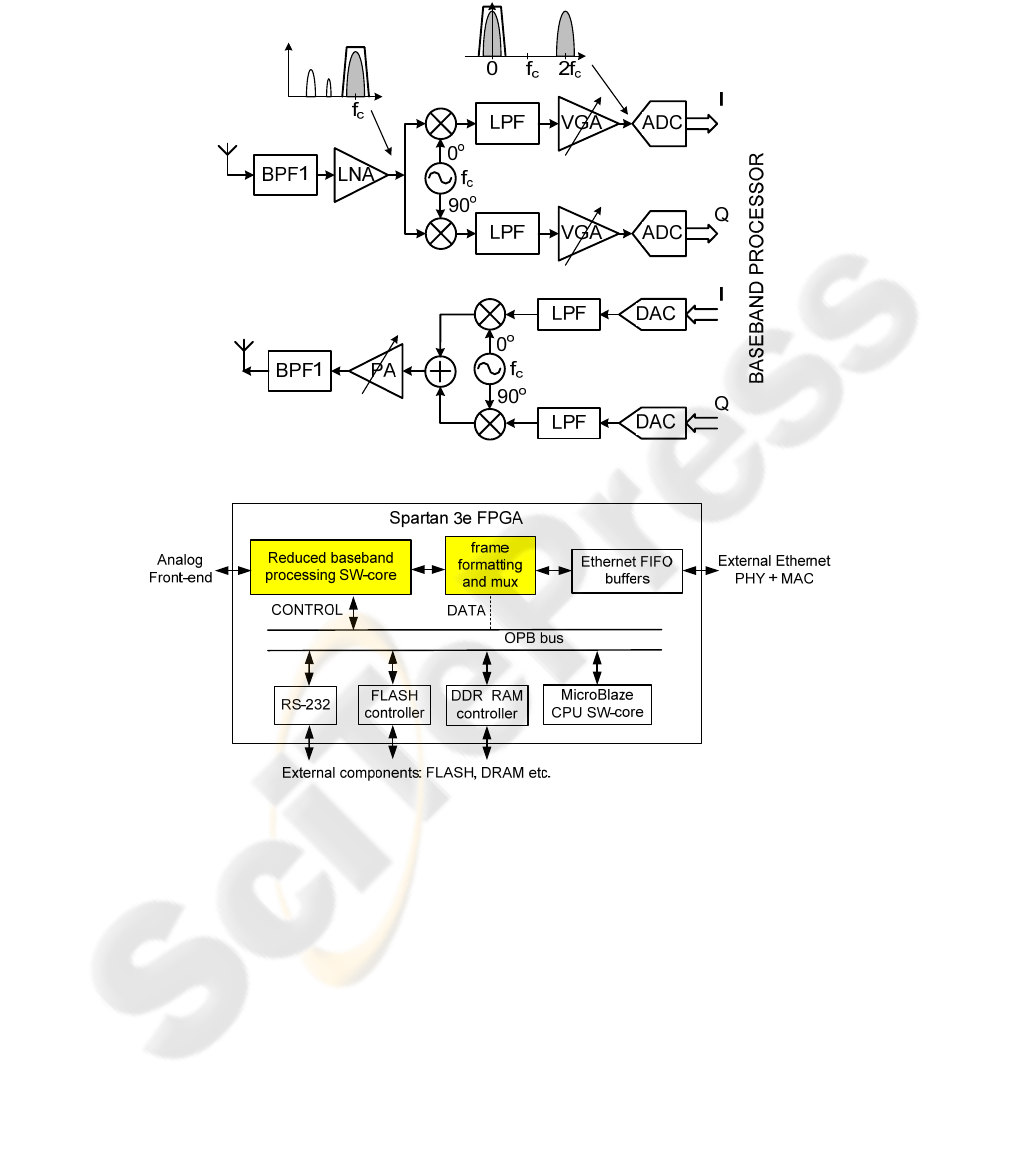

Fig. 4. Modified analog front-end architecture.



Fig. 5. Modified embedded system architecture for wireless transceiver.

As it can be seen after replacement of Virtex4 FPGA with Spartan3 embedded

processor and peripheral bus are also changed from Power PC 405 hard-IP and PLB-

bus to MicroBlaze soft-IP and OPB-bus. Fortunately there is Linux kernel and drivers

for both architectures [2]. But we need to find proper Linux distribution for embedded

Xilinx MicroBlaze CPU. A number of Linux embedded distributions are presented in

Table 1.

Table 1. Embedded Linux Distributions supporting Xilnx FPGA embedded CPUs.

Name URL Supported

CPUs

License Real-time

ELDK www.denx.de PPC only free soft

Petalinux www.petalogix.com MB only free ?

BlueCat www.lynuxworks.com both commercial soft/hard

MontaVista www.montavistalinux.com both commercial soft/hard

WindRiver www.windriver.com both commercial soft/hard

As we decided too reduce cost we refused commercial Linux distributions such as

BlueCat, MontaVista and WindRiver. PetaLinux is the best choice for us.

Unfortunately it does not have any real-time support. Possible solution is to use

another SW platform, Quantum Leaps [3], for example. But major code revision will

be required even more totally new code should be created.

Currently a novel ad-hoc network architecture is under development. One of the

challenges we faced is to reduce real-time requirements of this network protocol. To

determine what degree of real-time is requred the ad-hoc network immitation should

be evaluated. This network can be created with cheap Spartan FPGA based

development kits like “Spartan 3A Starter Kit” [4] with embedded PetaLinux

onboard.

4 Conclusions

Two different wireless transceiver architectures are described. The first one has

critical drawbacks that blocked successful entering to the market. The main core of

the transceiver is an embedded system built on FPGA. The solution is to replace more

powerful but expensive Virtex4 by Spartan3 FPGA. Such replacement requires to

make some architecture improvements that were found and now are being

implemened. Also a novel methods and algorithms of ad-hoc networks managing can

be verified on this platform. We expect that this architecture with novel ad-hoc

networking will help us to start commercial producing and distribution.

References

1. Gianini, V., Craninckx, J., Baschirotto, A.: Baseband Analog Circuits for Software Defined

Radio, Springer, Dordrecht (2008).

2. Xilinx Open Source Linux Wiki, http://xilinx.wikidot.com

3. Quantum Leaps Innovating Embedded Systems, http://www.state-machine.com

4. Spartan-3A Starter Kit, http://www.xilinx.com/products/devkits/HW-SPAR3A-SK-UNI-

G.htm
