KNOWLEDGE-BASED IMAGE ANNOTATING

Elena Sokolova and Mikhail Boldasov

Russian State University for the Humanities, Miusskaya sq, 6, Moscow, GSP-3, Russia

Keywords: Natural Language Generation, Ontology, Subject Mater Description, Image Description.

Abstract: We present an experiment of image annotating for photographs of one collection on base of ontology. A

fragment of ontology, which consists of concepts of visual objects, their features and relations, is

constructed using SemTalk2 software tool. Using this ontology there are prepared semantic annotations for

photographs from the collection. Semantic annotations are ready for their further automatic processing. We

consider them as input for automatic generation of photograph descriptions in a given NL. In this paper we

discuss types of visual concepts, structure of Ontology and Image Models and their possible applications.

1 INTRODUCTION

Last decennium finding an image suitable for a

particular purpose received a considerable attention.

Solution of the task of image retrieval is mapping of

textual indexes and annotations to target images.

Indexes and annotations are manually prepared, or

found in the Web, or summarized from other texts in

the Web. This approach is valid for retrieval of

named entities especially persons and toponyms

(Gornostay, 2009). It can explore statistical salience

of objects in the image and in the text and then

match mentioned and depicted objects (Deschacht,

Moens, 2007). This approach is not valid for art

collections or cinema records where no named

entities are presented, for example: “Mid shot a man

walking between two lanes”. In this case user can be

interested in types of depicted objects, their

composition and spatial relations. Objects theyself

should be described in sources of knowledge –

ontologies, and annotating can be characterized as

“ontology-based” (Schreiber et al., 2001).

The system that implements ontology-based

approach to Natural Language Generation (NLG) of

image descriptions can be logically divided into two

parts: Recognizer that prepares so called Image

Models (IMs) and Generator that prepares image

descriptions in a given NL. IMs are considered as

primary semantic interpreted results of image

recognition. IMs and generated picture descriptions

can be used further for sophisticated image retrieval.

According to our understanding, the current state

of art in Artificial Intelligence does not allow to

construct Recognizer module, which can prepare

IMs valid for the further NLG of textual annotations.

So we need to model this process manually and

prepare IMs by hand. In the following text we use

abbreviation “IM(s)” for manually prepared Image

Model(s).

In this paper we discuss what are IMs and what

concepts can describe “visual” world. One method

sketched in (Hollink et al., 2003) is to include in the

formalized model of a picture content existing

knowledge bases and lexico-semantic databases.

Unlike this, our research is more practical oriented

to NLG. That means that prepared IMs should be

available as an input for our NLG system.. Our

investigation shows that existing knowledge bases

and ontologies are not sufficient as a basis for IMs.

We tried two methods of text generation: Upper-

Model-based (Kruiff et al., 2000) and knowledge-

and-transformation-based (Boldasov, Sokolova,

2002), (Boldasov, Sokolova, 2003). The former was

in AGILE project supported by EС aimed to

multilingual generation of software manuals in three

Slavic languages. The latter has begun in InBase

project of Russian Academy of Science and

currently it is supported by our interest to the task.

Working for InBase project we have implemented

NLG environment DEMLinG, which concepts were

further approved by three toy-Generators, prepared

for different domains: query to DB (Boldasov,

Sokolova, 2002), annotation of content of DB, and

picture description. Our main interest in “ontology-

based” image annotating is to investigate the

requirements for input for NLG as well as the main

376

Sokolova E. and Boldasov M. (2009).

KNOWLEDGE-BASED IMAGE ANNOTATING.

In Proceedings of the International Conference on Knowledge Engineering and Ontology Development, pages 376-379

 SciTePress

principles of Text Planning – one of the tasks of

NLG.

In section 2 we describe images and corpus of

their descriptions, in section 3 the means of subject

matter description are discussed, in section 4 we

present concepts of “visual” ontology, in section 5

we describe our experiment with SemTalk2 and in

Conclusion we resume the experiment results and

sketch areas where IMs and ontology could be used.

2 IMAGE MODEL AND CORPUS

Our experimental materials were colored

photographs of Prokudin-Gorsky dated from the

period of 1900-1917 (www.prokudin-gorsky.ru) and

associated textual descriptions, written by students

of the Russian State University for Humanities

describing just what is depicted in the photographs.

Every description consists of approximately from 2

to 15 lines. We consider about 100 photographs and

our corpus contains about 250 descriptions, each

photograph having two or more descriptions made

by different students. In this paper we explore

landscapes.

We consider IM as a set of Objects with particular

characteristics, and a number of Relations between

them. Following (Hollink et al., 2003) IMs are based

on predicate information - triads (agent-process-

object) and the settings (time, location and artist)

(Tam et al., 2001). Using this method for our task,

we would have two problems:

1. differently to objects, actions have no area on

the surface of a photograph, they are indirect

knowledge that ought to be not recognized but

inferred from location of objects, postures and

gestures of humans and animals;

2. linguistic ontologies and art collection DBs are

not developed to present visual information.

Therefore we need a special ontology to present

ontological and visual features of objects related by

spatial and ontological relations. As a source of this

information we use our corpus of photographs. We

consider NL descriptions as some result of analysis

of visual information in the picture. The descriptions

are used to explore the following things:

 what objects and relations were noticed by the

author, hence what concepts ought to be

presented in our ontology and what objects and

relations will form IMs;

 how this information is expressed in the text.

Here is description of the photograph 00957

translated from Russian:

In a country land on a hill between

secular spruces and pine trees a little

snug chapel is situated. Shine in the

sun its silver cupola, doors are broken

open and on the stairs someone

attendant nestles came from the

proximate village. The chapel is build

on the occasion of a particular case:

its porch exposes to the old pine tree

in which an image of the Madonna icon

turned up to the residents of the

proximate village. And now the man

sitting on stairs peers to the pine

brunches hoping to see the miraculous

icon again.

Figure 1: Photo 00957 - Materiki. Chapel of the Mother

of God and the pine tree on which the icon appeared.

Figure 1: Photo 00957 – Materik i Chapel of the Mother of

God and the pine tree on which the icon appeared.

In this description bold are words describing just

visual objects and their features and relations which

ought to be included into IM. The rest of the text

concerns hypothesis and impressions of the author.

3 SUBJECT MATTER

DESCRIPTION

Description template that was proposed in (Tam et

al., 2001) and used in (Schreiber et al., 2001),

(Hollink et al., 2003) consisting of triads and

settings is not possible for our corpus since our

images are static, and they have usually no action at

all. The only type of physical processes that are

mentioned in the names of photographs are like this

“Rafts sitting on the rocks at the village of Kurya”.

KNOWLEDGE-BASED IMAGE ANNOTATING

377

We need spatial relations and composition

relations of visual nature which are direct

interpretation of what we see.

Composition relations are presented by one

relation – INCLUDES. The surface of photograph is

divided into areas that are formed by boundaries of

depicted objects. Area of one object can enclose area

of another object, e.g., (SKY ((FLYING-BIRD

(WINGS)) SUN)). Objects that are inside the area of

another object are “included” in it. For relations of

partly included objects, e.g., OBJECTS standing on

GROUND, we use our knowledge about what can

“stand on” and what can be “localization”.

Describing a picture in NL we often divide it into

“layers” – groups of objects that are in equal

distance from the viewer, e.g., “in the foreground we

see a group of people, on the back – a street”. The

concept LAYER presents these groups of objects.

Practically people use from 0 to 2 (“foreground” and

“background”) layers but in some cases picture

description can contain more layers.

Objects whose areas are not intercrossed or that

are intercrossed not as “an object standing on the

GROUND” are related by spatial relations, which

are usually bidirectional, e.g.:

 To-the-left(X, Y) / To-the-right(Y, X)

 Near(X, Y) / Near(Y, X)

 Around(Y, X) / In-the-centre(Y, X)

We consider IM as a kind of visual specification

with elements of semantic interpretation. Both can

be of different level of discriminating – general vs.

more detailed description.

4 ONTOLOGY

We define classes of objects designed by English

words, e.g., HOUSE, TREE, SMOKE-STACK,

FIELD. In IMs we use instances of classes, their

visual parameters and meanings, e.g,, COLOR:

BLACK, BLUE, etc.; SIZE: SMALLinWIDTH,

BIG. etc.; SHAPE: SQUARE, ROND, etc.

We also need hypernyms for the classes. They

can be used in the situations of visual haziness or for

the second nomination of the same entity in the text,

e.g., for classes EDIFICE, CHAPEL, BARN and

CABIN we need a superclass BUILDING which is

related with them by “is-a” relation. Hypernyms can

be extracted from existing ontologies, e.g.,

WordNet. But concept descriptions in WordNet are

not valid to our purposes since they are mostly

functional, e.g.:

 DOOR is-a “movable barrier (a barrier that can

be moved to allow passage).

We can also use ontological relations “part

holonym – part-meronym”. For classes WALL,

ROOF, WINDOW and DOOR part holonym class is

BUILDING, EDIFICE. For BUILDING among its

part meronyms are WALL, ROOF, PORCH. So we

need Classes and Superclasses that correspond to

the “is-a” relation, one Composition relation “part”

that has two terminals - part-holonym and part-

meronym, and a number of Spatial relations.

The resulted ontology should be reasonable easy

to use it for composing IMs. So, it is not a good idea

to make it possible e.g. to choose a visual parameter

of an object from the whole set of visual parameters

of any class, or to choose possible relation from the

whole set of relations between any of classes in the

ontology. Thus we need to invent a kind of filter that

controls that the proper object is supported with a

proper set of visual parameters and relations.

This filter presents description of subject matter

as information prepared for communication, where

every object is presented in some cognitive

perspective (CP). CPs are containers of visual

parameters and participants of relations. Class

consists of one or several CPs, e.g. class RIVER

consists of SURFACE and MIRROR CPs. Instance

of a Class can be assigned in IM manually with an

extra CP if it performs not typical role in the picture,

e.g. if a SCARF is used as a SKIRT we need to

combine in IM these two CPs both.

The ontology can be used in two paradigms:

image recognition and NLG of picture descriptions.

Here we pay attention only on NLG paradigm. For

the recognition process we need some reasoning.

5 EXPERIMENT

Ontology aught to be implemented in OWL (Web

Ontology Language) because it is based on paradigm

of XML, which is convenient for processing and

specially prepared to describe ontologies.

The standard solution to manage OWL

descriptions by Altova SemanticWorks failed,

because the system is not optimized enough to our

task specifics. Another tool SemTalk2 has a user-

friendly editor for Semantic Web ontologies.

SemTalk2 is based on Visio Diagrams that are used

to introduce new objects to the ontology or IM. It

supports two types of diagrams: Class Diagrams –

for description of ontology and Instance Diagrams –

for description of IMs. Maintenance of ontology is

supported not only by Diagrams but also by

hierarchic View and importing external models is

allowed.

KEOD 2009 - International Conference on Knowledge Engineering and Ontology Development

378

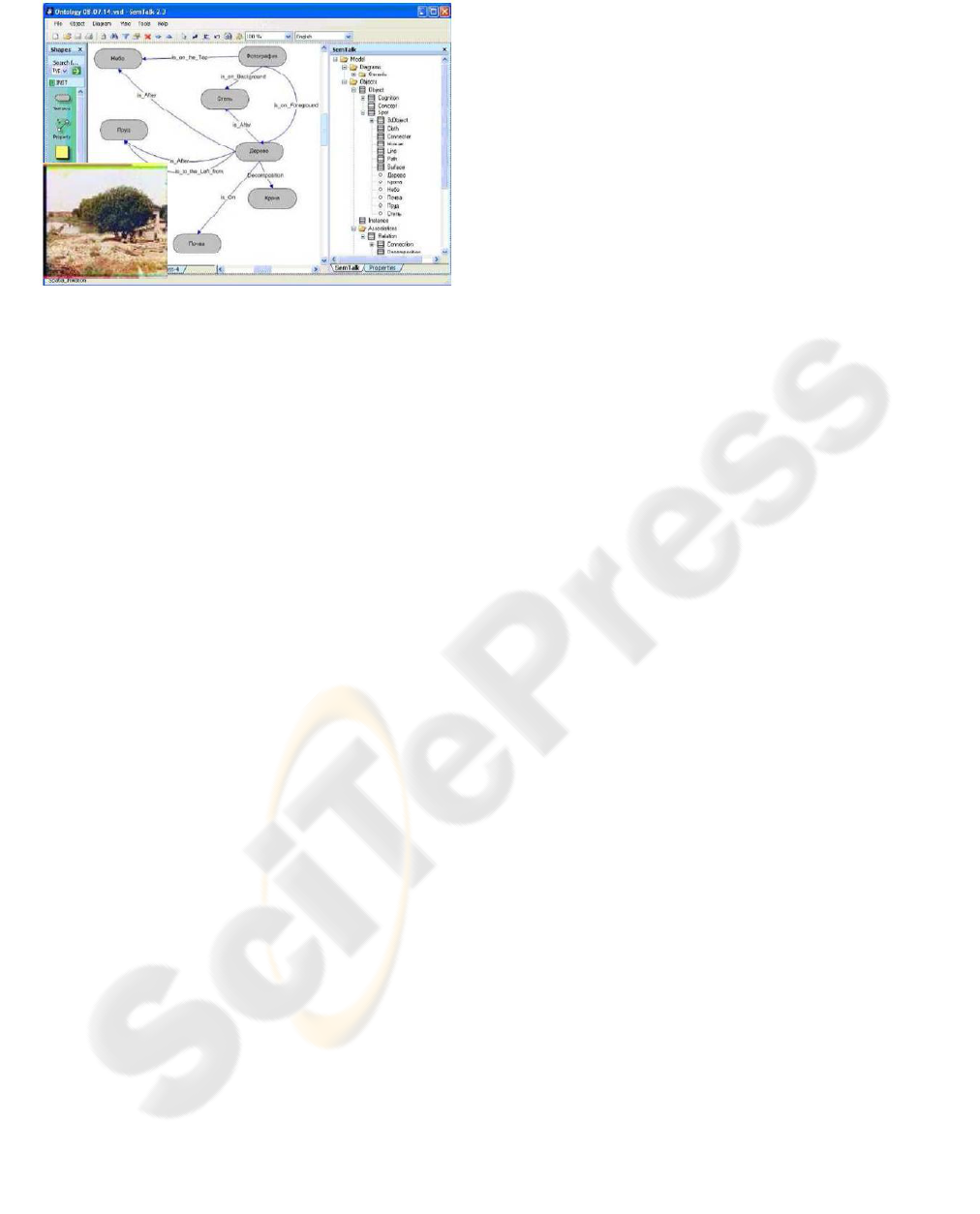

Figure 2: Screenshot of the opened IM in SemTalk2

application, supported with the photo 00039 that is

described on the opened IM.

Screenshot in Figure 2 displays an opened IM in

SemTalk2 which is prepared based on two student’s

descriptions of photograph 00039. Ontology that

was used for this IM is placed in the right part of the

Screenshot. It is possible to drag-and-drop the

desired classes from the ontology to the IM.

SemTalk2 satisfies to our task much better than

Altova SemanticWorks. But using the free version

that is available in Web has the following lacks:

 the application is not enough bug-fixed. When

we used it not by scenario that was described in

user guide, we got data inconsistency;

 our idea of CPs is not supported;

 it would be better if an individual would be

displayed by name of its Class or CP.

6 CONCLUSIONS

We sketched a method of semi-automatic IM

creation and discussed issues of interaction between

visual data and human knowledge, as well as

appropriate theoretical aspects that should be used as

the base for ontology and IM. Prepared ontology and

IMs can be used:

 in Recognizer providing features and possible

relations for objects depicted in the picture since

knowledge plays decisive role in the process of

the image recognition;

 IMs can be used in the multilingual image

retrieval, e.g., in art collections and photograph

collections instead of key words;

 in NLG of photo descriptions as input IMs.

Our experiment showed that SemTalk2 is

valuable for IM construction in general, but the free

version has some lacks for this task.

REFERENCES

Gornostay T., Aker A. Development and implementation

of multilingual object type toponym-referenced text

corpora for optimizing automatic image description

genereation // Proceedings of the Conference on

computational linguistics and intellectual technologies

DIALOG’2009 - 2009, Bekasovo, Russia May 27-31,

2009. Pages: 580 – 587.

Deschacht K., Moens M-F. Text analysis for automatic

image annotation // The 45th Annual meeting of the

Association for Computational Linguistics, Prague,

June 2007. http://acl.ldc.upenn.edu/P/P07/P07-

1126.pdf

Schreiber A.Th., Dubbeldam B., Wielemaker J., Wielinga

B.J. Ontology-based photo annotation //IEEE

Intelligent systems, 16(3):66-74, May-June 2001.

http://www.cs.vu.nl/~guus/papers/Schreiber01a.pdf

Hollink L., Shreiber G., Wielemaker J., Wielinga B.

Semantic annotation of image collections // S.

Handschuh, M. Koivunen, R. Dieng, and S. Staab,

editors, Knowledge Capture 2003. Proceedings

Knowledge Markup and Semantic Annotation

Workshop, Florida, USA, October 2003. P. 41-48.

http://www.cs.vu.nl/~guus/papers/Hollink03b.pdf

Kruijff G-J., Bateman J., Teich E., Sharof S., Sokolova

L., Kruijff-Korbayova I., Skoumalova H., Staykova

K., Hana J., Hartley T. Multilinguality in a text

generation system for three Slavic languages //

Proceedings of the 18th conference on Computational

linguistics - Volume 1, 2000, Saarbrьcken, Germany

July 31 - August 04, 2000. Pages: 474 – 480.

Boldasov M.V., Sokolova E.G. User query understanding

by the InBASE system as a source for Multilingual NL

generation module // Text, Speech and Dialogue (P.

Sojka, I. Kopeček and K. Pala eds.). – Proceedings of

the 5th International conference, TSD 2002, Brno,

Czech Republic, September 2002. Springer-Verlag

Berlin Heidelberg, Germany, 2002. Pages: 33-40.

Boldasov M.V., Sokolova E.G. QGen – generation module

for the register restricted InBASE system //

Computational linguistics and intelligent text

processing (A.Gelbukh ed.). – Proceedings of the 4th

International conference, CICLing 2003, Mexico City,

Mexico, September 2002. Springer Berlin Heidelberg,

Germany, 2003. Pages: 465-476.

Tam, A.M. Leung, C.H.C. Structured Natural-Language

description for semantic content retrieval // Journal of

the American Society for Information Science and

Technology Vol. 52(11), September 2001. Pages:

930 – 937.

Hunter J. Adding multimedia to the semantic Web –

building an MPEG-7 ontology // Proceedings of

International Semantic Web Working Symposium

(SWWS), Stanford, July 30 - August 1, 2001

http://archive.dstc.edu.au/RDU/staff/jane-

hunter/semweb/paper.html .

KNOWLEDGE-BASED IMAGE ANNOTATING

379
