MONITORING WORKFLOWS EXECUTION USING ECA RULES

Giancarlo Tretola and Eugenio Zimeo

Department of Engineering, University of Sannio, 82100, Benevento, Italy

Keywords: Service composition, Adaptation, Monitoring, Event-driven programming.

Abstract: A fundamental requirement for modern large-scale distributed applications is the need to quickly adapt to

the fast variations in their operational environment. In SOA the need for adaptation influences design,

enactment and execution of service compositions (workflows). To maintain a high quality standard and to

support continuous improvements of workflows, the quality of intermediate steps has to be assessed during

execution and, if needed, interventions have to be performed at the same time. The key concept is to avoid

problems, anticipating the detection of their causes. We propose a monitoring system based on the definition

of general management policies that are translated in management rules using an event-driven approach.

Rules are employed to react to unexpected events, malfunctions, errors or violations of constraints with the

objective of dynamically adapting the process in order to overcome the problems still maintaining a high-

quality delivery.

1 INTRODUCTION

Workflow management is becoming an effective

approach for distributed application development

using the Internet as infrastructure and services

composition as programming paradigm for

exploiting distributed resources and functionalities,

both in Web environment (Natis and Schulte, 1996;

Peltz, 2003) and Grid computing (Czajkowski et al.,

2001; Foster et al., 2002).

In these contexts, service performance, reliability,

responsiveness and other quality related features

might change dynamically and quickly. The ability

of the process to reach the functional goal and to

satisfy QoS constraints must be dynamically

adjusted consequently (Buhler and Vidal, 2005).

Workflow paradigm is naturally oriented to

analyze the achieved results in order to improve the

process definition: Adaptive Workflows (Tretola,

2007; Buthler and Vidal, 2005; Sheth and Verma,

2005). Adaptivity needs agents able to interact with

the services and the execution environment for

retrieving and analyzing the information of interest

in order to identify anomalies. Process anomalies

can be classified in three categories: behavioural,

caused by improper execution of process activities;

semantic, caused by logically erroneous results after

activity execution; systemic, caused by

malfunctioning of the supporting infrastructure.

In order to intercept anomalies during process

execution, monitoring plays a fundamental role. It is

intended as a planned or event-driven measurement

of one or more properties of a workflow instance in

order to identify anomalies. Monitoring is useful to:

measure the actual QoS of the provided services for

comparison to the declared one; verify the

compliance of the running process with constraints

and requirements and to detect the deviation from

the plan; enable manual and automatic corrective

actions able to handle unexpected events; collect and

store the information related to all the processes

executed, in order to support further analysis aimed

at processes improvement; monitor the operational

environment in which the process is executed and to

enable adaptation to changes.

We propose an approach for measuring and

evaluating data, on the way, which may alert the

system of incoming problems in order to avoid

further complications. The actions that may be

undertaken are operation related to the control flow

of the process, rescheduling or re-planning. The

action may be also related to the binding of a

functionality to another performer. To complete the

approach it is necessary to underline the necessity to

have a semantic definition of the entities involved in

the monitoring and the related measurement

processes usable for obtaining numerical

information about such entities (Giallonardo and

Zimeo, 2007; LOCOSP Project).

423

Tretola G. and Zimeo E. (2009).

MONITORING WORKFLOWS EXECUTION USING ECA RULES.

In Proceedings of the 4th International Conference on Software and Data Technologies, pages 423-428

DOI: 10.5220/0002282504230428

 SciTePress

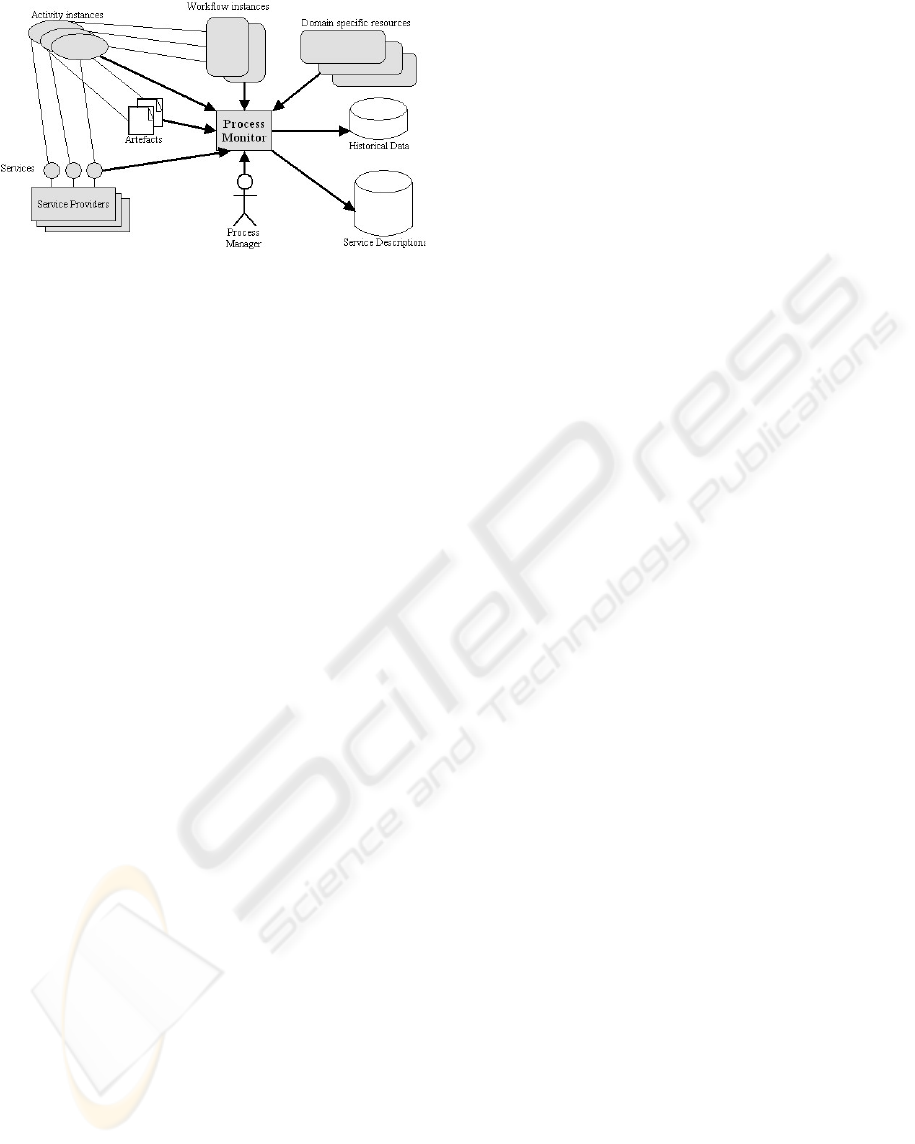

Figure 1: Monitoring system and related components.

The architectural component in charge of process

monitoring is the Monitor. It is a component that

analyzes the activities of the process and shows real-

time information about them, such as status and

advances. It is also able to interact with other kinds

of sensors or generally measurement tools to retrieve

information on the context that may influence the

process. The process monitor is also able to access

to information describing service semantics and

QoS. It also stores the collected data to enable post

execution evaluation and to compare the measured

QoS with the declared one.

The monitor behavior is based on the definition

of general management policies, defined for

handling with the problems that may arise during

execution. Such policies are translated in

management rules, prior to execution, using an

event-driven approach. Rules are employed to react

to unexpected events, malfunctions, errors or

violations of constraints with the objective of

dynamically adapting the process in order to

overcome the problems still maintaining a high-

quality delivery (Tretola, 2007).

2 RELATED WORK

Considering process composed using SOA approach

we may consider several works dealing with the

problem of monitoring. Such works may be

classified in three groups.

Language based. In this approach the

monitoring is performed using the built in features

offered by the process definition language. It is

similar to Exception handling in programming

languages. The monitoring policy is embedded in

the process definition.

Example: the approach proposed in Dellarocas

and Klein that acts before execution, associating to

exception processes for detection and avoidance.

Weaving. The monitoring policy is defined

independently from the process and its definition

language. Before executing the process its

monitoring policy is added to the process instance

and executed by the work. It is similar to Pre-

processing phase in some programming languages or

to the pre-execution binding. The monitor policy is

bound to the process instance.

Example: Monitoring rules are defined

separately and blended with the WS-BPEL process

at deployment-time (Green et al., 2000).

Dynamic. The monitoring policy is defined using a

specific definition language. Then the policy is

provided to specific components and services in the

execution system in charge of monitoring process

execution. It is similar to Event based systems. The

monitor policy is associated to the enactment

system.

Examples: in Zeng et al. it is presented the

proposal to combine workflow management and

agents. responsible for monitoring QoS parameters,

introducing flexible variation in the process, using

predefined alternatives, and supervising of the

service process in execution by the provider.

Crossflow (Green et al., 2000) is a dynamic

approach to monitoring, performed by components

responsible for monitoring QoS parameters,

introducing flexible variation in the process, using

predefined alternatives, and supervising of the

service process in execution by the provider. In

Baresi and Guinea the approach is based on

managing exceptions through the ECA paradigm,

using CHIMERA-EXC language for specifying

exception handling, and ECA rules based approach

to monitor exception

Event Condition Action rules (ECA rules) have

been used in many settings, including active

databases (Patton, 1999; Widom and Ceri, 1995), for

triggering functionality based on data monitoring,

and workflow management, specifying and

implementing business processes (Bonifati, 2001).

They automatically perform actions in response to

events provided that stated conditions hold. ECA

rules allow for the management of an event, in

specified condition, by means of a predetermined

action.

They are characterized by three parts: an Event

defines the event, among the set of observable

events, which the rule reacts to; a Condition

expresses the configuration of the state needed for

performing an action; an Action describes the

activity to be performed if the condition is verified.

The advantages of using ECA rules for checkpoint

modelling are several.

ACT4SOC-EHST 2009 - 4th International Conference on Software and Data Technologies

424

3 DEFINING THE MONITORING

METRICS

Monitoring requires a measurement process in order

to retrieve information from running processes. It

may retrieve information from: workflow instances,

running activities and produced artefacts. The

measurement is performed by dedicated

measurement tools able to provide the quantitative

evaluation of the monitored parameters. In order to

enable the retrieving of information, a common

description of such resources is needed to the

process designers and to the service providers.

An ontology-based model is a possible solution

for enabling interactions among system components

and to grant future extensibility of the system. The

ontology has to provide a common and shared model

for allowing measurements of basic parameters and

also for derived ones, which are obtained by

aggregating different parameters. Properties may be

related to: Internal properties of the workflow (i.e.

activity state, variable value, etc.) or External

properties (i.e. artefacts or quantity influenced or

influencing the process, QoS attributes, SLAs, etc.).

Furthermore, in order to take into account

context information it is necessary to perform

measurements from the environment of running

workflow instance. Measures may be related to two

main aspects: internal environmental conditions

influenced by or influencing the process execution

(i.e. the provisions in a warehouse, the latency in a

server, etc.) and external conditions influencing the

goal related to the process ((i.e. the increase of

demand or of the price of a product).

In order to describe quality parameters, and more

generally non-functional parameters of the

monitored resources, an adequate semantic model is

needed. A domain independent ontology is used to

define conceptual basis of the measurement, then a

domain dependent ontology has to be defined for the

specific operational environment (LOCOSP Project).

4 MONITORING AND

MANAGEMENT SYSTEM

In our vision the Monitoring System is able to act at

run-time, measuring and managing the process in

execution. The approach proposed is based on the

concept of checkpoint: a point in the control flow in

which the Monitoring System performs some

measurements, evaluates the overall state of the

executing process, and may perform some actions.

A checkpoint is an additional concept added to

the control flow that represents a moment of

verification and validation of the process

progressing towards the goal regarding the non-

functional aspects of the performing activities. They

may be associated to a single activity, to a set of

activities or to a process instance. A checkpoint can

be viewed as a sub-process composed of the

sequence of two activities: monitoring and

management.

The monitoring activity has the role to collect the

data necessary to asses the situation of the process

activity or activities to be monitored. The data

retrieved are examined to decide whether a

management procedure has to be started. In such

case, the appropriate procedure is selected and

executed.

Management procedure is related to a specific

interface, we have defined, for dynamic adaptation,

which allows run-time modification to the control

flow of a process instance in execution in the

workflow engine.

A checkpoint has an activation criterion, which

represents the triggering cause that starts the

checkpoint activities. It may be of different types:

synchronous, i.e. based on a temporal event;

asynchronous, i.e. based on the occurrence of non-

temporal events. A synchronous criterion is further

classified as absolute time, the specific date and

time in which the checkpoint has to be performed

(for example the 23rd of March at 15:00); relative

time, a time period starting from an event related to

the process execution (for example after 1 minute

from starting of a selected activity). An

asynchronous criterion is subdivided in generic

workflow events (e.g. the start of an activity) and

specific resource events generated during the

activity execution (e.g. the percentage of task

completion). Each activation criteria is bound to an

event that is generated internally, by the workflow

enactment system (first three types), or externally in

the service provider system (the fourth type).

The conceptual behaviour of a checkpoint is

based on the Event Condition Action paradigm

(ECA rules). It enables the separation of the

workflow definition from the monitoring policy.

Workflow enactment and checkpoint execution are

two parallel executing flows. The control flow of the

process defines the normal flow of the execution,

managed and supervised by the workflow engine.

The monitoring flow handles the reaction flow that

is responsible to handle the events fired during the

execution of the process. Different process instances

may be monitored with different policies.

MONITORING WORKFLOWS EXECUTION USING ECA RULES

425

Checkpoints are separated entities associated to the

process for the execution; therefore it is possible to

change or redefine them for each instance to be

enacted. Finally, since a checkpoint is event-based,

it is possible to use the same measurement tools and

management actions in several situations. It is

sufficient to associate them to the appropriate event.

When an event fires, the checkpoint starts the

execution: the monitoring process performs the

measurement of the interested parameters and

decides whether a management action has to be

performed. This is performed by evaluating an

activation condition, composed of logical (AND and

OR) and relational operators (greater than (>), less

than (<) and equal (=)). The operands can be of three

types: constant values known at design time; local

variables defined in the checkpoint context and

evaluated during the execution; workflow variables

retrieved from the process instance in the workflow

engine at execution time. It is worthy to note that

more than one checkpoint may be associated to a

single event. It is possible to have more than one

ECA rule that reacts to the same event, with

different conditions to be evaluated and different

management actions to be performed.

The Monitoring System is based on two main

interacting components: one is the observed system,

the workflow engine, and the other is the observer,

the Monitor, responsible to supervise the QoS

parameters of the process during its execution. After

a process is described, checkpoints can be associated

to it. In order to allow this, the observed and the

observer have to share the definition of the

observable parameters, the tools able to provide a

measure for them and the procedure to be used to

perform corrective actions. The selected model is a

shared ontology describing the QoS parameters of

the specific domain, obtained by specializing the

domain independent ontology. The ontology is used

both during the checkpoint definition, for selecting

which values have to be used for evaluating the

condition, and during the checkpoint execution, for

selecting the specific measurement process and for

assigning a measure to the entity according to the

defined metrics.

The Monitoring System is a general purpose

element able to dynamically adapt to parameters to

be monitored, using the ontology to act correctly.

The components of the systems and their roles are

shown in figure 2.

Process Definition Tools. They contribute to the

process definition. A prototype implementation

enables the definition of a process and related

checkpoints.

Engine. It is the component responsible for the

process enactment. This is used as an observed

system. So it is characterised by an external interface

composed of two parts: sensing and effecting. The

sensing interface is used to access to the information

about the process and activities in execution. The

effecting interface is used to interact with the engine

for altering the structure of the process during its

execution.

Monitor. It represents the observer in the system. Its

role is to receive events, to execute the ECA rules

bound to the specified checkpoints, and to interact

with the engine using the sensing-effecting interface.

It is also able to interact with the measurement tools

in order to perform some parameter measurements

for evaluating the conditions.

Measurement Tools. They are the set of external

tools that are able to measure and evaluate the QoS

parameters involved in the execution.

Management Tools. They are a set of tools that are

able to execute corrective actions on the executing

process control flow on the external environment

(i.e. Send a notification to a service provider).

Sensing-Effecting Interface. The Sensing interface

allows for retrieving information from the engine in

order to assess the state of the component. The

Effecting interface allows for managing the

component.

Rule Engine. The checkpoint description, provided

using the XML language, is then translated into a

rule engine implemented with Jess (JESS). The rule

engine manages the ECA rules.

Figure 2: The overall system with the execution Engine

and the Monitor.

In order to allow the management, the Workflow

engine should allow access to the internal state of

the process instances that is in execution. In our

ACT4SOC-EHST 2009 - 4th International Conference on Software and Data Technologies

426

experimentation we have defined a set of operations

that are needed for allowing such modification.

First of all we have defined and implemented

operation for suspending and resuming a process

enactment, i.e. the activity are considered atomic

and enacted activities are completed, but no more

activity is activated for the execution. We

considered this policy for taking into account several

problems that may arise in adapting a process that

usually is based on distributed activities. What

happens if a triggering event arrives in the middle of

the distributed transaction? In our approach no

alteration of the running activities is performed, the

enactment is suspended and no other activity

execution is started.

While suspended a process may be dynamically

modified using other operation we have introduced.

It is possible to add an activity in the control flow,

updating the transitions in the process graph. It is

also possible to remove an activity from the control

flow also in this case updating the transitions in the

control flow, removing the unnecessary ones. We

have also implemented operations that allows for

altering the activities start-line and deadline in order

to perform a re-scheduling of the activities

enactment without changing the process control

flow. We are considering also other operation: for

example re binding to perform a different selection

of another resource to execute an activity. Other

operations are under evaluation, for example re-

planning of the single instance or re-planning of the

original process description and so on.

The ECA rules are managed by a Knowledge

Base or an Agent. In our test we used a JESS engine,

in which fact and rules are asserted basing on two

categories. The first one is the generic rules that are

applicable to any process because are related to

events that may happen in each workflow, i.e. a

service not reachable. To the second categories

belong the rules that are specific of the particular

workflow and of its operative environment. The use

of a knowledge base is interesting because it may

works in two ways. One is based on reaction of the

engine to variation of the knowledge base, for

example assertion of a new fact, in order to check if

there are active rules. This may be used to perform

reaction to event received by the manager. Another

way of work for the engine is a backward reasoning,

in which a rule is analyzed in order to check if it is

active given the current facts and rules asserted in

the knowledge base.

5 EXAMPLES

In this section, we present a first example related to

a context monitoring scenario. In this case the

workflow process is related to management of

activities in a vineyard. The parameters under

measurement are environmental parameters:

temperature, humidity, wind velocity, luminosity

etc. The environmental information may be used to

reschedule activity in the vineyard, for example

repeating a treatment against parasites if “humidity

and the temperature are greater than known

threshold”.

CHECKPOINT: Parasite Avoidance

ON EVENT: Temperature

Variation(Context.Temperature)

IF CONDITION: (temperature > 30) &&

(measured humidity > 0.75)

PERFORM ACTION: ADD

AntiParasiteTreatementActivity

Another action we are considering in our virtual

experimentation is the using of heater during bad

season to decrease damage from frost.

CHECKPOINT: Frost

ON EVENT: Temperature

Variation(Context.Temperature)

IF CONDITION: (temperature > 5) &&

(measured wind < 0.5)

PERFORM ACTION: ADD

VineyardHeatingActivity

This is an example of a context aware application

in which there is no need to specify in the process all

the possible intervention in each possible moment

because the system reacts to the dangerous situation

modifying the process accordingly.

6 CONCLUSIONS

Nowadays, distributed applications, implemented

using workflow management, place a great

challenge. The large availability of services allows

for the possibility to select from a wide offer of

functionalities. Such functionalities are provided by

different organization and with different levels of

performance. The monitoring is then a fundamental

phase in the life cycle of workflow, for allowing the

possibility of fine tuning in the selection of services.

Collecting the measurement of the actual QoS of

invoked services allows for a greater confidence in

subsequent selection operations. Moreover,

monitoring provides a lot of information at run-time

that may be used to prevent problems. The detection

of a non conformity in QoS of a service that is in use

in a workflow may be dealt immediately, without

MONITORING WORKFLOWS EXECUTION USING ECA RULES

427

waiting consequent problems. Problems in the

interaction may be resolved without waiting errors

blocking the systems. The management action may

involve a rebinding of the activity to another service,

the rescheduling of activities in the process or the

planning of new activities to be executed to handle

the new situation. As we have seen activity and

process related values are not the only data that may

be used. Context measurement is also really useful

in the process management. They allow for

retrieving information, external to the specific

activities in execution that may alter the operational

environment, demanding for adaptation of the

process control flow, or even change the overall goal

of the process. Dynamic monitoring enables the

execution of process that otherwise may be not

described if not using complex syntax and detailed

description of each anomalies to be handled in the

control flow.

Our experimental work is related to SAWE

(SAWE) a Workflow Enactment System designed to

be autonomic and adaptive, able to execute process

using Web Services, Java local or remote objects,

and Grid resources. In our work we have defined a

conceptual checkpoint model and used an XML

extension to model it.

Future activities are related to the realization of a

higher level language for the definition of

monitoring policy coupled with the definition of an

interface for dynamically managing the process

execution. The objective is to make totally

automated the monitoring and the management.

ACKNOWLEDGEMENTS

The research activities of this work are framed in the

research project ArtDeco, funded by MIUR.

REFERENCES

Tretola, G., 2007. Autonomic Workflow Management in

e-Collaboration Environment. Ph.D. Thesis.

Paton, N., 1999. Active Rules in Database Systems.

Springer-Verlag.

Widom, J., Ceri, S., 1995. Active Database Systems.

Morgan-Kaufmann, San Mateo, California.

Bonifati, A., Ceri, S., Paraboschi, S., 2001. Pushing

reactive services to XML repositories using active

rules. In Proc. 10th World-Wide-Web Conference.

Natis Y.V., Schulte, R.W., 1996. Service Oriented

Architectures, Part 1.

Peltz, C., 2003. Web Services Orchestration and

Choreography. Computer, vol. 36, pp. 46-52.

Giallonardo, E., Zimeo, E., 2007. More Semantic in QoS

Matching. In IEEE International Conference on

Service-Oriented Computing and Applications, pp.

163-171.

Czajkowski, K., Fitzgerald, S., Foster, I., Kesselman, C.,

2001. Grid Information Services for Distributed

Resource Sharing. In: 10th IEEE International

Symposium on High Performance Distributed

Computing, pp. 181-194.

Foster, I., Kesselman, C., Nick, J., Tuecke, S., 2002. The

Physiology of the Grid: an Open Grid Services

Architecture for Distributed Systems Integration.

Technical report, Global Grid Forum.

Buhler, P. A., Vidal, J. M., 2005. Towards Adaptive

Workflow Enactment Using Multiagent Systems.

Information Technology and Management 6, pp. 61-

87.

Sheth, A.P., Verma, K., 2005. Autonomic Web Processes.

Proceedings of the Third Conference on Service

Oriented Computing, International Conference on

Service Oriented Computing.

Dellarocas, C., Klein, M., 2000. A Knowledge-based

Approach for Handling Exceptions in Business

Processes. Information Technology and Management

1, pp. 155-169.

Zeng, L., Ngu, A., Benatallah, B, 2001. An Agent Based

Approach For Supporting Cross-Enterprise

Workflows. ADC, pp. 123-130.

Green, P., Aberer, K., Ludwig, H., Hoffner, Y., 2000.

Crossflow: Cross-Organizational workflow

Management For Service Outsourcing In Dynamic

Virtual Enterprises. IEEE Data Eng. Bull. 24(1), pp.

52-57.

Baresi, L., Guinea, S., 2005. Towards Dynamic

Monitoring of WS-BPEL Processes. International

Conference on Service Oriented Computing, pp. 269-

282.

Casati, F., Ceri, S., Paraboschi, S., Pozzi, G., 1999.

Specification and Implementation of Exceptions in

Workflow Management Systems, ACM Trans.

Database Syst. 24(3), pp. 405-451

LOCOSP Project, http://plone.rcost.unisannio.it/locosp

SAWE. http://www.gridworkflow.org/snips/gridworkflow/

space/SAWE

JESS. http://herzberg.ca.sandia.gov/jess/

ACT4SOC-EHST 2009 - 4th International Conference on Software and Data Technologies

428
