DISCOVERING RELATIONSHIP ASSOCIATIONS

IN LIFE SCIENCES USING ONTOLOGY AND INFERENCE

Weisen Guo and Steven B. Kraines

Science Integration Program (Human), Department of Frontier Sciences and Science Integration

Division of Project Coordination, The University of Tokyo, 5-1-5 Kashiwa-no-ha, Kashiwa, Chiba, 277-8568, Japan

Keywords: Relationship Associations, Association Rules, Semantic Relationships, Semantic Matching, Semantic Web,

Ontology, Logical Inference, Life Sciences, Literature-based Knowledge Discovery.

Abstract: Over one million papers are published annually in life sciences. Bioinformatics and knowledge discovery

fields aim to help researchers conduct scientific discovery using the existing published knowledge. Existing

literature-based discovery methods and tools mainly use text-mining techniques to extract non-specified

relationships between two concepts. We present an approach that uses semantic web techniques to measure

the relevance between two relationships with specified types that involve a particular entity. We consider

two highly relevant relationships as a relationship association. Relationship associations could help

researchers generate scientific hypotheses or create computer-interpretable semantic descriptors for their

papers. The relationship association extraction process is described and the results of experiments for

extracting relationship associations from 392 semantic graphs representing MEDLINE papers are presented.

1 INTRODUCTION

The field of life sciences is one of the fastest

growing academic disciplines (Marrs and Novak,

2004). More than one million papers are published

each year in a wide range of biology and medicine

journals (King and Roberts, 1986). Recent progress

in genomics and proteomics has generated large

volumes of data on expression, function, and

interactions of gene products. As a result, there is an

overwhelming amount of experimental data and

published scientific information, much of which is

available online. Researchers in the bioinformatics

and knowledge discovery fields have been studying

how to use the existing literature to discover novel

knowledge or generate novel hypotheses.

Scientific discovery is a type of human

intellectual activity. Based on observations and

theory, researchers define hypotheses that they test

experimentally. However, due to the explosive

growth of the literature, individual scientists cannot

study all of the experimental data and scientific

information that is available.

Computational methods have been used to help

scientists generate hypotheses (Langley, 2000;

Racunas et al., 2004). For example, several attempts

have been reported to develop informatics tools that

replicate Swanson’s discovery in 1986 that fish oil

may benefit patients with Raynaud’s disease solely

from studying the literature (Swanson and

Smalheiser, 1997; Weeber et al., 2005; Hristovski et

al., 2005; Srinivasan, 2004). The possibility of

linking different scientific disciplines through

intermediate, or shared, interests has commonly

been described as Swanson’s ABC model. Most of

these literature-based discovery methods employ

text-mining techniques to find relationships of

unspecified type between two domain-related

concepts that are implied by the literature.

In this paper, we present a technique for

literature-based discovery of hypotheses based on

measuring the assocation between two relationships

of specified type that involve a particular entity or

concept. We call this a relationship association. A

relationship association is a special kind of

association rule that states “if concept A has

relationship R1 with concept B, then it is likely that

concept A has relationship R2 with concept C.”

Most scientific papers describe relationships

between concepts from the study domain, which

have been identified through research. A relationship

is essentially a semantic statement that predicates the

way in which one concept modifies the other

semantically. Our goal is to discover interesting

association rules between these relationships.

Guo W. and Kraines S. (2009).

DISCOVERING RELATIONSHIP ASSOCIATIONS IN LIFE SCIENCES USING ONTOLOGY AND INFERENCE.

In Proceedings of the International Conference on Knowledge Discovery and Information Retrieval, pages 10-17

DOI: 10.5220/0002285300100017

 SciTePress

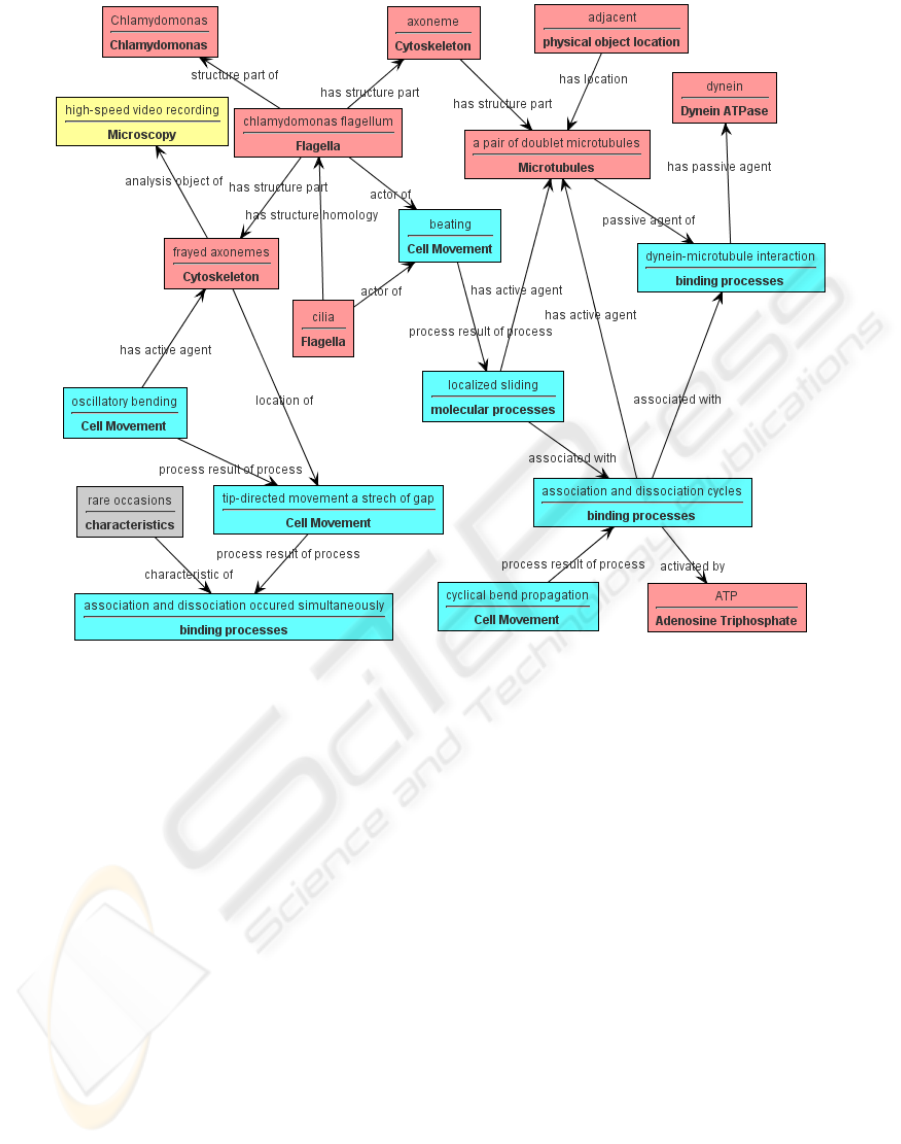

Figure 1: The Semantic graph of a paper from MEDLINE. Boxes show instances of classes from the domain ontology. The

colour of the box indicates the subsuming major upper class: blue instances are processes, red instances are physical entities,

yellow instances are investigative techniques, and gray instances are attributes. The text above the line in a box is the

instance label. The text in bold type below the line in a box is the class name of that instance. Arrows show properties

expressing the asserted relationships between instances.

Text mining techniques cannot extract

relationships between concepts with semantics that

are sufficiently precise for this kind of analysis

(Kraines 2009). We use semantic web techniques

and ontologies to define semantic relationships

described in a scientific paper as follows. First, we

create a descriptor for each paper in the form of a

semantic graph. The nodes in a semantic graph

consist of instances of particular concepts defined in

the ontology that represent entities described in the

paper. The edges in a semantic graph are the specific

relationships that the paper describes between those

entities (an example is shown in figure 1). For

example, “a Flagellum called chlamydomonas

flagellum has as a structure part a Cytoskeleton

called axoneme” is a relationship forming one arc in

the semantic graph shown in figure 1. Then, all pairs

of relationships from the semantic graphs that share

a common entity, e.g. all chains with three nodes and

two arcs, are candidates for relationship associations.

We envisage two primary usages of relationship

associations. One is helping biological scientists to

generate novel hypotheses. For example, the

relationship association that “if some kind of cellular

structure is part of some kind of flagellum, then it is

likely that the cellular structure binds to a specific

biological entity” might inspire a biologist studying

a particular kind of cellular structure, such as a

microtubule, that is part of a flagellum to generate

the hypothesis that the cellular structure binds to a

particular biological entity in the studied cell.

Relationship associations could also help users to

create computer-interpretable descriptors of their

papers in some knowledge sharing system, such as

EKOSS (Kraines et al., 2006). For example, when

the user creates a relationship describing how one

instance is modified by another, and this relationship

appears in one part of a relationship association, then

the system could automatically suggest a new

relationship and target instance to add to the instance

DISCOVERING RELATIONSHIP ASSOCIATIONS IN LIFE SCIENCES USING ONTOLOGY AND INFERENCE

based on the other part of the association.

Our approach is based on two assumptions. First,

because relationship associations describe

associations of relationships between classes of

entities, we assume that similar entities have similar

relationships. Second, because we use semantic

graphs from a small part of the scientific literature to

extract the relationship associations, we assume that

if one relationship association appears in the sample

data with a high probability, then it will also appear

in the whole literature with a similar probability.

This paper is organized as follows. In Section 2,

we describe our work that forms the background for

this paper. In Section 3, we present our approach to

extract the relationship associations. In Section 4, we

describe experiments using 392 semantic graphs for

papers from MEDLINE to obtain relationship

associations. The presentation and experimental

application of the algorithm for extracting

relationship associations are the main contributions

of this paper. In Section 5, we discuss related work.

2 PRELIMINARY WORK

Many applications of semantic web technologies in

the life sciences have appeared recently, including

several large ontologies for annotating scientific

abstracts, such as the Open Biomedical Ontologies

(OBO) and the Unified Medical Language System

(UMLS) Semantic Network. In order to describe a

paper from MEDLINE as a semantic graph, we

developed the UoT ontology based on a subset of the

Medical Subject Headings (MeSH) vocabulary.

EKOSS (Expert Knowledge Ontology-based

Semantic Search) (Kraines et al., 2006) is a web-

based knowledge-sharing system that enables users

to create semantic graphs describing their knowledge

resources, such as scientific papers, using ontologies.

Figure 1 shows a semantic graph created to describe

a paper from MEDLINE (Aoyama and Kamiya,

2005). The semantic graph contains 19 instances of

classes from the UoT ontology together with 23

relationships between the instances.

In preliminary work, we have used EKOSS to

create these kinds of semantic graphs for 392 papers

selected from MEDLINE (unpublished material).

3 RELATIONSHIP ASSOCIATION

EXTRACTION

There are three main aspects to extracting

relationship associations: the data structure, the

method for determining if a relationship association

appears in a particular semantic graph, and the

algorithm for extracting the relationship associations

from a set of semantic graphs.

3.1 Semantic Graphs

The data structure determines the extracting

algorithm. Our approach uses an ontology to

represent papers semantically and unambiguously.

We use one semantic graph to represent one

MEDLINE paper. The nodes of a semantic graph are

instances of ontology classes, and the edges are

relationships between the instances that are specified

by properties also defined in the ontology. Each

instance can have a descriptive text label. Semantic

graphs, such as the one shown in figure 1, act to

structure the knowledge contained in the MEDLINE

papers for extracting relationship associations.

3.2 Semantic Matching

Matching semantic graphs is different from text

matching, such as calculating the similarity of two

strings (Cohen et al., 2003). Semantic matching

techniques compare two data structures at a semantic

level, often by using some logic inference methods.

We use a description logics reasoner software,

RacerPro (www.racer-systems.com), to evaluate the

match between a search semantic graph and a target

semantic graph through a combination of logic and

rule-based inference. First, we add the target graph

to the reasoner’s knowledge base together with the

ontology used to create the graph. Then, we convert

the search graph into a set of semantic queries by

creating sub graphs of the search graph that contain a

specified number of properties and instances. In

most cases, this is one property and two instances, i.e.

a semantic triple. Queries are created by replacing

the instances in the sub graphs with class variables.

Rules for replacing instance classes with super

classes and properties with super properties can be

applied to increase matching recall. Finally, we ask

the reasoner how many of the queries match the

target graph, where a query matches if instances in

the target graph binding to each of the class variables

in the query subject to the specified relationship(s)

can be found. The fraction of matching queries gives

the semantic similarity between the two graphs. A

simple example is shown in Figure 2. Details are

given in (Guo and Kraines, 2008).

3.3 Extraction Process

The process of extracting relationship associations

KDIR 2009 - International Conference on Knowledge Discovery and Information Retrieval

takes the set of semantic graphs as the input. The

output is a set of linked pairs of semantic

relationships, where each relationship is defined as a

triple consisting of a subject or “domain” class, an

object or “range” class, and a directed property

specifying the relationship between the two classes.

A linked pair of semantic relationships is a pair of

semantic relationships that share one class in

common. We refer to these linked pairs of semantic

relationships as relationship associations.

3.3.1 Generating Triple Queries

A semantic triple – consisting of a domain instance,

a range instance, and a property between them – is

the minimum unit of a semantic graph. One semantic

graph contains several semantic triples. The

definitions are formalized as follows:

Graph = {Triple*}

Triple = {domain,property,range}

First, for each triple in a semantic graph, we

create one triple query, defined as follows:

TripleQuery = { domain class variable,

property, range class variable}

In a triple query the instances of the triple are

converted to variables with the same classes. Thus, a

triple query converts the asserted relationship

between two specific entities made by the triple into

a generalized relationship between ontology classes.

There may be some duplicate triple queries

generated from the set of semantic graphs. However,

because we only want to link two triple queries

whose triples both appear in the same semantic

graph and share a common entity, we keep all of the

generated triple queries at this point.

3.3.2 Matching Triple Queries

We use RacerPro to infer matches between queries

and graphs via both logical and rule-based reasoning.

The logic is built into the ontology using formalisms

provided by the description logic that is supported by

the ontology specification we used (OWL-DL). The

rules are pre-defined for a particular ontology by

domain experts. Details are given in (Kraines et al.,

2006; Guo and Kraines, 2008).

If the reasoner can find a pair of instances in a

particular semantic graph meeting the class and

relationship constraints of a triple query Query1,

then we say that the triple Triple1 represented by

Query1 appears in the semantic graph. By using both

logical and rule-based reasoning, we can get

matching results that are implied at a semantic level

because the reasoner can infer relationships between

instances that are not explicitly stated in the semantic

graph. For example, consider the segment of the

semantic graph in figure 1 between the instance of

Flagellum called chlamydomonas flagellum and the

instance of Cell Movement called tip-directed

movement. The triple query “find some instance of a

Flagellum that is the location of some instance of

Cell Movement” does not actually occur in the graph

because there is no property between

chlamydomonas flagellum and tip-directed

movement. However, figure 2 shows that the query

matches with the semantic graph because the

relationship is implied by the relationships specified

with the instance of Cytoskeleton called frayed

axonemes. This match is a result of the rule “If A has

structure part B and B is location of C, then A is

location of C” together with the transitivity of the

“location of” relationship.

Figure 2: An example of semantic matching. Instances are

indicated with boxes where the first line of text gives the

instance name and the second line of text gives the

instance class. Properties are shown by directed arrows

labelled with the property name. The part in outlined in

black is from the semantic graph. The part in outlined in

gray is the query.

Using the reasoner, we match all triple queries

with all semantic graphs. We then calculate the

frequency that each triple query occurs in the

semantic graphs. If a triple query only occurs in the

semantic graphs a few times, then it is not likely to

be involved in a relationship association. Therefore,

we use a user-specified threshold value to filter the

triple queries. Queries with frequencies less than the

threshold value are removed, and the rest are used to

create association queries in the next step.

3.3.3 Generating Association Queries

Now, we have a set of triple queries together with

the frequencies in which they occur in a set of

semantic graphs. In this step, we create association

queries from this set of triple queries.

For each graph, we find all pairs of triples that

share one instance and therefore comprise two

connected arcs of the semantic graph; that is, they

form a connected segment with three instances and

Cell Movement

Flagella

frayed axonemes

Cytoskeleton

chlamydomonas flagellum

Flagella

tip-directed movement

Cell Movement

has structure

part

location of

DISCOVERING RELATIONSHIP ASSOCIATIONS IN LIFE SCIENCES USING ONTOLOGY AND INFERENCE

two properties. If both of the corresponding triple

queries are in the set of triple queries generated in

3.3.2, then the pair of triples is a candidate for

creating an association query.

We create an association query from each triple

pair meeting the conditions above. However, to

decrease the computational load of matching them

with the set of graphs, we remove duplicate

association queries in the next step.

3.3.4 Removing Duplicate Queries

Because we use semantic matching to match an

association query with a semantic graph, two queries

with same semantic meaning will get the same

matching results. By removing association queries

with the same semantic meaning, we can reduce the

number of reasoning tasks that must be performed.

The graphs are directed, so even if two queries

have the same classes and properties, if the

directions of the properties are different, then the

queries are different. Therefore, we must consider

the three types of association queries shown in

Figure 3.

Figure 3: Three types of association queries.

We use three rules to remove duplicate

association queries. The rules are presented using a

query with type (a) as the original query Q1 (queries

with types (b) and (c) are similar):

Q1 = {v11 -> p11 -> v12; v12 -> p12 -> v13}

Each rule compares Q1 to a second query Q2 to

determine whether or not to remove Q2.

Rule 1, if Q1 and Q2 meet the following

conditions at the same time, then Q2 is removed.

z Q2 = {v21 -> p21 -> v22; v22 -> p22 -> v23}

z The class of v2i is the same as or subsumes

the class of v1i (i = 1, 2, or 3).

z The property of p2i is the same as or

subsumes the property of p1i (i = 1 or 2).

Rule 2, if Q1 and Q2 meet the following

conditions at the same time, then Q2 is removed.

z Q2 = {v21 -> p21 -> v22; v23 -> p22 -> v22}

z The class of

v2i is the same as or subsumes

the class of v1i (i = 1, 2, or 3).

z The property of p21 is the same as or

subsumes the property of p11.

z The inverse property of p22 is the same as or

subsumes the property of p12.

Rule 3, if Q1 and Q2 meet the following

conditions at the same time, then Q2 is removed.

z Q2 = {v22 -> p21 -> v21; v22 -> p22 -> v23}

z The class of v2i is the same as or subsumes

the class of v1i (i = 1, 2, or 3).

z The property of p22 is the same as or

subsumes the property of p12.

z The inverse property of p21 is the same as or

subsumes the property of p11.

As a result of this step we get a set of association

queries with unique semantics.

3.3.5 Matching Association Queries

The matching method described in Step 3.3.2 is used

to match the association queries with each of the

graphs and calculate the frequencies in which they

occur. Association queries whose frequency is less

than a given threshold are removed. The rest of the

queries are candidates for relationship associations.

3.3.6 Calculating Probabilities

From the previous steps, we get a set of association

queries meeting a specified frequency. In order to

help users find useful relationship associations, we

calculate two conditional probabilities for each

association query from the frequencies of occurrence

for the two triples that make up the association

query:

The probability that the second triple appears if

the first triple appears, prob

1-2

= P (t2 | t1).

The probability that the first triple appears if the

second triple appears, prob

2-1

= P (t1 | t2).

Generally, a high value of prob

1-2

(prob

2-1

) means

that if the first (second) triple appears in a semantic

graph, then it is likely that the second (first) triple

will also appear. If both probabilities are high, then it

is likely that the two triples will only appear at the

same time.

3.4 Relationship Associations

As a result of the extraction process described above,

we get a set of association queries together with their

probabilities of occurrence. However, this

information can be difficult for users to understand.

So we use templates and simple natural language

generation algorithms to create natural language

expressions of the relationship associations from the

association queries. The users can examine these

relationship associations to identify those that are

most reasonable and interesting. These final

relationship associations can be used to generate

v13

v12

v11

(a)

v13

v12

v11

(b)

v13

v12

v11

(c)

KDIR 2009 - International Conference on Knowledge Discovery and Information Retrieval

scientific hypotheses or to help users to create new

semantic graphs.

4 EXPERIMENTS

Using the process described above, we have

conducted experiments to obtain relationship

associations from a set of 392 MEDLINE papers. In

this section, we report the results of this experiment

As described in section 2, semantic graphs were

created for 392 papers selected from MEDLINE

using the UoT ontology that we have developed in

other work. The UoT ontology has 1,762 classes and

151 properties. We used those classes and properties

to create 392 semantic graphs. On average, each

semantic graph has 26 instances and 34 properties.

The entire set of graphs contains 10,186 instances

and 13,283 properties.

We created 13,283 triple queries from the 392

semantic graphs and then used the reasoner to

determine how many semantic graphs contain each

triple. We removed all triple queries that only

matched with one semantic graph, since that was the

graph from which the triple was obtained. As a

result, there were 8,200 triple queries available for

creating association queries.

We created 18,704 association queries based on

the 8,200 triple queries and 392 graphs. We removed

duplicates using the method from 3.3.4. We also

removed highly general queries. For example, the

property “associated with” in UoT ontology is the

top-level of the property hierarchy. Therefore, a

query containing that property does not give us any

information about the relationship type. Other highly

general “stop list” queries can be added as required.

The result is 3,483 association queries from the 392

semantic graphs.

We matched these association queries with all of

the semantic graphs using the reasoner and removed

all queries that only appeared once. This resulted in a

total of 1,215 association queries appearing in at

least two of the semantic graphs.

Next, we calculated the two probabilities prob

1-2

and prob

2-1

for each of the 1,215 association queries.

There are 629 association queries whose prob

1-2

greater than 0.5. There are 639 association queries

whose prob

2-1

is greater than 0.5. There are 891

association queries, for which at least one probability

(prob

1-2

or prob

2-1

) is greater than 0.5.

Finally, we converted the association queries into

natural language expressions, and we asked an

expert in life sciences to identify the most interesting

relationship associations.

Figure 4: An example of a relationship association.

One example of a relationship association that

was extracted in this experiment is shown in figure 4.

The natural language representation is: “If a

Cytoplasmic Structure is part of a Flagellum, then

the probability that there is a Physical Object that

interacts with the Cytoplasmic Structure is very

high.”

This relationship association appears in five

papers in our experiment:

“Eukaryotic flagellum is a Flagellum that has as

a part some Cellular Structure called flagellar

axoneme. The flagellar axoneme has as a part some

Microtubule called doublet microtubule that

interacts with a Dynein ATPase called dynein

arms.” (Morita and Shingyoji, 2004)

“There is a Flagellum that has as a part some

Cellular Structure called axoneme. Sliding

disintegration is a molecular process that consumes

the axonome and that is regulated by some Ion

called Ca(2+).” (Nakano et al., 2003)

“Chlamydomonas flagellum is a Flagellum that

has as a part a Cytoskeleton called axoneme. The

axoneme has as a part some Microtubule called a

pair of doublet microtubules that participates in

some binding process called dyein-microtubule

interaction. The dyein-microtubule interaction has as

a participant a Dynein ATPase called dynein.”

(Aoyama and Kamiya 2005) The semantic graph for

this paper is shown in figure 1.

“Flagellar is a Flagellum that has as a part

some Cytoplasmic Structure called

axoneme. There

is a Microtubule that is part of the axoneme. There

is a molecular process that has as an actor the

Microtubule and that is regulated by some molecule

part called dynein arm.” (Yanagisawa and Kamiya,

2004)

“There is a Flagellum that has as a part some

Cytoplasmic Structure called axoneme. Glass

substrate is a physical object that binds to the

axoneme.” (Sakakibara et al., 2004)

5 RELATED WORK

The goal of the work presented in this paper is to

discover new knowledge or hypotheses from the

Physical Objects

Cytoplasmic Structures

has structure par

interacts with

Flagella

DISCOVERING RELATIONSHIP ASSOCIATIONS IN LIFE SCIENCES USING ONTOLOGY AND INFERENCE

literature. There are several previous attempts to

attain this goal as we mentioned in Section 1.

Swanson presented one of the first literature-

based hypotheses that fish oil may have beneficial

effects in patients with Raynaud’s disease (Swanson,

1986). His original discoveries were based on an

exhaustive reading of the literature. Swanson

described the process of his literature-based

hypotheses discovery with his ABC model: if A and

B are related, and B and C are related, he suggested

that A and C might be indirectly related.

The text analysis scripts developed from

Swanson’s initial work evolved into the Arrowsmith

system (Swanson and Smalheiser, 1997). The

Arrowsmith system considers the titles of papers

from MEDLINE. If two concepts co-occur in a title,

then they are considered to be related. Therefore, the

Arrowsmith system uses the relationships of co-

occurrence of concepts in titles to infer the implicit

relationships between two concepts.

Gordon and Lindsay developed a methodology

for replicating Swanson’s discovery based on lexical

statistics. They used different word frequency-based

statistics, including words and multiword phrases

from entire MEDLINE records in addition to title

words (Gordon and Lindsay, 1996; Lindsay and

Gordon, 1999).

Weeber and colleagues used the Unified Medical

Language System (UMLS) Metathesaurus to identify

biomedically interesting concepts in MEDLINE

titles and abstracts. They also exploited the semantic

categorisation that is included in the UMLS

framework (Weeber et al., 2003, 2005).

Hristovski and colleagues used the manually

assigned MeSH terms rather than the natural

language text from MEDLINE citations. Their tool

BITOLA computes association rules between MeSH

terms. They used association rules to measure the

relationship between MeSH term concepts in the

form X -> Y (confidence, support). They used

concept co-occurrence as an indication of a

relationship between concepts, but they did not try to

identify the kind of relationship. Therefore, although

their association rule method determines whether or

not there is implicit relationship between two

concepts, it cannot identify the specific type of

relationships that are associated. Their association

rules are between two concepts, not two

relationships (Hristovski et al., 2001, 2005).

All these existing approaches focus on extracting

non-specified relationships between two concepts in

the target domain. In contrast, our approach tries to

discover an implicit association between a pair of

relationships, each of which predicates the specific

way that one concept modifies another. We call a

pair of relationships that are found to be relevant a

relationship association. Our approach uses semantic

web techniques to enable this kind of discovery of

implied associations between relationships.

Although Hristovski et al. suggested that MeSH

terms represent more precisely what a particular

document is about than plain text, MeSH terms

cannot represent the relationships between the

entities that are described. Our approach uses

concepts and properties specified in an ontology that

logically structures a set of MeSH terms in order to

represent the relationships between entities described

in a MEDLINE paper, which we believe provides a

more precise representation of that paper.

6 CONCLUSIONS

How to help researchers make scientific discoveries

using the existing published knowledge is an

important problem in bioinformatics and knowledge

discovery fields. Recently, many literature-based

discovery methods and tools have been proposed for

solving this problem. These approaches mainly use

text-mining techniques to discover non-specified

relationships between two concepts.

We have presented an approach based on

semantic web techniques to discover the association

of pairs of specified relationships, which we call

relationship associations. These relationship

associations could help researchers generate

scientific hypotheses and also assist in the creation

of semantic graphs describing scientific documents

in a computer-interpretable way.

We first reviewed our preliminary work for

creating semantic graphs using an ontology

developed from a subset of the MeSH vocabulary.

Then, we described the process of extracting

relationship associations from those semantic graphs.

First, we generate triple queries from the semantic

graphs and calculate their frequencies of occurrence

by matching them with the set of semantic graphs

using logical and rule-based inference. Next, we

generate association queries from the triple queries

whose frequencies of occurrence are larger than a

specified threshold. We remove association queries

that specify the same semantic relationships and

match the remaining association queries with the set

of semantic graphs to get their frequencies of

occurrence. Finally, we convert the association

queries whose frequencies exceed the given

threshold to relationship associations expressed in

natural language.

We discussed the results of an experiment to

apply the approach to a set of 392 semantic graphs

based on papers from MEDLINE. The relationship

KDIR 2009 - International Conference on Knowledge Discovery and Information Retrieval

associations that were created from these semantic

graphs were examined and several interesting ones

were identified.

The relationship association extraction method

presented here can be used in other knowledge

domains. In future work, we plan to apply the

method to extract relationship associations from a set

of semantic graphs that have been created to express

failure events in the field of engineering.

ACKNOWLEDGEMENTS

The authors thank Daisuke Hoshiyama for advice on

interpretation of the experimentally extracted

relationship associations and the President’s Office

of the University of Tokyo for funding support.

REFERENCES

Aoyama, S., Kamiya, R., 2005. Cyclical Interactions

between Two Outer Doublet Microtubules in Split

Flagellar Axonemes. Biophys J., 89 (5), 3261-3268.

Cohen, W.W., Ravikumar, P., Fienberg, S.E., 2003. A

Comparison of String Distance Metrics for Name-

Matching Tasks. Proceedings of the ACM Workshop

on Data Cleaning, Record Linkage and Object

Identification, Washington DC, August 2003.

Gordon, M. D., Lindsay, R.K., 1996. Toward Discovery

Support Systems: A Replication, Re-Examination, and

Extension of Swanson’s Work on Literature-Based

Discovery of a Connection between Raynaud’s and

Fish Oil. JASIST, 47(2), 116-128.

Guo, W., Kraines, S., 2008. Explicit Scientific Knowledge

Comparison Based on Semantic Description Matching.

American Society for Information Science and

Technology 2008 Annual Meeting, Columbus, Ohio.

Hristovski, D., Stare, J., Peterlin, B., Dzeroski, S., 2001.

Supporing discovery in medicine by association rule

mining in Medline and UMLS, Medinfo, 10(Pt2),

1344-1348.

Hristovski, D., Peterlin, B., Mitchell, J.A., Humphrey,

S.M., 2005. Using literature-based discovery to

identify disease candidate genes. International Journal

of Medical Informatics, 74(2-4), 289-298.

King, T.J., Roberts, M.B.V, 1986. Biology: A Functional

Approach. Thomas Nelson and Sons. ISBN 978-

0174480358.

Kraines, S., Guo, W., Kemper, B., Nakamura, Y., 2006.

EKOSS: A Knowledge-User Centered Approach to

Knowledge Sharing, Discovery, and Integration on the

Semantic Web. The 5th International Semantic Web

Conference, LNCS 4273, 833-846.

Kraines, S., 2009. An Ontology-based System for Sharing

Expert Knowledge in Life Sciences. Journal of Web

Semantics, in review.

Langley, P., 2000. The computational support of scientific

discovery. International Journal of Human-Computer

Studies, 53, 393-410.

Lindsay, R.K., Gordon, M.D., 1999. Literature-based

discovery by lexical statistics, JASIST, 50 (7), 574-587.

Marrs, K.A., Novak, G., 2004. Just-in-Time Teaching in

Biology: Creating an Active Learner Classroom Using

the Internet. Cell Biology Education, 3, 49-61.

Morita, Y., Shingyoji, C., 2004. Effects of imposed

bending on microtubule sliding in sperm flagella.

Current Biology, 14(23), 2113-2118.

Nakano, I., Kobayashi, T., Yoshimura, M., Shingyoji, C.,

2003. Central-pair-linked regulation of microtubule

sliding by calcium in flagellar axonemes. Journal of

Cell Science, 116 (8), 1627-1636.

Racunas, S.A., Shah, N.H., Albert, I., Fedoroff, N.V., 2004.

HyBrow: a prototype system for computer-aided

hypothesis evaluation. Biofinformatics, 20 (Suppl 1),

i257-i264.

Sakakibara, H.M., Kunioka, Y., Yamada, T., Kamimura,

S., 2004. Diameter oscillation of axonemes in sea-

urchin sperm flagella. Biophys J.

, 86(1 Pt 1), 346-352.

Srinivasan, P., 2004. Text Mining: Generating Hypotheses

From MEDLINE. JASIST, 55(5), 396-413.

Swanson, D.R., 1986. Fish oil, Raynaud’s syndrome, and

undiscovered public knowledge. Perspectives in

Biology and Medicine, 30, 7-18.

Swanson, D.R., 1988. Migraine and Magnesium: Eleven

neglected connections. Perspectives in Biology and

Medicine, 31, 526-557.

Swanson, D.R., 1990. Somatomedin C and Arginine:

Implicit connections between mutually isolated

literatures. Perspectives in Biology and Medicine,

33(2), 157-179.

Swanson, D.R., Smalheiser, N.R., 1997. An interactive

system for finding complementary literatures: a

stimulus to scientific discovery. Artificial Intelligence,

91, 183-203.

Swanson, D. R., Smalheiser, N.R., Bookstein, A., 2001.

Information discovery from complementary literatures:

Categorizing viruses as potential weapons. JASIST,

52(10), 797-812.

Weeber, M., Vos, R., Klein, H., de Jong-van den Berg,

L.T.W, Aronson, A.R, Molema, G., 2003. Generating

hypotheses by discovering implicit associations in the

literature: A case report of a search for new potential

therapeutic uses for thalidomide, In J. American

Medical Informatics Association, 10(3), 252-259.

Weeber, M., Kors, J.A., Mons, B., 2005. Online tools to

support literature-based discovery in the life sciences.

Briefings in Bioinformatics, 6(3), 277-286.

Yanagisawa, H., Kamiya, R., 2004. A Tektin Homologues

Is Decreased in Chlamydomonas Mutants Lacking an

Axonemal Inner-Arm Dynein. Molecular Biology of

the Cell, 15 (5), 2105-2115.

DISCOVERING RELATIONSHIP ASSOCIATIONS IN LIFE SCIENCES USING ONTOLOGY AND INFERENCE
