ONTOLOGY LEARNING BY ANALYZING XML DOCUMENT

STRUCTURE AND CONTENT

Nathalie Aussenac-Gilles and Mouna Kamel

IRIT, Université Paul Sabatier de Toulouse, 118, route de narbonne, 31062 Toulouse Cedex9, France

Keywords: Natural language processing for ontology learning, Extraction of semantic relations, Information extraction

from structured documents.

Abstract: Most existing methods for ontology learning from textual documents rely on natural language analysis. We

extend these approaches by taking into account the document structure which bears additional knowledge.

The documents that we deal with are XML specifications of databases. In addition to classical linguistic

clues, the structural organization of such documents also contributes to convey meaning. In a first stage, we

characterize the semantics of XML mark-up and of their relations. Then parsing rules are defined to exploit

the XML structure of documents and to create ontology concepts and semantic relations. These rules make

it possible to automatically learn a kernel of ontology from documents. In a second stage; this ontology is

enriched with the results of text analysis by lexico-syntactic patterns. Both ontology learning rules and

patterns are implemented in the Gate platform.

1 INTRODUCTION

Ontology learning from text has been investigated

from around 2000, with early works like the

Terminae (Aussenac-Gilles, Despres and Szulman,

2008) and the Text-to-Onto methods and tools, and

several reference books like (Buitelaar, Cimiano and

Magnini, 2005). These methods define how to select

and combine relevant natural language processing

(NLP) tools to find out linguistic clues for ontology

items, or, better, to learn and enrich automatically an

ontology. High level tasks, like term or relation

extraction (Bourigault, 2002), combine several basic

text processing. Relation extraction plays a major

role to structure the ontology with hierarchical and

other kinds of semantic relations, to assign

properties to concepts and also to identify concepts.

Relation extraction techniques (Grefenstette, 1994)

include statistics (looking for repeated segments or

meaningful predicate argument structures (Hindle,

1990)), robust or shallow linguistic analyses (mainly

pattern matching on syntactically tagged corpora)

(Giuliano, Lavelli and Romano, 2006) and learning

(to learn new patterns from tagged corpora)

(Nédellec and Nazarenko, 2003). A recent state-of-

the-art on pattern-based relation extraction from text

(Auger and Barriere, 2008) shows that a pattern may

correspond to very different characterizations of

how a semantic relation may be expressed in a given

language and corpora. A pattern defines a way to

explore a sequence of words, lemmas, POS,

syntactical relations, or semantic classes. These

patterns are often defined or checked by manual text

browsing, although many linguists tend to use

simple and efficient tools like concordancers

(Daoust, 1996), KeyWordsInContext like

SystemQuick (Ahmad and Holmes-Higgin, 1995),

or basic text browsing functions in text editors.

A major assumption is that each pattern

occurrence should appear within one sentence. But a

text is much richer that a list of sentences

(Charolles, 1997): its material presentation (Virbel

and Luc, 2001), the sentence and paragraph

sequencings (the discourse structure) (Asher,

Busquet and Vieu, 2001), as well as the context

surrounding the reader contribute to the

interpretation process. Such features also contribute

to relation identification and should be included in

pattern definitions.

We propose here an approach which takes into

account both the material structure of a document

and its textual content. In fact, structural tags

implemented in a document (section title, sub-

section title, enumeration, etc.) express hierarchical

relations on which we rely to elaborate a first

ontology kernel. Furthermore, a text analysis allows

enriching this ontology. We test our approach on

159

Aussenac-Gilles N. and Kamel M. (2009).

ONTOLOGY LEARNING BY ANALYZING XML DOCUMENT STRUCTURE AND CONTENT.

In Proceedings of the International Conference on Knowledge Engineering and Ontology Development, pages 159-165

DOI: 10.5220/0002293301590165

 SciTePress

database specification documents (in the scope of

the GEONTO project) where the database structure

is reflected by the document structure and

constraints on the database content are expressed in

natural language. A first evaluation of the tool that

implements the method shows some strengths and

limitations that draw directions for future works.

2 METHODOLOGY

We propose a method for ontology learning that

combines two complementary document analyses:

the first one bears on the document structure when it

is described using languages such as HTML,

SGML, XML taking advantage of the semantics of

tags and their relations; the second one explores the

document textual content by processing natural

language. Each process is carried out independently

thanks to a specific set of rules that lead to the

definition of concepts and relations in an ontology.

2.1 Rules for Parsing XML Document

The markup language provides a description of both

the text structure and the relationships between the

tagged textual units thanks to tree structure of the

tags. In the case where tags mark textual units which

are short phrases that correspond to linguistic

formulations of concepts or relations, semantic

relations can be defined thanks to specializations of

the following prototypical rule:

When - A and B are tags, B being covered by A

- C

an d C

are concepts respectively labelled by

the text marked by A and B

Then a semantic relation exists between C

and C

Specializing this rule requires human reading

and interpretation of the tags and their relations to

define a set of extraction rules. Indeed, the

semantics conveyed by the tags in the tag tree

depends on the context. But once these rules are

written for a type of document compliant with an

XML schema, they can automatically analyse any

valid corpus compliant with this Schema, and

provide a core ontology for each document of that

type.

2.2 Rules for Natural Language

Processing

The body of an XML document corresponds to

natural language text and may contain relevant

information for enriching the ontology obtained at

the end of the previous step. According to Barrière

and Agbado (2006), knowledge-rich contexts are

text fragments that contain linguistic marks of

semantic relation. We choose to use lexico-syntactic

patterns to identify semantic relations in these text

fragments. A lexico-syntactic pattern describes a

regular expression, composed with words, syntactic

or semantic categories, and typographic symbols to

identify text fragments matching this format. These

features are assigned by various NLP tools

(tokenizer, parser, tagger, etc.). We defined a set of

patterns for three basic semantic relations:

hypernymy, meronymy, functional relations. Text

analysis with these patterns leads to enrich the

ontology kernel with new concepts and relations.

3 EXPERIMENTAL CONTEXT

Within the GEONTO project (http://geonto.lri.fr/),

one of the partners owns heterogeneous

geographical databases and aims at reaching

interoperability among them. The GEONTO

partners have planned an ontology-based solution:

one ontology will be built up for each database and

should reflect its content as much as possible; then

these ontologies will be mapped to a unique

reference ontology.

In most previous works on ontology learning

from database schema (Grcar, Klein and Novak,

2007), the resulting ontologies have a low level of

depth due to the flat structure of the relational

schema. The only constraints which can be taken

into account are those allowed by the definition

language (Tirmizi, Sequeda and Miranker, 2008).

As database specifications are richer than database

schemas, we assume that GEONTO document

analysis will provide richer ontologies.

For each database specifications is an XML

document validated by the same XML Schema. This

XML schema is compliant with the INSPIRE1

standard which is a directive of the European

Parliament and of the Council (2007) establishing an

Infrastructure for Spatial Information in the

European Community.

3.1 GEONTO Document Features

The experiment reported in this paper bears on the

BDTopo database. A translated excerpt of the

original French MSWord document is shown in

INSPIRE : http://inspire.jrc.ec.europa.eu/

KEOD 2009 - International Conference on Knowledge Engineering and Ontology Development

160

A – Road thoroughfare

Trail section

Definition: Earth thoroughfare with no rails dedicated to pedestrians, cycles or animals …

Aggregation: Cf. the various values of the <nature> attribute.

Selection: Cf. the various values of the <nature> attribute.

Geometrical modelling: Along the axis, on the ground.

Attribut: Nature

Definition: Makes it possible to differentiate several kinds of earth thoroughfares.

Type: Enumerated

Values: Dirt road / Trail / Hiking trail / Stairs / Cycling path

Nature = « Dirt Road »

Definition: Road with poor surfacing or dirt road (no surfacing or surfacing in bad shape) but that is suitable to family motor vehicles whatever the

weather conditions.

Aggregation: Lane (carriage way) | Country road | Stoned road

Selection: Includes all stoned or dirt roads.

…

Figure 1: Translated excerpt of specifications related to the “Trail Section” class.

Figure 1 (related to the “Trail section” (Tronçon de

chemin) class) and the corresponding extract of the

XML specification appears in Figure 2.

In the BDTopo specifications, object classes (2

in Figure 1) are distributed over 9 information areas

(titles as (1) in Figure1). The objects of a particular

class listed in the Aggregation feature (4) share a

single definition (3), the same kind of geometry (5)

and the same list of attributes. In turn, each attribute

value has its own definition (6) and can list object

names (7).

3.2 XML Document Processing

Exploiting Tags and Tag Dependencies

A systematic study of the XML schema proved that

tags and their dependencies could be interpreted

with regularity as indices of domain concepts,

semantic relations and concept properties. We report

here below how to identify ontology elements.

Concepts

: each of the terms inside tags like

(for qualitative attributes), <valueName> or

<TermList>, lead to a concept definition with the

corresponding term as label.

Hierarchical Relations

: they are derived from

dependencies between some specific tags (i.e.

and <TermList>>, <attributeName> and

<valueName>, <valueName> and <TermList>) and

from the concepts identified thanks to these tags.

Properties

: properties are identified thanks to the

terms inside <attributeName> tags when these

attributes are quantities, and they relate to the

concepts identified thanks to the terms marked by

<?xml version="1.0" encoding="ISO-8859-1" ?>

<packageName>A – Road Thoroughfare

</packageName>

<class>

<className>Trail section</className>

<description type=”definition”>Earth

Thoroughfare … </description>

…

Cf.

the various values of the <nature>

attribute </description>

…

<attributeName> Nature </attributeName>

<descrition type=”definition”> Makes it

possible to differentiate several kinds

of … </description>

<valueType> Énumerated</valueType>

Road with poor surfacing …

</description>

<description type=”extensionalDefinition”

Lane (carriage way)|Track|

Stoned road </description >

</value>

…

</enumeratedValues>

…

</attribute>

</attributes>

</class></package> </featureCatalogue>

Figure 2: Excerpt of the XML document in Figure 1.

<className> tags.

Non-hierarchical Semantic Relations

: semantic

relations are identified thanks to the terms marked

by <attributeName> tags when these attributes are

ONTOLOGY LEARNING BY ANALYZING XML DOCUMENT STRUCTURE AND CONTENT

161

qualitative, and they relate to the concepts identified

thanks to the terms marked by <className> tags.

The semantics of properties and non-hierarchical

relations cannot be determined unless the text

marked by <valueType> tags is analysed.

The identification of all correspondences between

XML specifications and ontology elements did not

raise any major difficulty as long as tag labels

convey their own semantics and relations can be

easily identified with some common-sense

knowledge.

Text Analysis with Lexico-Syntactic Patterns

The specification document of the BDTopo database

contains very short and very synthetic paragraphs,

where expressions of conceptual relations are quite

sparse. Nevertheless, the definition field of any

section may contain sentences that express

hierarchical relations, metonymy relations or even

some property definitions (Rebeyrolle and Tanguy,

2000). We propose to exploit these short paragraphs

to enrich the core ontology.

a) Semantic Relation Identification

Corpus analysis shows that the most recurrent

lexical relation is the meronymic one. Meronymy is

characterized by key words like part of, portion of,

section of, etc.

To find the maximum number of ways to express

this relation, we use dictionaries and WordNet

synsets. We show below a part of the pattern (Rule

1) that matches all these formulations (patterns are

written according to the JAPE

syntax):

({Concept}

({Token.lemma== "portion"}|{Token.lemma== "part"}|…)

({Token.categoty== "PREP"})

({Token.category==”DET:ART”})?

({Term}) :annot)

- -> annot.ANNOT1 = { rule="Rule1"}

Rule1 looks for an ontology concept (obtained by

construction in 3.2.1) followed by a sequence of one

of the part, portion, etc. lemmas, a preposition,

eventually a determinant, then by a term annotated

Term (recognized by a term extractor, here

TermoStat

). If such a sequence is recognized, the

term will be tagged as ANNOT1.

Then a parser will read those tags, define a concept

from this term tagged as ANNOT1, and have to

set a part-of relation between C

and the concept C

where this definition occurs. Two cases may arise:

JAPE : Java Annotation Pattern Engine

TermoStat : developed at the Montreal University

http://www.mapageweb.umontreal.ca/drouinp/index_en.html

- if C

already exists in the ontology, the relation is

established between C

and C

- If C

does not exist, we create it and apply one of

these processes (Buitelaar, Olejnik and Sintek,

2004):

a) if C

is a concept of the ontology the label

of which is included in that of C

may

be considered as more specific than C

), C

becomes a child of C

b) if C

is a concept of the ontology the label

of which includes that of C

may be

considered as more specific than C

), C

becomes a father of C

c) otherwise C

becomes a child of the

ontology Top concept.

Then the relation is stated between C

and C

For instance, take the following definition: "Road

section: part of thoroughfare dedicated to cars". By

construction, Road section is a concept of the

ontology. Rule1 annotates thoroughfare as a term. A

concept labelled Thoroughfare is created and linked

to the Top concept as a child. The part-of relation is

then established between the Road section and

Thoroughfare concepts.

A further stage consists in making the concept

Thoroughfare as the father concept of the concept

Earth thoroughfare (which is yet under the concept

Top) using the lexical inclusion principle.

b) Property Identification

A property expression is characterized by an

adjective or a noun adjunct when it is associated to a

term. We give below the pattern that identify these

cases:

({Concept} {Term}

((({Token.category==”VER:pper”}{Token.category==”PREP”}

{Terme}) : annot1) | ({Token.category==”ADJ”}):annot2)

) - - > annot1.ANNOTA = {rule="Rule2"},

annot2.ANNOTB = {rule="Rule2"},

When applied to the definition of the Road section,

this pattern identifies a new property dedicated to

cars which will associated to the Road section

concept.

Implementation

This first step of the ontology learning process has

new annotations in the input corpus, and the result is

an annotated corpus. In a further stage, these

annotations can be read or processed by JAPE Rules

or Java programs. As long as GATE makes

KEOD 2009 - International Conference on Knowledge Engineering and Ontology Development

162

available an Ontology API, it is easy to build up an

ontology by processing text annotations. Moreover,

GATE considers that the XML tags of an input

document are annotations. Hence, the GATE

platform makes it possible to define a unified

process that supports the exploitation of (1)

structural tags to get a first ontology kernel, and (2)

annotations resulting from processing resources to

enrich the ontology.

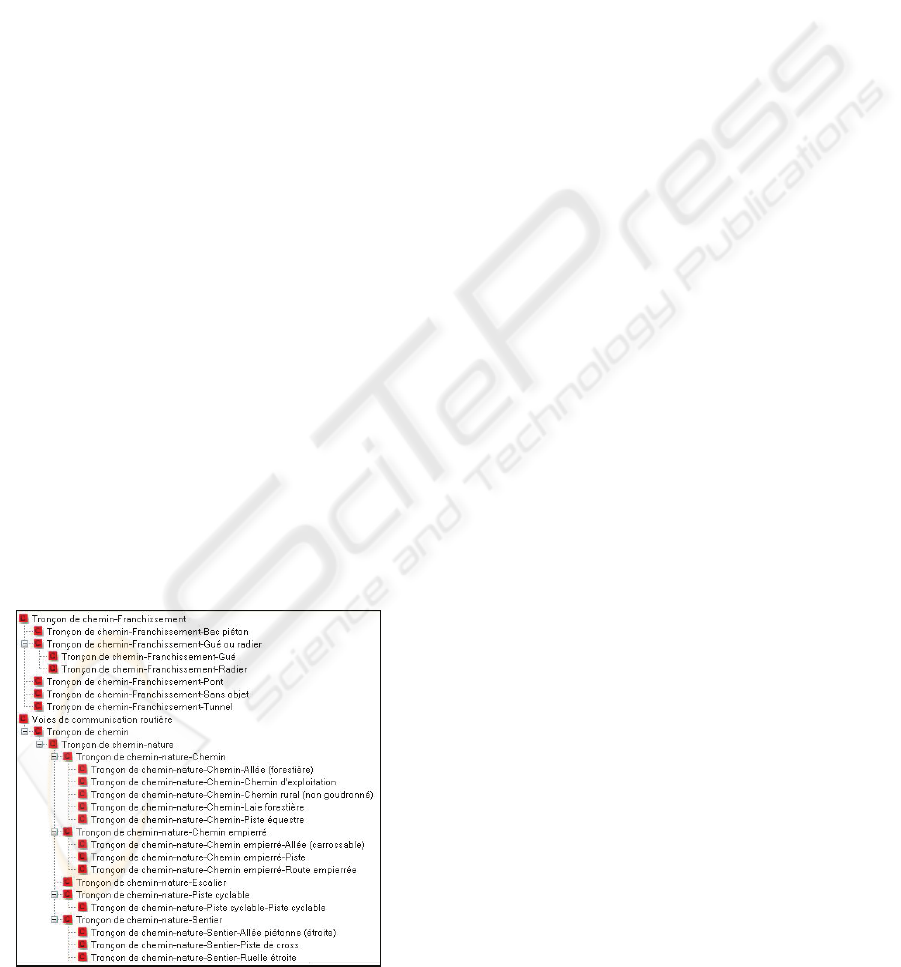

Figure 3 presents an extract of the resulting concept

hierarchy in the ontology. The Trail section

(Tronçon de chemin) concept is a child of Road

thoroughfare (Voies de Communication Routière)

and has Trail (Chemin), Dirt road (Chemin

empierre), Stairs (Escalier), Cycling_path (Piste

cyclable) and Dirt_road (Sentier) as children

concepts. The three children concepts of Dirt road

are Carriage lane (Allée carossable), Track (Piste),

Dirt road (Route empierrée).

Furthermore, rules (1) and patterns (2) state new

concepts, relations and properties. Let’s consider the

concept Trail section.

(1) it has an attribute (represented as

DataTypeProperty) labelled has-name and

is of type String. Trail section is related to

the concept passage (Franchissement) by

the semantic relation has-Crossing

modelled as ObjectType Property.

(2) The property dedicated to pedestrians is

linked to the concept Trail section.

As a same term may appear in several parts of the

text with different definitions or properties, we

choose to differentiate these concepts by labelling a

concept with its father concept labels and its own.

Figure 3: Extract of the ontology resulting from

processing the specifications given in Figure 1.

4 EVALUATION

We have tried to estimate the gain brought by our

method on this corpus compared with similar known

approaches. Given the formulation of the

specifications, any statistical method cannot provide

significant results: very short natural language

paragraphs with few redundancies, very few

occurrences of each term, many terms used in list

without meaningful linguistic context. For similar

reasons, linguistic approaches are not efficient as

long as there are quite few written paragraphs (most

of the phrases marked by tags are terms that define

concept labels or attributes).

A previous work had been carried out on the

same specification document (BDTopo) and had led

to a first ontology (Laurens, 2006). This work

explores the text visual lay-out (paragraph style,

character type and caption, frames, etc.) considered

as bearing semantics. The overall process produces

a taxonomy.

So we have compared the effectiveness of both

methods by comparing the quality of the resulting

ontologies.

4.1 Comparison of the Two Resulting

Ontologies

Onto_SV and Onto_ST, the two ontologies obtained

respectively by Laurens using the visual structure

and by us using our approach, result from the same

specification document of the BDTopo database. In

both cases, setting up the document analysis process

requires a precise manual interpretation of the

semantics of original tags and of the way they are

entwined. Human interpretation was also required at

several other stages of the Onto_SV development

process: to select/validate geographical terms, to

clean up the XML hierarchy before the automatic

generation of the concept taxonomy, to reorganise

and improve the OWL representation of this

taxonomy. An opposite option has been selected to

build the Onto_ST ontology: the ontologist is

supposed to modify only the ontology once it is

automatically generated, to correct inconsistencies

due to errors in the specification. Table 1 compares

several features of both ontologies.

Onto_ST is built up automatically, contains more

concepts (because our method is able to differentiate

concepts with the same label but with different

properties) and more relations (non hierarchical

relations are extracted) than Onto_SV. Onto_ST is

not the best domain ontology regarding concept

definitions, relations or its hierarchical structure,

ONTOLOGY LEARNING BY ANALYZING XML DOCUMENT STRUCTURE AND CONTENT

163

Table 1: Features of the two ontologies.

Onto_SV Onto_ST

Number of concepts 615 1251

Depth 6 6

Hierarchical IS_A relations yes yes

Properties No yes

Meronymy relation No yes

Other semantic relations No yes

Learning process Supervised Unsupervised

but it is the closer one to the domain knowledge

as expressed in the specification document.

4.2 Limitations and Advantages of our

Approach

The quality of the resulting ontology depends

entirely on the quality of the specification

document: when inconsistencies appear in the

specification file, human interpretation is required to

correct their consequences in the ontology. This is

one of the advantages of formalization: it helps

localize any fuzzy information or inconsistency

within highly structured documents like these

specifications. Whatever the effort made by their

authors, meaning variations (whether lexical,

syntactical or related to the text material

presentation) are one of the features of natural

language in text. While processing the document,

several such cases occurred: either the semantics of

the relation was not the expected one, or one of the

items of an enumeration had a different status from

others, etc. A detailed study is given in (Kamel and

Aussenac, 2009).

5 CONCLUSIONS AND FUTURE

WORK

We have shown that, in the very positive context

where texts are structured with well-defined tags

with a clear semantics, it is possible to define a text

processing chain that results efficient for the

automatic construction of an ontology. This chain,

implemented with the GATE platform, includes

rules that exploit together several features of the

document: its explicit structure through available

tags and its content in natural language. The

ontology obtained with this automatic process

results rich in concepts and relations, and each of its

element is precisely connected to the text from

which it originates. This method is applicable to all

XML documents referring database specifications

and validated by the INSPIRE standard.

We are aware that this ontology contains

inconsistencies that should be manually corrected.

In the scope of the GEONTO project, ontology

manual cleaning is planned.

For the time being, we feel like enriching the

ontology automatically built up, in particular thanks

to a more systematic analysis of definitions

(especially when they contain conjunctions or

disjunctions) and the text material presentation (we

have identified several kinds of typographic marks

that were not considered yet).

REFERENCES

Ahmad, K., Holmes-Higgin, P.R., 1995. SystemQuick : A

unified approach to text and terminology. In

Terminology in Advanced Microcomputer

Applications. Proceedings of the 3

TermNet

Symposium.. 181-194. Vienna, Austria.

Asher, N., Busquet, J., Vieu, L., 2001. La SDRT: une

approche de la cohérence du discours dans la tradition

de la sémantique dynamique. Verbum 23, 73-101.

Auger, A., Barriere, C., 2008. Pattern based approaches to

semantic relation extraction: a state-of-the-art.

Terminology, John Benjamins, 14-1,1-19.

Aussenac-Gilles, N., Despres, S., Szulman, S. 2008. The

TERMINAE Method and Platform for Ontology

Engineering from texts. Bridging the Gap between

Text and Knowledge - Selected Contributions to

Ontology Learning and Population from Text. P.

Buitelaar, P. Cimiano (Eds.), IOS Press, p. 199-223.

Barrière, C., Agbado, A. 2006. TerminoWeb: a software

environment for term study in rich contexts.

International Conference on Terminology,

Standardization and Technology Transfert (TSTT

2006), Beijing (China), p. 103-113.

Bourigault, D., 2002. UPERY: un outil d’analyse

distributionnelle étendue pour la construction

d’ontologies à partir de corpus. TALN 2002, Nancy,

24-27 juin 2002

Buitelaar, P., Olejnik, D., Sintek, M., 2004. A Protégé

plug-in for ontology extraction from text based on

linguistic analysis. In Proceedings of the 1

European

Semantic Web Symposium (ESWS), p. 31-44.

Buitelaar, P., Cimiano, P., Magnini, B., 2005. Ontology

Learning From Text: Methods, Evaluation and

Applications. IOS Press.

Charolles, M., 1997. L’encadrement du discours:

Univers, Champs, Domaines et Espaces. Cahier de

Recherche Linguistique, LANDISCO, URA-CNRS

1035, Univ. Nancy 2, n°6, 1-73.

Daoust, F ., 1996. SATO (Système d’Analyse de Texte

par Ordinateur). Version 4.0. Manuel de référence,

Service d’Analyse de Texte par Ordinateur (ATO).

Montréal : Université du Québec

Giuliano, C., Lavelli, A., Romano, L., 2006. Exploiting

Shallow Linguistic Information for Relation

KEOD 2009 - International Conference on Knowledge Engineering and Ontology Development

164

Extraction from Biomedical Literature. In Proc. EACL

2006.

Grcar, M., Klein, E., Novak, B., 2007. Using Term-

Matching Algorithms for the Annotation of Geo-

services. Post-proceedings of the ECML-PKDD 2007

Workshops, Springer, Berlin − Heidelberg − New

York.Boston, MA: Kluwer Academic Plubisher .

Grefenstette G. (1994), Explorations in Automatic

Thesaurus Discovery. Boston, MA: Kluwer Academic

Plubisher.

Hindle, D., 1990. Noun classification from predicate

argument structures. In proc. of the 28th Annual

Meeting of the Association for Computational

Linguistics (ACL’90), Berkeley USA.

Jacquemin, C., 1997. Présentation des travaux en analyse

automatique pour la reconnaissance et l'acquisition

terminologique. In Séminaire du LIPN, Université

Paris 13, Villetaneuse.

Kamel, M., Aussenac, N., 2009. Construction automatique

d’ontologies à partir de spécifications de bases de

données. Ingénierie des Connaissances, Hammamet

Tunisie 2009.

Laurens, F., 2006. Construction d’une Ontologie à partir

de Textes en Langage Naturel. Rapport de Stage

Master 1 en linguistique-Informatique, September

2006.

Nédellec, C., Nazarenko, A., 2003. Ontology and

Information Extraction. in S. Staab & R. Studer (eds.)

Handbook on Ontologies in Information Systems,

Springer.

Rebeyrolle, J., Tanguy, L. 2000. Repérage automatique de

structures linguistiques en corpus: le cas des énoncés

définitoires. Cahiers de Grammaire, 25, 153-174

Tirmizi, S., Sequeda, S., Miranker, J.F, 2008. Translating

SQL Applications to the Semantic Web. Dexa 2008, Turin

, Italie, 450-464.

Virbel, J., Luc, C., 2001. Le modèle d'architecture

textuelle: fondements et expérimentation. Verbum,

Vol. XXIII, N. 1, p. 103-123.

ONTOLOGY LEARNING BY ANALYZING XML DOCUMENT STRUCTURE AND CONTENT

165
