AN EVOLUTIONARY APPROACH FOR ROBUSTNESS TESTING

Thaise Yano, Eliane Martins

Institute of Computing, State University of Campinas, P.O.Box 6176, 13083-970, Campinas, SP, Brazil

Fabiano L. de Sousa

National Institute for Space Research, S

ao Jos

e dos Campos, SP, Brazil

Keywords:

Robustness testing, Protocol testing, Evolutionary testing.

Abstract:

In this paper we present an evolutionary testing approach to automatically generate robustness test sequences to

test a communication protocol, modeled as an extended ﬁnite state machine (EFSM). The model represents the

normal situation as well as in presence of faults, which makes the model too large to be treated by conventional

test case generation approaches, because of the risk of combinatorial explosion. To cope with this problem,

we use a testing approach based on test purposes. To search sequences that satisfy the test purposes, we use

two evolutionary algorithms: the Generalized Extremal Optimization (GEO) and a Genetic Algorithm (GA).

For the moment, only the control ﬂow part of the model is taken into account. Results show that the approach

is viable and potentially useful to consider data ﬂow part of complex EFSM models.

1 INTRODUCTION

Robustness testing intends to determine whether a

system has an acceptable behavior in presence of in-

valid inputs or stressful environmental conditions. We

consider the model based testing approach for the

robustness testing of communication protocol mod-

eled as an extended ﬁnite state machine (EFSM).The

model represents the protocol behavior in the nor-

mal situation (nominal speciﬁcation) as well as in the

presence of faults. The nominal speciﬁcation is ex-

tended in order to incorporate the faults and stressful

conditions. The input and output domain of the model

are increased, respectively, by events representing in-

valid or inopportune inputs and extra output, such as

error messages or exceptions. After this integration,

the size of the increased speciﬁcation becomes very

large. In conventional test generation approaches,

large state space can cause the combinatorial explo-

sion problem. To cope with this problem, we test the

robustness using an approach based on test purposes.

A test purpose deﬁnes speciﬁc parts of a system to be

tested. A test purpose consists of a set of events to be

performed or a set of states to be reached. They are

determined by practical needs or by system certiﬁca-

tion requirements. In this paper, we propose applying

evolutionary algorithms (EA) to ﬁnd test sequences

that satisfy the test purposes which represent the ro-

bustness aspects of a protocol. The test cases are de-

rived from the protocol speciﬁcation modeled as an

EFSM and, for the moment, only the control ﬂow part

is taken into account. The automated test data gener-

ation from an EFSM is an open research problem.

In the context of robustness testing, evolutionary

algorithms have been applied to derive test scenarios

that would violate critical requirements of the system

(Schultz et al., 1993; Briand et al., 2005; Del Grosso

et al., 2005). In contrast to these works, we derive the

test cases from the simulator of a communication pro-

tocol and do not use any reachability technique.

Two evolutionary algorithms are used: Genetic

Algorithm (GA) and Generalized Extremal Optimiza-

tion algorithm (GEO) (De Sousa et al., 2003). GEO

is a recently proposed EA that has been shown to be

a competitive alternative to the GA in many applica-

tions (De Sousa et al., 2007; Abreu et al., 2007), being

at the same time much easier to set to be applied on a

given problem than the GA. This work presents a new

application of GEO for software testing. In contrast

to most works, a discrete encoding of the design vari-

ables is used in our implementation, instead of binary

values. The performance of these EAs are compared

with a “blind” random search approach.

The remainder of this paper is organized as fol-

277

Yano T., Martins E. and de Sousa F. (2009).

AN EVOLUTIONARY APPROACH FOR ROBUSTNESS TESTING.

In Proceedings of the International Joint Conference on Computational Intelligence, pages 277-280

DOI: 10.5220/0002294102770280

 SciTePress

lows. Section 2 presents the EAs applied in this work.

Section 3 presents our approach for robustness testing

and some experiments. Section 4 remarks some con-

clusions and future works.

2 EVOLUTIONARY

ALGORITHMS

Genetic Algorithm (GA) is one of the evolutionary al-

gorithms most used and known nowadays. The main

steps of a generic GA consist of selecting individuals

with higher ﬁtness for the next population and evolv-

ing individuals with crossover and mutation opera-

tors during a given number of generations. We use a

GA with one-point crossover (a single point to recom-

bine two individuals), simple mutation (one value that

represents an individual is changed), selection by the

roulette wheel scheme (individuals are chosen propor-

tional to its ﬁtness) and integer codiﬁcation.

The Generalized Extremal Optimization (GEO)

algorithm (De Sousa et al., 2003) is an evolutionary

algorithm based on a model of natural evolution (Bak

and Sneppen, 1993). The main steps of GEO are pre-

sented below. Firstly, the population of N design vari-

ables is initialized randomly with uniform distribu-

tion. In the second step, for each variable is associated

a ﬁtness value, given by ∆

= F

− re f . F

is the value

of the objective function when the variable is mutated

to other value mut

of the variable domain and re f is

a given value of reference (e.g., zero). After the ∆

calculation, the value of the variable i returns to its

original one. This process is repeated to all variables.

In the next step, all variables are ranked by their ﬁt-

ness value. The ﬁrst position (k = 1) of the ranking

belongs to the least adapted variable and the last posi-

tion (k = N) to the best adapted one. For a maximiza-

tion problem, the highest value of ∆

means k = 1 and

the lowest value means k = N. A variable j is selected

to be mutated according to the probability distribution

P ∼ k

−τ

, where k is the rank of the variable j and τ a

free control parameter. If the stopping condition is not

achieved, the algorithm returns to second step.

3 THE PROPOSED APPROACH

Robustness testing in this paper consists in verifying

whether the protocol has an acceptable behavior in

presence of unexpected inputs that can be caused by

bugs in parts of the host systems or links. We aim to

test whether the error detection and recovery mech-

anisms were implemented according to the speciﬁca-

tion. The evolutionary approach proposed here for ro-

bustness testing is described below. According to the

speciﬁcation, a model is built to represent the protocol

behavior. For the test generation process, the model is

simulated given a test sequence. Note that it is not the

implementation under test but only an executable ver-

sion of the protocol model (simulator). The simulator

code is manually instrumented in order to track the

triggered transitions by a test sequence. In order to

reduce test effort and costs, the test selection is based

on test purposes. As we focus on robustness testing,

the test purposes are the transitions corresponding to

unexpected inputs (T

target

). The EA generates test se-

quences seq trying to cover T

target

. The instrumented

simulator takes seq as input and produces the transi-

tions triggered by seq. The test purposes coverage is

evaluated by the EA through the objective function

that encodes the test criterion. After the stopping cri-

terion of the evolutionary algorithm is achieved, the

best test sequence found during the search is returned.

The behavior model used in our approach is

an EFSM composed of states, input events, output

events, variables, parameters and a state transition

function. The function takes the current state and an

input event, veriﬁes if the associated guard is satisﬁed

and, in afﬁrmative case, the transition is triggered, re-

turning output events and bringing the machine to the

next state. The guard is a logical expression involving

conditions on parameters and variables.

Each individual of the population in GA is

represented by a test sequence deﬁned as seq =

,...,e

}, where e

is a input event and N is

the sequence size, considering EFSM as the protocol

model. While in GEO, the test sequence represents

the entire population. Note that each e

represents a

design variable. The set of transitions to satisfy the

test purposes is T

target

= {t

,...,t

}, where t

∈ T .

The objective function to be optimized is deﬁned as:

Maximize F(seq) = c/|T

target

| (1)

where |T

target

| is the cardinal number of T

target

and

c = |T

triggered

∩T

target

| is the number of triggered transitions

triggered

) in common with T

target

As an example of how a generated sequence could

trigger a set of transitions in a EFSM and how the value

of the objective function is calculated, consider the ma-

chine M

shown in Figure 1. If the test sequence is cho-

sen to have size 4, there will be 4 design variables to

be operated by GEO or GA. If the test sequence gen-

erated by one of these algorithms is seq = {e,a,d,c} it

will trigger the set T

triggered

= {t

}. Considering c

the unexpected input, the set of transitions to satisfy the

test purposes is T

target

= {t

} and the objective func-

tion value associated with the test sequence seq will be

1/3 = 0.3333.

IJCCI 2009 - International Joint Conference on Computational Intelligence

278

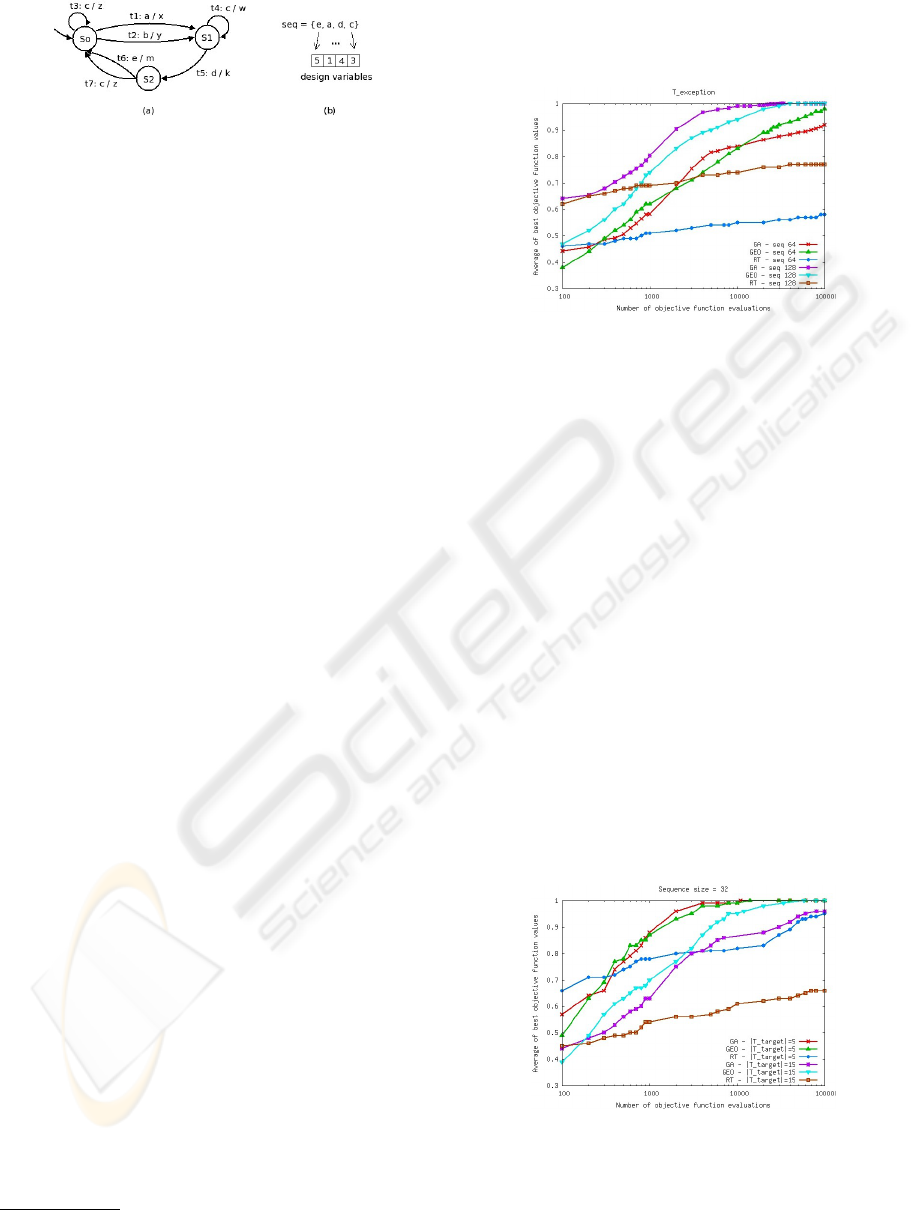

Figure 1: Example: (a) EFSM M

; (b) test sequence.

3.1 Experiments

To illustrate the application of the proposed approach for ro-

bustness testing, the Wireless Transaction Protocol (WTP)

is used as the software under test. The protocol simulator

is generated by the SMC

(State Machine Compiler) tool.

SMC takes an EFSM and, in turn, generates a source code

of the machine in Java.

The performance of GEO, GA and random testing (RT)

on generating test sequences to cover the transitions corre-

sponding to the unexpected inputs of the protocol are com-

pared. In order to adequate the EAs for the problem being

tackled, it is necessary to tune their free parameters. To set

the parameters of GEO and GA, 10000 function evaluations

were used as stopping criterion. Note that the RT has no free

parameters to be tuned. Independently of the test sequence

size, the performance of GEO does not present much dif-

ferences for τ ≥ 4, then τ = 4 is used to perform the com-

plete experiments. For the genetic algorithm implementa-

tion, as described in Section 2, we use a Java framework

called JGAP

. The best results were obtained with pop of

100, p

of 0.4 and p

of 0.01. The tuning process of GA

took approximately 20 minutes for each sequence size. It

demanded more time than GEO that took around 6 minutes

for each sequence size. It was used a Pentium 4 with 3.00

GHz and 1 GB of RAM memory.

Two experiments were performed to: i) determine the

effectiveness of the approach for test case generation; ii)

determine the effect of T

target

and test sequence size on the

algorithms performance.

3.1.1 Experiment 1

For robustness testing, the effectiveness of the algorithms is

given in terms of the number of executions of the objective

function necessary to cover the test purposes (T

exception

) that

represent the robustness properties to be tested. T

exception

the 25 transitions that correspond to the exceptions speci-

ﬁed in the WTP documentation. In other terms, we count

the number of executions of the model necessary to satisfy

the test purposes. Measures of the effectiveness were taken

for different test sequence sizes: 32, 64 and 128. The aver-

age of the best results was obtained in the 20 runs and the

maximum number of function evaluations was 100000 for

each run. The computing time of each run was less than 5

seconds for both GA and GEO.

Figure 2 shows the comparison among GEO, GA and

RT for the coverage of T

exception

with sequence size of 64

and 128. From Figure 2 it can be seen that GEO and GA

have a similar performance and they clearly outperform RT.

Available in http://smc.sourceforge.net.

Available in http://jgap.sourceforge.net/

In this experiment, RT did not completely cover T

exception

The evolutionary algorithms have better performance to sat-

isfy the test purposes with sequence size of 128.

Figure 2: T

exception

coverage with different sequence sizes.

3.1.2 Experiment 2

Another experiment was performed to verify the effect of

test sequence size and target transitions set size on the per-

formance of the algorithms. Different sets of transitions

target

were randomly selected, differently from T

exception

The cardinal number of T

target

varied from 5 to 25, with in-

crement of 5. The experiment used sequences of size 32,

64 and 128. The maximum number of function evaluations

was 100000 for each run. Twenty runs of each algorithm

were performed for each combination of sequence size and

target transitions set. Figures 3 and 4 show some results.

The results showed that the cardinality of T

target

inﬂu-

ences directly the performance of the algorithms. For higher

values of |T

target

|, the algorithms present more difﬁculty to

generate test sequence. This occurs because the objective

function becomes more difﬁculty to be satisﬁed with more

transitions to be covered, since its deﬁnition is related to

target

The performance of all algorithms improves as the test

sequence size increases. Higher test sequence size increases

the probability of an uncovered transition to be found as

new paths are generated since the machine returns to the

initial state (reversible).

Figure 3: Different T

target

with sequence size of 32.

The problem of ﬁnding test sequence is more complex

when |T

target

| is bigger and the sequence size is smaller.

The difference between the performance of the EAs and RT

is very clear. Moreover, GEO has better performance than

AN EVOLUTIONARY APPROACH FOR ROBUSTNESS TESTING

279

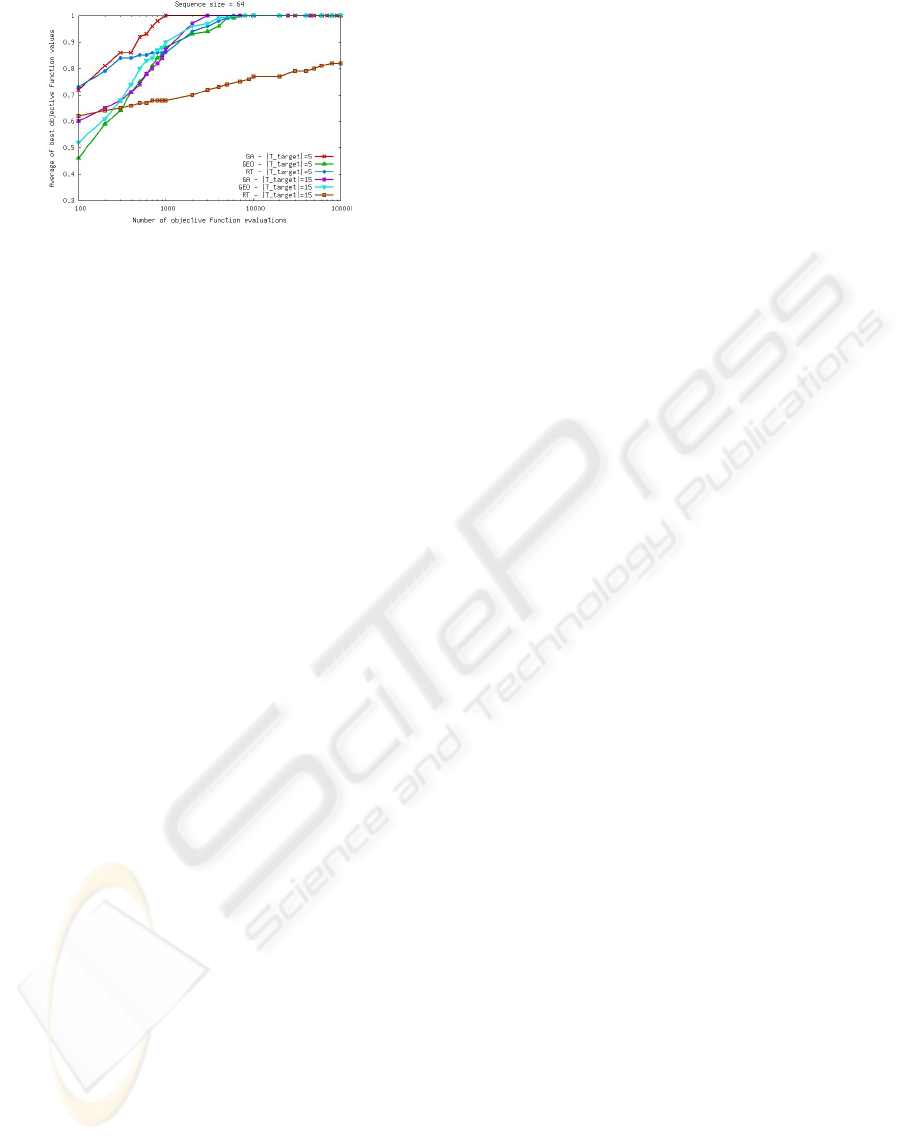

Figure 4: Different T

target

with sequence size of 64.

GA in this case. Although we need further experiments to

perform a thorough analysis of the behavior of the EAs for

different models, these preliminary results let us deduce that

they can substitute RT for model-based test sequence gen-

eration. The experiments shown that test sequence size is

also worth to be considered for optimization.

4 CONCLUSIONS

In this paper an evolutionary approach for robustness testing

was presented. Evolutionary algorithms were used to gener-

ate the test sequences to cover a test purpose, which consist

of the unexpected inputs of a communication protocol. The

evolutionary algorithms, GEO and GA, were efﬁcient to re-

solve that problem. Both algorithms clearly outperform the

random testing, mainly in more complex problems, as ex-

pected. The results indicate that GEO is competitive with

GA for this problem. Of course, further experiments are

necessary to assure this claim.

In addition to the control ﬂow, the data ﬂow inherent of

the EFSM need to be considered.

The use of a multi-objective function is under way. The

goal is not only to maximize the transition coverage, but

also to minimize the test sequence size.

ACKNOWLEDGEMENTS

This research is supported by CAPES and CNPq.

REFERENCES

Abreu, B. T., Martins, E., and Sousa, F. L. (2007). Gener-

alized extremal optimization: a competitive algorithm

for test data generation. In 21st Brazilian Symposium

on Software Engineering, Jo

ao Pessoa, Brazil.

Bak, P. and Sneppen, K. (1993). Punctuated equilibrium

and criticality in a simple model of evolution. Physical

Review Letters, 71(24):4083–4086.

Briand, L. C., Labiche, Y., and Shousha, M. (2005). Stress

testing real-time systems with genetic algorithms. In

GECCO 2005: Proc. of Conf. on Genetic and Evo-

lutionary Computation, pages 1021–1028, New York,

NY, USA. ACM.

De Sousa, F. L., Ramos, F. M., Paglione, P., and Girardi,

R. M. (2003). New stochastic algorithm for design

optimization. AIAA Journal, 41(9):1808–1818.

De Sousa, F. L., Soeiro, F., Neto, A. S., and Ramos,

F. M. (2007). Application of the generalized extremal

optimization algorithm to an inverse radiative trans-

fer problem. Inverse Problems in Science and Eng.,

15(7):699–714.

Del Grosso, C., Antoniol, G., Penta, M. D., Galinier, P., and

Merlo, E. (2005). Improving network applications se-

curity: a new heuristic to generate stress testing data.

In GECCO 2005: Proc. of Conf. on Genetic and Evo-

lutionary Computation, pages 1037–1043, New York,

NY, USA. ACM.

Schultz, A. C., Grefenstette, J. J., and Jong, K. A. (1993).

Test and evaluation by genetic algorithms. IEEE

Expert: Intelligent Systems and Their Applications,

8(5):9–14.

IJCCI 2009 - International Joint Conference on Computational Intelligence

280
