ANONIMYTEXT: ANONIMIZATION OF UNSTRUCTURED

DOCUMENTS

Rebeca Perez-Lainez, Ana Iglesias and Cesar de Pablo-Sanchez

Universidad Carlos III de Madrid, Avenida de la Universidad 30, 28911 Leganes (Madrid), Spain

Keywords: Anonymization, Medical Records, Sensible Data, Private Data, De-identification, Clinical Notes.

Abstract: The anonymization of unstructured texts is nowadays a task of great importance in several text mining

applications. Medical records anonymization is needed both to preserve personal health information privacy

and enable further data mining efforts. The described ANONYMITEXT system is designed to de-identify

sensible data from unstructured documents. It has been applied to Spanish clinical notes to recognize

sensible concepts that would need to be removed if notes are used beyond their original scope. The system

combines several medical knowledge resources with semantic clinical notes induced dictionaries. An

evaluation of the semi-automatic process has been carried on a subset of the clinical notes on the most

frequent attributes.

1 INTRODUCTION

Nowadays the task of anonymizing texts is

fundamental to preserve the security of information

in certain application domains. After anonymizing

texts, they should be legible but they could not

disclose individual information. For example, in the

health information domain, de-identification is an

important task if medical records are used for

judicial purpose, epidemiologic studies, research,

etc.

Most countries have developed its own

legislation to preserve medical records privacy. In

this paper, the American Health Insurance

Portability and Accountability Act (HIPPA) of 1996,

and the Spanish Law for Protection of Personal Data

(LOPD) (1999) have been taken into account to de-

identify the clinical documents.

De-identification is defined as the process of

identify, select and remove sensible data that appear

in a text. Sensible data can be defined as personal

data which could be used to identify a person and do

not have an explicit purpose for the final application.

The de-identification task can be addresed using

Natural Language Processing (NPL) and

Information Extraction (IE). This challenge remains

interesting because usually these medical records are

often unstructured, ungrammatical and they usually

present some misprints, dificulting the de-

identification task.

The main objective of ANONIMITEXT is to de-

identify clinical notes used in a spanish hospital. The

system acquires sensible data from text by using the

dictionary induction technique.

2 RELATED WORK

Several research groups have been working on

developing techniques to de-identify unstructured

English medical records according to HIPAA. Most

of the present approaches fall into two categories:

Dictionary Based Techniques (DBT) or Machine

Learning Techniques (MLT).

The UMLS metathesaurus (Bodenreider, 2004) is

an essential clinical resource that some authors like

(Ruch, Baud, Rassinoux, Bouillon, & Rober, 2000),

(Gupta, Saul, & Gilberston, 2004) and (Morrison &

Li, 2008) use to recognize medical terminology. The

remaining tokens should be considered as candidates

for de-identification. To avoid removing too much

content which is sometime not accurately identified,

other resources like dictionaries for personal names,

surnames, etc. are often used.

On the other hand, MLT and IE were used by

authors like (Aramaki & Miyo, 2006), (Szarvas,

Farkas, & Busa-Fekete, 2007) to extract medical

records information, however (Sim & Wright, 2005)

use it to minimize the number of values which

should be hidden.

284

Perez-Lainez R., Iglesias A. and de Pablo-Sanchez C. (2009).

ANONIMYTEXT: ANONIMIZATION OF UNSTRUCTURED DOCUMENTS.

In Proceedings of the International Conference on Knowledge Discovery and Information Retrieval, pages 284-287

DOI: 10.5220/0002297102840287

 SciTePress

Both techniques have advantages and

disadvantages: DBT are fast, but protection is

limited by the coverage of used dictionaries.

Moreover, the use of DBT is hindered by the

problem of ambiguous terms, that is, terms which

could have more than one meaning (Ruch et al,

2000). However, MLT are useful to obtain inference

rules which generalize the model beyond the training

data, but a large amount of training data is needed to

learn effective models. Besides, if the source of the

data changes, retraining the models is needed to

guarantee the performance.

A complementary idea that has been applied in

Adaptive IE consists on the acquisition or induction

of semantic dictionaries from a large collection of

documents in the same domain of the application.

This technique only requires specifying a set of

interesting concepts that are prominent (seeds) in the

domain. Semantic dictionary induction is often less

expensive than annotating full documents as it only

requires to specify related seeds.

3 ANONYMITEXT

ARCHITECTURE

ANONYMITEXT system is designed to recognize

sensible data in unstructured documents to enable

their de-identification. The system combines general

and domain knowledge resources with automatically

induced dictionaries. The system input is a set of

unstructured documents. The output is the de-

identified input corpus.

The system architecture is composed of five

steps: Dictionary Induction, Tagger, Adviser, Expert

Revision and Anonymizer (Figure 1).

In the Dictionary Induction step, a domain expert

selects the set of seeds examples that are frequent in

the corpus like person, hospital names, etc. The

dictionaries are created by extending the seeds with

new terms that co-occur in similar contexts using the

collection of clinical notes.

The Tagger step performs a morphological and

semantic analysis of the text, which is tokenized,

split in sentences and enriched with part of speech

information. Induced dictionaries are used to include

semantic information. Moreover, other domain

resources could be used to improve semantic

tagging, as the UMLS metathesaurus. This phase

finds the semantic information that will be used to

de-identify sensible information in next phases.

In the Adviser step, the system detects sensible

data from the documents according to the country

information security laws in the domain of the

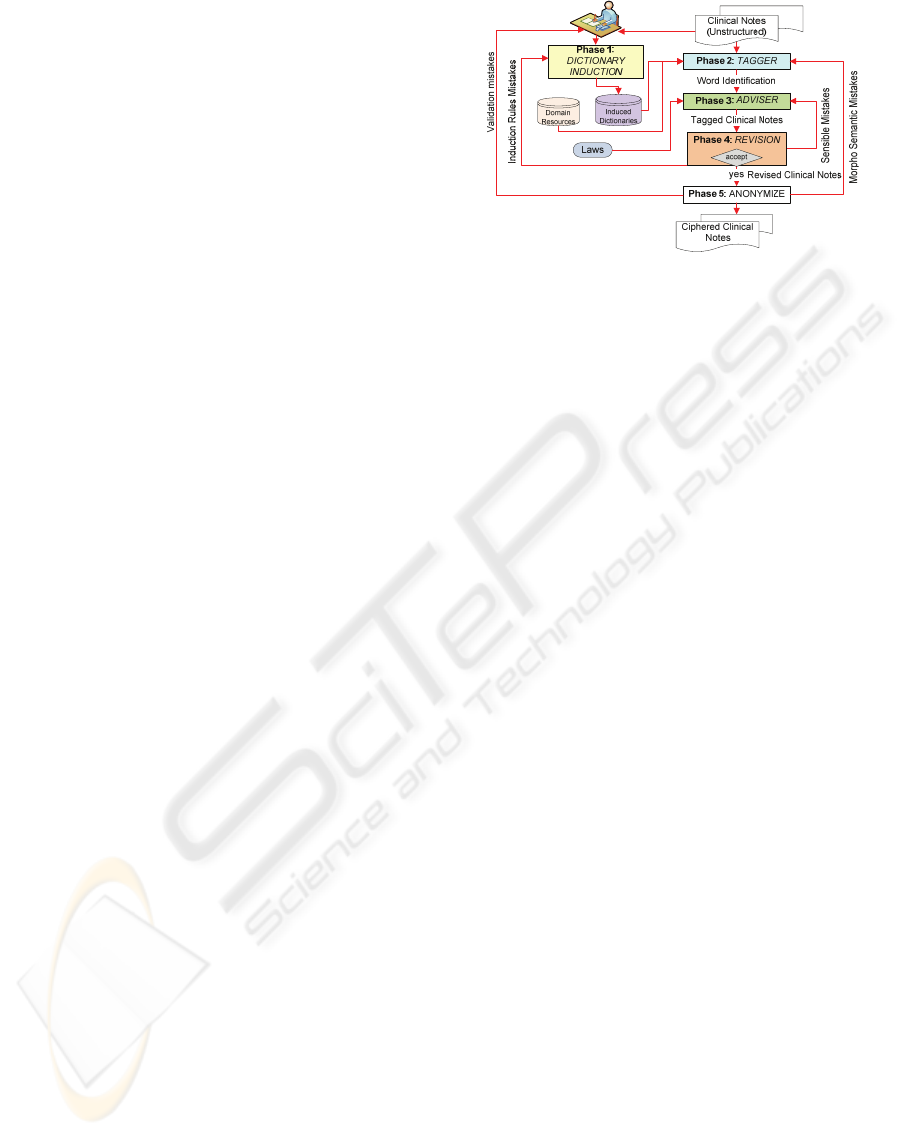

Figure 1: ANONYMITEXT De-Identification

architecture.

system. Sensible data is marked for the expert to

make their final decision on which data will be

preserved in the next step.

An interface will show to the expert the

documents semantically tagged and the source of

these tags (induced dictionary, biomedical resource,

etc). The task of the expert is to accept or not the

recommendation of the system reporting the cause of

reject. Among the causes for rejection we can find:

1) a dictionary induction mistake, 2) a morpho-

semantic mistake, that occurs when an ambiguous

word is incorrectly tagged, 3) an advice mistake, this

is when the system advises to hide all words not

tagged as personal information. Feedback data is

logged and would be useful to adjust previous

phases (Dictionary Induction, Tagger, Adviser) .The

models for the different parts could be retrained or

improved using a similar idea than active learning.

The system could learn continuously to become

more efficient reducing the time that the expert

spends in the Revision step.

Finally, in the Anonymizer step sensible data are

ciphered with a public-key algorithm or a hash

function.

4 EXPERIMENT DESIGN

ANONYMITEXT system has been evaluated using

a corpus of 60 Spanish clinical notes from a Spanish

hospital. These clinical notes contain sensible data

such as patient names, patient ages, phones, cities,

dates, medical facility names or doctor names,

according to the HIPAA and LOPD security laws.

Three domain experts participated in the

experiment annotating manually the gold standard

corpus. Moreover, these experts collaborated in the

Dictionary Induction phase obtaining frequent seeds

examples. The induced dictionaries were obtained

ANONIMYTEXT: ANONIMIZATION OF UNSTRUCTURED DOCUMENTS

285

automatically by using the whole collection

(210.700 clinical notes).

Due to the low frequency of some sensible data

in the corpus, this paper is focused in the evaluation

of the de-identification of doctor, medical facility

and patient names. From the corpus used for the

experiment, 172 tokens belong to the Doctor Name

class, 79 Patient Names, and 107 Medical Facility

Names were identified.

In the corpus, most of clinical notes present

sentences that are not tabulated and they do not fulfil

grammar rules, so sentence analysis become

difficult.

Therefore, the evaluation process is composed of

the next phases:

1) Corpus Annotation: Firstly, the domain

experts annotated the medical records using a

common set of tags for sensible data. These tags

were clearly defined taking into account the HIPPA

and LOPD laws. Secondly, we checked if tags were

correctly defined and if they were understand in the

same way by the annotators. To ensure that the

annotation process had been correctly executed, the

agreement level between annotators was calculated

with the Kappa measure (Sim & Wright, 2005).

2) Dictionary Induction: Next, the domain

experts were asked to obtain seeds from the corpus.

These seeds were used to induce person name,

doctor name and medical facility dictionaries. The

tool used for this induction is SPINDEL (De Pablo-

Sanchez & Martínez, 2009).

3) De-Identification: This phase includes

morpho-semantic analysis of the clinical texts and

the anonymization phase in which sensible data is

hidden. For the morpho-semantic analysis,

ANONYMITEXT uses STILUS tool (Villena,

González, & González, 2002). STILUS includes

resources for classifying semantically a token as

person, organization or location. To tag sensible

tokens, two alternatives have been taken into

account: A) search the token into an induced

dictionary, if it is found then it will be tagged. B) If

STILUS tags a word as organization, location or

person then the word is searched into the induced

dictionary. If the semantic category of the induced

dictionary matches up with the semantic category of

STILUS, then the word is tagged, otherwise not.

STILUS includes few biomedical terms so it has

been necessary to use biomedical specific resources

as a Spanish health acronyms dictionary (Yetano &

Alberola, 2003), an active principles dictionary

(Cantalapiedra, 1989) and the SNOMED

metathesaurus (Spackman, Campbell, & Cote,

1997).

Once medical records have been analyzed, and

the tokens are tagged as Patient_Name or

Medical_Facility, are ciphered using SHA-1 security

algorithm (De Cannièr et al, 2006).

4) Evaluation: In this phase, we compare the

annotations provided by ANONIMITEXT with the

manually annotated documents. Precision, Recall

and F

0.5

-Measure have been calculated at the token

level. (β=0.5 weights precision twice as much as

recall).

5 RESULTS

Table 1 shows a summary of main results obtained

for the experiment.

Table 1: Results for ANONYMITEXT.

Precision Recall F-Measure

Person_Name 89.5 67.85 84.15

Medical_Facility 26.21 23.68 25.66

Overall 67.22 53.6 63.97

Due to STILUS classify the tokens in the same

way as induced dictionaries; precision, recall, and F-

Measure obtained good values for Person_Name

class. However, precision is not 100% because

STILUS does not allow splitting certain tokens like

a surname followed by a punctuation sign. It is one

of the STILUS limitations.

On the other hand, the system did not achieve

good results for the de-identification of Medical_

Facility names. Analysing the results, two main

causes were found: 1) semantic ambiguity of terms,

that is, polysemous words which depending on the

context, could refer to a sensible data or not.

Moreover, a great majority of Spanish medical

facility names contain a person name, which

generates a semantic ambiguity between tokens

belonging to Person_Name class and

Medical_Facility class. 2) Acronyms of Medical

Facility Names make the de-identification process

more difficult. Later analysis of the human tagged

results has shown that some medical facilities are

written with acronyms by clinicians. However the

Spanish health acronyms dictionary used during the

experiments only contained acronyms related with

diseases and medical concepts. Unfortunately, the

use of acronyms in medical records are usual, so it

would be necessary to upgrade SPINDEL in order to

include acronyms into the induced dictionary.

Overall results are calculated by micro-averaging

for all semantic concepts. They indicate that the

system is not ready yet to work automatically,

KDIR 2009 - International Conference on Knowledge Discovery and Information Retrieval

286

although, the current system configuration, the

system proposes a fast solution to identify sensible

data that would make the task easier and more

effective.

6 CONCLUSIONS AND FUTURE

WORK

The main difference between ANONYMITEXT and

previous approaches is the combination of medical

resources with the use of the dictionary induction

technique. The main advantage of this approach lies

in the minimal effort required for a human annotator,

which only needs some seeds from a subset of the

corpus.

Both stages Dictionary induction and Revision,

allows including tagging tules, new induced

dictionaries and new system steps. Therefore, those

stages make possible system scalability.

Moreover, ANONYMITEXT preserves the

integrity and confidentiality of documents, because

it replaces sensible data by ciphered information.

Currently we are working towards a more

comprehensive evaluation of the tool including a

larger number of documents and representative

categories of sensible data. Besides, we are working

on improving dictionary acquisition techniques.

Finally, we are developing the framework that

allows taking profit of the expert feedback to

improve final results.

ACKNOWLEDGEMENTS

This work has been partially supported by MAVIR

(S-0505/TIC-0267) and by the TIN2007-67407-

C03-01 project BRAVO.

REFERENCES

Aramaki, E., & Miyo, K. (2006). Automatic De-

identification by Using Sentence Features and Label

Consistency. I2b2 Workshop on Challenges in Natural

Language Processing for Clinical Data.

Bodenreider, O. (2004). The Unified Medical Language

System (UMLS): integrating biomedical terminology.

Nucleic Acids Res. 3, 267-270.

Boletín Oficial del Estado. (1999, December 14).

http://www.boe.es/boe/dias/1999/12/14/index.php

Cantalapiedra, J. (1989). Diccionario de excipientes de las

especialidades farmacéuticas españolas. Madrid:

Ministerio de Sanidad y Consumo.

De Cannière, C., & Rechberger, C. (2006). Finding SHA-1

Characteristics: General Results and Applications. In

Advances in Cryptology – ASIACRYPT 2006 (pp. 1-

20). Springer Berlin / Heidelberg.

De Pablo-Sanchez, C., & Martínez, P. (2009). Building a

Graph of Names and Contextual Patterns for Named

Entity Classification. In Advances in Information

Retrieval (pp. 530-537). Springer Berlin / Heidelberg.

Gupta, D., Saul, M., & Gilberston, J. (2004). Evaluation of

a de-identification (De-Id) software engine to share

pathology reports and clinical documents for research.

American Journal of Clinical Pathology, 176-186.

Im, S., & Raś, Z. W. (2005). Ensuring Data Security

Against Knowledge Discovery in Distributed

Information Systems. In Rough Sets, Fuzzy Sets, Data

Mining, and Granular Computing (pp. 548-557).

Springer Berlin / Heidelberg.

Morrison, F. P., & Li, L. (2008). Repurposing the Clinical

Record: Can an Existing Natural Language Processing

System De-identify Clinical Notes? J Am Med Inform

Assoc , 37-39.

Ruch, P., Baud, R. H., Rassinoux, A.-M., Bouillon, P., &

Rober, G. (2000). Medical Document Anonymization

with a Semantic Lexicon. AMIA Annu Symp Proc ,

729-733.

Spackman, K. A., Campbell, K. E., & Cote, R. A. (1997).

SNOMED RT: a reference terminology for health

care. Proceedings of the AMIA Fall Symposium, (pp.

640-644).

Sim, J., & Wright, C. C. (2005). The Kappa Statistic in

Reliability Studies: Use, Interpretation, and Sample

Size Requirements. In Physical Therapy (pp. 257-

268).

Szarvas, G., Farkas, R., & Busa-Fekete, R. (2007). State-

of-the-art in anonymization of medical records using

an iterative machine learning framework. Journal of

the American Medical Informatics Association (pp.

574-580).

Thelen, M. (2002) Simultaneous Generation of Domain-

Specific Lexicons for Multiple Semantic Categories.

U.S. Department of Health & Human Services. (2006).

http://www.hhs.gov/ocr/privacy/index.html

Villena, J., González, J., & González, B. (n.d.). STILUS:

Sistema de revisión lingüística de textos en castellano.

Procesamiento del Lenguaje Natural núm 29 , 305-

306.

Yetano, J., & Alberola, V. (2003). Diccionario de siglas

médicas y otras abreviaturas, epónimos y términos

médicos relacionados con la codificación de las altas

hospitalarias.

ANONIMYTEXT: ANONIMIZATION OF UNSTRUCTURED DOCUMENTS

287
