DISAMBIGUATING WEB SEARCH RESULTS BY TOPIC AND

TEMPORAL CLUSTERING

A Proposal

Ricardo Campos

Polytechnic Institute of Tomar, Tomar, Portugal

Centre for Human Language Technology and Bioinformatics, University of Beira Interior, Covilhã, Portugal

Gaël Dias

Centre for Human Language Technology and Bioinformatics, University of Beira Interior, Covilhã, Portugal

Alípio Mário Jorge

LIAAD – INESC Porto L.A., Faculty of Sciences, University of Oporto, Portugal

Keywords: Temporal Information Retrieval, Time-Based Clustering, Topic Clustering, Web Content Mining.

Abstract: With so much information available on the web, looking for relevant documents on the Internet has become

a difficult task. Temporal features play an important role with the introduction of a time dimension and the

possibility to restrict a search by time, recreating a particular moment of a web page set. Despite its

importance, temporal information is still under-considered by current search engines, limiting themselves to

the capture of the most recent snapshot of the information. In this paper, we describe the architecture of a

temporal search engine which uses timelines to browse search results. More specifically, we intend to add a

time measure to cluster web page results, by analyzing web page contents, supporting the search of temporal

and non-temporal information embedded in web documents.

1 INTRODUCTION

Current search engines return lists of ranked URLs

with their titles and their snippets. In this process,

the user is required to go through the extensive list

of the retrieved results, seeking for the result that

best meets his needs, which is not necessarily the

most recent one. Whilst traditional search engines

continue to present data in a linear fashion, some

commercial approaches like iBoogie, Clusty and

Grokker have begun to present results in a

partitioning hierarchy (Campos et al, 2008). This

evolution presents an alternative mechanism to

display similar documents in one page without

forcing the user to go through hundreds of items

(Alonso and Gertz, 2006). Although the retrieved

search engines results are now more accurate, quite

often they do not meet the demands of the user,

especially when the query is ambiguous. Some

search engines try to overcome this problem by

providing some post-search features to the user. In

this work we propose to do it automatically, “on the

fly”, without the need for user intervention, although

the user can do it later by using query refinement

and personalization of the results. To do so, we

introduce timelines which, together with a clustering

topic approach, provide a dual solution to term

ambiguity. First, query terms with possible different

meanings are disambiguated through the main topics

they convey. Second, query terms are analysed

through their display over a timeline, thus

performing disambiguation through the temporal

information. On Table 1 we list the combination of

the 4 possible cases on term ambiguity, whether a

term is ambiguous in terms of concept or over time.

It seems obvious that the case that will most benefit

from the introduction of a clustering and timeline

approach, is the match between time ambiguity and

concept ambiguity, there are however 3 other cases

that will also greatly benefit from this proposal.

292

Campos R., Dias G. and Mário Jorge A. (2009).

DISAMBIGUATING WEB SEARCH RESULTS BY TOPIC AND TEMPORAL CLUSTERING - A Proposal.

In Proceedings of the International Conference on Knowledge Discovery and Information Retrieval, pages 292-296

DOI: 10.5220/0002301102920296

 SciTePress

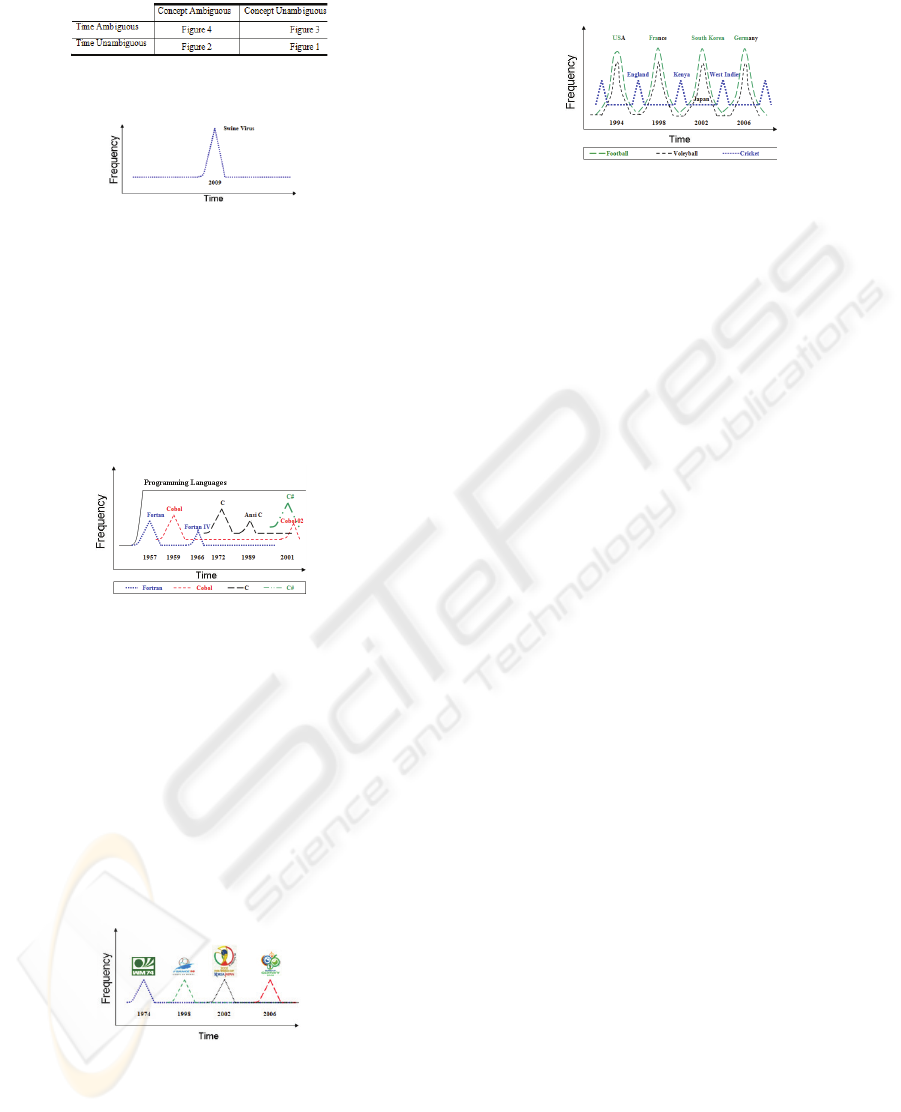

Table 1: Term Ambiguity.

(1) Case one: query is not ambiguous nor in

concept or time (see Figure 1).

Figure 1: Swine Virus Query.

This example deals with a popular query

occurring at some specific point. Despite not being

an ambiguous query, nor in concept or time, its

display on a timeline may improve, in an historical

perspective, the understanding of the phenomenon,

as the user could quickly infer when it did happen.

(2) Case two: query is ambiguous in concept, not in

time (see Figure 2).

Figure 2: Programming Languages Query.

We deal with Programming Languages like they

have always existed, but it has not always been like

that. Its appearance is around the decade of 50 - 60

and its frequency, constant since then. Several

instances have however occurred over all these

years. First we had Fortran, nowadays we have C#,

distinct groups related with a different time period,

that will benefit from its display on a temporal

clustering system in order to solve term ambiguity.

(3) Case three: query is not ambiguous in concept,

only in time (see Figure 3).

Figure 3: Football World Cup Query.

When submitted in current search engines this

kind of queries will mainly retrieve references to the

most recent events as opposed to the old ones. Not

being ambiguous in terms of concepts, temporal

clusters are enough to present the results.

(4) Case four: query is ambiguous in terms of

concept and in time (see Figure 4).

Figure 4: World Cup Query.

An attempt to make an historical perspective of

some ambiguous subject, in terms of concept and in

time, is able to reveal how difficult it is to perform it

in current search engines. This example is

particularly illustrative. With a careful observation

we can note the fact that the football and the

volleyball world cup occurred (except in 2002) in

the same period in the same countries, so one can

infer each meaning of the query term, first by using

the timeline, secondly by using topic categorization.

As the examples show, this is not a new problem,

but a new challenge, that is particularly useful for

poor and ambiguous queries. Together with a

clustering approach temporal information can

therefore become a crucial component for any search

engine system, favouring the exploration of

information in a historical perspective and leading

search engines to a new level of interaction

retrieving a snapshot of the entire collection and not

only the latest results.

2 RELATED WORK

Temporal information is everywhere and available

in every document (Alonso et al, 2007), but despite

being an important dimension on information

retrieval area, little research has been done till now.

In fact, search engines are still limited to the most

recent snapshot missing one of its most important

dimensions, the temporal one, which poses two

interesting problems. On the one hand, the

information captured today (a price of a book or the

headline of an e-news) may be gone tomorrow. On

the other hand, if historical data still exists, it is lost,

due to an inappropriate capture system, where

temporal information is not considered. The solution

to these problems may be in the introduction of

timelines, through web archives and temporal search

engines which, may favour the exploration of the

information. In the following subsections we will

present some works which try to overcome these

limitations.

DISAMBIGUATING WEB SEARCH RESULTS BY TOPIC AND TEMPORAL CLUSTERING - A Proposal

293

2.1 Web Archives

Web Archives deal with the challenges related to the

constant growth of the web, allowing a multi-

dimensional view of the web by storing and

providing access to the past versions of web pages

no longer available. As (Nunes, 2007) and (Song et

al, 2008) point out, the web is a very dynamic

environment where a large amount of web pages is

created and removed at an impressive pace. For

someone without access to historical data, the web is

primarily one-dimensional, containing only one

version of any page (Adar et al, 2008). Web

archiving has appeared in this context to preserve

these web pages, making it possible for researchers

to study the evolution of the web, with emphasis on

the Internet Archive (IA) which is currently the

largest digital library in the world. Although

historically important, IA presents some limitations

for those who aim to study web page properties, as

its dataset cannot be easily accessed, making it

difficult to find and compare historical information.

For now, web archiving proposals still present

some limitations, mainly in the search for

information, as the user has to specify the URL he is

looking for, and in its exhibition, which is hampered

by the lack of a proper navigation through all

available versions. To overcome part of these

problems, (Jatowt, 2006) proposes a unified access

browser that presents to the user, in response to an

URL input and an initial time point definition, past

versions of web pages spread over different

repositories. (Jatowt, 2008) proposes an approach

for visualizing summarized page histories based on

data extracted from web archives together with a

term clouding approach. (Toyoda et al, 2003)

proposes a method for observing the evolution of

web communities. (Song et al, 2008) present an

interesting paper, where authors propose a crawling

system that only stores web contents when there are

differences, which is a step forward compared with

the IA approach. Finally, Chronica (Denis et al,

2006) allows the user to search the Internet Archive

showing the popularity of a tag over a time. As

referred by (Jatowt, 2006), it is reasonable to assume

that in the future, IR systems will be able to retrieve

data from the live and the past web, a mixed

approach yet not adopted by conventional IR

systems.

2.2 Temporal Search Engines

If we have the multi-dimensional web, with

temporal search engines we have access to the

historical perspective of the one-dimensional web.

As opposed to the web archive approach, whose aim

is to store and preserve the various versions of a web

page, the purpose of a temporal search engine is to

retrieve a set of web pages through a timeline

perspective. The introduction of this kind of search

engines compared with current search mechanisms

(see Figure 5), leads search engines to another level

of interaction, being a step forward as opposed to a

snapshot view, with the user having the chance to

analyze the results through a temporal perspective.

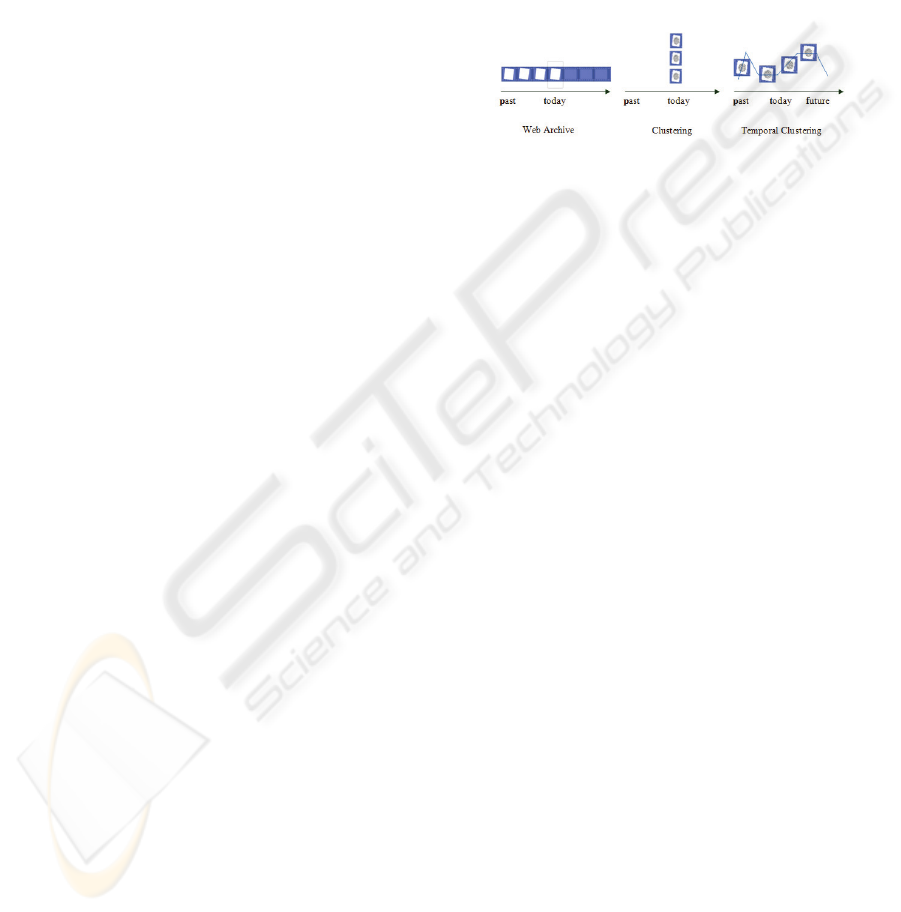

Figure 5: Three different search engine approaches.

Currently, only two works propose generic

temporal search engines. (Jin et al, 2008) propose a

temporal search engine towards web contents,

supporting both temporal queries and keyword-

based queries. (Alonso et al, 2007) propose a search

engine which captures temporal expressions

extracted from documents, retrieving the results by

relevance based on the tf/idf measure and presenting

them on a timeline made of overlapping clusters

labelled by year. There are some other commercial

approaches like Google Timeline which retrieves an

extensive list of web pages replacing the use of web

snippets through a summarization of the contents per

year, or Viewzi a search engine that provides several

visual search features, with emphasis on timeline,

photo tag clouding, etc. Some other works are more

specific, like the work presented by (Dubinko et al,

2006), which tries to understand and track the

evolution of photo tags within the Flickr system over

a period of time. Another interesting work is (Adar

et al, 2008) which describes a semantic tagging

system that extracts temporal information from news

messages, while (Koen et al, 2000) introduces Time

Frames for extracting time information from news

articles. Other works, such as (Shaparenko et al,

2005) consider the problems of analyzing the

temporal development of a document collection,

trying to understand which topics are popular and

how did their popularity change over time.

3 OUR APPROACH

Although the retrieved search engines results are

now more accurate, quite often they do not meet the

KDIR 2009 - International Conference on Knowledge Discovery and Information Retrieval

294

demands of the user, especially when the query is

ambiguous. Most systems provide some post-query

features (query expansion and user personalization),

but in the recent years clustering systems have been

gaining pace as an alternative mechanism to present

the results and to solve term ambiguity. Despite this

fact, most search engines limit to capture the most

recent snapshot of the web documents, disregarding

information such as temporal dimensions. In this

paper our purpose is to present a temporal search

engine that presents peaks of relevant results over a

clustering timeline, where the user can browse

through all the retrieved results, look for years of

high relevance and explore particular items, helping

the user to gain a better understanding of the

collection by exploring the interface. With the

introduction of temporal dimension together with the

display of the results in a clustering system, users

are more likely to infer the knowledge they are

looking for, helping to solve one of the most

interesting problems of IR: term ambiguity.

Compared to other search engines, we intend to

add temporal web search facilities, by capturing

temporal information and focusing on the extraction

of non-temporal content embedded in web pages.

Like referred by (Alonso et al, 2007), temporal

information is everywhere and is available in every

document, either explicitly, in the form of temporal

expressions, or implicitly in the form of metadata.

The most obvious approach is to use temporal

metadata attributes. Some works (Samia, 2003) and

(Desikan et al, 2002) have also introduced the

concept of temporal web mining as the application

of temporal data mining and web mining techniques,

to discover, extract, analyze and predict data with

significant temporal information. However, well-

established Natural Language Processing techniques,

by applying time-entity extraction tools, are likely to

produce improved results with higher coverage.

After this, the first step is to cluster the results

by year, within which, reflecting the fact that a web

page may contain different meanings of the query

terms, documents are grouped into one or more

clusters made of web pages whose relevance is

determined through the application of web content

mining techniques introduced in the scope of

previous work (Campos et al, 2008). The final result

is a time-based clustering system that, beyond

helping with solving term ambiguity (through

concept and time disambiguation), presents an

alternative view of the retrieved results. In this

regard, the system should be capable of analysing

whether there is a need to visualize the results

clustered by time or by topic. It seems obvious that

for some queries, like swine virus, it won’t make

much sense to present a unique cluster named 2009.

In summary, our proposed system is an

improvement of two other proposals by (Alonso, et

al, 2007) and (Jin et al, 2008). Both are temporal

search engines, but while the first one does not

present the existing information inside each year

clustered in a hierarchical manner the latter only

presents them as a simple list of results. In Figure 6

we describe the architecture of our system.

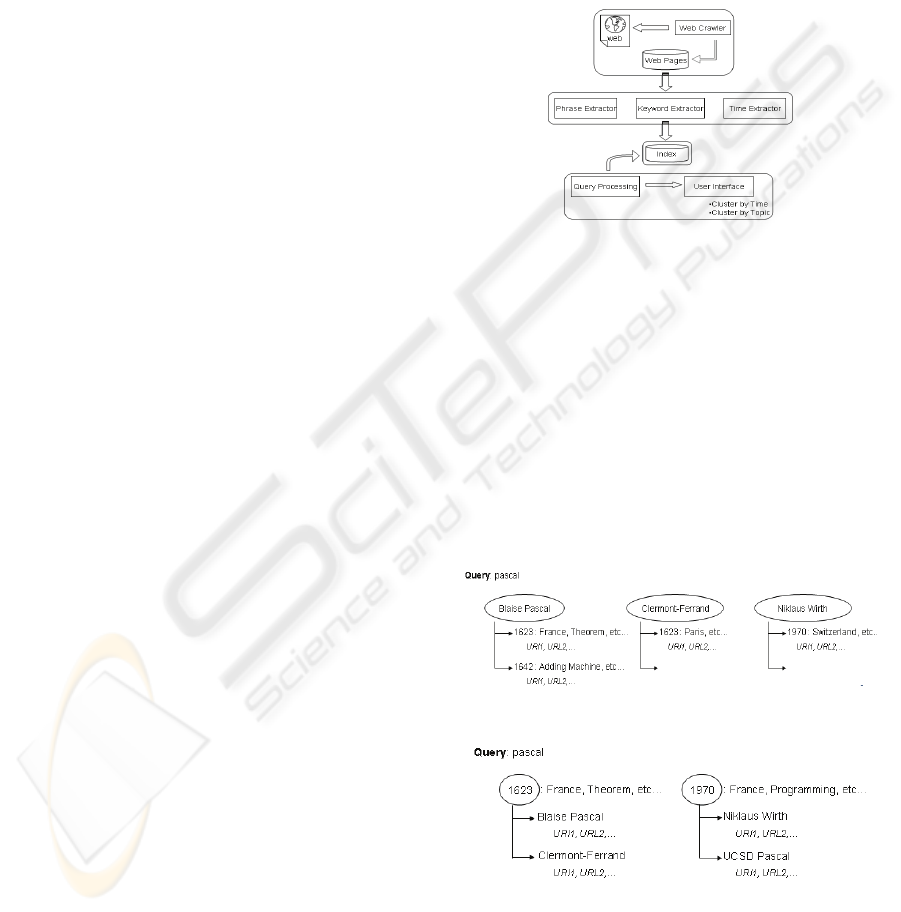

Figure 6: Architecture.

In detail it is composed of eight modular and

independent components: Web Crawling; Document

Parsing (Phrase Extraction; Keyword Extraction;

Time Extraction); Index Constructor; Clustering by

topic; Clustering by time; Cluster Labelling; Cluster

Distribution Analysis; Visualization.

Specifically, it will be possible to present the

results by topic or by temporal dimension. In any

case, both will have some keywords able to overall

describe the topic (see Figure 7) or the year (see

Figure 8), which in turn are likely to be used for

query refinement and personalization.

Figure 7: Example of the query Pascal clustered by topic.

Figure 8: Example of the query Pascal clustered by time.

Overall, we think our solution is innovative,

since we provide an alternative view to present the

results in a time-based manner, clustered by time

and topic, helping on solving the problem of term

DISAMBIGUATING WEB SEARCH RESULTS BY TOPIC AND TEMPORAL CLUSTERING - A Proposal

295

ambiguity. Moreover, we consider phrases made of

contiguous terms instead of single words, web

content mining techniques to represent the

documents, and a clustering approach as opposed to

an ordered list of relevant results.

4 CONCLUSIONS

Making time one essential feature of web contents,

temporal information can become a very useful and

meaningful dimension in search engines. Ideally, we

would like a search engine to be aware of the

temporal information embedded in documents and

present the results in a time context (Alonso et al,

2007). The use of a temporal dimension would allow

the user to better fit a concept within such a dynamic

web context, improving its functionality, however,

search engines still do not take much advantage of

combining temporal aspects of web content and user

experience to enhance the results.

Currently there are two approaches known as

web archiving and temporal search engines. While

the first one mainly focuses on the preservation of

the web, the second one deals with the display of the

results in a timeline perspective. In our approach we

aim at providing a historical perspective of the one-

dimensional web, by offering an alternative

presentation of the results based on a clustering list

of the web documents related with the same

temporal data. With the introduction of a temporal

dimension together with the exhibition of the results

in a clustering system, users are more likely to infer

the kind of knowledge they are seeking for, refining

their query and personalizing their search results

plus solving one of the most interesting problems of

IR: term ambiguity.

For evaluation, we plan to execute user

feedback surveys, which have been the most

favoured techniques in order to evaluate the quality,

precision and recall of the results. Given their

difficulty in terms of logistic and subjectivity we

also intend to perform a comparison between our

system and other search engines, in the lines of what

has been proposed by (Jin et al, 2008).

ACKNOWLEDGMENTS

This work is supported by the VIPACCESS project

funded by the Portuguese Agency for Research

(Fundação para a Ciência e a Tecnologia) with the

reference PTDC/PLP/72142/2006.

REFERENCES

Adar, E., Dontcheva, M., Fogarty, J. and Weld, D., 2008.

Zoetrope: interacting with the ephemeral web. In Proc.

of 21st ACM Symp. User Interf. Soft. and Tech. USA.

Alonso, O., Baeza-Yates, R. and Gertz, M., 2007.

Exploratory search using timelines. In SIGCHI

Workshop on Exploratory Search and HCI Workshop.

Alonso, O. and Gertz, M., 2006. Clustering of search

results using temporal attributes. Proc. of 29

SIGIR

Alonso, O., Gertz, M. and Baeza-Yates, R, 2007. On the

value of temporal information in IR. In Proc. of ACM

SIGIR, Vol. 41 , Issue 2, pp 35-41, ISSN:0163-5840

Campos, R., Dias, G., Nunes, C. and Nonchev, B., 2008.

Clustering Web Page Search Results: A Full Text

Based Approach. In International Journal of Computer

and Information Science Vol 9(4). pp 29-40.

Deniz, E., Chris, F. and Terence, J., 2006. Chronica:

Temporal Web Search Engine. In Proc. of ICWE.

Desikan, P. and Srivastava, J., 2002. Mining information

from temporal behaviour of web usage. Minnesota.

Dubinko, M., Kumar, R., Magnani, J., Kovak, J.,

Raghavan, P. and Tomkins, A., 2006. Visualizing tags

over time. In Proc. of the 15

Int. Conf. on WWW

2006, Scotland. Pp 193-202, ISBN:1-59593-323-9.

Jatowt, A., Kawai, Y., Nakamura, S., Kidawara, Y. and

Tanaka, K., 2006. Journey to the past: proposal of a

framework for past web browser. In Proc. of 17

Conf. on Hypertext and Hypermedia, Denmark.

Jatowt, A., Kawai, Y. and Tanaka, K., 2008). Visualizing

historical content of web pages. In Proc. of 17

International Conference on WWW, pp 1221 – 1222,

Beijing, China. ISBN:978-1-60558-085-2.

Jin, P., Lian, J., Zhao, X. and Wan, S., 2008. TISE: a

temporal search engine for web contents. International

Symp. on Intelligent IT Application. Shanghai, China.

Koen, D. and Bender, W., 2000. Time frames: temporal

augmentation of the news. IBM Systems Journal,

Volume 39, Issue 3-4, pp 597–616, ISSN:0018-8670.

Nunes, S., 2007. Exploring temporal evidence in web

information retrieval. In Proc. of the Future Directions

in Information Access, Glasgow, Scotland, pp 44 – 50.

Plachhouras, V., 2007. Temporal aspects of web search.

Yahoo! Research, Barcelona.

Samia, M., 2003. Temporal web mining. In Proc. of 15

Work. on the Foundations of DB, pp 27–31, Germany.

Schilder, F. and Habel, C., 2001. From temporal

expressions to temporal information: semantic tagging

of news messages. In Proc, of ACL'01, pp 65–72,

Toulouse, France.

Shaparenko, B., Caruana, R., Gehrke, J. and Joachims, T.,

2005. Identifying temporal patterns and key players in

document collections. Proc. of ICDM, 165–174, USA.

Song, S. and JaJa, J., 2008. Archiving Temporal Web

Information: Organization of Web Contents for Fast

Access and Compact Storage. TR Univ. of Maryland.

Toyoda, M. and Kitsuregawa, M., 2003. Extracting

evolution of web communities from a series of web

archives. Proc. of 14th ACM conference on hypertext

and hypermedia, pp 28–37, ISBN: 1-58113-704-4.

KDIR 2009 - International Conference on Knowledge Discovery and Information Retrieval

296
