FACILITATING DECISION MAKING, RE-USE AND

COLLABORATION

A Knowledge Management Approach for System Self-Awareness

Shelley P. Gallup, Douglas J. MacKinnon, Ying Zhao, John Robey and Chris Odell

Distributed Information Systems Experimentation (DISE) Group

Naval Postgraduate School, Monterey, CA 93943, U.S.A.

Keywords: Program self-awareness, Decision making, Knowledge management, Data mining, Text mining, Cluster,

Association, Visualization, Search.

Abstract: Decades of reform have been largely ineffective at improving the efficiency of the DoD Acquisition

System, due in part to the complex processes and stovepipe activities that result in duplication of effort, lack

of re-use and limited collaboration on related development efforts. This research applies Knowledge

Management (KM) concepts and methodologies to the DoD acquisition enterprise to increase “Program Self

Awareness” (Gallup and MacKinnon, 2008). This research supports the implementation of reform

initiatives such as Capability Portfolio Management and Open Systems Architecture which share the

common objectives of reducing duplication of effort, promoting collaboration and re-use of components.

The DoD Maritime Domain Awareness (MDA) Program will be used as a test case to develop prototype

data schemas and apply text and data mining tools to identify duplication and/or gaps in the features of

select MDA technologies. This paper will also provide the foundation for future development of the System

Self-awareness concept and KM tools to support decision making and collaboration in diversified

commercial and military applications.

1 INTRODUCTION

1.1

Decision Making and System

Self-awareness

As development and management of systems of

systems (SoS) has progressed, these systems have

increased in component, organizational, technical

and management complexity. What has emerged is

a set of increasingly challenging tasks for decision

makers as they seek to know the “edges” of the

systems acquisition efforts, development of

technical components, funding lines associated with

specific elements of effort, and other, often unknown

dimensions. This effect is noted in both civil and

military development and acquisition programs. This

effect surfaces in a macro sense in the difficulty that

decision makers express in obtaining constant

awareness of what is going on in their domains of

decision making because information that is needed

is increasingly overwhelming. And, methods to sort

information have remained largely undeveloped past

use of flat-file databases, some simple search tools

and visualizations using PowerPoint.

The interface between what is cognitive on the

part of decision makers, and methods for

understanding what is important across the span of

SoS and attendant documentation may be expressed

in a range of terms. We have borrowed from notions

of “awareness” in this work, and are employing the

term Self-awareness of a complex system as the

collective and integrated understanding of system

attributes and surrounding environment by decision

makers. A related term, “situational awareness” is

used in military operations, but carries with it a

sense of immediacy, cognitive understanding of

relationships in the moment. We seek understanding

of past, present and future in our view. Here, system

self-awareness allows decision makers to recognize

relationships among attributes and seize

collaboration and re-use opportunities to support

cost effective management of a complex system.

DoD acquisition is an extremely complex system,

comprised of the myriad of stakeholders, processes,

people, activities, and organizational structures

involved, which navigate an array of procurement

processes in an uncertain environment, to deliver

useful military capability to users at the best possible

value to the government. Acquisition reforms have

236

Gallup S., J. MacKinnon D., Zhao Y., Robey J. and Odell C. (2009).

FACILITATING DECISION MAKING, RE-USE AND COLLABORATION - A Knowledge Management Approach for System Self-Awareness.

In Proceedings of the International Conference on Knowledge Management and Information Sharing, pages 236-241

DOI: 10.5220/0002332002360241

 SciTePress

been largely ineffective at improving the efficiency

of the development and acquisition system, due in

part to stovepipe activities that often result in

duplication of effort, lack of re-use and collaboration

on related development efforts. Achieving Program

Self-awareness in the DoD program acquisition is a

necessary goal, if savings are to be achieved across

DoD, while improving capability.

This research intends to establish strategies and

methods using advanced Knowledge Management

(KM) concepts, methodologies, and apply them to

various needs of DoD acquisition program

managers. In general, we seek to determine how

KM tools and methods may be employed to improve

decision making, enable collaboration and re-use of

components of a complex system. We believe that

self-awareness, enabled by KM tools, will

dramatically improve decision making and

collaboration.

1.2 System Theory of Organizations

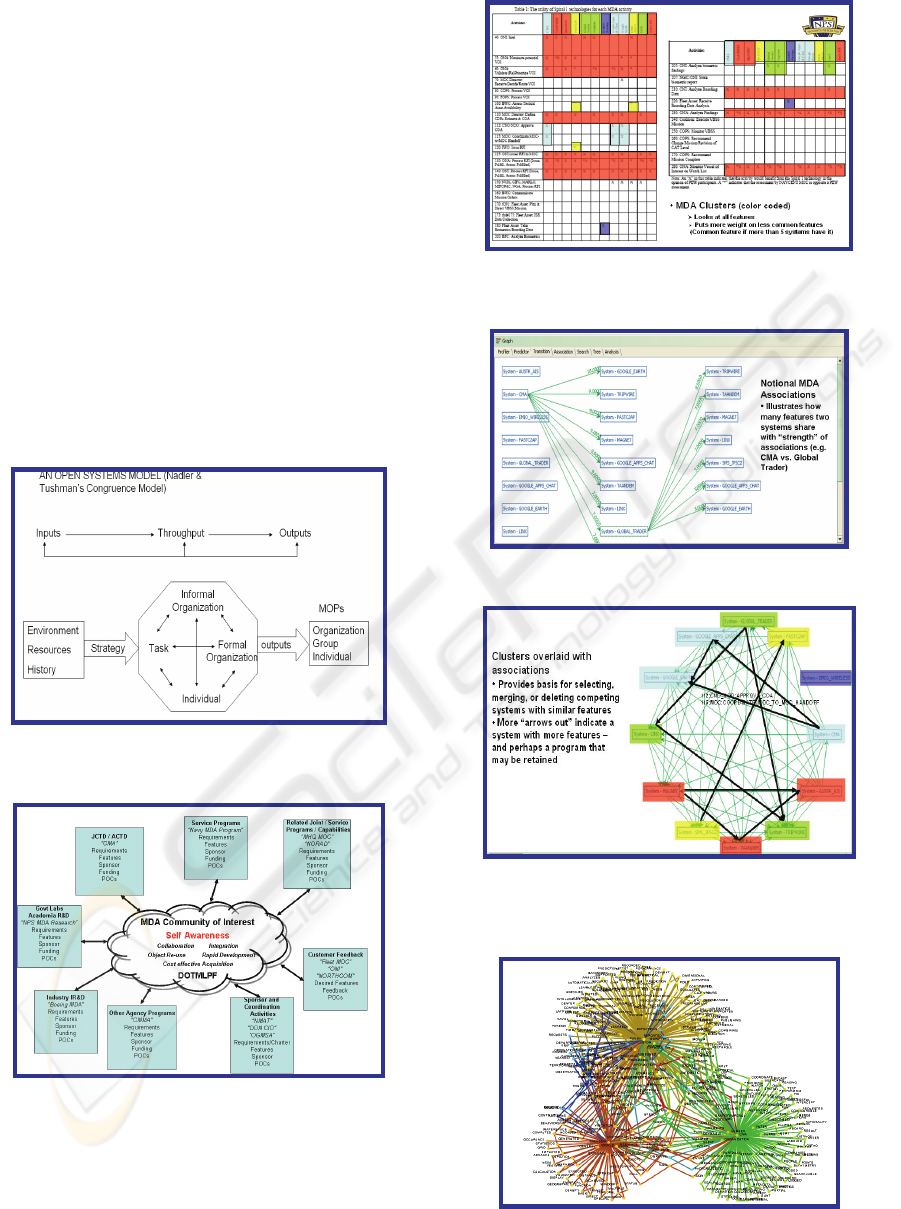

The Congruence Model (Nadler & Tushman, 1997;

Mercer Delta, 1998) (Figure 1), is a useful

framework from which to consider the implications

of SoS projects. In an open system, the elements of

the system have attributes in the form of qualities or

properties that are mutually affecting all other

elements, including the possibility of constraining

each other. This mutual nature within the SoS also

is affected by relationships to the environment. The

framework provided in this model includes the

internal mechanisms of people, technology, formal

and informal systems, embedded within the effects

of strategy and measured in some way, through

metrics. As system improvement improves, so does

it’s “fit” between resources, strategy, work of people

within the project, and metrics showing progress or

improvement. It is here that the difficulties arise for

management of the specifics of a SoS project. That

is, as the number of individual elements of the SoS

increase, so also will the need for definition of what

each of those elements means, in context with each

other, and to the program overall. Managers often

lack the means to construct situational understanding

of individual elements and their relationships to both

the whole of the program, and to the other individual

elements. What we advocate here is a framework to

document these relationships, dynamically through

the normal documentation that emerges in project

development, and create tools to enable SoS

managers to refine investment requirements, limit

redundancy throughout the project, and enable reuse

of system elements. Our research suggests that KM

tools can be used to discover and monitor such

system interdependencies from dynamic and real-

time data and form a sort of “glue” among

components, therefore ultimately improve the

overall “fit” of the complex system, thereby

improving output efficiency and facilitate

implementation of policy objectives such as

Capability Portfolio Management (CPM) and Open

Architecture (OA) in the DOD acquisition context

(Section 3).

1.3 Analytics

Data mining is a class of information analytic

methods that looks for hidden patterns in a

collection of data, typically in structured data which

are stored in relational databases, Excel and XML

files. Patterns can be used to predict future behavior

(Turban, Shardra, Aronson, & King, 2008). Text

mining is the application of data mining to non-

structured or less structured text files, for example,

word, pdf, PowerPoint documents, memos and

emails. Much of the data in the world remains

unstructured despite rapid development of database

and data management technologies. Every

organization must analyze a large amount of

unstructured data to create management summaries

and other decision aids. In this analysis of text

rendered information, one task is usually to separate

meaningful and important keywords from the

remaining words used in the document, to create

themes or categories for all that follows. This is

very similar to an ethnographic coding methodology

(Schensul et al.., 1999). As an example, when an

unstructured data set is used to describe an object,

one often wants to extract the features of the object,

i.e. a set of keywords representing important

properties of the object. An object can be a DoD

system or an entity of interest. Text mining is very

important for developing new meanings and

relationships from unstructured data to support

decision making.

The set of KM analytics used in this research and

their contextual definitions includes the following:

Cluster

: Objects can be grouped together based

on keywords or attributes that describe their

properties.

Association

: Objects share properties and can

therefore be linked together, or associated.

Social network

: Behavior of objects in an

interconnected network.

These analytic tools may be applied to both

structured and unstructured data to confirm

FACILITATING DECISION MAKING, RE-USE AND COLLABORATION - A Knowledge Management Approach for

System Self-Awareness

237

previously determined patterns, or to surface

patterns that as yet are unknown.

1.4 Data Warehouses and Data Marts

Data mining techniques generally require that a set

of data (data warehouse or data mart; Turban et al,

2008).be made available, and it is on this data set

that various data mining algorithms can be applied

and subsequent analysis can be performed.

The development of data warehouses into the

structured form required to support data mining is

not a trivial process. The data warehouse needs to

be developed to support the functional area being

supported and have the following fundamental

characteristics: Subject oriented, integrated, time-

variant, and nonvolatile. The data warehouse may

also be developed to include the following

capabilities: web-based, relational/multi-

dimensional, client/server, and include metadata

(data about data) (Turban et al, 2008).

Unstructured data or text documents often reside

in directories or folders. Such repository style data

warehouse or data marts are typical in real world.

These repositories do not require the same

conditioning of the information found in relational

databases, and if it is possible to properly analyse

these data files, this will represent a great savings in

time and effort.

1.5 Visualization and Search

The KM tools used in this research are used to

highlight relationships among object “features” to

support decision making. For the purposes of this

research, a "feature" is a marketable behavior or

property of an object (see Figure 2, the range of

features inherent to the Maritime Domain

Awareness effort). In this research, the use of KM

tools is applied to the notion of technical features,

using the following KM tools:

Visualization

: Use clusters and associations in a

visualization of the data to help decision makers to

see the “big picture” and understand results.

Displaying the links of the objects in a network

format can help visually validate links among

objects, and also identify key objects in an

interconnect environment.

: Clusters and associations need to be

resolved from the unstructured data, noted and

mapped to support. This effort becomes critical

when analyzing unstructured data for two reasons,

specifically:

1) Searching for features, often represented as

keywords in multiple text documents, can be

overwhelming. A search concept called anomaly

search, which separates unique and interesting

features of the programs from other features, can be

helpful.

2) Searching also provides for mapping newly

discovered keyword associations back in the original

documents for validation.

2 DOD PROGRAM

ACQUISITION

The Department of Defense (DoD) fiscal year 2009

budget for Research, Development, Test and

Evaluation (RDT&E) and procurement exceeds

$180B (Gates, 2009). Given such huge budget

outlays and the increasing pressures of shrinking

discretionary budgets and fragile economy, the DoD

Acquisition System is the subject of intense scrutiny

from government oversight activities, industry, and

the general public. This scrutiny has been amplified

by highly publicized acquisition program failures,

continued cost and schedule overruns and lengthy

development cycles.

DoD acquisition has endured an environment of

seemingly perpetual reform to arrest this chronically

poor performance, resulting in complex acquisition

process models, increased executive oversight, and

incremental policy changes. The effectiveness of

acquisition reforms has yet to be evidenced in the

overall performance of the DoD Acquisition System.

Other models for improvement have not had much

effect. Independent and government chartered

studies and reports have repeatedly highlighted the

need for improved systems engineering and business

processes to incorporate best practices from the

commercial sector.

The DoD has embraced several

recommendations from these critical reports and

moved to adopt several commercial best practices

and process initiatives. Two such policy initiatives

relevant to this research are the adoption of

Capability Portfolio Management (CPM) and Open

Architecture (OA) approaches.

In 2006, the Deputy Secretary of Defense

released a memorandum to introduce the Capability

Portfolio Management (CPM) approach to DoD

Acquisition. The intent of exploring the CPM

approach was “to manage groups of like capabilities

across the (DoD) enterprise to improve

interoperability, minimize capability redundancies

and gaps, and maximize capabilities effectiveness.

KMIS 2009 - International Conference on Knowledge Management and Information Sharing

238

Joint capability portfolios will allow the Department

to shift to an output-focused model that enables

progress to be measured from strategy to outcomes.

Delivering needed capabilities to the joint warfighter

more rapidly and efficiently is the ultimate criterion

for the success of this effort.” (Deputy Secretary of

Defense, 2006). Open Architecture (OA) is critical

in the design of software intensive systems has been

the focus of the Navy PEO-IWS Software Hardware

Asset Reuse Enterprise (SHARE) Repository, which

serves as a searchable library of ship combat

systems software and related assets available for re-

use by eligible contractors (Johnson & Blais, 2008).

CPM and OA are relatively early in their

implementation and address different levels of the

acquisition process, but reflect the overarching DoD

goals of improving decision making regarding

systems of systems (SoS) acquisitions to avoid

duplication, identify gaps, and decrease costs and

development times.

The tools and processes used by acquisition

decision makers to support implementation of CPM

and OA are not well defined. A fundamental

requirement of both CPM and OA approaches is that

acquisition managers develop an awareness of

related efforts and activities across an enterprise

and/or community of interest (COI) to identify

duplication of effort, capability gaps, re-use and

collaboration opportunities. It is the premise of this

paper that development of improved “Program Self-

awareness” is fundamental to the success of the

CPM and OA reform initiatives.

3 A CASE STUDY: MARITIME

DOMAIN AWARENESS

The DoD Maritime Domain Awareness (MDA)

Program was used as a case study for this research.

Application of KM decision support tools provided

normalized “views” of program elements and

attributes, termed “features,” to support informed

program decision making. The premise of this

research is that application of KM tools will improve

Program Self Awareness and support the informed

decision making required to realize the full potential

of CPM and OA initiatives.

Figure 2 also represents what program self-

awareness embodies in the MDA COI, supported by

collaboration and use of KM tools to enable

improved decision making (Gallup and MacKinnon,

2008).

The National Plan to Achieve Maritime Domain

Awareness (MDA) from October 2005 defines the

Maritime Domain as “all areas and things of, on,

under, relating to, adjacent to, or bordering on a sea,

ocean, or other navigable waterway, including all

maritime-related activities, infrastructure, people,

cargo, and vessels and other conveyances.”

Additionally, it defines MDA as “the effective

understanding of anything associated with the

maritime domain that could impact the security,

safety, economy, or environment of the United

States.” The stakeholders in this enterprise make up

the Global Maritime Community of Interest

(GMCOI), which includes “federal, state, and local

departments and agencies with responsibilities in the

maritime domain. Because certain risks and interests

are common to government, business, and citizen

alike, community membership also includes public,

private and commercial stakeholders, as well as

foreign governments and international stakeholders.”

(Department of Homeland Security, 2005)

The problem set that faces the Navy, as a key

member of the GMCOI, is that “commanders lack

access to, and the ability to process and disseminate,

the broad spectrum of information and intelligence

that enables cooperative analysis necessary to

understand maritime activity in their area of

responsibility, and requisite to early threat

identification and effective response against these

threats; and when appropriate, to enable partners to

respond” (U.S. Chief of Naval Operations, 2009).

Navy MDA is key to addressing this problem set

because it will “enable the warfighter to sustain

decision superiority to successfully execute its

missions. MDA is fundamental to decision making

superiority at all levels of command” (U.S. Chief of

Naval Operations, 2009). The Navy plans to

improve the following capabilities to achieve MDA;

“focused data collection; technological

enhancements; greater cooperative information

sharing; supporting enduring and emerging maritime

security partnerships; and the professional

development of navy personnel within the maritime

operations.

We began at NPS by using knowledge

management tools from Quantum Intelligence, Inc.

such as Collaborative Learning Agents (CLA)

(Quantum Intelligence, 2008) and expanded to other

tools, including AutoMap (Carnegie Mellon

University, 2008)

3.1 Apply to Structured Data

Each year, the Distributed Information Systems

Experimentation (DISE) group at the Naval

Postgraduate School (NPS) provides standard

methodologies for defining metrics, collecting data

and performing analysis used in large-scale

FACILITATING DECISION MAKING, RE-USE AND COLLABORATION - A Knowledge Management Approach for

System Self-Awareness

239

experimentations that assess and evaluate new

systems and technologies for Navy acquisition.

Figure 3 shows a sample of 30 MDA processes

(i.e. the vertical list in the matrix) defining the

workflow – the activities that constitute Maritime

Domain Awareness – and metrics for evaluating the

insertion of solutions measured against 11 MDA

Spiral-1 technologies (i.e. the horizontal list in the

matrix) assessed in FY2008. System features are

marked with an x or * if it was helpful in an MDA

process. This is an example of structured data

emerging from associations with MDA technologies.

Cluster analysis was then employed, using the

unstructured data found in project documents, as an

alternative. We first clustered the 11 technologies

into 5 clusters and associating with all 30 intended

program features. More weight was placed on less

common features, e.g. features that appear in less

than five systems. The colors show the five clusters

(Figure 5), where three clusters (blue, yellow, green)

are grouped by the less common. The purple cluster

contains only one system which has unique features

only to itself. The red cluster contains three

technologies that share ten common features, i.e. the

features appear in more than five technologies. The

clustering results would facilitate decision maker’s

investment of resources in some areas, and scaling

back in others. For example, a system including a

unique feature may be considered for additional or

sustaining resources because it is fulfilling a

program requirement and is not found anywhere else

within the group of technologies being analyzed.

The technologies that share common features could

be merged, etc.

We then applied an association algorithm to look

into details of how these technologies are related. In

Figure 4, MDA associations illustrate how many

features two systems share (e.g. CMA vs. Global

Trader). In Figure 5, the associations are shown in a

social network overlaid with the clusters from Figure

3. This allows highlight more meaningful links

among technologies.

3.2 Apply to Unstructured Data

In order to look into more detailed inter-connections

among MDA technologies, we took a few sets of

unstructured documents that are generated from

experimentation, for example, documents belonging

to programs such as: CMA, TAANDEM, and

PANDA ranging from initial requirements, to

designs, architectures, testing, and fielding reports.

We applied text mining to each individual set of

documents representing these technologies and

extracted initial feature-like word pairs, then applied

an anomaly search algorithm to separate the

interesting, key features from the rest. We used a

network visualizer in AutoMap to visualize the

relationships of three technologies based on the final

selected features as shown in Figure 6.

In Figure 6, three clusters of connected

keywords centered around the technologies, CMA,

TAANDEM, and PANDA. Keywords describing

unique features of three systems are separated and

pushed away from the center and colored in green,

orange, and yellow. Shared keywords among

systems are in different colors in the middle of the

figure. Different colors indicate different clusters of

centralization among word groups. They are

produced using a social network analysis method

(Girvin and Newman, 2002) and are connected as if

they are in a social community.

4 CONCLUSIONS

Using the DOD Acquisition and Maritime Domain

Awareness as examples, we have demonstrated in

this paper a set of powerful knowledge management

tools applied to both structured and unstructured

data to develop system self-awareness for a complex

system, in effort to facilitate decision making and

collaboration in diversified commercial and military

applications. We look to continue refining our

methods to further improve self-awareness among

multiple systems and search for other applications in

which this methodology may be useful.

REFERENCES

Chief of Naval Operations, 2009. Establishment of the

Navy Maritime Domain Awareness Office.

Administrative Message 181837Z MAR 09.

Washington, DC.

Carnegie Mellon University, 2008

http://www.casos.cs.cmu.edu/projects/automap/

Deputy Secretary of Defense, 2006. Capability Portfolio

Management Test Case Roles, Responsibilities,

Authorities, and Approaches, Memorandum.

Washington D.C.

Department of Homeland Security, 2005. National Plan to

Achieve Maritime Domain Awareness for The

National Strategy for Maritime Security. Washington,

DC.

Gates, R., 2009, A Balanced U.S. Military Strategy,

Foreign Affairs, January/February 2009.

Gallup, S & MacKinnon, D., 2008, Status Assessment of

Maritime Domain Awareness Capability

Development. Monterey, CA: Naval Postgraduate

School.

KMIS 2009 - International Conference on Knowledge Management and Information Sharing

240

Girvan, M. and Newman, M. E. J., 2002. Community

structure in social and biological networks.

http://www.pnas.org/content/99/12/7821.full.pdf.

Johnson, J., & Blais, C., 2008. Software Hardware Asset

Reuse Enterprise (SHARE) Repository Framework

Final Report: Component Specification and Ontology,

Monterey, CA: Naval Postgraduate School.

Mercer Delta, 1998. The Congruence Model: A roadmap

for understanding organizational change. Boston,

MA.

Nadler, D., Tushman M. and Nadler, M. B., 1997.

Competing by Design: The Power of Organizational

Architecture, Oxford University Press.

Quantum Intelligence, 2008. http://www.quantumii.com

Schensul, Jean J., Schensul, Stephen L., and LeCompte,

Margaret D. 1999. Essential ethnographic methods:

observations, interviews and questionnaires, Rowman

Altamira.

Turban, E., Shardra R., Aronson, J.E. ,& King, D. , 2008.

Business Intelligence A Managerial Approach. Upper

Saddle River, New Jersey, Pearson Education Inc.

Figure 1: The Congruence Model (Nadler &Tushman,

1997).

Figure 2: MDA Program Self-awareness feature space.

Figure 3: Cluster MDA Spiral-1 technologies based on

business processes.

Figure 4: Associations among MDA programs.

Figure 5: MDA program in a social network. Program

clusters from Figure 3 overlaid with associations allow

highlight more meaningful links among programs.

Figure 6: Visualization of MDA program inter-

relationships discovered from the shared keywords in their

documentation.

FACILITATING DECISION MAKING, RE-USE AND COLLABORATION - A Knowledge Management Approach for

System Self-Awareness

241
