SERVICE COMPUTING EIS, WORLD PANIC AND OUR

ROLE CHANGE

Masao J. Matsumoto

Faculty of Informatics, Kyushu Sangyo University, Fukuoka, Japan

Keywords: Service Computing, SOA, Mash-up, Cloud Computing, Business (Process) Modeling, Sub Prime Loan

Information Systems, Economic Crisis, EIS Experts Role, Model Enacting, Hierarchical Decomposition,

Compliance, Web Services, Component Industry

Abstract: Service computing and SOA allows EIS experts to have smarter way of systems realization and conti-

nuous evolutions based on underlining business objectives. It is true that they almost solved major tech-

nical issues lying for many decades. However huge problems like world economic crisis came up due to

the EIS making the loan business model happen. This paper discusses how Information Technology is re-

lated to the causes of this crisis and how we should be and what to do.

1 INTRODUCTION

Problems of Enterprise Information Systems (EIS)

have been tackled with for a long time. But there

remains unsolved like difficulties in EIS Lifecycle,

taking a long time and many efforts to deliver and

poor ROI, until Service Computing come up.

SOA and service components availability are im-

proving most of this problems in great extent. A

short demonstration shows how easily EIS could be

quickly realized by SOA.

Is it true that most of the technical problems have

been solved and no need of worrying about them?

The remaining problems are availability of service

that is invoked by Business Process and compensa-

tion process.

New problem came up. As it is possible to make

any business models happen in a short time and less

effort and cost, it is easy to start up any business

and exploit it quickly and widely. Sub prime loan

model for real estate is just an example of this. IT

professional has to be ethical.

However SOA does not bring in the bright and

prosperous era for the EIS but the end of the tradi-

tional EIS professional mind and ethics. This talk

will discuss basically four-folded topics, namely,

the true SOA impact and potentialities which author

recognized through SOA projects, the SOA tech-

nical drawbacks and possibilities of the overcoming,

IT relevancy to this crisis causes and some sugges-

tions to EIS professional future.

2 BUSINESS AUTOMATION

IT has kept helping promote business automation.

Recent technologies are web 2.0, service computing,

SOA, cloud computing.

2.1 Web 2.0 and Service Computing

The terminology Web 2.0 seems a “bus word”

which has no formal definition telling its semantics

exactly, but says something different from the pre-

vious Web. Web2.0 implies that platform is neither

longer Operating Systems nor virtual machine, but

internet itself.

2.2 SOA (Service-Oriented

Architecture)

Service computing from IEEE means more wide

sense of modern computing concept than web. Ta-

ble 1 shows a summary of IEEE and IBM defini-

tions of service computing (SVC).

Missikoff M.

LETâ

ZS SEMANTICISE THE WORLD!! ... OR NOT??.

DOI: 10.5220/0006806100010001

In Proceedings of the 11th International Conference on Enterprise Information Systems (ICEIS 2009), pages 17-24

ISBN: 978-989-8111-84-5

Table 1: SVC Definition.

IEEE (IEEE,

2008; url)

IBM (IBM,

2008; url)

Research

Area

Across discipline

Science for bridg-

ing gap of busi-

ness services and

IT service

Same to IEEE

but amend a

phrase” for sup-

port business

Services“

Technologies Web services and

SOA, and rele-

vancies like busi-

ness process mod-

eling, transforma-

tion, integration.

SOA and Web

services, for ex-

amples, Business

Explorer for Web

Services, Web

service outsource

manager

Key point Life cycle for ser-

vice innovation

SOA and Web

services and

Business process

integration and

performance

management.

Table 2 shows SVC is a scientific framework while

SOA is a technological concept and facility.

Table 2: SVC and SOA.

SVC SOA

Summary A science for ful-

filling the gap in-

clude service

modeling and

deploy, SOA,

SLA, nonfunc-

tional,

Service oriented

Architecture for

software

Research

Agenda

All problems of

service innovation

Service compo-

nent development

and

its reuse in soft-

ware

Many methods and paradigms like Business Engi-

neering, Object-oriented, Aspect Programming

and XP, have been used in making business idea

realistic and making relevant business practices be

implemented as EIS. Difference between traditional

and SOA approach is whether or not EIS can be di-

rectly executed based on BPMN in stead of long

journey of hierarchical decomposition of require-

ments. EIS complies through dynamic connecting

of service components.

Among others, SOA, coined as Service-oriented

Architecture by Gartner Group (Ceralry et al., 2005),

is thought a promising method which is suitable for

put any EIS into practical work smoothly and

quickly. SOA allows EIS professionals to find out

optimum business process for underlining business

goals collaborating with business people and imme-

diately put the process into practical work on com-

puting environments. Therefore SOA promises a lot

of advantages to EIS communities including opti-

mized ROI of IT, improving of value quality, prod-

uctivity, time duration, cost and other factors to de-

liver EIS and keep evolving it (Iskandar et al.,

2008).BPEL, WSDL XML Schema, are trans-

formed from BPMN and needed for execution, See

Appendix Fig. through Fig.

2.3 Mash Up

Mash up allows anyone to combine services availa-

ble on Web sites and utilize the combined services

as if they were single site service. As service inter-

face, Web API (Application Programming Inter-

face) is used. Mash up advantages include less en-

deavor for developing EIS and much faster delivery

than make all of them by themselves. This is a rea-

son why mash up is called a lightweight integration

on the web. Its disadvantages include business re-

lying on needed services from public sources so that

there is a possibility of encountering any unex-

pected force quit of those published service availa-

bility you need (Matsumoto et al., 2009).

2.4 Cloud Computing

Basically cloud computing have two senses: plat-

form or certain specific type of application. As the

platform sense, cloud computing provides such

functionalities as server provision-

ing/de-provisioning, configuration/reconfiguration

dynamically on demand basis. Cloud server could

be either physical or virtual machine. Cloud is

equipped with Storage Area Network, network de-

vices, firewall and other security devices.

As the application sense, cloud computing means

such application that able to be accessed through

internet. This application utilizes powerful server

and large scale DB center which hosting Web ap-

plication and Web server.

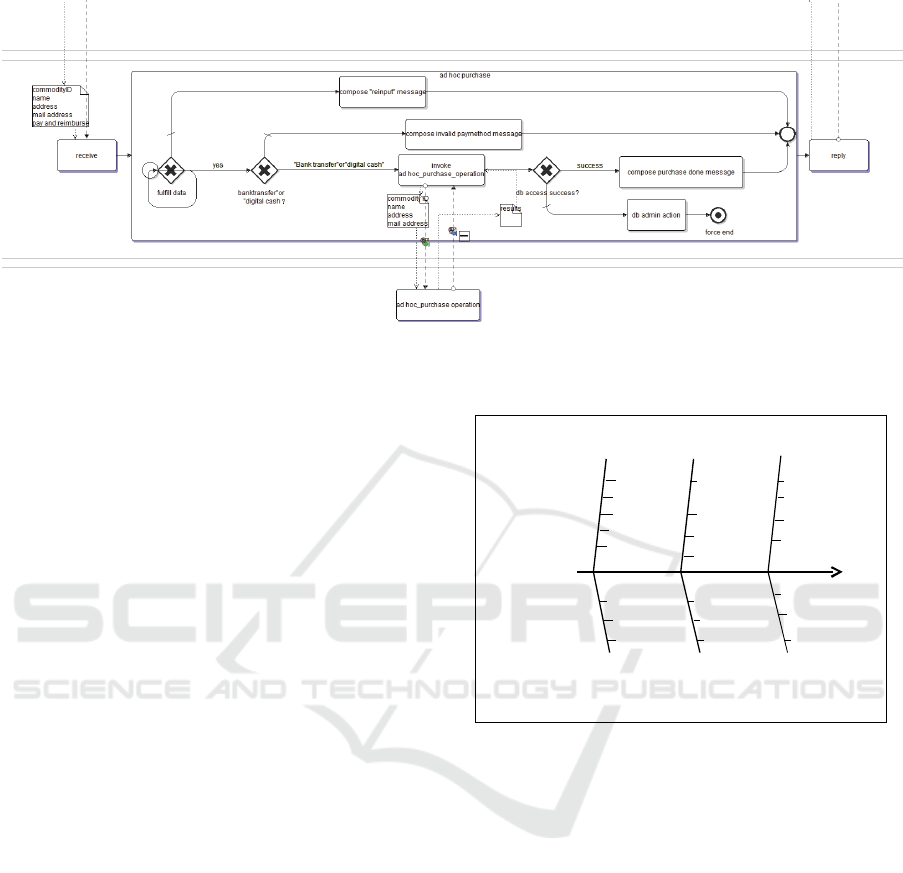

Figure 1: Business Process Modeling Example.

One remarkable point on the EIS-related technolo-

gies mentioned above is that it must be more diffi-

cult to identify any computer criminals. One reason

is that there is no need to keep holding all the EIS

documents except BPMN (BPMI.org, 2004) and

SLA of reusing services. If you have to find out any

evidence of possible criminal, you have to trace and

analyze logged data of EIS dynamic executions

through out web environments.

3 RECENT EIS AND WORLD

PANIC

For recent years, a lot of experiments have been

made in using SOA and other web service-oriented

approach for EIS development. Some are success

and some are not. Success stories tell us that SOA

made a faster development of EIS possible (Iskan-

dar et al., 2008). The success is brought up by

changing way of development from making-systems

to just use published services on the web. The au-

thor of this paper does not intend to describe details

of the success experiments the author experienced

but does intend to focus on why this time tragedy

comes up as a real utilization of the EIS technology

described in the section 2.

3.1 The World Panic

The case is subprime loan EIS for real estate hous-

ing and automobile. Figure 1 shows possible causes

which cause the tragedy.

Wicked　Biz　Model

　Deadlock/credit　 Financial Crisis World Panic

US　Bubble and

One-Axis Econo

　System

Max revenue

and profit

Lack of Ethics

　Finance Eng’r

Anti-Socio

Architecture

Rapid　IS Dev

by　SOA

Less　Ethical

Sell　to　poorer

DDS tricks

Resale

Pay back stop

Resale　stop

Insolvency

Bubble Ends

Demand Recess’n

Supply Recess’n

Export　Recession

Unemployment

IT-support　　　Deployment

Blind　Gov

Ingeniously

Exploit Money

Blind CIO

IT enables operation

Industrial　Recess’n

Figure 2: The World Panic Causes in Fishbone Diagram.

It is obvious that this loan business model has never

been operated without the associated EIS be im-

plemented and run. Fig 2 exhibits three causes in

the upper low and three consequences in the lower.

News media told us that this time recessions came

up originated from US bubble economy end. How

the bubble comes appear?

3.2 Consideration

Based on aggressive business modeling, more new

brand of financial system comes up and loan be-

came available in real estate and automobile con-

sumers. IT support made this business happen and

be exploiting the business extensively and smoothly.

Without IT support, EIS for the business model,

nothing could be made possible. Modern EIS tech-

nology made the business as much quickly possible

to run. The web service deployment adopts any

business change requirements and meets them.

3.2.1 Root Cause

IT is an enabler which enables business model is

implemented and makes it happen. Business mod-

eling team include CEO CIO Financial engineer,

business architect never exploit their business

without having EIS support. Therefore EIS support

could be a part of the root cause. Background may

be a bubble nature in US economy, specifically loan

promotion to every consumer even the less wealthy.

World panic root cause is one thing and US crisis

root cause is another. Be very careful to distinct

them, since causes and effects are related as a chain

and effect turns to cause to another. You must catch

the real root cause. World panic root cause could be

US bubble nature and its end and world’s rely on

dollar. However what is the root cause of US finan-

cial crisis? It must be in the business system inven-

tors’ actions and/or the loan and commercial paper

traders’.

3.2.2 IT Professionals Innocent

IT professionals involved must know how the loan

system works, especially DDS (Digital Default

System) frail and danger. They must easily foresee

what will happen in the future buy or sell market

and US economy system if someone who has debt

becomes impossible to clear up one’s liabilities.

IT professionals must be guilty no matter how they

were aware of the consequences of the IT system.

There is strong opinion saying such situation like

subprime loan is not our business and should not

care about it. Moreover every professionals should

have a freedom in pursuing their business and

should not be constrained by any regulation

Author thinks that such utilization of EIS technolo-

gy for anti-socio purpose seems unhappy to world

people even if such act should not be deserved any

law violation.

Even if any regulation is needed, but no effective

way exists for preventing anyone to make it happen.

Later chapter will discuss about this effective way.

4 ISSUES

4.1 Technical Issues

Irregular Process. Irregular cases are inevitable to

occur in business process. Any model should not be

thought valid unless pay enough attention to possi-

ble irregular cases. Though there is a definition of

compensation upon any event that irregular cases

happen, but the BPMN specification is still not

enough (BPMI.org, 2004). Basically irregularity has

two requirements to be met, let’s say, causes of the

irregularity which causes the irregular case and ac-

tion process which has to be executed upon the

event occur. (BPMI.org, 2004) provided only a

simple language construct which specifies that

compensation is took place in a process and nothing

more than that.

Irregular case is usually huge and almost infinite in

its number. However business process modeler has

to specify negligible events and the associated ac-

tion process exactly in appropriate place in process

model.

Lack of Standards. SOA advantages are featured

by standardization of BPMN language and Web

service languages for developing, deploying, and

invoking. The standards are not yet good enough.

The BPMN has no feature of calendar basis job run

and interfaces with work flow execution.

For message description, XML and its schema,

SOAP protocol are available. However no

self-contained language is yet available for describ-

ing both web service specification itself and the in-

terface though WSDL covers the interface descrip-

tion.

4.2 Service Penetration

Analogy to internet extern ability, SOA will be ex-

ploited as much as published services will be avail-

able. But IT industry does not seem vital to exploit

good web services,

The one secret why Toyota Production System TPS

is excellent, they have good parts industry around

and enjoy just in time parts delivery. Without hav-

ing good parts industry, no TPS could exist. EIS

systems business has the similar nature to this in-

stead of hardware parts but software.

Software parts industry could not have got remark-

able success as far as author knows throughout

software reuse history. One outstanding point in

SOA is that provided is supporting environment

where service components could be developed. ESB

and business process engine helps service are dep-

loyed in any business process model. Some stan-

dards like WSDL, SOAP, and XML Schema would

promote services reuse and exploit.

4.3 Compliance

Compliance is normally put into practiced at every

stage in organizational activities. But compliance

are mainly for defending them from possible im-

peachment, let’s say, prepares every needed exhibit

documentations of business activities, for example

accounting related transactions, as seeing in SOX

act

Compliance does not work effectively for pre-

venting such tragedy from occur again and over

again. With Web service-oriented EIS methods, it

become more faster to deliver the EIS and more

dynamic of systems execution changing selective

reusing of services.

5 TOWARDS BRIGHT EIS

We overviewed some EIS development and change

methods. SVC and SOA may be a leading edge

technology which solves major problems in EIS.

The technology will become as much powerful as

the technical issues could be improved.

What we should not miss is that the technology

should be rightfully used and should not for anti

human socio purpose. It may be difficult to foresee,

find and prevent any criminal action using EIS pre-

pared Of course the results of the action will be re-

vealed and known to people, but it is many months

AFTER the crime committed.

SOA or any other EIS technologies may not always

bring a bright and prosperous EIS era. The world

relies on EIS professional and business people’s

mind, intention and ethics.

We should stop or no expect anyone realize and put

EIS into practice for anti humanistic and socio pur-

pose. However it is obvious that there is no effec-

tive way to prevent wrong use of the technologies.

Even no one of us wants the technologies used only

Public Company Accounting Reform and Investor Pro-

tection Act of 2002, Sarbanes and Oxley

for right purpose and not evil, but it is nothing but

hope. Today’s world, not everyone but someone, is

enjoying the ever coming up victory of EIS tech-

nologies, but we are standing on dangerous field

where possible explosive.

Is there any good idea for things going in a right

way? One disciplines called Three Parties Law from

old Ohmi Shoho Japanese Economics, but precious

in this century, telling us that “One or Two Parties

Satisfaction is silver and may be survive, this two

plus Community become gold and live for a long”.

This tells us that good strategy is not in win-win re-

lationship but three folded win.

6 CONCLUSIONS

The Subprime Loan Financial Systems let us be

aware that EIS professionals should not act as a

servant to their clients but should be as a business

value creator who brings truly good things to the

world. Domain (Financial Engineering in this case)

experts and many others have been involved, but it

is obvious that without EIS, any business has never

been come realistic and actually run.

EIS by its technology is in turning point from fol-

lower position to leader stance in business innova-

tion team in a sense of enabling business process

model actually enact and make validity judgments

of the business run. This means EIS professionals is

no longer a technical supporter but become to take

more responsible role in modeling business compe-

tence that is essential gist of corporation. Com-

pliance and internal control system works may be

good enough in a sense of accounting but absolutely

not in ethical responsibility of the business model

enact.

Consequently EIS professionals have to take major

part of responsibility of the business where the EIS

is effective in the world. One way to keep track the

technologies use in a right objectives is to have EIS

experts as a business leader or at least core mem-

bers of business leaders’ team who is holding a

great responsibilities of business innovation. There

are many reasonable reasons for this choice. EIS

experts viewpoint and stance must be ideal for pur-

sue more optimum solutions to total EIS than any-

one who has each divisional responsibility. Stake-

holders must agree with that a leader must be

choosing out from parsons who has top capabilities

on the realization of core competence.

REFERENCES

IEEE, ”http://tab.computer.org/tcsc/index.htm, URL valid

on September 1, 2008

IBM: ”Service Computing, ” http://domino.research.ibm.

com/comm/research.nsf./pages/r.servcom URL valid

on September 1, 2008

D. Ceralry, J. Fenn, D. Plummer: ”Gartner’s Positions on

the Five Hottest Topics and Trends in 2005,”

http://www.gartner.com/DisplayDocument?id=48091

2, URL valid on September 1, 2008

N. M. Josuttis: ”SOA in Practice: The Art of Distributed

System Design,” O’Reily, 2007

T. Erl,:”SOA Principles of Service Design,” Prentice-Hall,

2008

P. C. Brown: “Implementing SOA Total Architecture in

Practice, ”Addison-Wesley, 2007

G. Cherbakov, K. Harishankar, Rackham: ”Impact of

Service orientation at the business level” IBM Sys-

tems Journal、Vol. 44. No 4, 2005

A. Iskandar, M. J.Matsumoto: “A Functional Framework

of SOA Synchronizing Business Model and IT”IEICE

Technical Report ISSN 0913-5685, Vol. 107, No.

550, SWIM 2007-23～32, pp. 45-48, March 2008

BPMI.org: Business Process Modeling Notation (BPMN)

Standards Version 1.0, May 2004

http://www.omg.org/cgi-bin/doc?bei/05-08-07.pdf

M. J. Matsumoto et al: ”Enterprise Information Systems

Technologies in Web-Service Era”, IEICE, 2009

BRIEF BIOGRAPHY

Masao J. Matsumoto received the B.S. degree in

Mathematics from Waseda University, and the Ph.D.

degree in Computer Sciences from the University of

Kyushu, Japan. He is currently a Professor at the

Faculty of Computer Sciences, Kyushu Sangyo

University. His main research interest is in

e-business and solution engineering. He received

the Deming Award in 1995 for his work on Soft-

ware Quality Management. He has been a professor

at Informatics, Dortmund University, Germany. He

has served on the IEICE research thrust to pursue

the Global Competence and Enterprise Modeling in

Internet Era. He has served on the program com-

mittees of several conferences, including ICEIS,

IEEE Software Reuse, and IEICE SWIM. He has

received Grand Championship of Social Dance Ka-

nagawa Tournament 2007.

APPENDIX

<?xml version="1.0" encoding="UTF-8"?>

<bpel:process

xmlns:bpel="http://docs.oasis-open.org/wsbpel/2.0/process/executable"

xmlns:wsdl="http://schemas.xmlsoap.org/wsdl/"

xmlns:xs="http://www.w3.org/2001/XMLSchema"

xmlns:vprop="http://docs.oasis-open.org/wsbpel/2.0/varprop"

xmlns:pnlk="http://docs.oasis-open.org/wsbpel/2.0/plnktype"

xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"

xmlns:ns="http://Sales_Service/xsd"

xmlns:this="http://example.com/NewDiagram/Flow_5"

xmlns:Services="http://example.com/NewDiagram/Services"

xmlns:axis2="http://Sales_Service/"

xmlns:diag="http://example.com/NewDiagram"

xmlns:tns="http://www.example.org/messages"

xmlns:Client="http://example.com/NewDiagram/Client"

xmlns:xml="http://www.w3.org/XML/1998/namespace"

xmlns:bpmn="http://www.intalio.com/bpms"

xmlns:atomic="http://ode.apache.org/atomicScope" queryLan-

guage="urn:oasis:names:tc:wsbpel:2.0:sublang:xpath2.0" expressionLan-

guage="urn:oasis:names:tc:wsbpel:2.0:sublang:xpath2.0"

bpmn:label="Flow_5" bpmn:id="_Qx4hYLezEd2SefdpxuIA7w"

name="Flow_5" targetNames-

pace="http://example.com/NewDiagram/Flow_5">

<bpel:import namespace="http://Sales_Service/" loca-

tion="Sales_Service.wsdl" import-

Type="http://schemas.xmlsoap.org/wsdl/"/>

<bpel:import namespace="http://example.com/NewDiagram" loca-

tion="NewDiagram.wsdl" import-

Type="http://schemas.xmlsoap.org/wsdl/"/>

<bpel:import namespace="http://example.com/NewDiagram/Flow_5"

location="NewDiagram-Flow_5.wsdl" import-

Type="http://schemas.xmlsoap.org/wsdl/"/>

<bpel:partnerLinks>

<bpel:partnerLink name="clientAndFlow_5PlkVar" partnerLink-

Type="diag:ClientAndFlow_5" myRole="Flow_5_for_Client"/>

<bpel:partnerLink

name="servicesAndFlow_5ForSales_ServiceSOAP11port_httpPlkVar"

partnerLink-

Type="diag:ServicesAndFlow_5ForSales_ServiceSOAP11port_httpPlk"

initializePartnerRole="true" partnerRole="Services_for_Flow_5"/>

</bpel:partnerLinks>

<bpel:variables>

<bpel:variable name="thisReceiveRequestMsg" message-

Type="this:receiveRequest"/>

<bpel:variable name="thisReceiveResponseMsg" message-

Type="this:receiveResponse"/>

</bpel:variables>

<bpel:sequence>

<bpel:receive partnerLink="clientAndFlow_5PlkVar" port-

Type="this:ForClient" operation="receive" varia-

ble="thisReceiveRequestMsg" createInstance="yes" bpmn:label="receive"

bpmn:id="_f1it0LezEd2SefdpxuIA7w"></bpel:receive>

<bpel:assign name="init-variables-Flow_5">

<bpel:copy bpmn:label="$thisReceiveResponseMsg">

<bpel:from>

<bpel:literal>

<this:receiveResponse>

<tns:message></tns:message>

<tns:adjustment_method></tns:adjustment_method>

</this:receiveResponse></bpel:literal>

</bpel:from>

<bpel:to>$thisReceiveResponseMsg.body</bpel:to>

</bpel:copy>

</bpel:assign>

<bpel:scope

name="ad_hoc_purchase_WMCc8bezEd2SefdpxuIA7w" bpmn:label="ad

hoc purchase" bpmn:id="_WMCc8bezEd2SefdpxuIA7w">

<bpel:variables>

<bpel:variable

name="axis2Nonmember_commodity_purchase_operationRequestMsg"

message-

Type="axis2:Nonmember_commodity_purchase_operationRequest"/>

<bpel:variable

name="axis2Nonmember_commodity_purchase_operationResponseMsg"

message-

Type="axis2:Nonmember_commodity_purchase_operationResponse"/>

</bpel:variables>

<bpel:sequence>

<bpel:assign name="init-variables-ad_hoc_purchase">

<bpel:copy

bpmn:label="$axis2Nonmember_commodity_purchase_operationRequest

Msg">

<bpel:from>

<bpel:literal>

<ns:Nonmember_commodity_purchase_operation>

<ns:commodity_id></ns:commodity_id>

<ns:name></ns:name>

<ns:address></ns:address>

<ns:mail_address></ns:mail_address>

<ns:adjustment_method></ns:adjustment_method>

</ns:Nonmember_commodity_purchase_operation></bpel:literal>

</bpel:from>

<bpel:to>$axis2Nonmember_commodity_purchase_operationRequestMsg

.parameters</bpel:to>

</bpel:copy>

</bpel:assign>

<bpel:empty bpmn:label="EventStartEmpty"

bpmn:id="_WMCc97ezEd2SefdpxuIA7w"/>

<bpel:if>

<bpel:condition>(("" != $thisReceiveRe-

questMsg.body/tns:name/text()) and ("" != $thisReceiveRe-

questMsg.body/tns:address/text())) and (("" != $thisReceiveRe-

questMsg.body/tns:adjustment_method/text()) and (("" != $thisReceive-

RequestMsg.body/tns:mail_address/text()) and ("" != $thisReceiveRe-

questMsg.body/tns:commodity_id/text())))</bpel:condition>

<bpel:if>

<bpel:condition>($thisReceiveRequestMsg.body/tns:adjustment_method/t

ext() = "Bank transfer") or ("digital cash" = $thisReceiveRe-

questMsg.body/tns:adjustment_method/text())</bpel:condition>

<bpel:sequence>

<bpel:assign bpmn:label="invoke
ad

hoc_purchase_operation" bpmn:id="_092u4Le0Ed2SefdpxuIA7w">

<bpel:copy>

<bpel:from>$thisReceiveRequestMsg.body/tns:adjustment_method</bpel:

from>

<bpel:to>$axis2Nonmember_commodity_purchase_operationRequestMsg

.parameters/ns:adjustment_method</bpel:to>

</bpel:copy>

<bpel:copy>

<bpel:from>$thisReceiveRequestMsg.body/tns:commodity_id</bpel:from

<bpel:to>$axis2Nonmember_commodity_purchase_operationRquestMsg.

parameters/ns:commodity_id</bpel:to>

</bpel:copy>

<bpel:copy>

<bpel:from>$thisReceiveRequestMsg.body/tns:name</bpel:from>

<bpel:to>$axis2Nonmember_commodity_purchase_operationRequestMsg

.parameters/ns:name</bpel:to>

</bpel:copy>

<bpel:copy>

<bpel:from>$thisReceiveRequestMsg.body/tns:address</bpel:from>

<bpel:to>$axis2Nonmember_commodity_purchase_operationRequestMsg

.parameters/ns:address</bpel:to>

</bpel:copy>

<bpel:copy>

<bpel:from>$thisReceiveRequestMsg.body/tns:mail_address</bpel:from>

<bpel:to>$axis2Nonmember_commodity_purchase_operationRequestMsg

.parameters/ns:mail_address</bpel:to>

</bpel:copy>

</bpel:assign>

<bpel:invoke partner-

Link="servicesAndFlow_5ForSales_ServiceSOAP11port_httpPlkVar"

portType="axis2:Sales_ServicePortType" opera-

tion="Nonmember_commodity_purchase_operation" inputVaria-

ble="axis2Nonmember_commodity_purchase_operationRequestMsg"

outputVaria-

ble="axis2Nonmember_commodity_purchase_operationResponseMsg"

bpmn:label="invoke
ad hoc_purchase_operation"

bpmn:id="_092u4Le0Ed2SefdpxuIA7w"></bpel:invoke>

<bpel:if> <bpel:condition>"database_access_failed" !=

$axis2Nonmember_commodity_purchase_operationResponseMsg.parame

ters/ns:return</bpel:condition>

<bpel:sequence>

<bpel:assign bpmn:label="compose purchase done

message" bpmn:id="_WMCc_bezEd2SefdpxuIA7w">

<bpel:copy>

<bpel:from>"購入が成功しました。会員登

録を行うと、入力項目を減らすことができます。"</bpel:from>

<bpel:to>$thisReceiveResponseMsg.body/tns:message</bpel:to>

</bpel:copy> <bpel:copy>

<bpel:from>$thisReceiveRequestMsg.body/tns:adjustment_method</bpel:

from>

<bpel:to>$thisReceiveResponseMsg.body/tns:adjustment_method</bpel:t

</bpel:copy>

</bpel:assign>

<bpel:empty bpmn:label="EventEndEmpty"

bpmn:id="_WMCc_7ezEd2SefdpxuIA7w"/>

</bpel:sequence>

<bpel:else>

<bpel:sequence>

<bpel:empty bpmn:label="db admin action"

bpmn:id="_WMCc_rezEd2SefdpxuIA7w"/>

<bpel:exit bpmn:label="force end"

bpmn:id="_WMCdALezEd2SefdpxuIA7w"/>

</bpel:sequence>

</bpel:else>

</bpel:if>

</bpel:sequence>

<bpel:else>

<bpel:sequence>

<bpel:assign bpmn:label="compose invalid payme-

thod message" bpmn:id="_WMCdArezEd2SefdpxuIA7w">

<bpel:copy>

<bpel:from>"購入方法は、”Bank transfer”又

は”digital cash”以外は選べません。"</bpel:from>

<bpel:to>$thisReceiveResponseMsg.body/tns:message</bpel:to>

</bpel:copy>

</bpel:assign>

<bpel:empty bpmn:label="EventEndEmpty"

bpmn:id="_WMCc_7ezEd2SefdpxuIA7w"/>

</bpel:sequence>

</bpel:else>

</bpel:if>

<bpel:else>

<bpel:sequence>

<bpel:assign bpmn:label="compose

"reinput" message"

bpmn:id="_WMCc9rezEd2SefdpxuIA7w">

<bpel:copy>

<bpel:from>"記入漏れがあります。再入力をお

願いします。"</bpel:from>

<bpel:to>$thisReceiveResponseMsg.body/tns:message</bpel:to>

</bpel:copy>

</bpel:assign>

<bpel:empty bpmn:label="EventEndEmpty"

bpmn:id="_WMCc_7ezEd2SefdpxuIA7w"/>

</bpel:sequence>

</bpel:else>

</bpel:if>

</bpel:sequence>

</bpel:scope>

<bpel:reply partnerLink="clientAndFlow_5PlkVar" port-

Type="this:ForClient" operation="receive" varia-

ble="thisReceiveResponseMsg" bpmn:label="reply"

bpmn:id="_hinToLezEd2SefdpxuIA7w"></bpel:reply>

</bpel:sequence>

</bpel:process>

Figure 3: BPEL corresponding to Figure 1 Example.

<?xml version='1.0' encoding='utf-8'?>

<wsdl:definitions xmlns:ns="http://Sales_Service/xsd"

xmlns:wsdl="http://schemas.xmlsoap.org/wsdl/"

xmlns:xs="http://www.w3.org/2001/XMLSchema"

xmlns:xml="http://www.w3.org/XML/1998/namespace"

xmlns:axis2="http://Sales_Service/"

xmlns:bpel="http://docs.oasis-open.org/wsbpel/2.0/process/executable"

xmlns:diag="http://example.com/NewDiagram"

xmlns:Services="http://example.com/NewDiagram/Services"

xmlns:tns="http://www.example.org/messages"

xmlns:vprop="http://docs.oasis-open.org/wsbpel/2.0/varprop"

xmlns:soap="http://schemas.xmlsoap.org/wsdl/soap/"

xmlns:pnlk="http://docs.oasis-open.org/wsbpel/2.0/plnktype"

xmlns:this="http://example.com/NewDiagram/Flow_5"

xmlns:Client="http://example.com/NewDiagram/Client"

xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" targetNa-

mespace="http://example.com/NewDiagram/Flow_5">

<wsdl:types>

<xs:schema elementFormDefault="qualified" targetNames-

pace="http://example.com/NewDiagram/Flow_5">

<xs:import names-

pace="http://www.example.org/messages" schemaLoca-

tion="message.xsd"/>

<xs:element name="receiveRequest"

type="tns:hi-kaiinnkounyuu_input"/>

<xs:element name="receiveResponse"

type="tns:hi-kaiinnkounyuu_output"/>

</xs:schema>

</wsdl:types>

<wsdl:message name="receiveRequest">

<wsdl:part name="body" element="this:receiveRequest"/>

</wsdl:message>

<wsdl:message name="receiveResponse">

<wsdl:part name="body" element="this:receiveResponse"/>

</wsdl:message>

<wsdl:portType name="ForClient">

<wsdl:operation name="receive">

<wsdl:input message="this:receiveRequest"

name="receive"/>

<wsdl:output message="this:receiveResponse"

name="receiveResponse"/>

</wsdl:operation>

</wsdl:portType>

<wsdl:binding name="CanonicBindingForClient"

type="this:ForClient">

<soap:binding style="document" trans-

port="http://schemas.xmlsoap.org/soap/http"/>

<wsdl:operation name="receive">

<soap:operation style="document" soapAc-

tion="http://example.com/NewDiagram/Flow_5/ForClient/receive"/>

<wsdl:input name="receive">

<soap:body use="literal"/>

</wsdl:input>

Figure 4: WDSL corresponding to Fig.1 Example.

<?xml version="1.0" encoding="UTF-8"?>

<schema xmlns="http://www.w3.org/2001/XMLSchema"

targetNamespace="http://www.example.org/messages"

xmlns:tns="http://www.example.org/messages"

elementFormDefault="qualified">

</sequence>

</complexType>

</sequence>

</complexType>

</sequence>

</complexType>

</sequence>

</complexType>

Figure 5: XML Schema corresponding to Example.
