3D-MODELS OF THE HUMAN HABITAT FOR THE INTERNET

Franz Leberl

Institute of Computer Graphics and Vision, Graz University of Technology, Graz, Austria

Michael Gruber

Microsoft Photogrammetry, Graz, Austria

Keywords: Internet, Geo-data, Photogrammetry, 3-dimensional objects.

Abstract: The Internet has inspired an enormous appetite for 3-dimensional geo-data of the urban environment to

support location-aware applications. This has in fact become the surprising „killer application“ of such 3-

dimensional data. In March 2005, at the occasion of his 50th birthday, Bill Gates went public with his

“Virtual Earth Vision” for local search in the Internet and stated: "You'll be walking around in downtown

London and be able to see the shops, the stores, see what the traffic is like. Walk in a shop and navigate the

merchandise. Not in the flat, 2D interface that we have on the web today, but in a virtual reality

walkthrough.”

The key words are „walk in a shop“. This implies the need for an enormous detail, and the associated

computing power, communications bandwidth, miniaturization of computing, increase of storage capacity

and in the ability to model the human habitat (the Earth) in great detail in 3 dimensions.

This paper seeks to evangelize the current capabilities of the Virtual Earth system, focuses on the creation of

3D data, but also points to some pieces of new science in the 3D-analysis of overlapping imagery of the

human habitat at sub-pixel accuracies

1 FROM 2-DIMENSIONAL

NAVIGATION TO

3-DIMENSIONAL SEARCH

The Internet-use of geographic information dates

back to the mid-1990s in the form of navigational

support for cars and trucks. Digital street maps have

made it into car navigation systems. Microsoft

offered Streets and Trips, later MapPoint, as stand-

alone PC-based solutions for travel planning, and

when augmented by GPS, also supporting the

navigation application. Subsequently, digital street

maps have also appeared on the Web by various

vendors to support travel plans and online routing as

well as navigation via the Internet. Some of the more

prominent global offerings are by MapQuest, in the

form of an Internet-enabled MapPoint by Microsoft,

as mapping service by Google, Yahoo, Ask and

other search services (maps.google.com,

maps.yahoo.com, maps.ask.com, maps.live.com). In

nearly every industrialized country, one or even

multiple regional systems have come into existence,

oftentimes on the basis of an existing telephone

directory business. Under

http://www.klicktel.de/routenplaner/ one finds one

sample solution for Germany.

These 2-D navigation and route planning systems

were soon augmented by an aerial and satellite

photography backdrop in the form of so-called

ortho-photos. Google may have been the pioneering

provider of imagery via its acquisition of Keyhole

Inc in 2004 and the subsequent release of Google

Earth in 2005. Microsoft released its Virtual Earth

website in June 2005, also augmenting MapPoint by

aerial imagery, to include bird’s eye aerial coverage

as collected by Pictometry Inc. under an exclusive

contract with Microsoft.

3-D building models were first introduced into

Virtual Earth by Microsoft in November 2006 and

grew to a coverage of all major US cities and some

cities outside North America. The media response

was enormous. Google followed suit by initially

providing its own data sets consisting of Lego-type

building blocks without photo texture.

W. Leberl F. and Gruber M.

3D-Models of the Human Habitat for the Internet.

DOI: 10.5220/0006813900010001

In Proceedings of the Fourth International Conference on Computer Graphics Theory and Applications (VISIGRAPP 2009), pages 7-15

ISBN: 978-989-8111-67-8

Table 1: UltraCam-evolution via an exploitation of advances in CCD-technology. „Level 1“ are raw data from a total of 13

area array CCD-sensors @ 2 byte per pixel; „Level 2“ are the 9 panchromatic image tiles merged into one large format

panchromatic image, plus the 4 separate color bands in red-green-blue and near-infrared, geometrically matched to the

panchromatic image, but at a geometric resolution that is 3 times reduced. „Level-3“ consists of the 4 high resolution color

bands resulting from fusing the panchromatic and color bands („pansharpened“). From the 4 Level-3 component images

one can create a true color (red-green-blue) as well as a false color infrared image (red-green-infrared).

Figure 1: Image formats of the UltraCam-versions D, X und XP. Obviously, a larger format will increase the efficiency of

image collection resulting in fewer aircraft flight miles and fewer individual images and data files.

The third dimension reflects the idea of a human

experience of our environment – we see a 3D world,

not the flat mapping version of the world. As we

navigate urban spaces we interact with buildings,

building floors, vegetation, billboards, interior

spaces and other items defining the world around us.

We search in 3D. From a Virtual Earth we move into

a digital model of the spaces we live in -- a Virtual

Habitat.

2 LOCATIONAL AWARENESS IN

THE INTERNET?

One may want to denote the internet-based mapping

and search services as “locationally aware”. We see

a marriage between geo-data and the Internet with

its vast locationally unorganized data repository.

“Geodata” have come a long way in the last 2

decennia with a transition from 2-D paper maps to,

initially, the 2-D geographical information system

GIS. We now see a slow emergence of the third

dimension in geo-data production. As a result the

GIS transits from 2D data with a third dimension

encoded as an attribute to the GIS-elements, to a true

3-D model of the world. The main source of such 3D

geo-data is the field of photogrammetry. One may be

able to track the evolution via the quadrennial

scientific-technical Congresses of the International

Society for Photogrammetry and Remote Sensing

ISPRS as follows (ISPRS, 2008):

1992 (Baltimore) -- first film scanning systems

get introduced, thereby supporting the digital

processing of images in photogrammetric geo-data

processing, but based on film sources;

1996 (Vienna) – first digital stereo (also called

softcopy stereo) systems come online and start the

demise of the 100-year optical stereo-technology

relying on the human stereo viewing ability;

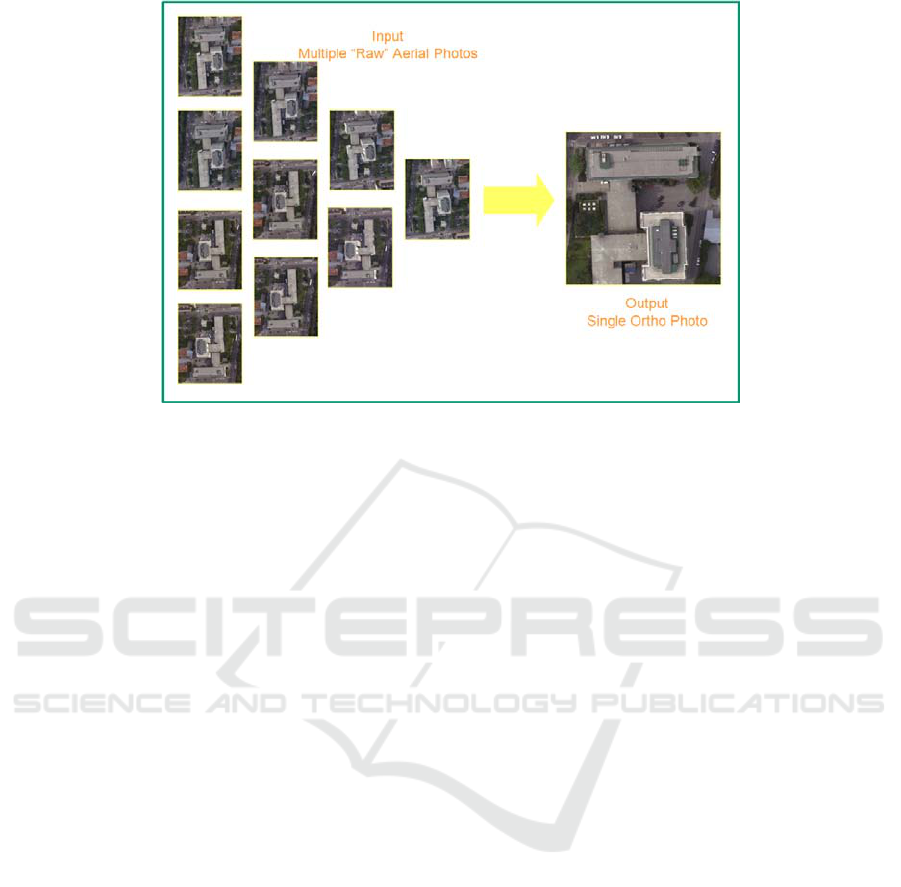

Figure 2: Illustrating an image coverage with 80% forward and 60% side-lap, resulting in a building being imaged 10 times.

Form these 10 inputs, a single output is being generated in the form of a 2-D ortho-photo.

2000 (Amsterdam) -- the first digital aerial

cameras get announced but have yet to get

introduced into the application in photogrammetry;

2004 (Istanbul) – first reports of the systematic

application of digitally collected imagery and its

advantages in reducing cost and increasing quality;

the end of the film-based geo-data creation is near;

2008 (Beijing) – this is the Congress celebrating

the marriage of the Interent with geo-data in 2 and 3

dimensions.

The Internet changes the geo-data user’s

paradigm. It moves from the realm of the expert

users into everyday live. At all places one can

interact with all places and do so at all times. The

idea of interacting “with all places” may include the

galaxy, as demonstrated by Microsoft’s „Worldwide

Telescope“ and http://www.google.com/sky/.

These Internet data systems thereby evolve into a

societal force by providing the global geographic

knowledge to all of humanity in an easy and

intuitive manner. The business model initially relies

on advertisement. But we can expect that this model

will broaden into computer games, e-commerce, the

Internet-of-things, the so-called „Ambient Living“

and others.

3 SIX CHALLENGES TO MEET

FOR 3D GEODATA

3.1 Superior Quality in Aerial Imagery

To develop a 3D model of our habitat economically

and thus automatically we need to be able to rely on

excellence in aerial image coverage. In the case of

Microsoft’s Virtual Earth, the source imagery for 3D

urban data is being created by the UltraCam digital

aerial camera. Table 1 summarizes the numbers of

pixels being collected per image by three different

camera models. In its most recent implementation, a

single image covers 17K by 11K pixels. Figure 1

augments that parameter by a view at the image

formats.

“Quality” is being defined by the geometric and

radiometric performance of the sensor.

Photogrammetric standards require that an image be

geometrically stable and accurate to within ± 2 μm

across its format. Without such accuracy the sensor

would not be considered photogrammetric.

The greater challenge is radiometry. Because

automated procedures must rely on image details in

both very bright and very dark objects, one develops

an insatiable appetite for the number of grey values

such a sensor can separately produce. In the

UltraCam’s case, one achieves a radiometric range

in excess of 7,000 grey values or nearly 13 bits per

pixel and color channel.

3.2 Intelligent Image Coverage from

the Air

If one were to add an image within an image

creation mission, one would not add any variable

costs. The zero-variable-cost paradigm of digital

sensing, without any film, any chemicals to develop

the film, any film scanning reduces the costs to just

the cost of flying a mission. This is an invitation to

increase the redundancy in the number of images

and thereby achieve a greater degree of automation,

reduced errors, less manual work. While with film

one needed to minimize the number of images

collected, to control costs with digital sensing, one

can increase the forward overlap within a flight line

form the basic stereo case of 60% to perhaps 80% or

even 90%, and the side-lap between flight lines from

the basic 20% to perhaps 60%, sometimes to 80%.

These overlaps eliminate any concerns one might

otherwise have had about occlusions due to surfaces

and objects hidden behind tall buildings. Figure 2

illustrates how this leads to each building being

imaged in 10 separate images, and how these 10

images need to be combined into one single ortho-

photo data product.

3.3 Automated 3d Image Analysis

Automation is the key to making a global 3D model

of urban spaces feasible; the process was described

by Leberl (2007). This begins with an automated

aerial triangulation of all images of one single

project or urban space to be modeled, encompassing

perhaps thousands of aerial photographs. The result

is a precise reconstruction of all camera positions

and attitudes, a geometric marriage of all individual

images into a coherent image block, and a non-dense

collection of 3D terrain points.

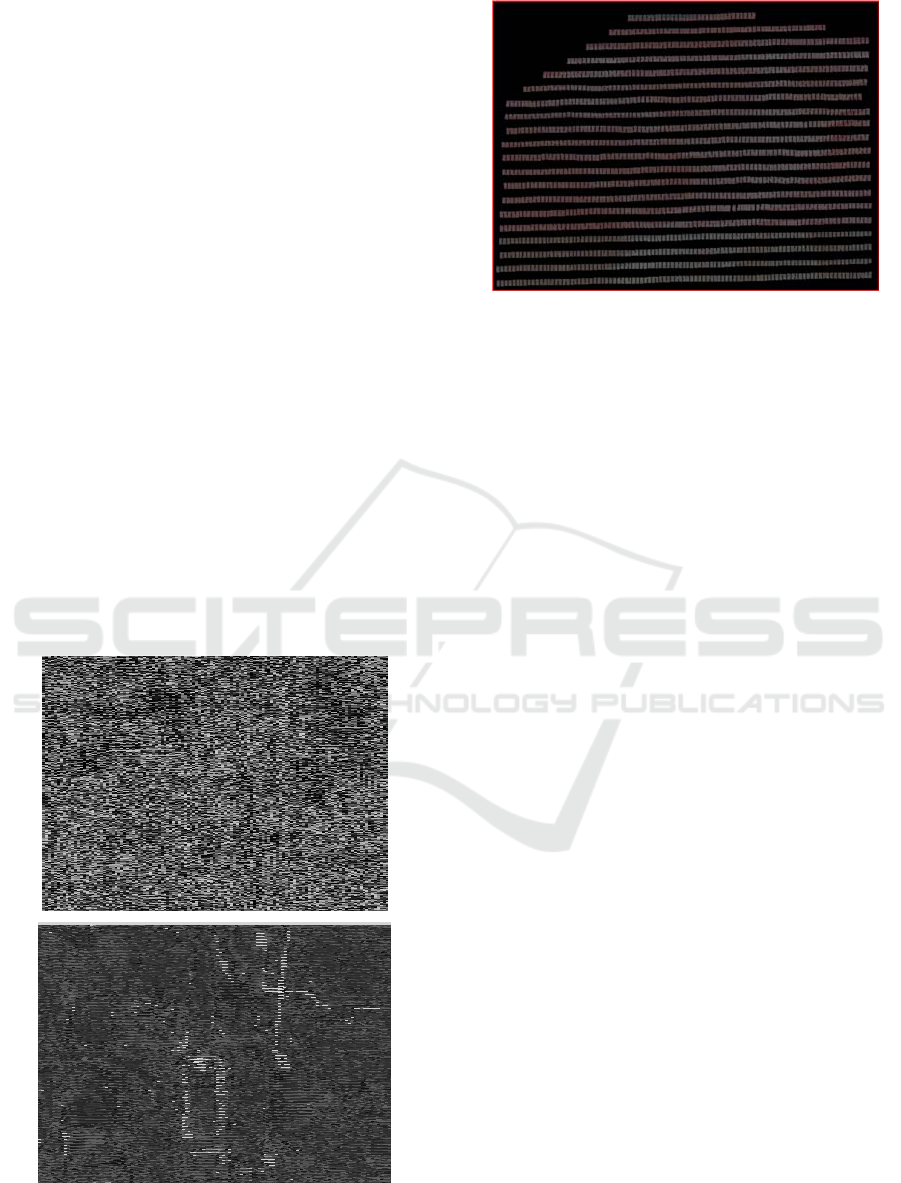

Figure 3: A dense surface model (DSM, above) from a

project in Winston-Salem (USA). Below is the “bald

Earth” without the buildings and vegetation.

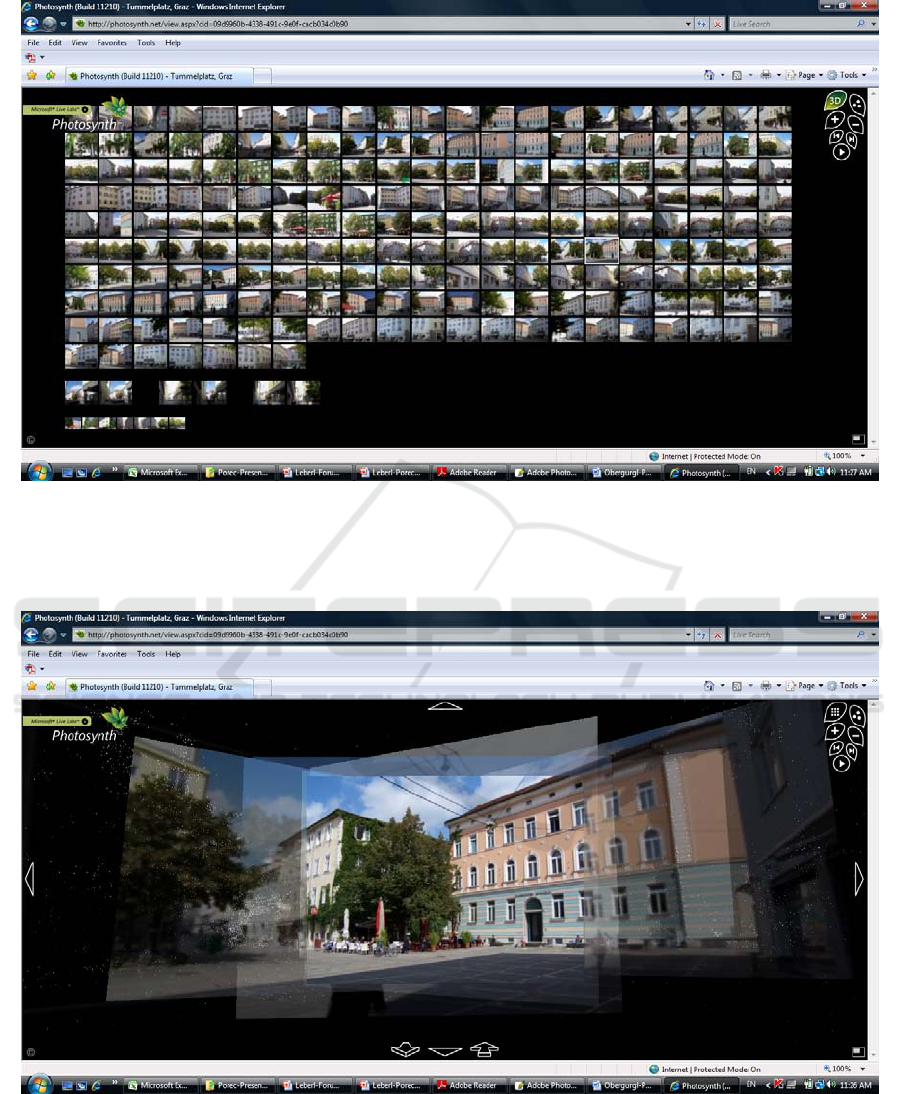

Figure 4: „Dragonfly“ derives from Seadragon (Livelabs,

2008) and is used as part of an automated aerial

triangulation system UltraMap. It supports the interaction

with thousands of images, each with perhaps 0.5 Gbytes.

Changes vis-à-vis Seadragon are the 16 bits per color

channel, 4 colors to include infrared, the ability to deal

with overlaps in images and interactive point

measurements (Reitinger, 2008).

This is being followed by a so-called dense

matching process to develop a surface model with a

posting of terrain points every 2 or 3 pixels, using

the 10 or so input images per terrain point and a

process developed by Klaus (2007). This often also

denoted as multi-view matching (as opposed to the

traditional stereo matching with just 2 images).The

dense surface model is the basis to create the ortho-

photo, using the triangulated input photographs, as

shown in Figure 2, and using it as the 2D backdrop

for the Internet-data system. That ortho-photo is in

turn the basis for an image classification to separate

the terrain objects into buildings, trees, shrubs,

circulation spaces, water and grass surfaces.

In the transition to the 3D data products, the

dense surface model DSM needs to be separated into

the bald Earth and the set of vertical objects on top

of that bald Earth (see Figure 3). Those vertical

objects are now being labeled using the result of the

classification.

In spite of automation there is a need to interact

with the imagery to review, control quality, make

measurements. For a mid-size city like Graz

(Austria) with its 150 km

, the aerial coverage at 8

cm per pixel results in 3000 images. Such large

image numbers and data quantities require clever

interaction approaches. Based on SeaDragon, as

described by Livelabs (2008), the Dragonfly-system

was developed to use 4 instead of only 3 colors, to

cope with 16 bits per color channel instead of 8, and

to deal with overlaps in imagery. This is integrated

into a fully automated aerial triangulation system

UltraMap (Gruber and Reitinger, 2008). Figure 4

illustrates the user interface of Dragonfly with the

aerial image coverage of an entire city (Reitinger,

2008).

3.4 Taking Advantage of Redundancies

Collecting more images than the minimally needed 2

images per object point, for stereo support, provides

many advantages:

• better geometric accuracy (see Figure 5);

• improved automation with fewer catastrophic

failures and fewer manual interventions;

• reduced occlusions of urban surfaces;

• fewer gross errors in the automated

computations.

This all points in the direction of decreased costs

in the image analysis and improved quality of the 3D

geo data.

3.5 High Geometric Accuracy

It may surprise that a 3D geo-data system for

Internet mapping and search needs to be very

accurate. Figure 6 illustrates the effect of a poor

dense surface model on an ortho-photo, along the

edges of a building, thus along the roof line. Unless

the roof line is well defined in 3D, one will suffer

from visually disturbing errors with ground texture

on the roof and vice-versa. The geometric errors in a

photogrammetric 3D system can be characterized in

image coordinates by the following component

errors:

Laboratory calibration of the aerial

camera............................. ± 0.5 µm

Merging the 9 image tiles into a single

image....…………….. ± 0.6 µm

Field calibration by an actual aerial

triangulation, σ

…........... ± 1.0 µm

These numbers need to be seen with respect to

the physical size of the CCD-pixels in the range

between 6 μm and 7.2 μm. And they show that one

operates well within a sub-pixel domain.

3.6 Limitless Detail

(a) Human Scale Geo-Data: From “Earth to

“Habitat”

Humans do not experience urban spaces from a

bird’s eye perspective. We all walk a city, or drive in

it, we visit buildings and move in interior spaces.

That is exactly the essence of Bill Gates’ March-

2005 address that kicked-off Microsoft’s Virtual

Earth initiative.

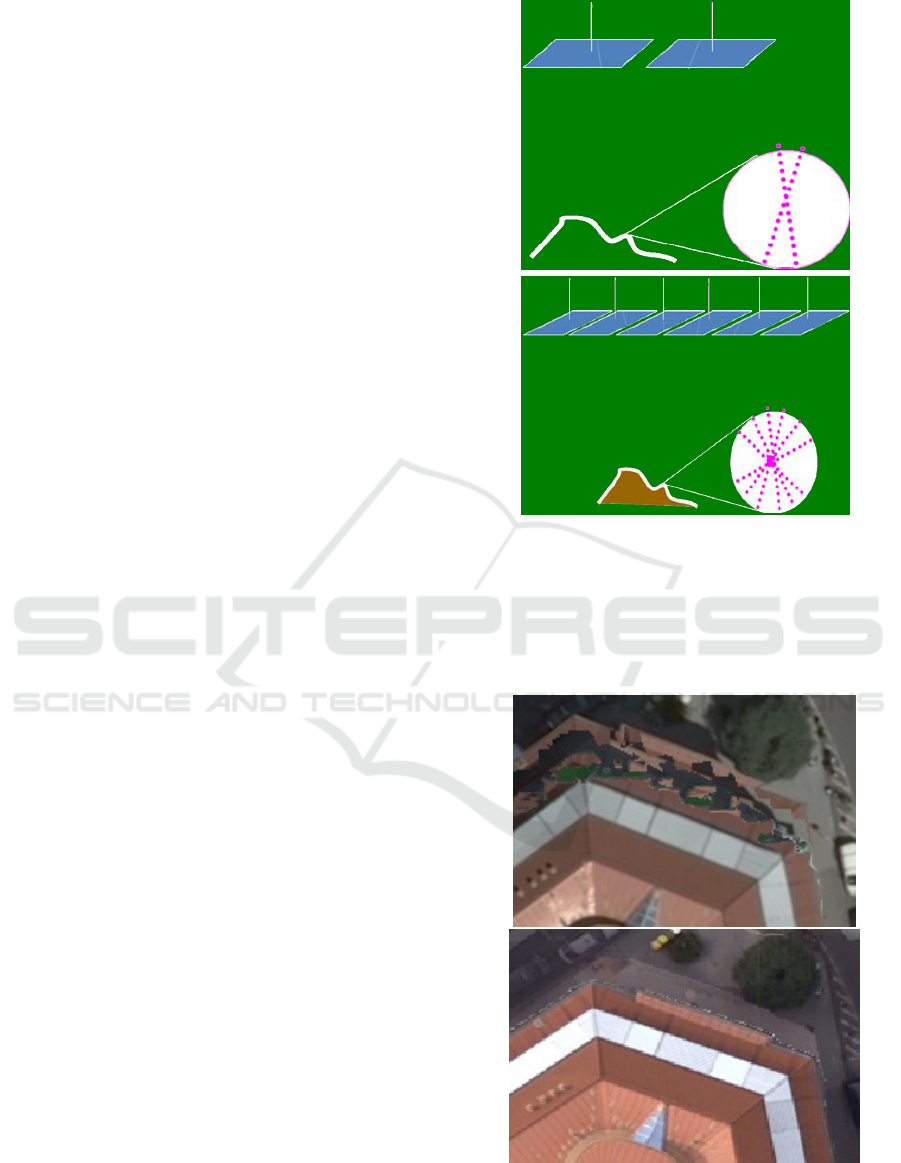

Figure 5: Comparison between the computation of a 3D

point from two images (above) and 6 images (below At 10

cm pixels, the 2-image approach may result in a vertical

coordinate error of ± 30 cm . With 8 images, this error

reduces to ± 5 cm (Gruber and Ladstätter, 2006). The

intersection geometry improves as the images are farther

apart compare images 1 and 6 to the right).

Figure 6: Segments of an ortho-photo. Above is the effect

of a less well defined DSM, produced with an older DSM-

algorithm. Below is the ortho-photo achieved with the

DSM from the current state-of-the-art.

We argue that a 3D urban model needs the

building facades with their signage, the shop

windows and building details such as balconies, the

street views with their fire hydrants and bicycle

racks, the parking meters, drive ways etc. But we

also want public building interiors, courtyards,

shopping malls, musea, churches etc.

(b) Streets

Right from the 2005-start of the Virtual Earth

project, Microsoft embarked on ambitious vehicle-

based image collection campaigns. A technology

preview website illustrated how the data were to be

used, separately from the aerial imagery. Most

recently, this data collection has evolved into a fairly

complex enterprise with multiple cameras, lasers,

positioning and attitude sensing (Figure 7). The use

of the collected data is envisioned in a framework

defined by the aerial data so that the street-side

imagery is used to refine the building details

originally collected from the air.

Figure 7: A Microsoft-Virtual-Earth car with a setup using

12 cameras and 4 laser scanners.

We are concerned with public spaces and buildings

as defined in item (a) above. This must be based on

procedures and workflows for interior 3D modeling.

Early examples were shown in the Vienna National

Library (Gruber and Sammer, 1995) or the Graz

Congress (Gruber, 1997).

4 INVOLVING THE USERS IN

SUPPLYING DATA

The premise of urban building details at a level of

perhaps 2 cm per pixel, and of all the World’s cities,

calls for an approach that involves the users of such

geo-data.

While we, as citizen-users, may not be experts in

geo-data, we certainly are experts of our

neighborhood. Goodchild (2008) and many others

are advocating the idea of the neo-geographer as a

person contributing local mapping data to an

Internet-based geo-data system in analogy to

Wikipedia. An interesting development is

Photosynth by Microsoft Research (Livelabs, 2008).

The capability is based on the ability to perform an

(aerial) triangulation with uncalibrated photographs

and without any knowledge of a focal length.

Photosynth has been released as a global service

in August 2008 (http://photosynth.net/). Figures 8

and 9 illustrate ther basic idea with an example of

the Tummelplatz (square) in Graz. Note how the

sequential viewing of 2D images create a 3-D

“illusion”.

Photosynth is now part of the Virtual Earth

organization within Microsoft. A related

development exists at the University of Washington

(2008) under the name Phototourism (Snavely, Seitz

et al., 2008; Snavely, Garg et al., 2008)

5 AN EXABYTE OF

LOCATIONAL DATA

We have suggested that the aerial imagery for

Virtual Earth is at a resolution of 10 to 15 cm. The

higher the resolution, the easier it will be to obtain

the required delineation of roof lines and human

scale objects from the air.

Street-level imagery is expected to be at a

resolution of perhaps 2 cm, to ensure that all street

signs can be read and interpreted. And indoor data

would by necessity be at an even higher resolution,

perhaps as high as 0.5 cm. How much data will a

complete 3D model of the World consist of?

Given the Earth’s land masses with about 150

million km

, a basic 15 cm image backdrop in 2D

would consist of more than 20 PB (peta-bytes), in

color pixels and as an output. But if we operate with

a 10-times redundancy, these 20 PB will really

require one to deal with 200 PB at the input side.

Currently, a majority of uses are 2-dimensional.

Figure 10 is a representative application to queries

about real estate values in the USA.

Street-side data also need to get collected with

redundancy. One may want to make assumptions

about the mileage of streets along which the images

get collected, per city, and the number of cities.

Finally, one will want to add the indoor data for a

subset of the buildings in a city and the 10-times

redundancy in indoor data.

Figure 8: Screenshot. User-images taken in a city square. These images are being loaded into Microsoft‘s system

„Photosynth“ and get oriented automatically without a known focal length or image calibration. Such imagery is then

available to Virtual Earth. This will augment the detail in the basic Virtual Earth system. The example is from Tummelplatz

in Graz, Austria, with ~ 200 photographs, a vast excess beyond what is minimally required.

Figure 9: Screenshot. The ~ 200 images from Figure 8 are now available in a 3D coordinate system and one can navigate

the image data set as if we were moving in 3D space. The 3D visual impression results form viewing individual 2D images,

but oriented in 3D.

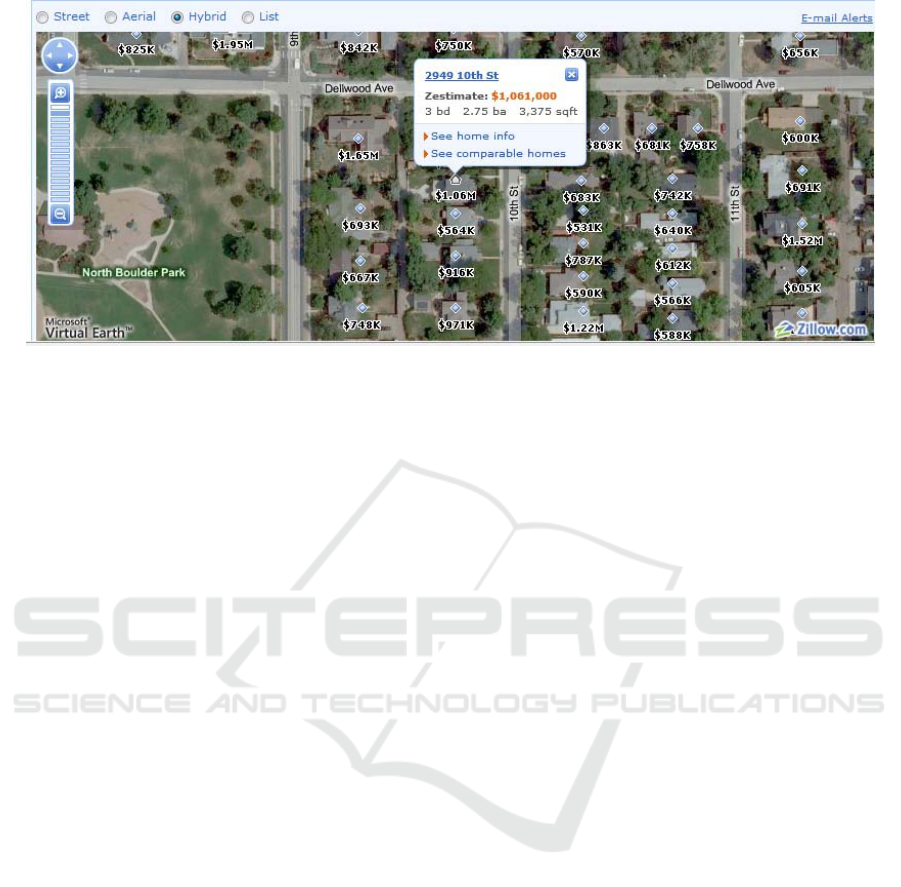

Figure 10: Example of a 2D application of the Virtual Earth system by www.zillow.com. It presents the values of real estate

properties, based on property tax records in the USA. One enters with an address and the system returns the value of that

address and of its surroundings.

These data sets, whether contributed partly by

users, say 200 images of a single square in Graz, or

systematically collected by the provider of the 3D

system, will exceed 1 EB (exa-bytes).

6 ISSUES AND RESEARCH

FOCUS

The creation of 3D geo-data has certainly been a

significant focus of the developmental work within

the Virtual Earth initiative. Today, an end-to-end

workflow exists to produce complete 3D models of

every building of a city at a rate of perhaps 300

cities per year.

Of course this has been built on innovations in

the automated analysis of blocks of highly

overlapping aerial imagery, as described earlier.

However, to meet the goal of a high resolution 3D

model of the human habitat at the level of human

scale objects, considerable additional innovation is

needed addressing street level source data, even

indoor data. Once a 3D model exists, its presentation

on a computer monitor over the Internet is a matter

of “visualization”. While today the 3D models are

based on relatively crude geometric models of

buildings with photographic texture, one should

expect that this will evolve into much finer detail in

geometry and an interpretation of the image content.

Current research work along those lines in our own

teams in Graz is being documented by Kluckner et

al. (2009); Ischara et al. (2009), Schall and

Schmalstieg (2009) and Ladstätter (2009).

Interaction with true 3D models of urban spaces

requires some computer power in the user’s hands.

This is currently still a significant limitation.

Replacing the 3D-models by a clever approach

presenting just 2D imagery, as in Photosynth, is a

work-around until such time that users do have

sufficient power to deal with 3D. This 2D approach

as a “3D-look-alike” versus true 3D is a topic of

current relevance.

Keeping the geo-data current, and finding smart

ways of defining areas of change, is another topic of

interest in this new world of locationally aware

Internet applications.

ACKNOWLEDGEMENTS

The material for this paper was developed through

the period 2006 to 2008 by various people at the

Institute for Computer Graphics and Vision at Graz

University of Technology, especially the 12

members of the Virtual Habitat Group, and by the

team at Microsoft-Graz. We thank the members of

those two teams.

REFERENCES

Goodchild M., 2008. Assertion and authority: the science

of user-generated geographic content. Proceedings of

the Colloquium for Andrew U. Frank's 60th Birthday.

GeoInfo 39. Department of Geoinformation and

Cartography, Vienna University of Technology.

Gruber M. and R. Ladstätter, 2006. Geometric issues of

the digital large format aerial camera UltraCamD.

International Calibration and Orientation Workshop

EuroCOW 2006, Proceedings, 25-27 Jan. 2006,

Castelldefels, Spain.

Gruber M., Reitinger B., 2008. UltraCamX and a new way

of photogrammetric processing. Proceedings of the

ASPRS Annual Conference 2008, Portland 2008.

Gruber M., Sammer P., 1995. Modeling the Great Hall of

the Austrian National Library, International Journal of

Geomatics 9/95, Lemmer 1995.

Gruber M., 1997. „Ein System zur umfassenden Erstellung

und Nutzung dreidimensionaler Stadtmodelle“,

Dissertation, Graz University of Technology, 1997.

Irschara A. H. Bischof, F. Leberl, 2009. Kollaborative 3D

Rekonstruktion von urbanen Gebieten, in 15. Intern.

Geodätische Woche Obergurgl 2009, Wichmann –

Heidelberg.

ISPRS, 2008. http://www.isprs.org/congresses/beijing2008/

Default.aspx

Klaus A., 2007. Object Reconstruction from Image

Sequences, Dissertation, Graz University of

Technology, 2007.

Kluckner S., Georg Pacher, H. Bischof, F. Leberl, 2009.

Objekterkennung in Luftbildern mit Methoden der

Computer Vision durch kombinierte Verwendung von

Redundanz, Farb- und Höheninformation, in 15.

Internationale Geodätische Woche Obergurgl 2009,

Wichmann – Heidelberg.

Ladstädter R., 2009. Untersuchungen zur geometrischen

Genauigkeit der UltraCamD/X, in 15. Internationale

Geodätische Woche Obergurgl 2009, Wichmann –

Heidelberg.

Leberl F., 2007. Die automatische Photogrammetrie fűr

das Microsoft Virtual EarthSystem. in 14.

Internationale Geodätische Woche Obergurgl 2007,

Wichmann – Heidelberg, S. 200 – 208.

LiveLabs, 2008. Seadragon, Microsoft Live Labs, 2008.

http://livelabs.com/seadragon.

Reitinger B., 2008. Interactive Visualization of Huge

Aerial Image Datasets; International Archive for

Photogrammetry and Remote Sensing, Volume

XXXVII, Beijing, 2008.

Schall G., D. Schmalstieg, 2009. Einsatz von mixed reality

in der Mobilen Leitungsauskunft, in 15. Intern.

Geodätische Woche Obergurgl 2009, Wichmann –

Heidelberg.

Snavely N., S. M. Seitz, and R. Szeliski, 2008. odeling the

world from Internet photo collections. International

Journal of Computer Vision, 80(2):189-210,

November 2008.

Snavely N., Rahul Garg, Steven M. Seitz, and Richard

Szeliski, 2008. Finding Paths through the World's

Photos. ACM Transactions on Graphics (SIGGRAPH

2008).

University of

Washington, 2008.

http://phototour.cs.washington.edu/

BRIEF BIOGRAPHY

Franz W. Leberl received his degrees from Vienna

University of Technology (Dipl.-Ing., 1967;

Dr.techn., 1972). Worked in the Netherlands,

California, Minnesota, Colorado and Austria. Today

he is a chaired professor of Computer Science at

Graz University of Technology.

As a business man, formed Vexcel Corporation

in Boulder (Colorado, 1985) and Vexcel Imaging

GmbH (Austria, 1993, manufacturer of the

UltraCam Digital Large Format Aerial Camera,

www.microsoft.com/ultracam). As a research

manager, he was CEO of the Austrian Research

Centers (1996-1998) with 1000 employees. In 1980

founded the “Institute for Digital Image Processing”

at Joanneum Research in Graz, Austria.

His current outlook on life is defined by the sale

of Vexcel Corp. and Vexcel Imaging GmbH to

Microsoft Corp. (USA) in mid-2006. This resulted in

a position as a Director of Microsoft Virtual Earth.

Since completion of that assignment in November

2007 returned full-time to academia and now serve

as Dean of Computer Science at Graz University of

Technology (2008-2011).
