INTEGRITY AND AUTHENTICITY OF QUALITY ASSURANCE

AND CONTROL IN AN IMAGING EXAMINATION WORKFLOW

Chung-Yueh Lien

Institute of Biomedical Engineering, National YangMing University

No. 155, Sec. 2, Linong st., Beitou District, Taipei 112, Taiwan

Chia-Hung Hsiao

Department of Medical Informatics, TzuChi University, Hualien City, Taiwan

Tsung-Lung Yang

Department of Radiology, Kaohsiung Veterans General Hospital, Kaohsiung City, Taiwan

Tsair Kao

Department of Biomedical Engineering, Hungkuang University, Taichung, Taiwan

Keywords: Security, DICOM, Digital Signature, Key Object Selection, Modality Performed Procedure Steps, PACS.

Abstract: In this paper, we evaluated the implementation of a digital signature for medical imaging quality assurance

and control (QA/C) by a technician in accordance with the Digital Image and Communication in Medicine

(DICOM). After QA/C, a set of DICOM images were collected into a DICOM Key Object Selection (KOS)

document with digital signatures. The digital signature was implemented by RSA public-key cryptography

combined with a public-key health certificate and health professional card (HPC) to digitally sign a series of

DICOM images. Our method includes the DICOM Modality Performed Procedure Steps (MPPS)

mechanism that assures the image transmission completeness and accuracy in an image examination

workflow. The results show that the method is more efficient and requires less loading time to create the

technician’s signature in an imaging examination workflow.

1 INTRODUCTION

In the past decade, many institutions have

accommodated the increased variety of imaging

modalities and their communication protocols in

accordance with Digital Image and Communication

in Medicine (DICOM) to create a filmless

environment. Medical imaging quality assurance

and control (QA/C) is a key factor for a high-quality

filmless medical environment. Ensuring quality of

services for medical image transmission among

modality, QA/C station, and image archive has

become an important issue. The DICOM storage

commitment service allows the modality to verify

that images have been sent to an image archive

before deleting the images locally. Image loss can

happen when a technician does not check to see

whether the image has been sent to the QA/C site.

With the DICOM Modality Performed Procedure

Step (MPPS) service, the image transmission

completeness and accuracy in an imaging

examination workflow are assured (Moore 2003;

Noumeir 2005). Physicians will have more

confidence in using a picture-archiving and

communication system (PACS) with MPPS.

Security protection is a necessary requirement in

a filmless environment. DICOM has also adopted

public-key cryptography for protecting medical

images transmitted in PACS (ACM-NEMA 2009;

Schüze et al. 2004). Based on public-key

infrastructure (PKI), mechanisms needed to comply

with medical information security regulations could

155

Lien C., Hsiao C., Yang T. and Kao T. (2010).

INTEGRITY AND AUTHENTICITY OF QUALITY ASSURANCE AND CONTROL IN AN IMAGING EXAMINATION WORKFLOW.

In Proceedings of the Third International Conference on Health Informatics, pages 155-158

DOI: 10.5220/0002689501550158

 SciTePress

be implemented (Brandner et al. 2002; Cao et al.

2003). In PACS, digital-signature technology can be

implemented to assure the integrity of medical

images and to authenticate the operators in the

workflow of medical image examination (Brandner

et al. 2002). The report showed that the use of a

digital signature can reduce time needed for

reporting, thereby increasing efficiency (Lepanto et

al. 2003).

DICOM defined a specific instruction regarding

digital signatures in DICOM Part 15: Security and

System Management Profiles (ACM-NEMA 2009).

However, most digital signatures deal only with

single images and do not provide a satisfactory

solution for multiple images (Kobayashi et al. 2009).

The DICOM Supplement 86 offered a solution by

creating the digital signature in structured reports

(SR) with selected images. In this paper, we propose

a novel approach to assuring the integrity and

authenticity of QA/C in an imaging examination

workflow. Using the MPPS mechanism, the QA/C

site receives a complete set of DICOM images

created from a certain modality and creates a signed

key object selection (KOS) document with secure

references to all of the DICOM images that

comprise the examination.

2 METHODS

A general description of a modality acquisition

system consists of modality, QA/C site, MPPS

manager, and image archive (Figure 1). The

modality receives an imaging request from the

modality worklist server. After imaging, the

modality generates an MPPS list and then forwards

the list to the MPPS manager. The MPPS manager

uses the list to record the status of each modality.

The QA/C site receives the images transmitted from

modality and checks the MPPS status to assure that

the transformation of images has been completed. A

technician can manually read and adjust the

examination data such as the number of images, and

the window level at the QA/C site.

Figure 2 shows the flowchart of the digital

signature of the DICOM KOS document by

technician at the QA/C site. A DICOM KOS

document consists of the signed information of all

images, and the QA/C technician will digitally sign

the DICOM KOS document with the QA/C

signature. If images are transferred completely, the

image archive will update the MPPS status to the

MPPS manager as “COMPLETE,” and the MPPS

status of modality also will be updated; images are

deleted from the cache of modality consequently.

The mechanism of MPPS ensures the completeness

of image transmission. After transmission is

complete, the technician creates the QA/C digital

signature for the QA/C result. The images and

signatures are forwarded to the image archive.

Modality QA/C SiteSend images

MPPS

Manager

Update MPPPS Status

Image Archive

Send Images &

Signature

Update MPPS Status

Check MPPPS Status

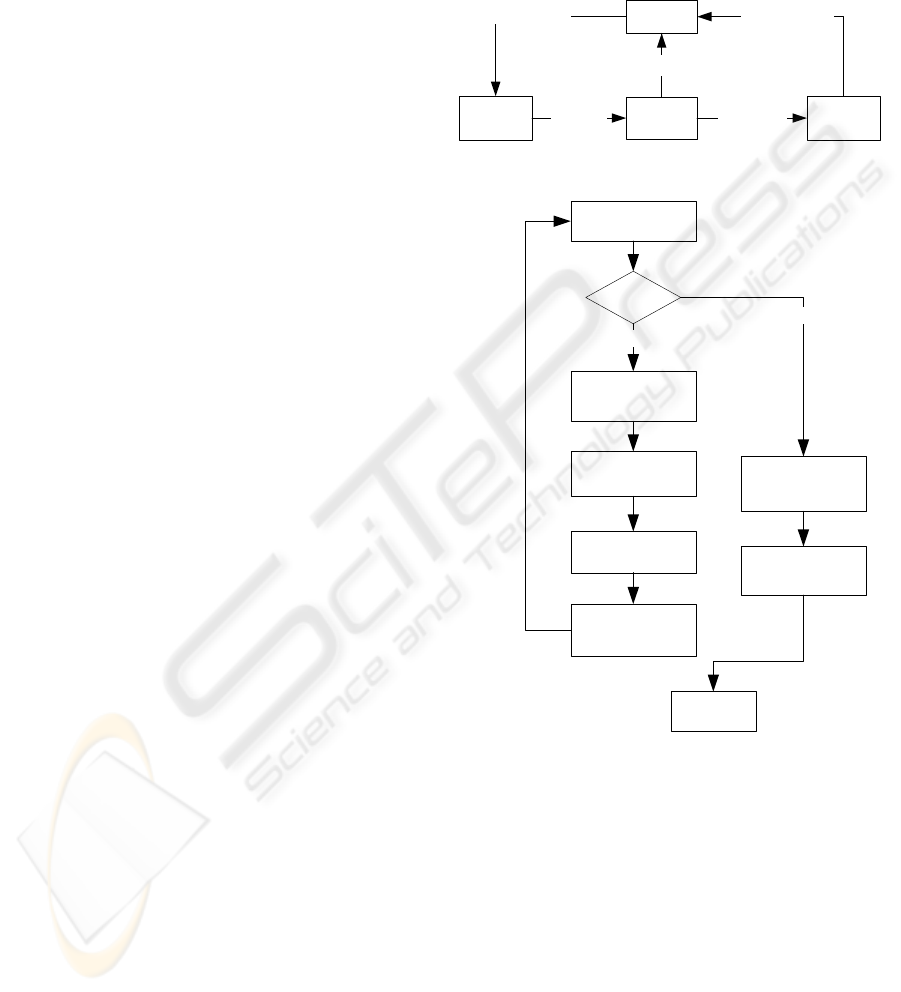

Figure 1: System overview.

Check MPPS status

Receive images

Is finish ?

Create DICOM

KOS signature

YES

Send signature to

image archive

Create secure

references

send images to image

archive

Operate QA/C

Finish

Figure 2: The block diagram of a DICOM KOS document

generation that is digitally signed by technician at the

QA/C site.

2.1 Digital Signature of DICOM KOS

Document

After the QA/C site receives all of the images from

the modality, the MAC (message authentication

code) references of all of the images are also

collected into a set of DICOM data objects in a

DICOM KOS document. In order to increase the

signing performance at the QA/C site, we did not

directly sign all images, but we indirectly signed a

DICOM KOS document, which also protects the

HEALTHINF 2010 - International Conference on Health Informatics

156

data integrity. The DICOM KOS document contains

multiple MAC references (Figure 3). The MAC

reference contains four attributes that represent

signed information for each image: 1) MAC

Calculation Transfer Syntax UID presents the

encode type of MAC; 2) MAC algorithm presents

the algorithm used in generating the MAC; 3) Data

Elements Signed presents a list of data element tags

in the order they appear at the top level of the

referenced image to identify the signed range; and 4)

the MAC presents the digest value of the referenced

image. The digest value is calculated by a hash

function that creates a “digital fingerprint” of an

image. The DICOM supports three hash algorithms:

RIPEMD-160, MD5, and SHA-1.

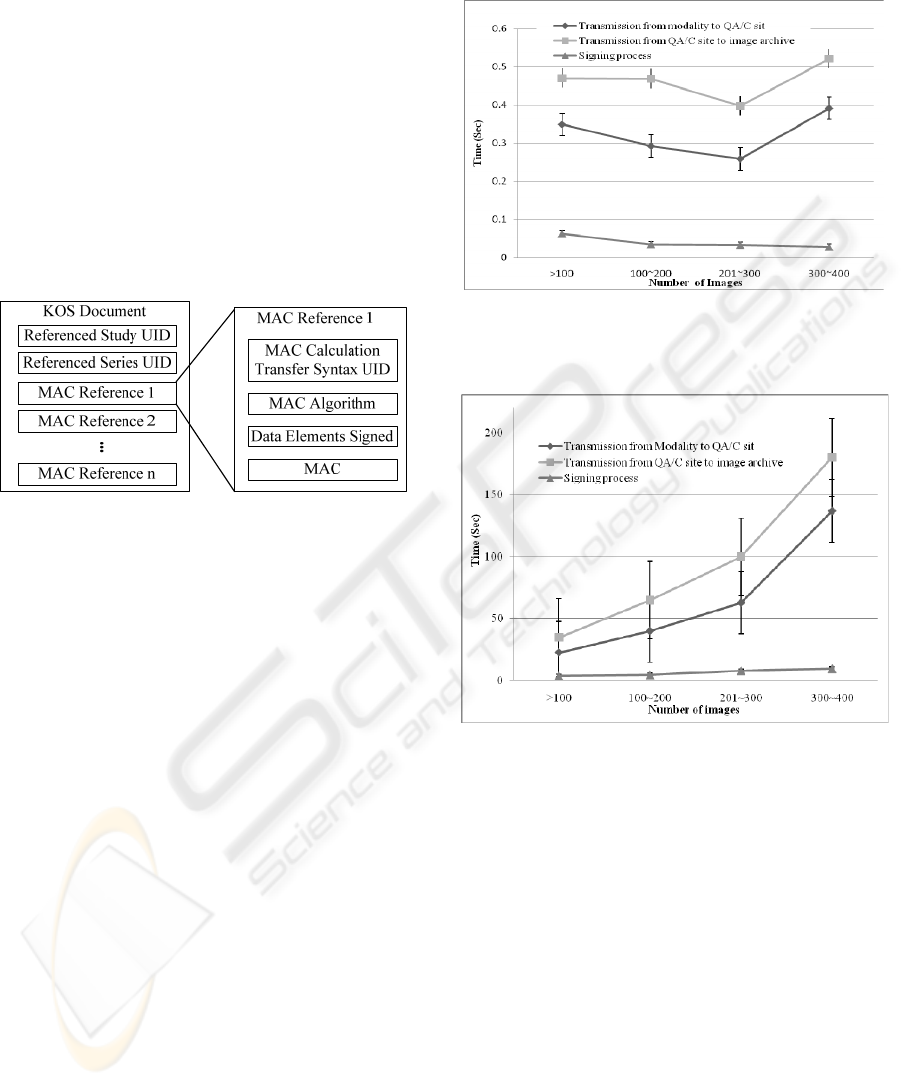

Figure 3: The architecture of a DICOM KOS document

containing n MAC references.

2.2 Data Elements Signed

The attribute “Data Elements Signed” is used to

select the range data elements to be included with

the image before signing. In accordance with

different departmental policies and roles, the data

elements signed attributes can be adjusted and well-

defined, creating a customized information base

digital signature system. Only the selected data

elements are created or modified by the signer

according to his/her responsibility.

3 RESULTS

For this evaluation, all attributes of a DICOM-

formatted image were selected to be included in the

digital signature. The hash algorithm is SHA1 with a

160-bit output. The digital signature was

implemented by RSA public-key cryptography

combined with a public-key health certificate and

health professional card (HPC). The result of MAC

calculation was stored as a MAC Parameters

Sequence (4FFE, 0001), and the digital signature

was stored in as a Digital Signature Sequence

(FFFA, FFFA), as defined in DICOM part 15.

Figure 4: Time required per image for image transmission

among modality, QA/C site, image archive, and signing

process at the QA/C site.

Figure 5: Time required per exam for image transmission

among modality, QA/C site, image archive, and signing

process at the QA/C site.

Fifty-three CT examinations were recorded at the

QA/C site. The number of images for each

examination ranged from 30 to 394. Two CT

scanners (Toshiba Aquilion 64 and Siemens

Sensation 16) support MPPS and automatic DICOM

transfer. The image archive was installed on a PC in

the department of radiology. All stations were

connected via 100 MB-based Ethernet to the PACS.

Figure 4 illustrates the time required per image

for image examination. Figure 5 illustrates the time

dependence on the number of images in an

examination. We calculated the percentage of time

spent on each transition in an imaging examination

workflow. The average percentage of signing time

was 5.12±1.73%; transmission from modality to

QA/C site was 38.55±10.22%; and transmission

INTEGRITY AND AUTHENTICITY OF QUALITY ASSURANCE AND CONTROL IN AN IMAGING

EXAMINATION WORKFLOW

157

from QA/C site to image archive was

56.33±10.57%, respectively.

4 DISCUSSION

The delivery time of images is an important issue in

the department of radiology. Several steps are

involved: The images are created by a modality and

the image is transferred to the QA/C site. The

technician performs QA/C of the images, combines

the images with the study, then sends the images to

be stored to the image archive. The introduction of

digital signatures should avoid much extra loading

time in a normal workflow. Although the signing

time increases depending on the number of images,

the percentage of time spent loading is still less. The

impact of digital signatures in an imaging

examination workflow was significant in our

evaluation.

The implementation of digital signatures in

DICOM is not yet widespread. The main reason is

that the public-key infrastructures are not well

accepted in the domain of healthcare. Several

hospitals have followed the DICOM security profile

to sign medical images in their systems. However, it

is difficult to use the recommended DICOM

signature specification in the workflow of image

examination. It is not necessary to sign each image

in a study, which reduces the signing time.

Specifically, the technician can sign only one image

using DICOM KOS document while inserting secure

references into all of the DICOM images that

comprise one examination. The results of the present

study show that this method is more efficient and

requires less loading time to create the technician’s

signature.

5 CONCLUSIONS

In PACS, the security protection of medical images

is very important. Although the DICOM regulates

the digital signature for a single image, it can be

improved for implementation in an imaging

examination workflow. The implementation of

digital signatures for QA/C by a technician

following the DICOM Supplement 86 with MPPS

mechanism offers a satisfactory solution for multiple

images. These results show that this method is more

efficient and requires less extra load to create the

technician’s signature.

ACKNOWLEDGEMENTS

This work was supported by the National Science

Council of Taiwan under Grant NSC 97-2114-E-

010-002. The authors would like to acknowledge the

technical support provided by Mr. Wei-Chung Chen

of Department of Radiology, Kaohsiung Veterans

General Hospital.

REFERENCES

ACM-NEMA, 2009. Digital Imaging and

Communications in Medicine [online]. Available from:

http://medical.nema.org/dicom/ [Accessed 11 July

2009].

Brandner, R., M. Van der Haak, et al., 2002. Electronic

signature for medical documents - Integration and

evaluation of a public key infrastructure in hospitals.

Methods of Information in Medicine 41(4), 321-330.

Cao, F., H. K. Huang, et al., 2003. Medical image security

in a HIPAA mandated PACS environment.

Computerized Medical Imaging and Graphics 27(2-3):

185-196.

Kobayashi, L., Furuie S., et al., 2009. Providing Integrity

and Authenticity in DICOM Images: a Novel

Approach. IEEE Transactions on Information

Technology in Biomedicine 13(4), 582-589.

Lepanto, L., 2003. Impact of Electronic Signature on

Radiology Report Turnaround Time. Journal of

Digital Imaging 16(3), 306-309.

Moore, S. M., 2003. Using the IHE Scheduled Work Flow

Integration Profile to Drive Modality Efficiency.

Radiographics 23(2), 523-529.

Noumeir, R., 2005. Benefits of the DICOM Modality

Performed Procedure Step. Journal of Digital Imaging

18(4), 260-269.

Schüze, B., Kroll, M., et al., 2004. Patient data security in

the DICOM standard. European Journal of Radiology

51(3), 286-289.

HEALTHINF 2010 - International Conference on Health Informatics

158
