PROBABILISTIC PATIENT MONITORING

USING EXTREME VALUE THEORY

A Multivariate, Multimodal Methodology for Detecting Patient Deterioration

Samuel Hugueny, David A. Clifton and Lionel Tarassenko

Institute of Biomedical Engineering, Department of Engineering Science, University of Oxford, Oxford, U.K.

Keywords:

Patient monitoring, Telemetry, Novelty detection, Multivariate extreme value theory.

Abstract:

Conventional patient monitoring is performed by generating alarms when vital signs exceed pre-determined

thresholds, but the false-alarm rate of such monitors in hospitals is so high that alarms are typically ignored.

We propose a principled, probabilistic method for combining vital signs into a multivariate model of patient

state, using extreme value theory (EVT) to generate robust alarms if a patient’s vital signs are deemed to

have become sufﬁciently “extreme”. Our proposed formulation operates many orders of magnitude faster than

existing methods, allowing on-line learning of models, leading ultimately to patient-speciﬁc monitoring.

1 INTRODUCTION

Many patients die in hospital every year because de-

terioration in physiological condition is not identi-

ﬁed. It has been estimated by (Hodgetts et al., 2002)

and (McQuillan et al., 1998) that 23,000 cardiac ar-

rests and 20,000 unforeseen admissions to ICU could

be avoided each year in the UK alone, if deteriora-

tion were identiﬁed and acted upon sufﬁciently early.

Thus, there is a great need for patient monitoring sys-

tems that perform this automatic identiﬁcation of pa-

tient deterioration.

1.1 Existing Patient Monitors

Conventional hospital patient monitors take frequent

measurements of vital signs, such as heart-rate, res-

piration rate, blood oxygen saturation (SpO

), tem-

perature, and blood pressure, and then generate an

alarm if any of these parameters exceed a ﬁxed up-

per or lower threshold deﬁned for that parameter.

For example, many patient monitors will generate an

alarm if the patient heart-rate exceeds 160 BPM, or

decreases below 40 BPM (Hann, 2008). However,

these single-channel alarming methods suffer from

such high false-alarm rates that they are typically ig-

nored in clinical practice; a study by (Tsien and Fack-

ler, 1997) concluded that 86% of alarms generated by

conventional monitors were false-positive.

1.2 Intelligent Patient Monitoring

The investigation described by this paper models the

distribution of vital signs under “normal” patient con-

ditions, and then detects when patient vital signs be-

gin to deteriorate with respect to that model. This is

the so-called “novelty detection” approach, in which

patient deterioration corresponds to novelty with re-

spect to a model of normality. We have previously

applied this technique to the monitoring of other criti-

cal systems, such as jet engines (Clifton et al., 2008a)

and manufacturing processes (Clifton et al., 2008b).

(Tarassenko et al., 2006) and (Hann, 2008) used

a Parzen window density estimator (Parzen, 1962) to

form a probabilistic model p(x) of the distribution of

patient vital signs x from a training set of vital signs

observed from a population of stable, high-risk pa-

tients. However, alarms were generated by compari-

son of test data to a heuristic threshold set on p(x).

This threshold is termed the novelty threshold, be-

cause data exceeding it are classiﬁed “abnormal”.

Previous work presented in (Clifton et al., 2009b)

and (Hugueny et al., 2009) has shown that such

heuristic novelty thresholds do not allow on-line

learning of patient models, because thresholds are

not portable between models - primarily because they

have no direct probabilistic interpretation. In that

work, we described the use of Extreme Value The-

ory (EVT) as a principled method for determining if

test data are “abnormal”, or “extreme”, with respect

Hugueny S., A. Clifton D. and Tarassenko L. (2010).

PROBABILISTIC PATIENT MONITORING USING EXTREME VALUE THEORY - A Multivariate, Multimodal Methodology for Detecting Patient

Deterioration.

In Proceedings of the Third International Conference on Bio-inspired Systems and Signal Processing, pages 5-12

DOI: 10.5220/0002690200050012

 SciTePress

to some model of normality (such as a Gaussian Mix-

ture Model, or GMM), which is summarised in Sec-

tion 1.4. This process is automatic, and requires only

the selection of a probabilistic novelty threshold (e.g.,

P(x) ≤ 0.99) in order to achieve accurate identiﬁca-

tion of patient deterioration.

1.3 Contributions in this Paper

Our previously-proposed work has a number of limi-

tations:

1. The system described in (Clifton et al., 2009b)

uses EVT for determining when multivariate test

data are “extreme” with respect to a model of nor-

mality. In this case, a fully multimodal model

is allowed, such as a GMM comprised of many

Gaussian kernels. However, it is a numerical al-

gorithm that requires large quantities of sampling,

making it unsuitable for on-line learning of mod-

els that are frequently updated.

2. The system described in (Hugueny et al., 2009)

provides a closed-form solution to the problems

posed in (1) such that sampling is avoided, but is

valid only for unimodal multivariate models con-

sisting of a single Gaussian kernel. In practice,

such single-kernel models are too simple to de-

scribe the distribution of training data accurately.

Thus, there is a need for an EVT algorithm that

allows multimodal, multivariate models of normality

to be constructed, overcoming the unimodal limita-

tion of (2), while being computationally light-weight,

overcoming the heavy sampling-based limitation of

(1). This paper proposes such a method, described

in Section 2, illustrates its use with synthetic data in

Section 3, and presents results from a large patient

monitoring investigation in Section 4.

1.4 Classical Extreme Value Theory

If we have a univariate probability distribution de-

scribing some univariate data, F(x), classical EVT

(Embrechts et al., 1997) provides a distribution de-

scribing where the most “extreme” of m points drawn

from that distribution will lie. For example, if we

draw m samples from a univariate Gaussian distribu-

tion, EVT provides a distribution that describes where

the largest of those m samples will lie. It also pro-

vides a distribution that describes where the smallest

of those m samples will lie. These distributions de-

termined by EVT are termed the Extreme Value Dis-

tributions (EVDs). The EVDs tell us where the most

“extreme” data generated from our original distribu-

tion will lie under “normal” condition after observ-

ing m data. Thus, if we observe data which are more

extreme than where we would expect (as determined

by the EVDs), we can classify these data “abnormal”,

and generate an alarm. This process lies at the heart

of using EVT for patient monitoring, where we can

classify observed vital signs as “extreme” if EVT de-

termines that they lie further than one would expect

under “normal” conditions (given by the EVDs).

Though classical EVT is deﬁned only for univari-

ate data, we present a generalisation of EVT to mul-

tivariate, multimodal models as described later in this

paper.

To state this introduction more formally, consider

}, a set of m independent and identically dis-

tributed random variables (iid rvs), which are univari-

ate, and where each x

∈ R is drawn from some under-

lying distribution F(x). We deﬁne the maximum of

this set of m samples to be M

= max(x

,.. .,x

EVT tells us the distribution of where to expect this

maximum, M

, and, by symmetrical argument, the

distribution of the minimum in our dataset. The fun-

damental theorem of EVT, the Fisher-Tippett theorem

(Fisher and Tippett, 1928), shows that the distribution

of the maximum, M

, depends on the form of the dis-

tribution F(x), and that this distribution of M

can

only take one of three well-known asymptotic forms

in the limit m → ∞: the Gumbel, Fr

echet, or Weibull

distributions.

The Fisher-Tippett theorem also holds for the dis-

tribution of minima, as minima of {x

} are maxima

of {−x

}. EVDs of minima are therefore the same as

EVDs of maxima, with a reverse x-axis. The Gumbel,

echet, and Weibull distributions are all special cases

of the Generalised Extreme Value (GEV) distribution,

GEV

(x;γ) = exp



−[1 + γx]

−1/γ



. (1)

where γ is a shape parameter. The cases γ → 0, γ > 0

and γ < 0 give the Gumbel, Fr

echet and Weibull dis-

tributions, respectively. In the above, the superscript

‘+’ indicates that this is the EVD describing the max-

imum of the m samples generated from F(x).

1.5 Redeﬁning “Extrema”

Classical univariate EVT (uEVT), as described above,

cannot be directly applied to the estimation of multi-

variate EVDs. In the case of patient monitoring, for

example, our data will be multivariate, where each di-

mension of the data corresponds to a different channel

of measurement (heart-rate, respiration-rate, SpO

etc.) In this multivariate case, we no longer wish to

answer the question “how is the sample of greatest

magnitude distributed?”, but rather “how is the most

improbable sample distributed?” This will allow us,

as will be shown in Section 2, to generalise uEVT to

BIOSIGNALS 2010 - International Conference on Bio-inspired Systems and Signal Processing

a multivariate EVT (mEVT). As proposed in (Clifton

et al., 2009b), we consider the following deﬁnition of

extrema:

Deﬁnition 1. Let m ∈ N

∗

and {x

} be a sequence

of (possibly multivariate) iid rvs, drawn from a

distribution F with probability density function f .

We deﬁne the extremum to be the random variable

= argmin

{

f (X

),.. ., f (X

)

}

1.6 Density Estimation

If a large number of actual observed extrema are avail-

able, or if it is possible to draw extrema from a gener-

ative model, then it is tempting to try and ﬁt an EVD

to those extrema, via Maximum Likelihood Estima-

tion (MLE), for instance. If the form of the EVD

for our dataset is known (i.e., whether it is Gumbel,

echet, or Weibull), one could attempt to ﬁt a Gum-

bel, Fr

echet or Weibull distribution directly to the ex-

trema. Even if the form of the EVD is not known,

the distribution of extrema is theoretically guaranteed

to converge to one of the three instances of the GEV

distribution, as stated by the Fisher-Tippett theorem.

This approach was taken in (Clifton et al., 2009b),

in which a method was proposed to estimate the EVD

in the case where the generative model is known to

be a mixture of multivariate Gaussian distributions

(a GMM). The GMM f (x) was constructed using a

training set of observed multivariate data {x}. The

method is based on our capacity to generate (via sam-

pling) a large number of extrema from the GMM.

Each extremum is deﬁned as being the sample of min-

imum probability density f (x) out of a set of m sam-

ples. Thus, if we require a large number of extrema

(say, N = 10

), then we must generate N sets of m

samples (where each set gives a single extremum).

In (Clifton et al., 2009a), this method was used

for the purpose of patient monitoring. A GMM

was trained using multivariate patient data, and the

EVD for that model was estimated using the sampling

method described above. A sliding window of length

m was applied to the time-series of test patient data,

where m was determined empirically. A window of

test data was classiﬁed “abnormal” if its most extreme

datum lay outside the estimated EVD.

This approach has a number of disadvantages. Es-

timating the EVD by generating extrema from the

GMM is time-consuming. However, testing a range

of values for m in order to ﬁnd the optimal value is

even more time-consuming: it requires us to generate

a large number (e.g., N = 10

) of extrema for each

value of m that we test. If we wish to perform on-line

learning, in which models are constructed in real-time

from newly-acquired patient data, then these disad-

vantages must be overcome.

In Section 2, we propose a method to estimate

numerically the EVD for a multivariate, multimodal

model (such as a GMM) which does not require sam-

pling of extrema, and so overcomes the disadvantages

described above.

2 METHOD

2.1 Introduction

Though the Fisher-Tippett theorem (described in Sec-

tion 1) is valid only for univariate data, we can use

it to determine the EVD of an n-dimensional multi-

variate model F

(x) using an approach from (Clifton

et al., 2009b). Rather than consider the EVD in the n-

dimensional data space of x ∈ R

, we can consider the

EVD in the model’s corresponding probability space

(x) ∈ R. That is, we ﬁnd the probability distribu-

tion over the model’s probability density values. This

new distribution (over probability density values) is

univariate, and the Fisher-Tippett theorem applies.

We have previously shown in (Hugueny et al.,

2009) that this can be used for multivariate, unimodal

data; this paper proposes an extension to the method

to allow us to cope with multivariate, multimodal

data, as required when using a GMM to model the

distribution of vital signs in patient monitoring.

2.2 Detail of Method

Deﬁne F

(x) to be a mixture of n-dimensional Gaus-

sian kernels (i.e., a GMM), trained using example

training data, for multivariate data x ∈ R

. Now, con-

sider the GMM’s corresponding probability space: let

P be F

), the image of R

under F

. That is, P is

the set of all probability densities taken by the GMM,

which will cover the range ]0, p

max

], where p

max

is the

largest probability density taken by the GMM.

We can ﬁnd the model’s distribution over proba-

bility densities, which we deﬁne to be G

∀y ∈ P , G

(y) =

−1

(]0,y])

(x)dx (2)

where f

−1

(]0,y]) is the preimage of ]0,y] under f

(the set of all values of x that give probability densi-

ties in the range ]0, y]). Thus, G

(y) is the probability

that data x generated from the GMM will have prob-

ability density y or lower. The lower end of this dis-

tribution will be G

(0) = 0 because the probability of

data having probability density p(x) ≤ 0 is 0, and the

PROBABILISTIC PATIENT MONITORING USING EXTREME VALUE THEORY - A Multivariate, Multimodal

Methodology for Detecting Patient Deterioration

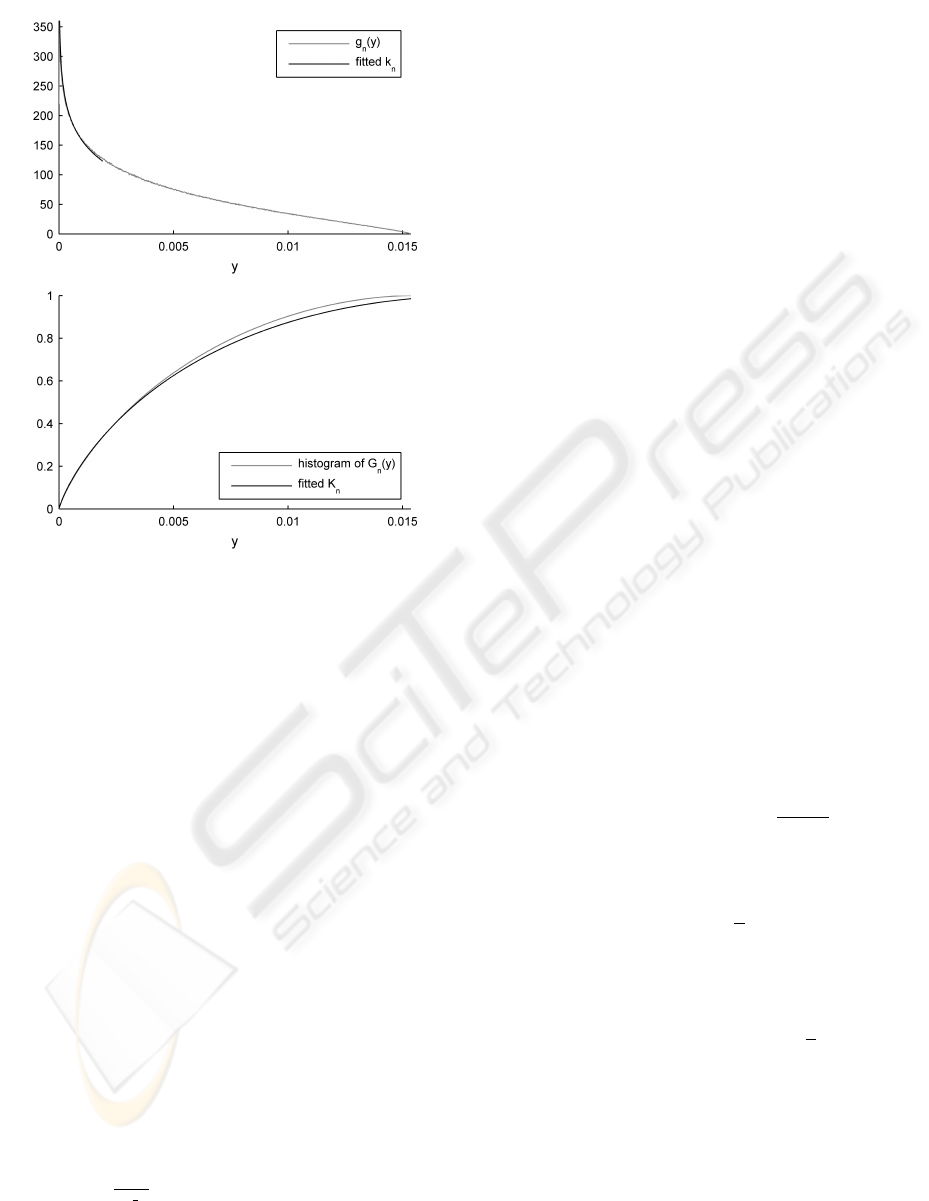

Figure 1: Distributions in probability space y ∈ P for an

example bimodal GMM of dimensionality n = 4. In the

upper plot, the pdf g

(y) over probability density values y

shows that the maximum probability density for this GMM

is p

max

≈ 0.015. The estimating distribution k

shows that

the proposed method closely approximates the actual g

. In

the lower plot, the corresponding cdfs G

and K

upper end of this distribution will be G

max

) = 1 be-

cause the probability of data having probability den-

sity p(x) ≤ p

max

is 1 (recalling that p

max

is the maxi-

mum probability density taken by the GMM).

Figure 1 shows G

and its corresponding prob-

ability density function (pdf) g

for an example 4-

dimensional, bimodal GMM (in light grey). Note that

the probability mass for models with dimensionality

n > 2 tends towards lower probability density values,

as shown in (Clifton et al., 2009b): a sample drawn

from the GMM is more likely to have a low probabil-

ity density y than a high value of y.

If F

is composed of a single Gaussian kernel, an

analytical form of G

is derived in (Hugueny et al.,

2009) and its pdf shown to be:

(y, β) = Ω

−2ln



(2π)

n/2

βy

i

n−2/2

(3)

where Ω =

2π

n/2

(

)

(the total solid angle subtended by

the unit n-sphere) and β = |Σ|

1/2

, for covariance ma-

trix Σ.

We can see from Equation (3) that k

is indepen-

dent of the mean of F

, which is unsurprising: the

probability density values taken by a Gaussian kernel

are invariant under translations in the data space (as

occurs when the mean is changed), but change if the

kernel covariance is changed.

If F

is composed of more than one Gaussian ker-

nel, there is no analytical form for G

or its pdf g

However, we can make the assumption that sufﬁ-

ciently far away from the modes of the distribution,

a mixture of Gaussian kernels behaves approximately

like a single Gaussian kernel. This assumption is typ-

ically valid because the EVD lies in the tails of F

not near its modes. This corresponds to the tail of g

where P is close to zero, for which we wish to ﬁnd

the EVD.

Thus, for P sufﬁciently close to zero, g

can be

approximated by k

for some (positive) value of β.

The family of parametric functions k

can therefore

be used to estimate g

. A convenient feature of this

method is that the family of k

functions have a single

scalar parameter, β. To estimate the value of β that

best approximates the tail of our g

, we can estimate

using a histogram, and then ﬁnd the value of β that

minimises the least-square error in the tail.

Figure 1 shows that k

and K

accurately estimate

and G

in the left-hand tail (where P is close to

zero), which is the area of interest for determining

the EVD. So, if we can determine the EVD for k

(and thus K

), we will have an accurate estimate of

the EVD of our desired distribution G

, and hence for

our GMM, F

From (Hugueny et al., 2009), k

is known to be in

the domain of attraction of the minimal Weibull EVD:

−

(y;d

,α

,) = 1 − exp



−



y − d





(4)

where its location, scale, and shape parameters c

, and α

, respectively, are given by:

= K

←





(5)

= 0 (6)

= m c

] (7)

where K

is the integral of k

, which is given in

(Hugueny et al., 2009), and where K

←





is the

quantile of K

After estimation of β, we can use Equations (5),

(6), and (7) to deﬁne entirely the EVD of our G

2.3 Novelty Score Assignment

Having estimated d

, c

, and α

, let x

,.. .,x

} be a set of m samples drawn from

. The quantity 1 − H

−

(y;d

,α

) where y =

BIOSIGNALS 2010 - International Conference on Bio-inspired Systems and Signal Processing

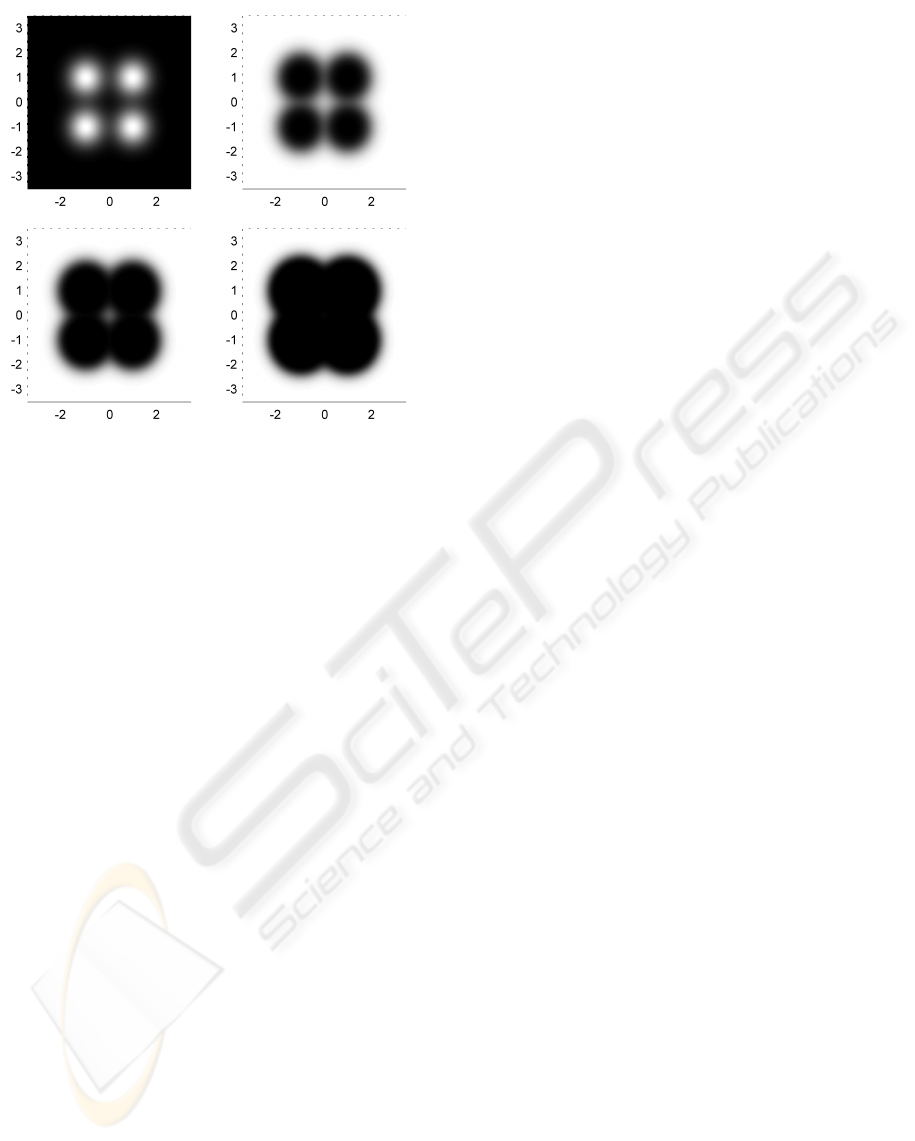

Figure 2: From top left to bottom right: pdf of exam-

ple bivariate 4-kernel GMM, associated novelty scores for

m = 10, 30 and 100. φ is the identity function. Black and

white indicate a probability zero and one, respectively, of

drawing an extrema of higher density value. The color scale

is linear. As m increases, extrema move further away from

the kernel centres and ultimately further away from the dis-

tribution centre.

min[ f (x

),.. ., f (x

)], is the probability of drawing

an extremum out of m samples with a higher den-

sity values, i.e. a more likely extremum. This is in-

terpreted as the probability for the extremum to be

novel with respect to the model. As it is desirable for

novelty scores to take low values for normal data and

higher values for increasingly abnormal or novel data,

we deﬁne the novelty score function:

q(x

) = φ



1 − H

−

(y;d

,α

)



, (8)

where y is deﬁned above, and φ is a monotonically in-

creasing function with domain ]0,1]. Figure 2 shows

an example of novelty score assignment for an exam-

ple bivariate GMM.

3 VALIDATION ON SIMULATED

DATA

To validate our approach, we compare EVDs obtained

using Equations (5), (6), and (7) with the EVDs ob-

tained using Maximum Likelihood Estimation (MLE)

of the Weibull parameters, using simulated data. An

application using real patient vital-sign data is shown

in Section 4.

For dimensionality n = 1 to 6, we deﬁne F

to be

the n-dimensional mixture of Gaussians comprised of

two multivariate standard Gaussian distributions with

equal priors and a Euclidean distance between their

centres equal to two.

In order to estimate the EVD using MLE, for each

dimensionality n = 1 . . .6, and for increasing values

of m, a large number of extrema (e.g., N = 10

) must

be sampled. Figure 3 shows estimates obtained using

MLE for both the scale c

and shape α

parameters

of the EVD. The ﬁgure also shows parameters esti-

mated using the method proposed in Section 2.

The scale parameter appears to be accurately esti-

mated even for small values of m. However, the pro-

posed method’s use of Equation (7) to estimate the

shape parameter only matches the MLE estimate for

values of m greater than 15. This was expected, as the

Fisher-Tippett theorem tells us that the Weibull dis-

tribution is the EVD for asymptotically increasing m,

and that actual EVDs are not expected not to match

the Weibull distribution closely for small values of m.

Figure 4 presents a comparison between the cdfs

of the corresponding distributions estimated using

MLE and with the proposed method, for n = 4 and

a range of values of m. Taking into account the loga-

rithmic scale in y, we conclude that solutions obtained

using the new method are a good match to the maxi-

mum likelihood estimates.

The main advantage of our approach is that it does

not require sampling of extrema, which is a partic-

ularly intensive process. Assuming a model F

, we

only need to obtain N samples from that model to

build a histogram approximating G

, then we solve a

simple least-squares estimation problem (as described

in Section 2), and ﬁnally apply the closed-form Equa-

tions (5), (6), and (7) to obtain an estimate of the

Weibull parameters for any value of m. On the other

hand, the MLE (which in itself is more intensive than

the least-square estimation problem) requires m × N

samples to be drawn to obtain N extrema, and this is

for a single value of m. To test all values of m be-

tween 1 and 100 for instance, our algorithm requires

up to 5,000 times less sampling, and none of the 100

iterations of the MLE algorithm.

4 APPLICATION TO VITAL-SIGN

DATA

In this section, we describe an application of our

methodology to a patient monitoring problem, us-

ing a large dataset of patient vital-sign data obtained

from a clinical trial (Hann, 2008). A model of nor-

mality was constructed using 18,000 hours of vital-

PROBABILISTIC PATIENT MONITORING USING EXTREME VALUE THEORY - A Multivariate, Multimodal

Methodology for Detecting Patient Deterioration

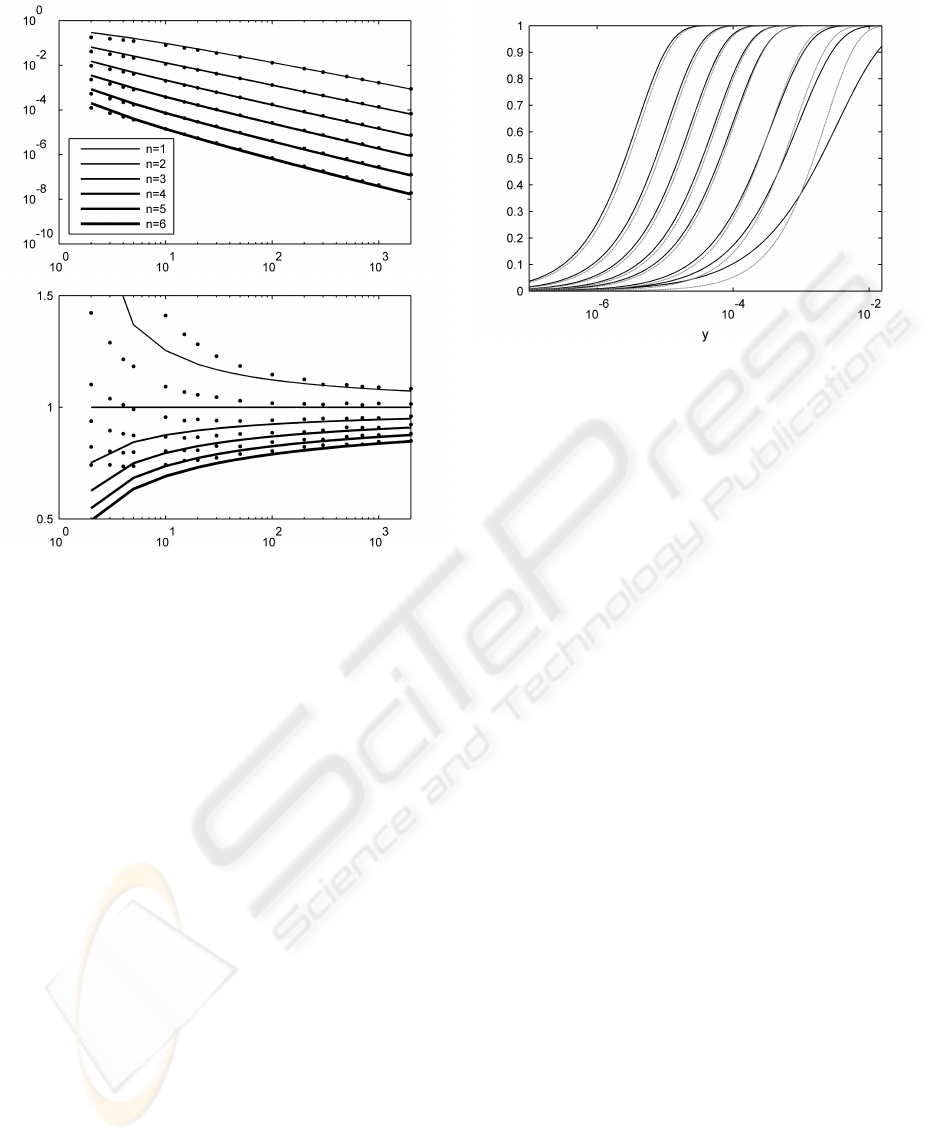

Figure 3: Comparison of results of MLE estimates of the

scale parameter c

(top) and the shape parameter α

(bot-

tom) parameter (shown as points in the plots), and values

obtained using Equations (5) and (7) for increasing m for

n = 1 to 6 and increasing values of m (shown as continuous

lines). For each dimensionality n, the GMM F

is composed

of two standard Gaussian kernels with equal priors, with a

Euclidean distance between their centres equals to two. Er-

ror bars are too small to be visible at this scale.

sign data collected from 332 high-risk adult patients.

Measurements of heart rate (HR), breathing rate (BR)

and oxygen saturation (SpO

) are available at 1 Hz.

The data were reviewed by clinical experts and “crisis

events” were labelled, corresponding to those events

that should have resulted in a call to a Medical Emer-

gency Team being made on the patient’s behalf.

We split the available data into three subsets: (i) a

training and (ii) a control set, each consisting of data

from 144 “normal” patients (and each containing ap-

proximately 8000 hours of data); (iii) a test set con-

sisting of data from the 44 patients who went on to

have crisis events (approximately 2000 hours) which

includes “abnormal” data labelled by clinical experts

(approximately 43 hours).

The training set is used to construct a model of

normality F (with pdf f ), consisting of a trivari-

ate GMM (noting that n = 3, corresponding to the

number of physiological parameters available in the

dataset). The number of kernels in the GMM was

Figure 4: Logarithmic plot of cumulative distributions ob-

tained using our proposed method (black) and Maximum

Likelihood Estimation (grey). Dimensionality n = 4, his-

tograms and MLE use 10

samples. From right to left, the

values of m are 2, 5, 10, 30, 50, 100, 200 and 500.

estimated via cross-validation, which showed that 9

kernels provided the lowest overall cross-validation

error.

Given a value of m, the values of d

, c

and α

can be computed as described in Section 2. Nov-

elty scores are then assigned to all patient data us-

ing eq 8, with φ the identity function and, y =

min[ f (x

t−m+1

), f (x

t−m+2

),.. ., f (x

)]. That is, y is

the datum with minimum probability density within

a window containing the last m vital-sign data. This

deﬁnition of y ensures that the extremum of m sam-

ples is considered at each time step. The value of m

conditions the width of the sliding time-window used

to assign novelty scores.

Setting a threshold on the novelty score function q

allows us to separate “normal” from “abnormal” data,

and therefore compute a true positive rate (TPR) and

a false alarm rate (FAR) for each of the three data sub-

sets described above, with respect to the known labels

provided by clinical experts. Varying this threshold

yields the ROC curves shown in Figure 5.

We note that the setting of a novelty threshold on

the EVD is different to the conventional method of

setting a novelty threshold on the pdf f

given by the

GMM. In EVT-based approaches, the threshold cor-

responds to a direct probabilistic interpretation (e.g.,

“these data are abnormal with a probability of 0.99”),

whereas conventional thresholding of the GMM f

heuristic (as described in Section 1.2), being based on

probability density values, and is such thresholds are

not portable between different models.

The absence of data points above a true positive

rate of 92% is due to the heterogeneity of the data

BIOSIGNALS 2010 - International Conference on Bio-inspired Systems and Signal Processing

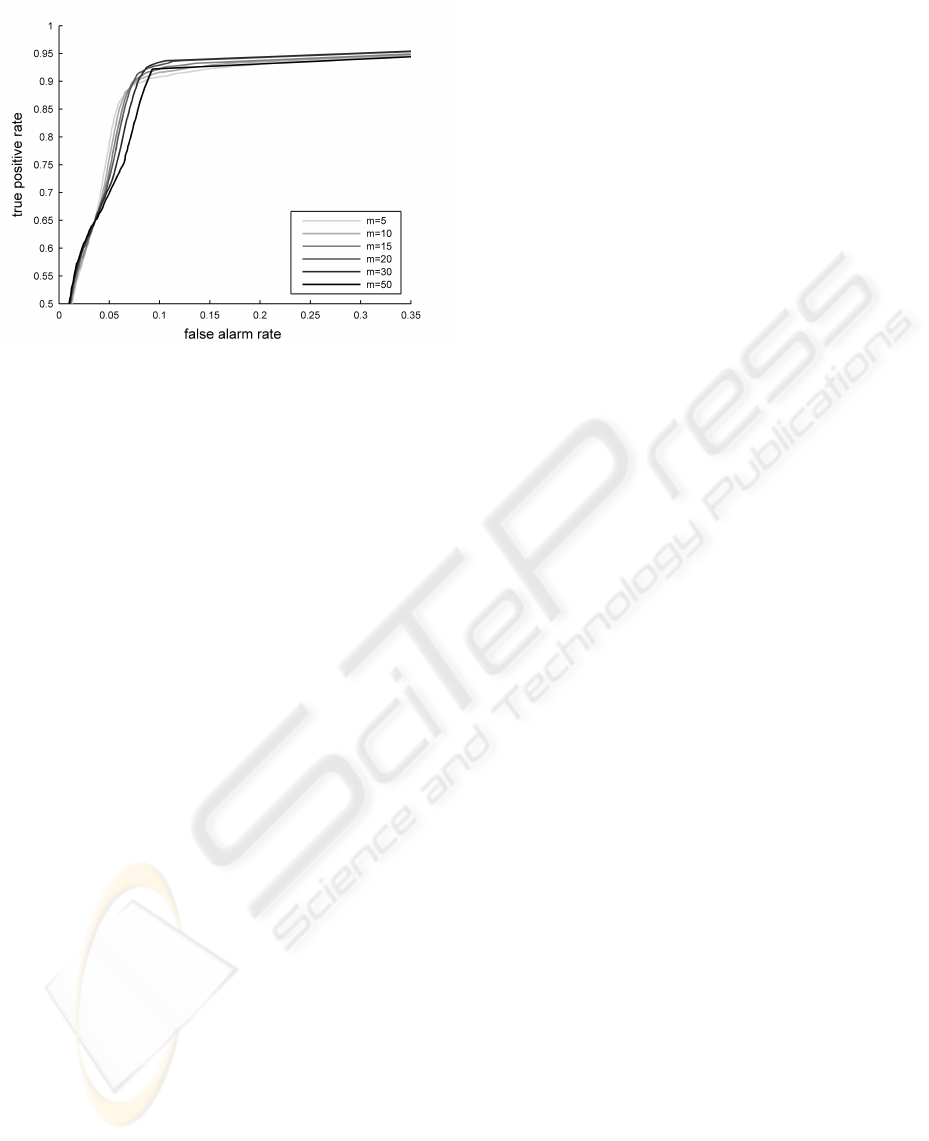

Figure 5: True positive rate vs. false alarm rate for the “con-

trol” and “test” group, plotted for different values of m.

within the crisis windows, a portion of which cannot

be considered abnormal with respect to the model.

As the dynamic range of a change in patient sta-

tus is not known, it is in our best interest to be able to

explore a range of values for m. Depending on what

is considered an acceptable true positive rate for the

crisis data, one can choose the value of m that min-

imises the false alarms rate for the control group. A

small value of m seems to be preferable if the desired

TPR is between 0.65 and 0.8. If we wish to maximise

the TPR, however, our results suggest that we should

take a large value of m.

5 DISCUSSION

5.1 Conclusions

This paper has proposed a new method for estimating

the extreme value distributions of multivariate, multi-

modal mixture models, as is required for the analysis

of complex datasets such as those encountered in pa-

tient vital-signs monitoring. The method overcomes

the limitations of previous methods, by (i) providing

a light-weight formulation that is shown to be sig-

niﬁcantly faster than previous maximum-likelihood

methods, which require large amounts of sampling,

and (ii) providing solutions for multimodal multivari-

ate models, as are required for the analysis of complex

datasets, whereas previous closed-form approaches

were limited to unimodal multivariate models.

We have validated our methodology using syn-

thetic data and patient vital-sign data from a large

clinical trial, and have shown that EVDs estimated us-

ing the method are a good match to those obtained us-

ing maximum-likelihood methods, particularly when

the value of EVT parameter m (the window length) is

greater than 15. For most real datasets, in which the

sampling rate is relatively fast, larger values of m will

be necessary in order to model system dynamics. For

example, in the case of patient vital-signs monitoring

presented in this paper, in which vital-signs data were

obtained at 1 Hz, a value of m = 15 corresponds to a

window length of 15s.

As shown in Section 3, because the EVD is known

in closed form and is parameterised by m, the value

of m can be optimised in real-time. The light-weight

formulation allows on-line learning of models, ulti-

mately allowing patient-speciﬁc monitoring to take

place, in which models are constructed in real-time

using data observed from a new monitored patient.

5.2 Future Work

The solutions proposed in this paper, while validated

only for mixtures of Gaussian kernels are sufﬁciently

general that they should apply to any kernel mix-

ture model. For example, the proposed method could

also be used to ﬁnd the extreme value distributions

corresponding to Parzen windows estimators (them-

selves also mixtures of Gaussian distributions); mix-

tures of Gamma distributions, as used by (Mayrose

et al., 2005); mixtures of Student’s t distributions, as

proposed by (Svensen and Bishop, 2005), and mix-

tures of Weibull distributions, as proposed by (Ebden

et al., 2008).

These solutions are based on closed form formu-

lae, and so the light-weight approach could facilitate

the use of Bayesian parameter estimation.

In application to patient monitoring, as well as

demonstrating beneﬁt on existing datasets (as shown

in this paper), we hope to have provided the facility to

perform on-line learning of patient-speciﬁc models,

which forms an important part of our future work.

ACKNOWLEDGEMENTS

SH was supported by the EPSRC LSI Doctoral Train-

ing Centre, Oxford, and DAC was supported by the

NIHR Biomedical Research Centre, Oxford. DAC

wishes to thank the Abbey-Santander fund for the

award that made publication of this paper possible.

The authors wish to thank Iain G.D. Strachan of Ox-

ford BioSignals Ltd. and Lei A. Clifton of the Uni-

versity of Oxford for useful discussions.

PROBABILISTIC PATIENT MONITORING USING EXTREME VALUE THEORY - A Multivariate, Multimodal

Methodology for Detecting Patient Deterioration

REFERENCES

Clifton, D., Hugueny, S., and Tarassenko, L. (2009a).

A comparison of approaches to multivariate extreme

value theory for novelty detection. Proceedings of

IEEE Workshop on Statistical Signal Processing.

Clifton, D., Hugueny, S., and Tarassenko, L. (2009b). Nov-

elty detection with multivariate extreme value theory,

part I: Numerical approach for multimodal estimation.

Proceedings of IEEE Workshop on Machine Learning

in Signal Processing.

Clifton, D., McGrogan, N., Tarassenko, L., King, S.,

Anuzis, P., and King, D. (2008a). Bayesian extreme

value statistics for novelty detection in gas-turbine en-

gines. In Proceedings of IEEE Aerospace, Montana,

USA, pages 1–11.

Clifton, D., Tarassenko, L., Sage, C., and Sundaram, S.

(2008b). Condition monitoring of manufacturing pro-

cesses. In Proceedings of Condition Monitoring 2008,

Edinburgh, UK, pages 273–279.

Ebden, M., Stranjak, A., Dutta, P., and Rogers, A. (2008).

A multi-agent simulation system for prediction and

scheduling of aero engine overhaul. In Proceedings of

the 7th Conference on Autonomous Agents and Multi-

agent Systems (AAMAS), Estoril, Portugal.

Embrechts, P., Kl

uppelberg, C., and Mikosch, T. (1997).

Modelling Extremal Events for Insurance and Fi-

nance. Springer.

Fisher, R. and Tippett, L. (1928). Limiting forms of the fre-

quency distributions of the largest or smallest mem-

bers of a sample. Proc. Camb. Philos. Soc., 24:180–

190.

Hann, A. (2008). Multi-parameter monitoring for early

warning of patient deterioration. PhD thesis, Univer-

sity of Oxford.

Hodgetts, T., Kenward, G., Vlackonikolis, I., Payne, S.,

Castle, N., Crouch, R., Ineson, N., and Shaikh, L.

(2002). Incidence, location, and reasons for avoidable

in-hospital cardiac arrest in a district general hospital.

Resuscitation, 54:115–123.

Hugueny, S., Clifton, D., and Tarassenko, L. (2009). Nov-

elty detection with multivariate extreme value theory,

part II: Analytical approach for unimodal estimation.

Proceedings of IEEE Workshop on Machine Learning

in Signal Processing.

Mayrose, I., Friedman, N., and Pupko, T. (2005). A gamma

mixture model better accounts for among site rate het-

erogeneity. Bioinformatics, 21(2):151–158.

McQuillan, P., Pilkington, S., Allan, A., Taylor, B., Short,

A., Morgan, G., Nielsen, M., Barrett, D., and Smith,

G. (1998). Conﬁdential inquiry into quality of care

before admission to intensive care. British Medical

Journal, 316:1853–1858.

Parzen, E. (1962). On estimation of a probability density

function and mode. Annals of Mathematical Statistics,

33:1065–1076.

Svensen, M. and Bishop, C. (2005). Robust Bayesian mix-

ture modelling. Neurocomputing, 64:235–252.

Tarassenko, L., Hann, A., and Young, D. (2006). Inte-

grated monitoring and analysis for early warning of

patient deterioration. British Journal of Anaesthesia,

98(1):149–152.

Tsien, C. and Fackler, J. (1997). Poor prognosis for exist-

ing monitors in the intensive care unit. Critical Care

Medicine, 25(4):614–619.

BIOSIGNALS 2010 - International Conference on Bio-inspired Systems and Signal Processing
