Optical Biopsy with Confocal Endoscopy (OB-CEM)

Olga Ferrer

, Vinicius Duval

, Jaime Delgado

Claudio Rolim

and Ruben Tous

University of La Laguna, UNESCO Chair of Telemedicine, Full Professor of Pathology

La Cuesta, La Laguna 38071, Canary Islands, Spain

University do Rio Grande do Sul, Brazil

Universitat Politecnica de Catalunya (UPC-BARCELONATECH), Spain

Keywords: Optical Biopsy. Query by image. ISO-15938-12, MPEG Query Format, MPQF, ISO 24800-3, JPSearch,

JPEG Query Format, JPQF, Artificial Intelligence. Multimedia standard.

Abstract: The use of Optical Biopsies-OB (in the present case Confocal endomicroscopy-CEM) is limited due to

difficulties to interpret images. The OB-CEM are taken by endoscopists, not trained in microscopic mor-

phology which is the domain of the surgical pathology. To gain diagnostic confidence the endoscopists

could consult the images to a pathologist or could use the technique proposed in the paper. That is, to search

for similar images on Internet to compare the diagnosis.

The present paper is a positioning paper of how to build a CEM-image metadata to be used by the multime-

dia standards ISO-15938-12:2008 and ISO-24800-3 in order to search on line using a “query by image”.

Metadata semantics based on Kudo colorectal crypt architecture was used for annotation or automatic im-

age extraction. The training set was composed of 25 OB-CEM chromo-colonoscopy images taken with a

FICE (Fujinon Intelligent Chromoendoscopy). Those parameters were, whenever possible, automatically

extracted from the image and included in the metadata for image mining. Future developments will annotate

histological images is such a way that the query could also retrieve the histological image.

1 INTRODUCTION

An optical biopsy (OB)(Wang and VanDam, 2004)

is a non-intrusive optic diagnostic method, capable

to analyze the tissue in surface and in deepness with

one of the following techniques: laser, OCT, infra-

red, fluorescence, spectroscopy etc. This means, that

it is not necessary to extract the tissue from the

body. Tissue is accessed through the surface of the

body through the skin or by endoscopy.

In OBs the images are obtained in real time to-

gether with complementary information that allows

evaluating the disease in vivo, but “golden-

standards” are still lacking (Ferrer-Roca, 2008) in

contrast with those of the pathologist based on the

histology of the normal fixed tissue (death tissue).

OB-CEM is a confocal microscopy that obtains

histological images closer to the field and training of

pathologists than endoscopists in charge of the tech-

nique (Ferrer-Roca, 2009) . It is therefore reasonable

the lack of confidence on their interpretation. To

solve the problem two methods could be defined: (1)

a teleconsultation with a pathologist or (2) a non-

supervised search for a “similar image” on the Net

using multimedia query and image mining tech-

niques (R. Tous, 2008).

Standardization efforts to annotate, search and

retrieve digital images are now a day taking place.

Two of the more relevant initiatives are the MPEG

Query Format (MPQF) (R. Tous , 2008) (ISO/IEC

15938-12:2008, 2008) and the JPEG’s JPSearch

project (R. Tous, 2008), (ISO/IEC 24800-3:2008,

2008) . While MPQF has already reached its last

standardization level, the JPSearch (whose Part 3,

named JPSearch Query Format or simply JPQF, is

just a profile of MPQF) is still an ongoing work, and

faces the difficult challenge to provide an interoper-

able architecture for images’ metadata management.

166

Ferrer O., Duval V., Delgado J., Rolim C. and Tous R. (2010).

QUERY BY IMAGE MEDICAL TRAINING - Optical Biopsy with Confocal Endoscopy (OB-CEM).

In Proceedings of the Third International Conference on Health Informatics, pages 166-172

DOI: 10.5220/0002691601660172

 SciTePress

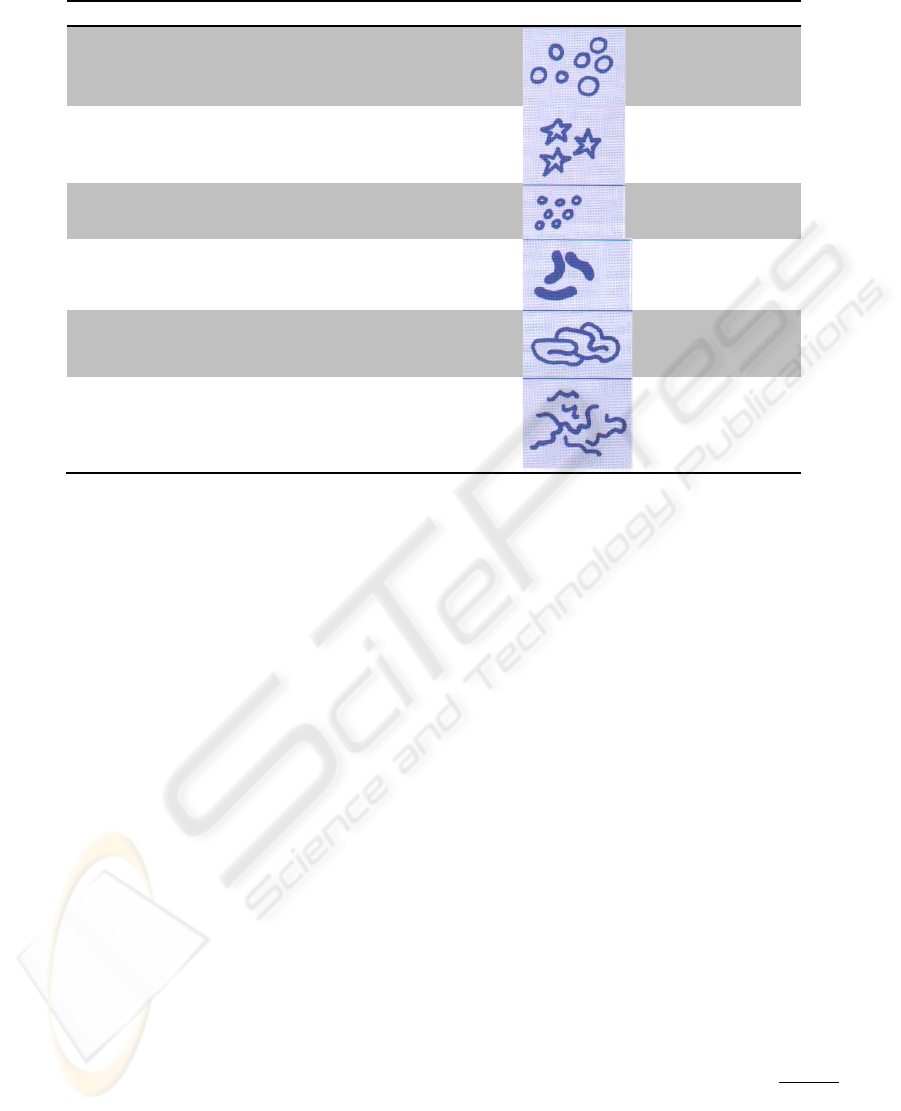

Table 1: Modified KUDO criteria. Taken from Kiesslich (Kiesslich et al., 2008).

Pit type Characteristics Apperance Pit size

I Normal round

0.07 ±

0.02mm

II Stellate or papillary

0.09 ±

0.02mm

IIIs Tubular/round pits smaller then

type I

0.03 ±

0.01mm

III Tubular large

0.22 ±

0.09mm

IV Sulcus/gyrus

0.93 ±

0.32mm

V Irregular arrangement and size

of III, IIIs, IV type pit

N/A

For the purpose of this paper, we will concen-

trate on the usage of the query format, and when we

refer to ISO-15938-12:2008 (MPQF), we implicitly

refer also to ISO-24800-3 (Part 3 of JPSearch).

MPQF is an XML-based language in the sense that

all MPQF instances (queries and responses) must be

XML documents. Formally, MPQF is Part 12 of

ISO/IEC 15938, ”Information Technology - Multi-

media Content Description Interface” better known

as MPEG-7 (ISO/IEC 15938 Version 2, 2004).

However, the query format was technically decoup-

led from MPEG-7 and is now metadata-neutral. One

of the key features of MPQF is that expresses que-

ries combining IR & DR; being IR the expressive

style of Information Retrieval systems (e.g. query-

by-example and query-by-keywords) and DR the

expressive style of XML Data Retrieval systems

(e.g. XQuery (XQuery 1.0, 2006)), embracing a

broad range of ways of expressing user information

needs.

Regarding IR-like criteria, MPQF include but

are not limited to QueryByDescription (query by

example metadata description), QueryByFreeText,

QueryByMedia (query by example media), Query-

ByROI (query by example region of interest), Que-

ryByFeatureRange, QueryBySpatialRelationships,

QueryByTemporalRelationships and QueryByRele-

vanceFeedback. Regarding DR-like criteria, MPQF

offers its own XML query algebra for expressing

conditions over the multimedia related XML meta-

data (e.g. Dublin Core, MPEG-7 or any other XML-

based metadata format) but also offers the possibility

to embed XQuery expressions.

The present paper is a positioning paper to dem-

onstrate the feasibility of the Internet image search

and discovery for diagnostic medical purpose. Re-

sults were based on a training-set of CEM-OB im-

ages annotated with specific CEM semantics and

using the standardized multimedia query format for

JPSearch ISO/IEC 24800

2 MATERIAL AND METHODS

Twenty five OB-CEM images obtained with a FICE

(Fujinon Intelligent Chromoendoscopy) together

with the resulting histological images were used in

the training set. All were JPEG images annotated

using standardized metadata for JPSearch ISO/IEC

24800.

2.1 IR System Metadata Description

The information retrieval system Semantics of the

Metadata was the classical modified Kudo criteria

(Kiesslich et al., 2008) summarized in Table I

. An-

notation parameters include: Pit size, distance and

regularity of normal round pits (typeI), detection of

stellate or papillary images (type II), tubular/round

pits smaller than type I (Type IIIs), Tubular large

(type III), presence of sulcus /gyrus (type IV), irre-

QUERY BY IMAGE MEDICAL TRAINING - Optical Biopsy with Confocal Endoscopy (OB-CEM)

167

gular arrangement as size fo type III and IV (type

V).

Whenever possible those parameters were auto-

matically extracted by image analysis. See below.

2.2 Image Search & Retrieval Applica-

tion

Search and retrieval application built is an MPQF

query processor. The software was limited to basic

capabilities and did not provide yet CBIR functions

Query-by-Image formulation: According ISO-

15938-12:2008, the query-by-image is a combina-

tion of different condition expressions such as Que-

ryByMedia, QueryByDescription, QueryByROI and

SpatialQuery.

All these MPQF’s condition types are based in

the provision of an example (image, image region or

image metadata description) expressing user infor-

mation (see above IR system metadata). These con-

dition types are selected or combined in order to

return the best results.

1. QueryByMedia

Query-by-image (or simply query-by-example)

similarly searches is a content based image retrieval

(CBIR) technique (Lux et al., 2008) expressing user

information with one or more example digital ob-

jects (e.g. an image file). Low-level features descrip-

tion instead of the example object bit stream is also

considered query-by-example, in MPQF these two

situations are differentiated, naming QueryByMedia

to the first case (the digital media itself) and Query-

ByDescription the second one. In the first case is the

query processor who decides which features to ex-

tract and use, and in the second case is the requester

who perform the feature extraction and selection.

The MPQF’s QueryByMedia type offers multiple

possibilities to refer to the example media, as just

including the media identifier (a locator such as an

URL pointing to an external or internal resource) or

directly embedding the image bit stream in Base64

encoding within the XML Query (see example in

Code 1).

When the QueryByMedia type is used, it is up to

the query processor to extract the proper low-level

features to perform a similarity search over the in-

dex. MPQF does not specify which parameters or

algorithms must be applied. In our case image analy-

sis automatic extraction is done whenever possible

2. QueryByDescription

QueryByMedia and QueryByDescription are the

fundamental operations of MPFQ and represent the

query-by-example paradigm. The individual dif-

ference lies in the used sample data. The QueryBy-

Media query type uses a media sample such as im-

age as a key for search, whereas QueryByDescrip-

tion allows querying on the basis of an XML-based

description.

For the purpose of the work described in this pa-

per, we were using the QueryByDescription type to

communicate to the server the specific metadata

related to the example image fixed by the requester

(e.g. pit size, distance and regularity of normal

round pits, detection of stellate or papillary images,

so on and so forth). These metadata were extracted

whenever possible (by image analysis extraction)

before submitting the query to the generic MPQF

query processor.

3. QueryByROI

The MPQF’s QueryByROI type extends the Que-

ryByMedia type and describes a query operation that

takes an example digital image as input and allows

the specification of a region of interest. During the

evaluation of this query type the region of interest is

required to be considered for search. A region is

defined by the IntegerMatrixType which allows

the specification of a list of positive integer values

describing individual points. The amount of neces-

sary integer values per point is defined by the dim

(dimension) attribute of the IntegerMatrixType type.

If the dim attribute is set to two then two successive

integer values specify one point in 2D space. The

individual points define the region where for in-

stance for 2D, three points identify a triangle, four

points a rectangular, and so on. The order of the

individual points is contraclockwise. Code 2 gives

an example of QueryByROI using a square bound-

ing box.

For the purpose of the work described in this pa-

per, we were using the QueryByROI type to offer to

users the (optional) functionality to refine their

query-by-image searches by specifying a region of

interest (only a 2D square bounding box at the mo-

ment).

-The query processor only needed to crop the image

according to the region specified and processed a

conventional QueryByMedia evaluation. This way,

the resulting images will be similar to the region

specified.

-Furthermore, we considered to allow searching for

“images containing region/s similar to the given

one” and (if possible) to retrieve also the coordinates

of these region/s. In despite of the fact that MPQF

offers

enough expressivity to formulate such a query,

HEALTHINF 2010 - International Conference on Health Informatics

168

<Query>

<Input>

<TargetMediaType>application/pdf</TargetMediaType>

<MediaData64>R0lGODlhDwAPAKECAAAAzMzM/////wAAACwAAAAADwA

PAAACIISPeQHsrZ5ModrLlN48CXF8m2iQ3YmmKqVlRtW4MLwWACH+H09

wdGltaXplZCBieSBVbGVhZCBTbWFydFNhdmVyIQAAOw==</MediaData64>

</InlineMedia>

</MediaResource>

</Condition>

</QueryCondition>

</Input>

</Query>

</MpegQuery>

Code 1: QueryByMedia example.

<Query>

<Input>

<MediaUri>http://testimage</MediaUri>

</MediaResource>

</Resource>

</QFDeclaration>

<MediaResourceREF>image1</MediaResourceREF>

<SpatialRegionOfInterest dim="2" >20 20 50 20 50 50 20 50

</SpatialRegionOfInterest>

</Condition>

</QueryCondition>

</Input>

</Query>

</MpegQuery>

Code 2: QueryByROI example.

QUERY BY IMAGE MEDICAL TRAINING - Optical Biopsy with Confocal Endoscopy (OB-CEM)

169

<Query>

<Input>

<AnyDescription xmlns:mpeg7="urn:mpeg:mpeg7:schema:2004"

xsi:schemaLocation="urn:mpeg:mpeg7:schema:2004 M7v2schema.xsd">

<mpeg7:Mpeg7>

<mpeg7:DescriptionUnit xsi:type="mpeg7:StillRegionType">

<mpeg7:VisualDescriptor xsi:type="mpeg7:DominantColorType">

<mpeg7:ColorSpace type="RGB"/>

<mpeg7:SpatialCoherency>30</mpeg7:SpatialCoherency>

<mpeg7:Value>

<mpeg7:Percentage>12</mpeg7:Percentage>

<mpeg7:Index>1 1 1</mpeg7:Index>

<mpeg7:ColorVariance>1 0 0</mpeg7:ColorVariance>

</mpeg7:Value>

</mpeg7:VisualDescriptor>

<mpeg7:VisualDescriptor

xsi:type="mpeg7:HomogeneousTextureType">

<mpeg7:Average>1</mpeg7:Average>

<mpeg7:StandardDeviation>1</mpeg7:StandardDeviation>

<mpeg7:Energy>1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17

18 19 20 21 22 23 24 25 26 27 28 29

30</mpeg7:Energy>

</mpeg7:VisualDescriptor>

</mpeg7:DescriptionUnit>

</mpeg7:Mpeg7>

</AnyDescription>

</Resource>

</QFDeclaration>

<EvaluationPath>//Image</EvaluationPath>

<SpatialRelation sourceResource="stillImage1"

relationType="urn:mpeg:mpqf:cs:SpatialRelationCS:2008:northwest"/>

</Condition>

</QueryCondition>

</Input>

</Query>

</MpegQuery>

Code 3: SpatialQuery example.

unfortunately this interesting functionality is still

subject to active research, and we cannot currently

provide it

4. SpatialQuery

The MPQF’s SpatialQuery type allows requests

in the spatial domain where one or two regions (e.g.,

MPEG-7 StillRegion, etc.) are involved. Relation-

ships among those regions and possible matching

regions can be expressed by different relation types

such as northOf, southOf, westOf, eastOf, contains,

HEALTHINF 2010 - International Conference on Health Informatics

170

covers, overlaps, disjoint, so on and so forth. Ac-

cording to our knowledge, no CBIR query proces-

sors offer this kind of functionality; being the one

we implemented an exception.

3 RESULTS

The provided user interface offers query-by-image

also in combination with classic XML metadata-

based criteria. Images are presented to a web appli-

cation to be search in a local data-base, although the

application aims the retrieval in Internet.

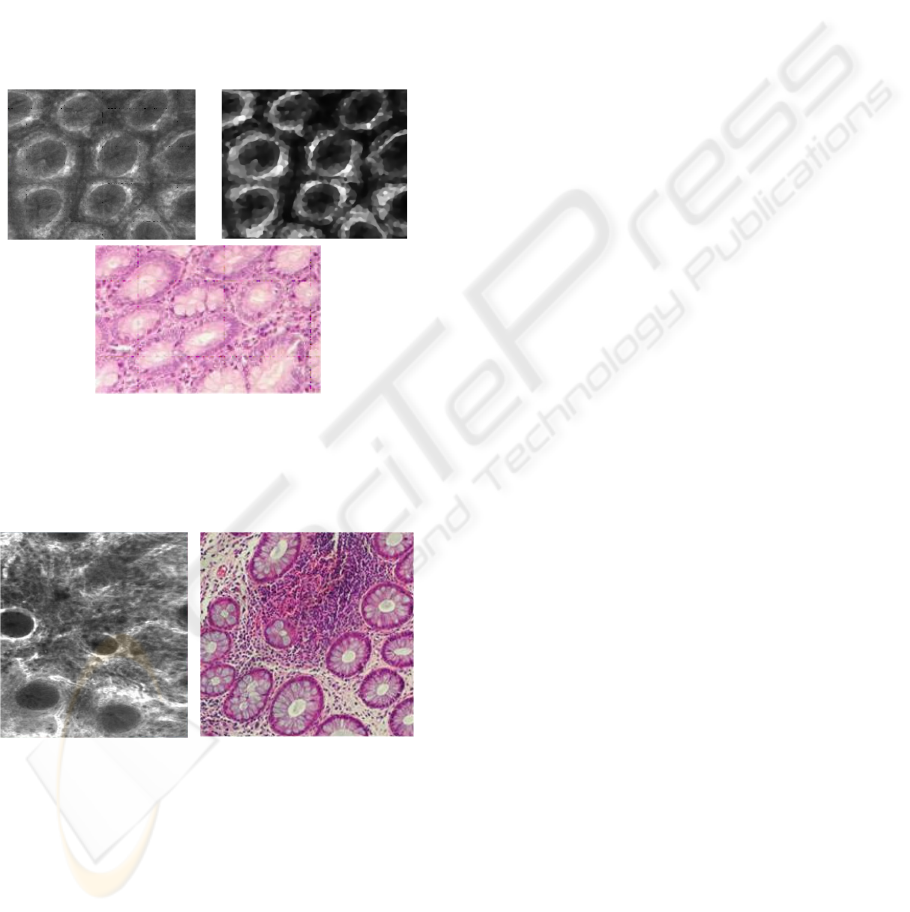

Figure 1: Automatic object identification and measure-

ment. Find similar image in the data base including histo-

logical images. Normal colon.1- OB-CEM, 2- Image

processing to extract parameters, 3- Histological image

selection.

Figure 2: Colitis. Left. OB-CEM; Right- Histological

image selection.

4 DISCUSSION

The present paper demonstrates that Internet search

not only in Bibliographic but on image data-based

could speed up medical diagnostic knowledge re-

garding novel technologies. This is the case of OB

that is carried out by clinicians (endoscopists) while

is based on microscopic morphology of the tissue, a

domain specific of the surgical pathology.

To establish the gold standard in surgical pathol-

ogy six are the main techniques 0: (1) Experience

better then evidence; (2) Literature knowledge; (3)

Scientific relevance or eminence (4) Interpretation

(6) Personal impression. Therefore it is obvious that

as soon as we collect sufficient experience and im-

ages available and accessed by pathologist, sooner

the gold-standard for OB will be settle and incorpo-

rated into routine diagnostic procedures.

On this achievement the technique specify in the

paper for image annotation and image query will be

essential. It is, according to our knowledge, the first

ISO-15938-12:2008 / ISO-24800-3 implementation.

Although the authors (JD & RT) had also contri-

buted to the MPEG Query Format Reference Soft-

ware & Conformance (ISO/IEC 15938-12/Amd.1)

with a basic MPQF processor, during the 88th

MPEG meeting in Maui, USA, April 2009.

Many popular applications have now a day popu-

larized the search for “similar images” (Google

similar image; Gazopa; Zytel , etc.). Nevertheless,

medical applications require more sophisticated

techniques including specific medical semantics and

domain ontology as explained in the present posi-

tioning paper. This is an unique and challenging

field of applications for the ISO standards

ACKNOWLEDGEMENTS

This work has been partly supported by the Spanish

government (TEC2008-06692-C02-01) and the

CATAI association.

REFERENCES

Wang TD, VanDam J.(2004) Optical Biopsy: A New

Frontier in Endoscopic Detection and Diagnosis. Clin

Gastroenterol Hepatol 2(9): 744–753.

Ferrer-Roca O. (2008) Superresolution and Optical Bi-

opsy. In CATAI 2009: Super-resolution and optical

Biopsy. CATAI editions. Tenerife. Pp:45-54. ISBN:

978-84-612-8620-1.

Ferrer-Roca O. (2009) Endomicroscopia en anatomia

patologica. Biopsia óptica. Rev.Esp.Patologia (ac-

cepted in 2009 and waiting to be published)

R. Tous (2008) Query formats for multimedia applications

ISO/IEC 15938-12 (MPEG Query Format) & ISO/IEC

24800 (JPSearch) In CATAI 2009: Super-resolution

and optical Biopsy. CATAI editions. Tenerife. Pp25-

32.

QUERY BY IMAGE MEDICAL TRAINING - Optical Biopsy with Confocal Endoscopy (OB-CEM)

171

Nawei Chen, Hagit Shatka, Dorothea Blostein, "Use of

Figures in Literature Mining for Biomedical Digital

Libraries," dial, pp.180-197, Second International

Conference on Document Image Analysis for Librar-

ies (DIAL'06), 2006

Natsu Ishii, Asako Koike, Yasunori Yamamoto, Toshihisa

Takagi, "Figure Classification in Biomedical Litera-

ture towards Figure Mining," bibm, pp.263-269, 2008

IEEE InternationalConference on Bioinformatics and

Biomedicine, 2008

Kiesslich R., Galle PR & Neurath MF. Atlas of endomi-

croscopy. Springer-Verlag Heidelberg 2008. ISBN

978-3-540-34757-6

Hersch WR., Bhuptiraju RT., Ross L., Johnson P., Cohen

AM., & Kraemer DF. “TREC 2004 Genomics Track

overview” Proc of TREC 2004 NIST Special Publica-

tion 2005 http://ir.ohsu.edu/genomics

ISO/IEC 15938-12:2008 Information Technology - Mul-

timedia Content Description Interface - Part 12:Query

Format.

ISO/IEC 24800-3:2008 CD Information technology -

JPSearch - Part 3: JPSearch Query format. Output

document from the 45th ISO/IEC JTC 1/SC 29/WG 1

Poitiers meeting, July 7th to 11th, 2008

ISO/IEC 15938 Version 2. Information Technology -

Multimedia Content Description Interface (MPEG-7),

2004.

XQuery 1.0: An XML Query Language. W3C Proposed

Recommendation 21 November 2006. See

http://www.w3.org/TR/xquery/.

Mathias Lux, Savvas A. Chatzichristofis: Lire: lucene

image retrieval: an extensible java CBIR library.

ACM Multimedia 2008: 1085-1088

HEALTHINF 2010 - International Conference on Health Informatics

172
