SUPPORTING SCIENTIFIC BIOLOGICAL APPLICATIONS

WITH SEAMLESS DATABASE ACCESS

IN INTEROPERABLE E-SCIENCE INFRASTRUCTURES

Sonja Holl, Morris Riedel, Bastian Demuth, Mathilde Romberg and Achim Streit

Juelich Supercomputing Center, Forschungszentrum Juelich, 52428 Juelich, Germany

Keywords:

Bioinformatics, Database access, e-Science, Life science.

Abstract:

In the last decade, computational biological applications have become very well integrated into e-Science

infrastructures. These distributed resources, containing computing and data sources, provide a reasonable en-

vironment for computing and data demanding applications. The access to e-Science infrastructures is mostly

enstablished via Grids, where Grid clients support scientists using different types of resources. This paper

extends an instance of the infrastructure interoperability reference model to remove the lack by adding cen-

tralized access to distributed computational and database resources via a graphical Grid client.

1 INTRODUCTION

Computational biological applications have evolved

as a very important element in bioinformatics that

bring insights in biological phenomena. However,

they are typically very demanding in terms of com-

putational capabilities, since they use complex math-

ematical models and simulations, and in terms of data

capacities, since they require and produce a lot of

data. In the context of computational capabilities

they use high-performance computing (HPC), high-

throughput computing (HTC) and in the context of

data capacities, biological applications use a wide

variety of data sources. In more detail, researchers

need to extract information from large collections

of data to analyse experiment outputs as well as to

share and reuse data results from different geograph-

ical locations. That raises the demand of a seam-

less and scalable access to different distributed re-

sources, especially computing and data resources. In

order to tackle these requirements, enhanced Science

(e-Science) (Taylor et al., 2006) infrastructures have

become successfully established as an interoperable

distributed environment for computational biological

applications (Baldridge and Bourne, 2003).

Today, e-Science infrastructures have been realized

by ’next generation infrastructures’, and represented

by Grids today (Berman et al., 2003). Grids provide

seamless and secure collaborations over wide-area

networks in key areas of science and can be accessed

via middleware systems. Examples are the middle-

ware UNICORE (Streit et al., 2009), ARC (Ellert

et al., 2007), Globus Toolkit (Foster, 2005), or

gLite (gLite, 2009). Scientists, using e-Science en-

vironments are normally supported by feature rich

graphical clients. But the majority of these clients

lack the support of centralized access to biological

data and distributed computing resources that are both

required in bioinformatics domains.

In this paper, we describe the integration and

support of biological databases with a focus on

how this can be realized in the existing model of

the UNICORE middleware and the UNICORE Rich

Client (URC, 2009) (URC). This extensions enable

biologists within the URC to use effectively interop-

erable infrastructure setups that are based on the pro-

posed infrastructure interoperability reference model

(IIRM) (Riedel et al., 2009).

The remainder of this paper is structured as fol-

lows. In Section 2, we introduce the infrastructure in-

teroperability reference model, which acts as the ref-

erence model for our infrastructure setups. The de-

sign of the database support in a graphical client is

presented in Section 3. In Section 4 we present a use

case application. Finally, we compare related work in

Section 5 and conclude the paper in Section 6.

203

Holl S., Riedel M., Demuth B., Romberg M. and Streit A. (2010).

SUPPORTING SCIENTIFIC BIOLOGICAL APPLICATIONS WITH SEAMLESS DATABASE ACCESS IN INTEROPERABLE E-SCIENCE INFRASTRUC-

TURES.

In Proceedings of the First International Conference on Bioinformatics, pages 203-206

DOI: 10.5220/0002695002030206

 SciTePress

2 THE INFRASTRUCTURE

INTEROPERABILITY

REFERENCE MODEL

Over the years, various types of production e-Science

infrastructures evolved that can be classiﬁed into dif-

ferent categories. While there are infrastructures

driven by HPC such as TeraGrid or DEISA (DEISA,

2009), there are also infrastructures that rather sup-

port HTC such as EGEE (Laure and Jones, 2008).

In addition hybrid infrastructures such as D-Grid (D-

Grid, 2009) exit, but more notably a signiﬁcant prob-

lem is that nearly all of these different infrastructures

deployed non-interoperable Grid middleware systems

in the past.

HTC-Driven

Applications

EGEE Resources

Production

e-infrastructures

Different

computing

paradigms

using joint

data storages

DEISA Resources

HPC-Driven

Applications

Scientific

Data

Implemented

refined & tuned

standards in

Grid technologies

& missing links

Infrastructure Interoperability Reference Model Set of Standards

Numerous

clients

for transparent

infrastructure

access

Scientific-area specific clients and portals

Tuned

OGSA-BES

Security

GLUE2

GridFTP

GridSphere Scientific Clients

…

UNICORE Rich Client

Joint Data Storages

Tuned

SRM

Tuned

WS-DAIS

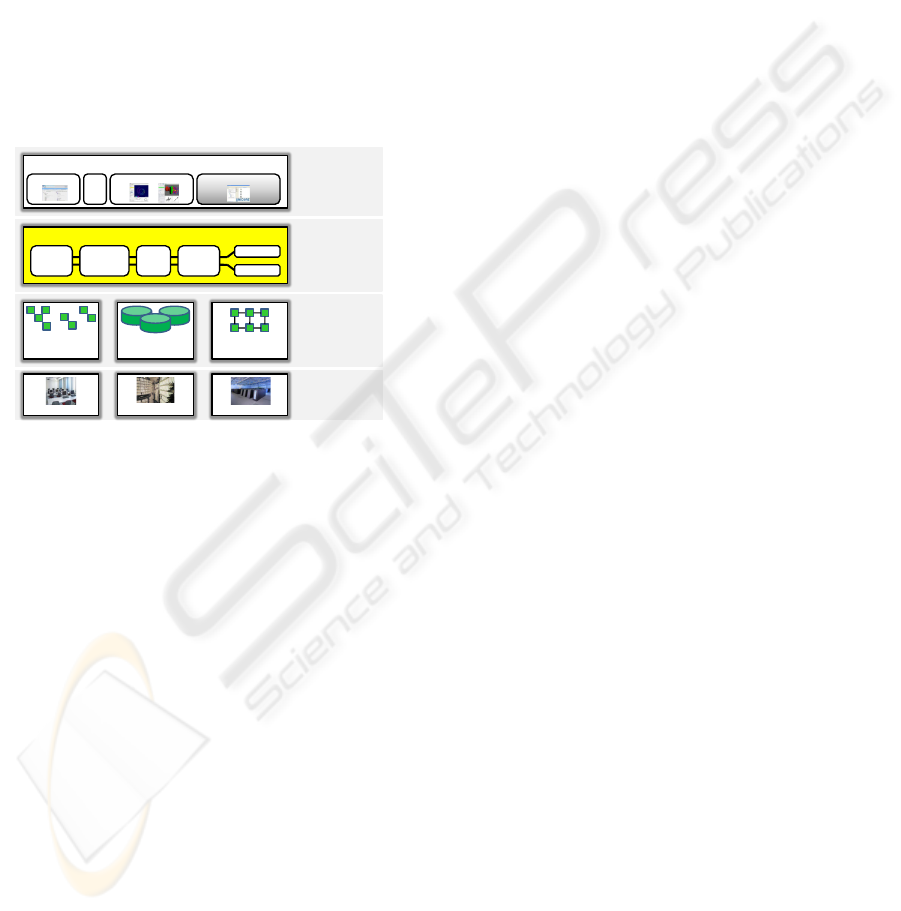

Figure 1: The interoperability infrastructure reference

model (IIRM) that realizes the interoperability of the e-

science infrastructure EGEE and DEISA.

Based on the experiences and lessons learned from

numerous international interoperability efforts, we

have deﬁned an interoperability infrastructure refer-

ence model (IIRM) (Riedel et al., 2009), which is

based on well-known open standards.

The added value of the IIRM is that it deﬁnes miss-

ing links, reﬁnements, and improvements of these

standards gained from interoperability experiences

with real applications. As shown in Figure 1, this

paper focuses on one IIRM instance that realizes the

interoperability of the e-Science infrastructure EGEE

and DEISA as described in (Riedel et al., 2008), but

highlights its potential to conduct e-Science in the

ﬁeld of life sciences leveraging the seamless access

to HTC and HPC resources with a particular focus on

the database aspects of it. Apart from other scientiﬁc

ﬁelds, the life science community especially beneﬁts

from joint data storages to store and re-use interme-

diate data during different computation phases that

often use different computing paradigms (i.e. HTC,

HPC).

While different clients can access the IIRM-based

Grid technologies (e.g. UNICORE, ARC, gLite) as

shown in Figure 1, this paper describes one particu-

lar usage model with the UNICORE Rich Client in

the context of database and computational resource

access.

3 SUPPORTING DATABASE

ACCESS

Since biological applications are widely used in

e-Science environments, the demand for easy accessi-

ble distributed biological data in conjunction with dis-

tributed computational resources in e-Science infras-

tructures is steadily increasing. This demand is based

on the fact that many highly scalable, mostly paral-

lel applications require data inputs that must be trans-

fered with a high performance between data and com-

putational resources, transparently without any man-

ual intervention by the scientists.

Considering that e-Science infrastructures are ac-

cessible via Grid middleware and by scientists via

Grid clients, we identiﬁed two major extension re-

quirements for the support of database access for

biological applications in distributed environments.

As shown in Figure 2, one demand is the access to

databases at the server tier. The other demand is the

support for graphical database access in our client ref-

erence implementation.

In this design, databases are integrated as Grid re-

sources on the target system tier. In fact, database

resources are mainly very heterogeneous on the phys-

ical and logical level, offering different data manage-

ment capabilities. Due to this, database access tools

typically provide standard-based interfaces such as

WS-DAIS OGF standard (Antonioletti et al., 2005)

to access database resources via common Grid pro-

tocols, e.g. Web services (Foster et al., 2004). As

the result of a review of available state-of-the-art

Grid data resource access tools, we integrated OGSA-

DAI (OGSA-DAI, 2008) in our UNICORE refer-

ence implementation for database access between the

server and target system tier. In our reference imple-

mentation we improved the client Java API of OGSA-

DAI, to integrate database access into the UNICORE

Rich Client (URC, 2009) (URC) with the objective

of realising the second demand of the database sup-

port. The URC was developed as a graphical client

for the UNICORE 6 middleware (Streit et al., 2009)

to support functionalities for accessing Grid resources

and services; many of them are related to the sub-

mission of jobs and workﬂows. The developed ex-

tension of the URC provides new basic Grid resource

types, which offer a comfortable new visual overview

BIOINFORMATICS 2010 - International Conference on Bioinformatics

204

MySQL

Application

WS-*

OGSA-DAI

Application Interface

Extension for browsing and

selecting data stored in

databases

Selected data

Supercomputer

Job

Description

Jlkfjlkdsjfsndfldjvldj

vndlvdlfnlkdvnfJlkfj

lkdsjfsndfldjvldjvndl

vdlfnlkdvnf

Jlkfjlkdsjfsndfldjvldj

vndlvdlfnlkdvnf

Jlkfjlkdsjfsndfldjvldj

vndlvdlfnlkdvnf

Jlkfjlkdsjfsndfldjvldj

vndlvdlfnlkdvnf

Jlkfjlkdsjfsndfldjvldj

vndlvdlfnlkdvnfJlkfj

lkdsjfsndfldjvldjvndl

vdlfnlkdvnf

Oracle

UNICORE

Client

Tier

Server

Tier

Targer System

Tier

Jlkfjlkdsjfsndfldjvldj

vndlvdlfnlkdvnfJlkfj

lkdsjfsndfldjvldjvndl

vdlfnlkdvnf

Jlkfjlkdsjfsndfldjvldj

vndlvdlfnlkdvnf

Jlkfjlkdsjfsndfldjvldj

vndlvdlfnlkdvnf

Jlkfjlkdsjfsndfldjvldj

vndlvdlfnlkdvnf

Jlkfjlkdsjfsndfldjvldj

vndlvdlfnlkdvnfJlkfj

lkdsjfsndfldjvldjvndl

vdlfnlkdvnf

GridFTP

Storage

UNICORE

Rich Client (URC)

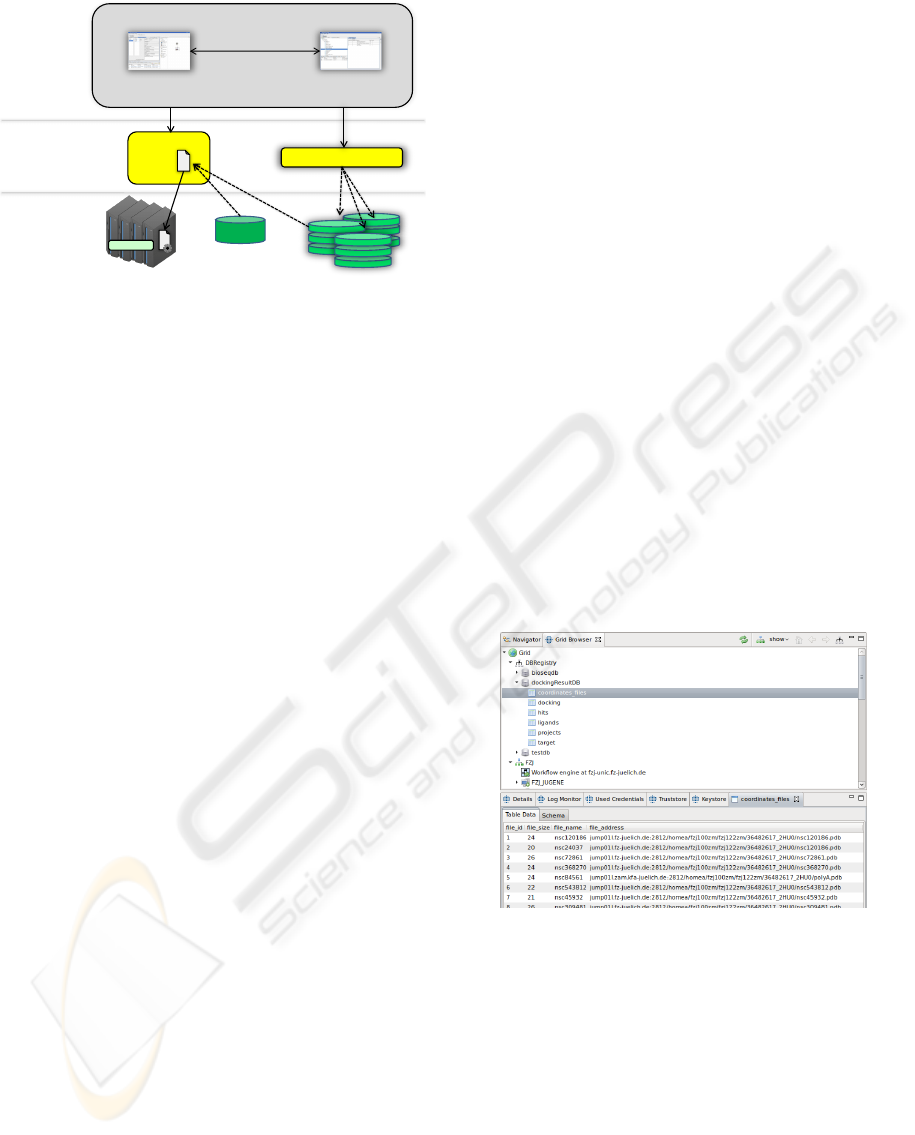

Figure 2: The overview shows a typical three tier architec-

ture. Our development at the client tier enables users to

access databases and to chose data stored in databases as

application input within the URC.

of database resources. It also enables an intuitive view

to browse databases or view contents of tables or re-

sults of queries, as shown in Figure 3. Within this

scope, scientists can now ﬁlter the data for later reuse.

Another supporting service are SQL queries. Further-

more, selected data can automatically be delivered to

distributed computing resources for using it as data

input while processing jobs completely transparent to

the user.

While biological researchers mostly use the ap-

proach of storing metadata and a Grid ﬁle address in

the database, we additionally developed a wizard in-

cluding selection mechanism for database ﬁles with-

out the need of having any knowledge of SQL or the

like.

4 INTEROPERABILITY

APPLICATION

E-Science infrastructures, which mainly consist of

distributed resources and middleware that are well in-

terconnected, provide the computing power and data

resources required by complex biological problem

domains. The WISDOM [19] (World-wide In Sil-

ico Docking On Malaria) project effectively take ad-

vantage of such computational power by using a Grid

based two step bioinformatics virtual screening work-

ﬂow in order to discover new drugs. The ﬁrst part (A)

of the WISDOM workﬂow, as described in (Kasam

et al., 2009), is performed via molecular docking. In

WISDOM, molecular docking is performed on the

EGEE Grid infrastructure, which is the largest HTC-

driven Grid infrastructure in Europe.

The second part (B) of the workﬂow are molecu-

lar dynamic (MD) simulations. Therefore, the best

bindings of the molecular docking results of A are

reﬁned by a complex MD simulation process. This

molecular dynamic simulation process (B) is realized

in WISDOM via the MD application package AM-

BER (AMBER, 2009). For the simulation of this sec-

ond part, researchers would like to use the URC AM-

BER support, as described in (Holl et al., 2009) and

the large-scale supercomputing facilities available on

DEISA, which is the European HPC-driven Grid in-

frastructure.

Typically the output of the molecular docking step

are stored in a MySQL database, which enables re-

searchers to conveniently use the developed database

access in the URC to ﬁlter these results by browsing

databases or creating speciﬁc queries. Additionally,

researchers can select the best promising outputs of

A for their usage as input for the next molecular dy-

namic reﬁnement step (B). The submission and exe-

cution of the job as well as the data transfer is trans-

parent to the user, managed by the URC and the UNI-

CORE middleware. Hence, for the submission of

the WISDOM workﬂow to IIRM-based interoperable

infrastructures, scientists can access both, computa-

tional and data resources, within the URC, as in detail

described in (Holl, 2009). Another beneﬁt is that long

running and manual data downloads and uploads are

avoided as well as the transfer of not necessary data.

Figure 3: The screenshot shows the Grid browser and the

table inside of a database.

The access to database resources as well as the in-

tegration of input data is standardized in the URC,

which causes an very identical functional usage for

various applications.

5 RELATED WORK

The execution of bioinformatics applications turned

out to be very effective in e-Science infrastructures.

Thus, the support of bioinformatics applications in

SUPPORTING SCIENTIFIC BIOLOGICAL APPLICATIONS WITH SEAMLESS DATABASE ACCESS IN

INTEROPERABLE E-SCIENCE INFRASTRUCTURES

205

e-Science infrastructures evolved in various scientiﬁc

projects, such as the Wildﬁre software (Tang et al.,

2005). It provides an integrated environment for con-

struction and execution of workﬂows over the com-

pute nodes of a cluster. But Wildﬁre only stores data

in a back-end database.

Another software tool is Pegasys (Shah et al.,

2004). It provides a GUI based workﬂow mecha-

nism with a uniﬁed data model to store results of pro-

grams. This uniform data model is a backend rela-

tional database management system, whereas our ap-

proach supports any database in Grid infrastructures.

To sum up, graphical tools in bioinformatics typi-

cally provide access to Grids or computational cluster

as execution environments. But foremost, they only

offer access to backend databases.

6 CONCLUSIONS

The support for biological applications via graphical

clients enables a centralized access to both, database

and computing resources in e-Science environments,

and is thus very important nowadays. The WIS-

DOM project takes advantage of an infrastructure

setup based on the IIRM and thus requires central-

ized access to both resources, to ease the evalua-

tion and selection process for input data that have to

be ﬁltered for further reﬁnement executions. There-

fore, the presented development enables researchers

to graphically browse the contents of database tables

and directly select inputs for the job execution as

well as submit the job via the UNICORE Rich Client.

Thereby, it avoids that researchers act on databases or

computational resources, which would instead require

low-level access and accounts on many different re-

sources. Furthermore, the manual download and up-

load steps for ﬁles are omitted, since input ﬁles are

automatically loaded into the job execution environ-

ment by the executing middleware system.

REFERENCES

AMBER (2009). Assisted Model Building with Energy Re-

ﬁnement. http://ambermd.org/.

Antonioletti, M. et al. (2005). Web services Data Ac-

cess and Integration - the Relational Realization (WS-

DAIR), Version 1.0. In Global Grid Forum (GGF).

Baldridge, K. and Bourne, P. E. (2003). The New Biology

and the Grid. John Wiley and Sons.

Berman, F., Fox, G. C., and Hey, A., editors (2003). Grid

Computing: Making The Global Infrastructure a Re-

ality. John Wiley and Sons.

D-Grid (2009). German National Grid. http://www.d-

grid.de.

DEISA (2009). Distributed European Infrastructure for Su-

percomputing Applications. http://www.deisa.org.

Ellert, M. et al. (2007). Advanced Resource Connector mid-

dleware for lightweight computational Grids. Future

Generation Computer Systems, (23):219–240.

Foster, I. et al. (2004). Modelling Stateful Resources with

Web Services Version1.1.

Foster, I. T. (2005). Globus Toolkit Version 4: Software

for Service-Oriented Systems. In NPC, volume 3779

of Lecture Notes in Computer Science, pages 2–13.

Springer.

gLite (2009). http://glite.web.cern.ch/glite/.

Holl, S. (2009). Eclipse-based client support for scien-

tiﬁc biological applications in e-science. Berichte des

Forschungszentrum Juelich. Juel-4303.

Holl, S. R. M., Demuth, B., Romberg, M., Streit, A., and

Kasam, V. (2009). Life science application support in

an interoperable e-science environment.

Kasam, V. et al. (2009). WISDOM-II: Screening against

multiple targets implicated in malaria using computa-

tional grid infrastructures. Malaria Journal, 8(1):88.

Laure, E. and Jones, B. (2008). Enabling Grids for e-

Science: The EGEE Project. CRC Press.

OGSA-DAI (2008). http://www.ogsadai.org.uk/.

Riedel, M. et al. (2008). Improving e-Science with Interop-

erability of the e-Infrastructures EGEE and DEISA.

In Proceedings of the 31st International Convention

MIPRO, Conference on Grid and Visualization Sys-

tems, pages 225–231.

Riedel, M. et al. (2009). Research Advances by using In-

teroperable e-Science Infrastructures - The Infrastruc-

ture Interoperability Reference Model applied in e-

Science. Cluster Computing, Special Issue Recent Ad-

vances in e-Science.

Shah, S. P. et al. (2004). Pegasys: software for execut-

ing and integrating analyses of biological sequences.

BMC Bioinformatics, 5.

Streit, A. et al. (2009). UNICORE 6 - A European Grid

Technology. IOS Press.

Tang, F. et al. (2005). Wildﬁre: distributed, Grid-enabled

workﬂow construction and execution. BMC Bioinfor-

matics, 6:69.

Taylor, I. J., Deelman, E., Gannon, D. B., and Shields, M.

(2006). Workﬂows for e-Science: Scientiﬁc Workﬂows

for Grids. Springer-Verlag New York, Inc.

URC (2009). UNICORE Rich Client.

http://www.unicore.eu/documentation/manuals/unico-

re6/ﬁles/RichClient.pdf.

BIOINFORMATICS 2010 - International Conference on Bioinformatics

206
