XQUAKE

An XQuery-like Language for Mining XML Data

Andrea Romei and Franco Turini

Department of Computer Science, University of Pisa, Largo B. Pontecorvo, 3, Pisa 56127, Italy

Keywords:

Data mining, Knowledge discovery, Inductive databases, XML, XQuery, Query language.

Abstract:

The rapid growth of semi-structured sources raises the need of designing and implementing environments

for knowledge discovery out of XML data. This paper presents an Inductive Database System in which raw

data, mining models and domain knowledge are represented as XML documents, stored inside XML native

databases. In particular, we discuss our experiences in the design and development of XQuake, a mining query

language that extends XQuery. Features of the language are an intuitive syntax, a good expressiveness and the

capability of dealing uniformly with raw data, induced and background knowledge. The language is presented

by means of examples and a sketch of its implementations and the evaluation of its performance is given.

1 INTRODUCTION

Inductive Databases (IDBs) are general purpose

databases in which both the data and the knowledge

are represented, retrieved, and manipulated in an uni-

form way (Imielinski and Mannila, 1996). A critical

aspect in IDBs is the choice of what kind of formalism

is more suited to represent models, data sources, as

well as the queries one might want to apply on them.

A considerable number of different papers propose to

integrate a mining system with a relational DBMS.

Relational databases are ﬁne for storing data in a tab-

ular form, but they are not well suited for representing

large volumes of semi-structured data ﬁelds. How-

ever, data mining need not be necessarily supported

by a relational DB.

The past few years have seen a growth in the adop-

tion of the eXtensible Markup Language (XML). On

the one hand, the ﬂexible nature of XML makes it

an ideal basis for deﬁning arbitrary languages. One

such example is the Predictive Modelling Markup

Language (PMML) (The Data Mining Group, 2009),

an industry standard for the representation of mined

models as XML documents. On the other hand, the

increasing adoption of XML has also raised the chal-

lenge of mining large collections of semi-structured

data, for example web pages, graphs, geographical in-

formation and so on. From the XML querying point

of view, a relevant on-going effort of the W3C is the

design of a standard query language for XML, called

XQuery (W3C World Wide Web Consortium, 2007),

which is drawing much research and for which a large

number of implementations already exists.

The goal of our research is the design and imple-

mentation of a mining language in support to an IDB

in which an XML native database is used as a stor-

age for Knowledge Discovery in Databases (KDD)

entities, while Data Mining (DM) tasks are expressed

in an XQuery-like language, in the same way min-

ing languages on relational databases are expressed

in a SQL-like format. Features of the language are

the expressiveness and ﬂexibility in specifying a vari-

ety of different mining tasks and a coherent formalism

capable of dealing uniformly with raw data, induced

knowledge and background knowledge.

Due to space restrictions, we do not present here

the data model on which XQuake is based, but we fo-

cus on the basic ideas behind the language, discussing

several examples of its concrete usage. All exam-

ples assume the availability of XML data in a native

XML database. Speciﬁcally, Figure 1 shows a frag-

ment of the online

dblp

database

, containing biblio-

graphic information on major computer science jour-

nals and proceedings. Figure 1 depicts a sample docu-

ment including various information about researchers

in a university department. Finally, the XML docu-

ment

mondial

of Figure 1 contains a collection of

XML tags storing geographical, economic and politi-

cal characteristic of a country.

www.dblp.uni-trier.de/xml/

www.dbis.informatik.uni-goettingen.de/Mondial/

Romei A. and Turini F. (2010).

XQUAKE - An XQuery-like Language for Mining XML Data.

In Proceedings of the 2nd International Conference on Agents and Artiﬁcial Intelligence - Artiﬁcial Intelligence, pages 20-27

DOI: 10.5220/0002703400200027

 SciTePress

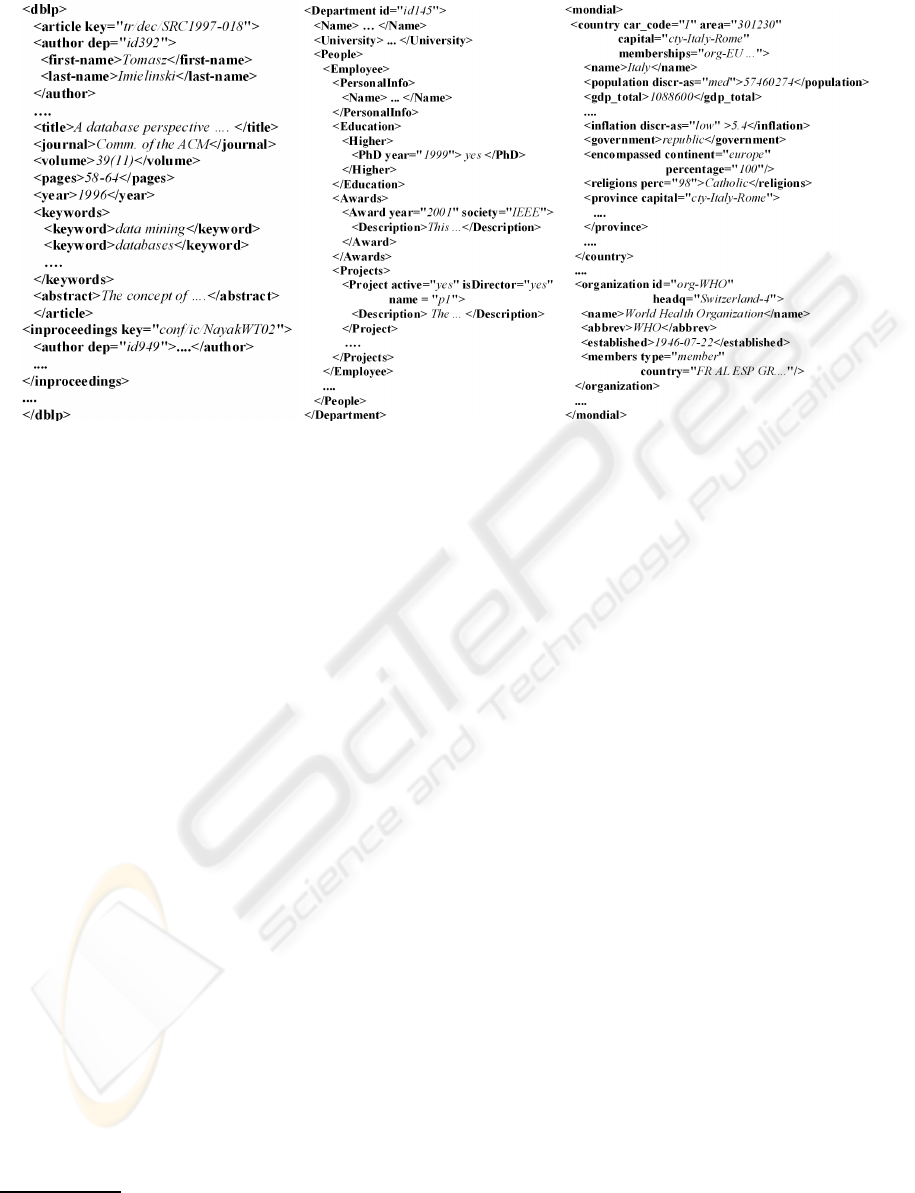

Figure 1: XML fragments of the

dblp

dataset (a), the

departments

dataset (b) and the

mondial

dataset (c).

2 XQUAKE

In this section, the XQuake (acronym of XQUery-

based Applications for Knowledge Extraction) min-

ing language is presented.

2.1 The XQuake Philosophy

Essentially, XQuery expressions are used to identify

XML data as well as mining ﬁelds and metadata,

to express constraints on the domain knowledge, to

specify user preferences and the format of the XML

output.

A mining query begins with a collection of

XQuery functions and variables declarations followed

by an XQuake operator. The syntax of each operator

includes three basic statements

: (i) task and method

speciﬁcation; (ii) domain entities identiﬁcation; (iii)

exploitation of constraints and user preferences. The

outline of a generic operator is explained below.

Task and Method Speciﬁcation. Each XQuake

operator starts specifying the kind of KDD activ-

ity. Constructs for preprocessing, model extraction,

knowledge ﬁltering, model evaluation or model meta-

reasoning are possible. As an instance, the following

XQuake fragment denotes a data sampling task:

prepare sampling

doc("my-out")

using

alg:my-sampling-alg(my-params ...)

More precisely, the language also allows the construc-

tion of the generated results. However, this feature is not

described in this paper.

The

doc("my-out")

expression directs the result of

the mining task to a speciﬁc native XML database for

further processing or analysis. The

using

statement

introduces the kind of mining or preprocessing algo-

rithm used, together with atomic parameters.

Domain Entities Identiﬁcation. Any KDD task may

need to specify the set of relevant entities as input of

the analysis. The syntax is an adaptation of the stan-

dard XQuery FLOWR syntax, in which the result of

the evaluation of an expression is linked to a variable

for

and

let

clauses. Below you can see a simple

statement that can be used to locate input data.

for data

$tuple

where

let active ﬁeld

$field := <XQuery expr on $tuple>

Input data is typically a sequence of XML nodes. The

<for> expression above binds the variable

$tuple

each item during the evaluation of the operator, while

the <let> clause identiﬁes an attribute of the data.

XQuake also offers an optional <where>, used to

express data ﬁltering constraints. The user speciﬁes

them through an XQuery condition that is typically

processed before the mining task. The <let> clause

deﬁnes a data attribute with name

$field

, whose val-

ues are obtained by means of the XQuery expression

in the body and whose type is omitted. The keyword

after the <let> refers to the role of such an attribute

in the mining activity of interest. More speciﬁcally:

• <active> speciﬁes that the ﬁeld is used as input

of the analysis;

• <predicted> speciﬁes that it is a prediction at-

tribute;

XQUAKE - An XQuery-like Language for Mining XML Data

• <supplementary> states that it holds additional

descriptive information.

Mining ﬁelds in input to the mining task are re-

quired to be atomic, i.e. an instance of one of the

built-in data types deﬁned by XML schemas, such as

string, integer, decimal and date. A richer set of types

is included into the data model by extending the sys-

tem type of XQuery to support discrete, ordering and

cyclical data types. Moreover, XQuake maintains the

typing philosophy of XQuery by offering a method to

equip attributes with logical information. In the query

fragment below, we are interested in the speciﬁcation

of a mining attribute that indicates whether a journal

paper published by the ‘ACM’ focusses on the KDD

ﬁeld. An explicit boolean type is speciﬁed by the user

for the ﬁeld

$has-kdd-keyword

for data

$paper

doc("dblp")//article

where

fn:contains($paper/journal, "ACM")

let active ﬁeld

$has-kdd-keyword

xs:boolean :=

some $keyword in $paper/keywords/keyword

satisfies $keyword eq "KDD"

Either if an input ﬁeld has an explicit or an implicit

type, it is validated against a required type, that de-

pends on the context in which it appears. For instance,

the target attribute of a classiﬁcation task is required

to be discrete. An error is raised whenever the type of

an expression does not match the expected type.

Exploitation of Constraints and User Preferences.

XQuake admits a special syntax to specify domain

knowledge

, particularly useful for the deﬁnition of

domain-based constraints. In contrast to active and

predicted mining ﬁelds, a metadata ﬁeld may include

also non-atomic types, such as XML nodes or at-

tributes. For example, below we assign an hypotheti-

cal XML hierarchy to a table column as metadata in-

formation.

for data

$country

doc("mondial")//country

let metadata ﬁeld

$hier :=

let $cap := $country//city[@is-capital=’yes’]

return doc("hierarchy")/root/city[.=$cap]

For each distinct

element of the

mondial

dataset, the <metadata> keyword deﬁnes a special

ﬁeld used to bind domain knowledge (an XML taxo-

nomy in this case) to the capital of that country. This

paper reports, in the next section, several examples to

show how the user can express personalized sophisti-

cated constraints based on the domain knowledge.

The domain, or background, knowledge is the informa-

tion provided by a domain expert about the domain to be

mined.

2.2 Constraint-based XML Frequent

Itemset Mining

One of the most important open issues in frequent

itemset mining is the too large number of gener-

ated patterns. The constraint-based pattern mining

paradigm has been introduced with the aim of pro-

viding the analyst with a domain-dependent tool for

driving the discovery process directly towards poten-

tially interesting patterns. We present an operator to

handle constrained itemset mining out of XML data.

Example 1. We wish to discover correlations among

authors in the

dblp

dataset. In our analysis, we con-

sider only the patterns with a minimum support of

10%, in which some “leader” author occurs, and in

which at most two authors received a PhD after 2002.

We consider as “leaders” those authors that received

an award from the “IEEE” society or, alternatively,

are prime investigators of an active project. The re-

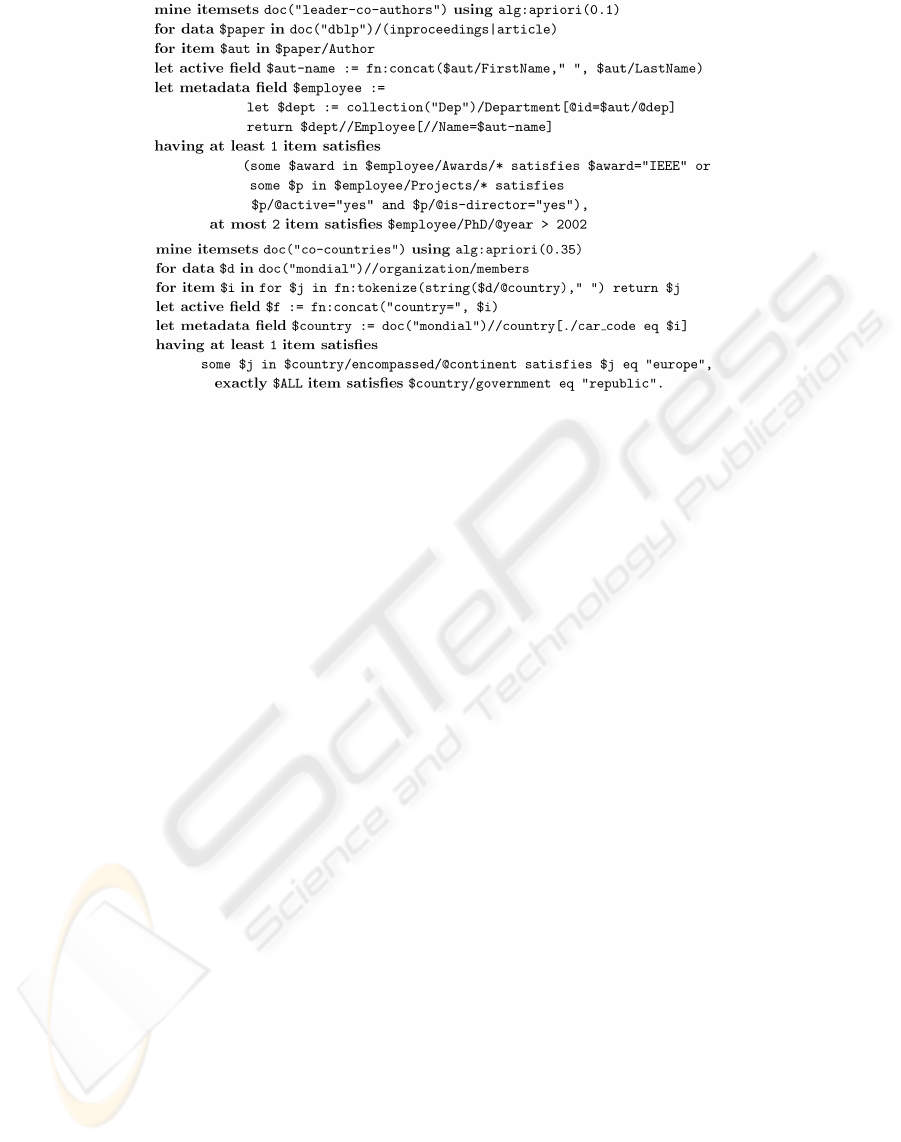

sulting XQuake operator is given in Figure 2.2. ⊳

The query is not hard to understand for readers fa-

miliar with XQuery. The algorithm used is the Apri-

ori algorithm (Agrawal and Srikant, 1994), with the

relative minimum support expressed as a parameter

(<using> clause).

The set of involved XML transactions, i.e. both

proceeding and journal papers, is speciﬁed through

the <for data> clause. The next statement uses a

similar syntax to identify items of a transaction, i.e.

the authors of a publication, binding each XML node

to the variable

$author

. The keyword

<item> speciﬁes in this case that we are iterating

over the items of a transaction. The <let active>

clause uses a built-in function to format the required

author name, i.e. the atomic values in the itemset.

In addition, we bind to the variable

$employee

XML element encoding the domain knowledge (i.e.

the employee information of the department of inter-

est to each distinct author - see also Figure 1). This is

achieved through the <let metadata> statement con-

taining, in the body, an XQuery expression that ﬁrst

looks for the department of interest in the collection

of the various departments, and then looks for the au-

thor name among its employees. Notice the use of

both the

$aut

and

$aut-name

variables in the body

expression.

The set of itemset constraints occur in the

<having> clause. Speciﬁcally, they constrain the

number of the items of an itemset that satisﬁes a par-

ticular condition to have a certain threshold. They

have the following format (where n > 0).

having at least n item satisﬁes

The operator <at least> (similar are <at most> and

ICAART 2010 - 2nd International Conference on Agents and Artificial Intelligence

Figure 2: Two examples of the MINE ITEMSETS operator at work.

<exactly>) is true for all itemsets which have at least

a speciﬁed number of items that satisfy the XQuery

predicate. The latter one can be expressed on the vari-

ables previously deﬁned that, in the example 1, denote

both the author’s name and the employee metadata.

The examples below highlight their usage.

exactly

item satisﬁes

$aut-name eq "A. Einstein"

at least

item satisﬁes

fn:true()

at most

fn:round($ALL div 2)

item satisﬁes

count($employee//Project[@active]="yes") > 1

exactly

$ALL

item satisﬁes

$aut/@dep eq "Cambridge"

The ﬁrst condition above ﬁnds out who publishes fre-

quently together with “A. Einstein”. The next clause

looks for itemsets of length at least 4. The third con-

dition imposes that at most half of the authors in the

itemset are involved in at least two active projects.

The special variable

$ALL

stands for the length of

the current itemset that should be validated against

the constraint. Finally, the last predicate ﬁnds cor-

relations among the publications of the authors at the

“Cambridge University”.

In the above queries we have supposed the avail-

ability of metadata. In several cases, XQuery can be

also used to build metadata from scratch. The variable

below stores an XML element containing the number

of publications for each distinct author in the

dblp

database.

declare variable local:np as node()* :=

for $a in distinct-values(doc("dblp")//author)

return element publication {

<name>{$a}</name>,

<number>{count(/dblp/*[aut=$a])}</number>};

The fragment of the XQuake query below returns all

itemsets which have “Enrico Fermi” as an author, and

at least one co-author with a number of publications

greater than 30.

let metadata ﬁeld

$n as xs:decimal :=

local:np/number[./name=$aut-name]

having exactly

item satisﬁes

$aut-name eq "Fermi",

at least

item satisﬁes

$aut-name ne "Fermi" and $n > 30.

The predicate below aims at extracting frequent item-

sets in which it does not exist one author that is also

editor.

let metadata ﬁeld

$is-editor :=

not(empty(doc("dblp")//editor[.=$aut]))

having exactly

$ALL

item satisﬁes

not($is-editor).

The versatility of the <mine itemsets> operator per-

mits to comply easily with the nature of the domain

and the interpretation of the items. In the next exam-

ple, we exploit the

mondial

dataset as a source for

constraint-based frequent itemset mining.

Example 2. In the

mondial

dataset, we are in-

terested in ﬁnding correlations among the countries

that appear frequently as members of the 168 mon-

dial organizations (e.g. FAO, ONU, etc.). For in-

stance, the itemset {

country=FR, country=USA

}

supp=0.2

means that France and USA occurred

about 20% of the times together as members of some

organization. Also, we require that in each itemset

at least one item is an European country and that ev-

ery country in the itemset is a republic. The query of

Figure 2.2 accomplishes this task. ⊳

Notice that in the example above, the transactions

are all the countries located in the

XML tags, items are the car codes of the countries

XQUAKE - An XQuery-like Language for Mining XML Data

and the metadata information is the set of

elements (see Figure 1).

2.3 XML Classiﬁcation

The next example focuses on the XML classiﬁcation

task, and in particular on the issue of specifying the

input to a decision tree algorithm. In the example, we

select the

mondial

database as an XML table suit-

able as an input to a classiﬁcation algorithm intended

to build a model of the geographical, economic and

political information of the countries.

Example 3. The goal is to classify new countries in

two different categories: the countries that are good

candidates to become a new member of the UNESCO

and those that are not. The classiﬁcation scenario is as

follows. Records of the training set are the countries

located by means of the homonymous XML element.

The set of the attributes includes country’s properties

like (i) the governmenttype; (ii) the values of the level

of inﬂation and the population of the capital city; (iii)

a binary attribute indicating whether the capital of the

country has an extension greater than a ﬁxed value.

The DM task for generating the classiﬁcation model

can be speciﬁed by means of the <mine tree> opera-

tor, as shown in Figure 3. ⊳

The statement can be read as follows. The <using>

clause speciﬁes the mining algorithm, ID3 (Mitchell,

1997) in this case, and the conﬁdence for pruning

as parameter. The <for> clause identiﬁes the XML

nodes that denote the records of the training set.

Each <let> element speciﬁes the attributes in the

source data set that are considered for mining, i.e. the

mining schema. Since the ID3 algorithm is restricted

to deal with discrete sets of values, the operator

forces the type of each ﬁeld to be

xs:string

or one

of its subtypes (e.g. discrete or ordinal). An example

of discrete attribute deﬁnition is the last clause above,

that speciﬁes the target attribute

$is-unesco

, whose

only admitted values are “yes” or “no”.

XQuake also offers operators to apply the gener-

ated itemsets and classiﬁcation trees to further data or

to do preprocessing.

3 THE PHYSICAL LEVEL

3.1 The XQuake System Prototype

XQuake is supportedby a tightly-coupled architecture

designed directly over BaseX (Holupirek et al., 2009),

a Java-based open source native XML database devel-

oped by the Database and Information Systems Group

at the University of Konstanz. Basically, the XQuake

system prototype deﬁnes and implements the mining

operations via extended XQuery programs. On the

one hand, complex operations over data structures are

implemented in Java and the I/O of such operators

is integrated within the XQuery program by external

functions.

On the other hand, such an extension regards a

new iterative construct, named

wfor

, encapsulated

into XQuery, whose aim is to provide a better imple-

mentation of the mining tasks. It tries to overcome

two main deﬁciencies of the traditional FLOWR ex-

pressions in order to deﬁne queries over windows of

data (useful in data preparation tasks) and to manage

local temporary variables in an iterative computation.

The general schema of the

wfor

is the following.

wfor $binding-var in <sequence>

declare state variable $state-var

as <type> := <expression>

init <expression>

iterate <expression> while <condition>

return <expression>.

It iterates over an input sequence of length N > 0 and

it binds a variable to each item of the sequence. The

effect of the

declare

clause is to introduce a new

variable - say

state variable

- and to initialize it with

the value of the given expression body. The state vari-

able is in the scope of all the rest of the

wfor

expres-

sion. Also, it is updated at each iteration with the re-

sult of the

iterate

clause, whose aim is to consume

the sequence item by item. The

while

breaks the cy-

cle and forces the execution of the

return

clause,

that returns an output value. At this point, if addi-

tional items exist in the input sequence, the compu-

tation continues by re-initializing the state variable

with the result of the

init

statement and by evalu-

ating

iterate

again. Intuitively, the

while

speciﬁes

when the

return

clause should be evaluated and a

new value returned as output. At one extreme, if it is

true()

or absent, then a single value is returned (e.g.

for model extraction operators). At the other extreme,

if it is

false()

, a sequence of length N is returned as

the answer (e.g. for preprocessing operators). More-

over,

wfor

expressions can be nested to iterate over

an input sequence several times. Due to space restric-

tions, the syntax and the semantic aspects of

wfor

are

out of the core of this paper.

The high level XQuake architecture is shown in

Figure 4. A mining task is expressed in XQuake via

a speciﬁc text editor. A compiler automatically gen-

erates the appropriate (extended) XQuery code that is

then interpreted. The compiler is designed to provide

a good level of extensibility to accomodate the deﬁni-

tion of new algorithms. The core of the mining pro-

ICAART 2010 - 2nd International Conference on Agents and Artificial Intelligence

Figure 3: Extraction of a classiﬁcation tree from the

mondial

dataset.

Figure 4: The XQuake system architecture.

cess is performed by the mining engine that contains

the run-time support of the BaseX XQuery engine ex-

tended with the

wfor

iterator. This component uses

the external function modules responsible for provid-

ing an XQuery interface to external user-deﬁned Java

functions overdata structures. At the bottom, we have

the BaseX native XML database containing the input

and output of mining tasks, as well as XML meta-

data. The database is accessed by means of the XML

access optimizer component that will contain (propri-

etary or native) indexing techniques to speed-up the

access to input data. Finally, the XML visualizer mod-

ule translates an XML document stored in the DB into

a visualization form, accepted by data and model vi-

sualization tools, and presented by means of an output

GUI to the user. Currently, the XML result is trans-

formed into HTML browsable format via XSL style

sheets.

3.2 Performance Evaluation

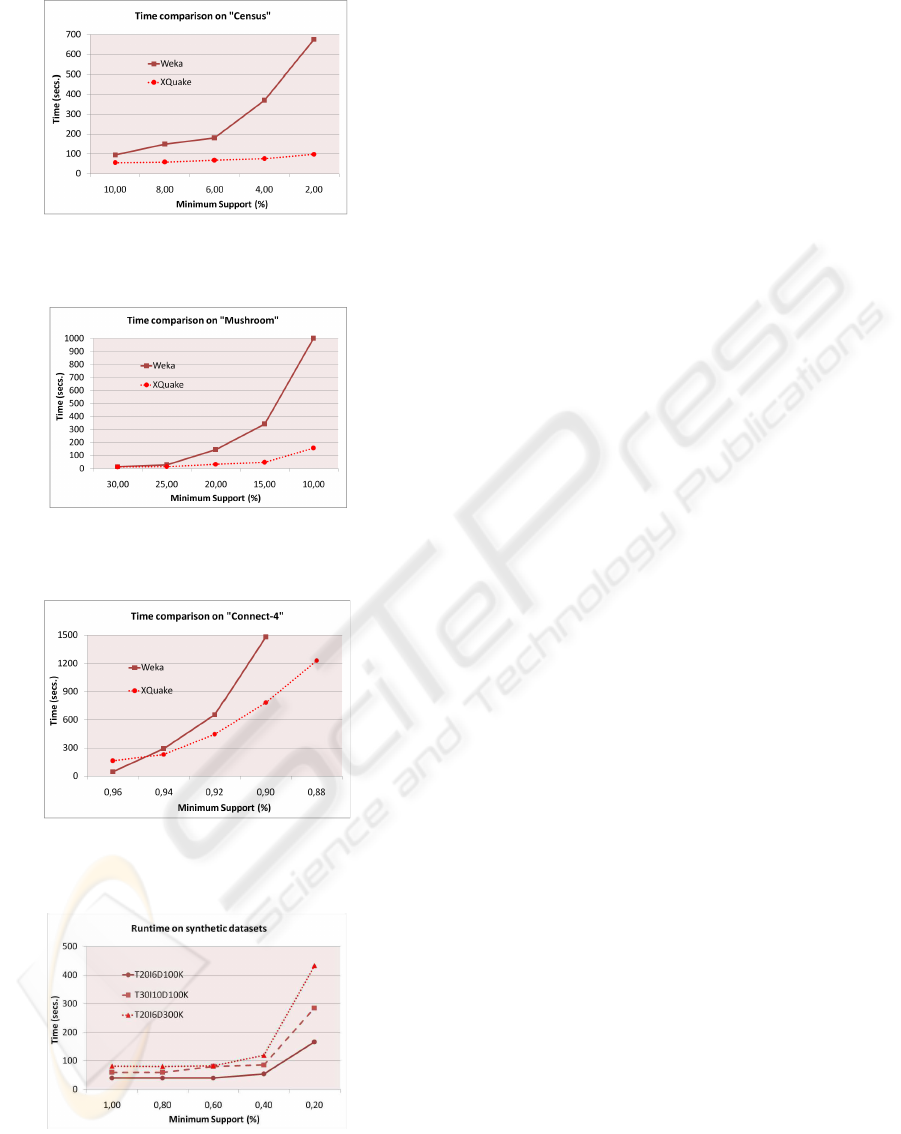

In the following, we analyze the impact of the archi-

tecture on the frequent itemsets problem. In order to

compare the performance with an existent Apriori im-

plementation, we tested the effects of a very simple

XQuake query, without considering the encapsulation

of any kind of constraints.

Table 1: Summary of datasets for experiments.

Name Real Avg Num Num Min Num

trans trans items supp patterns

census yes 15 48841 135 2 70826

mushroom yes 23 8122 119 10 574513

connect-4 yes 43 67556 129 88 55115

T20I6D100K no 20 100K 1K 0.2 25820

T30I10D100K no 30 100K 1K 0.2 108634

T20I6D300K no 20 300K 3K 0.2 7457

We used both real and synthetic datasets. The real

datasets are from the UCI repository

. The synthetic

databases are generated by means of the IBM gener-

ator

. These datasets are named “TxIyDz” according

to the parameters x, y, z indicating the average number

of items in the transactions, the average number of

items in the large itemsets, and the number of transac-

tions in the database, respectively. A summarization

of the databases used in our experiments is outlined

in Table 1, in which the last two columns identify the

lower minimum threshold of the support used in the

experiments and the number of extracted patterns.

We carried out our tests on a dual core Athlon

4000+ running Windows XP. We assigned 1.5Gbyte

of memory to the Java Virtual Machine. Figures 5,

6, 7 and 8 report the performance obtained on the

datasets by varying the value of the minimum sup-

port. In order to have an idea of the performance of

XQuake, we compared its execution time on the three

real datasets with those obtained by running the well-

known Java-based Weka system

(Figures 5, 6 and 7).

The ﬁrst group of experiments shows good and

promising results. When the mining becomes hard,

XQuake outperforms Weka and the differences be-

tween the two implementations tend to increase with

respect to lower values of the minimum support

threshold. The scalability is also acceptable on artiﬁ-

cial datasets (Figure 8), on which the performance of

the algorithm resulted to be quite stable. The perfor-

http://archive.ics.uci.edu/ml/

www.almaden.ibm.com/cs/disciplines/iis/

http://www.cs.waikato.ac.nz/ml/weka

XQUAKE - An XQuery-like Language for Mining XML Data

Figure 5: Runtime comparison among XQuake and Weka

on the

census

dataset.

Figure 6: Runtime comparison among XQuake and Weka

on the

mushroom

dataset.

Figure 7: Runtime comparison among XQuake and Weka

on the

connect

dataset.

Figure 8: XQuake performance on the synthetic datasets.

mance overhead introduced by externalJava functions

integrated in XQuery is modest. This is conﬁrmed

by the graphs of Figures 3.2, 3.2 and 3.2, which re-

port the overall execution time on the test datasets as

a sum of: (i) the

initialization time

, i.e. the time to

compile the query and to prepare the data structures;

(ii) the

data iteration time

, i.e. the time to iterate over

the data several times, according to the number of cy-

cles of the Apriori; (iii) the

mining time

, i.e. the time

to update data structures at each iteration; (iv) an esti-

mation of the

overhead due to external functions

and

ﬁnally (v) the

serialization time

to produce the output.

The performance of the Apriori tends to worsen when

the number of generated patterns is very large - more

than 500,000 itemsets (Figure 3.2) . Such a behaviour

is mainly due to the context-switching overhead due

to their serialization.

4 FINAL REMARKS

4.1 Related Work

An important issue in DM is how to make all the het-

erogeneous patterns, sources of data and other KDD

objects coexist in a single framework. A solution

considered in the last few years is the exploitation

of XML as a ﬂexible instrument for IDBs (Meo and

Psaila, 2006; Romei et al., 2006; Euler et al., 2006;

Braga et al., 2003).

In (Meo and Psaila, 2006) XML has been used

as the basis on which a semi-structured data model

designed for KDD, called XDM, is deﬁned. In this

approach both data and mining models are stored in

the same XML database. This allows the reuse of pat-

terns by the inductive database management system.

The perspective suggested by XDM is also taken in

KDDML (Romei et al., 2006) and RapidMiner (Euler

et al., 2006). Essentially, the KDD process is mod-

eled as an XML document and the description of an

operator application is encoded via an XML element.

Both KDDML and XDM integrate XQuery expres-

sions into the mining process. For instance, XDM

encodes XPath expressions into XML attributes to se-

lect sources for the mining, while KDDML uses an

XQuery expression to evaluate a condition on a min-

ing model. In our opinion, XQuake offers a deeper

amalgamation with the XQuery language and conse-

quently a better integration among DM and XML na-

tive databases.

Finally, the XMineRule operator (Braga et al.,

2003) deﬁnes the basic concept of association rules

for XML documents. Two are the main differ-

ences with respect to XQuake. From the physical

point of view, XMineRule requires that the data are

mapped to the relational model and it uses SQL-

ICAART 2010 - 2nd International Conference on Agents and Artificial Intelligence

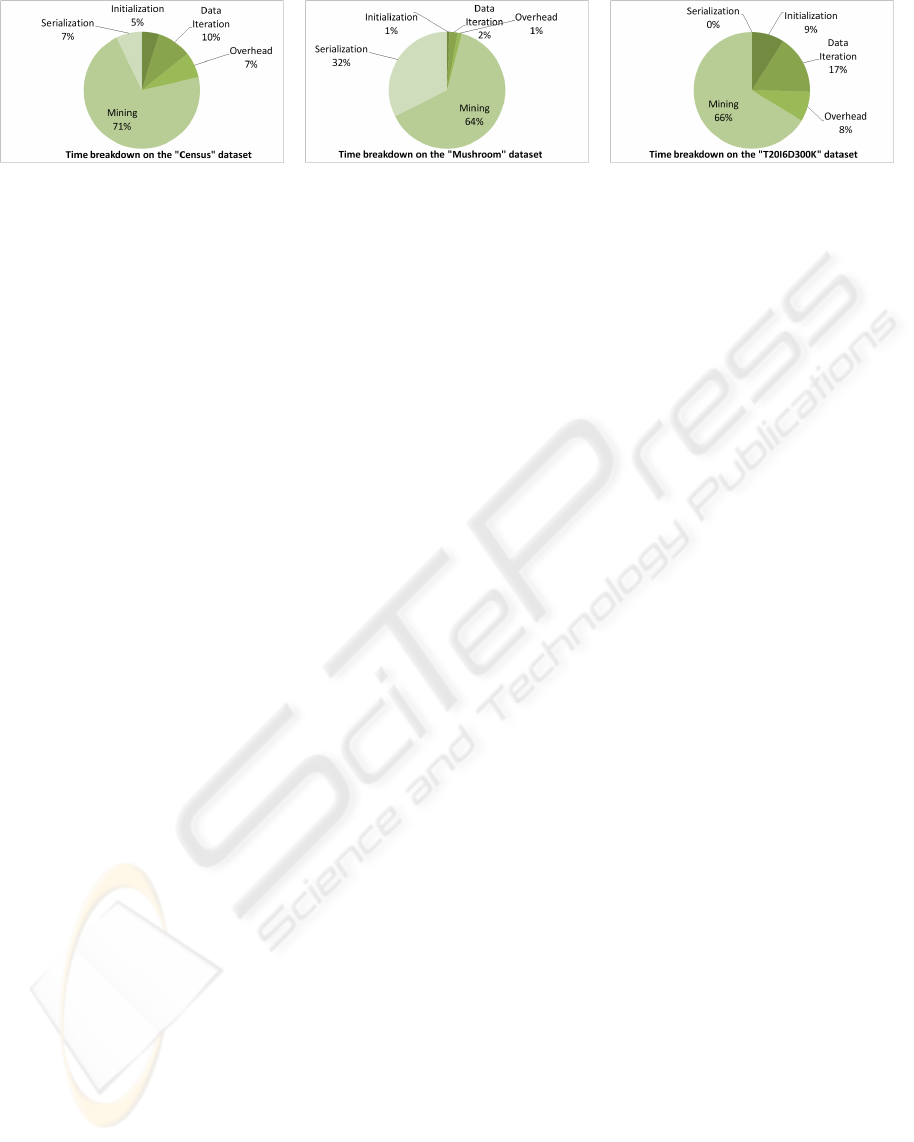

Figure 9: Time breakdown on the

census

dataset (a),

mushroom

dataset (b) and

T20I6D300K

dataset (c).

oriented algorithms to do the mining. Also the out-

put rules are translated into an XML representation.

As a consequence, the loosely-coupled architecture

of XMineRule makes it difﬁcult to use optimiza-

tions based on the pruning of the search space, since

constraints can be evaluated only at pre- or post-

processing time. From the semantics perspective,

items have an XML-based hierarchical tree structure

in which rules describe interesting relations among

fragments of the XML source (Feng and Dillon,

2004). In contrast, in our approach, items are denoted

by using simple structured data from the domains of

basic data types, favouring both the implementation

of efﬁcient data structures and the design of powerful

domain-speciﬁc optimizations evaluated as deeper as

possible in the extraction process. Domain knowledge

is linked to items through XML metadata elements.

4.2 Conclusions and Future Work

In this paper, we proposed a new QL as a solution to

the XML data mining problem. In our view, an XML

native database is used as a storage for KDD entities.

DM tasks are expressed in an XQuery-like language.

The syntax of the language is ﬂexible enough to spec-

ify a variety of different mining tasks by means of

user-deﬁned functions in the statements. These ones

provide to the user personalized sophisticated con-

straints, based, for example, on domain knowledge.

The ﬁrst empirical assessment reported in Section 3.2

exhibits promising results, even if only related to the

XML frequent itemsets mining problem.

Summing up, our project aims at a completely

general solution for DM. Clearly, the generality is

even more substantial in XML-based languages, since

no general-purpose XML mining language has been

yet proposed (at the best of our knowledge). An in-

teresting on-going work includes the exploitation of

ontologies to represent the metadata. As an example,

ontologies may represent enriched taxonomies, used

to describe the application domain by means of data

and object properties. As a consequence, they may

provide enhanced possibilities to constrain the mining

queries in a more expressive way. This opportunity is

even more substantial in our project, since ontologies

are typically represented via the Web Ontology Lan-

guage (OWL) (W3C World Wide Web Consortium,

2004), de facto an XML-based language.

REFERENCES

Agrawal, R. and Srikant, R. (1994). Fast algorithms for

mining association rules. In VLDB ’94, pages 487–

499, Santiago de Chile, Chile.

Braga, D., Campi, A., Ceri, S., Klemettinen, M., and

Lanzi, P. (2003). Discovering interesting information

in XML data with association rules. In SAC ’03, pages

450–454, Melbourne, Florida.

Euler, T., Klinkenberg, R., Mierswa, I., Scholz, M., and

Wurst, M. (2006). YALE: rapid prototyping for com-

plex data mining tasks. In KDD ’06, pages 935–940,

Philadelphia, PA, USA.

Feng, L. and Dillon, T. S. (2004). Mining Interesting XML-

Enabled Association Rules with Templates. In KDID

’04, pages 66–88, Pisa, Italy.

Holupirek, A., Gr¨un, C., and Scholl, M. H. (2009). BaseX

and DeepFS joint storage for ﬁlesystem and database.

In EDBT ’09, pages 1108–1111, Saint Petersburg,

Russia.

Imielinski, T. and Mannila, H. (1996). A database perspec-

tive on knowledge discovery. Comm. Of The Acm,

39(11):58–64.

Meo, R. and Psaila, G. (2006). An XML-based database for

knowledge discovery. In EDBT ’06, pages 814–828,

Munich, Germany.

Mitchell, T. M. (1997). Machine Learning. McGraw-Hill.

Romei, A., Ruggieri, S., and Turini, F. (2006). KDDML: a

middleware language and system for knowledge dis-

covery in databases. Data Knowl. Eng., 57(2):179–

220.

The Data Mining Group (2009). The Predictive

Model Markup Language (PMML). Version 4.0.

www.dmg.org/v4-0/GeneralStructure.html

W3C World Wide Web Consortium (2004). OWL Web On-

tology Language. W3C Recommendation 10 Febru-

ary 2004.

http://www.w3.org/TR/owl-features

W3C World Wide Web Consortium (2007). XQuery 1.0:

An XML Query Language. W3C Recommendation

23 January 2007.

http://www.w3.org/TR/Query

XQUAKE - An XQuery-like Language for Mining XML Data
