RISK ANALYSIS AND DEPLOYMENT SECURITY ISSUES

IN A MULTI-AGENT SYSTEM

Ambra Molesini, Marco Prandini, Elena Nardini and Enrico Denti

ALMA MATER STUDIORUM—Universit

a di Bologna, Italy

Keywords:

RBAC, MAS, Deployment, Risk analysis, Security engineering.

Abstract:

Multi-agent systems (MASs) are a powerful paradigm enabling effective software engineering techniques: yet,

it easily lets the designer be oblivious of the emergent security problems. This can be a critical issue, especially

when MASs are exploited as an infrastructure to provide secure services. This paper performs a security

analysis of such a scenario, identifying threats and assessing risks that could interfere with the achievement of

the application goal – e.g. access control – as a consequence of its MAS-based implementation.

1 INTRODUCTION

Access control is a key topic in the security area.

Building an access control system (Samarati and Cap-

itani de Vimercati, 2001) means deploying a theoret-

ically sound model on a structurally secure platform:

the former cannot be effective without the latter.

In this context, Multi-Agent Systems (MASs) are

ﬁnding interesting applications as providers of se-

curity functionalities. The ﬂexibility of the agent

paradigm proves very valuable in modelling the dif-

ferent aspects of security schemes, accurately captur-

ing the concepts needed for achieving a robust de-

sign at the most appropriate abstraction levels. On

the other hand, a MAS needs a complex underlying

infrastructure, whose intrinsic security is fundamental

for the correct behaviour of agents, and for the correct

implementation of the policy to be enforced.

Various solutions exist (Yamazaki et al., 2004;

Bordini et al., 2006; JADE, 2005) for the design of

MAS-supporting platforms and for exploiting a MAS

as a security provider, but the ﬁeld of their security as-

sessment is largely unexplored. We acknowledge that

a layered approach is key to the proper engineering of

complex systems, yet we claim that the existing lit-

erature fails to capture the peculiar security needs of

MASs when exploited as security providers.

In this work, we analyse a previously proposed ac-

cess control system (Section 2) to assess whether its

peculiar MAS-based implementation affects the abil-

ity of the system to reliably pursue its ultimate goal.

The attack sources fall into three broad layers: the

users; the system, implementing the access control

policies; and the infrastructure, supporting the MAS.

After shortly reporting on related works (Subsec-

tion 2.1), this paper ﬁrst carries out a systematic risk

analysis of the ﬁrst two layers (Section 3), then anal-

yses the advantages and drawbacks of different place-

ment strategies (Section 4), emphasising the impact

of deployment choices on the opportunity for attacks

and their effects. Conclusions follow in Section 5.

2 BACKGROUND

In order to highlight the key aspects concerning the

deployment issues in a secure MAS, we take the ac-

cess control to a building as our reference. This

choice is effective both because the access control

problem has been widely studied in the literature

(Samarati and Capitani de Vimercati, 2001), and be-

cause the access to some kind of building is at the

same time simple enough to make most aspects clear,

and not-so-trivial enough to expose most of the key

aspects we mean to address. In particular, (Molesini

et al., 2009) considers the case of a university build-

ing: roles, situations and policies are therefore tai-

lored to the speciﬁc university environment, but this

does not limit its generality, since a clear separation

was adopted between the access policy, and the hard-

ware & software mechanisms exploited to enforce

such rules. Accordingly, since our interest concerns

the deployment issues, we shortly report only the out-

come of the mechanism design.

The global mechanism was conceived as com-

143

Molesini A., Prandini M., Nardini E. and Denti E. (2010).

RISK ANALYSIS AND DEPLOYMENT SECURITY ISSUES IN A MULTI-AGENT SYSTEM.

In Proceedings of the 2nd International Conference on Agents and Artiﬁcial Intelligence - Agents, pages 143-148

DOI: 10.5220/0002704201430148

 SciTePress

posed of two complementary sub-mechanisms, one

controlling the access to the whole building (Fig-

ure 1, top) and another for the single room/ofﬁce

department—just “room” in the following (Figure 1,

bottom). Both mechanisms were designed exploiting

Agents and Artifacts (A&A) (Omicini et al., 2006)

building blocks: agents were used for the system’s

active part, and artifacts for the system resources.

building

room

User

Artifact

Interface

Artifact

Building-State

Artifact

User Manager

Access Manager

Admin

Artifact

Interface

Artifact

R-Access Manager

User-room

Artifact

Appointment

Artifact

Room-Admin

Artifact

Room Manager

event

uses

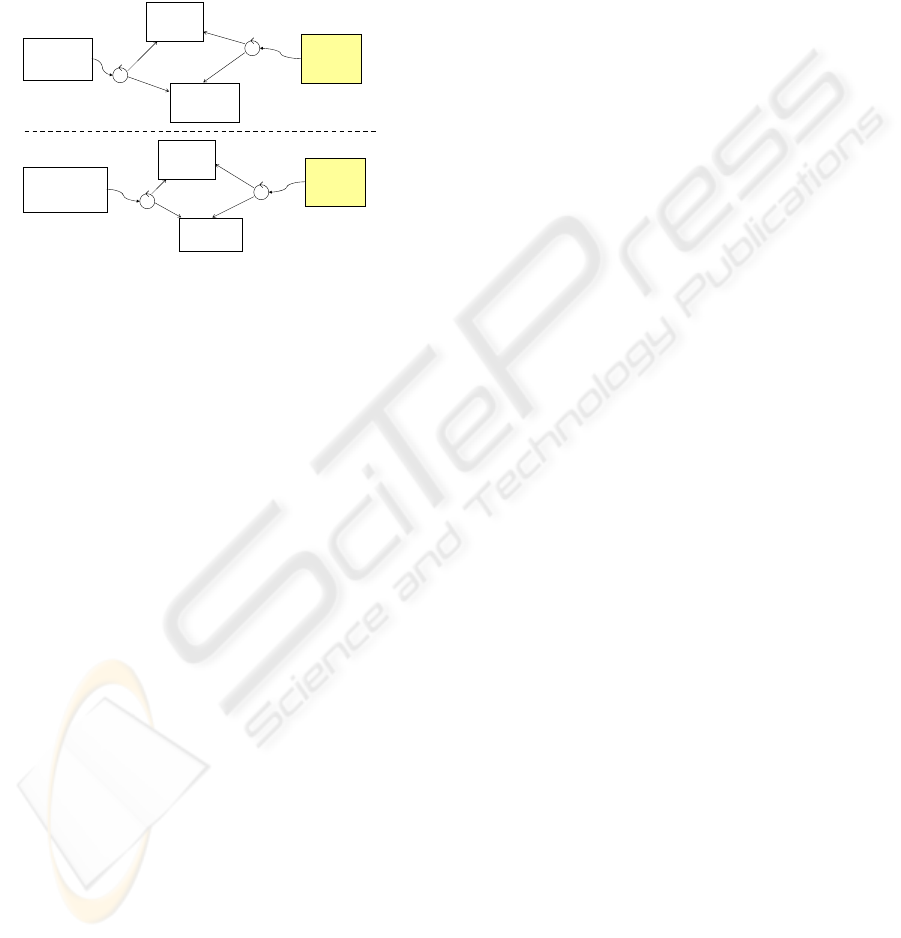

Figure 1: Access control mechanisms for the whole build-

ing (top) and the room (bottom) (Molesini et al., 2009).

There, “Interface Artifacts” represent the wrap-

pers to the hardware resources which acquire the user

credentials: there is one such artifact for each hard-

ware device that monitors the building physical access

points, plus one further Interface Artifact for each

room. Interface Artifacts generate an event when-

ever a user enters the place they control: such events

are then handled by “Access Manager” agents (for the

whole building) and “Room-Access Manager” agents

(for each room). Such agents exploit further artifacts

– the “User Artifact” and the “User-room Artifact” –

to check if the user can access the building/room: if

so, the state of the “Building-State Artifact”, which

traces the people inside the building, is updated ac-

cordingly. Moreover, to grant room access also to

occasional users who have an appointment with staff

people, the “Appointment Artifact” is introduced to

store the list of the appointments for a given room.

User Artifacts and User-room Artifacts store all

the roles permanently qualiﬁed to access the cor-

responding place along with their access privileges,

thus providing the knowledge base needed to decide

whether an access is to be granted or not.

Users authorised to enter the building are managed

by the “User Manager” agent, while users authorised

to enter a room are managed by the “Room Manager”

agent: both perceive the events generated by the “Ad-

min Artifact” or by the “Room-Admin Artifact”, re-

spectively, which represent the interface between the

human administrator and the mechanism itself.

2.1 Related Work

Some recent research work is reported in the literature

about software engineering techniques for capturing

security issues in the software development process.

In particular, (Lodderstedt et al., 2002) introduces a

methodology based on SecureUML which supports

the speciﬁcation of access control policies. Although

this work makes an important integration effort, it is

mainly focused on the process design stage: other as-

pects which still affect the software development pro-

cess from the early stages are not considered— nor

is there any reference about the system deployment

and how the chosen deployment could impact on the

reliability of the resulting system.

In the MAS ﬁeld, integrating security in the devel-

opment process is largely an unexplored area: one of

the main contribution is represented by (Mouratidis

and Giorgini, 2007), which proposes an extension of

the Tropos methodology (Bresciani et al., 2004) to ad-

dress security concerns, but risk analysis and system-

deployment concerns are not explicitly considered.

In addition, in (Liu et al., 2002) authors present an

approach for the analysis of security requirements for

MAS development: yet, this work does not consider

risk analysis explicitly.

3 RISK ANALYSIS

Risk analysis is a part of the more general process

called “Security risk assessment and management”

(Sommerville, 2007), where risk analysis should start

from the identiﬁcation of the system’s assets—i.e.,

the system resources to be protected because of their

value. So, ﬁrst of all we have to determine the value

of each asset inside the system, as well as its expo-

sure, which represents the possible loss or harm that

results from a successful attack (Sommerville, 2007).

Figure 2 reports the assets identiﬁed in our case

study (presented in Section 2), along with their val-

ues and exposures. Assets are divided in three cate-

gories: artifacts (top), agents (middle), and what we

call the “real world” (bottom), that is, the physical

devices and the infrastructure where the software sys-

tem will be deployed. Apparently, Figure 2 reports

only the “material” assets, such as software and phys-

ical entities, while the “immaterial” assets – i.e., data

such as the users’ credentials and proﬁles – seem not

to be taken into account. The reason is that immate-

rial data are considered indirectly: since the system

is developed using the A&A metaphors, any exter-

nal resource is wrapped by some suitable artifact—

including the system’s data.

ICAART 2010 - 2nd International Conference on Agents and Artificial Intelligence

144

Asset Value Exposure

Interface Artifact high medium

Admin Artifact high high

User Artifact high high

Building-State Artifact low low

Room-Admin Artifact high high

User-room Artifact high high

Appointment Artifact medium medium

User Manager high high

Access Manager high high

R-Access Manager high high

Room Manager high high

Physical Device high high

Infrastructure high high

Figure 2: System’s assets.

So, since in our case study the system’s data are

accessible only through artifacts, attackers have to

force the artifacts in order to steal or modify such

data. However, one must be aware that this is a crit-

ical aspect: in fact, artifacts were introduced in open

and dynamic systems, where agents can join the MAS

and discover the services provided by artifacts sim-

ply thanks to the artifact’s “inspectability” property,

which allows agents to inspect the state of an artifact

and its content (Omicini et al., 2006). This is the rea-

son for the high value and exposure levels assigned

to some artifacts in Figure 2 – namely, to the Admin

Artifact, the Room-Admin Artifact, the User Artifact,

and the User-room Artifact – as they wrap the most

sensitive application data.

The next step in the risk analysis process is threat

identiﬁcation (Sommerville, 2007), Threats can be di-

vided into two different classes: (i) fortuitous events,

such as earthquakes, ﬂooding, storms, etc., and (ii)

deliberate attacks, such as snifﬁng, spooﬁng, etc. For

the sake of simplicity, we assume here that all the for-

tuitous events can be viewed as different examples of

physical devices damaging.

Now the probability that a threat actually materi-

alised as an attack has to be estimated. Figure 3 shows

threats and probabilities for our case study, divided in

three categories based on the threatened application

layer: threats to users (top), threats to software enti-

ties (middle), and threats to physical devices.

Perhaps surprisingly, one might note that we did

not report the threats to the infrastructure level: this

was done intentionally, just because infrastructural se-

curity issues are so wide to require a speciﬁc investi-

gation, which is outside the scope of this paper.

The probabilities of the threats belonging to the

ﬁrst and third categories are expressed as single val-

Threat Probability

Stealing admin credential low

Stealing user credential high

Personifying user high

Social Engineering high

Introducing malicious agent medium - high

Disappearing agent medium - high

Agent bugs high

Modifying agent code low - medium

Tampering artifact data high - very high

Snifﬁng artifact data high - very high

Artifact bugs high

Replacing artifact medium - high

Men in the middle medium - high

Snifﬁng communication medium - high

Damaging physical device high

Figure 3: System’s threats.

ues (Figure 3), as they are independent from the spe-

ciﬁc system deployment that will be chosen at the end

of the system design phase. Instead, the threats of the

second category are expressed as a range of probabil-

ity values, as they strictly depend on the speciﬁc sys-

tem deployment. In fact, the locus where an artifact

or an agent will be allocated affects both the protec-

tion of the communications and the mechanisms that

are required for the artifact’s / agent’s protection. The

only exceptions in this category are the “Agent bugs”

and “Artifact bugs”, which are not tied to to the de-

ployment of the software entities.

Two threats in Figure 3, “Tampering artifact data”

and “Snifﬁng artifact data”, assume very high val-

ues of probability: this is because they threaten the

most valuable system assets (see Figure 2)—i.e., the

artifacts. In addition, the probabilities of such two

threats are also conditioned by the probabilities of

other threats such as “Introducing malicious agent”

or “Modify agent code”, because of the risk of mis-

using the artifact’s inspectability property. If, for in-

stance, a malicious agent is introduced in the system,

the inspectability of “User Artifact” or “Admin Arti-

fact” could in principle allow such agent to steal the

user credentials. In the same way, if the code of an

agent has been changed, the agent could behave as a

malicious agent and possibly steal or corrupt the sys-

tem data. Of course, not all of the artifacts in the sys-

tem are so critical: for instance, the “Building-State

Artifact” does not contain any specially-critical data.

Finally, Figure 4 reports for each asset the set of

threats that could be exploited by an attacker. This

ﬁgure highlights the inter-dependencies between the

artifact’s threats and the “agent asset”: for instance,

RISK ANALYSIS AND DEPLOYMENT SECURITY ISSUES IN A MULTI-AGENT SYSTEM

145

if the “Replacing artifact” threat becomes active, the

new artifact introduced in the system could provide

wrong information to agents, leading them to behave

in an unpredictable way (see bullets in the whole line).

4 DEPLOYMENT ISSUES

Our aim in this section is to investigate the issues de-

signers have to face when they have to determine the

best deployment for a system. In order to discuss

the different deployment strategies, we assume that

infrastructures exhibit the same basic set of concepts:

Nodes — logical loci where agents and artifacts can

be allocated.

Artifacts — passive components of the systems, that

are constructed, shared, manipulated, and used by

agents to support their activities; artifacts are clas-

siﬁed as: resource artifacts – wrap external re-

sources (see Section 3) –; social artifacts – me-

diate between two or more agents in a MAS – ;

individual artifacts—mediate between an individ-

ual agent and the environment

Agents — pro-active components of the systems.

The different deployment choices stem from the

simple consideration that increasing the complexity

of a component yields the opportunity for more so-

phisticated security measures, but also broadens the

spectrum of possible attack paths and failure modes.

In the following, we present the general deploy-

ment issues tied respectively to the artifacts (Subsec-

tion 4.1) and the agents (Subsection 4.2) metaphors,

then we discuss strengths and drawbacks of two dif-

ferent deployment strategies (Subsection 4.3).

4.1 Artifacts Security Deployment

Issues

Risk analysis (Section 3) showed that artifacts are

valuable assets, consequently, their deployment is

critical from the security viewpoint.

In particular, resource artifacts abstract the func-

tions and behaviours of devices. Where possible, the

deployment of the artifact on the device it controls

should have a smart device as a result. The smart de-

vice enjoys the useful properties of artifacts such as

openness. On the ﬂip side, openness can also mean

more easy access for potential attackers, so the node

where the smart device is allocated should be pro-

tected in order to prevent possible artifact tampering,

replacement and snifﬁng. In addition, the designer

should foresee mechanisms for protecting the physi-

cal devices, so that the “artifacts corruption” does not

automatically damage the integrity and conﬁdentiality

of the controlled devices.

Social artifacts are the core of interactions: agents

use them for communicating with each other, their de-

ployment is critical and should take into account all

the measures to ensure that they remain trusted.

Finally, individual artifacts both equip agents with

all the protocols they can adopt for interacting in a

particular society, and rule the agent behaviour. Even

if individual artifacts do not play a crucial role in our

speciﬁc case study, in general their deployment is par-

ticularly critical, since the corruption of this kind of

artifact could allow a malicious agent to misbehave.

4.2 Agent Security Deployment Issues

In a system developed according to the A&A meta-

model, only agents can take proactive security mea-

sures, for instance as a consequence of a suspicious

activity against the artifacts or the controlled devices.

A smart device then can be made even smarter by

slightly modifying the proposed model so as to in-

troduce device manager agents, that exploit “local in-

telligence” to detect and promptly face dangerous sit-

uations, both of malicious source (e.g. by intrusion

detection and prevention functionalities) and of acci-

dental nature (e.g. implementing fail-secure/ fail-safe

policies). To some extent, the deployment of build-

ing access managers as closely as possible to the re-

lated interface artifacts can bring similar advantages,

at least acting as a system-level barrier that helps

blocking the spreading of problems out of the phys-

ical and logical context where they appeared.

However, the agents present several vulnerabili-

ties and are subject to different threats (Figure 4). In

particular, their autonomy, pro-activity and learning

capabilities could also act as drawbacks from the se-

curity view point, since these properties restrict the

designer’s control on the agent execution ﬂow. Other

malicious agents and corrupted artifacts can induce

data-driven agent misbehaviour.

4.3 Deployment Conﬁgurations

In this section our aim is to understand how issues

presented in the previous Subsections can be resolved

or reduced, and what is the role of the risk analysis

during the deployment design.

For the sake of brevity, we restrict our deployment

analysis to the sub-mechanism (Section 2) for the ac-

cess to the whole building, since the architectures of

the two sub-mechanisms are very similar.

First of all we need to analyse the “deployment

requirements” coming from the physical world. For

ICAART 2010 - 2nd International Conference on Agents and Artificial Intelligence

146

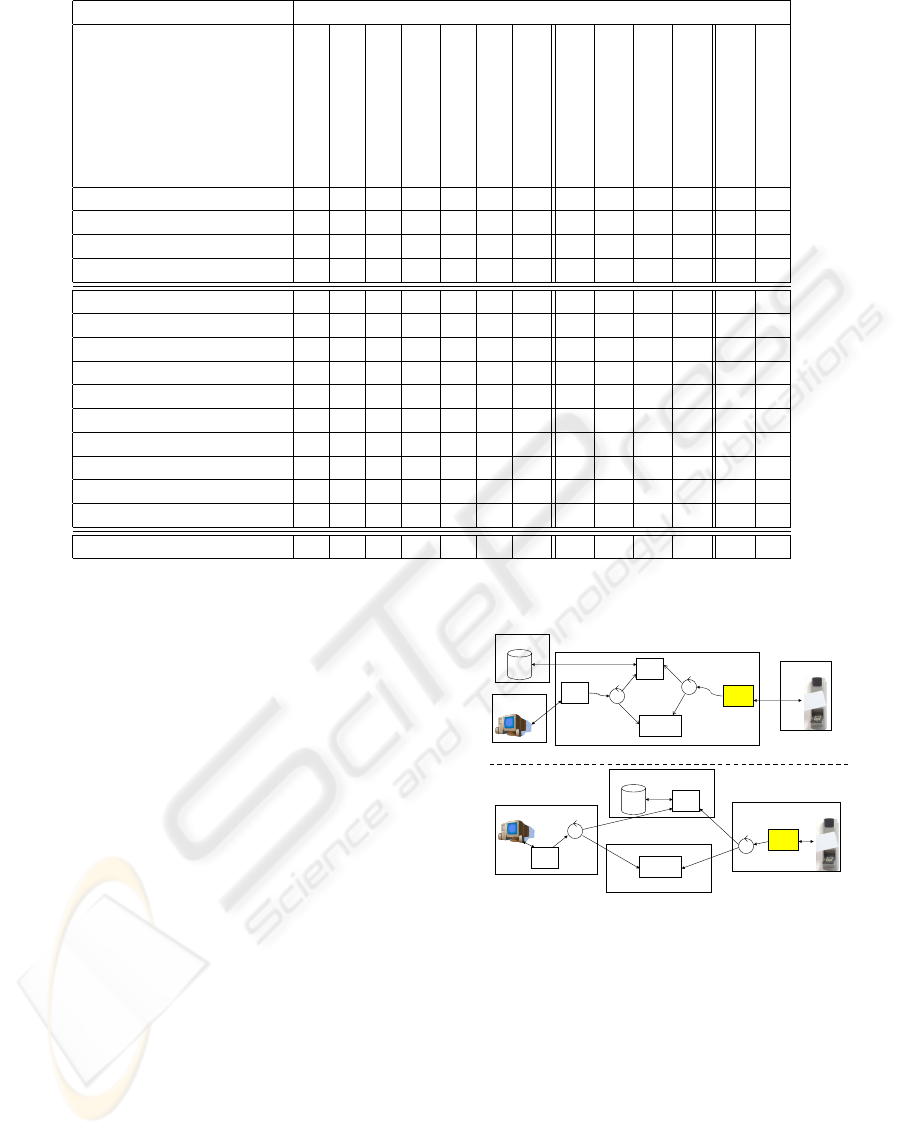

Threat Asset

Interface Artifact

Admin Artifact

User Artifact

Building-State Artifact

Room-Admin Artifact

User-room Art.

Appointment Artifact

User Manager

Access Manager

R-Access Manager

Room Manager

Physical Device

Infrastructure

Stealing admin credential * * *

Stealing user credential * * * *

Personifying user * * * * * *

Social Engineering * * * * * * *

Introducing malicious agent * * * * * * * * * * *

Disappearing agent * * * *

Agent bugs * * * *

Modifying agent code * * * * * * * * * * *

Tampering artifact data * * * * * * *

Snifﬁng artifact data * * * * * * *

Artifact bugs * * * * * * *

Replacing artifact * * * * * * * * * * *

Men in the middle * * * * * * * * * * * *

Snifﬁng communication * * * * * * * * * * * *

Damaging physical device * * *

Figure 4: Threats for each asset.

sake of simplicity we can consider four logical nodes

– each of these nodes can have one ore more phys-

ical counterparts, we see below how to manage this

situation – labelled Node 1, Node 2, etc. The physical

resources, i.e., the device capturing the user creden-

tial, the administrator position, and the database are

respectively allocated in Node 2, Node 3 and Node 4.

In addition, let us suppose that the protection of these

devices is realised at the infrastructural level, since

here we focalise only the MAS security deployment.

In Figure 5, we propose two different deployment

conﬁgurations that represent the two extremes in the

range of all possible conﬁgurations. In particular Fig-

ure 5 part a) presents a centralised MAS deployment

since all the sub-mechanism software entities are al-

located in the Node 1, while part b) presents a totally

distributed MAS deployment.

The centralised deployment is apparently more

convenient in terms of protection mechanisms be-

cause it is sufﬁcient to build a “secure boundary”

around Node 1 to protect the communication chan-

nels among nodes in order to obtain a “secure” sys-

tem. However, starting from the risk analysis results

in Section 3 and analysing this conﬁguration we can

note that the MAS asset’s exposures are all, equally

increased, since the compromission of a single soft-

ware entity means that the secure boundary of Node

User

Artifact

Interface

Artifact

Building-State

Artifact

Access

Manager

Admin

Artifact

event

uses

User

Manager

Node 1

Node 2

Node 3

Node 4

Node 2

Access

Manager

event

User

Artifact

Node 4

uses

Node 1

Building-State

Artifact

uses

Admin

Artifact

event

User

Manager

Node 3

uses

Interface

Artifact

Figure 5: Centralised and distributed deployments.

1 is broken. In addition, also the threat probabilities

(Figure 3, middle) regarding the assets eventually in-

crease, since an attacker will try to force Node 1 for

accessing the system, whereas he threat probabilities

regarding the intra-MAS communications decrease,

since these communications occur inside the secure

boundary of Node 1. This conﬁguration is only appar-

ently simpler, security-wise, because the chosen pro-

tection mechanisms should be suitable for protecting

the more valuable asset – such as the “User Artifact”

– but the costly, effective countermeasures have to be

sized to protect the whole Node 1, including less valu-

RISK ANALYSIS AND DEPLOYMENT SECURITY ISSUES IN A MULTI-AGENT SYSTEM

147

able assets such as the “Building-State Artifact”.

The distributed deployment conﬁguration seems

indeed more expensive from the protection mecha-

nisms viewpoint, since all the system entities and the

communication channels need to be protected.

However, this conﬁguration makes it possible to

decouple the exposures level of assets, choosing the

most suitable protection mechanism for each: this

is why the exposure levels for this conﬁguration are

the same as in Figure 2. In addition, this deploy-

ment could lead to reduce the inter-dependency be-

tween threat probabilities: for instance, if the ar-

tifact controls the identity of the requesting agent

and adopts secure channels and cryptographic algo-

rithms, the threats to agents are decoupled from the

threats to artifact and vice versa. Of course, this con-

ﬁguration presents higher probability values associ-

ated with intra-MAS communication than in the cen-

tralised scenario, since the communications between

entities always occur between network nodes, expos-

ing the vulnerabilities related to the interactions.

As a result, the distributed conﬁguration seems

more appealing than the centralised one, the key deci-

sion element being the former’s resiliency: the com-

promission of one node does not automatically im-

plies the compromission of the whole system.

Once a “deployment architecture” is chosen for

the base scenario, it also inﬂuences the way risk

analysis is updated when the scenario changes. So,

the choice of a deployment conﬁguration should be

guided by the ﬁndings of an accurate risk analysis, but

it also affects the way the risk analysis itself evolves

with the system.

5 CONCLUSIONS

In this paper we explored the topic of security assess-

ment in a MAS, taking a MAS-based access control

system as our reference. We performed a detailed risk

analysis then, we studied how the deployment choices

can inﬂuence the opportunity for attacks and the ef-

fects of their success. From the viewpoint of the soft-

ware development lifecycle, the deployment analysis

we performed can be situated at the end of the design

phase as the purpose of this study is precisely to iden-

tify the “most adequate” deployment strategy in terms

of security assessment.

Of course, our work is just the starting point of

the story. Much broader research is needed to de-

vise a general model of the security requirements for

MAS-based systems: in turn, this will open the way

towards the integration of security aspects into a suit-

able agent-oriented design methodology. Further in-

vestigations are also required concerning the security

issues at the infrastructural level, since the role of the

MAS infrastructures is becoming more and more rel-

evant in the whole MAS development process.

REFERENCES

Bordini, R., Braubach, L., et al. (2006). A survey of pro-

gramming languages and platforms for multi-agent

systems. Informatica, 30:33–44.

Bresciani, P., Perini, A., et al. (2004). Tropos: An agent-

oriented software development methodology. AAMAS

Journal, 8(3):203–236.

JADE (2005). Jade.tilab.com/doc/tutorials/JADE Security.pdf.

Liu, L., Yu, E., and Mylopoulos, J. (2002). Analyzing se-

curity requirements as relationships among strategic

actors. Raleigh, North Carolina. electronic note.

Lodderstedt, T., Basin, D. A., et al. (2002). SecureUML: A

UML-based modeling language for model-driven se-

curity. In Proc. 5th Int. Conf. on The Uniﬁed Modeling

Language, pages 426–441, London, UK. Springer.

Molesini, A., Denti, E., and Omicini, A. (2009). RBAC-

MAS & SODA: Experimenting RBAC in AOSE. In

Engineering Societies in the Agents World IX, volume

5485 of LNCS. Springer.

Mouratidis, H. and Giorgini, P. (2007). Secure tropos: A

security-oriented extension of the tropos methodol-

ogy. International Journal of Software Engineering

and Knowledge Engineering, 17(2):285–309.

Omicini, A., Ricci, A., and Viroli, M. (2006). Agens Faber:

Toward a theory of artefacts for MAS. ENTCSs,

150(3):21–36.

RBAC (2004). http://csrc.nist.gov/rbac/.

Samarati, P. and Capitani de Vimercati, S. (2001). Access

control: Policies, models, and mechanisms. In Foun-

dations of Security Analysis and Design, volume 2171

of LNCS, pages 137–196. Springer.

Sommerville, I. (2007). Software Engineering 8th Edition.

Addison-Wesley.

Viroli, M., Omicini, A., and Ricci, A. (2007). Infrastructure

for RBAC-MAS: An approach based on Agent Co-

ordination Contexts. Applied Artiﬁcial Intelligence,

21(4–5):443–467.

Yamazaki, W., Hiraishi, H., and Mizoguchi, F. (2004). De-

signing an agent-based rbac system for dynamic secu-

rity policy. In Proc. 13th IEEE Int. Workshops on En-

abling Technologies (WETICE’04), pages 199–204,

Washington, DC, USA. IEEE CS.

ICAART 2010 - 2nd International Conference on Agents and Artificial Intelligence

148
