INVOLVING WEB-TRADING AGENTS & MAS

An Implementation for Searching and Recovering Environmental Information

L. Iribarne, N. Padilla, J. A. Asensio, F. Muñoz and J. Criado

Applied Computer Group, University of Almeria, Spain

Keywords: Software agents, Web-trading, Ontology, MAS, WIS, EMS.

Abstract: The Web-based Information Systems appear to facilitate the access of user(s) to different kind of informa-

tion geographically distributed in different regions (both data and users). In a web system, we have the pos-

sibility to use components called traders that improve the interoperability with agents or even trading sys-

tems. This paper describes details for a Web Trading Agent in a Multi-Agent System, which implements a

distributed information system, called SOLERES. Besides, it presents the communication system based on

ontologies through which the system agents communicate with each other and with the trading agent inside

the SOLERES system (i.e., an Environmental Management System). This architecture is based on a “Query-

Searching/Recovering-Response” model. For the implementation it uses: an interface user agent and the

trader agent, “processes” ontologies for the agent communication, “data” ontologies for the information sto-

rage, SPARQL notation for queries and the JADE platform for the implementation.

1 INTRODUCTION

Web-based Information Systems (WIS) are an exam-

ple of distributed information systems that facilitate

the information access, decision-making, etc. (Ly-

tras, 2005). WIS facilitates the access of users to dif-

ferent kind of information geographically distributed

in different regions (both data and users). In this

type of system, interactions are made between

“agents” of the system (Web components, subsys-

tems, humans) working in the same ambient (com-

puting space), or even through trading agents (i.e.,

mediation components).

Mediation components (i.e., traders) enrich the

component interoperability in WIS, so system agents

must use a common vocabulary to allow the com-

munication between them. This interaction is for-

mally defined by means of ontologies.

Environmental Management Systems (EMS) are

an example of WIS. In this kind of information sys-

tems, the software agents are applied in four differ-

ent contexts:

(a) information management context: for searching,

filtering, recovering and spreading information;

(b) in control and supervision processes context:

monitoring an element or an activity;

text: to flow information for the member inte-

raction; and

(d) as personal assistants: to represent a user if he

knows his preferences beforehand.

The SOLERES system (a spatio-temporal envi-

ronmental management system based in neuronal

networks, agents and software components; availa-

ble at http//:www.ual.es/acg/soleres) is our particular

EMS system, which follows a WIS approach. This

system has been designed inside a Multi-Agent Sys-

tem (MAS) based on a trader agent paradigm (Asen-

sio et al., 2008). The implementation follows a

“QuerySearching/RecoveringResponse” model, and

it uses:

(a) an interface user agent and a trader agent,

(b) “processes” ontologies for the agent communi-

cation,

(d) SPARQL notation for queries and,

(e) the JADE platform for the implementation.

In the next section we will present a review of

the SOLERES system, and specifically the web trad-

ing agent, showing some communication implemen-

tation details by using Multi-Agent System ap-

proaches (Shiyong et al., 2007) (Tweedale et al.,

2007

). After that, we conclude the paper with some

future work.

268

Iribarne L., Padilla N., Asensio J., Muñoz F. and Criado J. (2010).

INVOLVING WEB-TRADING AGENTS & MAS - An implementation for Searching and Recovering Environmental Information.

In Proceedings of the 2nd International Conference on Agents and Artiﬁcial Intelligence - Agents, pages 268-273

DOI: 10.5220/0002705202680273

 SciTePress

2 SOLERES TRADING SERVICE

SOLERES follows a “QuerySearching / Recoverin-

gResponse” model (QS/RR) for the implementation

of the web-based trading agent using four contexts

(Figure 1) (Russ and Jones, 2006). On this model,

the queries made by a user are interpreted by using

the interface agent, which interacts with the user in-

terface and performs the query to the SPARQL lan-

guage. The monitoring process is made by the con-

trol agent named “IMIAgent” which receives the

query. This intermediary agent asks the trader agent

(“TradingAgent”) to find out the data localization

(searching). Later, the intermediary agent recovers

the information (recovering) through the resource

agent and replies to the interface agent which made

the query (response).

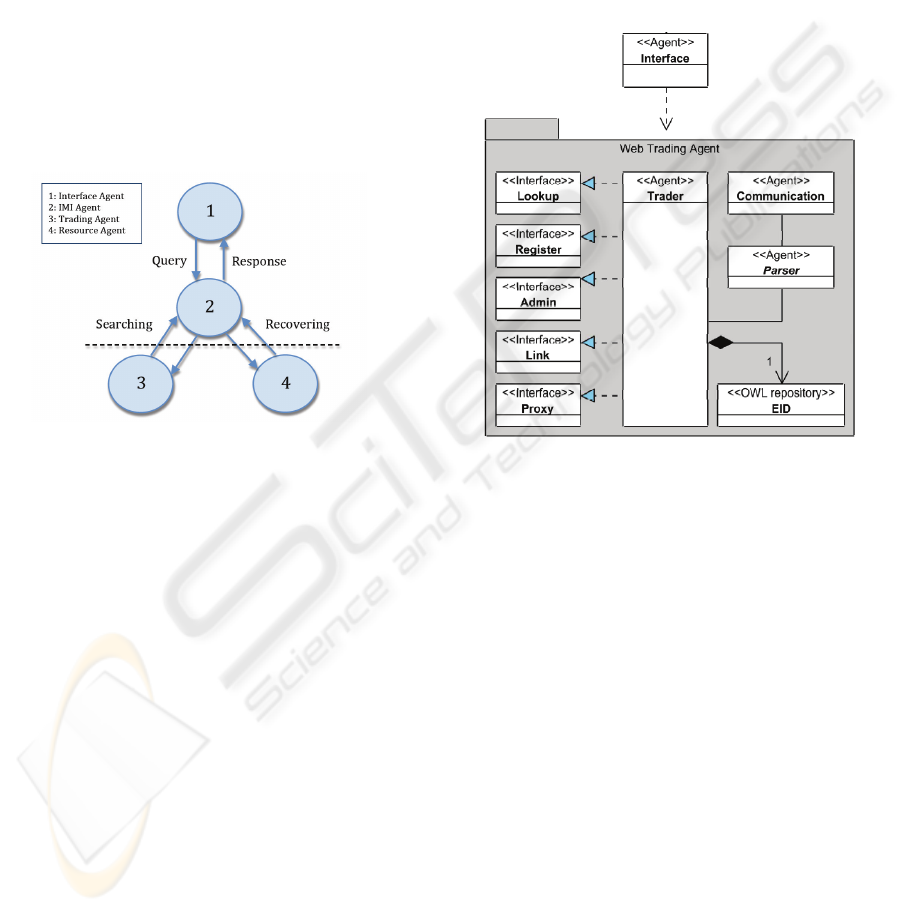

Figure 1: QuerySearching/RecoveringResponse Paradigm.

In an object-oriented programming (OOP) view,

a trading service (trader) is a software object that

serves as a mediator between objects providing cer-

tain capacities (exporters) and objects requiring a

dynamical use of these capacities (importers).

A trading object (ISO/IEC, 1996) uses five inter-

faces for the interaction with client objects (expor-

ters and importers): Register: allows clients to ex-

port service offers in the trader. Lookup: allows

clients to inquire trader about the service offers

stored in the trading service. Link: allows the trader

to be connected to other traders for the propagation

of request in a network. Admin: allows administra-

tors to configure the trader. Proxy: is used to allow

legacy systems properties in federated trader system.

In our work, we use traditional traders’ behavior

(ISO/IEC, 1996) (Iribarne et al., 2004) to adapt it in

order to replace objects (or software components) by

software knowledge-based agents. We use the JADE

platform for the MAS implementation of SOLERES,

since it simplifies the process through a middleware

and provides a tool set as support for checking and

debugging. Besides, the system manages two kinds

of ontologies, both of them written in OWL format:

data and functional. The first type is used to

represent the environmental information stored in

the documents of the trader. The second one is re-

ferred to the trader functionality, that is, the agent

tasks.

The trading service represents the main agent in

the SOLERES system architecture. As we can see in

the Figure 2, basically two mainly components take

part in the model: the user or user group represented

by an interface agent, and the trading service which

has the access to the information.

Figure 2: Web Trading Agent architecture.

3 IMPLEMENTATION DETAILS

The implementation follows the QS/RR model, in

which appear two roles basically. These roles are the

client and the server, having in mind that server will

be waiting the reception of query messages sent by

clients, solving next them and answering with the re-

sultant information to the clients.

In our system, these roles have been developed

by means of two agent objects: “AppletAgentQI”

and “TraderAgent” in Figure 3. The first one is cre-

ated from the class “ClientContainer” and the second

one from the class “ServerContainer”, being both of

them an “AgentContainer” agent class. These con-

tainers are created by the launcher classes “QIAp-

plet” and “Trader”, respectively. Besides, in our sys-

tem exist: the “SPARQLParser” (an agent for trans-

lating the interface queries to SPARQL), the inter-

face “Lookup” (one interface of the trader) and the

EID repository (i.e., the OWL repository containing

de metadata information of the system).

INVOLVING WEB-TRADING AGENTS & MAS - An implementation for Searching and Recovering Environmental

Information

269

<<Agent>>

AppletAgentQI

<<Applet>>

QIApplet

<<JFrame>>

<<Agent>>

SPARQLParser

<<AgentContainer>>

ClientContainer

<<AgentContainer>>

ServerContainer

<<main>>

Trader

<<Agent>>

TraderAgent

<<Interface>>

Lookup

<<OWL repository>>

EID

<<use>>

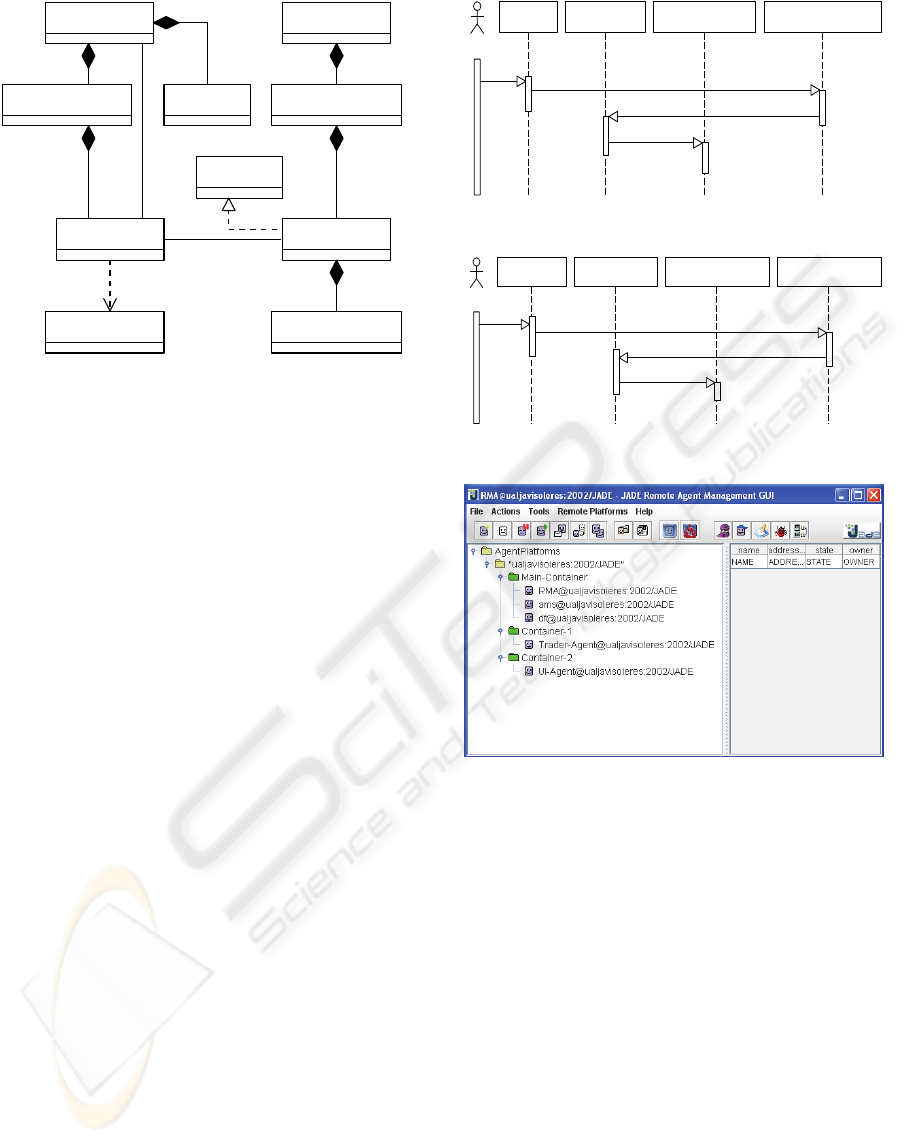

Figure 3: Class diagram of the example.

To execute the example, it is necessary to follow

the next steps. First, we must execute the server

process on the computer containing the hosting ser-

vice. This process will create the agent into an agent

container of the JADE platform, which (“Trader-

Agent”) will initialize its behaviour waiting for re-

sponse sub-behaviour for the query messages (Fig-

ure 4). On the other hand, each user will access to

our application through a web page. This web page

will initialize an applet that represents the user inter-

face. The applet creates an interface agent and adds

its behaviour (Figure 5).

Once we have launched both processes, both

agents are created living in a JADE Platform and

contained in an independent container (Figure 6).

This feature allows us to check the communication

between users executing the application in different

places, by means of sending and receiving messages

from autonomous containers and JADE Platform.

Figure 7 describes the communication query

process of the web trading agent, since the client

user or the client user group have finished the query

in the query user interface until results are shown.

In this implementation example, two main agents

appears in the process, i.e., an interface agent (“Ap-

pletQIAgent”) and a trader agent (“TraderAgent”),

using the Lookup ontology to establish the commu-

nication. It is necessary to emphasize that the exam-

ple does not implement the monitoring agent (“IM-

IAgent”) to simplify the query process.

Query process follows the next steps. The client

user builds the query making use of the user inter-

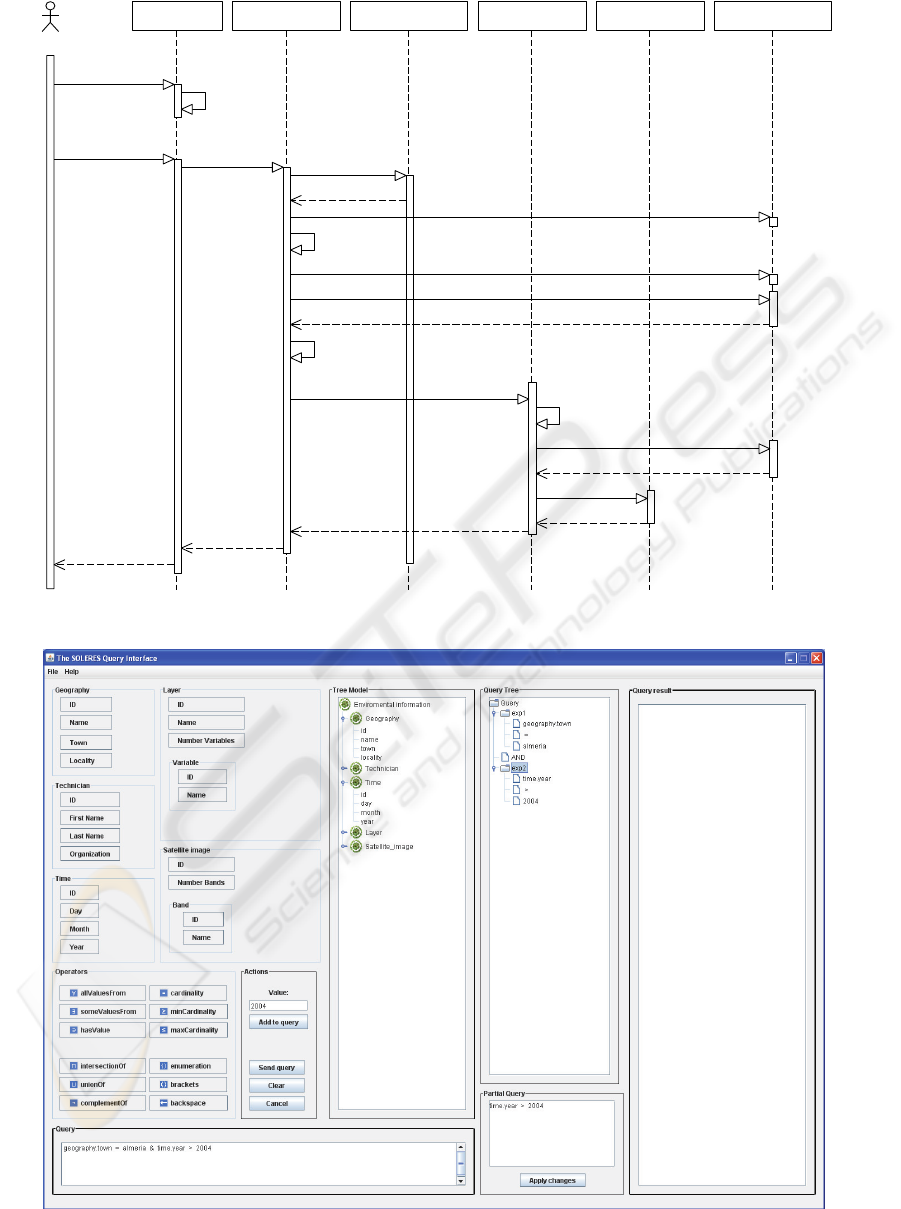

face (steps #1 and #2). Figure 8 shows the query us-

er interface window. We used a tree representation

to show the data to be inquired (“Tree Model”) and

the query (“QueryTree”).

1: start

2: createAgent

4: addBehaviour

3: createNewAgent

<user>>

server

Trader : Main TraderAgent : Agent TAgentBehav : Behaviour ContServer : AgentContainer

Figure 4: Server process initialization.

1: init

2: createAgent

4: addBehaviour

3: createNewAgent

<user>>

client

QIApplet : Applet AppletAgentQI : Agent AAgentQIBehav : Behaviour ContClient : AgentContainer

Figure 5: Client process initialization.

Figure 6: JADE Platform after initialization.

Besides, queries can be manual or supervising. A

manual query allows the user to write directly the

query into the “Query” section. The supervising one

makes possible to build the query selecting the va-

riables from the interface, values and operators.

Once the query is built, the user sends it from the

user interface to the interface agent (steps #3 and

#4). This agent sends the query (written in the inter-

face language) to the SPARQL agent in order to

translate it (step #5).

Then, the parser agent converts the query to the

SPARQL language (#step 6). The query is stored in

a text file in the server directory that contains the

trading agent (step #7). Then, the “Lookup” ontolo-

gy communication message is built (steps #8, #9,

#10, #11 and #12).

ICAART 2010 - 2nd International Conference on Agents and Artificial Intelligence

270

6: query parsed

5: parse query

3: send query

1: construct query

21: query result

4: send query

20: show query result

2: add sentences

13: send message

10: get communication ontology

9: save communication ontology

7: save query

19: query answer

12: construct message

11: communication ontology

8: construct communication ontology

17: execute query

15: request query file (uri)

18: query answer

16: query file

14: read message information

SPARQLParser: Agent

<user>>

client

QIApplet : Applet AppletAgentQI : Agent TraderAgent : Agent EID : OWL repository ServerFiles : Database

Figure 7: Communication process.

Figure 8: The Query User Interface.

INVOLVING WEB-TRADING AGENTS & MAS - An implementation for Searching and Recovering Environmental

Information

271

For the communication ontology (Lookup) im-

plementation, we used the XML format; The client

fills the necessary fields with the correspondent in-

formation before send the message (Figure 9). The

server (trader) will receive the XML content file and

will extract the data from the fields it needs. These

operations have been possible making use of the

Jdom, Saxon, and other XML libraries.

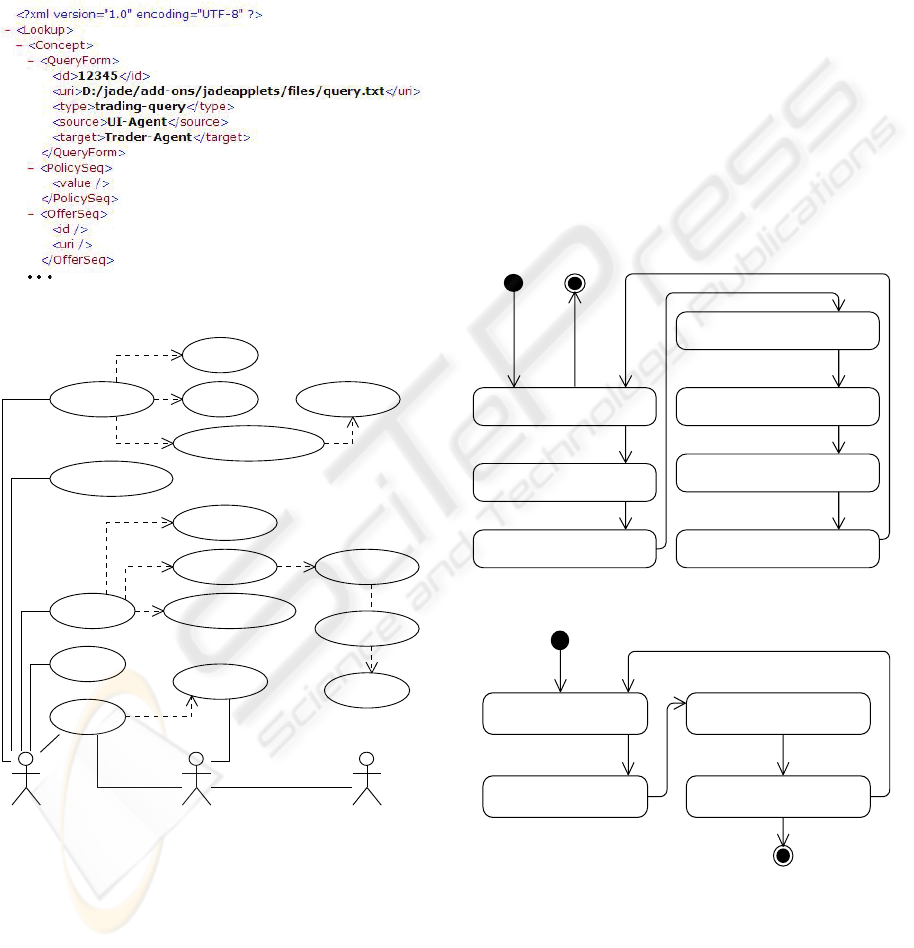

Figure 9: The XML Lookup ontology file.

visualize query

construct the query

apply changes

modify partial query

select a query node

show query result

send query

clear query

visualize complete query

visualize query tree

visualize tree model

modify the query directly

add value to query

introduce value for a variable

add operators

add variables

client interface agent trader agent

Figure 10: Use Case Diagram.

The next step is to send the message from the in-

terface agent to the trading agent (#13). The trading

agent extracts the information from the message:

query path, source agent, etc. (#14), and later recov-

er the query file content (#15 and #16) and execute it

to the EID repository (#17 and #18). The execution

of the SPARQL query to the OWL file is possible by

the use of the Jena library. The query result is sent

from the trader agent to the interface agent (#19) and

it shows this information in the user interface into

the “Query Result” field (#20 and #21). Figure 10

summarizes, through a use case diagram, the func-

tional options of the user interface and the connec-

tion with the other actors.

We included to the software agents behaviours

for autonomous and intelligent functionality in order

to solver the task they have been developed for. The

interface agent has the task of recovering the query

from the user interface and sending it to the agent

who can solve it. Later, the query result is obtained

and shown to the user. This complex behaviour is

divided in sub-behaviours as shown in Figures 11

and 12.

On the other hand, the trader agent has the re-

sponse of the user messages main task. This task has

been divided in four main sub-tasks corresponding

with the sub-behaviours we have implemented for

the agent (see Figure 12).

Exit

Response of Trader Agent

Response of Parse Agent

Query Obtained

Button Send Query pressed

Show query on the Query Interface

Waiting for response of Trader Agent

Send query parsed to Trader Agent

Waiting for response of Parse Agent

Send query to Parse Agent

Obtain query from Query Interface

Waiting for send query

Figure 11: Interface agent behaviour.

Receive message from a client

Information obtained correctly

Waiting for a client user query

Obtain information about query

Execute query to the EID repository

Send result of the query to the client

Figure 12: Trader agent behaviour.

A simple query example involved in the QS/RR

process is shown in the next code. To explain this

situation, let’s suppose the following query in natu-

ral language: “We wish the classifications made in

Almeria that describes lithology variables, specifi-

ICAART 2010 - 2nd International Conference on Agents and Artificial Intelligence

272

cally about the sand area”. This request is repre-

sented in the Query section (Figure 8) as follows:

?classif: geo.name = “Almeria” & layer.name

= “lithology” & layer.variable.name = “sand”

The SPARQL translation for this example is:

PREFIX onto : <http://…/acg/soleres/owl#>

SELECT ?classif

WHERE {

?classif onto:classification_shows_geo ?g.

?g onto:geography_name "Almeria".

?classif onto:classification_uses_layer ?l.

?l onto:layer_has_variable ?v.

?l onto:layer_name "lithology".

?v onto:variable_name "sand".

}

ORDER BY ?year

The obtained result by the query process is the

classification “classif”. At this record, we can find

information about a classification, like the identifica-

tion number, the name of the classification, the layer

and the satellite images it uses or the start and end

time of the classification. This kind of information is

an OWL environmental information that agents of

the SOLERES-MAS manage.

4 CONCLUSIONS

In this paper we have presented an implementation

of the web trading agent methodology for “searching

and recovering” process used by SOLERES system.

The web service reviewed is based on the “Que-

rySearching/RecoveringResponse” model issue. It

uses the SPARQL language to represent the queries,

and the OWL notation to describe data and function-

al ontologies.

In this work we also show a MAS structure case

study for requiring the information of trading agent

from an interface agent. The communication is made

through our developed Lookup ontology.

As a future work, we are interested in federation

of web-trading agents in MAS by means of the ex-

tension of the trader’s Link interface. We are also

studying the application of this kind of trading agent

behavior for evolvable user interface development.

More implementation details of the Web Trading

agent, “processes” and “data” ontologies are availa-

ble at http://www.ual.es/acg/soleres/wt.

ACKNOWLEDGEMENTS

This work has been supported by the EU (FEDER)

and the Spanish MICINN Ministry under grant of

the project I+D TIN2007-61497: “SOLERES. A Spa-

tio-Temporal Environmental Management System

based on Neural-Networks, Agents and Software

Components”.

REFERENCES

Anghel, C., Salomie, I., 2003. JADE Based solutions for

knowledge assessment in eLearning Environments.

TILAB & University of Limerick.

Asensio, J., Iribarne, L., Padilla, N., Ayala, R., 2008. Im-

plementing trading agents for adaptative and evolutive

COTS components architectures. In Proceedings of

the International Conference on e-Business. Porto,

Portugal, pp. 259-262.

Iribarne, L., Troya, J., Vallecillo, A., 2004. A trading ser-

vice for COTS components. The Computer Journal

47(3): 342-357.

ISO/IEC DIS 13235-1: IT, 1996. Open Distributed

Processing: ODP Trading Function Part 1: Spec.

Lytras, M., 2005. Semantic web and information systems:

An agenda based on discourse with community lead-

ers. International Journal of Semantic Web and Infor-

mation Systems 1(1).

Odell, J., Van Dyke Parunak, H., Bauer, B., 2001. Agent

UML: A formalism for specifying multiagent software

systems. International Journal of Software Engineering

and Knowledge Engineering 11(3): 207-230.

Polleres, A., 2007. From SPARQL to rules (and back). In

Proceedings of the International Conference on World

Wide Web (WWW), pp. 786-796.

Russ, M., Jones, J., 2006. Knowledge-based strategies and

information system technologies: preliminary findings.

International Journal of Knowledge and Learning 2(1):

154-179.

Shiyong, D., Xueqiang, F., Jie, Y., Runbo, M., 2007. Re-

search for the Communication and Cooperation Me-

chanism of Multi-Agent System. In: Electronic Mea-

surement and Instruments, 2007. ICEMI'07.

Tweedale, J., Ichalkaranje, N., Sioutis, C., Jarvis, B., Con-

soli, A., Phillips-Wren, G., 2007. Innovations in multi-

agent systems. Journal of Network and Computer Ap-

plications 30(3): 1089-1115.

INVOLVING WEB-TRADING AGENTS & MAS - An implementation for Searching and Recovering Environmental

Information

273
