COMPUTER ASSISTED MICROSCOPY

The Era Small Size Slides & 4m Microscopes

O. Ferrer-Roca and F. Marcano

UNESCO chair of Telemedicina, Chair of Pathology, University of La Laguna, Tenerife, Canary Islands, Spain

Keywords: Tele-pathology, Super-resolution, Digital pathology, Digital images, 4M microscopes, Mobile phones,

Image quality, Cytology.

Abstract: The present paper described the technique to evaluate digital resolution (DR), Visual Magnification (VM),

onScreen Magnification (SM) and Useful magnification (US) in order to compare image quality and

resolution for diagnostic purposes on computer assisted microscopes including Multi-Modal Miniature

Microscopes-4M.The study was done on surgical pathology and cytological specimens comparing analog

microscopic images versus digital Small Size Virtual Slides (SSVS) images. The SSVS were obtained with

an 8 megapixel camera, in JPEG2000 format using a super-resolution algorithm of capture. The field of

view-FOV images showed four times higher discrimination power, in spite of the low sampling density. The

region of interest-ROI images, with a sampling density close to Shannon theory showed six times higher

discrimination power. OnScreen magnification FOV achieved 640x and ROI 3200x augments that could

never been reached using analog microscopy. The paper demonstrates that SSVS are ideal for hand-held

microscopes or even mobile phones with ad-on capture systems.

1 INTRODUCTION

Several approaches have been proposed for an

efficient storage of complete digital slides

(DS=digital slide) with distant access: Dynamic

Robotic Telepathology (DRT) (Ferrer-Roca, 1998),

Virtual Slides (VS) and the present Small-Size

Virtual Slides (SSVS) (Ferrer-Roca, 2005, 2007)

technique.

SSVS take the advange of the modern digital

cameras using digital zoom. It is a JPEG-2000 image

(JPEG, 2001) 100 times smaller than VS, easy to

transmit and store (Marcano, 2007). In-focus low

power images are solved with the ZF-Zoom Focus

(Ferrer-Roca, 2005) technique.

Fully digital surgical pathology is progressively

being accepted (Ho et al., 2006) but cytology is

complex since it requires high power for diagnosis.

Also chip miniaturization allows using hald-held

devices. This is the case of the 4M or Multi-Modal

Miniature Microscopes of less than two centimetres

of diameter using CMOS as well as mobile phones

cameras up to 12 megapixels. Being out of the strict

optical control of the microscopic vendors it become

essential to established the parameters to compare

image quality, which are provided in the present

paper.

2 MATERIAL & METHODS

Images were obtained on an average quality

Olympus BH-2 microscope with a high resolution

CCD camera. A AVT-Oscar F-810C fireware

IEEE1394 camera, with a CCD 2/3” Sony sensor of

8 Megapixels-Mpx (3288x2470) producing images

of 3272x2469, 12 bits/pixel. The chip was a colour

mosaic (R-G x G-B) with 2x2 pixel sensitivity.

Signal to noise ratio (SNR) was 36,19dB (Noise

floor of CCD cameras of 12 bits dynamic range is

2.4x10

-4

; SNR= - 10 log

Fnoise= 36,19dB.)

2.1 Digital Camera-image Processing

The camera control was integrated into the

TEXCAN-II®-suite using AVT-Allied Vision

Technologies (www.intek-darmstadt.de), CVB

(www.commonvisionblox.com) and LeadTools

libraries (www. Leadtools .com / SDK / Medical /

Medical-Products-n.htm).

517

Ferrer-Roca O. and Marcano F. (2010).

COMPUTER ASSISTED MICROSCOPY - The Era Small Size Slides & 4m Microscopes.

In Proceedings of the Third International Conference on Bio-inspired Systems and Signal Processing, pages 517-522

DOI: 10.5220/0002706105170522

 SciTePress

The suite controls white balance, image focus at

1:1 digital zoom (ZF technique) (Ferrer, 2005),

image noise reduction, hardware shading correction

and FOV images acquisition. Virtual image were

obtained stitching all FOV in a JPX-JPEG2000

format building a final 1/10 wavelets compressed

JPEG2000 image.

Image noise reduction and contrast enhancement

was tested with several algorithms and the better one

is presented. Further improvement of the SNR

(signal to noise ratio) avoiding aliasing was the

colour demosaicing display: Images taken in RAW

format were displayed demosaicing while RGB

images were stored demosaiced.

2.2 Optical Acquisition System

2.2.1 PMoC

Each field of view (FOV) was taken through a SPlan

4x objective (Obj), 0.13 NA (Numeric Aperture),

using a relay tube lens NFK 2.5x LD of 125 on the

MTV-3 tube with a 0.3x lens that produce a total

Projection Magnification onChip - PMoC of 3x (

4*2.5*0.3). Exact magnification was checked with a

calibration slide of 1 mm in 10μm marks from

Graticules LTD, England.

Each region of interest (ROI) was scanned with a

0.46 NA SPlan 20x objective at a PMoC of 15x

(20*2.5*0.3).

2.2.2 Diagnostic Image Quality

The Overall Magnification (OM) was the product of

the lenses (Obj *Oc) and the distance (D) over

which the image is projected. Human eye is only

capable to discriminate ¼ mm (M= D* Obj*Oc/250

mm). According to the Abbe rules the magnification

capable to enlarge an object from ¼ μm to ¼ mm to

be seen by human vision is 1000x. Above 1000* NA

no further detail are shown and therefore is called an

empty magnification (http://www.microscopyu.com/

articles/formulas/formulasmagrange.html).

The following parameters were evaluated on

digital images:

• Digital Resolution (DR) or sensor effective pixel

size (Epx) divided by the total PMoC. Epx μm

/ PMoC. Equivalent to sampling density.

• Visual Magnification (VM) through a 10x wide-

field ocular (Oc) in a standardized projection

of 250 mm distance for 20/20 eyes. VM was

40 times for FOV scan objective and 200

times for the ROI objective.

• Total Screen Magnification (SM) or relationship

between screen and CCD pixel size

Spx/CCDpx. In 1:1 zoom images SM was

almost 100 times (264μm/2.7μm = 97.77).

Digital zoom-in and zoom-out magnification

factors depend of the JPEG2000 tile format. In

these cases SM was previously calculated

using a micrometric standardized slide (see

diagnostic assessment below) and overlaid on

the screen.

• Useful Magnification (UM) ranged from

500*NA up to 1000*NA.

2.3 Diagnostic Assessment

On screen observation for diagnosis was

standardized in an FTP monitor of 17” with 1280 *

1024 px, 32 bpp at 60 Hz. For comparison purposes

a micrometric rule was built using the calibration

slide mention above.

Visual diagnostic assessment was carried out

with 15 cases taken at random: 3 surgical pathology

slides and 12 cytology.

In TEXCAN-II®-suite, the ROI appeared as

color overlay on the FOV: red square whether

selected at random and green square whether

selected by technicians whose name is annotated.

The clinical information can also be annotated (see

Figure 2A).

The SSVS were accessed at distance though the

TEXCAN-II®-server using a JPEG2000

transmission protocol (JPIP) (Taubman, 2003;

Krishnan, 2006) based on Kakadu 5.2 library

(http://www.kakadusoftware.com). Browsing was

done with the TEXCAN-II®-viewer also based on

Kakadu (see the viewer on Figures 2-3).

3 RESULTS

3.1 DR of the System

Optical Resolution (OR) according numeric

aperture and objective correction based on the

Rayleigh criterion of the diffraction limit (∆x= 0.61

λ/n* sin θ) as taken from

http://www.microscopyu.com/articles/formulas/form

ulasresolution.html was 2.12 μm for FOV and 0.55

μm for ROI images.

Scanning density or pixel density was

3272*2469 in a of 8.8 * 6.6 mm

chip area that

contain 2.7 * 2.7 μm

pixels (px).

Effective pixel (Epx) size

BIOSIGNALS 2010 - International Conference on Bio-inspired Systems and Signal Processing

518

• In RGB-24 bit images colour demosaicing was

carried out with three linear bilinear interpolations

of 8:1 Bayer color pattern 4G-2R-2B taking 3x3

surrounding pixels, before storage. The result was

that although pixel density is maintained, the

information was integrated in an 8.1 * 8.1 μm

area and the Epx was 8.1 μm.

• In RAW-16 bit format (black and white-BW),

images were displayed on screen in colour

previous demosaicing. For that purpose the colour

integration algorithm used was a B, R, G1+G2/2

taking the 2x2 surrounding colour pixels in a 4:1

Bayer color pattern 2G-R-B. The result was that

for visual perception pixel density was maintained

but information was integrated in a 5.4 * 5.4 μm

area maintaining original data for processing

purposes. The resulting Epx size of the RAW

colour image was 5.4μm.

3.1.1 FOV Digital Resolution (4x)

RGB-images after demosaicing had a DR= 2.7

(Epx/PMoC= 8.1/3) or around 3μm/px. Since optical

resolution was 2.12μm, sampling frequency was one

third of the optimal (2.12μm /2.4px ≈ 1μm /px) in

Shannon theory.

RAW images had DR=0.9 (Epx/PMoC= 2.7/3)

or around 1μm/px, that fulfilled the Shannon theory.

After demosaicing to be displayed on the screen in

colour, RAW-images had a DR=1.8 (Epx/ PMoC =

5.4/3) or around 2μm/px, which is half of the

optimal. (see Table I).

3.1.2 ROI Digital Resolution (20X)

RGB-images had a DR=0.54 (Epx/PMoC= 8.1/15)

or around 1μm/2px. Since optical resolution at this

magnification is 0.55 μm, the sampling frequency

was half of the optimal (0.55 μm/ 2.4px ≈ 1μm

/4px), in Shannon theory (see Table 1).

RAW images had a DR=0.18 (Epx/PMoC=

2.7/15) or around 1μm/5px. The specimen is

therefore oversampled according the Shannon

theory. After demosaicing, to be displayed on screen

in colour, RAW-images had a DR=0.36 (Epx/PMoC

= 5.4/15) or around 1μm/3px, close to Shannon

theory. (Table 1)

3.1.3 Super-resolution Algorithm

The best cost-computation algorithm to reduce

image noise was applied to all images. This was a 16

times image averaging that improved signal-to-noise

ratio (S/N or SNR) by N/sqrt(N) a factor of 4, which

is 12.04 dB. Furthermore, as mention in material and

methods, demosaicing for onScreen colour display

further improve SNR avoiding aliasing.

Table 1: Digital Resolution. Comparison of demosaiced-

RGB 8:1 images, with RAW demosaiced images

displayed in 4:1color pattern.

ST= Sampling density according to Shannon theory.

40x is tested but not used in the SSVS.

OBJ. PMoC OR

μm

μm/px

RGB-

demosaic

μm/px

RAW

μm/px

RAW-

demosaic

μm/px

4x 3x 2.12 1 3 1 2

20x 15x 0.55 1/4 1/2 1/5 1/3

40x* 30x 0.29 1/8 1/4 1/10 1/5

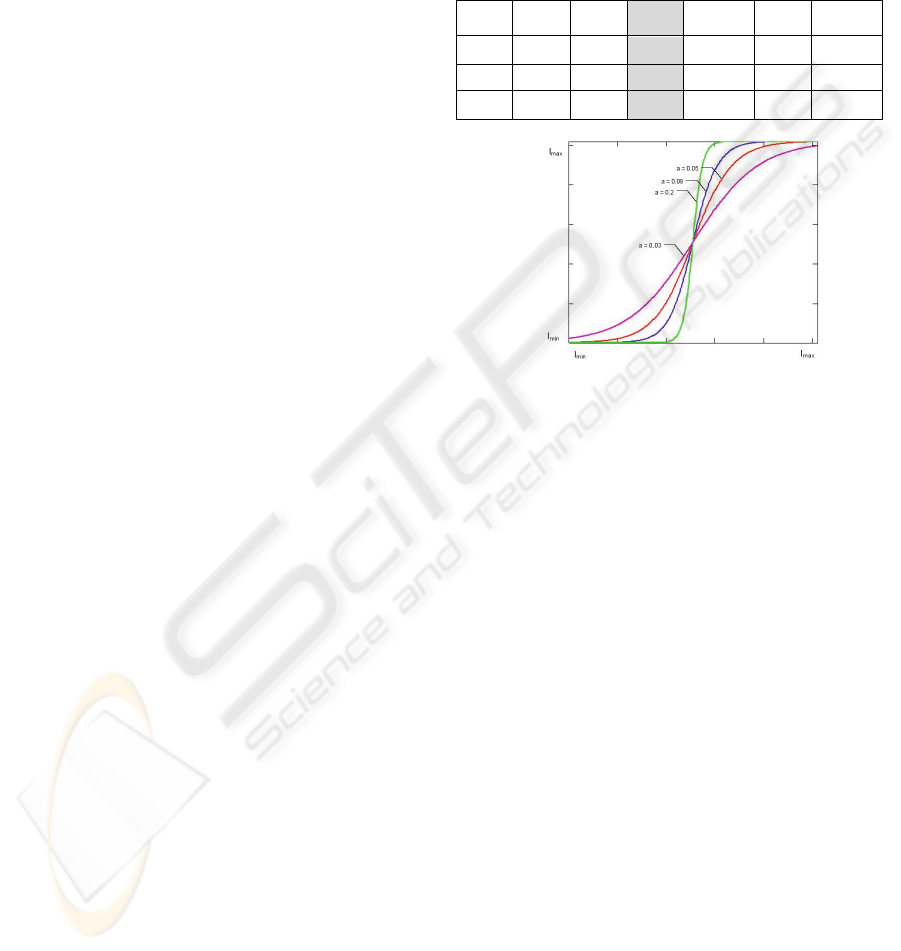

Figure 1: Non linear ACE or adaptive contrast

enhancement curve. Acting as an inverse normalized

optical modulation transfer function (MTF, see

http://www.microscopyu.com/articles/optics/mtfintro.html

) correcting optical coherence factor (OCF) or relationship

between NA of detector (CCD) and the objective γ=

NAccd/NAobj.

In RAW images, after averaging, we further

improved adding 6 % in the three channels (RGB) to

compensate contrast reduction to build roughly a

LRGB image (Luminance RGB image). This was

followed by an adaptive contrast enhancement

(ACE) 16x16 mask filter to correct low contrast,

exponentially adjusted by a factor of 125 in a

sigmoid curve. (Figure 1).

3.1.4 SM for Diagnostic Purposes

SSVSs size depended on the number of FOV

contained. Software zoom-in and zoom-out was

limited by JPEG-2000 compression structure.

Screen Magnification-SM was related to image

zoom ranging from 9 to 2933 times. Lower

implemented SM was 3 times CCD vision (see table

2), although JPEG2000 algorithm supports smaller

fingerprints. Similarly, higher SM could be

displayed, but the result will be an empty

magnification.

COMPUTER ASSISTED MICROSCOPY - The Era Small Size Slides & 4m Microscopes

519

Figure 2: Cytology specimen. SSVS-RGB.A. FOV

onScreen. Zoom-out 10x. The green square indicates a

ROI selected by a cytotechnologist. Screen magnification

– SM is seen on the upper left corner.B FOV onScreen.

Zoom-out SM 40x.

System: OR= 0.55μm OR and DR= 1 μm /2px.

Table 2

compared analogue and digital magnification. Two

analogue magnifications were analyzed: Visual and

Useful magnification-UM by analogue projection.

Two digital magnifications were analyzed: onChip

and onScreen depending on image zooming.

Maximum zoom-in was one step before pixel-block

(often referred to as pixelation) appeared on the

image.

3.1.5 FOV onScreen Magnification 4x

The SSVS can be seen almost from the original

magnification (9x), to the maximum image display

according to FOV sampling (294x) up to 587x by

software zoom-in. Further zoom showed pixelation.

See images in Fig. 2 & 3 AB.

The onScreen magnification-SM when compared

with maximum Useful Magnification-UM of analog

images (1000*NA= 1000*0.13) was 2 times higher

on the original digital 1:1 images (294/130=2.3) and

Figure 3: Cytology specimen.SSVSA. RGB-FOV

onScreen Zoom-in SM 640x. System: OR=2.12 μm and

DR=3 μm /px.B. RAW-ROI onScreen. SM 2933x. On the

left corner SM 8799x showing the pixelated nuclear

details of the empty magnification. System: OR=0.55μm

and DR=1 μm /3px. The rule on the top right is 10 μm.

Table 2: Analog Visual & Useful magnification (in grey)

versus digital onChip & onScreen magnification (in white)

RAW demosaicing images. VM=Visual magnification;

UM= Useful magnification range.

Obj VM Low UM

500xNA

High UM

1000xNA

4 x 40x 65x 130x

20x 200x 250x 460x

CCD

PMoC

Zoom-out

(fingerprint

)

1:1 Zoom-in

3x 9x 294x 587x

15x 46x 1467x 2933x

BIOSIGNALS 2010 - International Conference on Bio-inspired Systems and Signal Processing

520

4.5 times higher at the maximum digital zoom-in

(587/130= 4.5).

The onScreen RGB images built with half

sampling density then required improved by 4.5

times the UM to enter in the so called empty

magnification.

In Figure 2 & 3 A-B we can analyze several

zoom-in and zoom-out SM.

4 DISCUSSION

The present paper demonstrates how digital

pathology behave as a computer assisted

microscopy, because helps to detect details that

escape to human eye in the so-called type I low

aperture (NA<0.5) widefield incoherent light

systems. In other words hybrid systems (in which

optical and digital modules are part of the same

system) could improve resolution and specifically

the CCD systems improve system resolution by 2

(Torok, 2007).

In the presented system, all improvements were

low cost computation algorithms: (1) noise reduction

increasing depth of field by 16 image averaging, (2)

attenuated frequencies were amplified with LRGB

images that correct the limited light gathering

(proportional to NA

) of low-NA lenses, and (3)

phase recovery improving modulated transfer

function with an adaptive contrast enhancement.

The displayed RAW-color demosaicing images

reached the superresolution level (Nugent, 2003)

(Lipson, 2003) even without an optimal digital

resolution.

Projection magnification onChip (PMoC) is

essential to evaluate the system sampling

capabilities and Digital Resolution-DR influence

visibility and digital image quality with or without

computer assisted techniques.

OnScreen differences for RAW and RGB images

were due to higher DR and contrast enhancement

with light gathering provided by superresolution

algorithms on the RAW images.

Capture is furthermore influenced by Chip

quality. Most photographic cameras have 5-9 μm

pixel size and big size chips. Microscopy requires

smaller chips to avoid aliasing (Koren, 2000-2009)

and therefore smaller pixel size; this provides more

noise and less sensitivity increasing the cost. This is

the reason why high resolution cameras with high

SNR are require in microscopic imaging.

Nowadays the public consume CCDs and CMOS

chips for imaging are improving. Being the CMOS

more noisy but cheaper solutions. There are ultimate

regeneration of mobile phones that contain a 12

Megapixel cameras and therefore provide high

digital resolution due to the high sampling. Those

hand-held solutions including the 4M microscopes

only require to be considered in pathology

appropriate objective lenses and illumination system

preferable base on leads (Ferrer-Roca, 2005).

One of the main drawbacks for distant diagnosis

in pathology (telepathology) is sampling error

because the essential part of the specimen is not seen

because it was not completely digitized. The

solution to this is to digitized the whole specimen

building a Virtual Slide. The usual VS technique

captures images using 40x objectives because

optical resolution is adequate (0.29 μm); the result is

a huge image (around 10 GB) difficult to handle,

that require time consuming compression techniques

on which we cannot control lost information and that

is difficult to store in the hospital information

systems based on DICOM, because the limit image

size is 2 GB (Dicom, 2007).

The technique presented here not only provide

small images but zoom-in and zoom-out capabilities

never explore by pathologist (Ferrer-Roca,

2005)(Marcano, 2007; 2006). As shown in the paper

the image showed a super-resolution level to which

the oversampling and the super-resolution algorithm

applied played a role.

The paper demonstrated the methods to evaluate

image quality on computer assisted microscopes

displaying digital images. The analysis was focused

on resolution and visual magnification in order to be

able to apply it to various capture systems for distant

diagnosis ( 4M, mobile phones…).

In summary: The SSVS technique implemented

in the TEXCAN-II™ demonstrated that image

diagnostic capabilities are higher than analogical

image seen in the microscope because they are

capable to produce intermediate and high power

microscopic magnification entering in the empty

magnification showing super-resolution details. The

technique of specimen navigation and ROI detection

simplify and facilitate diagnosis at distance and

prepare the era of the hand-held microscopes based

on 4M or integrated into the mobile phones.

REFERENCES

DICOM strategic document (2007); [cited 2007 Dic 31st].:

http://medical.nema.org/dicom/geninfo/Strategy.pdf

Ferrer-Roca O. (1998) Telepathology. In Ferrer-Roca O,

Sosa-Iudicissa M. in Handbook of Telemedicine.

Amsterdam: IOS-Press, 1998; pp. 70-5

COMPUTER ASSISTED MICROSCOPY - The Era Small Size Slides & 4m Microscopes

521

Ferrer-Roca O., Marcano F, Diaz-Cardama A. (2005).

Digital Zooming in Medical Images. In Ferrer-Roca O.

Ed, CATAI-2006: p-health. Tenerife: CATAI Ed.

ISBN: 84-609-8648-9; pp. 111-118.

Ferrer-Roca O., Marcano F, Quintana, J. (2007) Small

Size Virtual Slides in Cytology. In Proceedings XXIII

European Congress of Cytology, Madrid, Spain.

Ho J, Parwani AV, Jukic DM, Yagi Y, Anthony L,

Gilbertson JR (2006). Use of whole slide imaging in

surgical pathology quality assurance: design and pilot

validation studies. Human Pathology 37(3): 322-31.

Krishnan K, Marcellin MW, Bilgin A, Nadar MS. (2006) ”

Efficient transmission of compressed data for remote

volume visualization”, IEEE Trans. Med. Imaging,

25(9): 1189- 1199.

Koren N. (2000-2009) Understanding image sharpness

part 2: Resolution and MTF curves in scanners and

sharpening.

http://www.normankoren.com/Tutorials/MTF2.html#

Nyquist.

Lipson SG. (2003) Why is super resolution so inefficient?.

Micron 34, Issues 6-7, 309-312.

Marcano F., Ferrer-Roca O., Diaz-Cardama A. (2006)

“Automatic-stiching in pathology”. In Ferrer-Roca O.

Ed., “CATAI 2007: Telemedicine standardization”,

Tenerife: CATAI Editions. 2006. pp. 161-168

Marcano F, De Armas N., Díaz-Cardama, A, Ferrer-Roca

O. (2007) Collaborative Systems for Pathology

Applications. The Open Pathology Journal, 2007, 1,

1-4. [cited 2007 Dic 31st]. http://www.bentham-

open.org/pages/gen.php?file=1TOPATJ.pdf.

Nugent KA, Bellari CJ (2003). Emulated super-resolution

using quantitative phase microscopy Micron 34,

Issues 6-7, 333-338.

Taubman, D. and Prandolini, R. (2003) Architecture,

philosophy and performance of JPIP: internet protocol

standard for JPEG2000, International Symposium on

Visual Communications and Image Processing

(VCIP2003), In: Ebrahimi T., Sikora T. Eds.,

Proceedings of SPIE vol 5150, pp. 649-663.

Torok P., Kao FJ. Ed. (2007) Optical Imaging and

microscopy. Techniques and advanced systems. 2nd

Ed. Springer Series in Optical Sciences.Springer-

Verkag. Heidelberg 2007.

BIOSIGNALS 2010 - International Conference on Bio-inspired Systems and Signal Processing

522
