DISTRIBUTED FREQUENCY SORTING IN SPECTRAL VIDEO

ANALYSIS OF DNA SEQUENCES

Anca Bucur, Jasper van Leeuwen

Philips Research Europe, High Tech Campus 37,Eindhoven, The Netherlands

Nevenka Dimitrova

Philips Research USA, Briarcliff Manor, NY 10510, U.S.A.

Keywords: Genomic signal processing, DNA spectral analysis, Spectral alignment, Frequency sorting, Distributed

computing.

Abstract: DNA spectral analysis, i.e. the analysis of DNA spectrograms, has been proposed as a method to

systematically investigate DNA patterns, which may correspond to relevant biological features. The

Frequency Sorting method sorts the sequences in spectral domain based on their frequency content, and

detects and groups those sequences exhibiting one or more strong patterns in the same frequencies. In this

paper we propose a novel distributed algorithm for Frequency Sorting and report on the performance results

of our implementation for the alignment in spectral domain of the human chromosome 21. Distributed

Frequency Sorting enables efficient spectral alignment and allows for the easy detection of strong patterns

in both single and multiple frequencies.

1 INTRODUCTION

Currently, there are few systematic tools available

that may enable the exploration of genomic

frequency patterns in biological events. One such

tool is spectral analysis. This technique can be used

in phylogenetic (evolutionary conservation) studies

and potentially for the discovery of sequence

properties in the frequency domain that are not

detectable by current “string-space” linear alignment

methods.

Spectrogram extraction of DNA sequences has

been proposed in (Anastassiou, 2000). DNA

spectrograms are generated by converting DNA

sequences to binary indicator sequences and then

applying the short term Fourier transform and

mapping to a colour space to visualize the output. It

is however not possible to fit the frequency

spectrum of a very long DNA sequence, with

millions of nucleotides, into a single spectrogram

frame. This issue has been addressed by

SpectroVideo (Santo, 2007).

The problem with a spectral image is that for

long sequences it is very difficult to spot patterns

that appear throughout the genome. Automatic

methods for mining DNA spectra were also

proposed using standard hierarchical clustering

algorithms. However, there are several problems

related to using these methods for large scale

comparisons: 1) large memory space is needed, as

each spectral window is compared to all other

windows, 2) due to global metrics used, the output

may only have global frequency similarity, but

strong individual frequency similarity would not be

detected, and 3) the algorithms are not conducive to

parallelization.

In (Bucur, 2008) we have proposed a method that

sorts the sequences in spectral domain based on their

frequency content, and detects and groups those

sequences exhibiting one or more patterns in the

same frequencies. Such a sorting algorithm is more

suited for spectral analysis than clustering

algorithms because we aim at aligning sequences

based on long patterns in individual frequencies. In

the case of DNA spectrograms, the content in

distinct frequencies needs to be analyzed

individually and not combined in a global distance

metric, as is the case for DNA sequence alignment.

As patterns are searched in individual frequencies,

our Frequency Sorting method is also well suited for

207

Bucur A., van Leeuwen J. and Dimitrova N. (2010).

DISTRIBUTED FREQUENCY SORTING IN SPECTRAL VIDEO ANALYSIS OF DNA SEQUENCES.

In Proceedings of the First International Conference on Bioinformatics, pages 207-210

DOI: 10.5220/0002713302070210

 SciTePress

parallelization.

In this paper we propose a distributed algorithm

for Frequency Sorting of DNA spectrograms that

achieves efficient and scalable distribution of the

computation, enabling significant speedup and

allowing the processing and analysis of large

genomic sequences, such as entire genomes. We

report the performance of the distributed Frequency

Sorting implementation in terms of speedup and

execution time, when applied to the entire human

chromosome 21 for several sets of parameters.

2 RELATED WORK

In (Anastassiou, 2000) an optimization procedure

improving upon traditional Fourier analysis

performance in detecting coding regions in DNA

sequences is introduced. Color spectrograms of

biomolecular sequences are used as visualization

tools providing information about the local nature,

structure and function of the sequences. Color maps

help visually identifying protein coding areas for

both DNA strands, but also the coding direction and

the reading frame for each of the exons.

In (Sussillo, 2004) a slightly modified version of

the spectrogram development tool is applied to

explore patterns characteristic in the genomes of

various organisms (among which E. coli, M.

tuberculosis, C. elegans, D. melanogaster and H.

sapiens). Interesting features were detected, some of

which are common to all organisms and some are

unique to a particular organism.

In (Santo, 2007) the spectral analysis tool was

improved with hierarchical clustering in order to

optimize the viewing of spectra and to detect

patterns in large amounts of sequence data.

3 THE FREQUENCY SORTING

METHOD

The Frequency Sorting method and several

algorithms used for sorting have been described in

detail in (Bucur, 2008). Frequency Sorting

comprises the following steps:

• Create a Spectrogram

• Apply a Binning Function and Build

Frequency Histograms

• Sorting

• Visualization using SpectroVideo

In this paper we apply our Top Down Hierarchical

Sorting (TDHS) algorithm to sort the DNA

spectrogram. The intuitive visual representation

makes it easy to detect patterns. Once interesting

patterns have been detected, the actual Fourier

values, mapped to colours in the SpectroVideo,

should also be taken into account for an accurate

analysis.

4 THE DISTRIBUTED FS

ALGORITHM

Combining Frequency Sorting with SpectroVideo

supports the discovery of novel frequency patterns

in large genomic repositories of sequences.

Applying Frequency Sorting to a large dataset is

very data-intensive, requiring large amounts of

computations and memory. Additionally, a large

number of experiments, varying the values several

parameters (window size, bin size, window overlap,

threshold of Fourier values), need to be run in order

to detect all relevant patterns. Therefore, an

algorithm needs to be designed that allows an

efficient distribution of the data and of the

computations, exploiting the potential for

parallelization.

In each iteration of FS, the bin sizes are

computed for each frequency and nucleotide

independently. The bin values are then compared

across all frequencies and nucleotides, and based on

the result of the comparison the domain of windows

is split and reordered. As histograms are built per

frequency and nucleotide, it is very efficient to split

the same way the data domain of Fourier values

among several processors and to build the

histograms in parallel.

In our algorithm, a distributor node is

responsible for distributing the sub-domains of the

dataset among several worker nodes. The largest

source of overhead in the algorithm is the initial

distribution of the Fourier values corresponding to

the assigned frequencies to the worker nodes. Each

worker node is assigned a set of frequencies (one or

more) for which to compute at each iteration step the

bin sizes and build the histograms, and receives the

Fourier values in those frequencies across all

windows. The resulting histograms are compared

among the worker nodes and a decision concerning

the split of the domain is taken. To minimize the

overhead of data transfer, the frequencies are

assigned at the beginning of the execution and will

not change. The Fourier values are distributed per

BIOINFORMATICS 2010 - International Conference on Bioinformatics

208

frequency in a round robin fashion to the worker

nodes.

Iteratively, each worker node builds the

histograms and chooses the largest bin out of all its

assigned frequencies and nucleotides and

communicates that information to the distributor.

In our implementation, it is the role of the

distributor to choose a global winning bin (i.e. the

largest bin in all frequencies) and to communicate

the corresponding frequency and the windows

contributing to the bin (i.e., the new split into

groups) to the worker nodes. Next, all worker nodes

split their windows the same way and reiterate the

computation of the histograms in each of the new

sub-groups of windows for the frequencies assigned

to them.

The bins can be computed at each step by

scanning the entire set of values corresponding to a

frequency and to the four nucleotides, or they can be

updated in each iteration based on the current split

of the domain. In the implementation used for

experiments bins are re-computed at each split.

The distributed FS algorithm enables efficient,

flexible and scalable sorting and alignment of

increasing sequence sizes, including entire genomes.

As with DNA spectrograms the window size

influences the size of the patterns that are visualized,

the spectral alignment and the analysis need to be

carried out for many window sizes. The spectral

alignment (and the execution time of the algorithm)

is also influenced by the chosen bin size and several

bin sizes need to be used in experiments.

5 EXPERIMENTAL RESULTS

We have evaluated our algorithm on a computer

cluster with 4 quad-core Intel(R) Xeon(R) CPUs at

2.66GHz and with 16 GB RAM, running Linux. The

intra-cluster communication is ensured by standard

1000baseT/Full Ethernet network. Message passing

interface (MPI) is used for communication in the

parallel implementation.

Figure 1 depicts the speedup of our

implementation of distributed FS for chromosome

21, and window sizes of 800 and 2000, and bin

sized of 15 and 25, respectively. The source of the

sequence and of the annotation, is the NCBI’s

Human genome assembly of March 2006. For up to

12 worker nodes the application exhibits very

good performance and scales linearly with the

number of processors, for all window sizes and bin

sizes. There is however some communication and

synchronization overhead related to the selection of

the winning bins. Fast intra-cluster links could

additionally improve the performance.

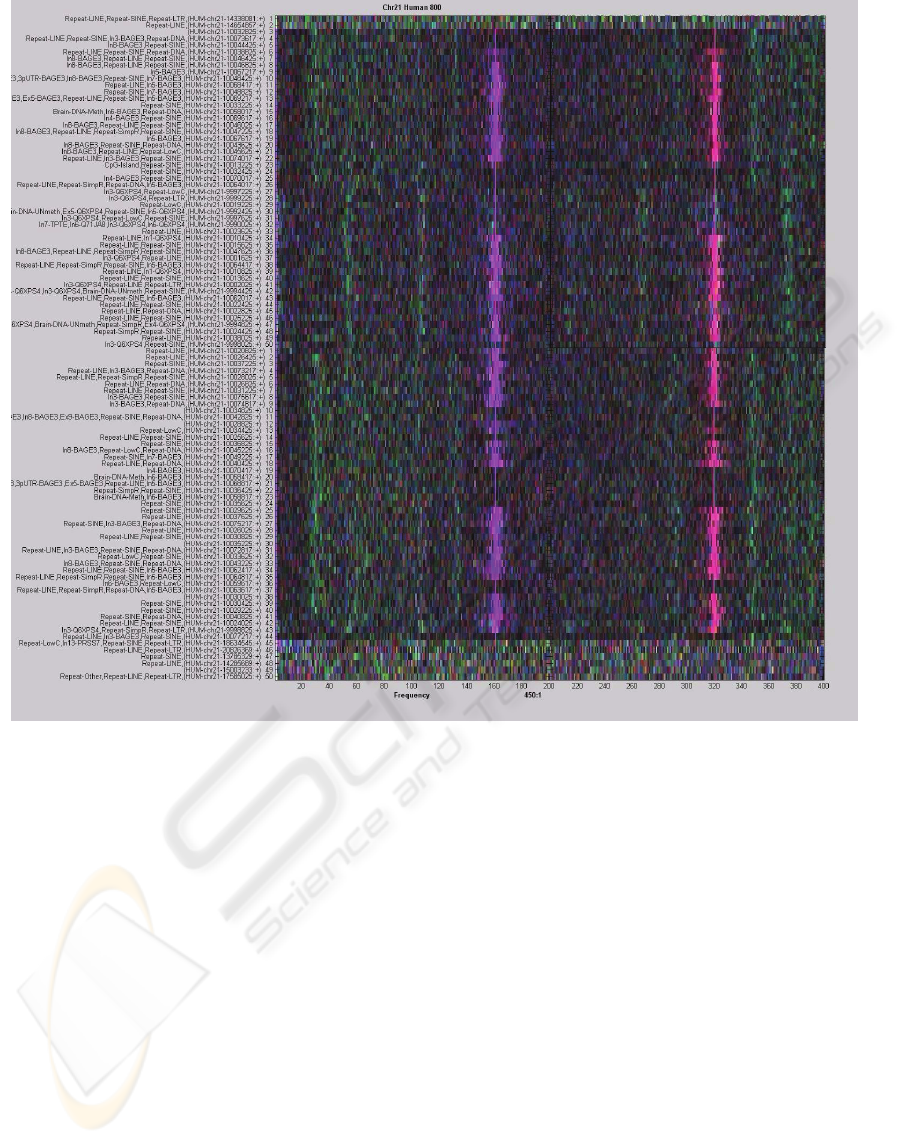

Figure 2 combines four consecutive frames of the

spectral video corresponding to the alignment of the

human chromosome 21 for a window size of 800

and a bin size of 15, with non-overlapping bins.

Each frame represents 200 frequencies for a good

visibility of all frequency values. The frames exhibit

several long strong patterns combined in two wide

bands, including a strong 2.5 periodicity indicating a

coding region. These patterns shows best with a bin

size of 15, and become weaker for both smaller and

larger bin sizes. The patterns also show weaker for a

window size of 2000.

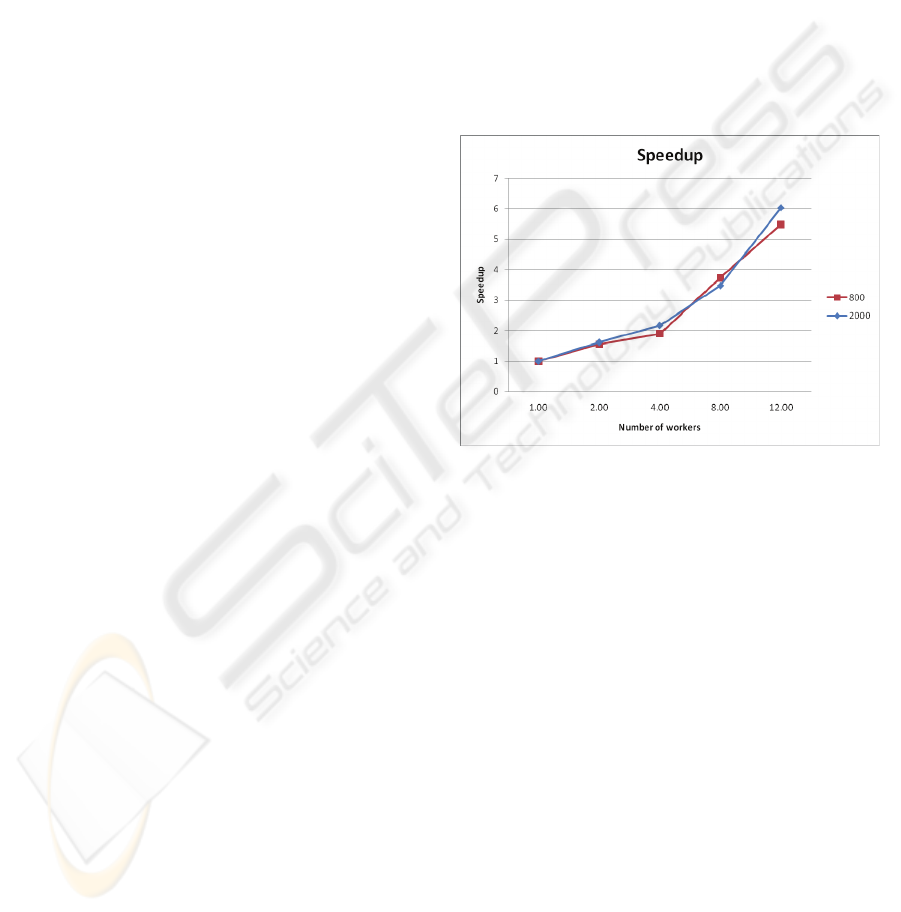

Figure 1: Speedup of the distributed FS application.

6 CONCLUSIONS AND FUTURE

WORK

Clustering algorithms currently used for sequence

alignment are not suitable for spectral analysis,

where we need to find patterns at individual

frequencies throughout a single genome or across

known genomes. The spectral sorting approach

addresses data intensive genomic applications that

have insatiable needs for exploring the available

data from the various genome sequencing projects.

Our distributed algorithm uses the characteristics

of the DNA spectrogram dataset and of Frequency

Sorting to achieve high performance and low

overhead. We have run the distributed FS algorithm

for the human chromosome 21, for several window

and bin sizes. In all cases the speedup of the

application was linear.

In our future work, in order to reduce the human

DISTRIBUTED FREQUENCY SORTING IN SPECTRAL VIDEO ANALYSIS OF DNA SEQUENCES

209

Figure 2: Four consecutive frames combined, exhibiting strong long patterns in several frequencies.

effort required for the analysis of the spectral

images, we will investigate the automatic data

mining on clusters to detect relevant features. In

addition, we will apply distributed Frequency

Sorting to align and enable the analysis and

comparison of the spectra of several entire genomes.

REFERENCES

D. Anastassiou, 2000. Frequency-domain analysis of

biomolecular sequences. In Bioinformatics 16(12), p.

1073-1081, 2000.

A. Bucur et al., 2008. A Frequency Sorting Method for

Spectral Analysis of DNA Sequences. In BIBM, 2008.

E. Santo et al., 2007. Improvement of Spectral Analysis as

a Genomic Analysis Tool. In IEEE Workshop on

Genomic Signal Processing and Statistics, p. 1-4,

2007.

D. Sussillo et al., 2004. Spectrogram Analysis of

Genomes. In EURASIP Journal on Applied Signal

Processing, Special Issue on Genomic Signal

Processing 2004 (1), p. 29-42, 2004.

BIOINFORMATICS 2010 - International Conference on Bioinformatics

210
