to those of pink noise, indicating a smoother RR sig-
nal, with stronger long-term correlations. Finally, the
group of individuals with hypertension presents RR
signals with moderate smoothness. Arterial hyperten-
sion is associated with reduced variability of cardiac
frequency, specially that associated with parasympa-
thetic activities, what can partially explain the ob-
served results.
4 CONCLUSIONS

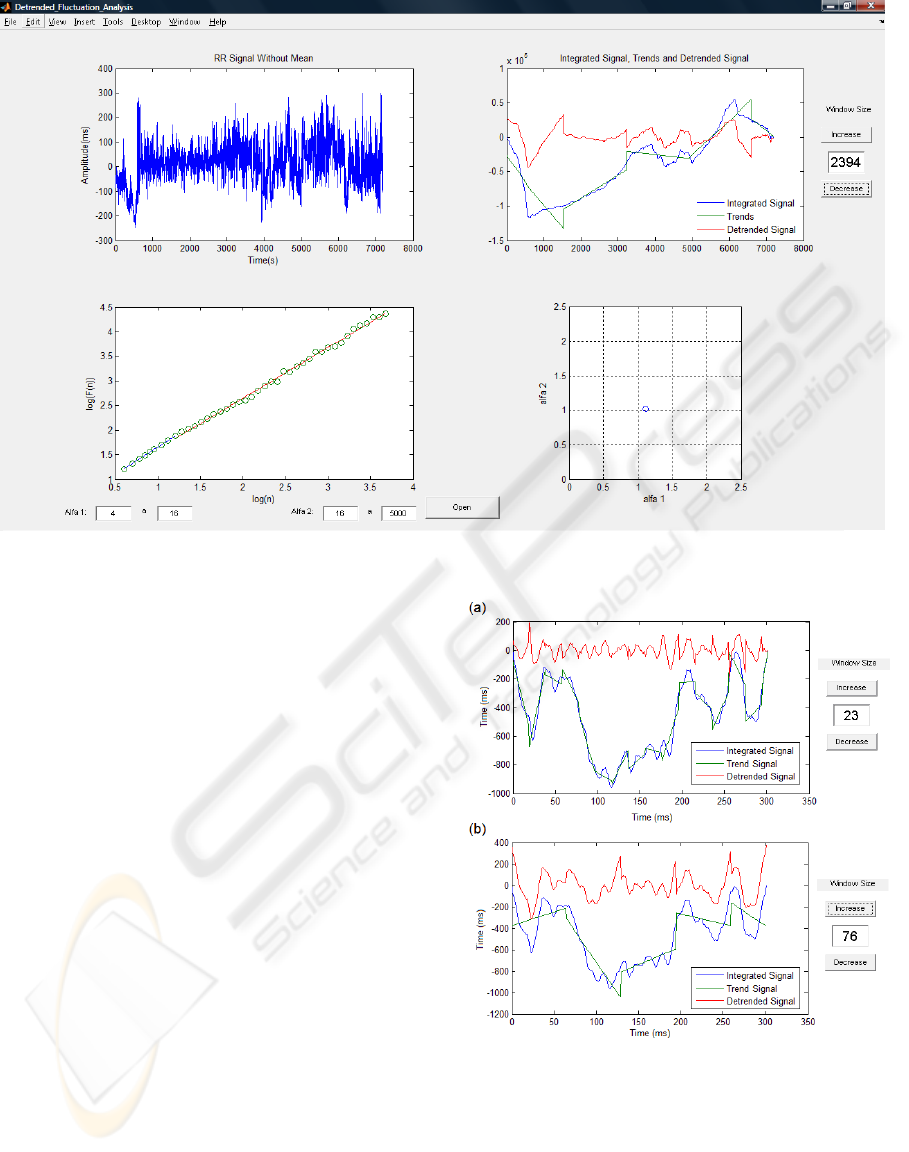

A new tool for analysis of HRV was presented. The
presented software implemented detrended fluctua-
tion analysis, and may facilitate the study of patholo-
gies on long duration examinations or during exams
involving variable stress conditions, since DFA does
not make assumptions about signal stationarity. The
output of DFA analysis is a pair of numerical coeffi-
cients, what could make the statistical analysis of such
signals simple and practical. DFA could be combined
with pattern classification methods based on neural
networks, for a potentially powerful diagnosis tool.

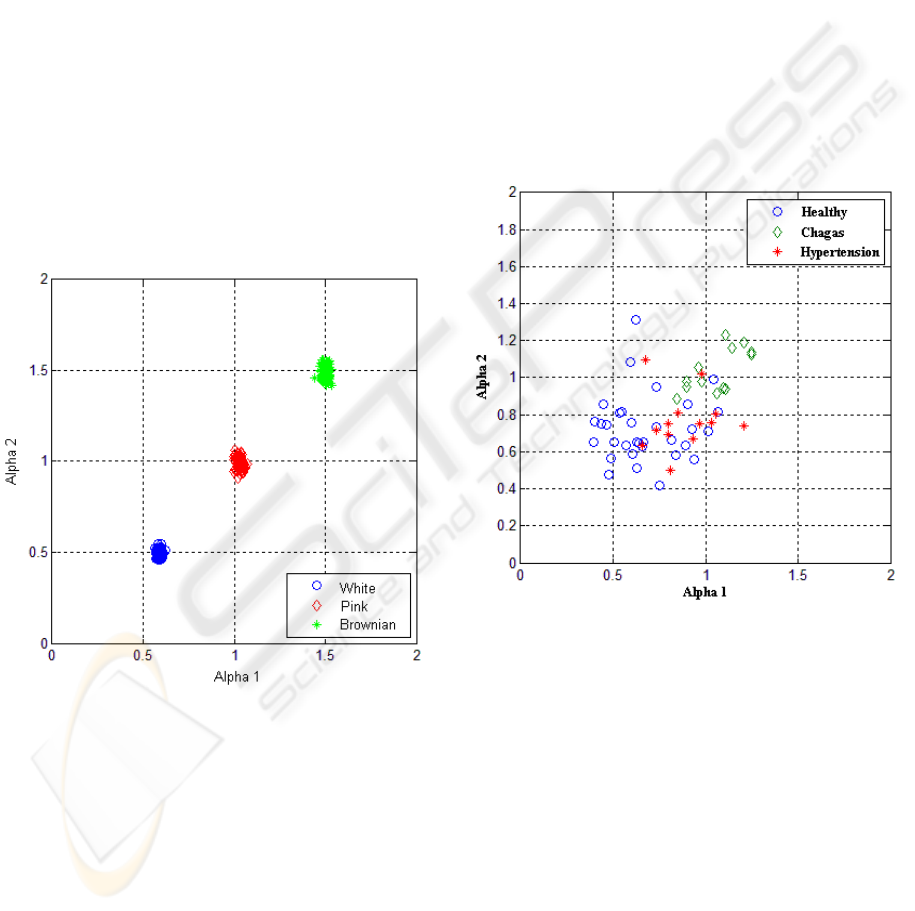

The presented software was first validated with a
set of simulated signals, and then applied to real RR
signals, which demonstrated its utility for the analysis
of HRV. The DFA tool was capable of satisfactorily
discriminating the group of healthy subjects from the
group of Chagas disease individuals. The group of in-
dividuals with mild to moderate hypertension showed
some overlap with a portion of the group of healthy
volunteers, but seemed to present higher α
1
values
than that of the healthy subjects, in average.
The presented tool may help popularizing the use
of DFA among the HRV scientific community. The
software is open source, and is available upon request.
ACKNOWLEDGEMENTS
The authors thank Prof. Luiz Fernando Junqueira Jr.
and the faculty, staff and alumni of the Cardiovascular
Laboratory of the University of Bras
´
ılia for provid-
ing the HRV signals used in this work. The authors
also thank Mr. Pandelis Perakakis for motivating this
work, and for useful discussions.
REFERENCES
Anderson, S. (1992). Advanced Electrocardiography (Bio-
physical Measurement Series). Spacelabs Medical,
Inc., Redmond, WA.
Carvalho, J. L. A., da Rocha, A. F., Junqueira Jr, L. F.,
Souza Neto, J., Santos, I., and Nascimento, F. A. O.
(2003). A tool for time-frequency analysis of heart
rate variability. In EMBC’03, 25th Annual Inter-
national Conference of the IEEE Engineering in
Medicine and Biology Society, volume 3, pages 2574–
2577.
Carvalho, J. L. A., da Rocha, A. F., Nascimento, F. A. O.,
Souza Neto, J., and Junqueira Jr, L. F. (2002). Devel-
opment of a Matlab software for analysis of heart rate
variability. In ICSP’02, 6th International Conference
on Signal Processing, volume 2, pages 1488–1491.
Correia Filho, D. (2000). Avaliac¸
˜
ao Cl
´
ınico-Funcional,
Bioqu
´
ımica e Imunol
´
ogica do Sistema Nervoso
Aut
ˆ
onomo em Residentes em
´
Area End
ˆ
emica da
Doenc¸a de Chagas. PhD thesis, Universidade Fed-
eral de Minas Gerais (UFMG), Belo Horizonte–MG,
Brazil.
Jesus, P. C. (1996). Considerac¸
˜
oes Metodol
´
ogicas e
Caracterizac¸
˜
ao de Procedimentos Implicados nas
An
´
alises Temporal e Espectral da Variabilidade da
Freq
¨
u
ˆ
encia Card
´
ıaca para Avaliac¸
˜
ao Cl
´
ınica da
Func¸
˜
ao Auton
ˆ
omica Card
´
ıaca. Master’s thesis, Facul-
dade de Sa
´
ude – Universidade de Bras
´
ılia (FS/UnB),
Bras
´
ılia–DF, Brazil.
Junqueira Jr, L. F., Oliveira, L. C., Pereira, F., Jesus, P. C.,
and Carvalho, H. (2001). Depressed sympathetic and
enhanced parasympathetic reflex responses of heart
rate in arterial hypertension. Revista de la Federaci
´
on
Argentina de Cardiolog
´
ıa, 30(2):357–358.
Malik, M. and Camm, A. J. (1995). Heart Rate Variability.
Futura Publishing Company, Inc., Armonk, NY.
Niskanen, J.-P., Tarvainen, M. P., Ranta-aho, P. O., and
Karjalainen, P. A. (2004). Software for advanced
HRV analysis. Computer Methods and Programs in
Biomedicine, 76(1):73–81.
Peng, C.-K., Havlin, S., Stanley, H. E., and Goldberger,
A. L. (1995). Quantification of scaling exponents and
crossover phenomena in nonstationary heartbeat time
series. Chaos, 5(1):82–87.
Piskorski, J. and Guzik, P. (2007). Geometry of the Poincar
´
e
plot of RR intervals and its asymmetry in healthy
adults. Physiological Measurement, 28(3):287–300.
Schechtman, V. L., Raetz, S. L., Harper, R. K., Garfinkel,
A., Wilson, A. J., Southall, D. P., and Harper, R.
(1992). Dynamic analysis of cardiac R-R intervals in
normal infants and in infants who subsequently suc-
cumbed to the sudden infant death syndrome. Pedi-
atric Research, 31(6):606–612.
Shin, K. S., Minamitani, H., Onishin, S., Yamazaki, H., and
Lee, M. H. (1994). The direct power spectral esti-
mation of unevenly sampled cardiac event series. In
EMBC’94, 16th Annual International Conference of
the IEEE Engineering in Medicine and Biology Soci-
ety, volume 2, pages 1254–1255.
