FUZZY HYPER-CLUSTERING FOR PATTERN CLASSIFICATION

IN MICROARRAY GENE EXPRESSION DATA ANALYSIS

Jin Liu and Tuan D. Pham

School of Engineering and Information Technology, University of New South Wales, Canberra ACT 2600, Australia

Keywords:

Fuzzy c-means, Hyperplanes, Microarray gene expression data.

Abstract:

Based on the motivation by computational challenges in microarray data analysis, we propose a fuzzy hyper-

cluster analysis as a new framework for pattern classiﬁcation using such type of data. This approach uses

hyperplanes to represent the cluster centers in the fuzzy c-means algorithm. We present in this position paper

the formulation of a hyperplane-based fuzzy objective function and suggest possible solutions. Fuzzy hyper-

clustering approach appears to have potential as a novel alternative to analyze microarray gene expression

data. Furthermore, the proposed hyper-clustering algorithm is not only conﬁned to microarray data analysis

but can be used as a general approach for classifying closely related features.

1 INTRODUCTION

Microarray technology has been developed during

last few years and becomes a popular analysis method

for studying gene expression. The advantage of mi-

croarray analysis lies in that it enables researchers to

work on the expression patterns of tens of thousands

genes simultaneously. Although microarray technol-

ogy provides convenient methods to analyze gene ex-

pression, the analysis process is complex and difﬁ-

cult. Many computational tools has been applied to

microarray gene expression data analysis. Accord-

ing to (Pham et al., 2006), these methods can be

classiﬁed into two categories, classiﬁcation-based and

clustering-based. Classiﬁcation-based methods like

support vector machines (SVMs) (Statnikov et al.,

2005) and k-nearest neighborhood (k-NN) (Pham,

2005). Clustering-based methods like fuzzy c-means

(FCM)(Asyali and Alci, 2005) and self-organizing

map (SOM) (Dougherty et al., 2002).

In this paper, we propose a fuzzy hyper-clustering

approach for pattern classiﬁcation in microarray gene

expression data. The proposed method can be viewed

as an extension of the fuzzy c-means clustering which

uses hyperplanes as cluster centers. We formulate

the objective function for the fuzzy hyper-clustering

and discuss possible solutions using iterative numeri-

cal method or nature-inspired optimization method.

In literature review, there are some methods be-

ing similar to the proposed fuzzy hyper-clustering.

In (Bradley and Mangasarian, 2000), the authors

proposed to use k planes as cluster prototypes and

adopted eigenvalue decomposition to calculate these

ﬁtting planes, the work is followed by a number of

research. Some of the following research used par-

allel or non-parallel ﬁtting planes to perform binary

classiﬁcation (Yang et al., 2009), some methods were

extended to multicategory classiﬁcation by using one-

from-rest methods for each class (Jayadeva et al.,

2007).

The papers mentioned above are similar but dif-

ferent to the proposed approach. In the proposed

method, memberships of data samples assigned to

the cluster prototypes are of continuous values which

make it suitable for gene expression data in which

patterns often overlap, and the proposed clustering

method is a kind of unsupervised learning which is

also different from the work mentioned above.

The rest of the paper is organized as the follows.

In Section 2, we report current challenges in microar-

ray data analysis. Section 3 presents the proposed

fuzzy hyper-clustering and possible solutions. Fi-

nally, concluding remarks of this position paper is

given in Section 4.

2 CHALLENGES IN

MICROARRAY DATA

ANALYSIS

Although microarray data sets can be in different

forms due to various experiments platforms, they im-

pose common challenges in the analysis which we

415

Liu J. and D. Pham T. (2010).

FUZZY HYPER-CLUSTERING FOR PATTERN CLASSIFICATION IN MICROARRAY GENE EXPRESSION DATA ANALYSIS.

In Proceedings of the Third International Conference on Bio-inspired Systems and Signal Processing, pages 415-418

DOI: 10.5220/0002719504150418

 SciTePress

will discuss in the next section.

2.1 High-dimension Small-sample

Firstly, microarray data are often in high-dimension

and small-sample. Most of the publicly available

microarray data sets usually consist of less than 20

samples with more than thousands of gene features

(Golub et al., 1999). The high-dimension small-

sample problem is partly caused by the imbalanced

developing speed between slow sample collection and

rapid sequencing technology. As the development of

microarray chips also follows the Moore’s law from

the semiconductor, the high-dimension small-sample

problem would probably exist for long time.

2.2 High Redundancy

Another character of microarray gene-expression data

is that the data is highly redundant. Thus, the algo-

rithm which is to be utilized has to be able to dis-

cover expression patterns in a large amount of ir-

relevant genes. In this case, feature selection be-

comes important to improve the performance of pat-

tern classiﬁcation. Unfortunately, most of the con-

ventional feature selection algorithms may not work

well in high-dimension and small-sample microarray

data sets (Ding and Peng, 2003). The requirements

for feature selection in microarray include that the

algorithm should be computationally efﬁcient, and it

should work well with small-sample data.

2.3 Inherent Noise

The effect of noise introduced from the manufac-

turing process of microarray chips could not be ig-

nored. The noise could be introduced from different

stages and by different reasons. The inherent noise

makes the analysis difﬁcult for some computational

tools like c-means clustering and hierarchical cluster-

ing as these methods are sensitive to incomplete or

inaccurate information. Although the missed feature

value can be imputed through some kind of estima-

tion, the estimated value could be even more unre-

liable, and may adversely affect the analysis results

(Suzuki et al., 2000). To produce reliable analysis re-

sults, the algorithms which are to be applied should

be robust to noise and reduce the negative effects.

2.4 Gene Expression Overlapping

Another problem in microarray data analysis is that

the clusters usually overlap (Baken et al., 2008). This

is because each gene can have more than one func-

tion. Popular computational tools like c-means and

SOM assign crisp membership to genes, which would

distort the clustering shape in overlapped gene ex-

pression analysis and could not identify co-expression

with different groups of genes. As an alternative,

fuzzy clustering, which assigns continuous member-

ship grades, can be used to analyze overlapped infor-

mation about gene multi-functionality and to reveal

the relative likelihood of each gene belonging to each

cluster.

To get a reliable results and meaningful explana-

tions from microarray gene expression data, the com-

putational tools have to be capable for analyzing data

sets with characters listed above. Facing challenges

for microarray data analysis, there is always a need

for new analysis method that could bear better perfor-

mance.

3 A FUZZY

HYPER-CLUSTERING

TECHNIQUE

Being motivated by the useful concepts of coupling

fuzzy c-means clustering with hyperplane mapping,

we aim to solve the expression-overlapping, high-

dimension, and small-sample problems in microarray

gene expression data analysis by proposing a fuzzy

hyper-clustering technique. We discuss the proposed

method in subsequent sections.

3.1 Hyperplane-based Fuzzy

Clustering

Being different from most current clustering tech-

niques such as c-means and fuzzy c-means clustering,

which represent the cluster centers using p-dimension

mean vectors of the data samples, the proposed fuzzy

hyper-clustering adopts the geometry of hyperplanes,

which was employed to develop support vector ma-

chines and other kernel-based methods (Cristianini

and Shawe-Taylor, 2000), to represent its cluster cen-

ters h

= (w

, v

), j = 1, ..., c, where c is the number

of clusters. From now on, we will refer h

as hyper-

cluster, an example of a two dimensional hypercluster

in a single class is shown in Figure 1.

In the proposed clustering technique, sample

points are assigned fuzzy memberships to each hy-

percluster according to its distances to the hyperclus-

ters. The aim of the fuzzy hyper-clustering is to ﬁnd

a fuzzy partition matrix U = [u

], i = 1, ..., n, n is the

number of samples; and hyperclusters h

that mini-

BIOSIGNALS 2010 - International Conference on Bio-inspired Systems and Signal Processing

416

0 5 10 15 20

100

150

Min: sum of d(x,v), x is all the sample points

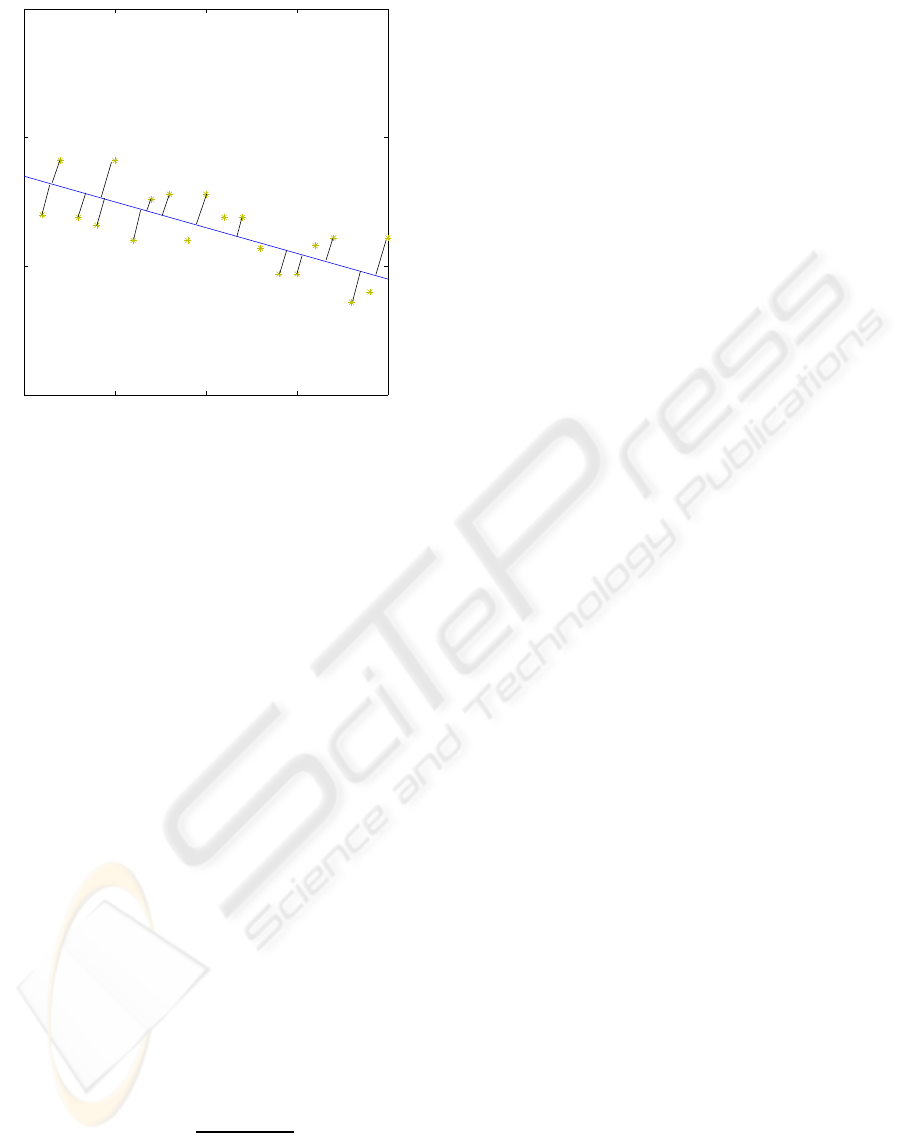

Figure 1: Two-dimensional fuzzy hyper-clustering for a sin-

gle class.

mizes the sum of the distances from all sample points

to all hyperclusters.

n×c







. ... u

. . . ... .

... . . u

...

. . ... u







(1)

∑

j=1

= 1;i = 1, ..., n; j = 1, ..., c; (2)

∈ [0, 1] (3)

where u

is the fuzzy membership of i-th object data

vector to j-th hypercluster. The resulting partition ma-

trix and hyperclusters would minimize the following

objective function:

J =

∑

i=1

∑

j=1

d(x

, h

) (4)

where h

is the j th hypercluster (w

, v

= {w

, w

, ..., w

, v

}

and w

= {w

, w

, ..., w

} is a p-dimensional

normal vector to the j-th hypercluster. The distance

from a data point to the hypercluster is:

d(x

, h

) =

· x

− v

||w

(5)

||w

|| = 1; j = 1, ..., c;∃w

6= 0 (6)

where w

·x

is the dot product between vector w

and

vector x

3.2 Proposed Solutions

To ﬁnd a solution that minimizes the above objec-

tive function J, we adopt an iterative numerical model

which updates the fuzzy partition process until a con-

vergence of the solution is reached. This process is

analogous to the fuzzy c-means clustering algorithm.

In addition, we propose to use nature-inspired opti-

mization based methods as alternative solutions.

3.2.1 Iterative Numerical Method

For an iterative numerical method, by taking the ﬁrst

derivatives of objective function J with respective to

the variants and setting them to zero, we can get

the necessary conditions for the objective function to

reach a minimum. The parameters can be updated ac-

cording to the following steps:

1. Initialize partition matrix U and hyperclusters

, j = 1, ..., c.

2. Calculate the new hyperclusters which minimize

the objective function J under the current partition

matrix U

, where t is the iteration count, then we

get the updated h

t+1

3. Following the above computation, we obtain the

newly updated fuzzy hyperclusters h

t+1

, then cal-

culate the new fuzzy partition matrix, the updated

fuzzy partition matrix U that minimizes the objec-

tive function J under the current fuzzy hyperclus-

ters h

t+1

4. If the algorithm converges, then the computation

stops. Otherwise, go to Step 2.

We consider the algorithm converges if the maxi-

mum change in the partition matrix between itera-

tions is less than a preset positive small number ε.

The resulting partition matrix U

∗

and hyperclusters

∗

, j = 1, ..., c, satisfy the solution which minimizes

the objective function J.

3.2.2 Particle Swarm Optimization

Particle swarm optimization (PSO) is a kind of evolu-

tionary computation which has been used in many ar-

eas including clustering (Feng et al., 2006). When ap-

plying PSO into the proposed fuzzy hyper-clustering,

we need to identify the positions of particles and the

ﬁtness function. An intuitive choice is to use the c hy-

perclusters h

, j = 1, ..., c, to represent the position of

a particle, and the objective function J to be the ﬁtness

function.

The PSO-based fuzzy hyperclustering can be up-

dated according to the following steps:

FUZZY HYPER-CLUSTERING FOR PATTERN CLASSIFICATION IN MICROARRAY GENE EXPRESSION DATA

ANALYSIS

417

1. Encode the position for each particle as c hy-

perclusters h

, j = 1, ..., c, then initialize partition

matrix U and ﬁrst generation of particles.

2. Start the evolution under the current partition ma-

trix U

and ﬁtness function J. The PSO updates

position and velocity for each particle. Evolution

continues until an optimal particle that minimizes

the objective function J under the current partition

matrix U

is found. Then we get the c hyperclus-

ters h

t+1

, j = 1, ..., c.

3. After we get the c hyperclusters h

t+1

, we then cal-

culate the new fuzzy partition matrix for each data

point, the updated fuzzy partition matrix U

t+1

would minimize the objectivefunction J under the

current fuzzy hyperclusters.

4. If the algorithm converges or reaches the max-

imum iteration numbers, the computation stops.

Otherwise, go to Step 2.

The convergence condition is similar to that of the

iterative numerical solution.

4 CONCLUSIONS

We have presented a proposed fuzzy hyper-clustering

algorithm for pattern classiﬁcation in microarray

gene expression data. We formulated the objective

function for the proposed hyper-clustering and dis-

cussed possible solutions using numerical and nature-

inspired optimization methods. The proposed cluster-

ing method can be: 1) suitable for overlapping data

samples as fuzzy membership is utilized; 2) compu-

tationally efﬁcient as the calculation for hyperclus-

ters may use generalized eigenvalue decomposition

which is simpler than that in standard SVMs; 3) po-

tential to handle nonlinear data as a kernelized ver-

sion of the proposed method can take advantage of

the kernel trick for nonlinear data analysis; 4) suit-

able for high dimensions small sample sizes data sets

as the supervised version of the proposed method can

be viewed as a variant of SVMs which currently is

known as the best high-dimension small-sample prob-

lem solver. Furthermore, the proposed approach can

be applied to many other different areas, not only con-

ﬁned to microarray gene expression analysis.

REFERENCES

Asyali, M. H. and Alci, M. (2005). Reliability analysis of

microarray data using fuzzy c-means and normal mix-

ture modeling based classiﬁcation methods. Bioinfor-

matics, 21:644–649.

Baken, K. A., Pennings, J. L., Jonker, M. J., Schaap, M. M.,

de Vries, A., van Steeg, H., Breit, T. M., and van Lov-

eren, H. (2008). Overlapping gene expression pro-

ﬁles of model compounds provide opportunities for

immunotoxicity screening. Toxicology and Applied

Pharmacology, 226:46–59.

Bradley, P. S. and Mangasarian, O. L. (2000). k-plane clus-

tering. J. Global Optimization, 16:23–32.

Cristianini, N. and Shawe-Taylor, J. (2000). An Introduction

to Support Vector Machines and Other Kernel-based

Learning Methods. Cambridge University Press,

Cambridge.

Ding, C. and Peng, H. (2003). Minimum redundancy fea-

ture selection from microarray gene expression data.

In Proc. 2003 IEEE Computer Society Bioinformatics

Conference, pages 523–529.

Dougherty, E. R., Barrera, J., Brun, M., Kim, S., Cesar,

R. M., Chen, Y., Bittner, M., and Trent, J. M. (2002).

Inference from clustering with application to gene-

expression microarrays. J. Computational Biology,

9:105–126.

Feng, H. M., Chen, C. Y., and Ye, F. (2006). Adap-

tive hyper-fuzzy partition particle swarm optimiza-

tion clustering algorithm. Cybernetics and Systems,

37:463–479.

Golub, T. R., Slonim, D. K., Tamayo, P., Huard, C., Gaasen-

beek, M., Mesirov, J. P., Coller, H., Loh, M. L., Down-

ing, J. R., Caligiuri, M. A., Bloomﬁeld, C. D., and

Lander, E. S. (1999). Molecular classiﬁcation of can-

cer: Class discovery and class prediction by gene ex-

pression monitoring. Science, 286:531–537.

Jayadeva, Khemchandaniand, R., and Chandra, S. (2007).

Fuzzy multi-category proximal support vector classi-

ﬁcation via generalized eigenvalues. Soft Computing,

11:679–685.

Pham, T. D. (2005). An optimally weighted fuzzy k-NN al-

gorithm. In Proc. 2005 Int. Conf. Advances in Pattern

Recognition, pages 239–247.

Pham, T. D., Wells, C., and Crane, D. I. (2006). Analysis

of microarray gene expression data. Current Bioinfor-

matics, 1:37–53.

Statnikov, A., Aliferis, C. F., Tsamardinos, I., Hardin, D.,

and Levy, S. (2005). A comprehensive evaluation

of multicategory classiﬁcation methods for microar-

ray gene expression cancer diagnosis. Bioinformatics,

21:631–643.

Suzuki, T., Hashimoto, S.-i., Toyoda, N., Nagai, S., Ya-

mazaki, N., Dong, H.-Y., Sakai, J., Yamashita, T.,

Nukiwa, T., and Matsushima, K. (2000). Comprehen-

sive gene expression proﬁle of LPS-stimulated human

monocytes by SAGE. Blood, 96:2584–2591.

Yang, X., Chen, S., Chen, B., and Pan, Z. (2009). Proxi-

mal support vector machine using local information.

Neurocomputing, in-print.

BIOSIGNALS 2010 - International Conference on Bio-inspired Systems and Signal Processing

418
