DEVELOPING

A FLEXIBLE ELECTRONIC PATIENT RECORD AS

A WEB OF ACTIVE DOCUMENTS

Federico Cabitza and Giovanni Zorzato

Universit

a degli Studi di Milano-Bicocca, Viale Sarca 336, Milan, Italy

Keywords:

Active documents, Webs of active documents, Electronic patient record, Didgets.

Abstract:

In this paper, we discuss the architecture of WOAD, a design-oriented framework that we proposed to enact a

bottom-up and document-centered approach to the development of Electronic Patient Records. We provide the

essential elements of WOAD: the concept of Active Document, Didget, Template and Mechanism. Then we

summarize the observational studies that inspired its development and that gave the preliminary user feedback

for its validation by means of the deployment of ProDoc, a WOAD-compliant patient record. We then illustrate

the core implementation details of the WOAD architecture, as it has been deployed in ProDoc.

1 MOTIVATIONS AND

BACKGROUND

In the last ﬁve years, our research has focused on the

analysis of the Electronic Patient Records (EPR) used

in speciﬁc hospitals of our region and on the design

of innovative EPRs that could improve user experi-

ence, compliance to hospital and regional healthcare

policies, data quality and patient safety. To gain the

necessary knowledge on the EPRs used in the con-

sidered settings, and to get user feedback on what

needs these applications met (or failed to met), we un-

dertook approximately 150 hours of general observa-

tions, user shadowing and interviews with practition-

ers in ﬁve departments of three from the main hospi-

tals in Northern Italy. In this ethnographic work, we

could recognize most of the unintended shortcomings

of ICT reported by other important works (e.g., (Ash

et al., 2004; Campbell et al., 2006)), especially prob-

lems related to workﬂow inclusion in daily practice

and paper persistence. The former issue regarded al-

terations in work dynamics and ergonomic shortcom-

ings in EPR interfaces that we often saw contribut-

ing in eliciting bad emotions and frustration in prac-

titioners; the latter issue regarded the observation that

practitioners kept using a sort of parallel paper-based

record for utilitarian reasons, as original and informal

data entry that is compiled before the electronic coun-

terpart and as pocket-size and foldable proxy of the

screenshots of their EPR. In particular, some practi-

tioners we interviewed told us that the precise struc-

ture of their paper-based forms was often the outcome

of a long-lasting stratiﬁcation of consolidated work

practices, agreements and compromises reached be-

tween clinicians and administrative staff, and local

conventions conceived for a more effective and less

time-consuming charting. Allegedly, two advantages

of traditional forms over electronic ones are lost with

the digitization of paper-based patient records: i) high

ﬂexibility and easiness in customizing and modify-

ing the template of ofﬁcial paper-based forms; in fact,

these forms were usually prints of electronic docu-

ments that were created with regular word processors

and that, once intended modiﬁcations had been ac-

cepted by the hospital management, could be modi-

ﬁed just in seconds; ii) high ﬂexibility in document

use, i.e., in being free to use whatever document of

the record at need without being forced to follow any

predeﬁned ﬂow of work: in fact, new forms could be

created and adopted in daily practice with no strain

and without the need to upset usual practice, as could

likely happen, e.g., when new forms have to be ﬁlled

in either to gather new data for clinical research, to

comply with new accreditation standards, or new du-

ties about informed consent.

As ﬁrst results of this long-term project, we con-

ceived the design-oriented framework, WOAD (Cab-

itza and Simone, 2009), and developed the ﬁrst

WOAD-compliant application, ProDoc; this is a pro-

totypical documental application that we customized

for the hospital domain as a highly ﬂexible EPR (Cab-

Cabitza F. and Zorzato G. (2010).

DEVELOPING A FLEXIBLE ELECTRONIC PATIENT RECORD AS A WEB OF ACTIVE DOCUMENTS.

In Proceedings of the Third International Conference on Health Informatics, pages 46-53

DOI: 10.5220/0002721500460053

 SciTePress

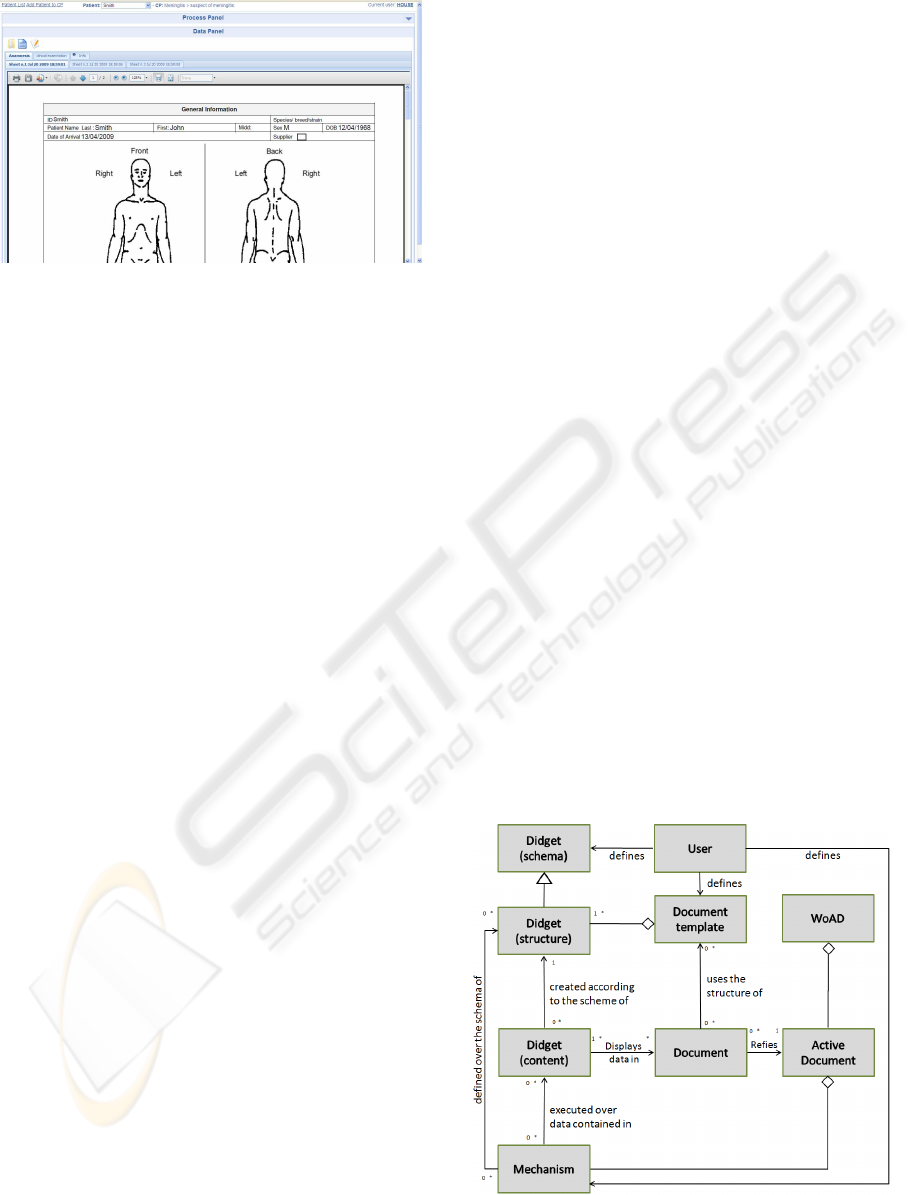

Figure 1: The Panel Data of the ProDoc application system.

The prototype presented in (Cabitza et al. 2009b) supported

also PDFs to allow for rich visual annotation of documents.

itza et al., 2009b) to address the two requirements

above mentioned. In fact, ProDoc allows practition-

ers to build, customize and use a graphical interface

for data entry and retrieval that closely resembles the

look and feel of their usual paper-based artifacts so as

to mimic the typical interaction with paper forms (see

Figure 1). In fact, what in regular EPRs is usually a set

of masks to (and views from) the underlying DB, in

ProDoc it is a set of persistent documents and forms.

Therefore, ProDoc allows users to natively treat and

use data in the very terms of the documents they pro-

gressively compile. Moreover, ProDoc embeds user-

deﬁned active process maps that allows users to get

access to any part of the documentation out of any

rigid workﬂow while being aware of the intended ﬂow

of activities as it has been deﬁned locally on the basis

of practitioners’ consensus.

In the next section, we summarize the essential el-

ements of WOAD that underlay the development of

ProDoc, i.e., the concept of Active Document, Web

of Active Documents and Mechanism. Then, in Sec-

tion 3 we discuss in more details the WOAD architec-

ture, as it has been deployed in ProDoc, and we illus-

trate a typical user interaction scenario using ProDoc

(see ). Conclusions summarize the main advantages

of the WOAD framework in the design of EPRs and

outline future lines of research.

2 WEBS OF ACTIVE

DOCUMENTS

WOAD is a design-oriented framework grounded on

the concept of active document (see Figure 2). Each

Active Document (AD) can be seen as composed

by a “passive” part, i.e., a content container with

a speciﬁc structure, and an “active” part, i.e., some

executable code that provides the passive part with

context-aware behaviors. In WOAD, the former part

includes the computable deﬁnition (i.e., the schema)

of modular and scalable data structures, which we call

didgets (from ‘documental widgets’); didgets can be

used and reused to build different document templates

(where only their topological arrangement changes)

that share the same groups of data for different pur-

poses and needs. On the other hand, the active part

of an AD is composed by a set of (one or more)

executable and modular constructs, which we called

mechanisms; mechanisms are specialized ’if-then’

statements deﬁned over the didgets and their content

that can be executed by a WOAD-compliant appli-

cation (like ProDoc) in order to exhibit document-

centered behaviors according to their current data.

The seminal idea of an “active documental artifact”

was ﬁrst proposed in (Divitini and Simone, 2000) to

refer to data structures capable of assuming an active

role in mediating information exchange and coordina-

tion among cooperative actors. The most notable re-

search on active documents is the Placeless Document

Project developed at PARC (Dourish et al., 2000).

Placeless documents are documents that are managed

according to their properties, i.e. sort of metadata that

both describe the document’s content and carry the

code to implement elementary functionalities of doc-

ument management (e.g., automatic backup, logging,

transmission). In the WOAD framework, we extend

this idea by considering any document and form that

practitioners are supposed to ﬁll in and consult in their

daily practice as parts of an interconnected document

system, i.e., what we call a Web of Active Documents,

WoAD. WoADs can be highly customized in differ-

ent domains and application settings to exhibit active

behaviors that support users e.g., in keeping track of

Figure 2: Relationships between WOAD concepts through

an UML entity diagram.

DEVELOPING A FLEXIBLE ELECTRONIC PATIENT RECORD AS A WEB OF ACTIVE DOCUMENTS

the patient’s illness trajectory, improving the quality

of the information exchanged in shift handoffs and

patient handovers, enabling activity- and time-related

information retrieval and coordinating collaborative

tasks (as e.g., order handling). Accordingly in our

case study, we conceived of any single form, record or

document used to enter and retrieve clinical data from

the patient record (e.g., a therapy prescription sheet)

as a single AD that is endowed by local behaviors and

is bound to other ADs by means of reactive mecha-

nisms that characterize a speciﬁc WoAD. In what fol-

lows, we consider in some more details both the pas-

sive part of ADs (i.e., didgets and templates in Sec-

tion 2.1) and their active parts (i.e., mechanisms, in

Section 2.2).

2.1 Didgets and Templates

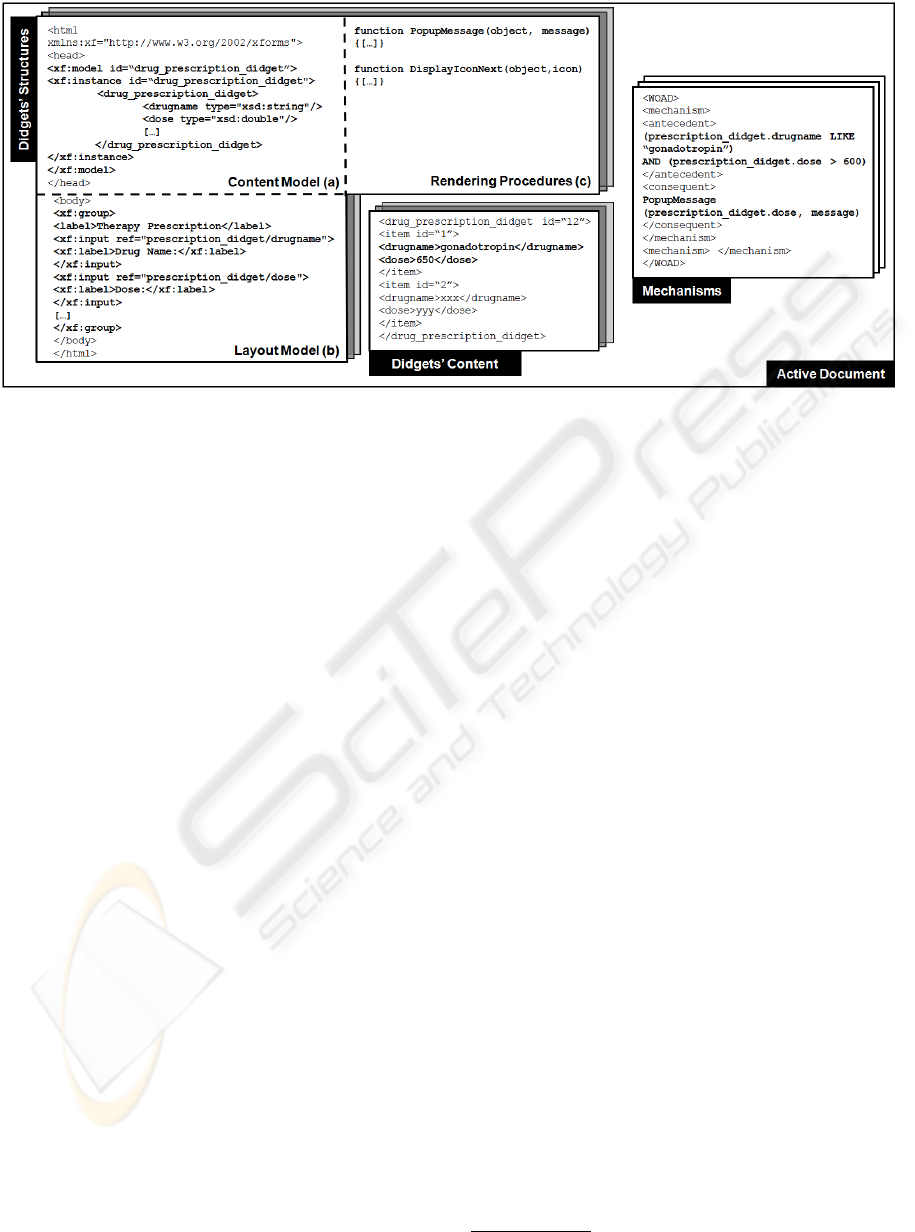

With reference to Figure 3, in WOAD, each document

is composed by: i) a set of didgets that are spatially ar-

ranged according to a speciﬁc document template (see

’Document Template’ in Figure 2); ii) sets of data i.e.,

the document content, that are associated with the did-

gets contained in the template (see ’Didget Content’

in Figure 2).

A didget is deﬁned as a coherent group of form

elements, e.g., input ﬁelds, iconic elements, buttons,

that can be positioned in one or more documents of

a WoAD. These elements are gathered together at de-

sign time because they relate to either the same ab-

stract data type (e.g., the patient), the same work ac-

tivity (e.g., drug prescription), or even the same por-

tion of a paper-based artifact, e.g., a table in a record.

Each didget is deﬁned in terms of i) a content

model (i.e., data types, constraints, ranges), ii) a lay-

out model (i.e., how it is displayed at the user in-

terface in default of other information) and iii) a set

of rendering functions, i.e., executable code that can

be interpreted by a client application (e.g., a web

browser) to change how the didget’s elements and

data are displayed. These models build up what we

call a didget schema (see Figure 2). Users can place

a didget (schema) in any position of a document tem-

plate and thus create a structure of that didget (see

Figure 3). A didget structure can be reused in any

other document of the same WoAD, so that it consti-

tutes a sort of distributed “entry point” to the same

set of data (i.e., the content of the same didget struc-

ture). When a user puts a didget structure in a cer-

tain position of a document template, she can specify

whether the associated group of elements must appear

only once in the document (and exactly there) or if

users can add more (didget) content (see Figure 2) in

that structure in tight succession (much like multiple

rows in a table) to allow for extemporaneous needs

for additional room for data that are not predictable

at document design time. For instance, a template of

the Anamnesis form can contain a didget to record the

examinations previously undertaken by the patient. If

the didget has been deﬁned as “multiple”, this means

that if a physician needs to record more than one ex-

amination for a patient into an Anamnesis form doc-

ument, she can add how many rows (i.e., examina-

tions) she needs and all of them will be stored into

the didget. Didgets hold all the data that users feed

into them into a permanent memory, time-stamp these

data, allow to distinguish between (logically) elimi-

nated, provisional and consolidated data and display

these latter data in a last-in-ﬁrst-out fashion: in this

way, users can get access to the whole history of data

imputation for any single didget.

Users can create the templates they need by means

of the AD Template Editor (ADTE). This is an edi-

tor intended to enable users to create document tem-

plates through a graphical interface by picking up spe-

ciﬁc didget schema from a palette of predeﬁned ones

and placing them in the draft template in a what-you-

see-is-what-you-get manner. Didget schemas can be

domain-independent (e.g., regular text-boxes, check-

boxes, identiﬁcation ﬁelds) or domain-dependent,

e.g., a group of data ﬁelds that is related to the iden-

tiﬁcation of patients, or related to drug prescription,

like drug name, dosage, administration way and the

like. Domain-dependent didget schemas are usually

deﬁned by business analysts in cooperation with ex-

pert users of the application ﬁeld and made avail-

able to users by a standard palette in the ADTE. The

ADTE also provides a second palette containing the

didget structures that have already been created in the

same WoAD. Users can use this palette in order to

reuse the same didgets in different templates. More-

over, users can use the ADTE to deﬁne new didget

schemas in terms of both the content model (e.g., data

ﬁelds with their type) and the layout model, i.e., its

visual aspect. In addition, the ADTE allows to de-

ﬁne the speciﬁc rendering procedures of a didget (see

c in Figure 3) in terms of Javascript functions, which

can affect user interaction with the single didget in

each document embedding it by enabling advanced

features of text formatting and document rendering.

For instance, for a certain didget, users can deﬁne a

rendering procedure that displays a balloon contain-

ing some information regarding a speciﬁed ﬁeld of the

didget (the purpose of these procedures will be clear

after reading Section 2.2).

Once a template has been deﬁned, users can be-

gin use the documents that are built on that template.

In fact, a WOAD document is generated by coupling

HEALTHINF 2010 - International Conference on Health Informatics

Figure 3: A graphical representation of the components of an Active Document.

the document template, which is associated with a set

of didget structures and provides the topological in-

formation for their displaying, with the content of its

didget structures that is related to the speciﬁc docu-

ment associated to a speciﬁc patient. In other words,

every different document that is based on the same

template (i.e., that is associated with the same did-

get structures provided by the template) represents an

instance of the document template for a speciﬁc pa-

tient. This means that users can create new documents

according to their needs and local practices. For in-

stance, doctors could want to have only one docu-

ment for each template be associated with a single

patients, as in the case of the Anamnesis form, which

reports all the past clinical information through multi-

ple didgets that allow for multiple values; conversely,

doctors could also want to associate many documents

based on the same template with the same patient, as

in the case of the clinical diary: this is a case where

physicians create a new document every day during

the patient’s stay to organize their clinical annotations

in a time-oriented fashion. In both cases, data are

recorded in the “content didget” associated with the

didget structures contained in the templates (see Fig-

ure 3). In the former case (one document for tem-

plate with multiple didgets for each patient), doctors

can minimize the dispersion of data across different

documents and rely on a single “place” to consult; in

the latter case (multiple documents for one template

for each patient) they can have the didget content be

partitioned according to some policy (e.g., the stay’s

length) and each partition be associated with a dif-

ferent document so as to organize the patient record

as they were used to in paper-based folders. In ei-

ther cases, it is noteworthy that the content of all the

documents that are based on the same template refers

to the same data structures, i.e., the didget structures

that are contained in the template itself: this guaran-

tees WOAD-compliant applications can process data

as efﬁciently as in EPRs based on a traditional DBMS,

while allowing a higher ﬂexibility in document use

as stated above. Currently, didget schemas are rep-

resented using an XForms-like

syntax. Once a user

has built a didget schema, the ADTE exports it as an

XForms form. This contains the XML description of

the data model of the didget (see a in Figure 3), and

also deﬁnes its layout model in XHTML (see b in Fig-

ure 3). A document template is an XML description

of the speciﬁc didget structures that it contains.

2.2 Mechanisms in the WOAD

Framework

As said in Section 2, ADs are coupled to sets of

WOAD mechanisms that make them “active” and

proactive with respect to their content. Mechanisms

are rules deﬁned at level of didget structures, i.e., they

refer to didgets put in one or more document tem-

plates and are triggered according to the didgets con-

tent. These if-then constructs can be expressed in any

rule-based language (for which an interpreter can be

integrated to a WOAD architecture) but we also pro-

posed an abstract denotational language to facilitate

their deﬁnition by users with little or no experience

in programming (see the WOAD language presented

in (Cabitza and Simone, 2009)). Mechanisms repre-

sent conditions over the didgets’ content in their an-

tecedents (or if parts), and trigger simple actions ex-

http://www.w3.org/TR/xforms/

DEVELOPING A FLEXIBLE ELECTRONIC PATIENT RECORD AS A WEB OF ACTIVE DOCUMENTS

pressed in their consequents (or then parts) whenever

these conditions are met. Mechanisms’ antecedents

can contain conditions deﬁned over one or more did-

gets; in this case, they can refer to didgets that are

associated with either only one document template or

many document templates of the same WoAD. Mech-

anisms are triggered by human interaction with docu-

ments: any application behavior for which a program-

ming interface is available can be associated to the

mechanism’s consequent. Accordingly, we classify

mechanisms (to rationalize their design) according to

what they do on the document content: we then dis-

tinguish between mechanisms that (i) modify the con-

tent, e.g., to edit or correct values in data ﬁelds; (ii)

modify content’s attributes and metadata, e.g., times-

tamps, status ﬂags, urgency attributes; (iii) act on

the content, e.g., print (parts of) it, check its quality,

validate it, consolidate it (e.g., by digital signature);

(iv) transmit the content from one system to another

through a communication medium, e.g., by email; (v)

route documents and build ﬂows of work, e.g., by al-

lowing users link documents of the same WoAD to

each other to easily open a document from another, or

by allowing users to open/compile certain (portions

of) documents only after that also other (portions of)

documents have been compiled (and corresponding

tasks performed); (vi) change the content’s appear-

ance, e.g., by changing the background color or the

font style. This last kind of mechanisms act by means

of the rendering functions deﬁned at level of didget

(see c in Figure 3)and have been object of our recent

research on how to improve the ways users access

and use document content and on how the content can

be displayed to make it more “meaningful”. In fact,

as researchers active in the ﬁeld of CSCW, we agree

with (Pratt et al., 2004) that EPRs should embed spe-

ciﬁc functionalities to help practitioners be aware of

interdependencies between their work and the activi-

ties of others to get an understanding of the collabo-

rative context for their own activity (Dourish and Bel-

lotti, 1992). To this aim, in (Cabitza et al., 2009a) we

proposed the concept of Awareness Promoting Infor-

mation (API), i.e., any annotation, graphical clue, af-

fordance, textual style and indication that could make

actors aware of something closely related to the con-

text of reading and writing. The execution of mecha-

nisms can then be seen as a process of API generation,

i.e., an operation by which the affordance and appear-

ance of documents and their content is modiﬁed, and

possibly additional information (e.g., a message) is

conveyed to the user in order to make her aware of

some condition in the context of document use.

In order to decline the requirements that physi-

cians explicitly expressed in terms of mechanisms,

we co-deﬁned with some of their key representatives

mechanisms that: could check the correctness of liq-

uid balance values and correct them if necessary (type

iii and i); that could mark some values ﬁlled in by

nurses during a night shift as provisional until the doc-

tor on duty ofﬁcially double checks them and signs

the form (type ii); that could allow practitioners cor-

rect a datum without eliminating the previous value

for legal concerns (type ii); that could produce ofﬁ-

cial reports printing only parts of the record’s con-

tent (even distributed across different documents) ac-

cording to values ﬁlled in in speciﬁc ﬁelds, e.g., the

treatment indication, the kind of procedure (type iii);

that could prevent users from opening an operation

record if the informed consent and the surgery assess-

ment record have not been duly compiled and signed

(type v); that could send a copy of an examination re-

quest form to the laboratory as soon as all the neces-

sary ﬁelds have been ﬁlled in and that could send the

discharge letter to the family doctor once the hospital

stay has been ofﬁcially closed (both of type iv); and

lastly, that would remind practitioners to compile liq-

uid intakes values at regular intervals and that would

check that blood examination requests are compiled

within noon and raise due alerts if this is not the case

so that results can be returned by the end of the day

(both of type vi).

3 INTERACTION WITH THE

WOAD ARCHITECTURE

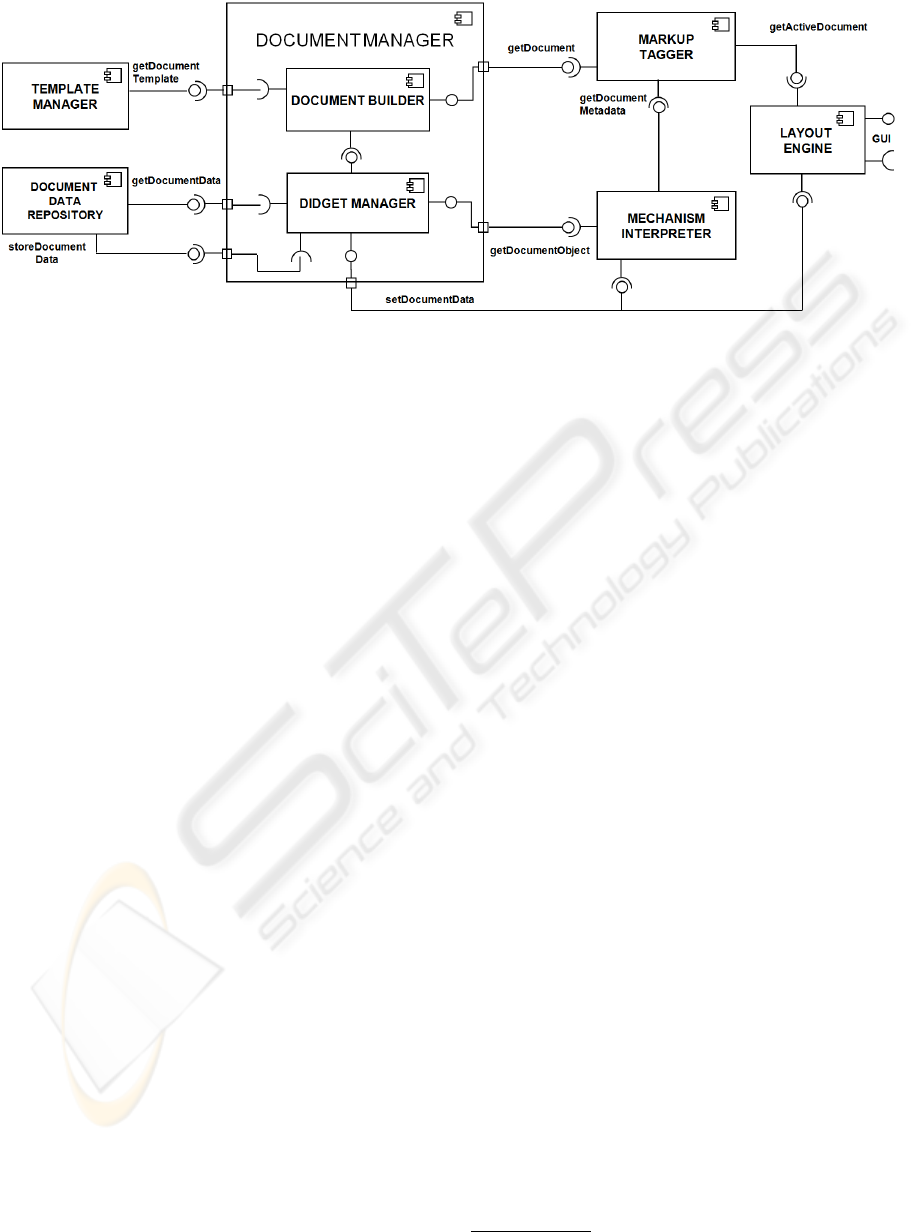

In this section, we describe the components of the

WOAD architecture (see Figure 4), whose conceptual

architecture has been presented in (Cabitza and Si-

mone, 2009), and illustrate how these interact when

users are involved in the basic operations of read-

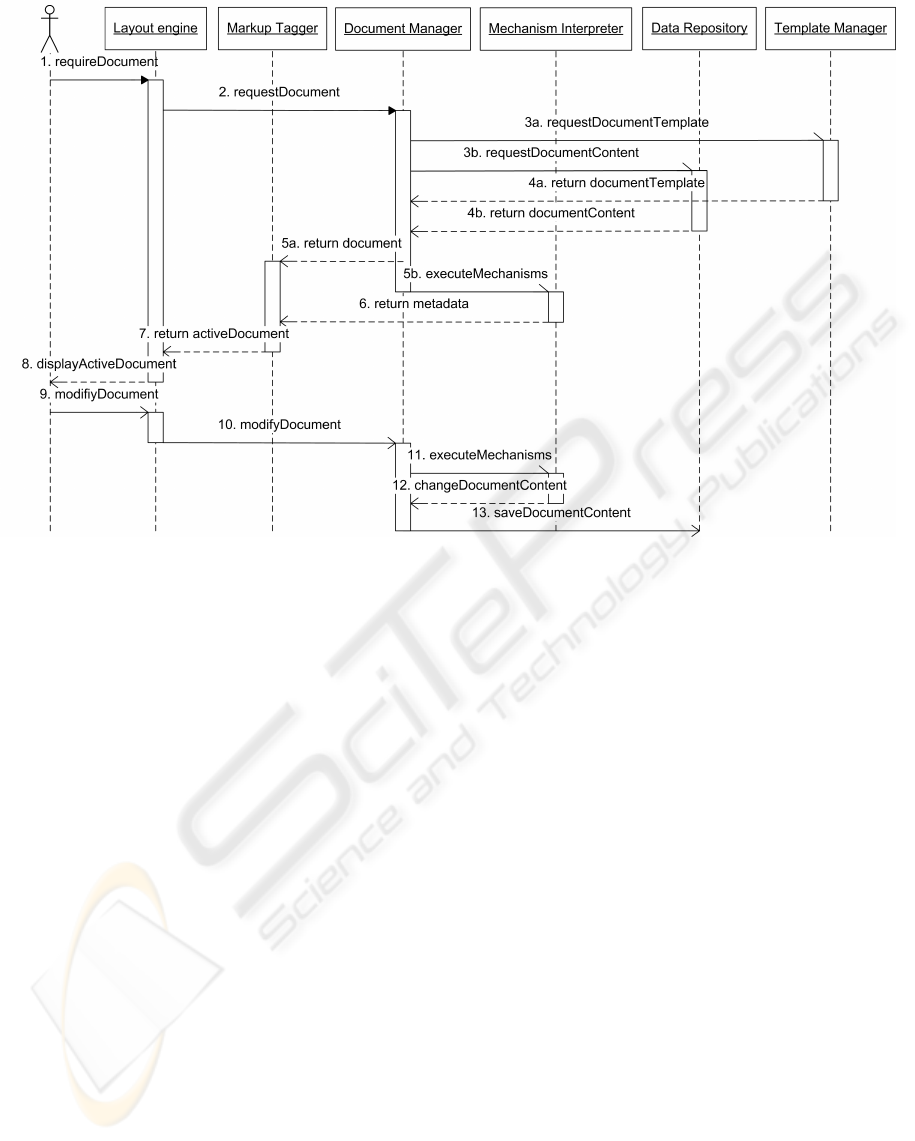

ing and writing an active document, respectively (see

Figure 5). We also provide some details about the

current implementation of the WOAD components in

ProDoc. For our description, we assume that a tem-

plate has been created through the ADTE and stored

in the Template Manager. This is a component that

gives both to the ADTE and the main application

shared access to templates. When a user asks for a

certain document from a speciﬁc patient record e.g.,

a drug prescription form, through the GUI of the ap-

plication (see step 1 in Figure 5), the request is taken

by the Layout Engine. This is a standard component

that renders active documents, thus allowing the user

to interact with them and communicate with the appli-

cation. Currently, the Layout Engine can be any reg-

ular Internet browser that either supports XForms at

client side (like Gecko) or natively supports the output

HEALTHINF 2010 - International Conference on Health Informatics

Figure 4: An UML component diagram of the WOAD architecture underlying the ProDoc implementation.

ﬂow produced by an XForms processor at server side

(i.e., support the full standards of HTML, CSS and

Javascript). The Layout Engine forwards the request

to the Document Manager (see 2 in Figure 5) which is

the main component of any application based on the

WOAD architecture. The Document Manager builds

the (passive) document (see Section 2.1) coupling a

template with the content related to the document that

has been requested by the user in step 1. In addition,

the Document Manager provides the data structure on

which the application works on the basis of mecha-

nisms (see Section 2.2). To these aims, the Document

Manager is divided into two subcomponents: the Did-

get Manager and the Document Builder. The Did-

get Manager creates and keeps the didget structures

of a WoAD (see Section 2.1) in its working memory

and maintains them synchronized with the Document

Data Repository (see Figure 4), which is any com-

ponent that provides data persistence features, e.g.,

a DBMS. In our current implementation, the Didget

Manager is a java class that both loads the content of

didgets’ structures into correspondent sets of objects,

and serializes these objects into the Document Data

Repository.

On the other hand, the Document Builder builds

an empty form on the basis of a template and ﬁlls in it

with the (passive) content associated with the speciﬁc

document requested by the user. The current Docu-

ment Builder is a java class that creates an Xforms

form by joining the schemas of the didget structures

contained in a template and associates didgets’ con-

tent with it (see Figure 2). With reference to Figure 5,

the Document Manager retrieves the document tem-

plate of the requested document from the Template

Manager (steps 3a and 4a) and associates it with the

correspondent didgets’ content provided by the Doc-

ument Data Repository (steps 3b and 4b) in order to

build up the requested document. As soon as the Doc-

ument Manager gets the document content, it interacts

with the Mechanism Interpreter (step 5b) to execute

the WOAD mechanisms associated with all the did-

gets (structures) included in the document. To this

aim, the Mechanism Interpreter checks the WOAD

mechanisms against the document content provided

by the Document Manager, activates the mechanisms

whose antecedents are satisﬁed by the didgets’ con-

tent and then selects those to execute according to a

resolution strategy based on speciﬁcity and current-

ness (Forgy, 1982). The mechanisms’ consequents

contain instructions that either modify data or build

speciﬁc metadata to be associated to the document

(e.g., metadata that prevent data from being modi-

ﬁed or metadata that change the appearance of cer-

tain values). This association metadata-document is

performed by the Markup Tagger; this component re-

ceives both the (passive part of the) document that has

been created by the Document Manager (step 5a), and

the metadata that has been produced by the Mech-

anism Interpreter (step 6), and then it translates the

metadata either into appropriate rendering attributes

(e.g., stylesheet classes) or into calls to rendering pro-

cedures (see c in Figure 3). For instance, if the Mech-

anisms Interpreter has associated a didget text ﬁeld

with the metadata <editable>false</editable>, the

Markup Tagger translates it into the HTML attribute

“disabled” so that the Layout Engine cannot receive

user input for that element. In the current implemen-

tation, the Mechanisms Interpreter is based on JBoss

Drools

and mechanisms are translated into rules that

are checked against the didget objects built by the

Didget Manager; the Markup Tagger is a java class

that embeds javascript code into the Xforms form in

order to call the rendering procedures or to modify

the style attributes of the XHTML page of the docu-

ment. The output of the Markup Tagger is then the

http://jboss.org/drools/

DEVELOPING A FLEXIBLE ELECTRONIC PATIENT RECORD AS A WEB OF ACTIVE DOCUMENTS

Figure 5: An UML sequence diagram of the typical user interaction with ProDoc.

active document: this presents the requested content

with the layout speciﬁed by the corresponding tem-

plate and displays additional information according

to the metadata. The active document is sent to the

Layout Engine (step 7) which ﬁnally displays it to the

user (step 8).

On the way round, when a user modiﬁes an ac-

tive document (step 9 in Figure 5), the Layout En-

gine sends the single modiﬁcations of the content to

the Document Manager (step 10). As a consequence,

the document (i.e., its didgets) will be automatically

re-processed by the Mechanisms Interpreter (step 11)

that constantly monitors all the WoAD didgets. In

this way, every data change can be immediately cap-

tured and processed by the application logic that is

formalized in the mechanisms that ﬁt the current con-

text best. To this aim, the Mechanisms Interpreter

directly interacts with the Document Manager in or-

der to commit the instructions that update the content

(step 12). Finally, the Document Manager stores the

documents’ updates into the Data Repository for the

sake of data persistence (step 13).

4 CONCLUSIONS AND FUTURE

WORK

Summarizing, in this paper we have illustrated the

concept of Active Document within the WOAD

framework: an AD is composed by reusable and mod-

ular “ﬁeld nuggets”, called didgets, and it is made

active by modular interpretable code, called mecha-

nisms, that trigger behaviors according to the context.

This modularity and the accentuated separation of

information-related and functional needs (addressed

by speciﬁc didgets and mechanisms in the passive and

active part of a document, respectively) is what makes

a web of interconnected ADs a suitable electronic doc-

ument platform that can be reused in different work

settings and maintained over time to ﬂexibly address

ever changing users’ needs. To the present moment,

the WOAD framework encompasses (i) a conceptual

model and architecture that represent the main enti-

ties and relationships involved in collaborative work

mediated by complex document systems; (ii) a deno-

tational language by which to express reactive mech-

anisms in an abstract and platform-independent way

(presented in (Cabitza and Simone, 2009); (iii) a set of

software components that supports users by means of

active documents i.e., electronic documents (in XML

format) that exhibit collaboration-oriented behaviors

HEALTHINF 2010 - International Conference on Health Informatics

proactively with respect to the context of work (see

Figure 4); iv) a couple of prototypical applications to

facilitate users in building their document templates

and active mechanisms: namely an active document

template editor and a mechanism editor.

The ﬁrst vertical application system to be based on

a WOAD architecture is ProDoc: built as a proof-of-

concept and prototypical electronic patient record, it

has provided ﬁrst feedback from key users and pre-

liminary validation from the ﬁeld of work, as pre-

sented in (Cabitza et al., 2009b). In this paper, we

have presented the core implementation choices we

undertook for the ﬁrst deployment of ProDoc, based

on JBoss Drools (for the mechanism interpreter) and

XForms (for the document manager); we also pro-

vided some examples of WOAD mechanisms in the

hospital domain to give evidence of the advantage

that a modular and rule-based approach can give over

more traditional approaches that deﬁne functionalities

at compile-time through an entity-driven requirement

analysis and then achieve post-hoc ﬂexibility through

mere conﬁguration facilities.

Users stressed the requirement of being supported

in deﬁning and maintaining their own data structures

and associated behaviors without the heavy involve-

ment of ICT practitioners (mainly to reduce costs and

times of intervention). For this reason, our research

agenda aims to build one single application that could

integrate user-friendly functionalities to build active

documents also in a visual and intuitive way. More-

over, we plan to propose a design-oriented method-

ology to assist IT practitioners in planning and per-

forming digitization programmes of paper-based pa-

tient records in a bottom-up and document-centered

fashion, in order to minimize the impact of the main

unintended shortcomings of ICT programmes in the

healthcare domain reported in the specialist litera-

ture (Campbell et al., 2006).

REFERENCES

Ash, J. S., Berg, M., and Coiera, E. (2004). Some un-

intended consequences of information technology in

health care: The nature of patient care information

system-related errors. Journal of the American Medi-

cal Informatics Association, 11:104–112.

Cabitza, F. and Simone, C. (2009). WOAD: A framework to

enable the end-user development of coordination ori-

ented functionalities. Journal of Organizational and

End User Computing, 22(1).

Cabitza, F., Simone, C., and Sarini, M. (2009a). Leverag-

ing coordinative conventions to promote collaboration

awareness. Computer Supported Cooperative Work,

18:301–330.

Cabitza, F., Simone, C., and Zorzato, G. (2009b). ProDoc:

an electronic patient record to foster process-oriented

practices. In ECSW’09. Vienna, Austria, September

9-11, 2009. Springer.

Campbell, E. M., Sittig, D. F., and et al., J. S. A. (2006).

Types of unintended consequences related to comput-

erized provider order entry. Journal of the Amer-

ican Medical Informatics Association 13 Number,

13(5):547–556.

Divitini, M. and Simone, C. (2000). Supporting different di-

mensions of adaptability in workﬂow modeling. Com-

puter Supported Cooperative Work, 9(3):365–397.

Dourish, P. and Bellotti, V. (1992). Awareness and coor-

dination in shared workspaces. In CSCW’92, pages

107–114, New York, NY, USA. ACM Press.

Dourish, P., Edwards, W. K., LaMarca, A., Lamping, J.,

Petersen, K., Salisbury, M., Terry, D. B., and Thorn-

ton, J. (2000). Extending document management sys-

tems with user-speciﬁc active properties. ACM Trans-

actions on Information Systems, 18(2):140–170.

Forgy, C. L. (1982). Rete: A fast algorithm for the many

pattern / many object pattern match problem. Artiﬁcial

Intelligence, 19(1):17–37.

Pratt, W., Reddy, M. C., McDonald, D. W., Tarczy-

Hornoch, P., and Gennari, J. H. (2004). Incorporat-

ing ideas from computer-supported cooperative work.

Journal of Biomedical Informatics, 37(2):128–137.

DEVELOPING A FLEXIBLE ELECTRONIC PATIENT RECORD AS A WEB OF ACTIVE DOCUMENTS
