A KNOWLEDGE-BASED SYSTEM FOR THE VALIDATION OF THE

DEPLOYMENT OF SOFTWARE UNITS

Fco. Javier Blanco, Laura D

ıaz-Casillas and Mercedes Garijo

Departamento de Ingenier

ıa de Sistemas Telem

aticos, Universidad Polit

ecnica de Madrid, Madrid, Spain

Keywords:

Knowledge-based systems, Validation, Software deployment.

Abstract:

Today, many business applications are developed following SOA principles. One of the activities required

for their implementation is deployment, a complex process that usually is done by hand, being necessary to

develop new tools to facilitate it. This article presents a knowledge-based system that validates the deployment

of software units on a particular environment, before executing them. The system is based on an information

model and has been implemented with Drools 5.0 and as an OSGi bundle to be integrated into a deployment

and conﬁguration architecture.

1 INTRODUCTION

Nowadays, many business applications are developed

according to a service-oriented architecture (SOA)

(Hashimi, 2003), which promotes their availability,

reliability and scalability. One of the operations to ex-

ecute during the development of such applications is

the deployment of services, in which all the activities

required for the execution of these services are car-

ried out. A service is a software system that provides

a particular function to a user or to another system.

Usually, services cooperate with each other to achieve

a common goal, being necessary to check their avail-

ability. Also, the requirements demanded by the ser-

vices have to be considered in order to select the most

suitable nodes for their deployment. It is also neces-

sary to take into account that during the development

of the application, services and environment charac-

teristics can change, being necessary to modify de-

ployment activities or, at least, validate them. There-

fore, deployment is a complicated process. However,

it is a task that is usually done manually, having a high

cost associated and being one of the main sources of

error during the systems development.

Due to several problems that have to be solved,

automation of deployment is still a research area.

ITECBAN is an innovation project funded by the

Spanish Ministry of Industry, Tourism and Trade

through CENIT program. Its main objective is to cre-

ate a platform that serves as a basis for developing

core banking information systems. In this context,

a deployment and conﬁguration architecture (from

now on DCA) has been developed to support deploy-

ment activities of software units on different envi-

ronments. This architecture uses a resource model

explained in (Cuadrado et al., 2009), based on the

model presented in (Ruiz, 2007), which is suitable

for distributed and heterogeneous environments. This

model is also based on the CIM (DTMF, 2005) ap-

plication model and the standard of components and

distributed systems deployment established by OMG

(OMG, 2006). Speciﬁcally, the information model

is divided into three models dedicated to the deﬁni-

tion of: the environment to be used on the deploy-

ment (Deployment Target), the software units to de-

ploy (Deployment Unit), and the deployment plan that

determines the activities to be carried out (Deploy-

ment Plan).

The use of deployment plans improves the au-

tomation of the process. Each deployment plan has an

objective, consisting of executing an operation over a

software unit in a speciﬁc environment. Usually, the

fulﬁllment of a plan requires to add a set of previous

operations, in order to satisfy the requirements of the

unit to deploy. But it is possible that since the cre-

ation of the plan until its execution, the state of the

environment changes, being necessary to verify that

the operations in the plan are still suitable and do not

conﬂict with available resources and already deployed

units in the environment.

According to Binder (1995), who illustrates how it

is practically impossible to do effective software test-

305

Blanco F., Díaz-Casillas L. and Garijo M. (2010).

A KNOWLEDGE-BASED SYSTEM FOR THE VALIDATION OF THE DEPLOYMENT OF SOFTWARE UNITS.

In Proceedings of the 2nd International Conference on Agents and Artiﬁcial Intelligence - Artiﬁcial Intelligence, pages 305-310

DOI: 10.5220/0002726303050310

 SciTePress

ing and validation without automation (Binder, 1995),

such veriﬁcation has to be carried out in an automatic

way. There are different approaches to automate soft-

ware validation and veriﬁcation. Playle and Beckman

(1996) compare people who make decisions, neural

networks, and rule-based programs, drawing the con-

clusion that human decisions are more precise but re-

quire more time than machines; neural networks, with

nonlinear rules, are relatively unreliable in making the

decisions; and rule-based machine programs are very

fast and almost as accurate as the humans (Playle and

Beckman, 1996).

This article presents an automatic system to val-

idate deployment plans. From the information con-

tained in the plan and the current state of the envi-

ronment, the system evaluates if the activities of the

plan are appropriate for achieving the objectives set

at its creation. Therefore, the purpose of the valida-

tion system is to ensure that the plan is suitable for

the selected environment before executing it. Valida-

tion results are shown to the user, avoiding potential

problems and helping to solve actual or future errors.

Results indicate if the plan is valid, or contains op-

erations that can cause errors, or should be aborted.

For its implementation, a knowledge-based system

has been used, it means, a system that tries to solve

problems through reasoning and heuristic methods.

This approach is often used to emulate the behavior

of an expert in a particular area of expertise, being

known as expert systems.

The rest of the article is organized as follows. Sec-

tion 2 exposes a description of the implemented sys-

tem, indicating the elements that compose its archi-

tecture and their relationship with the system in which

has been integrated. Then, section 3 explains tech-

nologies used for its implementation, and section 4

shows results obtained after testing the system. Sec-

tion 5 presents related work and ﬁnally, section 6

shows the main conclusions and possible future lines

of work.

2 SYSTEM DESCRIPTION

To deﬁne a deployment process, the user selects a

software unit and a target environment. As a result,

a deployment plan that includes all required activities

is created. But, before its execution, it is necessary to

verify that the plan is correct. This is the purpose of

the validation system, which analyzes the plan to ex-

ecute and the state of the environment selected for its

deployment, and generates a report showing the user

the most appropriate actions to be performed.

The system is integrated into the DCA (Ruiz et al.,

Figure 1: Validation System.

2008), whose main components are the Execution

Manager, the Environment Manager, and the Deploy-

ment Repository. Execution Manager is responsi-

ble for activating the validation immediately before

launching the plan, indicating the information con-

tained in the deployment plan. The validation system

is integrated into the Environment Manager that pro-

vides the current state of the environment. To carry

out the validation, the system has to access the De-

ployment Repository through Web services in order

to get the information of the software units.

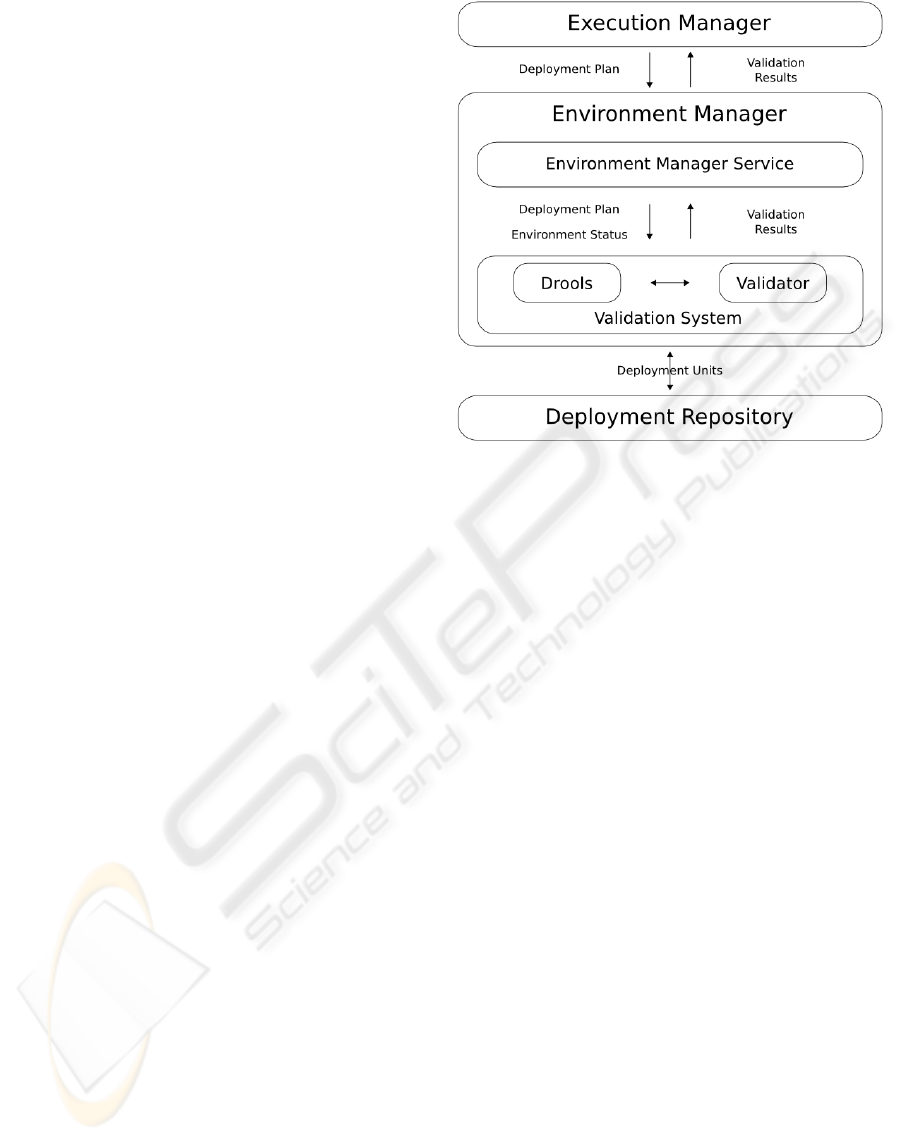

Figure 1 shows the exchange of information be-

tween systems in the architecture (DCA).

The implemented system analyzes every activity

in the deployment plan, considering possible depen-

dencies between them, and verifying if all require-

ments for the deployment are fulﬁlled. In some cases

activities will have to be aborted, while in others it

will be enough to warn the user about possible con-

ﬂicts that can arise from its execution.

2.1 Available Knowledge

Initial knowledge consists on a deployment plan, i.e.

the set of activities to be performed, and the state of

the environment where the deployment will be carried

out.

Each activity involves the execution of an opera-

tion (installation, start, update, uninstall or stop) of

a software unit on a container belonging to a node

in a particular environment. Users create deployment

plans with the aim of working on a software unit, but

units have constraints and dependencies with other

ICAART 2010 - 2nd International Conference on Agents and Artificial Intelligence

306

units, and if they are not currently satisﬁed in the en-

vironment, new activities have to be added to the plan

to fulﬁll all the necessary requirements. Speciﬁcally,

each unit exports a set of resources and has dependen-

cies with other units, which export resources required

for its execution. Moreover, units have constraints

that need to be fulﬁlled by the container in which the

deployment will be carried out (e.g. EJB container,

glassﬁsh server,...). Deployment unit data are stored

in the Deployment Repository.

The information to be considered depends on the

activity to be performed on a software unit. For ex-

ample, to start a unit requires to verify that all de-

pendent units are available, while to stop a unit needs

to consider if this unit is being used by others. To

manage such information, two different dependency

graphs are used, one manages the units required by a

unit, it means its dependencies, while the other ana-

lyzes the deployed units that are using and are used

by a unit, it means the relations among runtime units

in the current environment.

2.2 Knowledge-based System

Using a knowledge-based system for the validation of

the deployment of software units allows domain ex-

pert users to deﬁne the checks to perform during the

validation and the most appropriate actions to follow

in each case. Inference engine takes this information,

stored in the knowledge base, to verify the operations

of the deployment plan that is going to be executed,

considering the requirements of the software units in-

volved in the plan and the current state of the environ-

ment related to that plan.

A rule-based system has been used to specify con-

ditions and actions to perform under speciﬁc situa-

tions. Rules are represented in a decision table, en-

abling their updating in the future in an easy way.

Table columns contain the conditions and associated

actions to execute in each case, determining the sys-

tem behavior. Therefore, each row of the table corre-

sponds to a rule, that are classiﬁed into several groups:

• Initialization, this rule starts the veriﬁcation of the

deployment environment related to the plan.

• Environment elements, this set of rules veriﬁes

that the nodes and containers of the deployment

environment are in a correct state.

• Deployed units, these rules check if the unit as-

sociated to an activity is already deployed on the

environment and analyzes its state.

• Necessary units, in this case, rules are used to

check if dependencies imposed by the unit are sat-

isﬁed by the environment. For example, if a unit

that depends on another is going to be started, it is

necessary to verify if the required unit is currently

launched.

• Overversion units, these rules check if there are

other units with the same name but different ver-

sion already deployed on the environment.

• Completion, these rules end the validation pro-

cess.

The execution order of the rules corresponds to

the order in which they are exposed, for example, if

a container is not available (feature considered in the

environment elements, the second group of rules), the

validation ends and a report is created to inform the

user about this fact.

2.3 Results

The result of the validation of each activity is com-

posed of a list of messages, each of them contains the

type of the response and a text, which explains the

reason and the cause of the response. In particular,

possible answers are:

• NONE indicates that the outcome of the valida-

tion has been positive and the activity can be exe-

cuted.

• NEXT, in this case, the result of the activity to per-

form is already implemented in the environment,

so this activity is not necessary to be carried out.

• WARNING indicates that there is a conﬂict and

the execution of the activity can cause problems.

• ABORT implies that there is a problem in the en-

vironment and the associated activity can not be

executed.

For example, if one of the plan activities consists

of launching a deployment unit that is not present

in the container, validation system will report an

ABORT message, in which the text will indicate that

the unit is not present in the container, showing also

the data related to that unit.

If an activity has to be aborted, all activities that

depend on it will generate an ABORT response too.

3 IMPLEMENTATION

The validation system has been developed as an OSGi

bundle. OSGi (OSGi Alliance, 2009) is a Java-based

service platform that implements a dynamic compo-

nent model. Each component or bundle is a dynam-

ically loadable set of classes, conﬁguration ﬁles, and

resources, that hides its implementation details and

A KNOWLEDGE-BASED SYSTEM FOR THE VALIDATION OF THE DEPLOYMENT OF SOFTWARE UNITS

307

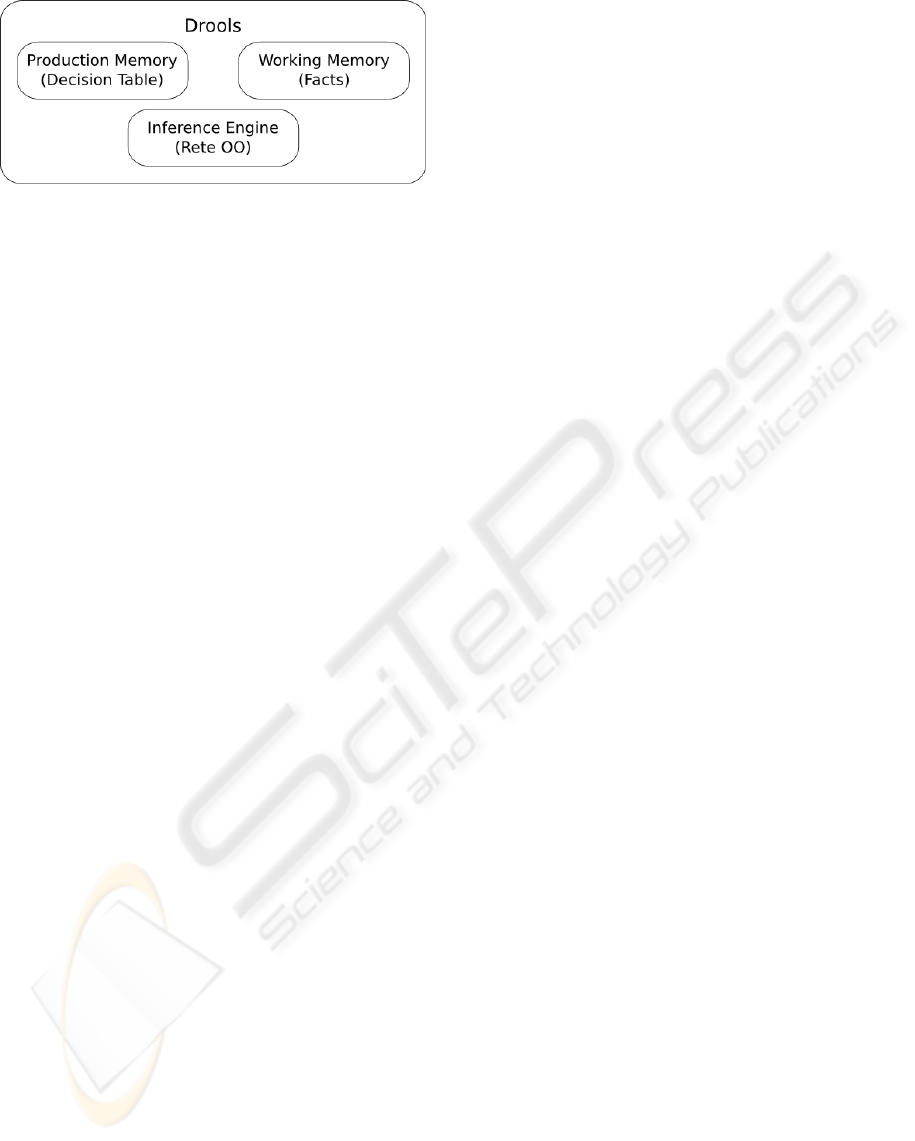

Figure 2: Drools components.

declares its dependencies to other components. Com-

munication between them is established through ser-

vices. And a service registry allows bundles to know

available services in each moment. Therefore, our

system acts as a dynamic module that can be con-

nected and disconnected to the global architecture

without requiring a reboot. It provides a validation

service that can be used by any other module. These

modules only have to indicate the necessary argu-

ments and will receive a standard respond with the

validation results.

The use of Spring Dynamic Modules (DM) for

OSGi Service Platforms (SpringSource Community,

2009) has facilitated to build a Spring application that

comply with OSGi standard.

Rule-base reasoning system has been imple-

mented through Drools Expert, a component of

Drools (JBoss Community, 2009). It is a business

logic integration platform developed by JBoss Com-

munity. There are several suitable options for imple-

menting an expert system such as Jess, Mandaraz, and

OpenRules. But Drools Expert has been selected be-

cause:

• It is an open source product with a great support

community.

• It works with decision tables in a user friendly

format, using a spreadsheet software, such as

OpenOfﬁce Calc or Microsoft Excel.

• It is completely correlated with Java, allowing to

import and use Java classes in the rules.

• It supports the inclusion of the entire framework

on a Maven bundle to be executed as an OSGi ser-

vice, which offers the ideal features to be devel-

oped within DCA.

Drools Expert components used in the validation

system are presented in Figure 2.

It has been necessary to update the bundle pro-

vided by Drools to version 5.0 from the implemented

version 4.7.1. In addition, speciﬁc libraries have been

added to allow the use of a decision table in a spread-

sheet format for managing the rules and to fully sup-

port MVEL and Java rule languages.

Furthermore, a Web interface has been developed

to interact with the validation system. It has been im-

plemented as a war bundle, which uses Spring DM to

access to the system through the Environment Man-

ager, and Spring MVC for data management and pre-

sentation. For its implementation, a controller form

has been used, which collects data introduced by

the users and manages the displayed information and

the navigation between different views, implemented

through JSP pages.

4 TESTS

A set of tests has been carried out to check the perfor-

mance of the developed system. Firstly, unitary tests

were executed, using different deployment plans over

a test environment. Activities of the plan, software

units, resources and nodes were conﬁgured according

to several situations to get a great quantity of different

test cases, generating multiple test deployment plans

to validate all the rules. Validation system was exe-

cuted for each generated plan. Table 1 presents the

results of some performed test.

Later, the system was integrated into the Environ-

ment Manager within DCA and integration tests were

carried out.

Finally, the Web interface was used to test the sys-

tem with deployment plans generated by expert users

in a real environment.

5 RELATED WORK

Most of the automated validation and veriﬁcation of

the deployment of software units is related to compu-

tational grids or grid computing. This technology en-

ables the integrated use of remote high-end comput-

ers, databases, scientiﬁc instruments, networks and

many other resources to execute the pieces of a pro-

gram in parallel, having many similarities with SOA.

According to Lacour et al. (2005), application de-

ployment is responsible for discovering and selecting

resources, verifying and validating them, placing ap-

plications on computers and ﬁnally launching appli-

cation processes. Several ways are presented to de-

scribe applications, suggesting different deployment

planners for each one. But deﬁning a planner, with its

planning algorithm and validation, for every type is

too costly. Therefore, a generic application descrip-

tion model is proposed to have only one planner. In

this way, speciﬁc and heterogeneous software units

are translated into generic deployment units accord-

ing to the model to facilitate their management (La-

ICAART 2010 - 2nd International Conference on Agents and Artificial Intelligence

308

Table 1: Activity validation examples.

Scenario Result Type Result Message

Installing a software unit in a container in which a same Next Activity already done

version unit has already been installed

Launching a software unit A in a container in which has OK Activity can be executed

already been installed. Also, unit A depends on a resource

exported by unit B, and this unit has been correctly installed

and launched (due to previous activities in the same or in

other deployment plan). Both units fulﬁll locality requirements

Installing a software unit in a container that is not accessible Abort Container is not accessible

Installing a software unit in an environment in which a higher Warning A higher version of the unit

version of the unit is already installed is already installed

Stopping a software unit required by another unit that is Abort This unit is being used

already being executed by another unit

Uninstalling a software unit required by another unit that is Warning This uninstallation produces

stopped. No other unit satisﬁes this dependency that a dependent unit could

not be launched

cour et al., 2005). Our validation system is also based

on a generic information model, enabling to use the

same system with different software units.

Cannataro and Talia (2003) propose the use of

grids to support Parallel and Distributed Knowledge

Discovery (PDKD) systems. These platforms con-

tain a combination of large data sets, geographically-

distributed services, data, users and resources, and a

computationally intensive analysis. PKDP execution

plans contain graphs describing the interactions and

data ﬂows among data sources and are used and stored

in a repository. Also, a resource allocation and execu-

tion management service is used to ﬁnd a mapping be-

tween an execution plan and available resources, with

the goal of satisfying requirements and constraints. In

this context, execution plans are also responsible for

managing and coordinating the application execution

(Cannataro and Talia, 2003). Our system uses graph

to validate resources, requirements and constraints.

The validation is always done before executing the

plan, ensuring its performance. Moreover, our sys-

tem is published as a service, not as a group, being

able to be launched in parallel with other services due

to OSGi features.

Another area related to automated validation and

veriﬁcation of the deployment is to solve real-world

planning problems. Wilkins and desJardins (2000)

propose the development of methods based on rich

knowledge models in order to make planning systems

useful for complex environments. The goal of plan-

ning is not only to build a plan, it also has to be val-

idated to be used in the environment. They expose

that realistic planning systems must support execu-

tion validation and plan modiﬁcation during execu-

tion (Wilkins and desJardins, 2000). Our system per-

forms the veriﬁcation and validation before the de-

ployment, avoiding that the environment reaches an

invalid state. Moreover, we have considered plan

modiﬁcations before its execution to avoid the above-

mentioned problem as future work.

In (Romano and Palmer, 1998), a decision support

system is developed to aid the validation and veriﬁca-

tion of requirement sets and to enhance the quality

of the resulting global design by reducing risks. This

system is used to detect four major types of poten-

tial risks: ambiguity, conﬂict, complexity and techni-

cal factors. In our system, ambiguity and conﬂict are

solved by the use of a generic model that describes the

deployment plan and the requirements of each unit.

Complexity is solved by the use of an automatic sys-

tem (machines treat any term with indifference if they

are well programmed). Therefore, to validate technol-

ogy factors is the objective of our system.

6 CONCLUSIONS

Enterprise applications deployment is a complex task

that requires new tools to facilitate its development.

This article proposes the use of a knowledge-based

system that validates the deployment of software units

on a particular environment. The system is integrated

into a deployment and conﬁguration architecture and

based on its information model, which represents de-

ployment units, plans and environments.

Deployment process begins with the creation of

a plan, whereby the user determines the deployment

unit on which he wants to perform an operation in a

speciﬁc environment. To avoid that possible changes

in the environment cause errors in the execution of a

A KNOWLEDGE-BASED SYSTEM FOR THE VALIDATION OF THE DEPLOYMENT OF SOFTWARE UNITS

309

deployment plan, an automatic validation system has

been developed to advise users if the deployment pro-

cess will not be able to perform correctly and why.

After analyzing the unit requirements of each plan ac-

tivity, it checks the current state of the environment,

including existence, location and state of nodes, con-

tainers, and available resources over deployed units.

A knowledge-based system has been developed due to

these systems offer more facilities than conventional

software systems to collect, interpret and use their

knowledge, helping human experts to solve problems.

The validation system is presented as a dynamic

and independent OSGi module and its implementa-

tion is based on Drools 5.0. Rules have been repre-

sented by a decision table, in spreadsheet format, fa-

cilitating their understanding and therefore, their up-

date in the future. After the implementation of the

system, a set of tests has been carried out to verify its

performance.

Some improvements that can be developed within

the validation system are:

• Currently, the system validates installation and

uninstallation plans, being possible to extend the

system to verify conﬁguration plans.

• Nodes, containers and deployed units in the envi-

ronment are analyzed by the system, but also re-

source properties could be examined to increase

the security level during the execution of the plan.

• Also, algorithms to perform an optimal deploy-

ment of units, analyzing required and available re-

sources in the environment, could be developed to

improve the performance of the system.

ACKNOWLEDGEMENTS

We would like to express our appreciation to the

Spanish Government for funding this project under

the IT innovation project ITECBAN (MITYC CDTI-

CENIT 2005). We would also like to express our ap-

preciation to Jos

e Luis Ruiz, F

elix Cuadrado, Rodrigo

Garc

ıa, and Marco Antonio Prego for their help to de-

velop the validation system.

REFERENCES

Binder, R. V. (1995). Testing Object-

Oriented Systems: A Status Report.

www.stsc.hill.af.mil/crosstalk/1995/04/testinOO.asp.

Cannataro, M. and Talia, D. (2003). The knowledge grid.

In Communications of the ACM, volume 46, pages 89–

93.

Cuadrado, F., Due

nas, J., Garc

ıa, R., and Ruiz, J. (2009). A

model for enabling context-adapted deployment and

conﬁguration operations for the banking environment.

Networking and Services, International conference

on, 0:13–18.

DTMF (2005). Common Information Model (CIM) 2.1.

www.dmtf.org/standards/cim.

Hashimi, S. (2003). Service-Oriented Architecture Ex-

plained. O’Reilly Media, Inc.

JBoss Community (2009). Drools - Business Logic integra-

tion Platform. jboss.org/drools.

Lacour, S., Perez, C., and Priol, T. (2005). Generic Applica-

tion Description Model: Towards Automatic deploy-

ment of applications on computational grids. In Grid

Computing, 2005. The 6th IEEE/ACM International

Workshop on.

OMG (2006). Deployment and conﬁguration of component

based distributed applications version 4.0. OMG doc-

uments formal/06-04-02.

OSGi Alliance (2009). OSGi - The Dynamic Module Sys-

tem for Java. www.osgi.org.

Playle, G. and Beckman, C. (1996). Knowledge-

Based Systems and Automated Soft-

ware Validation and Veriﬁcation.

www.stsc.hill.af.mil/crosstalk/1996/07/knowledg.asp.

Romano, J. and Palmer, J. (1998). TBRIM: decision support

for validation/veriﬁcation of requirements. In Sys-

tems, Man, and Cybernetics, 1998. 1998 IEEE Inter-

national Conference on, volume 3, pages 2489–2494.

Ruiz, J. (2007). A policy-driven, model-based software and

services deployment architecture for heterogeneous

environments. PhD thesis, Departamento de Inge-

nieria de Sistemas Telematicos, Universidad Politec-

nica de Madrid.

Ruiz, J., Due

nas, J., and Cuadrado, F. (2008). A service

component deployment architecture for e-banking. In

AINAW ’08: Proceedings of the 22nd International

Conference on Advanced Information Networking and

Applications - Workshops, pages 1369–1374.

SpringSource Community (2009). Spring Dy-

namic Modules for OSGi Service Platforms.

www.springsource.org/osgi.

Wilkins, D. E. and desJardins, M. (2000). A Call for

Knowledge-based Planning. AI MAGAZINE, 22:99–

115.

ICAART 2010 - 2nd International Conference on Agents and Artificial Intelligence

310
