A PATTERN APPROACH TO MODELING THE PROVIDER

SELECTION PROBLEM

Jos

e Javier Dur

Centro para las Tecnolog

ıas Inteligentes de la Informaci

on y sus Aplicaciones (CETINIA)

Universidad Rey Juan Carlos, C/ Tulipan s/n, Mostoles, Spain

Carlos A. Iglesias

∗

Departmento de Ingener

ıa de Sistemas Telem

aticos, Universidad Polit

ecnica de Madrid

Ciudad Universitaria s/n, Madrid, Spain

Keywords:

Service oriented computing, Software engineering, Web-services.

Abstract:

This article introduces the notion of agreement patterns, which provide a framework for modelling reusable

problem solution descriptions for agreement fulﬁlment. In particular, the Provider Selection pattern has been

identiﬁed for modelling the common problem of selecting a provider by a service consumer. The article

presents the pattern structure as well as the reusable domain model and cognitive structures. Agreement

patterns aim at providing reusable patterns useful for developers in multidisciplinary areas, such as Agent

Technology and Service Oriented Computing.

1 INTRODUCTION

Throw the years, different computation paradigms

have had a predominant factor in the software de-

velopment, from the begging when a centralized, an

monolithic, architecture conformed any application,

to a more relaxed one, in which clients presented more

capability to work in the system, and converging to

an architecture in which each element should be as

important in the system, and also totally replaceable,

been that view the Internet of services, also known as

the cloud computing paradigm.

That vision of an Internet of services comes from

the arise of the Service Oriented Computing (SOC),

in which a system divided in components is built us-

ing different services offered by third-parties, or us-

ing that abstraction to decentralizing the system itself.

This vision has the goal to simplify the development

of complex systems, and to cut down costs of the ﬁ-

nal product. As a result of that behaviour, it has ap-

peared a market of different service providers, offer-

ing reusable services, which as a result make possible

to create more solutions based in the SOC vision of

∗

The second author has been partially supported by Ger-

minus XXI (Grupo Gesfor) under the project RESULTA.

software development.

A menace of SOC, is a problem that always has

been in the software development, how different com-

ponents are used together, which in fact it is per-

formed taken care of the developer documentation,

which in this case is the contract of each service. This

contracts, which are described using standards like

WS-Agreement (Andrieux et al., 2007), may lack of

some information, or could have errors in it, some

case it is possible that a contract is unreal, in those

cases it is necessary to enrich contracts with trust

and reputation information of the developer, in most

cases using social information, or performing it an-

other party.

Another problem of SOC, because been an emerg-

ing development paradigm, is the fault of information

about the good practices in that development. Other

paradigms, like the object-oriented paradigm, estab-

lish different patterns of how to solve a generic prob-

lem, performing a deﬁned set of steps, in our case, the

objective of such kind of patterns is the way which

different agreements are treated, and how a system

performs different maintenance task for its service

oriented architecture (SOA). The objective of those

patterns is to help developers with a huge catalogue

of SOC good practices in common problems, and how

Javier Durán J. and A. Iglesias C. (2010).

A PATTERN APPROACH TO MODELING THE PROVIDER SELECTION PROBLEM.

In Proceedings of the 2nd International Conference on Agents and Artiﬁcial Intelligence - Agents, pages 38-45

DOI: 10.5220/0002726400380045

 SciTePress

they are solved.

The goal of this article is presenting how agree-

ment technologies, developed within the agent re-

search community, can be modelled as software pat-

terns, providing a framework for capturing best prac-

tices for recurring problems, a common vocabulary

and reusable solution descriptions. This article is fo-

cused on describing how agreement patterns can de-

scribe the recurring Provider Selection problem.

The rest of the article is organized as follows.

First, section 2 presents the Provider Selection Prob-

lem, and the main approaches to solve it. Then, sec-

tion 3 gives an overview of the notion of agreement

patterns, their classiﬁcation scheme an how provider

selection patterns are classiﬁed. Section 4 presents

the ProviderSelection pattern, describing its structure,

usage and examples. Finally, section 5 draws out the

main conclusions and future works of this work.

2 THE PROVIDER SELECTION

PROBLEM

Selection of the right parties to interact with is a

fundamental problem in open and dynamic environ-

ments (S¸ensoy, 2008). This problem is recurrent

in SOC environments, where dynamic service selec-

tion (Maximilien and Singh, 2004) allows to combine

available services to user needs. It is applied as a need

to ﬁnd and select an speciﬁc service for the purpose of

the system, ﬁrst needing to identify the service prop-

erties, which is called quality-of-service (QOS), and

the resources that could be spent by that need, and af-

ter that, it is necessary to ﬁnd a provider that offers

that service, which in fact sometimes is not possible,

and it is necessary to switch to the service provider

that offers the more suitable service. Because of those

properties, this problem is pillar for SOC.

This problem is present in different environments,

which some of them are listed next:

• Travel Agency (Billhardt et al., 2007). An user

requires an offer of a travel, which is formed of the

ﬂight and an hotel, selecting the one that suits it’s

preferences, like ﬂight company or arrival time,

and that has the lower cost.

• e-Commerce (Aydo

gan, 2008). Different

providers offer a similar product, but with differ-

ent qualities, and costs, and the user (or a media-

tor agent) should select one provider among them,

based on similarity to its preferences, and cost re-

strictions.

• WiFi Roaming (Merino et al., 2005). The user

must select among different access points, those

that have a reliable security, and a good quality of

signal.

Each of these domains represents a problem, in

which conﬁdence of bidders is necessary, and in

which solutions taken are similar.

First, it is imperative to determine which roles are

conforms this problem, in fact which are the parts that

interact between them to advert and negotiate service

agreements.

• The main role is the consumer, or user, role, which

suits with the system that needs the service to be

implemented in, and that will be responsible to

ﬁnd, establish, and maintain different agreements

with service providers to use a service.

• The other main role in this interaction is the ser-

vice provider one, which is responsible of keep

offering their services and helping to establish

agreements to use those services.

• A secondary role of this interaction is performed

by the marketplace, in which different providers

are registered to help consumers to list them, and

ask them about a service. The marketplace role

could be implemented by the consumer, as a pre-

deﬁned list of providers, by a service provider of-

fering that service, or throw a social collaborative

network of provider’s directory.

Also it is necessary to deﬁne the main aspects of

this problem, in this case, what are the aspects of the

interaction, which will grant a better quality to the so-

lution adopted:

• Providers Market-place. It is a component that

knows which providers are able to offer an spe-

ciﬁc service, in this case retrieving different offers

as agreements. This component should be a pre-

deﬁned list of providers accessible to the user, an-

other service that offers a provider search engine,

or a collaboratively created directory of providers.

• Service Offer Evaluation. Each received offer is

evaluated, so, they are comparable between them,

using different techniques, that is more detailed in

Section 2.1.

• Agreement Negotiation. Once one offer has been

selected, it is done a negotiation process, as stated

in Section 2.2.

2.1 Service Offer Evaluation

The main problem around service selection is how to

select the most appropriate one, taking care of differ-

ent factors (Singh and Huhns, 2005):

A PATTERN APPROACH TO MODELING THE PROVIDER SELECTION PROBLEM

• Quality of Service: determined by similarity with

required speciﬁcations, cost, and availability. It is

necessary to remark that agreements’ information

could be difﬁcult to understand by the system, be-

cause there should be different kinds of proper-

ties. The main properties are the functional ones,

which could be measured easily, like ﬁnal cost or

minimal bandwidth offered. In counterpart, non-

functional properties are more obscured, and dif-

ﬁcult to treat, like the feedback from user.

• Trust of the Provider (Yang et al., 2006): the

service offered by a provider depends on the trust

that is assigned to that provider. This information

is totally non-functional, but in some cases should

be treated like functional, e.g. mean times a ser-

vices has failed, or what was the perceived quality

of the service, for example, using a rating from 0

to 5.

Taking care of that aspects, there are several meth-

ods for rating a service. They can be distinguished the

following approaches (Singh and Huhns, 2005):

• Rating (S¸ensoy, 2008). This technique use social

collaboration to create a score based board, also

known as ”‘Social service selection”’, in which

different user scores each provider, or also ser-

vices of each provider, with a value used to create

a feedback about user feel of QOS. This technique

is useful when a service is obscure, for example

non guaranteed inversions, but lacks of subjec-

tivity of users, been manipulable by users. Also

it is richer that other techniques, in the fact that

there exists information about service feedback

that could be used to enrich the selection process.

• Ranking (Maximilien and Singh, 2004). This

other, instead, use heuristics to determine how the

QOS of a service is near to the needed service,

also known as ”‘Semantic service selection”’, an

treating semantic distance to required one as the

evaluation metric, and ranking different offers to

select the one that suits better. It is necessary to

extract semantic information in which the service

could be measured to understand how near it is to

the required service.

• Economic Service Selection. Another technique

to select a provider, simpler but the most appropri-

ate in some cases, is to select those ones that are

offering a service with a lower cost, in which only

quantitative properties of the QOS are taken into

account, for example time taken to treat a petition,

or availability of the service in a determined time

slot.

Selection of which technique to use is not trivial,

for example, in a trusted network of providers it is

better to select economic techniques, or ranking if the

service deﬁnition is ambiguous, as it is expected that

providers are trustworthy, but in no trusted networks,

it is preferred to use rating ones. Also, it is possible

to fuse different techniques, so the information of the

service offer is richer, and in that way, the service will

be selected wisely, but it is necessary to weight how

each technique depends on the environment, to assure

that the system is not highly restrictive with no trusted

providers, and is cost-balanced.

An advantage of ranking techniques is that it is

prepared to sustain any heuristic used to match offers

with required service, been able to use anyone in a

trust-based component. The advantage of abstracting

this knowledge to a different component is that it is

possible to ﬁt the system requirements in this compo-

nent, and reuse the rest of provider selection interac-

tion.

2.2 Agreement Negotiation

Once a provider is chosen to establish an agree-

ment with, it is done a negotiation process, in which

consumer and provider offers each one an offer for

that agreement, deﬁning which valuables will be ex-

changed, in this case they are QOS and cost for ser-

vice renting. For this process, there are different tech-

niques (Bromuri et al., 2009), which assure that an

agreement will be establish, but a problem of this ne-

gotiation is that it presents a Nash equilibrium prob-

lem, in which two parties have interest in conﬂict with

each other.

Actually, this negotiation is performed after a

provider is selected, but a more wide vision of the

provider selection problem should be able to establish

a negotiation process between the consumer and all

the providers, been able to select the one that accepts

ﬁrst an offer from the consumer. This interaction

should be treated as a bidding process, and presents

more complexity that the provider selection problem,

and would be suitable for a future agreement pattern.

3 AGREEMENT PATTERNS

When working with a new technology, or beginning

to work with one that previously existed, it is use-

ful to have access to a collection of rules, examples,

and descriptions, of the principal aspects of that tech-

nology. In software development there are program-

ming languages as rules, source code examples, and

software patterns as descriptions of good approaches

taken to produce a speciﬁc piece of software. Those

software patterns are intended to offer new developers

ICAART 2010 - 2nd International Conference on Agents and Artificial Intelligence

a view of how to approach to a solution that is proven

to have good properties, and also offering information

that contrast that. Also, different works have proven

that patterns are really usable as experience represen-

tation and distribution (Oluyomi et al., 2006).

Agreement technologies (Jennings, 2005) (AT) is a

recent discipline which collects this multidisciplinary

research and can be deﬁned as the technologies for the

practical application of knowledge to the automated

fulﬁlment of agreements. Agreement technologies do

not dictate the underlying technologies (objects, com-

ponents, agents, services, ...), but are focused on the

formalization of knowledge structures, protocols, al-

gorithms and expertise that contribute to the establish-

ing of agreements in an open dynamic environment.

Based on this previous research, Agreement pat-

terns (Iglesias et al., 2009) are deﬁned as software

patterns which helps software components coordina-

tion through the fulﬁlment of agreements. Agreements

patterns include all kind of agreements, both explicit

ones (e.g. negotiation) and tacit ones (e.g. organiza-

tion).

The main need of the pattern engineering is to de-

ﬁne a pattern template that reﬂects the needs from the

domain in which it will be used. In the case of agree-

ment oriented services there is important to determine

those ones:

• Participants, or Roles.

• Trigger

• Purpose

Taking those aspects in account, it should be pos-

sible to deﬁne the pattern template. In this case we

propose the use of the canonical form (also called

Alexandrian) for software patterns informal descrip-

tion(Buschmann et al., 1996), which it has been en-

rich with the elements listed before:

• Name: a meaningful name that provides a vocab-

ulary for discussing.

• Alias: an alternative name to the pattern.

• Participants: who are the main participants in the

interaction, and their roles.

• Trigger: why the interaction process begins, and

with which interactions is related. It will describe

when it is used.

• Purpose: what is the problem that it solves.

• Problem: a statement of the problem and the

goals it wants to reach.

• Context: the preconditions under which the prob-

lem and its solution seem to recur.

• Forces: a description of the relevant forces and

constraints and how they interact with one another

and with the goals. Considerations to be taken

into account to select a solution for a problem.

• Solution: static relationships and dynamic rules

describing how to realize the desired outcome. It

should be described using pseudo-code, class di-

agrams, reasoning diagrams, or any model that

helps to understand the solution.

• Examples: one or more sample applications of

the pattern which illustrate its application. Known

occurrences of the pattern, which help in verifying

that the pattern is a proven solution to a recurring

problem.

• Resulting Context: the state or conﬁguration of

the system after the pattern has been applied.

• Rationale: a justiﬁcation of the pattern, explain-

ing how and why it works, and why it is “good”.

• Related Patterns: compatible patterns which can

be combined with the described pattern.

All this points forms a good batch of questions

about the pattern itself, helping to determine the in-

ner of the pattern, as assuring that it is a true pattern

widely useful, and not an anti-pattern(Rising, 1998)

of bad manners in software development, that don’t

offer and extensible and reusable interaction process

for service oriented computing.

In order to classify agreement patterns, a classi-

ﬁcation scheme has been proposed (Iglesias et al.,

2009), which has identiﬁed the following dimensions:

• Duration. Is the agreement established tempo-

rally, short term, or permanently, long term?

• Normative Context. The pattern is strict as a es-

tablished norm, or ﬂexible?

• Topic. Which is the main purpose of the pattern?

E.g.: Service offering, Service negotiation, or Ser-

vice bidding.

• Phase. What moment of the agreement life-cycle

it represents? E.g.: negotiation, conclusion or se-

lection.

• Decision Making. How selection process are per-

formed? E.g.: In provider selection it should be

social-collaborative, but in agreement portability

it should be rule based.

4 THE PROVIDER SELECTION

PATTERN

Using the provider selection problem as example of

how the agreement patterns are applied, they are go-

A PATTERN APPROACH TO MODELING THE PROVIDER SELECTION PROBLEM

ing to be deﬁned a series of steps and models to be

used as formalization of it. The purpose of those mod-

els is to deﬁne the interaction process that is part of

this problem.

4.1 Problem Description

The pattern template previously showed in section 3

would be applied to the provider selection problem,

which presents a good number of factors to consider

it the basis of service oriented computing:

• It is use when it is required to create an adaptable

system.

• Provider selection trust is required to assure sys-

tem’s assurance.

• It will dynamically establish agreements as re-

quired to manage different offers, and select the

best that suits requirements, and cost factors.

The main purpose of the agreement is to unify all

the information about different approaches taken in

this scenario to be able to present it in a formal way,

accessible by different developers, to take care of the

pattern whenever a system requires its capabilities.

Those aspects assures the need for a formal de-

scription of how a solution is obtained, as presenting

the problem enough complexities, and been widely

used and generic.

4.2 Description of the Agreement

Pattern

Based on the pattern structure described in section 3,

the solution to the Provider Selection problem can be

described as follows.

• Name. Provider selection.

• Alias. Service selection

• Duration. Variable. Based on system and pur-

pose of service.

• Normative Context. Flexible.

• Topic. Service provider selection.

• Phase. Agreement selection.

• Decision Making. Based on trust/reputation

mechanism, mainly social-collaborative.

• Participants. User, that requires a service; Ser-

vice provider, that offers an agreement for a ser-

vice to be used by the User; and the Market place,

which list the different Service provider that are

offering services. Relations between roles are

present in Figure 1.

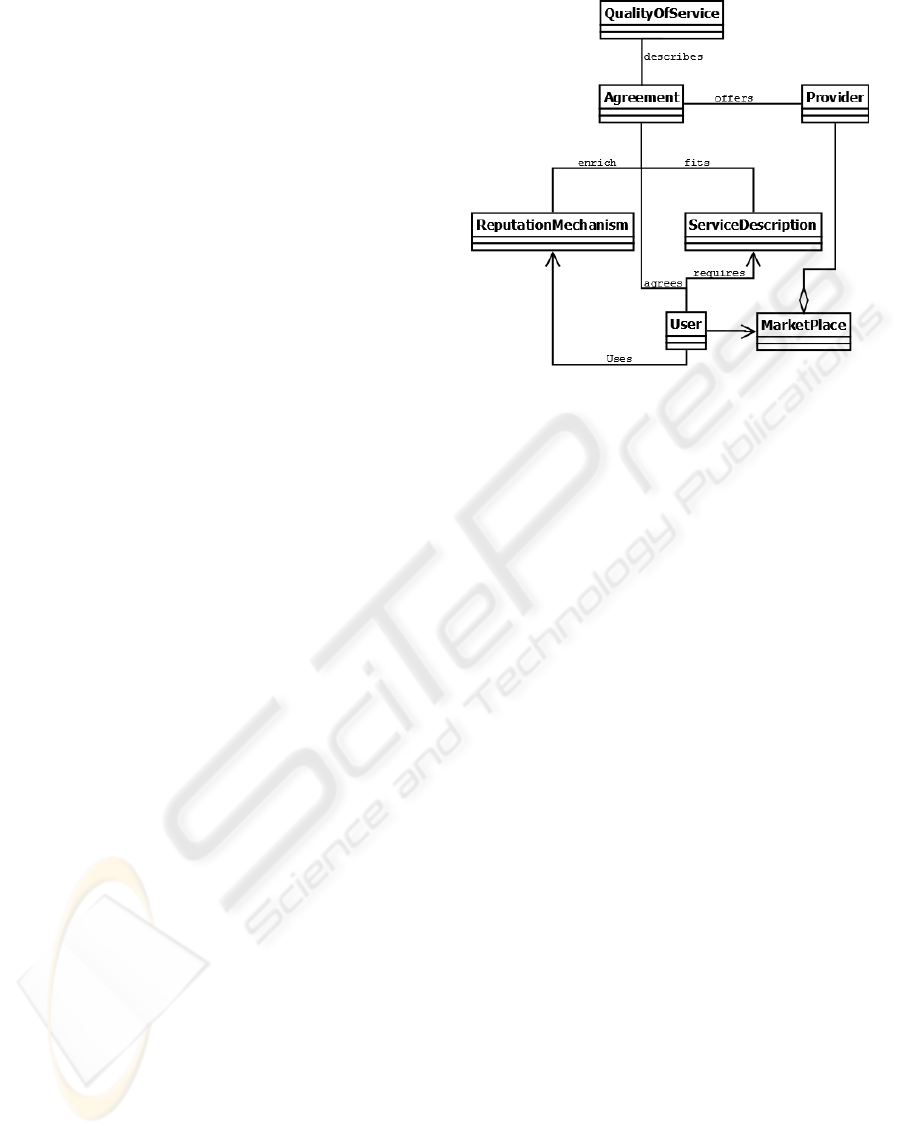

Figure 1: Participant classes in the provider selection prob-

lem.

• Trigger. A system requires a service, commonly

with some restrictions or preferences on its non

functional properties (QoS, price, ...), and there

is more than one service provider that ﬁts in that

description.

• Purpose. Retrieve the best provider, and establish

a service usage agreement with it.

• Problem. A user requires an agreement with a

provider, that must offer a service with required

properties, like quality of the service, cost or trust

in that provider, and as a result, an agreement is

done with the most appropriate provider.

• Context. The user has access to a market of of-

fered services, and a trust system.

• Forces. Trust and reputation techniques to enrich

bidders information.

• Solution. See Algorithm 1, for a pseudo-code de-

scription of the solution.

1. The user asks bidders in a service providers’

market, for a service offer, with an speciﬁc

properties.

2. Each provider offers a different proposed

agreement, including non functional properties,

such as costs or QOS information.

3. The user enriches the information in each

agreement with trust information, using a trust-

based component, like a collaborative reputa-

tion system, self-experience, or heuristics for

service matching.

4. Agreements are evaluated, based on their non

functional properties as well as based on the

ICAART 2010 - 2nd International Conference on Agents and Artificial Intelligence

trust and reputation of the provider, using a spe-

ciﬁc evaluation function based on the system

purpose, for example, a high security system

will evaluate poorly any system without good

trust information.

5. If there is almost one provider with an accept-

able evaluation, it is realized an agreement with

it. A threshold must be deﬁned to don’t estab-

lish an agreement if all providers are offering

invalid agreements. Once the target provider

is chosen, it begins a negotiation process, in

which the consumer tries to establish the agree-

ment with highest utility.

Algorithm 1. Pattern solution pseudo-code.

Require: RequiredServiceDescription

Require: ReputationMechanism

Require: ProvidersMarketPlace

OfferedAgreements = ProvidersMarket-

Place.askFor( RequieredServiceDescription

)

while Agreement a in OfferedAgreements do

ReputationMechanism.enrich( a )

if RequiredServiceDescription.isBetter( a, best )

then

best = a

end if

end while

if best.assures( RequiredServiceDescription ) then

ServiceAgreement = best.AgreeProposal( )

end if

Ensure: ServiceAgreement.assures( RequiredSer-

viceDescription )

• Examples.

– Broadband access negotiation (Merino et al.,

2005), in which users selects the provider that

ﬁts with its needs, and use other users feedback

to select the most appropriate.

– Ad-Hoc service negotiation (Song, 2008), in

which a provider offers different services, in

which the QOS changes, but ﬁts better with the

required service as an increase of cost instead.

In this case the user tries to ﬁnd equilibrium be-

tween service matching and cost assumed.

– E-Commerce (Aydo

gan, 2008), in which sev-

eral providers are offering the same good but

with different important aspects, mainly ship-

ping method and ﬁnal cost, and the user mea-

sures the offering, with other users feedback,

like comments in the provider web, and feed-

back about trustworthy of the provider.

• Resulting Context. The user establish an agree-

ment, if an acceptable one is offered among the

providers.

• Rationale. It deﬁnes the interaction basis in the

search for an agreement when it is necessary to

compare different offers, and enrich them with

trust systems.

• Related Patterns. Agreement Portability.

4.3 Reasoning Cognitive Pattern

To help to understand how this problem could be

driven, it is possible to divide it in different tasks,

which should be threatened independently, except of

how they are interconnected. This tasks interconnec-

tion is described in ﬁgure 2. The purpose of those

tasks is as follows:

• Estimate. Enriches providers offers with trust in-

formation from the trust/reputation knowledge.

• Assess. Selects a provider that ﬁts the user re-

quirements of the QOS. In this task it is measured

how the service proposal is similar to the required

service, and the trust information of the provider.

Those tasks treat different information from dif-

ferent knowledge sources:

• Service Provider Offer. This information is ob-

tained from asking to the market place about ser-

vice providers that ﬁt a required need for a ser-

vice. It should be described using an agreement

deﬁnition language, like WS-Agreement.

• Trust/Reputation. This information should be

obtained from a service of service providers rep-

utation, the provider itself, or from a social-

collaborative source. It should be a quantiﬁcation

of average number of service losses, a measure

of principal properties, like average bandwidth in

a WiFi access point; or feedback of other users,

which requires to apply a new trust ﬁltering to that

information.

• Provider Agreement. This is the ﬁnal product of

the problem, in which the system, after selecting

a service provider, creates an agreement, in which

the consumer ask for access to the speciﬁed ser-

vice. This agreement can be represented by an

agreement language such as WS-Agreement.

5 RELATED WORK AND

CONCLUSIONS

This article has presented agreement patterns as an

instrument for modelling reusable solutions.

A PATTERN APPROACH TO MODELING THE PROVIDER SELECTION PROBLEM

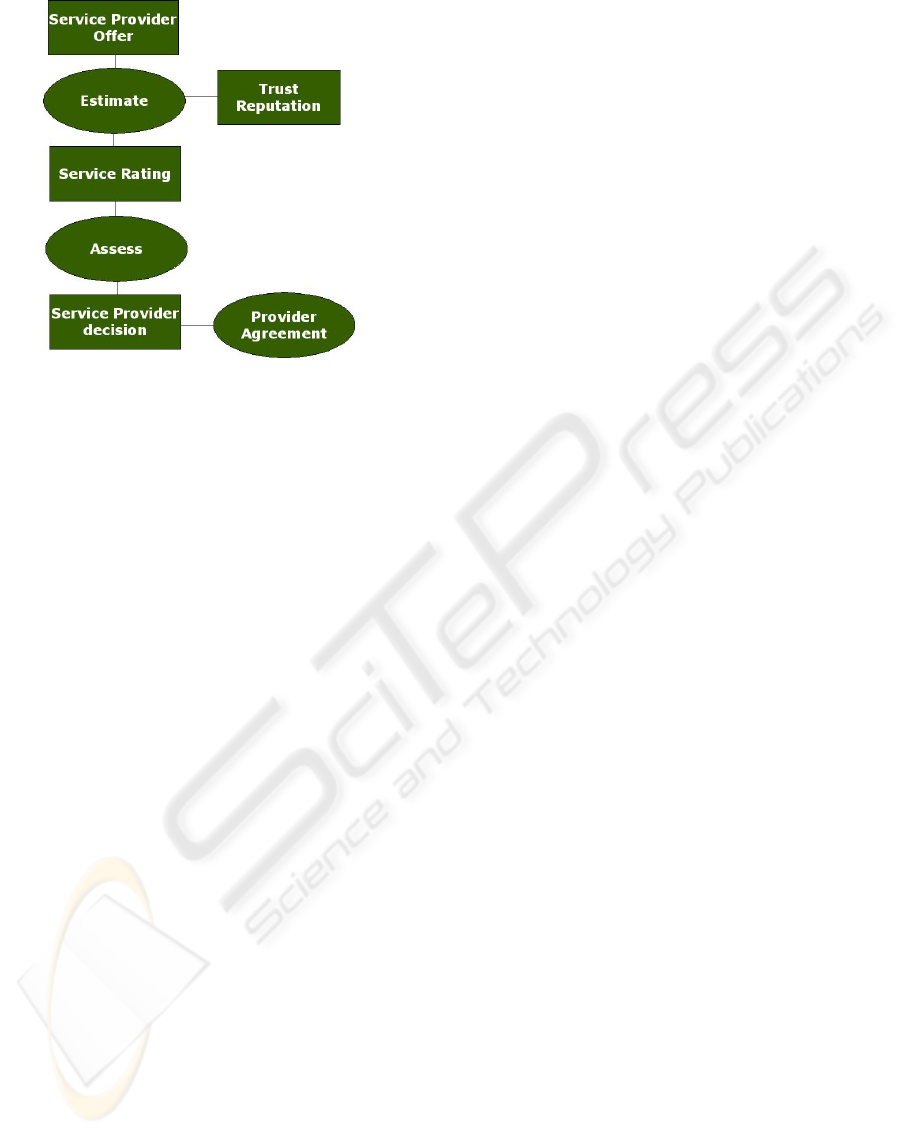

Figure 2: Provider Selection reasoning diagram.

There are related works for deﬁning design pat-

terns in the areas of multi-agent systems and Service

Oriented Computing (SOC).

Agent-Oriented Patterns have been deﬁned for

sharing multi-agent system development experiences.

Oluyomi (Oluyomi et al., 2007; Oluyomi, 2006)

presents an agent pattern classiﬁcation scheme based

on two dimensions: stages of the agent-oriented soft-

ware development and tasks in each stage of de-

velopment. At each stage or level of development

(analysis, multi-agent architecture, agent architecture,

multi-agent implementation), the framework identi-

ﬁes the attributes of that level of abstraction, in order

to classify these patterns. In addition, Oluyomi pro-

poses to reﬁne the canonical pattern form for deﬁning

an Agent-Oriented Pattern Template Structure, which

adds more granularities depending on the pattern type

(agent internal architecture structural, interactional or

strategic patterns, etc.). Some of the patterns iden-

tiﬁed by Oluyomi, whose classiﬁcation scheme in-

cludes other approaches, can be considered agreement

patterns. The main differences between her classi-

ﬁcation and the one proposed in this article is that

Oluyomi’s classiﬁcation is agent oriented, and it is

hard to use if it is not implemented with agents (agent

oriented development phase, agent architecture, etc.),

while the one proposed here is independent of the

technology to be used, although implementation ex-

amples can be presented with different technologies.

In addition, agreements are not a key concept in Oluy-

omi’s classiﬁcation scheme as in our proposal. Future

work will provide a mapping of the agreement related

patterns classiﬁed by Oluyomi onto our classiﬁcation

scheme.

In the area of Service Oriented Architecture

(SOA), SOA patterns have been deﬁned (Erl, 2008;

Rotem Gal Oz, 2009; Zdun et al., 2006). For ex-

ample, Erl (Erl, 2008) classiﬁes patterns for archi-

tecture services, service compositions, service inven-

tories and service oriented enterprise. Rotem-Gal-

Oz (Rotem Gal Oz, 2009) describes patterns for Mes-

sage Exchange, Service Interaction, Service Compo-

sition, Structural, Security and Management. SOA

patterns (Zdun et al., 2006) provide high level archi-

tectural patterns, which do not detail yet agreement

issues.

Inside the SOC community, the GRAAP Work-

ing Group (Grid Resource Allocation and Agreement

Protocol WG) has deﬁned the speciﬁcation Web Ser-

vices Agreement (Andrieux et al., 2007), which is

particularly interesting for this research. The pur-

pose of the speciﬁcation is the deﬁnition of a Web

Services protocol for establishing agreements deﬁned

in XML. The speciﬁcation covers the speciﬁcation

of agreement schemas, agreement template schemas

and a set of port types and operations for manag-

ing the agreement life cycle. This speciﬁcation de-

ﬁnes an agreement as an agreement between a ser-

vice consumer and a service provider speciﬁes one

or more service level objectives both as expressions

of requirements of the service consumer and assur-

ances by the service provider on the availability of

resources and/or service qualities. An agreement

deﬁnes a dynamically-established and dynamically-

managed relationship between parties. The object of

this relationship is the delivery of a service by one of

the parties within the context of the agreement. The

management of this delivery is achieved by agreeing

on the respective roles, rights and obligations of the

parties. An agreement is characterized by its name,

context and terms.

The OASIS Reference Architecture for SOA (Mc-

Cabe, 2008) is an abstract realization of SOA, focus-

ing on the elements and their relationships needed to

enable SOA-based systems to be used, realized and

owned. The reference architecture deﬁnes three pri-

mary viewpoints: business via services that captures

what SOA means for people using it to conduct busi-

ness, realizing service oriented architectures deals

with the requirements for constructing a SOA; and

owning service oriented architectures addresses is-

sues involved in owning and managing a SOA. The

notion of agreement is included in several ways in the

architecture, as an organizational concept (constitu-

tion) or as a formalization of a relationship (business

agreement and contract).

These two initiatives, OASIS RA and WS-

Agreement are compatible and complementary of our

proposal, since they provide a modelling reference ar-

chitecture as well as a language for describing the

ICAART 2010 - 2nd International Conference on Agents and Artificial Intelligence

identiﬁed patterns boiling down to the implementa-

tion level. This integration will be include in future

publications.

The pattern ProviderSelection described within

this article illustrates how agreement patterns can help

in providing a common vocabulary as well as a col-

lection of best practices for engineering agreement-

based distributed applications.

Future works will validate this model with other

problems, and represent a compendium of agreement

based problems, and their solutions, which they pur-

pose is to help developers to take each pattern an

assemble a system capable of interact with service

providers, without needing to know how the interac-

tion must be done, instead knowing the required ele-

ments to be implemented.

REFERENCES

Andrieux, A., Czajkowski, K., Dan, A., Keahey, K., Lud-

wig, H., Nakata, T., Pruyne, J., Rofrano, J., Tuecke,

S., and Xu, M. (2007). Web services agreement spec-

iﬁcation (WS-Agreement). Technical report, Grid

Resource Allocation Agreement Protocol (GRAAP)

Working Group.

Aydo

gan, R. (2008). Content-oriented composite service

negotiation with complex preferences. In AAMAS ’08:

Proceedings of the 7th international joint conference

on Autonomous agents and multiagent systems, pages

1725–1726, Richland, SC. International Foundation

for Autonomous Agents and Multiagent Systems.

Billhardt, H., Hermoso, R., Ossowski, S., and Centeno, R.

(2007). Trust-based service provider selection in open

environments. In SAC ’07: Proceedings of the 2007

ACM symposium on Applied computing, pages 1375–

1380, New York, NY, USA. ACM.

Bromuri, S., Urovi, V., Morge, M., Stathis, K., and Toni,

F. (2009). A multi-agent system for service dis-

covery, selection and negotiation. In AAMAS ’09:

Proceedings of The 8th International Conference on

Autonomous Agents and Multiagent Systems, pages

1395–1396, Richland, SC. International Foundation

for Autonomous Agents and Multiagent Systems.

Buschmann, F., Meunier, R., Rohnert, H., Sommerlad, P.,

and Stal, M. (1996). Pattern-oriented software archi-

tecture: a system of patterns. John Wiley & Sons, Inc.,

New York, NY, USA.

S¸ ensoy, M. (2008). A Flexible Approach For Context-Aware

Service Selection In Agent-Mediated E-Commerce.

PhD thesis, Bo

gazic¸i University.

Erl, T. (2008). SOA Design Patterns. Prentice-Hall.

Iglesias, C. A., Garijo, M., Fernandez-Villamor, J. I., and

Dur

an, J. J. (2009). Agreement patterns.

Jennings, N. (2005). Agreement technologies. Intelligent

Agent Technology, IEEE / WIC / ACM International

Conference on, 0:17.

Maximilien, E. M. and Singh, M. P. (2004). A frame-

work and ontology for dynamic web services selec-

tion. IEEE Internet Computing, 8(5):84–93.

McCabe, F. G. (2008). Reference architecture for service

oriented architecture. Technical report, OASIS.

Merino, A. S., Matsunaga, Y., Shah, M., Suzuki, T., and

Katz, R. H. (2005). Secure authentication system for

public wlan roaming. Mob. Netw. Appl., 10(3):355–

370.

Oluyomi, A., Karunasekera, S., and Sterling, L. (2006). De-

sign of agent-oriented pattern templates. In ASWEC

’06: Proceedings of the Australian Software En-

gineering Conference, pages 113–121, Washington,

DC, USA. IEEE Computer Society.

Oluyomi, A., Karunasekera, S., and Sterling, L.

(2007). A comprehensive view of agent-oriented pat-

terns. Autonomous Agents and Multi-Agent Systems,

15(3):337–377.

Oluyomi, A. O. (2006). Patterns and Protocols for Agent-

Oriented Software Development. PhD thesis, Faculty

of Engineering. University of Melbourne, Australia.

Rising, L., editor (1998). The patterns handbooks: tech-

niques, strategies, and applications. Cambridge Uni-

versity Press, New York, NY, USA.

Rotem Gal Oz, A. (2009). SOA Patterns. Manning.

Singh, M. P. and Huhns (2005). M.n.: Service-oriented

computing: Semantics, processes, agents. J. Wiley and

Sons.

Song, W. (2008). Building dependable service-oriented

application via dynamic reconﬁguration and fault-

tolerant reconﬁguration collaboration protocol. PhD

thesis, Tempe, AZ, USA.

Yang, S. J. H., Hsieh, J. S. F., Lan, B. C. W., and Chung,

J. (2006). Composition and evaluation of trustworthy

web services. Int. J. Web Grid Serv., 2(1):5–24.

Zdun, U., Hentrich, C., and Aalst, W. M. P. V. D. (2006). A

survey of patterns for service oriented architectures.

Int. J. Internet Protoc. Technol., 1(3):132–143.

A PATTERN APPROACH TO MODELING THE PROVIDER SELECTION PROBLEM
