A FLEXIBLE POLICY ARCHITECTURE FOR MEDICAL

INFORMATION MESSAGING

Edward Brown

Department of Computer Science, Memorial University of Newfoundland, St. John's, Canada

Jamie Goodyear

Progress Software Corporation, 570 Newfoundland Drive, St. John's, Canada

Keywords: Policy, Messaging, Architecture, Middleware, Medical context.

Abstract: We describe a design solution for the problem of changing policies regarding information management in

the health care environment. Frequent policy modification regarding security, privacy and workflow

through institutional re-organization and policy revision occur at multiple levels of administration, which

can leave the health care information users with non-compliant systems (such as electronic medical records)

and procedures which are expensive and difficult to update. Our solution is a medical information

messaging infrastructure designed to respond flexibly to changes in information policy. Instead of

embedding fixed policy into static application code, our architecture provides configurable policy rules as

part of the communications framework. This entails two critical components: the dynamic router, which

routes messages according to the policy rules, and the medical context header, which attaches policy-

relevant information to all communication messages. All information applications are automatically

compliant with policy, since it is enforced at the communications level of the system.

1 INTRODUCTION

Large scale communication infrastructure for

medical information applications is essential if

different medical applications, such as electronic

medical records and electronic prescription services,

are to be interoperable. In other words, information

needs to be shared seamlessly across different

applications, vendor systems, jurisdictions, and

health care providers. The Canadian health care

system, being substantially government funded and

therefore having a close relationship between

funding and regulation, is one context in which such

an infrastructure can be designed and built as a

federal initiative. The underpinning of this

infrastructure in Canada is a common

communication layer, called the Health Information

Access Level (HIAL). With a common information

exchange architecture, the HIAL solution provides

for different applications to share and retrieve

information stored in repositories throughout the

system. (CHI, 2003)

However, questions of the legitimacy of

information access are not addressed by any specific

architectural feature. Policies regarding who, when

and why information may be accessed and used are

not explicitly represented in the system architecture.

Instead, security and privacy solutions and services

that can be deployed when policies are developed.

These follow traditional security monikers and

solutions, such as authentication, identity

management and other software mechanisms.

(Brown and Wareham, 2007)

The concern with these solutions is that policies

regarding information exchange and access are re-

created as part of each application. In each case,

procedures for implementation of these policies,

such as accessing an authentication service, are

coded into the application programs. When policy

changes occur, the applications may not be suited to

any changes and the cost of updating the

applications may place an unnecessary burden on

health care budgets. We contend that such policy

changes are in fact frequent, particularly at the level

of individual organizations such as hospitals. (see

Brown and Wareham, 2007, at 46)

Brown E. and Goodyear J. (2010).

A FLEXIBLE POLICY ARCHITECTURE FOR MEDICAL INFORMATION MESSAGING.

In Proceedings of the Third International Conference on Health Informatics, pages 70-76

DOI: 10.5220/0002737100700076

 SciTePress

Consider, for example, the case of “reportable”

diseases which require notice to a public health

authority. The obligation to report such diseases

typically falls on the primary care physician. (see

HPPA, 1990 for one Canadian jurisdiction) An

electronic information system could help the

physician's information management burden, by

automatically reporting such diagnoses. However,

there are variations on regulations, process, and

responsible authority between provincial

jurisdictions. These policies may change or be

amended fairly quickly, such as in response to a

particular epidemic threat. If policy changes entail

reprogramming of application code or circumvention

of legacy procedures that are embedded in software

applications, then software hinders, rather than

helps, such reporting.

There are even more frequent information

management policy changes on a more detailed

institutional level. A particular lab or individual

may be censured, health service units may be

restructured, information workflow may be re-

organized, institutional analysis procedures may be

revised: these all have implications for how

information is shared and accessed, which we refer

to as information policy.

The tendency is to implement applications based

on existing policies or regulations, without regard

for the frequent re-interpretation or change of policy,

due to administrative decisions (as per the preceding

paragraph), new regulation, new technologies,

innovation in health care strategies or even court

decisions which alter obligations or liability. The

ability to respond to such changes is compromised

when the system enforces procedures and policies

that were current or thought appropriate at the time

the system was designed. Vendors that design,

create and/or implement systems have little

incentive to design to accommodate such future

changes, particularly if they can look forward to

being engaged and paid to overhaul their application

program each time changes do occur.

Our prototype system deploys information policy

at the communications layer of the system rather

than within each application, making the system

aware of the medical context of each

communications message. This relieves the

application code of the burden of compliance with

(possibly changing) information policies.

Active use of medical context has precedent,

including context-aware computing (Bricon-Scouf

and Newman, 2007), linking of related medical

events (Clerq, Bangels and France, 2004),

annotating EHR records with disambiguating

context (Manzoor, Ceusters and Rudniki, 2007),

mobile access through user and location context

(Hägglund et al, 2007), adaptive information for

telemedicine communications (Doukas,

Maglogiannis and Karpouzis, 2008), and hospital

applications such as context aware pill containers or

hospital beds (Bardram, 2004). This literature

illustrates the importance of context not only in the

operation of health care tools and software systems,

but also in understanding needs of the user and

patient.

Although there are application specific uses for

this medical context information, such as tracking

and logging medical events and data security

forensics, we limit this discussion to messaging

infrastructure advantages.

2 CONTEXT-BASED

MESSAGING

Our problem is to provide for policy changes within

the architecture of the medical information

infrastructure itself. By making information policy

explicit in the system architecture, rather than

implicit (and possibly hidden) in the coding of each

individual software application, we are able to

change information access and information sharing

characteristics as a system configuration exercise.

Policy changes are new system configuration

directives (that is, messaging rules), rather than re-

coding of applications.

This architecture introduces two critical

elements: first is the use of a dynamic router for

messaging within the information infrastructure used

by all applications; the second is attaching medical

context headers to each message to which the

dynamic router can respond.

2.1 Dynamic Router

A dynamic router will route messages according to a

rules base which can be configured manually or

automatically, and changed dynamically without

halting any system operations or services. The

router makes decisions about where specific

messages are to be sent based on the message itself

and the current rules in its rules base. Since the

router is dynamic, the rules can be modified

manually or through software that is appropriately

authenticated for making such alterations. Routing

messages based on current information management

policies is a matter of translating the policies into

routing rules which are added to the current rules

base.

A FLEXIBLE POLICY ARCHITECTURE FOR MEDICAL INFORMATION MESSAGING

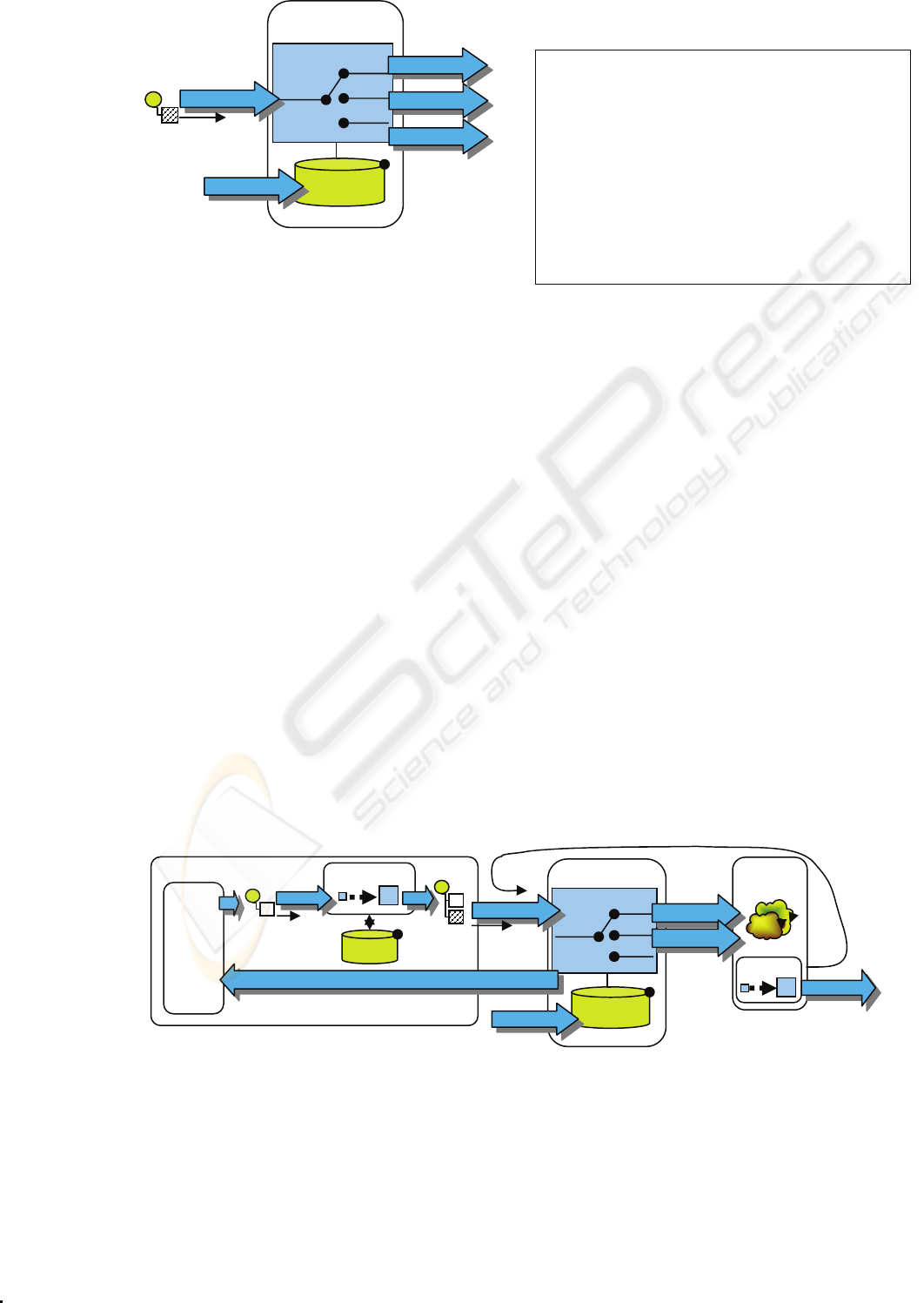

Figure 1: Dynamic Router.

The dynamic router appears in architectural

design texts as an enterprise integration pattern

whose application is well understood. (Hohpe and

Woolf, 2003) Its use allows the explicit expression

of routing policies in a consistent manner, and at a

known and configurable point in the overall system.

All applications will be operating in accordance with

the policies encoded by the routing rules.

In the dynamic router architectural pattern

(shown in Figure 1) the routing rules are retrieved

from a rules data store. (Hohpe and Woolf, 2003)

This frees message distribution from complete

preplanning as routes may be added, modified, or

removed at run time.

The dynamic router includes a rules engine (not

shown). This component is responsible for

accessing, modifying and storing rules for the router.

For example, the rules engine may be directed to

modify the rules base by adding or deleting rules, or

retrieve the currently stored rules for inspection.

Messages for the rules engine relating to

administration of the rules base itself use a special

“control” channel for its own messages.

The concept of a dynamic router is not itself

original; it is in common use in financial services

software and can even be seen in e-Health

information frameworks. (Krasser, 2009) Our

contribution is using the rules base for explicit

information policies, rather than mere application

configuration.

stjohns;Results;dr.farrell.response.que

ue;tcp://localhost:61616

stjohns;radiology;radiology;tcp://local

host:61612

stjohns;microbio;microbio;tcp://localho

st:61620

stjohns;clientreq;Q_RecordRequest;tcp:/

/localhost:61628

stjohns;ReportD;pub.health;tcp://localh

ost:61624

stjohns;Patient_Record;*meddrid;tcp://l

ocalhost:61616

Figure 2: Some routing rules as they appear in one test of

the policy-oriented rules base.

Our implementation adopts the Apache Camel

messaging framework, which provides information

routing as an extension to server functionality. At

present, the routing technique is simple: messages

typically specify their intended destination, and

further routing constraints or destinations are chosen

by the dynamic router as each message arrives, by

matching properties of the message against the rules

base. (Some simple rules are illustrated in figure 2)

More complex routing capabilities are feasible, but

even this simple scheme allows intricate routing

behaviours and basic policy statements to be

represented.

The dynamic router is not sufficient by itself to

allow the system to respond to the type of

information policies we have been discussing.

These policy directives (implemented as routing

rules) are intended to operate across applications,

and may be related to jurisdiction, treatment, nature

of the medical event, type of information requested,

origin of the request, identity of the individuals or

organizations involved, intended use of the

information, and other policy related characteristics

Figure 3: Messaging context affects routing.

Rules Base

Dynamic

Message

Input Channel

Control

Output

Rules Base

Dynamic Router

Message

Enriched

Message

Control

Application

Enricher Module

Remote

Services

Message

Output

Output Channel

Contex

Client

Enrichers

Res

onse

Service responses are

messages

HEALTHINF 2010 - International Conference on Health Informatics

of the message. This additional information, which

we refer to as the medical context, must appear in a

message in order for the router to have something to

match its policy based rules. In a conventional

software deployment, some of this information (such

as intended use) would be implicit due to the

particular application being used. Under our system,

however, messages are not routed according to the

particular software application, but according to

multiple policies that apply regardless of the

particular software application in use.

2.2 Medical Context

The second critical element for policy-based

message routing is enrichment of messages to

include the medical context information that might

trigger a policy rule. Information about the source

and destination of the message, and the function of

the message in terms of data access, updates and

requests would already be included in conventional

message definition; only the medical context need be

added. Once a message arrives at the dynamic

router for delivery, the medical context for that

message is matched against the dynamic router's set

of rules, to find applicable policy rules that indicate

how the message should be routed. The router then

proceeds to deliver the message using the

communication components of the architecture.

The content enrichment module (included in

Figure 3) is used to add medical context information

to base messages. This pattern is normally used in

integration scenarios in which the message

originator does not have all the required data

available, so that additional information has to be

injected into the message. (Hohpe and Woolfe,

2003) Some of the headers deployed in our current

prototype are shown in figure 4. When applications

need to communicate, the content enricher is called

to add the medical context headers to their base

messages. As a separate code package or module,

the enrichment feature is available to all application

programmers.

Our current prototype implementation uses Java

Message Service (JMS) as the communication

infrastructure. JMS is a well supported middleware

package that provides messaging infrastructure

among multiple clients. It is a fairly simple matter

to enrich a JMS message with medical context

information, simply by adding an additional header

section to each JMS message. A simple message

header after injection in our prototype system is

shown in figure 5. The medical context header

becomes a part of each JMS message, and is carried

and delivered to routers and application code

medmsgtype: Control or Default type. Control

messages are sent to the router’s control

channel.

medcommand: Commands issued to a router.

medpolicy: A policy in the form of routing

rules.

meddrid: Healthcare provider identification.

Used by router to construct a unique output

queue.

medptid: Patient identification.

medwhere: Location of medical event (scoping

is currently unstructured).

medaction: Situational information about

medical event.

Figure 4: Some headers currently defined to inject medical

context information.

transparently by the JMS infrastructure.

{commandId = 7, responseRequired =

true, messageId = ID:jamie-

goodyearsmacbook, Local-50300-

1240760119906-0:2:1:1:1,

originalDestination = null,

originalTransactionId = null,

producerId = ID:jamie-goodyears-

macbook.local- 50300-1240760119906-

0:2:1:1, destination =

queue://Q_Default, transactionId =

null, expiration = 0, timestamp =

1240760120317, arrival = 0,

brokerInTime = 1240760120318,

brokerOutTime = 1240760120319,

correlationId = null, replyTo = null,

persistent = true, type = null,

priority = 4, groupID = null,

groupSequence = 0, targetConsumerId =

null, compressed = false, userID =

null, content = null,

marshalledProperties =

org.apache.activemq.util.ByteSequence

@f7b44f, dataStructure = null,

redeliveryCounter = 0, size = 0,

properties = {medptid=555-555-5555,

meddrid=dr.farrell.response.queue,

medmsgtype= default,

medaction=microbio-TBTestReq-sputem-

HL7-2.4, medwhere=stjohns},

readOnlyProperties = true, readOnlyBody

= true, droppable = false}

Figure 5: A JMS message header after injection of medical

context information.

These two critical architectural elements, the

dynamic router and the enriched message, are not

A FLEXIBLE POLICY ARCHITECTURE FOR MEDICAL INFORMATION MESSAGING

radical new architectural design concepts; in fact,

each of these elements are conventional, “off the

shelf” ideas. The dynamic router is a published and

understood enterprise integration pattern familiar to

software architects, and extended message headers is

a feature common to all electronic messaging

frameworks, including JMS. What makes our

system different is routing based on medical context

information, at a level usually limited to technical

considerations, such application, network load,

client jurisdiction or data protection.

Figure 3 illustrates the combination of the two

critical architectural elements. The medical context

enrichment must be installed at the client site where

the message originates, as this is where the context

is known; it is effectively an add-on to the

application. The dynamic router (which may be

remote or local) becomes the means for that client to

access the communications infrastructure.

3 A USE SCENARIO

Our initial implementation effort is framed as a

response to the Canadian Health Infoway Reference

Implementation Suite (CHIRIS, see CHI, 2005).

CHIRIS is intended to simulate the construction of a

cross-jurisdictional electronic health record, and

includes Admit, Dismiss, Transfer (ADT) and EHR

viewer applications. Unlike CHIRIS, our design is

conceived around medical context and messaging

rather than data access and modification. Rather

than data access or retrieval calls, we conceive of

messages as parts of a medical narrative. Handling

of these stories about patient care is defined by the

directives contained within a dynamic policy rules

base. Polices are understood as rules about how to

treat the messages that constitute the medical

narrative.

The remainder of this section traces the operation

of our prototype implementation for a particular use

case sequence, or more specifically, a particular use

of the system in which the physician consults with a

patient, updates the patient chart, and requisitions a

number of lab tests, one of which results in

diagnosis of a reportable disease. A more formal

description of the use case and its implementation

can be found in Goodyear, 2009. The following

description tracks the system operation in terms of

the medical context and dynamic router: we are not

interested in the particular application software or

screen interfaces that the various users employ, but

only in describing the messaging architecture.

Initially, the physician requests a patient record

and receives the relevant record. The message

transactions are controlled by rules in the router’s

rules base. The medical context is injected by the

software client into a message to the dynamic

router. The router, according to its rules, will pass

the message on to the patient record repository

(available as a remote service). The repository site

injects its medical context and returns the record to

the router as a response message. The response is

routed back to the requesting physician. Several

rules were involved is this exchange – the absence of

any rule to pass the messages would have caused the

data retrieval to fail.

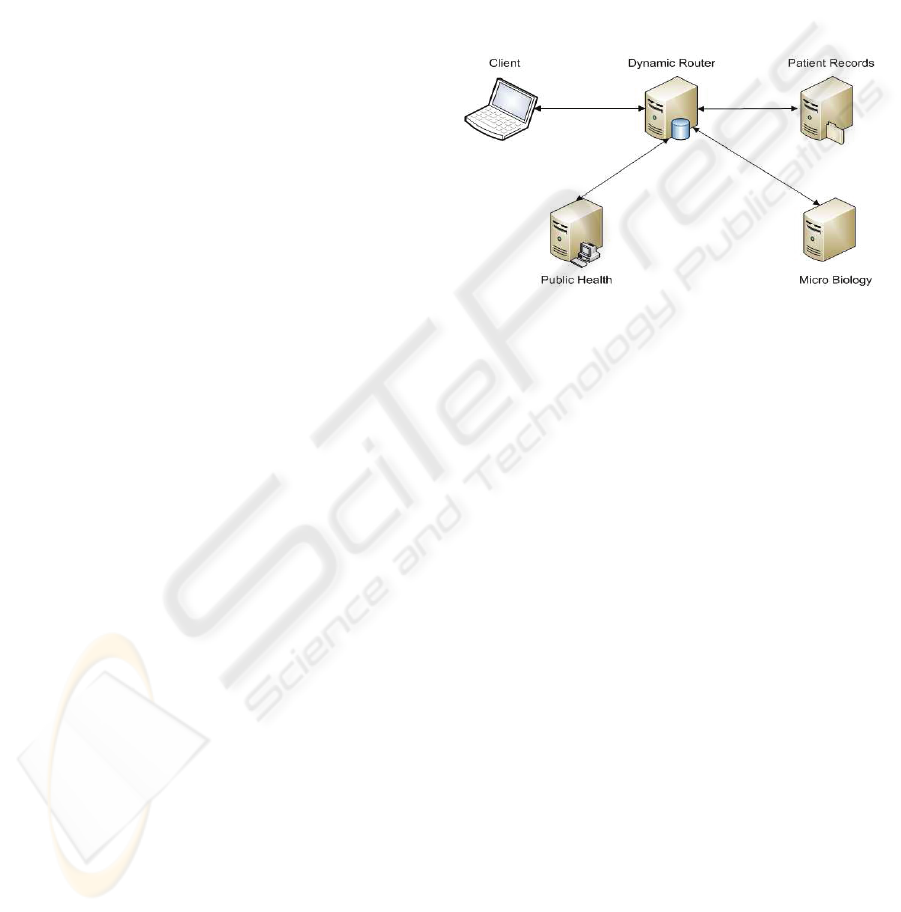

Figure 6: All messages in the scenario are sent through a

dynamic router.

In the second portion of the scenario the

physician requisitions a chest xray. The rules base

contains an entry for xrays, so the request is

forwarded to a radiology lab. After completing the

xray procedure, the results are sent back to the

requesting physician as a response message with the

appropriate medical context injected by the lab

software site. When the response is routed, a policy

rule is matched for updating the patient record so the

lab results are automatically copied by routing a

message to the patient record repository as well as

the requesting physician. The repository responds

by sending a message notifying the primary care

physician that their patient's record has been

updated: in this test scenario, this is the same

physician that ordered the lab in the first place. The

physician receives two notifications in this scenario;

first the lab results, and second notification of the

patient record update. Rules that provide these

notifications begin to show the benefits of our

proposed architecture: in the CHIRIS reference

system notifications occur only if the application

developers program them into the application in

use. The new design allows notifications to be

routed by a simple policy rule change that

automatically affects all applications.

In the final portion of the scenario, the physician

requisitions a sputum test. The rules base contains an

entry for sputum tests, so the request is forwarded to

HEALTHINF 2010 - International Conference on Health Informatics

the microbiology lab. The lab results are sent back

to the requesting physician; however in our actual

test we simulated a positive result for a reportable

disease. The reportable disease is injected into the

message as part of the medical context at the lab

before the results message is sent to the dynamic

router for delivery. When this results message is

processed by the dynamic router, several rules are

matched; the physician will get immediate

notification, the patient record will be updated, and

the public health authority is notified of the

reportable disease. The physician will ultimately

receive notification of the patient record update and

an additional notification from public health that

they are aware of the test result. The notification

message from public health is also copied to the

patient repository according to another routing rule.

In this portion of the scenario, the medical context

information is used multiple times to provide

appropriate messaging. Each time a message is

passed, the rules base was consulted to provide

directives to where messages should be sent, without

any programming of the client applications. Instead,

the policy rules base provides a single consistent

source of messaging directives.

4 DISCUSSION

Our proposed design requires all client applications

and services to inject medical context into their

messaging. The test of our prototype dynamic router

involved the simulation of different health system

deployments, including the lab and record repository

services: these were simulated, not actual field

deployed systems. In practice, the messaging

facilities used by real world units would have to be

modified to include the medical context, preferably

by adding the message enrichment module to their

softwares. Our team is currently pursuing support

for a larger scale prototype and field testing of this

architecture.

There are elements of our approach that need

further design work. Most obvious is data security,

which is usually handled on an application-by-

application basis. With flexible routing of messages

with added medical context, a comprehensive

security solution which is responsive to rule changes

is needed. Part of the security solution would have

to consider to what extent a “bad actor” could hijack

the system by inserting invalid rules, similar to

server attacks currently familiar to internet service

providers. Tools to help translate medical

information policy to routing rules would be helpful

as well, including some analysis capability to

identify conflicts in policy or rules, eliminate

circularity in routing, and ensure the rules were not

used to subvert laws, security or privacy concerns.

An interesting question is how intelligent to

make the dynamic router. It could be built to make

fairly sophisticated decisions regarding conflicting

policies from different agencies or levels of

authority, to avoid or produce notification events, to

monitor and track information sharing and medical

decisions, or it could leave all important decisions to

specific human intervention. It could also apply

meta-policies about what policies can be changed or

updated.

A related question is where the dynamic router

and the rules based are physically housed. In

particular, it is interesting to consider whether a

single router with a single rules base offers

advantages in predictability and reliability (but a

single point of failure), is preferable to a distributed

system of multiple routers with multiple rule sets for

different jurisdictions and different levels of

authority.

In the meantime, our prototype system with

simulated health information services demonstrates

the technical feasibility of using a dynamic router to

implement health information policy, and realize the

advantages recited in this paper: flexible change in

information handling without the cost of redeploying

new software; explicit articulation of health

information policies, rather than implicit

enforcement by individual applications; and no risk

of being stuck with legacy software and processes

that cannot be updated to reflect organizational or

regulatory changes. Additional advantages in

traceability of medical events and decisions, largely

due to enriched medical context information, are

discussed in Goodyear, 2009.

ACKNOWLEDGEMENTS

Thanks to Dr. Gerard Farrell and the members of

Memorial University of Newfoundland's e-Health

Research Unit and Medical Informatics Group for

their support of the work herein described.

REFERENCES

Bardram. J.E., 2004. Applications of context-aware

computing in hospital work: examples and design

principles. ACM symposium on Applied computing,

New York

Bricon-Souf, N. and Newman, C.R, 2007. Context

A FLEXIBLE POLICY ARCHITECTURE FOR MEDICAL INFORMATION MESSAGING

awareness in health care: A review. International

Journal of Medical Informatics, 76, Elsevier

Brown, E., Wareham, H., et al., 2007. Technology

Choices and Privacy Policy in Health Care. Report to

the Privacy Commissioner of Canada, Medical

Informatics Group, Memorial University, 2007,

online: http://cpig.cs.mun.ca/TechnologyChoices

CHI, 2003. EHRS Blueprint, an inter-operable EHR

framework Canada Health Infoway Inc, version 1.0

edition.

CHI, 2005. Canada Health Infoway. CHIRIS User

Manual. Canada Health Infoway Inc, version 0.2

edition. online: http://sourceforge.net/projects/crrs.

Clercq, E.D., M. Bangels, M. and F. R. France, F.R.,

2004. Integration of electronic patient record context

with message context, Studies in health technology

and informatics, 107(2), IOS Press.

Doukas, C., Maglogiannis, I., and Karpouzis, K., 2008.

Context-aware medical content adaptation through

semantic representation and rules evaluation, IEEE

International Workshop on Semantic Media

Adaptation and Personalization, Washington.

Goodyear, J., 2009. Extending the Health Information

Access Layer with a medical context messaging

framework. Honours Dissertation. Department of

Computer Science, Memorial University of

Newfoundland.

Hägglund, M., Scandurra, I., D. Moström, D., and Koch,

S. Koch, 2007. Bridging the gap: a virtual health

record for integrated home care, International Journal

of Integrated Care 7(26), Igitur Publishing.

Hohpe, G. and Woolf, B., 2003. Enterprise Integration

Patterns : Designing, Building, and Deploying

Messaging Solutions, Addison-Wesley Professional.

Krasser, M., 2009. Introduction to the open eHealth

integration platform, online: http://

architects.dzone.com/articles/introduction-open-

ehealth, accessed July 7, 2009.

Manzoor, S., Ceusters, W.M. and Rudnicki, R., 2007. A

middleware approach to integrate referent tracking in

EHR system, American Medical Informatics

Association Symposium Proceedings..

HEALTHINF 2010 - International Conference on Health Informatics
