EMOTIONAL FACIAL EXPRESSION RECOGNITION FROM TWO

DIFFERENT FEATURE DOMAINS

Jonghwa Kim and Frank Jung

Institute of Computer Science, University of Augsburg, Germany

Keywords:

Emotion recognition, Facial expression, Gabor wavelets, Human-computer interaction, Affective computing.

Abstract:

There has been a signiﬁcant amount of work on automatic facial expression recognition towards realizing

affective interfaces in human-computer interaction (HCI). However, most previous works are based on speciﬁc

users and dataset-speciﬁc methods and therefore the results should be strongly dependent on their lab settings.

This makes it difﬁcult to attain a generalized recognition system for different applications. In this paper, we

present efﬁciency analysis results of two feature domains, Gabor wavelet-based feature space and geometric

position-based feature space, by applying them to two facial expression datasets that are generated in quite

different environmental settings.

1 INTRODUCTION

Recently numerous studies on automatic emotion

recognition using audiovisual (facial expression,

voice, speech and gestures) and physiological (elec-

trocardiogram, skin conductivity, respiration, etc.)

channels of emotion expression have been reported

(Cowie et al., 2001) (Kim and Andr

e, 2008). Overall,

most approaches achieved average recognition rates

of over 70%, which seems to be acceptable for some

restricted applications. However, it is true that the

recognition rates should be strongly dependent on the

datasets they used and the subjects. Moreover, most

of the recognition results were achieved for speciﬁc

users in speciﬁc contexts with the ”forced” emotional

states. All these make it difﬁcult to attain a gener-

alized recognition system for different applications.

Particularly, due to the lack of a standard benchmark

of emotional dataset and recognition method, it is al-

most impossible to objectively compare the efﬁciency

of feature domains and the performance of classiﬁca-

tion algorithms.

For a comprehensive survey of previous works

on the recognition of facial expression we refer the

reader to (Fasel and Luettin, 2003) (Jain and Li,

2005). Generally the feature-based methods for facial

emotion recognition in the literature can be divided

into two general ideas with respect to feature coding

spaces, i.e. transform-based feature coding by using

such as Gabor wavelets (Zhan et al., 2007) and prin-

ciple component analysis (PCA) and geometry-based

distance coding by using extended ﬁducial points de-

ﬁned in the facial action coding system (FACS) (Pan-

tic and Rothkrantz, 2004), for example. In the FACS,

almost every visible movement of facial muscles is

assigned to Action Units (AU) and a ﬁne grained lan-

guage is given to allow a human annotator the descrip-

tion of facial behavior.

In this paper, we investigate the efﬁciency of two

well-known feature domains, i.e. Gabor wavelet-

based feature set and geometric position-based fea-

ture set, by using two emotional static image datasets

that are generated in quite different environmental set-

tings. Throughout the paper, we try to derive a spe-

ciﬁc characteristic of the feature domains, which can

be generally accepted for designing an universal fa-

cial emotion recognition system.

2 USED DATASETS

Two different datasets are used for our experiment.

The ﬁrst one is the Japanese Female Facial Expression

Database (JAFFE) (Lyons et al., 1998) consisting of

213 images of ten different subjects. The amount of

samples is roughly equal for each of the seven emo-

tion classes, i.e. neutral, happiness, sadness, surprise,

anger, disgust and fear. The second dataset is the

Facial Expressions and Emotion Database (Wallhoff,

2006) (FEEDTUM) of the Face and Gesture Recog-

nition Research Network (FG-NET). Differently from

631

Kim J. and Jung F. (2010).

EMOTIONAL FACIAL EXPRESSION RECOGNITION FROM TWO DIFFERENT FEATURE DOMAINS.

In Proceedings of the 2nd International Conference on Agents and Artiﬁcial Intelligence - Artiﬁcial Intelligence, pages 631-634

DOI: 10.5220/0002737306310634

 SciTePress

the JAFFE which is a set of photo images, FEEDTUM

is generated by collecting images taken out of video

streams and contains a bigger amount of images avail-

able, recorded in three sessions for each of the 18

subjects and each of the seven emotion classes. For

testing, one image of each session has been selected

picturing the subject in the apex phase of the facial

deformation. Figure 1 shows some example images

sampled from both datasets corresponding the seven

emotional expressions.

(a) Neutral (b) Anger (c) Disgust (d) Fear (e) Happy

(f) Sad (g) Surprise (h) Neutral (i) Anger (j) Disgust

(k) Fear (l) Happy (m) Sad (n) Surprise

Figure 1: Examples of facial expression images. (a)-(g) are

sampled from the JAFFE and (h)-(n) from the FEEDTUM.

3 METHODOLOGY

3.1 Feature Extraction in Gabor-ﬁlter

Domain

A two-dimensional Gabor wavelet is a plane wave

that is enveloped by a Gaussian, i.e.

Ψ(k, x) =





−

2σ











(ikx)

−e





−











(1)

where k is the frequency of the plane wave, and σ

is the relative width of a Gaussian envelope function.

Field (Field, 1987) pointed out that most cells in the

visual cortex of mammals come in pairs with even and

odd symmetry, similar to the real and imaginary part

of Gabor wavelets. Following this we used Gabor

ﬁlter with the elliptic Gaussian which approximates

even more exactly the neurons in the visual cortex,

Ψ(x, y) =

αβ

−



+ β



j2π f

(2)

= xcosθ +y sin θ (3)

= −xsinθ +y cos θ (4)

where f

is the frequency, θ the orientation and α and

β the scaling factors for the elliptic Gaussian enve-

lope. The orientation of the Gaussian rotates together

with the orientation of the ﬁlter. To get the same num-

ber of waves over all scales the ratio between the fre-

quency and the Gaussian is ﬁxed. The ratios that ap-

proximate the cells in the visual cortex are:

γ =

√

0.9025π

, η =

√

0.58695π

(5)

The normalized ﬁlter in the spatial domain is then:

Ψ(x, y) =

πγη

−









j2π f

(6)

For the design of Gabor ﬁlter bank in our exper-

iment, we used the following parameters: the rela-

tive width σ has been set to π and six orientations and

three spatial frequencies have been used. The orien-

tations φ range from

to π in an equidistant man-

ner. The maximal frequency is

and the different

scales are separated by the factor two which results in

three scales with k =

. For normalization the

interocular distance is 60 pixels and if the three-point-

method is employed the distance between mouth mid-

dle point and the straight line between the eye centers

is as well 60 pixels.

3.1.1 Points of Interest

Since we apply the Gabor ﬁlter to each ﬁducial point,

instead of whole image, it is necessary to identify the

points of interest (POI) that are relevant to affective

facial expressions. For this, focusing on wrinkles and

bulges is a rather poor choice. This makes sense when

one considers that the appearance and visibility of

such are highly inﬂuenced by illumination, age and

even contexts like tiredness of an individual. They

can be altered by make-up, even completely covered

by facial hair and are highly dependent on the indi-

vidual. Considering the issues above and the com-

mon evidence that the mouth area holds most infor-

mation related to facial expression recognition, fol-

lowed by eyes and then eyebrows, we identiﬁed 26

POIs as shown in ﬁgure 2, where the points 14, 15

and 23-25 are for image normalization, not for ﬁlter-

ing purposes.

3.1.2 Normalization and Feature Calculation

Images are converted to gray scale in order to avoid

problems with ﬁltering in different planes and appli-

cation of feature reduction algorithms. It is clear that

ICAART 2010 - 2nd International Conference on Agents and Artificial Intelligence

632

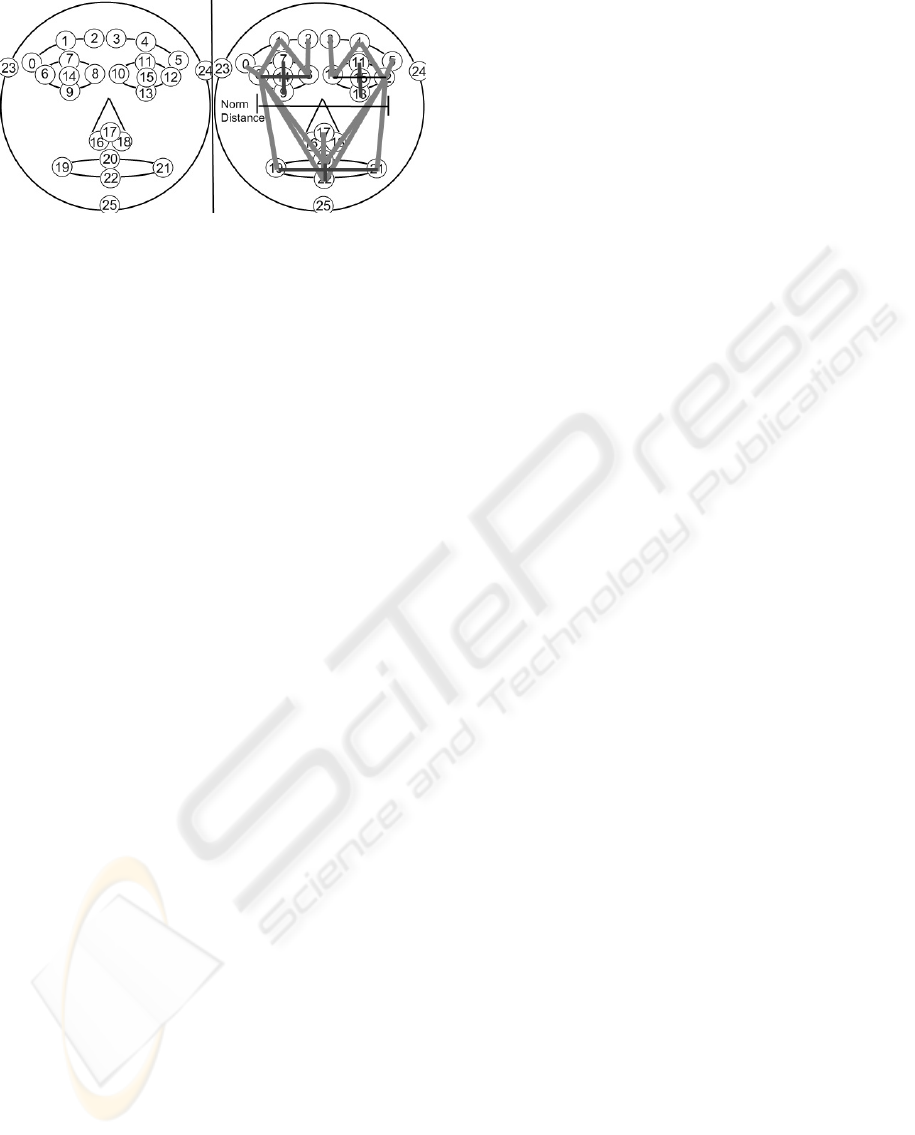

Figure 2: Left: the 26 points of interest identiﬁed in a

frontal face. Right: considered minimal set of distances.

the Gabor ﬁlters are anisotropic and estimating of fre-

quency parameter depends on the face sizes in pix-

els. Since the images in the datasets are generated

by using single camera positioned at front of face,

a pertinent normalization has to be conducted to ad-

dress in-plane rotations and face size. Two methods

based on a three-point-normalization via transforma-

tion matrices are employed. The ﬁrst one uses three

ﬁxed points, where two are located in the eye centers

and the third in the middle of the mouth determined

by the cutting lines through opposing mouth points. It

maps simply the points onto three predeﬁned points to

determine transform matrix. The second method pre-

serves the relation between the inter-ocular distance

and the perpendicular line distance of the mouth mid-

dle point to that line. Therefore the ”natural appear-

ance” of the face is more preserved, since the face

shape is respected.

After the normalization, the Gabor ﬁlters are ap-

plied to the sample at each POI. As a result, we ob-

tained feature vector containing 18 complex coefﬁ-

cients for each POI and reduced the size of the fea-

ture vector by considering only magnitude of real and

imaginary parts.

3.2 Feature Extraction in Geometric

Domain

To provide a unit system for the intra-face measure-

ments that are comparable across individuals, we need

certain anchor points that have to lie in areas with

sufﬁcient textural information (for easy detection), be

present in a consistent manner across different sam-

ples/models, be at locations that do not move due

to facial deformations and be not located at points

with transient information (e.g. wrinkles, bulges).

Among different candidates illustrated in the Figure

2 the outer points of the left and the right eye turned

out to be the best options. The points at the temples

would be a good choice, too, but can vanish due to

even small out-of-plane rotations or be hard to detect

because of hair. All measured distances will be di-

vided by this span for conversion into the unit system.

As facial landmarks, we used a subset of the points in

the Figure 2, except for point 6, 8, 10, 12, 16-18 and

23-25 which are anchor points.

We calculated geometry-based features by mea-

suring distances of anchor-to-landmark, landmark-to-

landmark points and dividing them by the base unit.

Furthermore, div- and med-features are obtained by

considering two intersecting lines between the corre-

sponding points, for example, the lines of point 20

to 22 and 19 to 21. We then calculated the ratio

and median values based on the lines. Consequently,

these features represent the change of the eye- or

mouth-form. Figure 2 right shows a possible minimal

set of distances. Light gray lines are the spans be-

tween anchor-to-landmark and the dark lines indicate

distances that were used to calculate div- and med-

features.

3.3 Classiﬁcation

We tested the recognition efﬁciency of the two feature

sets by employing two well-known statistical classi-

ﬁers, k-nearest neighbor (k-NN) and support vector

machines (SVM). For k-NN, Euclidean distance mea-

sure is used with k = 3. We used the C-SVM (RBF

kernel) with a ﬁxed γ and high cost factor c by build-

ing binary classiﬁers in terms of one-vs-one as well

as one-vs-all.

4 RESULTS

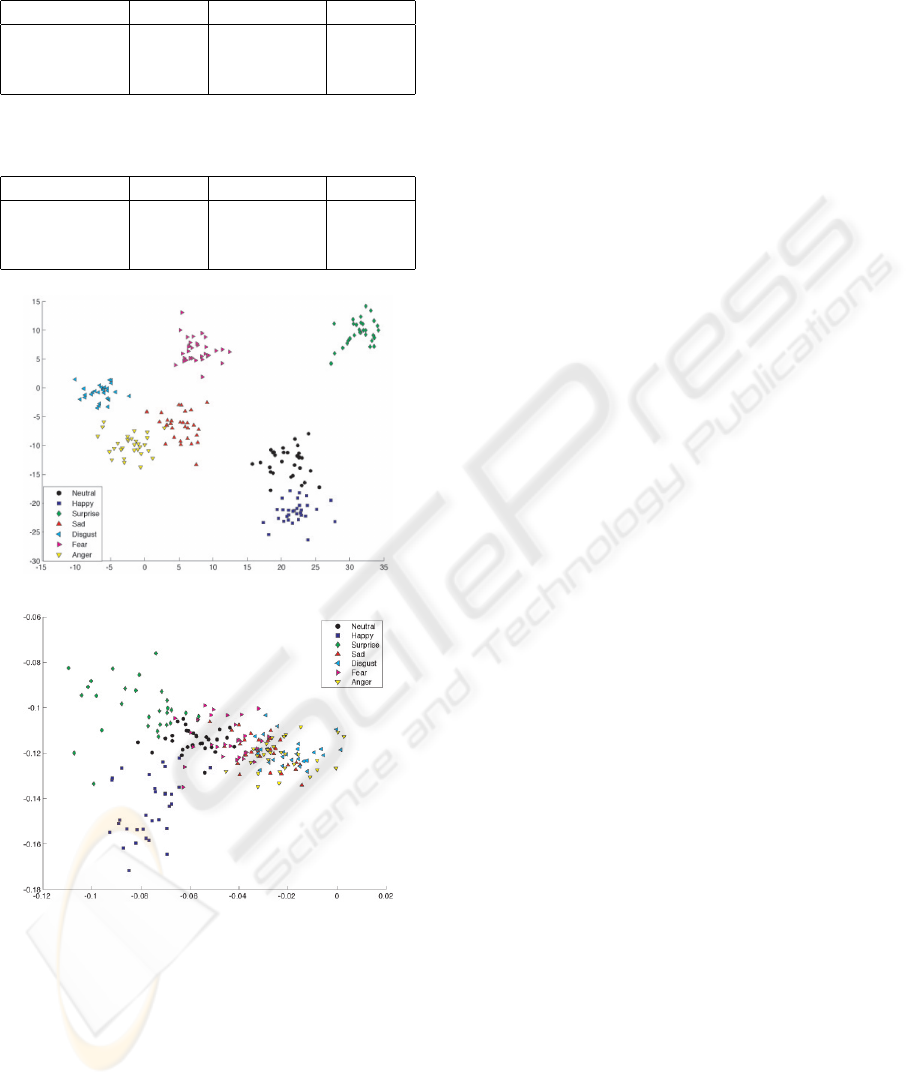

Figure 3 illustrates the Fisher projection of the feature

sets in order to get an preview of the distinguishability

according to the seven expression classes. The distri-

butions in the ﬁgures show that the class related sam-

ple density for the Gabor approach seems satisfying,

even though some classes (e.g. disgust and anger) in-

tersect each other.

Table 1 and 2 summarize the recognition results.

Through all tests it turned out that the JAFFE dataset

could be easily classiﬁed, compared to the FEED-

TUM dataset, regardless which feature set is used.

This should be due to the high consistency of the sam-

ples and the feature extraction favorable setup of the

JAFFE dataset, while the slightly more ”real world”

oriented FEEDTUM samples allowed therefore infe-

rior results.

EMOTIONAL FACIAL EXPRESSION RECOGNITION FROM TWO DIFFERENT FEATURE DOMAINS

633

Table 1: Recognition results (accuracy rates in %) by using

the Gabor-ﬁlter features. Validation method: leave-one-out.

JAFFE FEEDTUM MIXED

3-NN 87.79 51.78 50.44

C-SVM 1-1 95.31 78.22 65.56

C-SVM 1-all 96.24 80.22 64.67

Table 2: Recognition results (accuracy rates in %) by using

the distance features. Validation method: leave-one-out.

JAFFE FEEDTUM MIXED

3-NN 77.46 35.02 55.78

C-SVM 1-1 79.81 55.70 62.89

C-SVM 1-all 78.87 48.10 54.67

(a)

(b)

Figure 3: Distribution of the Gabor-ﬁlter features (a) and

the distance features (b) by using Fisher projection. Dataset:

JAFFE.

5 CONCLUSIONS

In this paper we developed two feature domains, Ga-

bor wavelet-based and geometry-based feature space,

and investigated the efﬁciency of the feature sets by

applying them to two facial expression image datasets

that are quite differently characterized due to distinct

recording settings. SVM and k-NN are employed to

classify the seven expression classes, i.e. neutral, hap-

piness, sadness, surprise, anger, disgust and fear, by

using the obtained feature vectors.

The results showed that the Gabor ﬁlter approach

outperformed the distance approach in all experi-

ments. On the other hand, we note that the distance

approach provided relatively consistent performance

for the mixed dataset, compared to Gabor-ﬁlter ap-

proach. This ﬁnding should be considered for design-

ing a facial expression recognition system, because it

is one of well-known issues that most systems suf-

fer from low accuracy of subject-independent recog-

nition.

ACKNOWLEDGEMENTS

The work described in this paper is partially funded

by the EU under research grant IST-34800-CALLAS

and ICT-216270-METABO.

REFERENCES

Cowie, R., Douglas-Cowie, E., Tsapatsoulis, N., Votsis,

G., Kollias, S., Fellenz, W., and Taylor, J. G. (2001).

Emotion recognition in human-computer interaction.

IEEE Signal Processing Mag., 18:32–80.

Fasel, B. and Luettin, J. (2003). Automatic facial expression

analysis: A survey. Pattern Recognition, 36(1):259–

275.

Field, D. J. (1987). Relations between the statistics of natu-

ral images and the response properties of cortical cells.

Journal of the Optical Society of America A, 4:2379–

2394.

Jain, A. K. and Li, S. Z. (2005). Handbook of Face Recog-

nition. Springer-Verlag New York, Inc., Secaucus, NJ,

USA.

Kim, J. and Andr

e, E. (2008). Emotion recognition based on

physiological changes in music listening. IEEE Trans.

Pattern Anal. Mach. Intell., 30(12):2067–2083.

Lyons, M., Akamatsu, S., Kamachi, M., and Gyoba,

J. (1998). Coding facial expressions with gabor

wavelets. In FG ’98: Proceedings of the 3rd. Inter-

national Conference on Face & Gesture Recognition,

pages 200–205, Washington, DC, USA.

Pantic, M. and Rothkrantz, L. (2004). Facial Action Recog-

nition for Facial Expression Analysis from Static Face

Images. IEEE Transactions on Systems, Man, and Cy-

bernetics - Part B: Cybernetics, 34(3):1449–1461.

Wallhoff, F. (2006). Facial expressions and emotion

database. Universitaet Muenchen.

Zhan, C., Li, W., Safaei, F., and Ogunbona, P. (2007). Face

to face communications in multiplayer online games:

A real-time system. In HCI (4), pages 401–410.

ICAART 2010 - 2nd International Conference on Agents and Artificial Intelligence

634
