TOWARDS AN EHR ARCHITECTURE FOR MOBILE CITIZENS

Tiago Pedrosa, Rui Pedro Lopes

Polytechnic Institute of Braganc¸a, Portugal

Jo˜ao C. Santos

Coimbra Institute of Engineering, DEE, Portugal

Carlos Costa, Jos´e Lu´ıs Oliveira

University of Aveiro - IEETA, Portugal

Keywords:

EHR, PHR, Integrated access, Security.

Abstract:

Electronic Health Records are typically created and stored in different places, by different healthcare providers,

using different formats and technology. This poses an obstacle to patient mobility and contributes to scatter

personal health related information. Patients constantly move between healthcare providers, searching for a

better service, lower prices or specialists. It is important that healthcare professionals, regardless of technology

and location, have access to the complete patient health record. The access to this personal health record can

be granted through a network (web-based, for example) or can be carried by the patient, in a usb drive, for

example. Either approach has to enforce the patient consent to access his information, cope with different

types of EHR systems and formats. This paper is an ongoing research, part of a PhD on Electronic Health

Records for Mobile Citizens.

1 INTRODUCTION

The typical medical procedure aims at recognizing a

disease or a health problem based on a set of symp-

toms and signs. To facilitate the process, the physi-

cian will try to build the diagnostic based on physical

signs and medical tests. The result of the tests, such as

blood pressure, medical imaging, electrocardiogram,

and others is information that will contribute to the

patient’s medical history, or health record, a valuable

insight for future diagnostics. In the past, this infor-

mation was paper-based, which suffered from prob-

lems such as of illegibility, unavailability, volume

of the health record during patient life, difﬁculty of

sharing information between the different healthcare

providers (which frequently implies duplication of in-

formation) (Rom´an et al., 2006; Coiera, 2003; Pories,

1990). Moreover, the paper-based record demands a

huge number of resources to do the routing, archiving

and maintenance of the records, for all the presented

reasons and others it can be said that the paper-based

patient record is reaching it’s limits (Uslu and Staus-

berg, 2008).

In the natural evolution of the paper-based health

record appeared the Electronic Health Record (EHR),

as an alternative to paper-based records. Different

types of EHRs exist but the most promising is the In-

tegrated Care EHR (ICEHR), that acts as a repository

of all the health information of a patient, responsi-

ble for storing, manage access to the information in

a secure away. The repository should maintain infor-

mation about the clinic history of the patient, as well

current produced information and prospective infor-

mation (Technical Committee ISO/TC 215, 2005).

The paper-based record also affects the mobility

of the citizens, increasing the problems of medical in-

formation sharing and access. The health record is

typically stored in a speciﬁc health provider, which

may cause difﬁculties if the patient is mobile. Mo-

bility is inevitable and proportional to the mobility of

persons, either for professional, personal or medical

reasons. Mobility exists at local, regional, national

and international scope, between public and private

healthcare providers. For creating a useful ICEHR it

is necessary to create an unique view of the scattered

health information across different providers. Hence,

288

Pedrosa T., Pedro Lopes R., C. Santos J., Costa C. and Luís Oliveira J. (2010).

TOWARDS AN EHR ARCHITECTURE FOR MOBILE CITIZENS.

In Proceedings of the Third International Conference on Health Informatics, pages 288-293

DOI: 10.5220/0002742202880293

 SciTePress

it is unavoidable that the different systems need to

address such challenges as a standardized logical in-

formation model, persistence of information, and as-

pects such as security and privacy of the records. At

a lower level, functional interoperability is needed for

sharing information, but a semantic interoperability

would increase the value of the solution. For achiev-

ing the semantic interoperability, the option is the

standardization of clinical concepts using terminolo-

gies, archetypes and templates. A logical informa-

tion model is being developed by organizations such

as ISO (International Organization for Standardiza-

tion), CEN ( European Committee for Standardiza-

tion), HL7(Health Level Seven) and the OpenEHR

project.

Despite these efforts, many systems are already in

use with different or without communication mecha-

nisms, they have different identiﬁcation codes for the

same patient, using divergent terminology and coding

schemas.

This paper presents an access control solution that

creates an uniﬁed view of disperse patient health-care

information, allowing the achievement of the goals of

an IEHR. The developed model is supported by a cen-

tralized access control mechanism that implements

the intent consent policy when the patient can con-

trol the access to his/her personal information. More-

over, to attain the IEHR, several services gather dis-

perse health information, create an uniﬁed view of the

health record and enforce the access policy to health

professionals.

2 RELATED WORK

Different approaches on the creation of the EHRs

exists and are already being used. First, it should

be differentiated the two main streams: the Elec-

tronic Health Records (EHR) and the Personal Health

Record (PHR). They can have the same record archi-

tecture but they differ in the data custody ownership,

which has also the responsibility of manage it. The

PHR can be a self-contained registry, maintained and

controlled by the subject of care. It can be based on

a speciﬁc portable data storage, some entry in a web

service provider or even a component of an IEHR. In

the EHR case healthcare providers are responsible for

its maintenance (Technical Committee ISO/TC 215,

2005).

In this interoperability context, standardization is

the solution to enable the communication between

different systems. Several European and American

committees, country initiatives and also the World

Health Organization, are putting efforts into this goal.

These attempts pushed forward the research, but they

also brought results that evidence standards interop-

erability barriers. These efforts can be divided in two

main areas: the communication standard and the doc-

ument standard (Sunyaev et al., 2008). The former

refers how systems can communicate with each other

and the later describes how information is stored to

ensure a correct interpretation by other systems.

Several standardization results were already ob-

tained concerning health care information, some deal-

ing with data integration approach, others with data

transfer. HL7/CDA proposal copes with the commu-

nication and document needs by the different func-

tions in healthcare, from hospital information sys-

tems (HIS), radiology informationsystems (RIS), pic-

ture archiving and communication systems (PACS),

to EHR. It supports prescriptions, emergency and

administrative data. Others such as DICOM, xDT

and EDIFACT support fewer healthcare functions

but have also played important roles in speciﬁc do-

mains (Sunyaev et al., 2008). The standardization ap-

proaches are necessary for enabling communication

capability between the different institutions’ systems,

but the problem remains, i.e. the unique view of the

disperse EHR will persist. The mobility factor poses

challenges as information dispersion between differ-

ent healthcare providers’ systems increases. Even a

solution where the health records are centralized in

one place, cannot cope with mobility constraints. It

can be accepted that a national centralization of med-

ical data, at most, could exist , but a world-wide cen-

tralization is not feasible (Hasselbring, 1997). So the

information will continue to be stored in different sys-

tems bringing the need to create interoperability solu-

tions between those systems and data.

In the last decade, the use of smart-cards in health-

care information systems has been consensual, as

they provide a secure way for storing information

and authentication credentials for remote authentica-

tion (Chien et al., 2002). The Electronic Health Card

(EHC) is basically a smart-card that is used to support

information related with administrative tasks, emer-

gency medical data, security certiﬁcates and, in some

cases, e-prescriptions. This type of tokens is used in

some countries like, for instance, Germany and Aus-

tria to achieve a national IEHR solution.

As discussed, the IEHR implementations need to

provide an integrated access mechanism to disperse

information. So, the integrator system must know

the data location and, more precisely, the query en-

gine service to extract information of a speciﬁc pa-

tient. This linkage information can be stored in the

integrator database, however some projects decided

to extend electronic health card to support that ser-

TOWARDS AN EHR ARCHITECTURE FOR MOBILE CITIZENS

289

vice. Hence, the Virtual Unique Electronic Patient

Card (VU-EPR) appears as a possible solution. Costa

et al (Costa et al., 2003; Ferreira Pol´onia et al., 2005;

Carlos Costa, 2003; Carlos Costa, ) developed a VU-

EPR solution named Multi-Service Patient Data Card

(MS-PDC).

The MS-PDC is based on a token that contains

card-owner resident clinic-admin information, as well

as structured references to its distributed electronic

records. The smart card securely contains this refer-

ence, a structured data set. The association of Public

Keys Cryptographyand Crypto Smart Cards, provides

a way to securely store, transport and access the card-

owner information. Moreover,it also grants the owner

full control over the access to its data, through a PIN

and/or biometric registration.

This MS-PDC model empowers patients, enabling

the discretionary access to remote data, when crossed

VU-EPR card with health professional card, and also

allows an open access to the medical emergency data

stored in the card. It also allows the card-owner to

entitle information access levels to other users such

as the clinical professionals. The main beneﬁts asso-

ciated to this solution can be characterized by highly

scattered geographical storage requirements.

The MS-PDC uses URLs to fetch the information

on the disperse systems and present them to the user

as a unique view. This model copes well with mobil-

ity issues, such as the gathering of disperse data and

controlling the access to it. Nevertheless, in a wider

concept of mobility it’s not feasible that all patients

will hold the same type of card world-wide. Another

discussable aspect is the physical dependency of the

card whenever exists the need to access the patient

IEHR. Many other questions can be associated with

this model like, for instance: How to retrieve data

from systems with different communication and data

standards? How can the references be dynamically

updated when new information is created, if the card

is not present? In this approach the new information

is created in EHR systems, what to do when such sys-

tem is not available?

The model, on Section 3,appears as a solution to

the problems of previous approaches in patient mobil-

ity environment.

3 RESULTS

As a result of the drop-backs identiﬁed in previous

approach, this paper proposes a model, based on the

MS-PDC concept, for coping with the special needs

of citizens’ mobility.

Since many health providersalready use EHR sys-

tems, it is proposed that those systems would continue

to be used for producingnew patient information. Our

noveltyis in the information search and display mech-

anism that uses a different solution to promote the in-

tegrated access to disperse health information. The

approach is compliant with the freedom of choice of

an EHR system by each healthcare provider. With

institutions where an information system is not avail-

able in mind, this model enables the use of a web-

based PHR (Figure 1). Hence, the proposed inte-

grated access mechanism will enable the users to have

a unique uniﬁed health record that dynamically con-

catenates all available information in the network, i.e.

EHR and web-based PHR data elements.

The display of disperse patient information in a

unique view is issued by a proxy component that will

be used for querying the remote EHR systems and the

web-based PHR (Figure 1). The proxy will imple-

ment mechanisms for understanding the remote cod-

ing, terminology and communication protocol. It will

also translate the results to a common terminology

and coding for creating the read-only unique EHR.

This proxy mechanism will be modular and will be

developed as an interface module to talk with each

type of remote EHR system. Moreover, for systems

that don’t have the ability to be queried remotely, a

broker should be deployed to enable the proxy com-

munication with that remote system. To query all the

desired information, the proxy must establish a trust

relation with every remote EHR and web-based PHR.

The authorization control responsibility will be dele-

gate to a trusted agent component (Figure 1), respect-

ing the privileges of the requesting user.

Resuming, the proxy and the trusted agent com-

ponent need to know where is the information of a

speciﬁc patient, how to retrieve it and which informa-

tion should be available for the requesting user. All

those important issues are the responsibility of a Vir-

tual Health Card System (VHCS). The VHCS is a key

component that will be explained later on this doc-

ument. The remote access to the distributed patient

information must be authorized by the patient and the

local EHR system access will continue to be managed

by the local policies of each healthcare provider.

The proposed model (Figure 1) for achieving an

Integrated Electronic Health Record (IEHR) copes

with the needs of mobile citizens. Basically the

model was developed with the goal of providing an

integrated access to the disperse health information

systems that are already stored in Electronic Health

Records, providing a read-only, unique view of pa-

tients’ IEHR.

The model will just create a new way for viewing

the information and will not create more workload for

HEALTHINF 2010 - International Conference on Health Informatics

290

Virtual EHR

Trusted Agent

Proxy

EHR

PHR

Actor

Security Service

Authentication

Authorization

Accounting

u-EHR

Read-

Only

Virtual Health Card

Credentials

Access

Policy

UUIDs Private

UUIDs

Protected

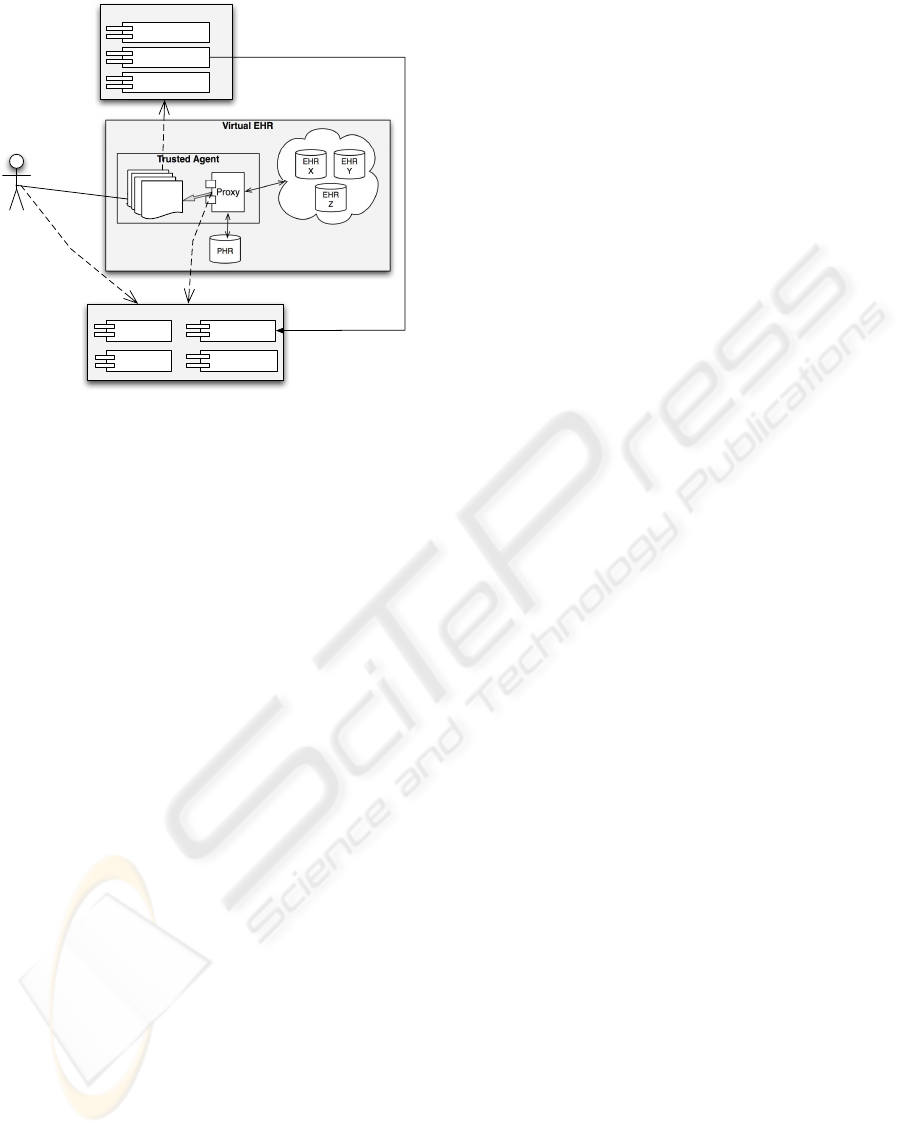

Figure 1: EHR Architecture for Mobile Citizens.

the practitioner since he will continue to work with

his usual tools. He will only need to use a different

solution for navigation on the IEHR.

In the model, the component VHCS - Virtual

Health Card System (Tiago Pedrosa, 2009) is respon-

sible for associating the scattered EHR information

of a patient and also for providing the access control

mechanisms to the patient information. As informa-

tion resides in different organizations systems, pri-

vate and public, even in different countries, the Vir-

tual Health Card System implements the intent con-

sent of the patient to enable the access to his informa-

tion. The VHCS allows the disassociation between

the credentials used by users in system authentication

and the credentials used inside the system. For ac-

cessing his Electronic Health Card, the user will au-

thenticate himself using a token. The system is suf-

ﬁciently ﬂexible to support different tokens including

the new Portuguese Citizen Card, an electronic iden-

tiﬁcation card (eID card) that contains a certiﬁcate for

authentication. Moreover, if the user token or eID is

lost or stolen, the system can temporary block the ac-

cess to the Virtual Health Card until the new token

is available and associated to a patient Virtual Health

Card.

The “intent consent” consists of the patient ex-

press permission to grant the health professional ac-

cess to some part or all of his EHR. This consent en-

ables the patient to manage aspects like who can ac-

cess and what kind of information a speciﬁc health

professional can access. Basically, the patient in the

ﬁrst contact with the practitioner creates an access

policy rule, including the access privileges. After this

consent the practitioner can access the patient EHR

while the access rule exists, enabling time limit to the

access period that is granted.

The model has also a ”break-the-glass” mecha-

nism that enables the bypass of the access policy,

whenever the patient is not able to provide his in-

tent consent. This mechanism will only give access

to information that is not protected in a private area.

The use of ”break-the-glass” mechanism will gener-

ate auditing records for future analysis and detection

of misconduct access.

Each patient will have his virtual health card,

this component has the patient digital credentials, the

EHR access policy and an universal unique identiﬁers

(UUIDs), that will act as links to the disperse informa-

tion. Each link has also complementary information

about access mechanisms (or services).

There are two types of UUIDs (Figure 1). The

UUID Private is used to handle references of verysen-

sible and discriminatory information. On this compo-

nent, the patient can manage the information that he

does not want accessible to any health professionals,

in any occasion. To enforce this behavior, the sys-

tem will cypher the references with the users corre-

spondent public-key forcing that only with the user’

private-key this information can be read. The access

to this private information demands always the ex-

plicit patient consent.

The Protected UUID is the place where other sys-

tem components (or external services) can update the

UUIDs, as new information is being produced in sev-

eral health systems. Components that, on behalf of an

authenticated and authorized user, want to access the

patient’s information, query this component to get in-

formation about remote patient data location and how

access to it.

The credential component is responsible for se-

curely storing the private and public key of the user

(Figure 1). The access to the private-key container is

only available to the authenticated user (the actor), by

the way of a secret (a password or other method (Bas-

ney et al., 2005)). The private-keyinside the container

is the credential that will be used internally for au-

thentication, signing, cypher and de-cypher the infor-

mation. This modus operandi separates the creden-

tials for authentication in the system from the cre-

dentials that the user uses to logon in other system

or components in the model.

The Security Service component (Figure 1) is re-

sponsible by the practitioner’s authentication, the au-

thorization and the accounting of requests. Hence,

each request made to the trusted agent is accounted

on this service, this will enable to audit the requests

and the creation of a report each time the ”break-the-

glass” mechanism is used. This component has also

TOWARDS AN EHR ARCHITECTURE FOR MOBILE CITIZENS

291

the critical mission to interact with the access policy

on the patient’s virtual health card in order to grant

access to the EHR to the requesting user.

After this description of model components and

functions, we will explain in detail the procedure

steps to create a patient unique EHRs, in Figure 2 (for

simplicity, the accounting is not represented in the

ﬁgure). A practitioner, after obtaining patient intent

Security Service

Trusted Agent

Practitioner

Proxy

VHCS

GetEHR

Authenticate

Authentication

Challenge

GetEHR

Authorize ()

Get Access Policy

Authorized

Get Protected UUIDs

Authorize ()

For each UUID

Retrieve

Translate

Check Authorization

Send to Truted Agent

generate u-

EHR ()

Display EHR

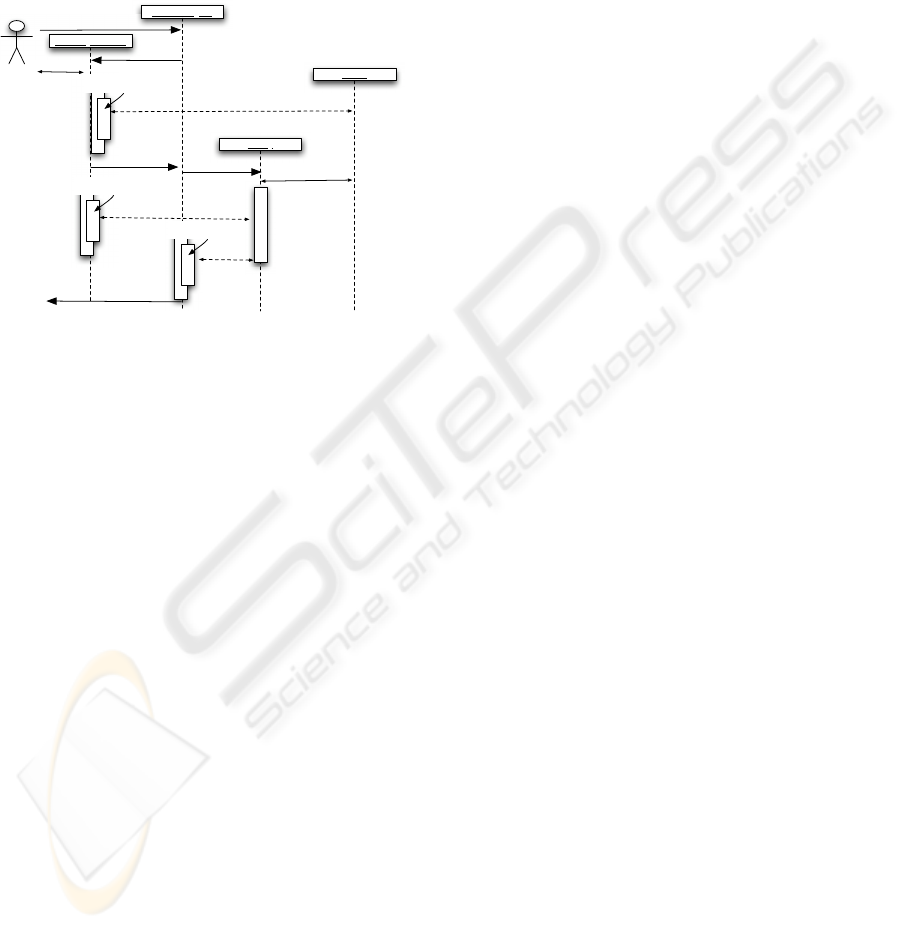

Figure 2: Practitioner getting an EHR.

consent, requests the u-EHR to the trusted agent. The

Security Service will do the accounting of this request

and will also do the practitioner’s authentication in the

system. Another important feature is the authoriza-

tion, so the service will consult the access policy on

the patient virtual health card to create the EHR view

according to the practitioner privileges. However, in

emergency scenarios, the authorization process can

be bypassed using the ”break-the-glass” mechanism.

This will enable the practitioner access to all the in-

formation available in the protected UUIDS.

The next step is to gather the information stored

in dispersed EHR systems and eventually on the

web-based PHR. As previously stated in the Virtual

Health Card System exists a component-the protected

UUIDs -that works as links to the disperse infor-

mation and also informs how information should by

queried and translated to the u-EHR. This linkage in-

formation is passed to the Proxy component. Hence,

for each link the proxy will use the correspondent

module to communicate with the remote system, re-

trieve and translate the information to the u-EHR. The

retrieved information is ﬁltered according to practi-

tioner privileges. The proxy will do this procedure

for all protected UUIDs available on the patient Vir-

tual Health Card. At the end, the trusted agent would

have available the u-EHR view corresponding to the

practitioner’s privileges. With this behaviour, only

the information in the protected UUID component is

gathered, the information that the patient considered

private is not contemplated. To enable the access to

private UUID data, the patient must explicitly request

the access to the trusted agent, i.e. given his express

consent.

Concluding, the intent consent is done by the pa-

tient directly to the VHCS. He deﬁnes, for each health

professional, the access level to his information. The

model is generic enough to allow the patient’s def-

inition of access policy or it can use a service that

deﬁnes the privileges that each category of profes-

sionals should have to the EHR. In the former, the

patient would have to create the complete access pol-

icy, deﬁning which type of information of his EHR

the health professional could access. In the later ap-

proach, a system that maps each category of health

professionals to the type of information it should ac-

cess can be used, the patient only needs to choose the

health professional that he wants to grant access and

the category of the professional. The model can even

cope with an external service that could create the ac-

cess rules in the policy of each patient.

4 CONCLUSIONS

The proposed VHCS is an integrated access model to

disperse healthcare information. The main achieve-

ment is the implementation of a unique EHR that

copes well with requirements of mobile citizens. This

model implements the patient intent consent to enable

the sharing of sensible information between differ-

ent healthcare actors. It promotes the transparent use

of existent EHR systems in the healthcare providers.

Moreover, where a local system is not available, it

provides a web-based PHR solution to save the new

information.

The model separates the credentials used in au-

thentication from the credentials used in the indexing

system. It enables the creation of a dynamic mecha-

nism to update references of remote patient informa-

tion. It also copes with the existence of different iden-

tiﬁers for the same patient, along different healthcare

systems. Moreover, it empowers patients with the ca-

pability to decide what information is absolutely pri-

vate. Finally, the use of the informed consent mech-

anism respects the regulatory framework for sharing

healthcare records between distinct professionals (or

institutions) in different regions or countries.

Supplementary work should be done in research-

ing how each component should speciﬁed and devel-

oped, considering the need of high-availability and of

security. It will be also necessary to deﬁne the struc-

ture, coding and terminology used in the u-EHR.

HEALTHINF 2010 - International Conference on Health Informatics

292

REFERENCES

Basney, J., Humphrey, M., and Welch, V. (2005). The

MyProxy online credential repository. Software:

Practice and Experience, 35(9):801–816.

Carlos Costa, Jos´e Lu´ıs Oliveira, A. S. “um sistema de

integrac¸˜ao e acesso seguro a informac¸˜ao cl´ınica dis-

tribu´ıda suportada num cart˜ao de utente de sa´ude.”

(a secure and integrated access system for distributed

clinical data based on a patient card). Patent Reference

PT20040103114 20040429.

Carlos Costa, Jos´e Lu´ıs Oliveira, A. S. V. G. R. (2003).

A new concept for an integrated Healthcare Access

Model. Studies in health technology and informatics,

95:101.

Chien, H., Jan, J., and Tseng, Y. (2002). An Efﬁcient and

Practical Solution to Remote Authentication: Smart

Card. Computers & Security, 21(4):372–375.

Coiera, E. (2003). Guide to health informatics. Arnold

London.

Costa, C., Oliveira, J., Silva, A., et al. (2003). A new con-

cept for an integrated healthcare access model. The

new navigators: from professionals to patients: pro-

ceedings of MIE2003, page 101.

Ferreira Pol´onia, D., Costa, C., and Oliveira, J. (2005).

Architecture evaluation for the implementation of a

regional integrated electronic health record. Con-

necting Medical Informatics and Bio-Informatics—

Proceedings of MIE2005—The XIXth International

Congress of the European Federation for Medical In-

formatics. Geneva: IOS Press.

Hasselbring, W. (1997). Federated integration of replicated

information within hospitals. International Journal on

Digital Libraries, 1(3):192–208.

Pories, W. (1990). Is the medical record dangerous to our

health? NC Med J, 51(1):47–55.

Rom´an, I., Roa, L., Reina-Tosina, J., and Madinabeitia,

G. (2006). Demographic management in a feder-

ated healthcare environment. International Journal of

Medical Informatics.

Sunyaev, A., Leimeister, J., Schweiger, A., and Krcmar, H.

(2008). It-standards and standardization approaches

in healthcare. Encyclopedia of Healthcare Informa-

tion Systems. Editors: Wickramasinghe, N.; Geisler,

Publisher: Idea Group.

Technical Committee ISO/TC 215 (2005). Health informat-

ics — electronic health record — deﬁnition, scope,

and context - iso/tr 20514:2005(e). Technical report,

International Organization for Standardization.

Tiago Pedrosa, Carlos Costa, J. L. O. R. P. L. (2009). Virtual

health card system. Inforum 2009.

Uslu, A. M. and Stausberg, J. (2008). Value of the electronic

patient record: An analysis of the literature. Journal

of Biomedical Informatics, 41(4):675 – 682.

TOWARDS AN EHR ARCHITECTURE FOR MOBILE CITIZENS

293
