EMAIL-P2P GATEWAY TO DISTRIBUTED MEDICAL IMAGING

REPOSITORIES

Lu´ıs S. Ribeiro, Lu´ıs Basti˜ao, Carlos Costa and Jos´e Lu´ıs Oliveira

University of Aveiro, IEETA/DETI, 3810-190 Aveiro, Portugal

Keywords:

PACS integration, Peer-to-peer, DICOM, Medical imaging, Telemedicine, Image communication.

Abstract:

For the healthcare professionals the importance of the medical imaging as a diagnostic tool is undeniable. For

this reason, industry and research organizations increased signiﬁcantly their interest in the medical imaging

area, trying to deliver solutions for creating, storing, exchanging and displaying medical images. The raise

of hardware and software solutions drove the community of vendors to gradually decrease the price of his

solutions. As consequence, there was a rise of small imaging centres competing with bigger healthcare insti-

tutions. The market offers drives the patients to move across a wide range of healthcare institutions to undergo

all the necessary exams. Producing a great amount of medical data dispersed over several institutions. This

scenario of isolated islands of images repositories unable of interacting with each other is, in our opinion,

propitious to a peer-to-peer (P2P) archive solution. Until now, medical exams (images and studies) have been

exchanged through analogue ﬁlms, media storage devices (CD, DVD, etc), virtual private networks or manual

email procedures. This paper describes the Dicoogle P2P system, a distributed PAC system where its users

may easily store, search and exchange DICOM ﬁles. However, potential peers of the Dicoogle system are

usually inside private networks, behind NATs and ﬁrewalls, disabling the inter-institutional peer interaction.

Therefore, we propose an Email-P2P gateway to Dicoogle that offers a way to exchange DICOM ﬁles through

these virtual barriers.

1 INTRODUCTION

Nowadays, medical imaging is a valuable and indis-

pensable tool in the healthcare system. To the physi-

cians, they represent a key factor for delivery of high

quality decisions. Picture Archiving and Commu-

nication System (PACS) concept embraces a set of

technologies for the archiving, distribution, visualiza-

tion and acquisition of medical images over a com-

puter network. Compared with the traditional ana-

logue ﬁlm, the PACS concept brings signiﬁcant ben-

eﬁts in the productivity, economy and management

of a healthcare institution (Huang, 2004). The PACS

concept was boosted by the introduction of the Dig-

ital Imaging and Communication in Medicine (DI-

COM) standard (Mustra et al., 2008), allowing in-

teroperability between PAC systems from different

vendors. Moreover, medical imaging modalities and

archive solutions are successively becoming less ex-

pensive. The result is the proliferation of equipment

acquisition by imaging centres, even in small ones

(Carlos Costa, 2009). As consequence, the patient’s

medical data is stored in isolated repositories of the

respective healthcare institution. However, the ex-

change of the medical exams is still a coarse process.

Typically, the healthcare institution that performs ra-

diological exams sends the medical data via conven-

tional mail (analogueﬁlms, CD, DVD), virtual private

networks or manual email procedures. This paper de-

scribes a P2P structure built over the Internet Mes-

sage Access Protocol (IMAP), allowing the search,

exchange and store of medical images over a large

domain composed by several healthcare institutions.

One downside of the P2P architectures is the impossi-

bility of communicatingwith peers behindvirtual bar-

riers (e.g. closed ﬁrewalls, Network Address Transla-

tion) (Damiani et al., 2002). However, our P2P net-

work is built overIMAP - commonﬁrewall conﬁgura-

tions do not block the IMAP packages - turning possi-

ble communicating with peers behind virtual barriers.

310

Ribeiro L., Bastião L., Costa C. and Oliveira J. (2010).

EMAIL-P2P GATEWAY TO DISTRIBUTED MEDICAL IMAGING REPOSITORIES.

In Proceedings of the Third International Conference on Health Informatics, pages 310-315

DOI: 10.5220/0002744803100315

 SciTePress

1.1 Related Work

Besides the manual exchanges by storage devices

(e.g. DVD), accessing from the outside of the insti-

tution’s ﬁrewall is usually possible by the creation

of Virtual Private Networks (VPN). This approach

may be appropriate for the institution members to

access the resources remotely. However, creating a

cross-institutional VPN connection is a bureaucratic

and a longstanding process. The Medical Image Ex-

change Platform (MIEP) (Chiu et al., 2007) is a cross-

institutional platform intended to replace the ad-hoc

and manual exchanges. Through dedicated web ser-

vices with watermarking mechanism they created a

secure system capable of exchanging medical data.

However, MIEP does not use the DICOM standard,

turning the integration the current healthcare systems

more difﬁcult. Blanquer et al (Blanquer et al., 2005)

presented a P2P environment that assists image diag-

nosis apprenticeship and research, enabling radiolo-

gists to share DICOM studies and its corresponding

diagnosis located on their personal computers. The

platform promotes the collaboration within a virtual

community of radiologists, sharing anonymous DI-

COM studies and in this way exchanging knowledge

in the radiologicﬁeld. Finally, there are many P2P ap-

plications for ﬁle sharing such as BitTorrent(Qiu and

Srikant, 2004), eDonkey(Ghosemajumder, 2002) or

Gnutella(Ivkovic, 2001), however they are not suit-

able for the medical data exchange, for instant, they

only allow ﬁle name search, in our opinion a content

base search is more useful.

2 MATERIALS

The PAC system architecture began mainly on an ad

hoc basis, serving small subsets, called modules, of

the radiology department. Each module functioned as

an independent island, unable to communicate with

other modules (Huang, 2004). Later it evolved into

a PACS infrastructure solution, integrating the hospi-

tal information system and the radiology information

system, serving the entire hospital (ﬁgure 1). Nowa-

days, with the emerge of small imaging centres the

early PACS design is once again a reality. As a result,

a vast repository of images and studies remain stored

locally without being shared. In our opinion, the cur-

rent scenario is propitious to a P2P architecture.

2.1 Peer-to-peer Networks

The P2P networks may follow different topologies

that bring different advantages and disadvantages.

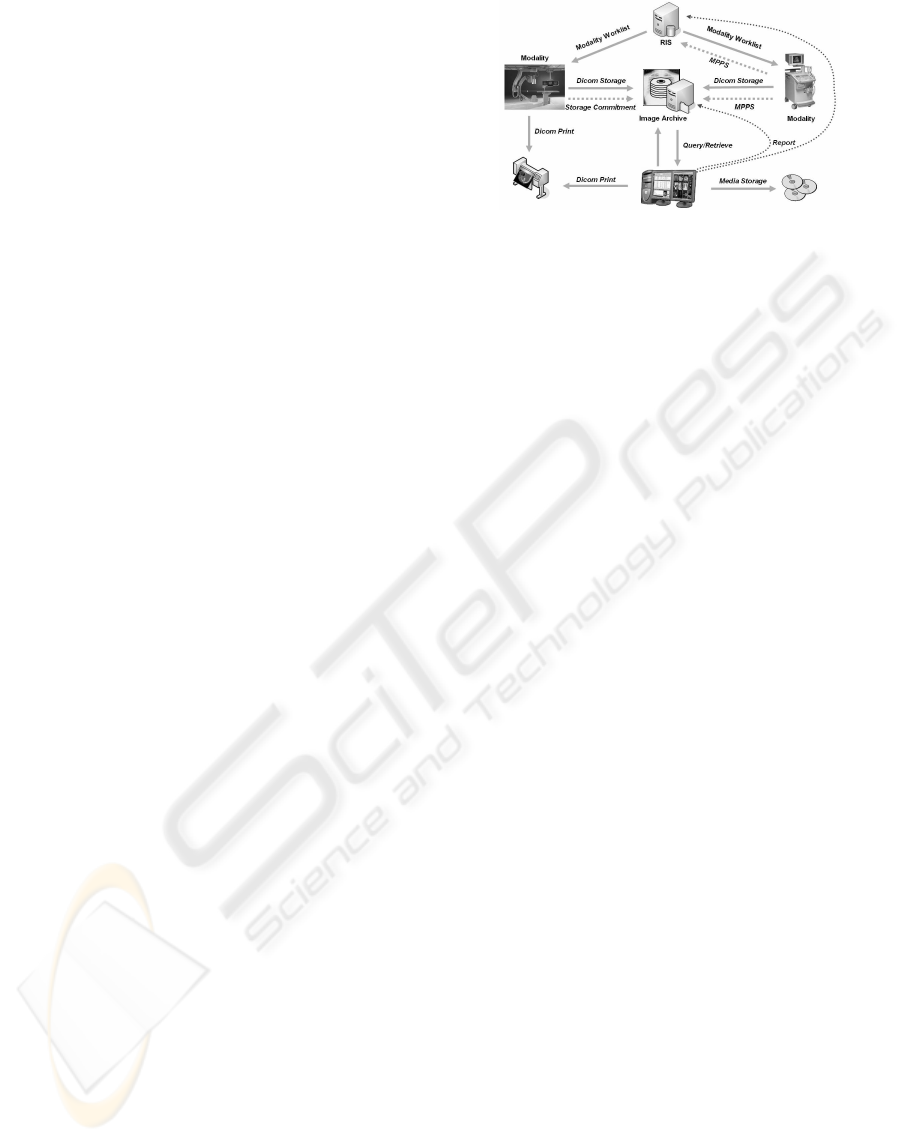

Figure 1: PACS traditional workﬂow.

The most usual approaches include the classic

decentralize structure (e.g. Gnutella v0.4) where

every peer is similar and self sufﬁcient, the hybrid

approach (e.g. Gnutella v0.6), where some peers of

the structure have special responsibilities and, ﬁnally,

the structure completely centralized (e.g. eDonkey),

that relies in at least one central server executing

critical tasks for the correct function of the network,

keeping the rest of the communicationsin a P2P basis.

2.1.1 Jxta Framework

Jxta is a network programming and computing plat-

form designed to solve distributed computing prob-

lems, especially in the peer-to-peer area. Jxta was de-

signed to fulﬁl three major concerns (Gradecki and

Gradecki, 2002): interoperability, platform indepen-

dence and ubiquity. These concerns drove Jxta tech-

nology into a set of six major protocols: peer discov-

ery protocol, peer resolver protocol, peer information

protocol, peer membership protocol and pipe binding

protocol. Currently, Jxta is in its 2.5 version and there

is a release announced to the end of the year 2009.

2.2 Dicoogle

In 2009 was introduced Dicoogle (Carlos Costa,

2009), a novel approach to manage PAC systems.

The main idea of Dicoogle was the replacement or

the extension of the traditional relational database in

the PAC systems by an indexing and retrieving en-

gine. This approach turned the PACS management

more ﬂexible, because it is possible to quickly in-

dex new text-based ﬁelds without the need of creating

new tables or relations like would be necessary in the

database supported approach. Furthermore, Dicoogle

automatically refreshes the indexes by monitoring the

ﬁle system events (create, delete or update) targeted

to the DICOM ﬁles.

EMAIL-P2P GATEWAY TO DISTRIBUTED MEDICAL IMAGING REPOSITORIES

311

3 METHODS

The Dicoogle version 3 aims to an enterprise solution

enabling the exchange of DICOM objects (images

and studies) between healthcare institutions. Typi-

cally, the DICOM objects are stored locally in the

PACS of the healthcare institutions that operate over a

private network (intranet). Therefore, the most com-

mon scenario will be islands of DICOM object repos-

itories. As consequence, the bigger percentage of Di-

coogle peers will be delimitated by virtual barriers

such as NATs and ﬁrewalls (ﬁgure 3).

3.1 NATs and Firewalls

In order to a machine inside a private network access

the internet it requires a public IP address, however

the internal machine only holds a private IP address.

The NAT process allows the router to translate private

IP address into public IP addresses. When an internal

computer requests access to the Internet, the requests

private IP is placed by the router’s public IP address.

When the response from a request arrives it is for-

ward to the internal computer. This is only possible

when the internal computer starts the process, outside

responses with no request are discarded. Besides the

NAT there is also the ﬁrewall. The ﬁrewall job is to re-

strict trafﬁc coming from the Internet into the private

network and many times also restrict the trafﬁc go-

ing from the private network to the internet (Gradecki

and Gradecki, 2002), by closing all the ports to send

data. Only speciﬁc ports are commonly open such

as the email and the web server ports. These ports

are open to send data from the inside to the outside

of the intranet, but not the reverse. As result, peers

from different private networks cannot communicate

”directly”. The solution for this problem is the intro-

duction of a relay peer in the middle of the communi-

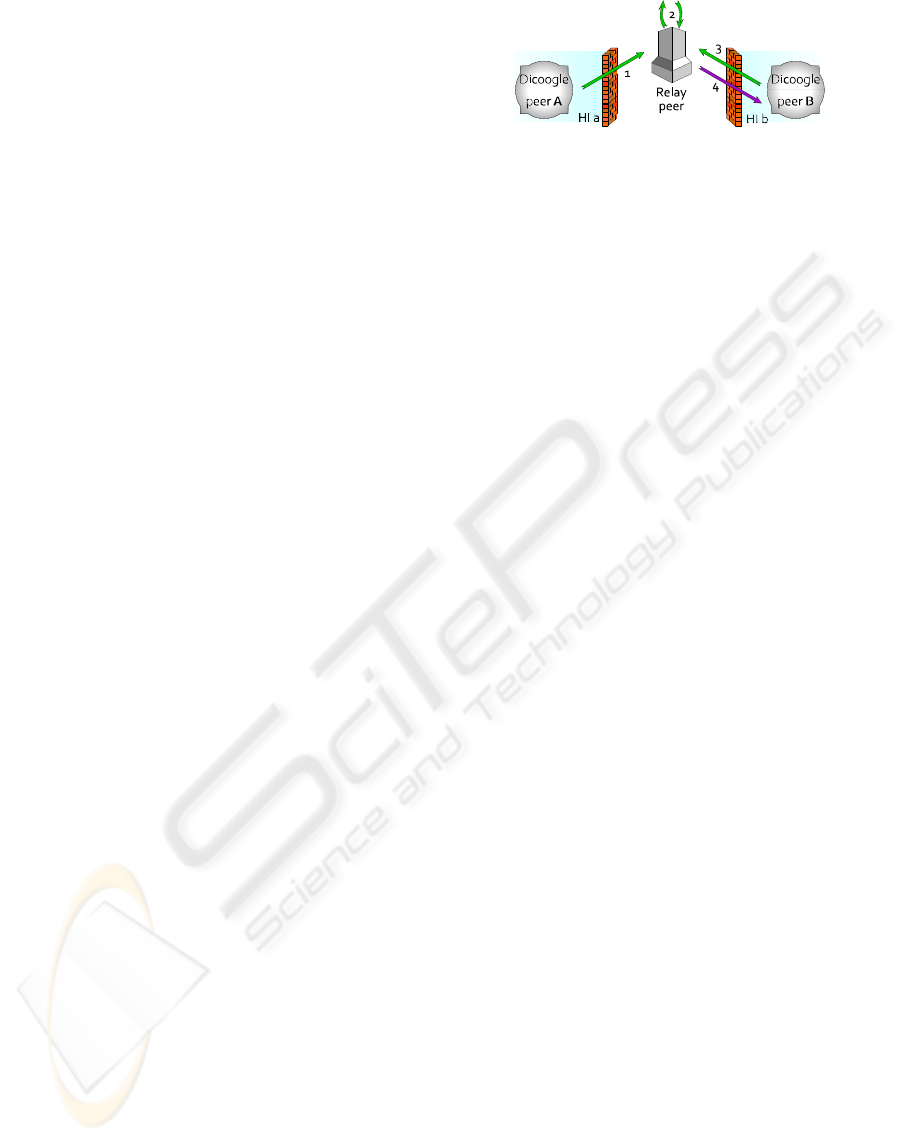

cation between peers in different intranets (ﬁgure 4).

The relay peer becomes a bridge, enabling the inter-

action of Dicoogle peers of different privatenetworks.

To implement the relay peer we looked which tech-

nology is more appropriate based on Dicoogle’s relay

peer requirements:

1. The relay peer has to be accessible to all peers;

2. The relay peer has to communicate through de-

fault open ports of the ﬁrewall;

3. The relay has to support secure data transition.

Analyzing the relay requisites and after some tests we

concluded that an email server would be suitable for

developing the relay peer, because:

1. Email servers are reliable in terms of access;

2. Email may be sent through ﬁrewalls without any

change in their set rules

3. Email already has encryption protocols for data

exchange.

Furthermore, email accounts are free, trustworthy and

offer an acceptable storage capacity (e.g. Gmail over

7 Giga bytes of available space). But more impor-

tant the relay process is really similar to the email

paradigm: The peers send addressed messages to re-

lay peer and the relay peer holds the messages until

the addressed peer fetch them. Therefore, Dicoogle

P2P system implements the relay peer over an email

account.

3.2 Components

Dicoogle is a Java open source project developed over

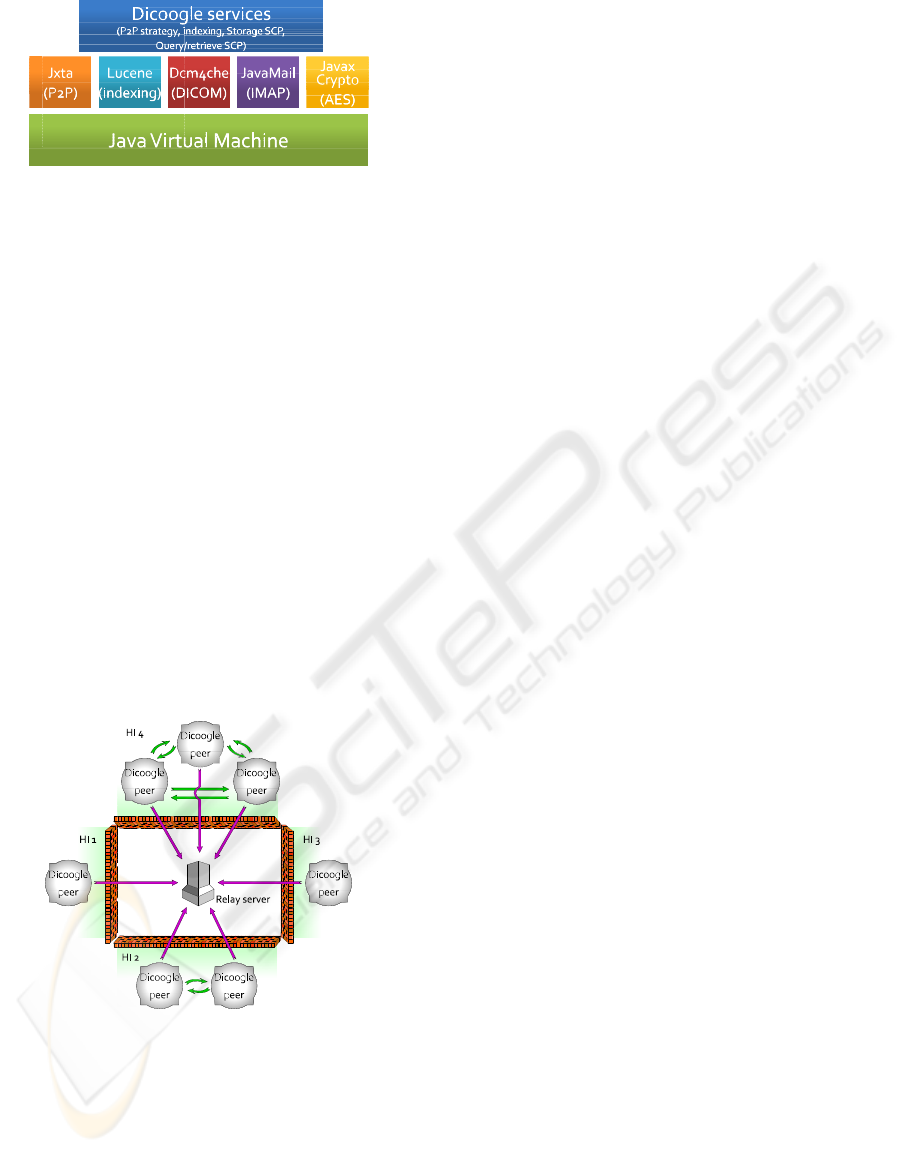

some open source libraries. Figure 2 show all the

software components used by the Dicoogle frame-

work. Dicoogle uses the Apache Lucene index en-

gine (Hatcher and Gospodnetic, 2004) to index the

DICOM ﬁles stored in each archive (Dicoogle peer).

The P2P functionalities are supported by the Jxta

framework (Sun Microsystems, 2004b; Gradecki and

Gradecki, 2002). Jxta allows ﬁrewall crossing, this is

achieved by communicating with a relay peer, outside

the intranet, through the port 80 or 8080 (HTTP/S).

The speciﬁcations of Jxta make it the ideal platform,

in theory, to fulﬁl the Dicoogle’s P2P requirements.

Although, in the paper, Jxta is a powerful and co-

hesive idea, the reality is that its implementation is

not stable enough for a P2P enterprise solution. In

spite of the fact some sources pointed Jxta version 2.5

as unstable (Ferrante, 2008) we analyzed anyway the

framework. Our conclusions were concordant with

the previous ones, Jxta version 2.5 has still to mature.

However, we were able to create a relative stable solu-

tion for the private network scenario. Therefore, Di-

coogle v3 only uses Jxta for treating the P2P issues

within the intranet. We designed a relay peer based in

IMAP - using the JavaMail API (Sun Microsystems,

2004a). With the IMAP protocol we created trans-

parent communication channels between the partici-

pant intranets enabling inter-institutional peer interac-

tion. Every message sent to the relay peer is encrypted

using the Advance Encryption Standard (AES). The

messages are encrypted using a private key present

in every Dicoogle peer and unreachable to the users.

The private key is created using the email password as

seed for a key generator algorithm. This way the mes-

sages are impossible to read by other entities besides

the Dicoogle peers. Finally, to carry the implementa-

tion of DICOM services and DICOM standard related

issues we used the dcm4che SDK (Zeilinger, 2006).

HEALTHINF 2010 - International Conference on Health Informatics

312

Figure 2: Dicoogle software components.

3.3 Architecture

Dicoogle’s P2P distributed system is formedby multi-

ple Dicoogle peers, located in different intranets, and

a relay peer. Inside each participant healthcare insti-

tution (intranet) it is at least one Dicoogle peer. One

may classify Dicoogle’s P2P topologyas hybrid, how-

ever we consider that Dicoogle’s topology as two dif-

ferent levels. At the intranet level the Dicoogle peers

have a totally decentralized topology. They automat-

ically discover each other and create the communi-

cation channels between them. While at the internet

level the Dicoogle peers interact with a centralize ap-

proach. The Dicoogle peers announce their existence

on the relay peer and all the communication between

peers in different intranets passes through the relay

peer. The main reason to use a P2P centralized ap-

proach is to fulﬁl one system requirement: Dicoogle

must pass through virtual barriers. Figure 3 shows the

overall architecture of the Dicoogle P2P distributed

system.

Figure 3: Dicoogle’s common usage scenario. Several peers

disperse over several healthcare institutions (HI). Peers

within the HI communicate directly. Peers in different HIs

communicate through the relay peer.

3.3.1 Searching DICOM ﬁles

Each Dicoogle peer is responsible for managing a

PACS archive. To do so, it indexes every DICOM

ﬁle of the repository. The indexes are the founda-

tions of Dicoogle’s search mechanism. As soon as

the Dicoogle peer is initiated over a PACS archive it

starts by indexing the detected DICOM ﬁles. After

this phase, the Dicoogle peer monitors the ﬁle system

looking the system calls create, delete and update tar-

geting the DICOM ﬁles. When a relevant system call

is detected Dicoogle automatically refreshes the peer

indexes.

Dicoogle search mechanism has three modes: local

search, private network search and entire network

search. Each mode represents a search domain, ac-

cording to its needs the peer user may deﬁne which

search mode it prefers. Also the peer administra-

tor may specify which search mode will be executed

when the peer is contacted by a non-Dicoogle station

- using the DICOM query service. The search modes

function over the peer, or peers, indexes executing the

queries entered by the user, as follows:

1. Local Search: The query is executed in the local

peer and the results are displayed on the peer to

the user.

2. Private Network Search: The queryis sent to the

peers in the same private network (using the Jxta’s

multicast mechanism). When the other Dicoogle

peers receive the search query, they execute it lo-

cally over their indexes then send the result to the

calling peer. Finally the calling peer merges the

received results and displays them to the user.

3. External Network Search: The query is sent to

every Dicoogle peer outside the private network.

The communication channel is built through the

relay peer. The calling Dicoogle peer sends the

search query to the relay peer, addressed to all

Dicoogle peers not present in its private network.

This is accomplished because every private net-

work has a unique identiﬁer (cluster ID), therefore

if a search query arrives to the relay peer the Di-

coogle peers only fetch the query if the message

has a different cluster ID. This way, only the peers

outside private network of the calling peer will

receive the message. After this, the external Di-

coogle peers fetch the message, execute the query

locally and send a message with the result to the

relay peer - the message is addressed to the calling

peer. Finally, the calling peer fetches the results,

merges the multiple results and displays them to

the user.

Furthermore, it is also possible to combine the differ-

ent search modes, for instance to search the entire P2P

network the Dicoogle peer triggers the three search

modes at the same time.

EMAIL-P2P GATEWAY TO DISTRIBUTED MEDICAL IMAGING REPOSITORIES

313

3.3.2 Transfering DICOM Files

Being able of searching the resources of a P2P net-

work is important, but useless unless it is possible to

obtain the contents returned by the search. Therefore,

the Dicoogle system allows the exchange of DICOM

ﬁles between the participant peers. Typically, after a

search the peer user triggers a ﬁle transfer. At this

stage the Dicoogle peer has all the information re-

quired regarding the ﬁle location. Two different sce-

narios may occur, according to the ﬁle location:

• If the wanted DICOM ﬁle is in the same private

network of the calling peer the ﬁle transfer is per-

formed through Jxta’s Bidipipes. A Bidipipe is

bidirectional communication channel created be-

tween two peers. The calling peer starts by send-

ing a ﬁle request message to the peer that holds

the DICOM ﬁle. Then the called peer sends the

ﬁle blocks until the ﬁle transfer succeeds.

• If the ﬁle is located outside the privatenetwork the

ﬁle transfer is performed through the relay peer.

The transfer protocol is similar to the intranet sce-

nario althoughwith the relay peer abstraction (ﬁg-

ure 4). The calling peer sends a ﬁle request mes-

sage to the relay peer, addressed to the peer that

holds the ﬁle. The called peer that periodically

checks the email account detects that has a mes-

sage addressed to it. As consequence, the called

peer fetches the message. Besides specifying the

ﬁle to transfer, the ﬁle request message contains a

session name. If the ﬁle transfer is accepted the

called peer creates a new folder in the email ac-

count with the received session name. The DI-

COM ﬁle is transferred to the session folder. In

the other side, the calling peer monitors the email

account waiting for the session folder creation. If

the session folder is created it means the ﬁle trans-

fer was accepted and the ﬁle will be sent, oth-

erwise the ﬁle transfer was denied and the ﬁle

exchange fails by timeout. Furthermore, the DI-

COM ﬁle cannot be sent directly to the session

folder. Because the relay peer is built over an

email account the DICOM ﬁle is usually bigger

than the maximum size allowed for the message

attachments. Therefore, the DICOM ﬁle is di-

vided into small blocks and sent, block by block,

to the session folder. Finally, the calling peer

fetches the ﬁle blocks, reassembles the ﬁle blocks

into the original DICOM ﬁle and saves it in its

repository.

Figure 4: Inter-institutional communication. Dicoogle peer

A wants to send a message to the peer B, the two peers are

in different private networks and between them there are

virtual barriers. Communication protocol through the relay

peer: (1) - Peer A sends the message(s) to the relay peer

addressing the peer B. (2) - The relay peer holds the mes-

sage in its ﬁle system. (3) - Peer B is periodically checking

the relay peer for messages addressed to it. (4) - Peer B de-

tects the message sent by the peer A, downloads message

and removes it from the relay.

4 RESULTS

We created an efﬁcient P2P platform oriented to med-

ical imaging services, by reusing the available re-

sources in the healthcare institutions. The Dicoogle

peers are installed over the existent PACS archiveand,

besides functioning as a typical PACS archive man-

agement system, it also extends the contents of the

local PACS archive, by interacting with the other Di-

coogle peers. This way medical data exchange pro-

cess is facilitated and as consequence increasing the

productivity of healthcare procedure. Dicoogle also

provides to its users a way to cross the network’s vir-

tual barriers expanding the P2P potential users nor-

mally excluded from this type of networks.

From a simple email account a new virtual commu-

nity of data sharing is created. In other words, one

email account represents a new Dicoogle universe, to

belong to one of these universes the Dicoogle peer has

to know the respective email account. Otherwise, the

Dicoogle peer may only communicate at the intranet

level.

The Dicoogle system expedites the modus operandi

of the healthcare institutions, for instance, a health-

care institution composed by several small imaging

centres, dispersed over a big geographical area. By

adoption the Dicoogle system the dispersed PACS

archives could easily connect as a global PACS

archive, serving the entire healthcare institution as a

whole. Dicoogle system offers a comfortable user in-

terface to manage the local Dicoogle peer and to ex-

plore the contents of the entire Dicoogle distributed

system. Figures 5 and 6 show some views of Di-

coogle’s interface.

HEALTHINF 2010 - International Conference on Health Informatics

314

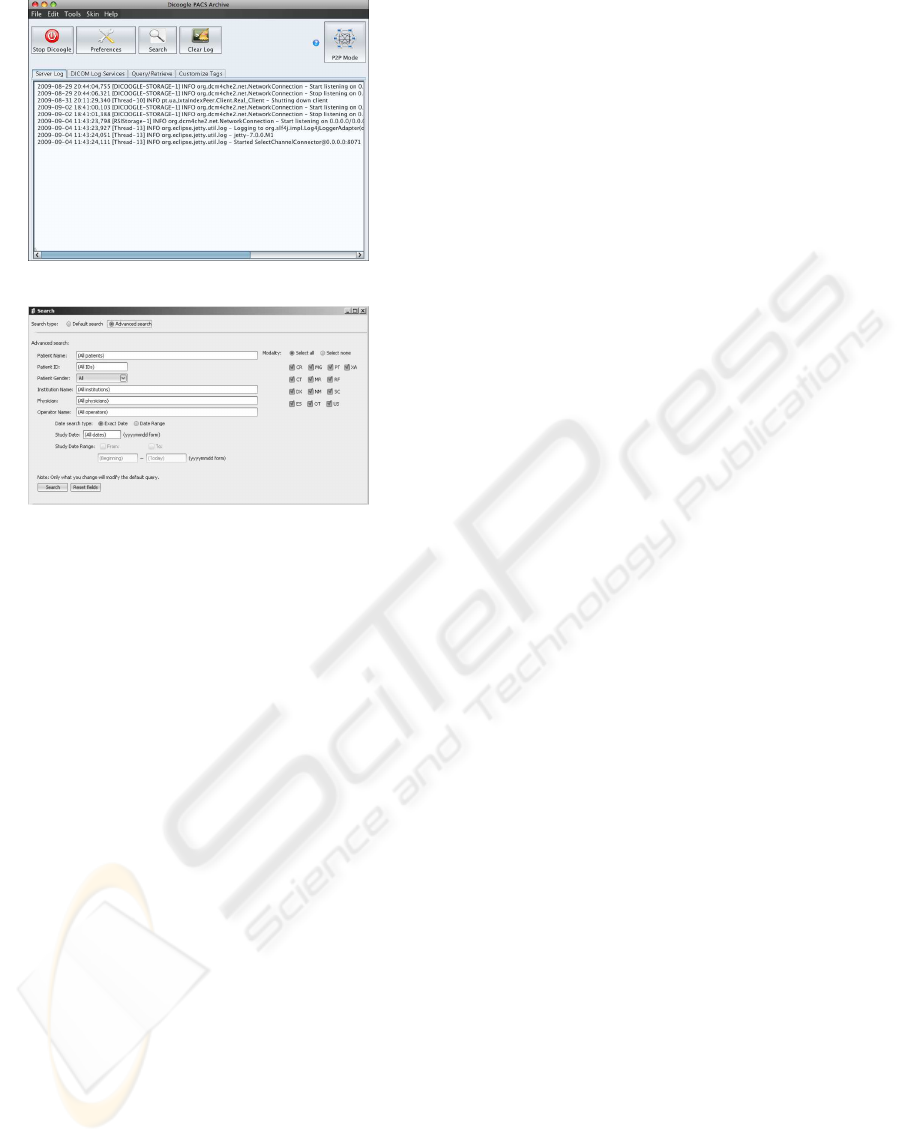

Figure 5: Dicoogle’s control console

Figure 6: Dicoogle’s Advance search view

5 CONCLUSIONS

In this paper we present the Dicoogle distributed

PACS and its Email-P2P Gateway interface capable

of searching and sharing DICOM ﬁles over a wide

scenario. Dicoogle is a turn-key solution that may be

easily installed in a personal computer or in a central

server. And its integration with the existent medical

imaging repository of a healthcare institution is facil-

itated. Because, each Dicoogle peers is also a ser-

vice class provider of the DICOM services storage,

query and retrieve. This way the surrounding stations

of the healthcare institution may interact with the sys-

tem without any reconﬁguration.

The system uses a P2P decentralize topology within

the private network and a centralize topology for re-

mote communications, maximizing this way the ben-

eﬁts of each topology, turning Dicoogle in a scalable

system. Furthermore, the relay peer is built over an

email account and not a common web server. There-

fore, the cost of owning a web server to act as a re-

lay peer is eliminated and, because the email ports

are usually open, it also avoids the need to change

the ﬁrewall’s default conﬁguration. Dicoogle offers to

his users an even more ﬂexible P2P system than oth-

ers known P2P applications (e.g. eMule) because it

does not leave behind the peer inside the private net-

work incapable of communicating directly with the

P2P network due to the virtual barriers. As conse-

quence, Dicoogle extends the range of its potential

users increasing the resources available in the net-

work.

REFERENCES

Blanquer, I., Hernandez, V., and Mas, F. (2005). A

peer-to-peer environment to share medical images

and diagnoses providing context-based searching. In

Proceedings of the 13th Euromicro Conference on

Parallel, Distributed and Network-Based Processing

(PDP’05), pages 42–48.

Carlos Costa, Augusto Silva, J. L. O. (2009). Indexing

and retrieving dicom data in disperse and unstructured

archives. volume 4, pages 71–77.

Chiu, D. K., Hung, P. C. K., Cheng, V. S. Y., and Kafeza,

E. (2007). Protecting the exchange of medical images

in healthcare process integration with web services.

pages 131–131.

Damiani, E., di Vimercati, D. C., Paraboschi, S., Samarati,

P., and Violante, F. (2002). A reputation-based ap-

proach for choosing reliable resources in peer-to-peer

networks. In CCS ’02: Proceedings of the 9th ACM

conference on Computer and communications secu-

rity, pages 207–216. ACM.

Ferrante, M. (2008). The JXTA way to Grid: a dead end?

PhD thesis, University of Genova.

Ghosemajumder, S. (2002). Advanced peer-based technol-

ogy business models. MBA Master’s Thesis, Mas-

sachusetts Institute of Technology, Sloan School of

Management, Cambridge, MA.

Gradecki, J. and Gradecki, J. (2002). Mastering JXTA:

building Java peer-to-peer applications. Wiley.

Hatcher, E. and Gospodnetic, O. (2004). Lucene in action.

Action series. Manning Publications Co., Greenwich,

CT.

Huang, H. (2004). PACS and imaging informatics: basic

principles and applications. Wiley-IEEE.

Ivkovic, I. (2001). Improving gnutella protocol: Protocol

analysis and research proposals. Retrieved May, 12.

Mustra, M., Delac, K., and Grgic, M. (2008). Overview of

the DICOM standard. In ELMAR, 2008. 50th Interna-

tional Symposium, volume 1.

Qiu, D. and Srikant, R. (2004). Modeling and performance

analysis of BitTorrent-like peer-to-peer networks. In

Proceedings of the 2004 conference on Applications,

technologies, architectures, and protocols for com-

puter communications, pages 367–378. ACM New

York, NY, USA.

Sun Microsystems, I. (2004a). Java Mail API. URL

(07.07.2009): http://java.sun.com/products/javamail.

Sun Microsystems, I. (2004b). Jxta. URL (07.07.2009):

https://jxta.dev.java.net/.

Zeilinger, G. (2006). dcm4che, a DICOM implementation

in Java. URL (07.07.2009): http://www.dcm4che.org.

EMAIL-P2P GATEWAY TO DISTRIBUTED MEDICAL IMAGING REPOSITORIES

315
