MODELLING A PORTABLE PERSONAL HEALTH RECORD

J. Santos

1,2

, T. Pedrosa

1,3

, C. Costa

and J. Oliveira

DETI/IEETA, Universidade de Aveiro, Campus Universitário de Santiago, Aveiro, Portugal

DEE, Instituto Superior de Engenharia de Coimbra (ISEC), Rua Pedro Nunes, Coimbra, Portugal

Instituto Politécnico de Bragança, Bragança, Portugal

Keywords: Personal health record, Electronic health record, Patient empowerment, Portable personal health record,

Personal health in formation.

Abstract: Active and responsible involvement of patients in their own health is accepted as an important contribution

towards an increased quality of health services in general. Management of Personal Health Information by

the patient can play an important role in the improvement in quality of the information available to health

care professionals and as a means of patient involvement. Electronic Health Records are a means of storing

this kind of information but their management usually falls under the responsibility of an institution and not

on the patient himself. A Personal Health Record under the direct control and management of the patient is

the natural solution for the problem. When implemented in a storage hardware portable device, a PHR,

allows for total mobility. Personal Health Information is very sensitive in nature so any implementation has

to address security and privacy issues. With this in mind we propose a structure for a secure Patient Health

Record stored in a USB pen device under the patient’s direct management and responsibility.

1 INTRODUCTION

Personal Health Information (PHI) is generated

dispersedly (Tang, et al, 2006) and stored under

different formats. Modern diagnose and treatment

techniques generate great amounts of PHI and

population ageing can only increase it. This poses

the problem of efficient usability and management.

Many PHI management strategies have been

proposed (Costa, 2004) namely Electronic Health

Record (EHR) systems (Classen, et al., 1991, 1992;

Evans, et al., 1992; Schoenbaum, et al., 1992;

Tierney, at al. 1993) that have some limitations.

Interoperability between different systems is limited

(Mandl, et al., 2001; Schonberg, et al., 2000), most

contain only institution-generated data and

sometimes only at a departmental level (Hasselbring,

1997). Some information supplied by the patient is

incorporated in the EHR by healthcare professionals,

but making patients responsible and active in their

own health, is not a concern of such systems since

an EHR is usually managed by an institution. That

goal can only be achieved through the use of a

Personal Health Record (PHR). This is stressed by

the generally accepted definitions of EHR and PHR

provided by the Markle Foundation (2004).

People are increasingly mobile. A PHR on a

portable device that can also be a repository of

emergency data, integrated with an EHR system is

the best architecture (Detmer, et al., 2008), since it is

standalone, closely integrated with external data

sources and allowing for mobility (Román, et al.,

2006). In this paper we propose the structure for a

portable PHR (pPHR) with main objectives:

- Allow the patient full management capabilities;

- Populated by the patient from various sources;

- Availability to third parties in different contexts.

Such an implementation relies on:

- Strong user authentication;

- Secure data encryption;

- Separate data storage depending on data type;

- Electronic signatures for integrity.

2 BACKGROUND

Current PHR implementations include network-

PHRs with decision making tools such as the ones

offered by Microsoft and Google, both promising

the creation of systems and standards for automated

465

Santos J., Pedrosa T., Costa C. and Oliveira J. (2010).

MODELLING A PORTABLE PERSONAL HEALTH RECORD.

In Proceedings of the Third International Conference on Health Informatics, pages 465-468

DOI: 10.5220/0002746504650468

 SciTePress

data collection and updating, allowing for patient

mobility since data is accessible from any place with

Internet access. But they have some limitations since

concerns may be raised as to the security and

privacy of data contained in a system over which the

patient has no control. The patient controls which

information is on the system but not the security and

privacy issues pertaining to the system’s internal

design or the information disclosure policies

enforced by the owning companies.

A pPHR overcomes all the mentioned limitations

providing full mobility to its users through regular

backups, strict access control policies, cryptography,

and detailed audits of each activity.

Among the various candidates to a portable PHR

device (Costa, et al., 2003), flash USB pens present

the most advantages since they can be carried

around, their use has been proposed for developing

countries (Srinivasan, et al., 2007) and they can also

be used in developed countries. Security issues have

been raised concerning PHR implementations in

these devices (Wright, et al., 2007a, b) but they can

be overcome with careful design.

3 PROPOSED STRUCTURE

The basic paradigm of the pPHR is total patient

empowerment. Our model also allows patient

mobility and provides an emergency data repository.

The pPHR is a complete and fully functional PHI

management platform where a repository of the

lifelong patient’s history is kept based on close

interoperability with all the participating institutions

where an individual’s health data is generated. The

pPHR is the most complete repository of an

individual’s PHI. In the limit, any external EHR

system can have as much information, but none is

meant to have more. Any access to the pPHR and its

data depends exclusively on patient’s authorization.

In order to allow the patient to both manage the PHI

contained in the pPHR and to make it available to

other healthcare actors in a scalable manner, various

operating modes are available upon patient’s option.

Population of the pPHR is done by the patient in two

different situations, in person and remotely via an

Internet connection.

Patient authentication for account provisioning is

required for pPHR issuance, authentication method

depending on the prior relationship of the issuing

institution with the patient. The device is supplied

with a built in master-password that will be used for

the initial setup of pPHR native applications, upon

which the user is prompted to create his working-

password. The system only allows three tries of

logging. Upon failure of the three attempts, the PHR

and all its functionalities are blocked and will only

be unblocked via the master-password. Whenever

the patient accesses the PHR, he will be prompted to

supply the password and to select an operating

mode. An inactivity timer blocks the system after a

time interval of inactivity that is preset but

configurable by the patient. This inactivity lock can

be unlocked via the password. One of the key

concepts of our model is the existence of different

conceptual data types. There are five different data

types:

- Confidential pPHR Data: information considered

to be extremely sensitive and to be kept secret.

- Normal pPHR Data: information to be disclosed

to users in general.

- Transfer pPHR Data, recently downloaded into

the PHR waiting for patient’s management.

- Prescription pPHR Data, typically generated by

physicians to be read by other users.

- Emergency pPHR Data, publicly available in

case of emergency.

Figure 1 shows the data types in usage context and

Table 1 expresses the different information access

privileges by all the actors involved. Through the

implementation of this working scenario we achieve

free and easy access to emergency information.

Prescription PHR Data is still freely available but

not displayed because it might be relevant in an

emergency situation. Access to prescription

information and the possibility of writing Tranfer

pPHR Data are given. All actions taking place in the

pPHR are recorded and become part of an audit

report that keeps track of all information transactions

and the respective dates in which those actions took

place. The data management functionality is

implemented as document classification or

document drag and drop strategies.

All data items are electronically signed by their

author for information integrity but, in case they

aren’t, the pPHR provides a functionality that allows

the patient to act as a delegated signer. For efficient

storage space management, the individual files

placed inside each container are compressed with a

choice of “deflate” or “bzip2” algorithms. A

compression level can be chosen for each file, no

compression being also a possibility.

HEALTHINF 2010 - International Conference on Health Informatics

466

Table 1: Information Type Access Privileges of the various pPHR users.

Information Type

Actor

Confidential Normal Transfer Prescription Emergency

Patient Read/write Read/write Read/write Read/write Read/write

Physician - Read Read/write Read/write Read

Social Institution - Read Read/write Read Read

Researcher - Read Read/write Read Read

Laboratory - - Write Read Read

Pharmacy - - Write Read Read

Non-qualified - - Write Read Read

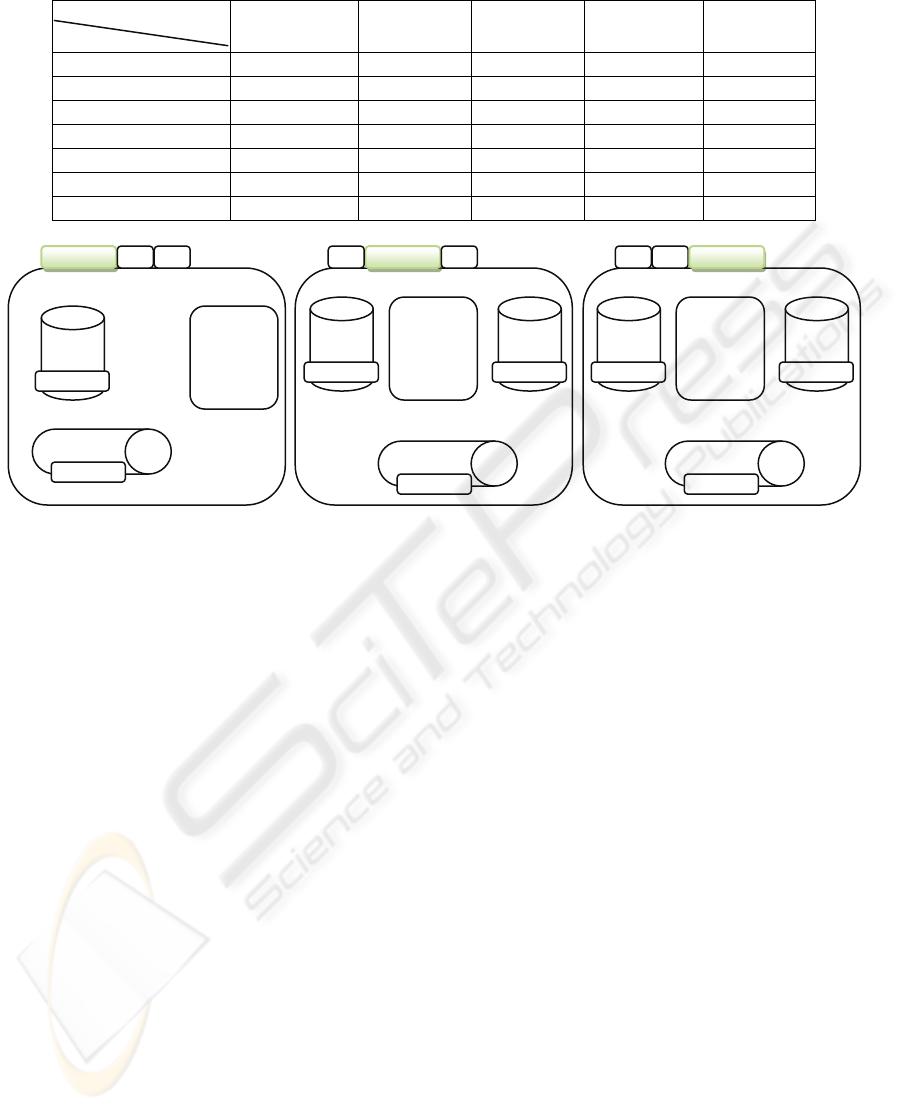

Figure 1: Data types contained in the pPHR.

The pPHR is completely pen-resident and

consists of a stand-alone application with various

functionalities, one of which allows access to a

virtual container where a database and the various

data items are stored. The virtual container is

implemented in a zip-like manner (ZipArchive) with

compression and file encryption via a soft-coded

encryption key. AES encryption algorithm and the

fact that, upon access by the application, the files are

decompressed to computer memory only are

important features contributing for enhanced

security. The database is built upon SQLite and

contains entries that are pointers to individual data

items.

Automatic Zip64 extensions allow upgrade of

maximum size, maximum size of individual files in

an archive, and the number of files in an archive.

Each file inside an archive is encrypted by the

Advanced Encryption Standard (AES) algorithm

with a 256-bit key encryption key. The access to any

individual file stored inside a virtual container is

subject to authentication and the decompression of

the files is made to computer’s memory only for

improved security.

4 CONCLUSIONS

PHI has been dramatically increasing raising the

issue of efficient information management. EHR

systems have been implemented but they have some

limitations that can be overcome by the use of a

portable PHR in a USB pen device that

complements existing EHR systems.

Our model totally empowers the patient with

respect to his PHI. He decides which data becomes

part of the record, who, and under what

circumstances, has access to it. The pPHR is fully

interoperable and populated with information from

various external sources as well as self-entered PHI.

Data is kept in separate conceptual data containers.

There are five different data types, each of each

of which with different security and confidentiality

characteristics.

Some concerns have been expressed regarding

the trust a physician can place on patient-generated

information. By the use of pPHR, the patient is

invited to better understand his own health and, by

being able to manage it, his increased health

awareness can only be beneficial. The pPHR is

meant to be used with an EHR, therefore the

Default

Emergency Info

-------------------

Prescription

Data

Click to View

Transfer Data

Click to Input

Social Ph

sician

Prescription

Data

View/Input

Emergency

Data

Click to View

Transfer Data

Click to Input

Normal Data

-------------------

Prescription

Data

View/Input

Emergency

Data

Click to View

Transfer Data

Click to Input

Normal Data

-------------------

MODELLING A PORTABLE PERSONAL HEALTH RECORD

467

traditional interactions the physician is used to

establish with his patients can still be enforced but

the later being more informed and collaborative.

There is some overlapping of disclosure and

write privileges concerning Emergency and

Prescription Data Types. From a technical

perspective it’s arguable that they could be grouped

into a single type but from an organizational and

usability perspective they are different. They both

are possibly disclosed to most actors but Prescription

data is to be generated by the physician and not

necessarily to be disclosed in an emergency situation

(although possible). The patient can write into that

area (although he shouldn’t) because nobody should

have better access privileges to any part of his pPHR

and since every data item is to be electronically

signed, there is no confusion possible between

physician-generated data and eventual patient-

generated data.

REFERENCES

Tang, P., et al. 2006. Personal Health Records:

Definitions, Benefits and Strategies for Overcoming

Barriers to Adoption. Journal of the American Medical

Association, 12, pp.121-126.

Costa, C., 2004. Doctoral Thesis: A Security Dynamic

Model for Healthcare Information Systems, in

Departamento de Electrónica e Telecomunicações,

Universidade de Aveiro.

The Markle Foundation, 2004. Connecting Americans to

their Healthcare: Final Report.

Classen, D. C. et al., 1992. Computerized Surveillance of

Adverse Drug Events in Hospital Patients. Journal of

the American Medical Association, 266, pp.2847–

2851.

Classen, D. C., et al., 1992. The Timing of Prophylactic

Administration of Antibiotics and the Risk of

Surgical-wound Infection. New England Journal of

Medicine, 326, pp.281–286.

Evans, R. S., et al., 1992. Computerized identification of

patients at high risk for hospital-acquired infections.

American Journal of Infectious Control, 20, pp.4–10.

Schoenbaum, S. C., Barnett, G. O., 1992. Automated

Ambulatory Medical Records Systems: An Orphan

Technology. International Journal of Technical

Assessment in Health Care, 8, pp.598–609.

Tierney, W. M., et al., 1993. Physician Inpatient Order

Writing on Microcomputer Workstations: Effects on

Resource Utilization. Journal of the American Medical

Association, 269, pp.379–383.

Mandl, K., Szolovits, P., Kohane, I., 2001. Public

Standards and Patient’s Control: How to Keep

Electronic Medical Records Accessible but Private.

British Medical Journal, 322, pp.283-287.

Schonberg, R., Safran, C., 2000. Internet Based

Repository of Medical Records that Retains Patient

Confidentiality. British Medical Journal, 321, pp.

1199-1203.

Hasselbring, W., 1997. Federated Integration of

Replicated Information Within Hospitals. International

Journal on Digital Libraries, 1(3), pp.192-208.

Román, I., et al, 2006. Demographic Management in a

Federated Healthcare Environment. International

Journal of Medical Informatics, 75 (9), pp.671-682.

Detmer, D., et al, 2008. Integrated Personal Health

Records: Transformative Tools for Consumer-centric

Care. BMC Medical Informatics and Decision

Making, 8, p.45.

Costa, C., et al, 2003. A New Concept for an Integrated

Healthcare Access Model, Proceedings of MIE 2003

(Medical Informatics Europe). The New Navigators:

from Professionals to Patients, Studies in Health

Technologies and Informatics, 95, pp.101-106, IOS

Press Book Series (ISBN: 1-586-03347-6).

Srinivasan, U., Datta, G., 2007. Personal Health Record

(PHR) in a Talisman: An Approach to Providing

Continuity of Care in Developing Countries Using

Existing Social Habits. 9

International Conference on

e-Health Networking, Application and Services,

pp.277-279.

Wright,A., Sittig, D., 2007. Security Threat Posed by

USB-based Personal Health Records. Ann Intern Med,

146, pp.314-5.

Wright,A., Sittig, D., 2007. Encryption Characteristics of

2 USB-based PHR Devices. Journal of the American

Medical Association, 14, pp.397-399.

HEALTHINF 2010 - International Conference on Health Informatics

468
