DEVICE FOR PROSODIC SPEECH RESTORATION

A Multi-Resolution Approach for Glottal Excitation Restoration

O. Schleusing

, R. Vetter

, Ph. Renevey

, J.-M. Vesin

and V. Schweizer

Swiss Center for Electronics and Microtechnology, Neuch

atel, Switzerland

Swiss Federal Institute of Technology, Lausanne, Switzerland

University Hospital Lausanne, Lausanne, Switzerland

Keywords:

Speech processing, Speech restoration, Adaptive ﬁlters, Laryngectomy.

Abstract:

This paper proposes a novel device for the restoration of authentic characteristics in pathological speech ut-

tered by subjects with laryngeal disorders. The device acquires and analyzes the original speech signal and

reconstructs a speech signal with improved, healthy-like features in real-time. The pathological excitation is

replaced by concatenation of randomly chosen healthy reference patterns. To restore authentic features, in-

tervals between subsequent reference patterns are obtained through a multi-resolution approach. Short-term

pitch variability is reproduced through a statistical variation model. Middle-term pitch variability exploits the

correlation at the middle-term time scale between pitch and signal envelope. Long-term variability is obtained

through adaptive wavetable oscillators; a novel, reliable and computationally efﬁcient method. Performance

was assessed with respect to two authentic features, namely breathiness and prosody. Preliminary results have

shown that breathiness of the restored signal is clearly reduced, while prosody related features are slightly

improved.

1 INTRODUCTION

The degree of degradation found in pathological

voices often engenders a decrease in a patient’s

speech intelligibility and thereby a severe limitation

in its social oral interaction (Weinberg, 1986). For ex-

ample, subjects who have undergone a laryngectomy

suffer from degradation of their natural vocal excita-

tion (Williams and Barber Watson, 1987; Most et al.,

2000; Moerman et al., 2004). Laryngectomy is the

common treatment after diagnosis of larynx cancer in

an advanced stage and constitutes the partial or to-

tal removal of the larynx. This signiﬁcantly reduces

the patient’s ability to produce voiced sounds due to

the reduced or missing vocal cord functionality (van

As, 2001; Pindzola and Cain, 1988). During speech

rehabilitation the patient may learn to use an alterna-

tive voicing method, but the result usually is a noisy

and intermittently obstructed voice that is not gender-

discriminative due to its typically very low pitch. In

accordance with the widely accepted source-ﬁlter-

model in healthy speech processing (Fant, 1981), the

vocal cords are essential since they provide an excita-

tion signal with distinctive, periodical energy concen-

trations in the time domain. In contrast, the alaryngeal

voice excitation consists of a ﬂawed, distorted excita-

tion signal where the glottal peaks are much less con-

centrated in the time domain. This results in an un-

pleasant and unnatural voice with an often intermitted

and ﬂuctuating periodicity. In addition, the speaker

loses much of its control over pitch variability.

Several advanced voice restoration systems and

methods have been presented in the past aiming at

the improvement of the quality and intelligibility of

the alaryngeal speech. In (Qi et al., 1995) methods

based on linear prediction (LPC) for analysis and syn-

thesis were used to enhance the perceived, subjective

voice quality. In (Bi and Qi, 1997) modiﬁed voice

conversion methods combined with formant enhance-

ment were utilized to reduce the pathological speech

signal’s spectral distortions. In (del Pozo and Young,

2006) a voice restoration system is described that syn-

thesizes speech from electroglottograph (EGG) pitch

information and a jitter reduction model. In (Vet-

ter et al., 2006) a system is presented that restores a

pathological speech signal by replacing its pathologi-

cal excitation with a concatenation of glottal reference

patterns randomly chosen from a database extracted

Schleusing O., Vetter R., Renevey P., Vesin J. and Schweizer V. (2010).

DEVICE FOR PROSODIC SPEECH RESTORATION - A Multi-Resolution Approach for Glottal Excitation Restoration.

In Proceedings of the Third International Conference on Biomedical Electronics and Devices, pages 38-43

DOI: 10.5220/0002747500380043

 SciTePress

from healthy speakers. The intervals between suc-

cessive healthy glottal patterns are determined by the

fundamental frequency ( f

) extracted from the orig-

inal, pathological speech signal. Promising perfor-

mances have been obtained in terms of reduction of

breathiness and increase of the average pitch, but the

resulting speech lacks authenticity due to the signiﬁ-

cantly reduced f

-variability in pathological speech.

To improve these deﬁciencies, we propose a

speech restoration device based on a multi-resolution

pitch restoration method to increase the variability of

the restored pitch in real-time. The long-term vari-

ability is deduced from the f

-trend in the original

speech signal. Middle-term variability is restored us-

ing the correlation between f

and the signal variance

in natural speech. Short-term variability is restored

using a statistical variation model and the signal enve-

lope. The speech signal subsequently is reconstructed

with the enhanced excitation and can be deployed in

manifold applications such as voice enhancement sys-

tems or interactive support systems for voice rehabil-

itation and tutoring.

In the next Section we outline the pathological

speech characteristics which lead to the development

of our speech restoration system. In Section 3 we de-

scribe the multi-resolution pitch restoration method

used by the proposed device. The results obtained by

subjective listening tests are then presented and dis-

cussed in Section 4.

2 CHARACTERISTICS OF

PATHOLOGICAL SPEECH

During laryngectomy, the larynx including the vocal

cords and the laryngeal muscles are partially or to-

tally removed (van As, 2001). Generally, postlaryn-

gectomy patients may regain means of verbal commu-

nication in two ways. On one hand there exist electro-

mechanical devices like the electrolarynx that inject

vibrations into the trachea when held against the neck.

The achievable voice quality of this approach is rather

low since there is no intuitive control over voice qual-

ity or fundamental frequency. Yet, this method is at-

tractive due to its simplicity and short learning phase.

On the other hand, postlaryngectomy speakers may

learn to use other tissues to substitute the function-

ality of the vocal cords. This way, the speaker re-

tains, to some extent, intuitive control over aspects of

the speech that allow the expression of prosody such

as variations of the fundamental frequency. Unfortu-

nately, the aptitude of the remaining tissue to produce

a rich, harmonic sound is very limited. Its physical

properties vary greatly among speakers and differ sig-

(a)

(b)

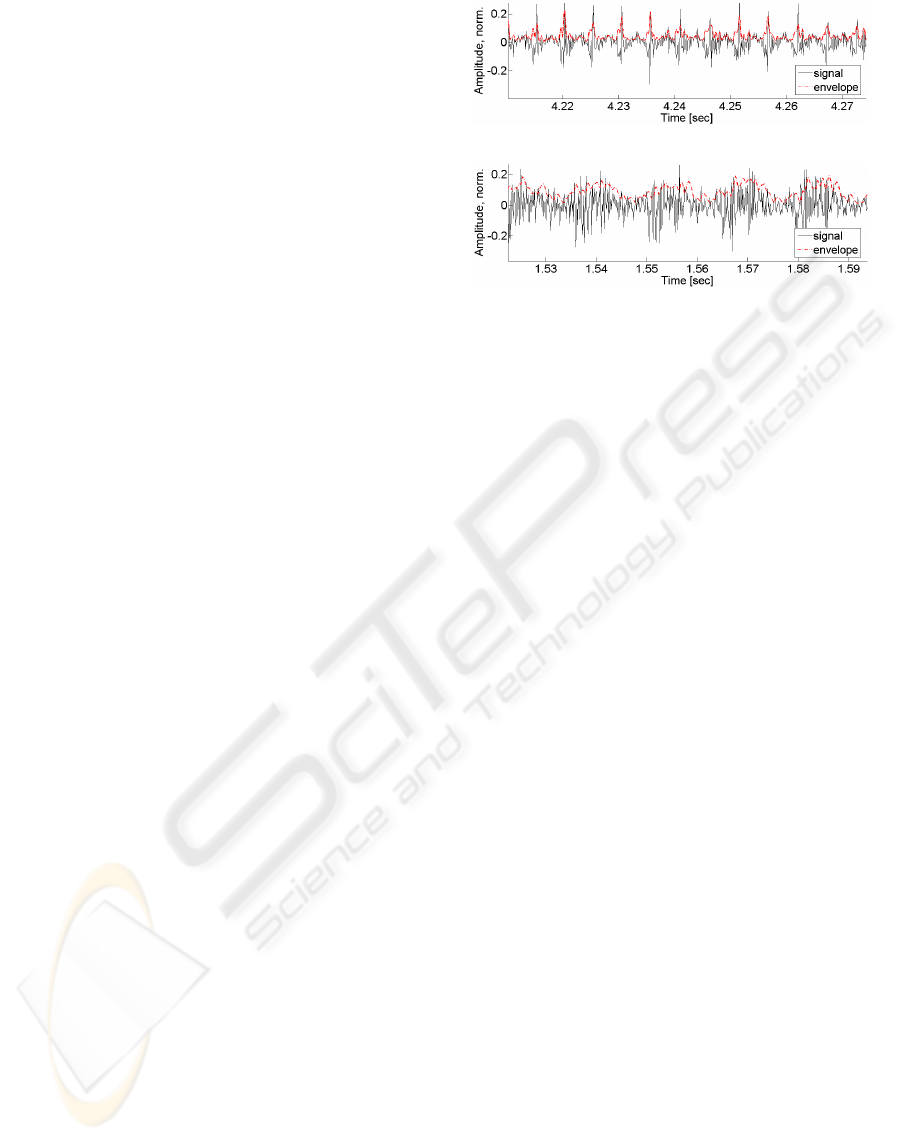

Figure 1: Segments of a laryngeal (a) and an alaryngeal (b)

voice excitation signal and their respective envelopes.

niﬁcantly from those of the vocal cords.

In comparison to pathological voices, the

aerodynamic-myoplastic processes in voiced, healthy

speech production are relatively well studied (van

As, 2001). Subglottal air pressure leads to a sudden,

non-symmetric opening of the vocal cords and a re-

lease of this pressure. Subsequently, the musculature

surrounding the glottis may force a closure of the

vocal cords and the process starts all over. Varieties

in glottis shape and size amongst humans lead to

speaker-speciﬁc patterns for the opening and closing

process as well as to the introduction of jitter in the

period between subsequent glottal cycles. These

effects amongst others lead to speaker speciﬁc voice

characteristics.

Alaryngeal voice characteristics have been found

to differ remarkably from that of healthy voices.

Among subjects the position and shape of the neoglot-

tis vary signiﬁcantly (Qi et al., 1995). Often in-

complete glottal closure can be observed. Further-

more, the ﬂexibility and controllability of the neoglot-

tis lacks greatly when compared with a healthy glot-

tis, especially due to the absence of the laryngeal

musculature. The mass of the neoglottis and resis-

tance to mucus aggregation inﬂuence the absolute

value and stability of the fundamental frequency in

a disadvantageous manner. The alaryngeal oscilla-

tor tends to break down intermittently (Kasuya et al.,

1986). Eventually, the resulting voice has an unnat-

urally low and instable pitch and often is found to

have a hoarse, croaky and breathy character (Verma

and Kumar, 2005). Figure 1 depicts fractions of LPC-

estimates of a laryngeal and an alaryngeal voiced ex-

citation signal. This ﬁgure highlights the alteration of

the produced harmonic excitation due to the changed

physiologic conditions. The glottal wave patterns in

the excitation of the healthy speaker are highly con-

DEVICE FOR PROSODIC SPEECH RESTORATION - A Multi-Resolution Approach for Glottal Excitation Restoration

centrated in the time domain, whereas the excitation

of the alaryngeal speaker appears merely as a modu-

lated noise signal.

3 MULTI-RESOLUTION VOICE

RESTORATION

3.1 Method

A general overview of the method implemented in the

device is depicted in Figure 2. The articulation in-

formation and the voice excitation are separated in a

primer LPC-based signal analysis. The obtained exci-

tation signal is then divided into voiced and unvoiced

segments, since we are only interested in restoring the

voiced excitation signal. To restore the speech sig-

nal, the voiced excitation segments are replaced by a

signal, which is formed by concatenating glottal ref-

erence patterns. These reference patterns were pre-

viously extracted from healthy subjects and are ran-

domly chosen from a lookup-table. The intervals

between successive reference patterns determine the

fundamental frequency of the reconstructed speech

signal. The fundamental frequency in pathological

speech is degraded in terms of variability and stabil-

ity and thus insufﬁcient for a successful restoration

of an authentic speech signal. To increase authentic-

ity, the intervals between subsequent glottal waves are

obtained through a multi-resolution approach on three

different time scales:

• Long-term pitch variations are restored with in-

stantaneous frequency estimations obtained from

the alaryngeal voice excitation with the adaptive

wavetable oscillator method.

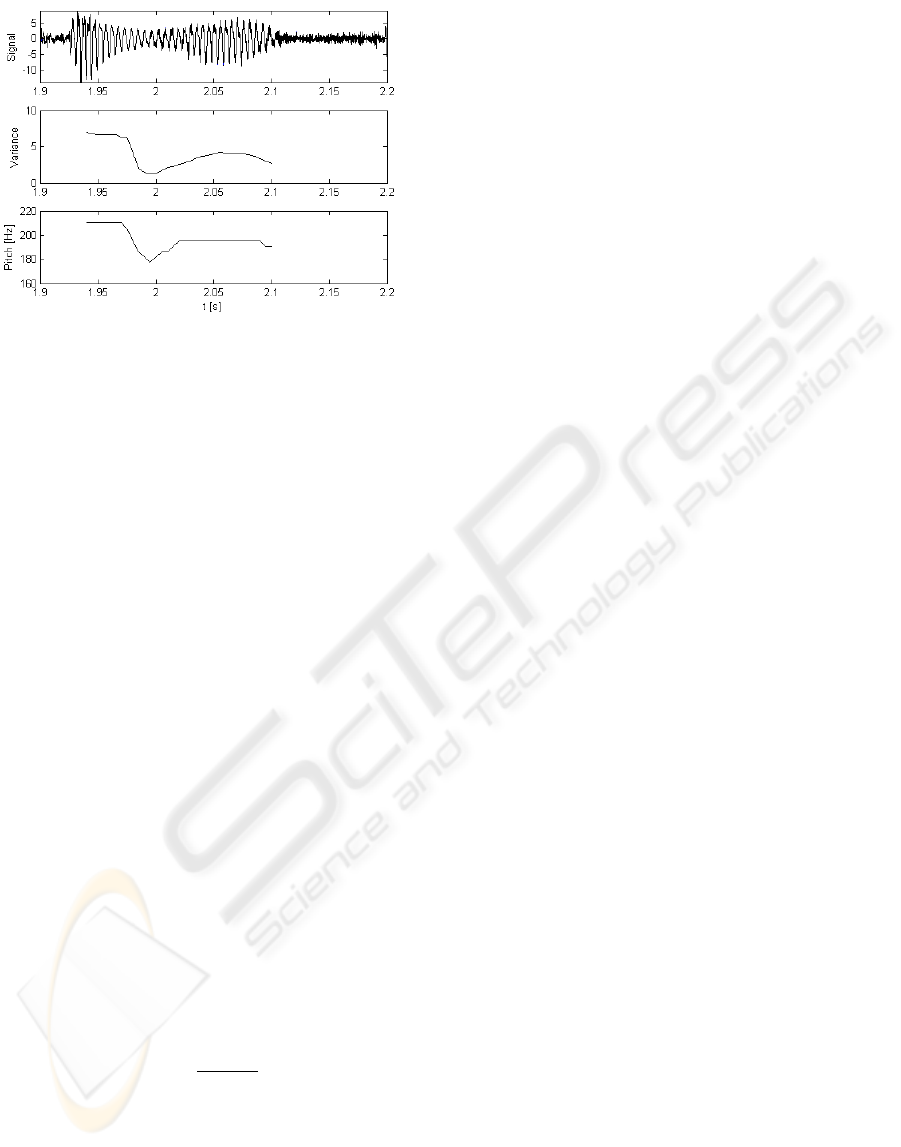

• Middle-term pitch variations are strongly related

to prosody and are restored using the correlation

between pitch variations and instantaneous signal

energy (Rosenberg and Hirschberg, 2006).

• Short-term pitch variability is introduced to the

extracted pitch values to adhere the presence of

jitter in pitch as it is found in healthy speech.

The improved excitation signal then is recombined

with the unmodiﬁed unvoiced speech segments and

the estimated articulation information.

In the following we describe the methods used to

estimate and reconstruct the pitch information on the

different time scales. Subsequently we describe the

evaluation of the restored pitch in terms of the reduced

breathiness and increased prosody.

Signal

Analysis

s(n)

Voiced/

Unvoiced

Segmentation

Articulation Information

Excitation

Long-Term

Variability

Middle-Term

Variability

High

Pass

(n)

Short-Term Variability

Non-linear

Weighting f

Signal

Reconstruction

ŝ(n)

Envelope s

env

(n)

∑

0,LT

0,MT

0,ST

Figure 2: Block diagram of the multi-resolution pitch

restoration method.

3.2 Long-Term Pitch Estimation

The selection of method for the extraction of the fun-

damental frequency of a speciﬁc signal depends on

different characteristics of the signal itself:

• The signal’s nature in terms of time-frequency

distribution

• The amount and characteristics of additional

harmful background noise

• The affordable computational complexity.

In general, pitch estimation methods can be classi-

ﬁed into event detection methods and short-term av-

eraging methods.Event detection methods such as for

example zero-crossing (Gerhard, 2003) or threshold-

guided maxima localization (Gerhard, 2003) are com-

putationally inexpensive and yield high performance

for well shaped signals in low-noise environments.

Signals with higher harmonic complexity or increas-

ing noise level require more advanced methods such

as the matched ﬁlter method (Turin, 1960) or auto-

correlation method (Un and Yang, 1977). They

are based on short-term averaging and computation-

ally more expensive. More advanced methods with

yet increased computational complexity, decompose

the signal into its Eigenspace components (Murakami

and Ishida, 2001). Conjoint approaches (Mitev and

Hadjitodorov, 2003) combine three different methods,

namely in time, frequency and cepstrum domain.

For the device presented in this paper, the fo-

cus is clearly on the efﬁcient utilization of the given

computational resources. We propose to use a new

pitch estimation method taking into account the de-

mand for low computational load and for the per-

tinence and simplicity of ﬁxed-point real-time im-

plementation. The method is based on adaptive

wavetable oscillators (AWO), a method recently pub-

lished in (Arora and Sethares, 2007). An evaluation

BIODEVICES 2010 - International Conference on Biomedical Electronics and Devices

of the method comparing it with other state-of-the-art

methods for fundamental frequency estimation was

presented in (Schleusing et al., 2009).

AWOs constitute a time-frequency method com-

bining wavetables and adaptive oscillators. Waveta-

bles generate periodic output signals by cyclic index-

ing of a lookup table that stores a single period of the

waveform. Adaptive oscillators synchronize their out-

put to both frequency and phase of the input signal.

The indexing parameters of the AWO are determined

by optimizing a well deﬁned cost function such that

the error between the wavetable output and an incom-

ing, periodic signal is minimized.

The ﬁrst step in the design of an AWO requires

the selection of an appropriate pattern. This pattern

should represent a high similarity with the signal pat-

tern to be extracted and is stored in a wavetable as

numerical, digital information. With respect to the

above consideration, we use the energy distribution

of the glottic excitation envelope as input (see Fig-

ure 1 (b)) and a Gaussian function as wavetable pat-

tern. As one can observe, the envelope of energy dur-

ing glottal patterns of the excitation signal has a high

similarity with a Gaussian shape. A Gaussian func-

tion is easily controllable with only a few parameters

such as a time index n, a phase offset in samples β and

a temporal width σ:

w(n) = e

−

(n−β)

(1)

Cyclic sampling is used to generate a periodical ref-

erence signal v(n):

v(n) = w(k(n) mod N) (2)

where k(n) is the cyclic sampling index

k(n) = (k(n − 1) + α) mod N (3)

k(0) is initialized to 0, x mod N is the remainder op-

erator, and α is the sampling step determining the

sub-sampling rate of the wavetable pattern. The con-

trol parameters of the periodic output of Equation 1

are adaptively updated by using well understood gra-

dient techniques (Haykin, 2001). The output of the

wavetable oscillator thus is locked to the input sig-

nal and the parameter α is related to the fundamen-

tal frequency of the alaryngeal excitation signal by

α/(NT

), with T

being the sampling period. The

phase depends on the offset β of the sampling in-

dex. The adaption of the indexing parameters is

achieved by minimizing a well deﬁned cost function

that gauges the error between the wavetable output

and an incoming, periodic signal:

J(n) = s(n)v(n) (4)

where s(n) is the envelope of the extracted speech ex-

citation signal.

Assuming that the phase and frequency of the in-

put signal vary slowly over time one can follow these

changes by moving the argument of the cost function

slowly into the direction of the derivative:

α(n + 1) = α(n) + µ

∂J

∂α



α=α(n)

(5)

and

β(n + 1) = β(n) + µ

∂J

∂β



β=β(n)

(6)

It can be easily seen that the gradients

∂J

∂α

and

∂J

∂β

are

similar up to a constant.

∂J

∂x

∂J

∂w

∂x

(7)

Indeed, they include the partial derivative of w, which

is typically stored in a wavetable of N samples to min-

imize the computational load. The learning gains µ

and µ

should be chosen such that the oscillator can

change rapidly enough to follow changes in the fun-

damental frequency and minimize noise inﬂuences.

Since the adaptation of the frequency is much more

sensible than that of the phase, µ

should be much

smaller than µ

In (Schleusing et al., 2009) the AWO method was

compared to several other methods such as the cor-

relation method and the matched ﬁlter method. In

an objective performance evaluation on synthetic and

healthy speech signals with different amounts of ad-

ditive white Gaussian noise (AWGN, ranging from

20dB to 0dB), the pitch estimation performance of

the AWO method performed similar or better than the

other methods. In a second, subjective evaluation, the

methods were compared by reconstructing long-term

trends of the fundamental frequency in an alaryngeal

speech signal to a level, where the pitch quality is

rated by listeners between fair and good. The perfor-

mance of the AWO method was comparable to that of

the other methods. Moreover, the AWO method has a

very low computational complexity, which makes it a

an ideal candidate for the proposed real-time speech

restoration device.

3.3 Middle- and Short-Term Pitch

Restoration

Middle-term pitch variability f

0,MT

is restored by ex-

ploiting the correlation between pitch and the signal

envelope at this time scale. It was shown that prosody

is strongly related not only to variations in pitch, but

also to variations in the intensity of the speech sig-

nal (Rosenberg and Hirschberg, 2006). As can be ob-

served in Figure 3, variations in the f

are directly

DEVICE FOR PROSODIC SPEECH RESTORATION - A Multi-Resolution Approach for Glottal Excitation Restoration

Figure 3: Correlation between speech signal envelope and

pitch in a healthy speech signal.

related to variations of the signal envelope. In healthy

speakers the f

-variations may span several octaves,

but pathological speakers have lost much of the abil-

ity to variate the fundamental frequency . Neverthe-

less, modulations of the intensity of the speech signal

may allow a reconstruction of the f

-variability due to

their tight correlation. The key point of the presented

method is to infer variations in pitch from variations

in the signal envelope of the alaryngeal speech signal.

Therefore, the segmental signal envelope is bandpass-

ﬁltered (2−8 Hz) and then used to restore the middle-

term pitch variability. This will give the pathological

speaker a means to intuitively manipulate the pitch of

the restored speech signal by manipulating the inten-

sity of its speech.

Short-term pitch variability f

0,ST

is induced

through high-pass-ﬁltered ( f

= 8 Hz) and weighted

additive white Gaussian noise (AWGN). The weight-

ing of this AWGN is determined through a signal-

envelope-dependent nonlinear weighting inspired by

recent ﬁndings in healthy subjects (Brockmann et al.,

2008). In healthy voices, jitter in f

was found

to be constantly low at sound pressure levels above

70 − 75 dB. Below this level though, jitter was found

to steadily and sharply increase with falling sound

pressure levels. We model this non-linear behavior

with a piecewise linear function.

env

(n)) =











0.1 if s

env

(n) ≥ u

0.1 + 0.9

u−s

env

(n)

u−l

if u > s

env

(n) > l

1 if l ≥ s

env

(n)

(8)

where s

env

(n) is the logarithm of the averaged instan-

taneous signal envelope normalized with respect to

the given acoustical conﬁguration, u and l have been

adjusted with respect to subjective listening tests.

4 RESULTS

An evaluation was performed to assess the successful

restoration of authentic characteristics from patholog-

ical speech to a higher quality. A sustained sound of

a vowel a of a pathological, male speaker with vary-

ing pitch was recorded at a sampling rate of 8kHz and

16 bits quantization. The speech signal was restored

using the method as described in 3.1, implemented by

the authors in the Matlab programming language (The

Mathworks, 2006). Seven amateur listeners quanti-

ﬁed the performance in terms of prosody and breath-

iness using a mean opinion score (MOS) by listen-

ing to the restored speech signals using consumer

headphones. The relative contributions of short-term,

middle-term and long-term pitch variabilities to the

improved speech quality were assessed using three

different system conﬁgurations. The pitch was re-

stored from:

• LT: long-term pitch variability alone

• LT-MT: long-term pitch variability and middle-

term variability of the signal envelope

• MR: multi-resolution approach, the long-term

pitch variability, the middle-term variability of the

signal envelope as well as the short-term variation

of successive glottal waves.

The results displayed in Table 1 show that the

proposed restoration approach improves performance

with respect to both criteria. The contribution of the

-variability restored at the middle-term scale ap-

pears to be most signiﬁcant (1.1 points compared to

0.1 points long-term variability alone). This seems

to emphasize our assumption that signal energy vari-

ations at the middle-term scale can contribute to the

restoration of prosody. The contribution of the MR

approach yields no signiﬁcant improvement to the

perceived prosody. The high amount of standard de-

viation and the relatively small amount of listeners

prohibits to draw general conclusions. Nevertheless,

a positive trend can be recognized. Regarding the

breathiness of the restored voice, a clear improvement

(1.0 to 1.4 points) in all voices can be observed. For

voices restored with the MR approach, the additional

short-term variability seems to imply a degradation in

term of increased breathiness. This could be due to

the fact that short-term variability is related to the jit-

ter of speech. Indeed, jitter may be perceived as a de-

sired feature at a very low intensity level but becomes

certainly harmful over a given threshold. This thresh-

old depends on the subject’s idiosynchrasies and may

be adjusted to the laryngectomee’s desire. We suggest

that a more carefully designed non-linear model for

the short-time variability contribution or a spectrally

BIODEVICES 2010 - International Conference on Biomedical Electronics and Devices

Table 1: Mean Opinion Score (mean ± standard devia-

tion) of 12 listeners assessing the quality of 3 different re-

stored voices. Applied MOS-scale: highly improved-1, no

improvement-3, highly degraded-5.

Method Improved Feature

Prosody Breathiness

LT 2.9 ± 0.7 1.7 ± 0.8

LT+MT 1.9 ± 0.7 1.6 ± 0.5

MR 2.0 ± 1.2 2.0 ± 1.2

shaped noise instead of the AWGN may reduce this

undesired effect of the short-time pitch variability.

5 CONCLUSIONS

We presented a device for the restoration of authen-

tic features in pathological voices. We have shown

that the different methods utilized by the device can

improve the prosody and breathiness of pathologi-

cal voices to a different extent. Clearly, the study

is limited by the small number of listeners and the

small number of signals that the methods were ap-

plied to. Another limitation is the requirement of a

relatively well developed pathological voice. In or-

der to make the technology available for patholog-

ical speakers with less developed voices, additional

signals have to be employed in future investigations.

Nevertheless, the principal capability of the multi-

resolution voice restoration device has been shown.

REFERENCES

Arora, R. and Sethares, W. A. (2007). Adaptive wavetable

oscillators. IEEE Trans. on Signal Processing, 55

(9):4382–4392.

Bi, N. and Qi, Y. (1997). Application of speech conversion

to alaryngeal speech enhancement. IEEE Transac-

tions on Speech and Audio Processing, 5(2):97–105.

Brockmann, M., Storck, C., Carding, P., and Drinnan, M.

(2008). Voice loudness and gender effects on jitter

and shimmer in healthy adults. Journal of Speech,

Language and Hearing Research, 51:1152–1160.

del Pozo, A. and Young, S. (2006). Continuous tracheoe-

sophageal speech repair. EUSIPCO.

Fant, G. (1981). The source ﬁlter concept in voice produc-

tion. STL-QPSR, 22:21–37.

Gerhard, D. (2003). Pitch extraction and fundamental fre-

quency: History and current techniques. Technical re-

port, University of Regina, CA.

Haykin, S. (2001). Adaptive Filter Theory. Prentice Hall.

Kasuya, H., Ogawa, S., Kikuchi, Y., and Ebihara, S. (1986).

An acoustic analysis of pathological voice and its

application to the evaluation of laryngeal pathology.

Speech Communication, 5 (2):171–181.

Mitev, P. and Hadjitodorov, S. (2003). Fundamental fre-

quency estimation of voice of patients with laryngeal

disorders. Information Sciences, 156 (1-2):3–19.

Moerman, M., Pieters, G., Martens, J., van der Borgt, M.,

and Dejonckere, P. (2004). Objective evaluation of

quality of substitution voices. Eur Arch Otorhino-

laryngol, 261:541–547.

Most, T., Tobin, Y., and Mimran, R. (2000). Acoustic and

perceptual characteristics of esophageal and tracheoe-

sophageal speech production. Journal of Communica-

tion Disorders, 33(2):165–180.

Murakami, T. and Ishida, Y. (2001). Fundamental frequency

estimation of speech signals using music algorithm.

Acoust. Sci. Technol., 22 (4):293–297.

Pindzola, R. and Cain, B. (1988). Acceptability ratings of

tracheoesophageal speech. Laryngoscope, 98(4):394–

397.

Qi, Y., Weinberg, B., and Bi, N. (1995). Enhancement of

female esophageal and tracheoesophageal speech. J.

Acoust. Soc. of America, 98(5 Pt 1):2461–2465.

Rosenberg, A. and Hirschberg, J. (2006). On the correla-

tion between energy and pitch accent in read english

speech. Interspeech, 1294-Mon2A3O.2.

Schleusing, O., Vetter, R., Renevey, P., Krauss, J., Reale, F.,

Schweizer, V., and Vesin, J.-M. (2009). Restoration

of authentic features in tracheoesophageal speech by

a multi-resolution approach. Proc. of SPPRA 2009,

pages 643–042.

The Mathworks (2006). Matlab 2006b.

Turin, G. L. (1960). An introduction to matched ﬁlters. IRE

Transactions on Information Theory, 6 (3):311–329.

Un, C. and Yang, S. (1977). A pitch extraction algorithm

based on lpc inverse ﬁltering. IEEE Trans. ASSP,

25:378–389.

van As, C. (2001). Tracheoesophageal Speech: A multi-

dimensional assessment of voice quality. PhD thesis,

University of Amsterdam.

Verma, A. and Kumar, A. (2005). Introducing roughness in

individuality transformation through jitter modelling

and modiﬁcation. ICASSP, 1:5–8.

Vetter, R., Cornuz, J., Vuadens, P., Sola, I., and Renevey,

P. (2006). Method and system for converting voice.

European Patent. EP1710788.

Weinberg, B. (1986). Laryngectomee Rehabilitation, chap-

ter Acoustical properties of esophageal and tracheoe-

sophageal speech, pages 113–127. College-Hill Press,

San Diego, CA.

Williams, S. and Barber Watson, J. (1987). Speaking pro-

ﬁciency variations according to method of alaryngeal

voicing. Laryngoscope, 97(6):737–739.

DEVICE FOR PROSODIC SPEECH RESTORATION - A Multi-Resolution Approach for Glottal Excitation Restoration
