FROM LEGISLATION TO PRACTICE

A Case Study of Break the Glass in Healthcare

P. Farinha, R. Cruz-Correia

CINTESIS – Centre for Research in Health Technologies and Information Systems, Faculty of Medicine, Porto, Portugal

L. Antunes

Instituto de Telecomunicações, Faculty of Science, Porto, Portugal

Filipe Almeida

Comissão de Ética para a Saúde, Hospital S. João, Porto, Portugal

A. Ferreira

CINTESIS – Centre for Research in Health Technologies and Information Systems, Faculty of Medicine, Porto, Portugal

Keywords: Healthcare legislation, Access control, Break the glass.

Abstract: Recommendations and regulations are available in healthcare to protect sensitive medical information.

These regulations tend to be generic and orient attitudes within the medical practice and are usually not

straightforward to be translated into practice. The main objective of this paper is to present the

implementation of the Break the Glass (BTG) concept in a real healthcare setting in order to enforce the

legislation for genetic information and evaluate the process of translating legislation into the healthcare

practice. The user logs were analysed to assess if the BTG system was working as expected, providing

genetic information confidentiality, as well as if the legislation was being enforced in a controlled and

responsible manner. Results show that the process to translate legislation into practice could be faster and

more efficient. User logs show that in terms of confidentiality the BTG features prevent more non

authorised people from accessing genetic reports. We expect the tendency to be that only users who really

need to access the reports will go through with the process of BTG. Enhancements to the system include the

implementation of the access control management infrastructure within a more robust access control

platform to perform the authentication and authorization processes.

1 INTRODUCTION

Recommendations and regulations are available in

healthcare to protect sensitive medical information

and to guarantee that this type of information is only

accessed and used in specific and justified contexts

(CdMaÉ, 1997) (CoE-Co. 2004). These regulations

tend to be generic and orient attitudes within the

medical practice. However, is not straightforward to

translate these orientations into practice. Many times

this is not even possible. Research shows that

excessive regulation can actually create a barrier that

physicians have to surmount when treating patients

(Ross-Lee et al, 2004). Nevertheless, means need to

be put into place to make that translation possible so

that confidentiality of medical information –

prevention of unauthorized access – is provided.

As an important support tool for consultation,

diagnosis and integration of heterogeneous

information from different places, the Electronic

Medical Record (EMR) (Waegemann, 2003) (Cruz-

Correia et al, 2005) stresses even more the need for

confidentiality and access control. However, security

must not constitute a barrier for a successful use and

integration of EMR into the medical practice but

allow for a controlled yet transparent way of doing

it. With this in view, an EMR was developed and is

in use since 2004 at the 2

biggest hospital in

114

Farinha P., Cruz-Correia R., Antunes L., Almeida F. and Ferreira A. (2010).

FROM LEGISLATION TO PRACTICE - A Case Study of Break the Glass in Healthcare.

In Proceedings of the Third International Conference on Health Informatics, pages 114-120

DOI: 10.5220/0002748201140120

 SciTePress

Portugal – the Hospital S. João (HSJ) - (Cruz-

Correia et al, 2005) (Ferreira et al, 2004). As there

was also the need to provide for an access control

management platform for the EMR, the webcare

platform was developed for this purpose (Farinha et

al, 2006). This platform is based on the role-based

access control model - RBAC (Ferraiolo et al, 2001)

and helps to perform, in an easy and flexible way,

the most basic administrative access control actions.

However, this is not enough in such a hectic

environment. More flexible access control policies

are required not only to improve EMR efficiency but

also to enforce the legislation related to genetic

information (Lei, 2005). This is a Portuguese

legislation and defines how genetic information

must be protected, and what and how healthcare

professionals are authorized to access it during the

course of their work.

In order to do this in a flexible way the

information is restricted to an authorized group of

healthcare professionals previously defined.

However, this access is not entirely denied to all the

other healthcare professionals that may need to

access this information in emergency situations, but

in a controlled way (Rissanen et al, 2004) (Povey,

2000) (Ferreira et al, 2006) (Break-Glass, 2004). We

designated this access by Break the Glass (BTG).

The idea is that healthcare professionals are warned

they are not authorized to access that information,

but if it is an emergency, they can still access it

knowing that they will have to justify and face the

consequences later.

The main objective of this paper is to present

the implementation of the BTG concept in a real

healthcare setting in order to enforce the legislation

for genetic information. Further, we evaluate in

generic terms the process of translating legislation

into the healthcare practice and the impact of BTG

use within the same practice.

2 BACKGROUND

The core of the EMR system is composed by three

modules (VIZ – Viewing modules, MAID - Multi-

Agent system for Integration of Data and CRep –

Central repository) which are presented in Figure 1.

MAID collects clinical reports from various hospital

departments (e.g. DIS A and DIS B), and stores

them on a central repository (CRep) consisting of a

database holding references to these resports. After

searching the database, the users can access the

integrated data of a particular patient through a web-

based interface (VIZ). When selecting a specific

report, its content is downloaded from the central

repository file system to the browser.

Figure 1: Architecture of the EMR system showing the

MAID, the VIZ and the CRep modules.

In order for the access control management

platform, the webcare, to be implemented it is

necessary an authentication procedure where the

user is uniquely identified and associated with his

profile according to the role or groups where he

belongs (i.e. privileges and permissions).

To associate this profile to the user, an

infrastructure to model the relationships between all

the identities that integrate the RBAC model,

including exceptions (accesses with more or less

privileges that are related to specific users and not

only their roles or groups), was created (see Fig. 2).

Figure 2: Entity-relation model for the access control

platform.

This infrastructure includes entities such as users,

roles (which can include subroles), resources, access

levels, actions, projects, the entity that includes the

privileges and connects all of them (return_profile),

and also the entity that does the same for the

exception rules (return_exceptions). This model

implements all the necessary structure as well as the

exceptions needed to generate the profile for a

specific user at the time he/she authenticates to the

system. To retrieve all this information there is a

centralized feature, a procedure, to search the whole

structure and collect all the privileges associated to

the user.

FROM LEGISLATION TO PRACTICE - A Case Study of Break the Glass in Healthcare

115

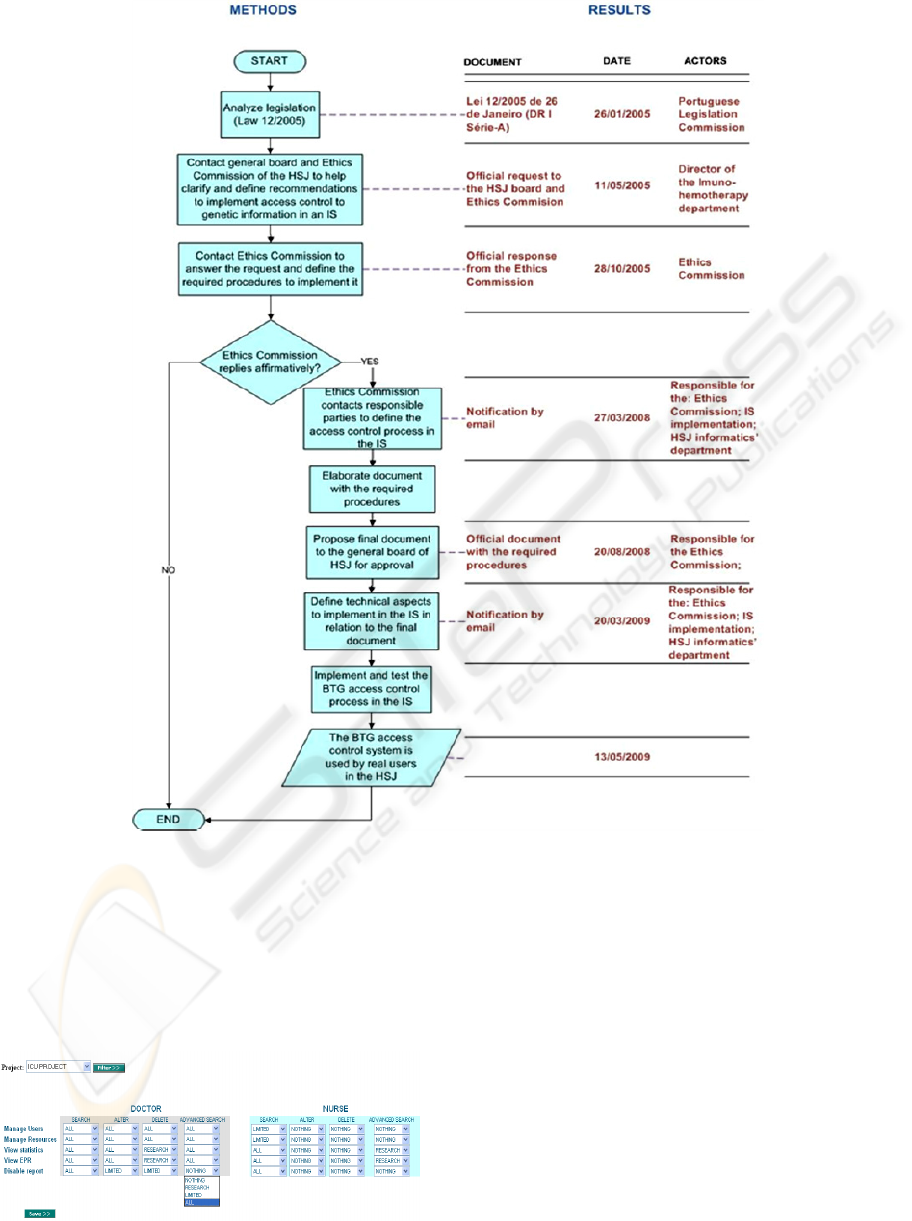

Figure 3: Methods and results from legislation to practice.

All accesses are registered in a specific database

structure, separate from the one above. It registers

the user, date and time and also the errors that may

occur during this process. This is easy to do because

the procedure itself can generate exceptions and

insert error information according to the failed

action.

Figure 4: Access control management platform.

As this platform does not handle BTG accesses

some changes needed to be made. These changes are

presented in Section 4.

3 METHODS

Figure 3 presents the methodology used to define

and implement the BTG access control engine from

legislation to practice.

After the implementation the user logs were

analysed so that we could assess if the BTG system

was working as expected and if legislation was

being enforced in a controlled and responsible

manner. We also wanted to evaluate the impact that

HEALTHINF 2010 - International Conference on Health Informatics

116

the BTG systems had on the protection of

confidentiality of patient genetic information.

We did this by analysing logs where users tried

to access patient reports that contained genetic

information. Similar time periods were compared:

the 3 months of BTG access control features usage,

by real users, on a real setting with the same period

of time on the previous year, where no BTG features

were available.

4 RESULTS

4.1 From Legislation to Practice

The necessary steps for a user to perform BTG

within the presented EMR system are the following

(see Figure 5):

1. The healthcare professional tries to access a

patient report within the EMR application

and that report contains genetic information.

2. The webcare platform validates the

healthcare professionals’ credentials.

3. The webcare platform checks within the

database if the pair login/password is correct.

(In the case where the authentication fails, a reject

message is sent from the application to the user and

the request terminates here; if the user is privileged

and can access directly the required report than the

process is done normally)

Figure 3 presents the results from each step of the

applied methodology described in the previous

section.

4.2 BTG Implementation

4. The webcare platform sends back the user

profile that states if the user can BTG or not to

the EMR application.

5. The EMR application asks the healthcare

professional if he/she wants to BTG on that

report, warning about the consequences of

doing that (see Figure 6).

6. If the user chooses to BTG (giving a reason

for it) he/she just needs to press the

appropriate button within the shown interface

(see Figure 6).

7. The EMR application makes the requested

operation to get the report.

8. The report is given to the EMR application.

9. The EMR application shows the report to the

healthcare professional.

Figure 5: BTG steps.

Once the user chooses a report that contains genetic

information, several actions are registered so that the

user is accountable for it afterwards. The system

registers if the user just made a mistake, whether

he/she carries on the BTG procedure or not, and if

so, registering the reason he/she gives to do it.

Several procedures were altered within the

webcare platform in order to do this. These included:

• The creation of a new group of users (11

medical doctors) that comprise the healthcare

professionals that are authorized to access

patient reports that contain genetic information,

according to the Ethics Commission official

document;

• The creation of a new table within the database

(BTG audit table) in order to register

information about who is trying to access

patient reports that contain genetic information

(Table 1);

Table 1: Database table to audit user actions regarding

BTG accesses.

Campo Tipo Descricao

Id Number Unique identifier (primary key)

Timestamp Date

Date & time the BTG popup warning

occurred

Id_sessao Number Session identifier

Id_relatorio Number

Report identifier the user tried to Access

while BTG

Resposta Number

The final option chosen by the user (BTG

or not)

Motivo_opc Number The reason that was chosen for BTG

Motivo String

Reason described by the user for BTG

when the option “Other” is chosen

Besides Table 1, a new attribute was created within

another table that stores all the patient reports within

the database. This new attribute is a Boolean and is

named as “genetics”. It states whether the patient

report contains genetic information or not. This

information is registered automatically from the

moment the patient report is collected and stored in

the database.

FROM LEGISLATION TO PRACTICE - A Case Study of Break the Glass in Healthcare

117

Figure 6: BTG Interface.

Also, on a coding level, there was only the need to

introduce a condition that would check for each

user’s request of a report if that report contains

genetic information and if that user is a member of

the group of healthcare professionals that is

authorized to access these kind of reports. Each time

one of these reports is requested to be seen by the

healthcare professionals, a new record is inserted

within the BTG audit table with identifiers of the

report and the healthcare professional. All this is

registered whether the healthcare professional

chooses to go back, or if the user answers no or yes

to BTG.

All this information is summarized and sent to

the hierarchical superior of those users by email on a

weekly basis. This makes sure that proper

justification or any other disciplinary action can be

taken afterwards. It guarantees that BTG accesses

are properly controlled and taken responsibility for.

4.3 Results Before and After BTG

Implementation

The comparison period comprised 15 weeks of BTG

access control features usage on a real setting

(between the 13

of May 2009 and 26

of August

2009) with the same period of time on the previous

year, where no BTG features were available

(between the 13

May 2008 and 26

of August

2008).

The patient reports started to be tagged with a

genetic label (so that they could be identified) on the

27/11/2007, so we can only analyse the obtained

results based on the reports that were stored from

this day onwards. The number of genetic reports that

were marked at the date of 26/08/2008 is 1093,

while on the 26/08/2009 this number had risen to

3274 (2181 more in a year). To this same date the

total number of distinct users of the EMR system is

906.

Table 2: The percentage of accesses to reports containing

genetic information according to the total number of

genetic reports that was available before and after the

BTG system implementation, as well as the number of

distinct users that performed those accesses.

Accesses to reports containing genetic information

Before BTG After BTG

Total of collected genetic reports 1093 3274

% of accesses 21 14

Within authorization group

4 3

Not within authorization group

17 11

No of distinct users accessing 76 135

Within authorization group

4 5

Not within authorization group

72 130

HEALTHINF 2010 - International Conference on Health Informatics

118

After the BTG features started to be used (between

13/05/2009 and 26/08/2009) the total number of tries

to access genetic reports was 471, being 86 from

within the authorisation group while 385 from users

that are not normally authorized to access them.

Table 3 shows within this last number the actions the

users took once they were alerted they were not

authorised to access the report they requested.

Table 3: Number of BTG accesses made to patient reports

containing genetic information (from the users NOT

within the authorisation group).

BTG accesses to reports with genetic information

BTG NO BTG

No of accesses 208 (54%) 177 (46%)

No of distinct users 83 98

Within the 177 users that did not do BTG after

choosing to access a genetic report, 156 selected NO

to BTG while 21 closed the browser without further

action. From the 208 users that selected to perform

BTG, Table 4 describes the most common reasons

the users gave to justify their access.

Table 4: Most common reasons given by the users to

perform BTG (n=208).

Reasons to perform BTG %

I have urgency in seeing the requested information

although I’m not normally allowed to do it

50%

Write own reason 32%

I should belong to the group that can access genetic

information

18%

5 DISCUSSION

The healthcare legislation for genetic information

was published in January 2005 and its

implementation in practice took, on the whole, 4

years and 4 months (see Figure 7). The process took

more time in phases 3 & 4, which include the

definition of the regulatory (2 years and 5 months)

and technical specifications (1 year and 1 month).

Figure 7 presents the main phases of this process. In

all of the phases we believe is possible to fasten the

process.

Phases 1 & 2 are more logistic intensive and

therefore should be accomplished in a swifter

fashion.

Although being the hardest to do, we think that

phase 3 is the one that needs more attention. It

should be possible to fasten the process of

translating legislation into regulations that can be

Figure 7: Timeframe of the methodology from legislation

to practice.

implemented in an EMR. In addition, the definition

of what to implement can be faster if the meetings

with the technical people are made earlier in the

process. 4 years to enforce legislation is, in our

view, a long time. The institutions and systems must

be ready to do this in an easier and more efficient

way. We believe that the whole process could have

taken place in possibly half the time. This study

helped in identifying where the major problems can

be located and where improvements can be made.

Regarding the technical implementation of the

BTG concept, this was an easy and fast process

because it was integrated within an EMR platform

that was already in use in the healthcare practice and

was implemented in a modular and flexible way.

Only a few changes were needed to adopt the BTG

concept and this allowed for the long period spent in

defining the procedural regulations to be enforced,

to be shortened at this stage.

The results of implementing and using the BTG

features showed that there is a significant decrease

in the percentage of accesses to genetic reports when

the BTG features are available, even when the

number of genetic reports available are much higher

(almost triple). There is a similar decrease in non

authorized people accessing those reports. Further,

from the unauthorized users that tried to access

genetic reports, almost half of them decide not to go

through with it. This means that the BTG features

can filter these non authorized accesses that would

normally not be prevented. We expect that the

tendency will be that only users who really need to

access the reports will go through with the process

of BTG.

FROM LEGISLATION TO PRACTICE - A Case Study of Break the Glass in Healthcare

119

The most common reason given by the users that

perform BTG is that they have urgency to do it. This

reason needs to be more detailed. Also, the

justification process that happens afterwards needs

to complement the reasons given in an efficient and

coherent way.

Limitations for this study include the few data

that was available as the system had only been in use

in a real setting since May 2009 and the fact that

genetic reports were only identified from November

2007, when the EMR system has been in use since

October 2004. Moreover, the users of the system

still need to get familiar with this feature because in

the beginning they may think it is an application

error that does not let them access what they

normally did, and try it several times in a row. Also

to take into account is the fact that, at the moment,

only medical doctors are using the EMR system. Its

use will need to be more scrutinised when other

healthcare professionals will start accessing it as

well.

Future research to continue the improvement of

this BTG system includes a thorough analysis of the

justification process, to make sure accountability

really works. Another enhancement to this system

will be the implementation of the access control

model within a more robust access control platform

and not only the usage of a database to perform the

authentication and authorization process. Further, we

want to implement the BTG system into similar

domains that require BTG features to conform to

legislation, or any other regulations and needs, in

order to enhance the process from legislation to

practice.

REFERENCES

Break-glass: An approach to granting emergency access to

healthcare systems, 2004. White paper, Joint –

NEMA/COCIR/JIRA Security and Privacy Committee

(SPC).

Cruz-Correia R., Vieira-Marques P., Costa P., Ferreira A.,

Oliveira-Palhares E., Araújo F., et al., 2005.

Integration of Hospital data using Agent Technologies

– a case study. AICommunications special issue of

ECAI. 18(3):191-200.

Farinha P., Ferreira A., Cruz-Correia R., 2006. Gestão de

acessos e recursos para estudos clínicos multicêntricos

on-line. Actas da 1ª Conferência Ibérica de sistemas e

Tecnologia de Informação. 1: 631-640.

Ferraiolo, D. & Sandhu, R. & Gavrila, S. & Kuhn, R. &

Chandramouli, R. (2001). Proposed NIST Standard for

Role-based Access Control. ACM Transactions on

Information and systems security. 4(3):224-274.

Ferreira A., Cruz-Correia R., Costa-Pereira A., 2004.

Securing a Web-based EPR: An approach to secure a

centralized EPR within a hospital. Proceedings of the

6th International Conference on Enterprise

Information Systems. 3: 54-9.

Ferreira A., Cruz-Correia R., Antunes L., Farinha P.,

Oliveira-Palhares E., Chadwick D W., Costa-Pereira

A., 2006. How to break access control in a controlled

manner? Proceedings of the 19th IEEE Symposium on

Computer-Based Medical Systems. 847-851.

Lei nº 12/2005. Informação genética pessoal de saúde.

Membres CdMaÉ, 1997. Protection des Données

Médicales. Recommendation n° R (97) 5.

Ministers CoE-Co. 2004. On the impact of information

technologies on health care – the patient and Internet.

Recommendation Rec (2004) 17.

Povey D., 2000. Optimistic security: a new access control

paradigm. Proceedings of the 1999 workshop on New

security paradigms. ACM Press. 40-45.

Rissanen E., Firozabadi S., Sergot M., 2004. Towards a

Mechanism for Discretionary Overriding of Access

Control. Proceedings of the 12th International

Workshop on Security Protocols, Cambridge.

Ross-Lee B., Weiser M., 1994. Healthcare Regulation:

Past, present and future. JAOA – Healthcare policy.

94(1):74-84.

Waegemann C., 2003. EHR vs. CPR vs. EMR. Healthcare

Informatics online.

HEALTHINF 2010 - International Conference on Health Informatics

120
