INTEGRATION OF SMART USER INTERFACES IN THE

NAVIGATION SYSTEM OF POWERED WHEELCHAIRS

Cristina Carletti and Sauro Longhi

Dipartimento di Ingegneria Informatica, Gestionale e dell’Automazione

Universit´a Politecnica delle Marche, via Brecce Bianche, 60131 Ancona, Italy

Keywords:

Smart wheelchair, Rehabilitation robotics, Navigation system, Shared-control, Human machine interface.

Abstract:

This paper presents a navigation system that extends the use of Electric Powered Wheelchairs (EPWs) to

people with upper limbs impairments that prevent them the control of a traditional joystick-driven EPW. To

achieve this aim, an Automatic Speech Recognition (ASR) system and a Brain Computer Interface (BCI)

have been introduced to enable the user to asynchronously perform and send the control commands to the

navigation module, according to her/his limited residual capabilities. Moreover, a shared-control algorithm

has been developed to translate the user’s guidance wishes into directions of motion that maximize the security

and minimize the physical and cognitive effort for the user. A preliminary analysis of the proposed navigation

system showed satisfactory results in terms of security and fulﬁllment of the user wishes.

1 INTRODUCTION

The loss of mobility for an individual represents one

of the most severe obstacles for an independent life.

The Electric Powered Wheelchair (EPW) is an ef-

fective tool to augment the autonomy of people with

lower limbs impairments. Nevertheless, these devices

are useless for subjects who do not have a sufﬁcient

control of the upper limbs. In the last decade a large

number of research teams focused on how to extend

the use of EPWs to these users.

Two aspects of the problem can be considered.

The ﬁrst one regards the integration of commercial

wheelchairs with certain levels of intelligence and au-

tonomy to allow an easy, comfortable and safe nav-

igation, at least in an indoor environment. The ”in-

telligence” of the wheelchair is based on its capacity

to perceive its surroundings thanks to various sensors

such as ultrasonic or vision sensors. With these in-

formation the wheelchair can generate autonomous or

semi-autonomous motions (i.e. obstacle avoidance,

wall following) (G.Bourhis and Sahnoun, 2007).

The second aspect concerns the availability of Human

Machine Interfaces (HMIs) to enable the guidance of

an EPW in an asynchronous way without the use of

the upper limbs.

Regarding the ﬁrst aim, signiﬁcant research activities

have been developed, see, e.g. the VAHM project

(Bourhis and Pino, 1996), the NavChair assistive

wheelchair navigation system (Levine et al., 1999),

(Simpson and Levine, 1999), the Hephaestus smart

wheelchair (Simpson et al., 1999). These works pro-

vided commercially available EPWs with different

levels of autonomy to perform a safe navigation keep-

ing the user in the control loop. In all the above

smart wheelchairs autonomy and security aspects are

guaranteed by a set of sonar sensors. Different sen-

sor devices, such as vision systems, are also used

in the Wheelesley (Yanco, 1998), (Yanco and Gips,

1997) and TAO (T.Gomi and Grifﬁth, 1998) intelli-

gent wheelchairs.

Regarding the HMIs, many research activities in the

ﬁeld of Rehabilitation Engineering are involved to the

development of new augmentative communication

and control technology for people with severe dis-

abilities. Several solutions to replace a joystick-based

control of an EPW have been proposed. These involve

eye tracking systems (C.S.Lin et al., 2006), head ges-

ture analyzers (Hu et al., 2007), Automatic Speech

Recognition systems (ASRs)(Simpson and Levine,

2002), Brain Computer Interfaces (BCIs) (Mill´an,

2008). An ASR interface translates vocal words into

commands for the control of the device. Therefore,

it can be used even by quadriplegic subjects with a

121

Carletti C. and Longhi S. (2010).

INTEGRATION OF SMART USER INTERFACES IN THE NAVIGATION SYSTEM OF POWERED WHEELCHAIRS.

In Proceedings of the Third International Conference on Biomedical Electronics and Devices, pages 121-126

DOI: 10.5220/0002749301210126

 SciTePress

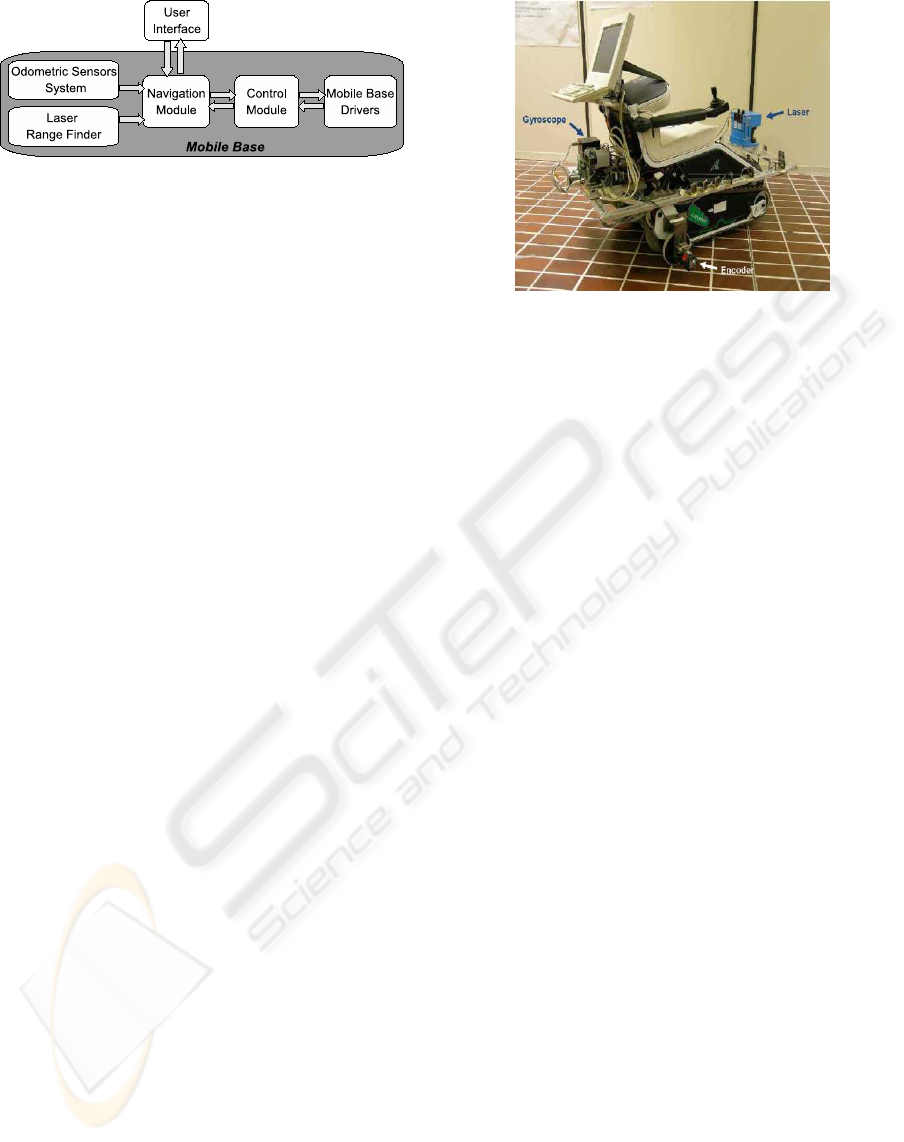

Figure 1: The architecture of the Navigation System.

residual capability of pronouncing a limited set of

words. Unfortunately, voice control has proven dif-

ﬁcult to implement within a standard EPW. The main

difﬁculties are the wrong recognition of the user’s

voice, the limited rate by which information can be

transmitted by voice, the reduced vocabulary and so

the reduced set of available guidance commands.

A BCI enables the communication between an in-

dividual and a computer through a conscious and

spontaneous modulation of the brainwaves (Mill´an

et al., 2004). It provides the user with new com-

munication and control ways that do not depend on

the brain’s normal output channels such as periph-

eral nerves and muscles (Wolpaw et al., 2002). After

a training period, even a completely paralyzed per-

son can write messages using a virtual keyboard on a

computer screen, browse the internet, operate simple

computer games and move a cursor. However, cur-

rent ElectroEncephaloGraph(EEG)-based BCIs are

not suitable for complex applications, i.e. controlling

a neuroprosthesis or driving an EPW, due to low infor-

mation transfer rates (Mill´an, 2008). In this context,

good results have been obtained using synchronous

P300-based BCIs (Iturrate et al., 2009), (Blatt et al.,

2008). The problem is harder when an asynchronous

motor imagery-based BCI is used because a very

small set of guidance commands is allowable. How-

ever, it has been shown that online EEG signal analy-

sis is sufﬁcient for humans to continuously control a

wheelchair, if combined with advanced robotics and

machine learning techniques (Mill´an et al., 2004).

The proposed navigation module implements a

shared-control algorithm which enables a safe guid-

ance with a reduced set of commands and with a low

transfer-rate. These features allow the integration in

the navigation system of usable HMIs like an ASR

and a BCI.

The paper is organized as follows. Section 2 de-

scribes the navigation system while the Section 3 in-

troduces the main features of the human-computer in-

terfaces integrated in it. The experimental and simu-

lation tests are discussed in Section 4.

Figure 2: TGR-Explorer with data acquisition system.

2 NAVIGATION SYSTEM

2.1 Architecture

The architecture of the proposed navigation system

is represented in Figure 1. The mobile base is the

TGR-Explorer (http://www.tgr.it), a joystick-driven

wheelchair successively equipped with a 100MHz

486-based computer and a sensor system (Figure 2).

Two incremental optical encoders aligned with the

axes of the driving wheels and a ﬁber optic gyro-

scope, mounted on the back of the vehicle compose

the dead-reckoning system. A laser range ﬁnder is

also present, for detecting obstacles in the surround-

ing environment. Data acquired by the sensor system

and the user command sent by the user interface mod-

ule are received by the navigation module and elabo-

rated in order to compute an obstacle-free direction of

movement. Finally, the control module translates the

control variables into low level instructions for the ac-

tuators of the driving wheels.

2.2 Map Building

A real time map building algorithm has been devel-

oped. It is based on the Histogramic In-Motion Map-

ping (HIMM) and modiﬁed to work with the laser

sensor instead of the traditional ring of ultrasonic sen-

sors. Following this approach, the environment is rep-

resented through a two-dimensional Histogram Grid.

Each cell of the grid is associated with a Certainty

Value (CV) which represents the conﬁdence in the ex-

istence of an obstacle at that location. The map is con-

tinuously updated by new sensor data while the robot

is moving. To reduce the computational cost, the map

updating involves only a reduced area (Active Region)

inside the measure range of the laser. This area is a

BIODEVICES 2010 - International Conference on Biomedical Electronics and Devices

122

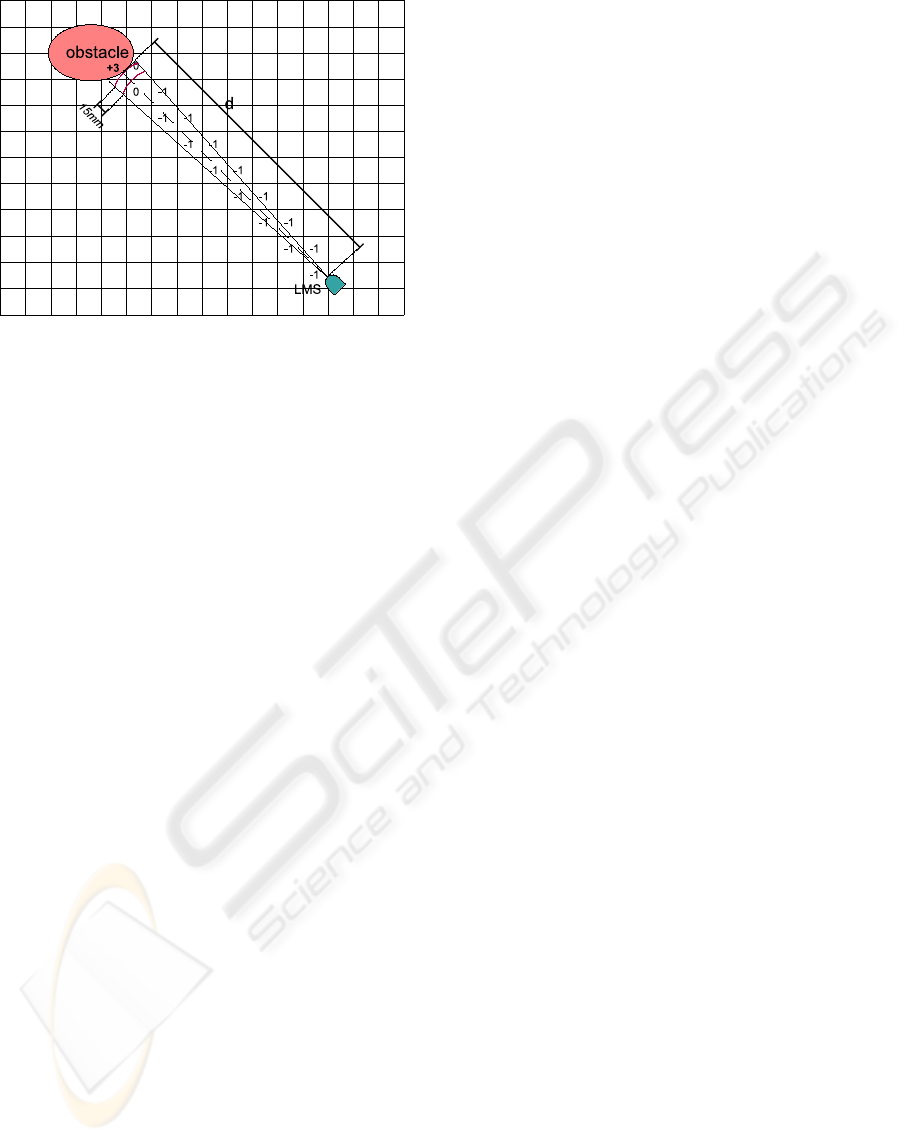

Figure 3: Histogramic Grid Update using a Laser Measure-

ment System (LSM).

semicircle of radius 3m centered at the actual posi-

tion of the laser. Moreover, inside the Active Region,

only the CV of the cells lying on the actual reading

axis of the sensor are updated. In particular, the CV

of the cell corresponding to the measured distance d

(d < 3m) is incremented, while the CV of the all cells

lying between the obstacle and the sensor (along the

central axis of the actual measure cone) is decreased.

As the measure cone of the laser is continuously and

rapidly sampled, a histogramic probability distribu-

tion is obtained, in which high CVs are associated

with cells close to the actual location of the obstacle.

Limiting the CV update to the cells along the central

axis of each measure cone, the HIMM procedure al-

lows a fast map-building that can be used for real-time

applications, i.e. real-time obstacle-avoidance proce-

dures.

Considering a laser scan angle equal to 180deg and a

sensor resolution of 1deg, we can assume to have 181

measure cones, much more than the typical number

of sensors composing a sonar system (16 or 24 typ-

ically). Moreover, as the amplitude of the light spot

is about 0.25deg, the measure cones are very narrow

comparing to the sonar ones, typically of 30deg. Con-

sequently, every measure cone can be approximate

with a line, corresponding to its central axis. The CV

range has been chosen varying from 0 to 15 and its

initial value has been ﬁxed as 7 for all cells in the

grid. It means that until the robot has no information

about the external environment, all the cells have the

same probability to be empty or occupied. As laser

data arrive, the CV of the cell corresponding to the

measure is increased by I

= +3 while the CVs of

the cells lying along the reading axis are decreased by

−

= −1. Finally, the CV of the cells adjacent to the

increased one are not modiﬁed. The reason is that the

maximum measure error for the laser is smaller than

15mm and the cell side is 50mm. Consequently, the

largest measure error could affect only the CV of the

neighboring cells. A schematic representation of this

procedure is shown in Figure 3. According to the ex-

perimental results, occupied cells do not signiﬁcantly

spread out during the robot movements in the pres-

ence of obstacles. This can be explained by the large

number of measurements available and the accuracy

of the laser. Moreover, due to the high angular res-

olution, the saturation of cells’ CV is reached in few

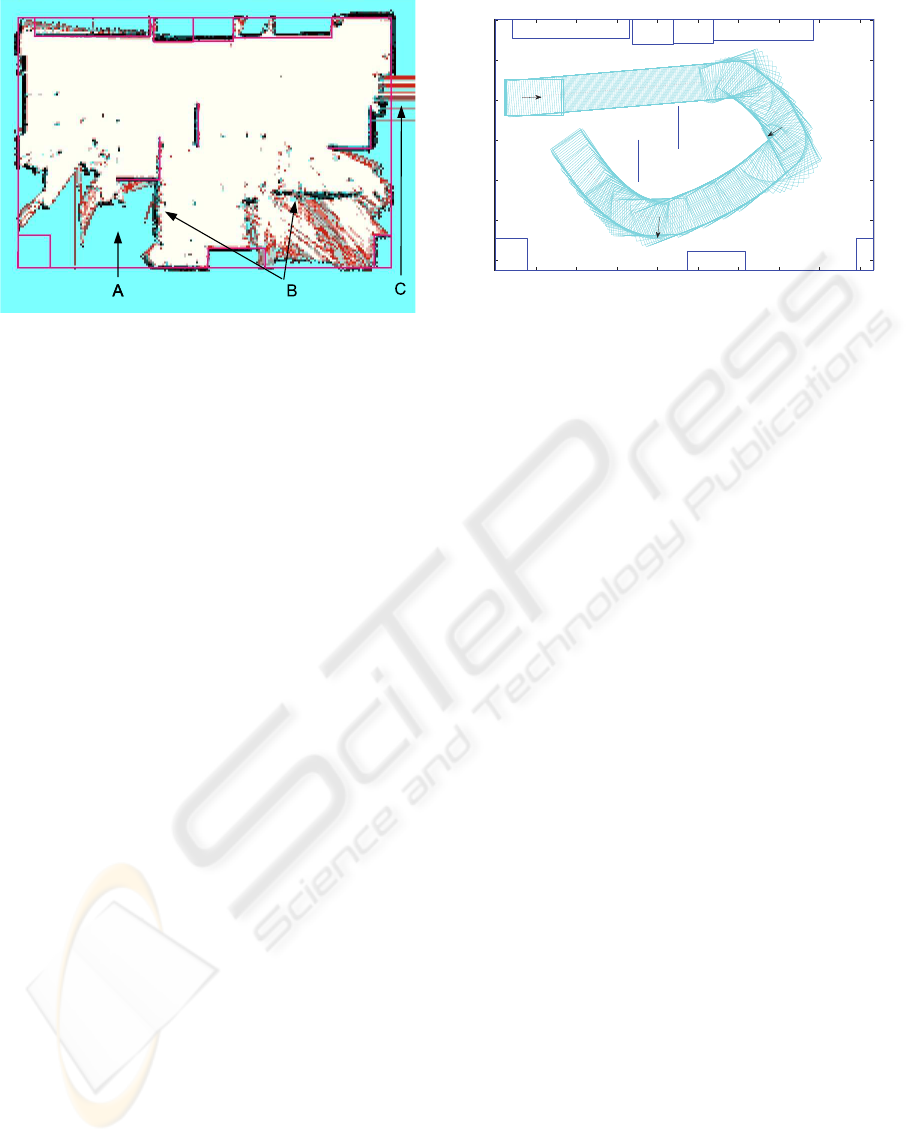

steps. The result is a very detailed map, as will be

described in the Section 4 and by the Figure 4.

2.3 The Autonomy Levels of the

Navigation Module

The deﬁnition of the right level of autonomy for a

navigation system is a critical aspect when the user

is within the control loop. A higher level of auton-

omy helps to reduce the user guidance effort and re-

quires a lower guidance skill. However, it bounds the

user control capability, leading to the feeling of losing

the vehicle control. Therefore, the right tradeoff be-

tween autonomy and control power is very important

for the acceptance of the system by the user and for

the adaptation to her/him residual capabilities. For

this reason, two levels of intelligence and autonomy

are developed.

In the ﬁrst one, the navigation module performs a sim-

ple ﬁltering of the user commands: if an obstacle is

detected inside a certain “security area”, the module

starts the Stop procedure decreasing the vehicle’s ve-

locity. If the system receives a new user command,

the feasibility of the new motion direction is evalu-

ated and, in case of positive result, the new command

is executed. Otherwise the vehicle is stopped until

a new user command arrives. The “security area” is

a cone-shaped portion of the environment in front of

the robot with opportunity dimensions to guarantee

the stop of the vehicle whatever manoeuvre it is exe-

cuting .

In the second level of autonomy, a VHF-based obsta-

cle avoidance algorithm (Bell et al., 1994) introduces

some local corrections on the user commands. If the

obstacle is detected inside the security area, a correc-

tion on the velocity and on the steering angle is au-

tomatically introduced. This correction is computed

considering the relative position of the detected ob-

stacle and the last user command.

INTEGRATION OF SMART USER INTERFACES IN THE NAVIGATION SYSTEM OF POWERED WHEELCHAIRS

123

3 HUMAN MACHINE

INTERFACE

The aim of the navigation system is to extend the use

of EPWs to people with severe upper limbs impair-

ments and even to those completely paralyzed. To

reach this goal, two human-machine interfaces are

considered: an Automatic Speech Recognition (ASP)

device and a Brain Computer Interface (BCI).

3.1 Automatic Speech Recognition

An automatic speech recognition (ASR) converts

acoustic signals emitted by an individual, into digi-

tal signals available for a computer.

ASR can be very helpful for users with disabil-

ities that preserve them for using a keyboard, a

mouse or a joystick. Unfortunately, voice control has

proven difﬁcult to implement within a standard power

wheelchair. The main difﬁculties concern with the

wrong recognition of the user’s voice, the limited rate

by which information can be transmitted by voice,

the reduced vocabulary and so the reduced set of

available guidance commands (Simpson and Levine,

2002). Moreover, the pronunciation of the same word

can change from user to user and even for the same

user in different time instants and/or operative condi-

tions.

In the developed ARS module, that has been inte-

grated with the navigation module, a reduced set of

guidance commands has been introduced and a low

transfer rate has been used. Speciﬁcally, only four

commands are available: they are “go forward”, “turn

right”, “turn left” and “stop”, associated to the words

“forward”, “right”, “left” and “stop” respectively. The

reversemotion is not implemented because no sensors

are present in the rear side of the vehicle.

The considered transfer rate is 0.5bit/sec. This chan-

nel capacity has been chosen according to the previ-

ous explanation and to the features of the BCI, as de-

scribed in the next subsection.

3.2 Brain Computer Interface

The Brain Computer Interface (BCI) provides user

with communication and control channels that do not

depend on the brains normal output channels such as

peripheral nerves and muscles (Wolpaw et al., 2002).

The device analyzes brain waves in order to deter-

mine the subjects’ mental task. The recognized men-

tal task is then mapped into actions such as commands

to move a mobile base. Different BCI implementa-

tions exist and they are differentiated with respect to:

the technique by which the brain waves are acquired

(invasive or non-invasive BCIs), the variety of brain-

wave phenomena considered (synchronous or asyn-

chronous protocols) and the classiﬁcation algorithms

developed (Lotte et al., 2007)

An EEG-based BCI is here considered. In an EEG-

based BCI, the brain electrophysiological signals are

recorded by electrodes on the user skin by a classical

EEG. These raw signals are ﬁrst processed in order to

extract some relevant features and then sent to a clas-

siﬁcation algorithm. This component allows to dis-

criminate which mental task the subject is performing

and associate it to a command for the external device.

Finally, a visual or acoustic or haptic feedback in-

forms the user about the mobile base’s state or the task

that it is about to be execute. The design of the present

navigation system takes into account a MAIA-like

BCI (MAIA: Mental Augmentation through Determi-

nation of Intended Action). In the following the prin-

cipal features are recalled (Mill´an et al., 2004).

• It is an asynchronous BCI based on the motor im-

agery. This means that the subject can issue com-

mands for the guidance of the vehicle at any mo-

ment and without waiting for the synchronization

with external cues.

• It is portable (only 8 electrodes are required for

the brain signals acquisition) and so it can be car-

ried on the mobile base.

• The statistical classiﬁer is able to discriminate

three mental tasks. The tasks are getting re-

laxed, imaging repetitive self-paced movements

of a limb, visualizing a spinning cube, perform-

ing successive elementary subtractions by a ﬁxed

number (e.g., 64− 3 = 61, 61− 3 = 58, etc.), and

concatenating related words. Among these tasks,

after an initial training period, the subject chooses

to work with the three mental tasks that s/he can

execute more easily.

• The bit rate is about 0.5bit/sec. By assuming to

digitalize each of the three commands with two

bits, only one command every 4sec is possible.

The navigation system provide the wheelchair

with the intelligence necessary to make up for the

lack of control due to the low channel capacity.

3.3 User Feedback

A video display is used to provide the user a visual

feedback. It is made of three different arrows corre-

sponding to the three possible directions of motion for

the mobile base. When the navigation system receives

the user command, the corresponding arrow is lighted

on the screen. This procedure gives a visual feedback

to the user about the command computation. More-

BIODEVICES 2010 - International Conference on Biomedical Electronics and Devices

124

Figure 4: Map built by laser range ﬁnder readings at the

end of the experimental test in an indoor environment. The

black lines represent real obstacles.

over, a ﬂashing arrow represents the movement that

the mobile base is executing. If an obstacle goes into

the security area and the previous movement sent by

the user becomes unsafe, the navigation system au-

tomatically changes the vehicle direction to a safer

one. In this case the ﬂashing arrow and the lighted

one will be different. This feedback allows the user

to distinguish between an error in the computation of

the command or to a safer manoeuvre performed by

the security module.

4 OPERATION DETAILS AND

EXPERIMENTAL RESULTS

Experimental tests with the TGR-Explorer were car-

ried out to evaluate the map building algorithm. Fig-

ure 4 represents a 9.33m x 6.25m room (straight ma-

genta/dark grey lines) and a laser map with squared

cells of 50mm x 50mm. The cyan/light grey regions

correspond to unexplored areas (A), holding a CV

equal to 7; the white parts correspond to empty cells,

which have a CV of 0; the black cells have a CV equal

to 15 and so they havea very high probability to be oc-

cupied. It can be noticed that all the obstacles reached

by the laser beam results modeled with high precision

also if they are not present in the a priori map (B).

Measure errors due to multiple light reﬂections into

narrow areas can be also noticed (C). The result is a

very detailed map.

Preliminary simulation tests have been performed

in order to evaluate the proposed navigation system.

Different obstacle conﬁgurations reproducing typical

domestic environments have been considered. In both

levels of autonomy, the angular width and the length

of the security area are 180deg and 3m, respectively.

0 1000 2000 3000 4000 5000 6000 7000 8000 9000

1000

2000

3000

4000

5000

6000

Right

Forward

Left

Figure 5: Simulation test in an environment crowded with

obstacles. The path performed by the wheelchair with the

second level of autonomy is depicted (clockwise direction

of motion). The arrows represent the directions chosen by

the user in the corresponding instant. The (blue) straight

lines reproduce the obstacles. The values are in millimeters.

Regarding the ﬁrst level, the navigation module acti-

vates the Stop procedure when an obstacle is detected

in the security area. If the user imposes a safe avoid-

ance manoeuvre before the Stop procedure is ﬁnished,

the navigation module does not stop the vehicle and

continues executing the user command.

At the second level of autonomy, the navigation mod-

ule introduces some corrections on the user com-

mands. A modiﬁed version of the obstacle avoidance

algorithm proposed in (Bell et al., 1994) was devel-

oped taking into account the limited set of guidance

commands and the low channel capacity, as described

in section 3. When an obstacle is detected in the se-

curity area, a correction on the steering angle is made

until the security area is free of obstacles and the

wheelchair speed is reduced using a linear function

of the imposed correction. In the Figure 5 a signiﬁ-

cant test is presented. The dotted line represents the

trajectory performed by the wheelchair with the sec-

ond level of autonomy as imposed by the navigation

module. The arrows represent the directions chosen

by the user. It can be noted that the navigation system

executes the user command only if this is safe, i.e. for

the Right command in the Figure 5. If the user com-

mands result unsafe, the navigation system introduces

corrections to them in order to guarantee a better se-

curity level for the vehicle, i.e. in the case of Forward

command at the beginning of the navigation and of

Left command in the second part of the navigation as

showed in the same Figure 5. The navigation module

maintains trajectory of the mobile base sufﬁciently far

from the wall and from all the obstacles.

INTEGRATION OF SMART USER INTERFACES IN THE NAVIGATION SYSTEM OF POWERED WHEELCHAIRS

125

5 CONCLUSIONS AND FUTURE

WORK

This paper describes a navigation system to extend

the use of commercial powered wheelchairs to people

with severe upper limbs disabilities.

Two user interfaces have been integrated into the re-

habilitation device, an Automatic Speech Recognition

program and a Brain Computer Interface, providing

the user with new useful channels for communication

and control.

A map building algorithm has been developedto work

with a laser range ﬁnder sensor. Experimental tests

performed in indoor environments have shown that

the algorithm is able to build in real-time a very de-

tailed map of the explored environment.

Different levels of autonomy for the navigation mod-

ule of the wheelchair have been developed taking into

account the limited set of commands and the low

channel transfer rate of the chosen interfaces. Pre-

liminary simulation tests of the developed navigation

procedure have shown that it is reliable and satisfac-

tory in terms of security and fulﬁllment of the user

wishes. The design of the navigation module has been

done by a modular architecture so that the adaptation

of the navigation system to different commercial pow-

ered wheelchairs should not be too expensive. It is

necessary to adapt just two modules: the control mod-

ule of the power electronics of the wheelchair elec-

tric drivers, and the guidance module of the obstacle

avoidance algorithm.

The analysis of the developed simulation tests has

speciﬁed the necessity of some technological im-

provements. Information about the environmentclose

to the lateral sides of the robot, not possible for the

frontal laser, could be useful to limit the manoeuvre

space and/or to enhance the security.

Moreover, an adaptive module could be introduced to

let the navigation closer to the user’s wishes.

These technical and methodological improvements

will be developed in further research activities in or-

der to improve the performance of the developed nav-

igation module in different indoor environments.

REFERENCES

Bell, D., Levine, S., Koren, Y., Jaros, L., and Borenstein,

J. (1994). Design criteria for obstacle avoidance in

a shared-control system. Proceedings of the RESNA

International Conference, pages 581–583.

Blatt, R., Ceriani, S., Seno, B. D., Fontana, G., Matteucci,

M., and Migliore, D. (2008). Brain control of a smart

wheelchair. Proceedings of the International Confer-

ence on Intelligent Autonomous System.

Bourhis, G. and Pino, P. (1996). Mobile robotics and mobil-

ity assistance for people with motor impairments: ra-

tional justiﬁcation for the vahm project. IEEE Trans-

actions on Rehabilitation Engineering, 4(1):7–12.

C.S.Lin, C.W.Ho, Chen, W., Chiu, C., and Yeh, M. (2006).

Powered wheelchair controlled by eye-tracking sys-

tem. Optica Applicata, 36(2-3):401–412.

G.Bourhis and Sahnoun, M. (2007). Assisted control mode

for a smart wheelchair. Proceedings of the Interna-

tional Conference on Rehabilitation Robotics.

Hu, H., Jia, P., Lu, T., and Yuan, K. (2007). Head ges-

ture recognition for hands-free control of an intelli-

gent wheelchair. Industrial Robot: An International

Journal, 34(1):60–68.

Iturrate, I., J.Antelis, Minguez, J., and A.Kubler (2009).

Non-invasive brain-actuated wheelchair based on a

p300 neurophysiological protocol and automated nav-

igation. IEEE Transactions on Robotics.

Levine, S. P., Bell, D. A., Jaros, L. A., Simpson, R. C., Ko-

ren, Y., and Borenstein, J. (1999). The navchair assis-

tive wheelchair navigation system. IEEE Transactions

on Rehabilitation Engineering, 7(4):443–451.

Lotte, F., Congedo, M., Lcuyer, A., Lamarche, F., and Ar-

naldi, B. (2007). A review of classiﬁcation algorithms

for eeg-based brain-computer interfaces. Journal of

Neural Engineering, 5(2):R1–R13.

Mill´an, J. (2008). Brain-controlled robots. IEEE Intelligent

Systems, 23:7476.

Mill´an, J., Renkensb, F., Mourioc, J., and Gerstnerb, W.

(2004). Non-invasive brain-actuated control of a mo-

bile robot by human eeg. IEEE Transactions on

Biomedical Engineering, 51(6):1026–1033.

Simpson, R. and Levine, S. (2002). Voice control of a pow-

ered wheelchair. IEEE Transactions on Neural Sys-

tems and Rehabilitation Engineering, 10(2):122–125.

Simpson, R., Poirot, D., and Baxter, M. F. (1999). Evalua-

tion of the hephaestus smart wheelchair system. Pro-

ceedings of the International Conference on Rehabili-

tation Robotics, ICORR’99, pages 99–105.

Simpson, R. C. and Levine, S. P. (1999). Automatic adap-

tation in the navchair assistive wheelchair navigation

system. IEEE Transactions on Rehabilitation Engi-

neering, 7(4):452–463.

T.Gomi and Grifﬁth, A. (1998). Developing intelligent

wheelchairs for the handicapped. Assistive Technol-

ogy and Artiﬁcial Intelligence, 1458:151–178.

Wolpaw, J., Birbaumer, N., McFarland, D., Pfurtscheller,

G., and Vaughan, T. (2002). Brain-computer inter-

faces for communication and control. Clinical Neuro-

physiology, 113:767–791.

Yanco, H. (1998). Wheelesley: A robotic wheelchair sys-

tem: Indoor navigation and user interface. Assistive

Technology and Artiﬁcial Intelligence, 1458:256–268.

Yanco, H. and Gips, J. (1997). Preliminary investiga-

tion of a semi-autonomous robotic wheelchair direct

through electrodes. Proced. of the Rehabilitation En-

gineering Society of North America Annual Confer-

ence, RESNA Press:141–146.

BIODEVICES 2010 - International Conference on Biomedical Electronics and Devices

126
