QUERY-BY-EMOTION SKETCH FOR LOCAL

EMOTION-BASED IMAGE RETRIEVAL

Young-Chang Lee

Department of Industrial Design, Yeungnam University, Gyeongsang-do, Korea

Kyoung-Mi Lee

Department of Computer Science, Duksung Women’s University, Seoul, Korea

Keywords: Image retrieval, Emotion, Color sketch, Content-based retrieval, Semantic-based retrieval.

Abstract: This paper has proposed an image retrieval system by using an emotion sketch in order to retrieve images

that locally hold different emotions. The proposed image retrieval system divides an image into the 17×17

non-overlapping sub-areas. In order to extract the emotion features in sub-areas, the proposed system has

used the emotion colors that correspond to the 160 emotion words that suggested by the color imaging chart

of H. Nagumo. By calculating the distribution of emotion colors corresponding to the emotion words from

the sub-areas, the system takes the emotion word that holds the largest value among the histogram values of

the emotion words of each sub-area. The image retrieval system with using the proposed emotion sketch

query has demonstrated excellent retrieval precision and recall functions that are better than the global

approach by evaluating the validity of the Corel database.

1 INTRODUCTION

The content-based image retrieval system retrieves

the images of similar features by analyzing the

images and extracting the features (Marsicoi et. al,

1997; Yoshitaka and Ichikawa, 1999). However, the

degree of awareness in understanding the images

may vary from person to person. Moreover, a

difference exists between the content representation

of images and the semantic requirements of users.

Accordingly, many studies have been recently

conducted in relation to the semantics-based image

retrieval system that detects the semantic

representation of images and retrieves the similar

images to the semantic requirements of users (Wang

and He, 2008). Such semantics-based image

retrieval system needs the following technologies

(Wang, 2001):

● a function that can automatically extract the

semantic representation of image data,

● an interface that can accurately obtain the

semantic query request of users, and

● a method that can quantitatively compare the

semantic similarities between two images.

The emotional expression of an image refers to

the highest level of semantic expressions, and is

expressed in emotional word-like adjectives. In

1998, Japanese researchers attempted to use Kansei

information to build image retrieval systems with

impression words (Yoshida et. al, 1998). Kansei is a

Japanese word for emotional semantics. Colombo et

al. in Italy proposed an innovative method to get

high-level representation of art images, which could

deduce emotional semantics that consist of action,

relaxation, joy and uneasiness (Colombo et. al,

1999). K.-M. Lee et al. have proposed the emotion

retrieval of textile images by using 160 emotional

words that are presented by the color image chart

(Lee et. al, 2008).

As for the studies of emotion-based image

retrieval systems as in the above, most of emotion

retrieval systems have used a global approach that

extracts the emotion of entire images. However, this

global approach is not appropriate to extracting the

meaning of images that locally hold different

emotions. Figure 1 shows part of the retrieved result

by using the global emotion that’s referred to as the

emotion word ‘sweet.’ Although these images

globally hold the ‘sweet’ features, the meaning of

images can vary by how and where the ‘sweet’

features are distributed. On the other hand, since the

644

Lee Y. and Lee K. (2010).

QUERY-BY-EMOTION SKETCH FOR LOCAL EMOTION-BASED IMAGE RETRIEVAL.

In Proceedings of the 2nd International Conference on Agents and Artiﬁcial Intelligence - Artiﬁcial Intelligence, pages 644-647

DOI: 10.5220/0002761106440647

 SciTePress

local approach extracts the features of each sub-area

within the image, it is appropriate to more accurately

retrieve the desired emotion image by user.

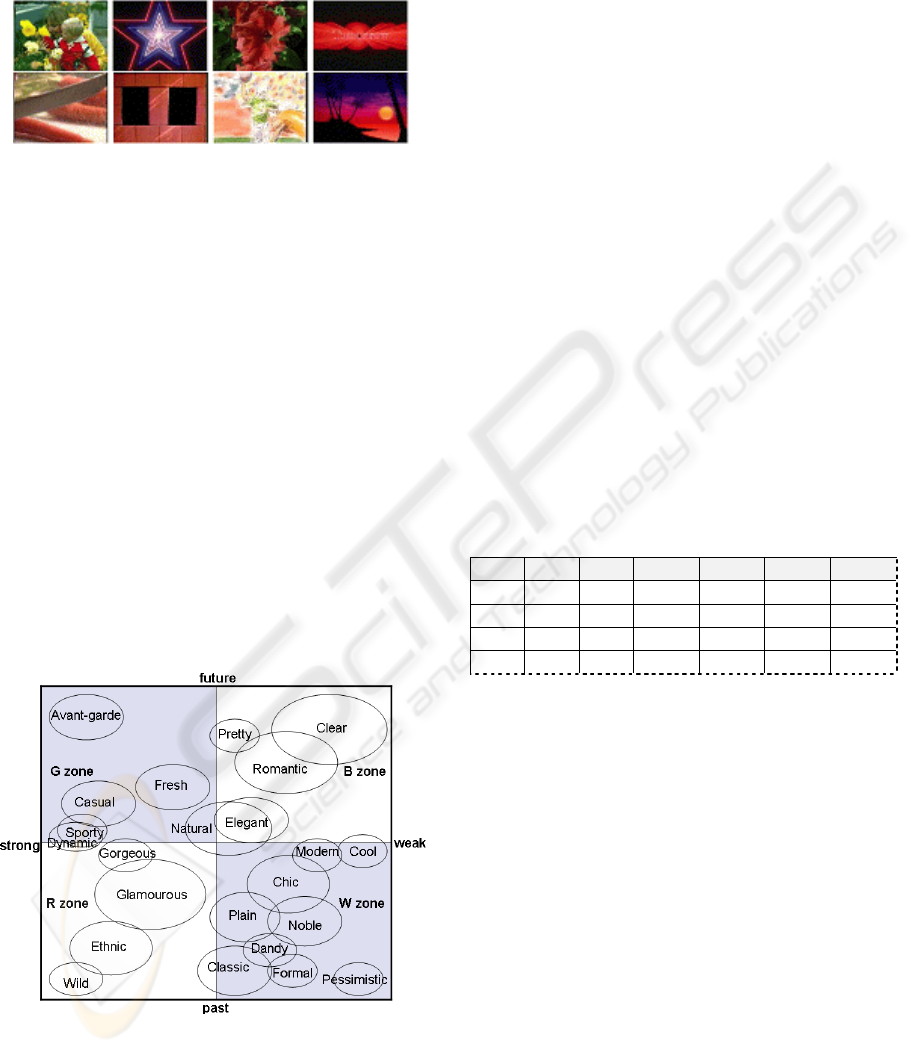

Figure 1: Retrieved results by a global approach: ‘sweet’.

In order to resolve this problem, this paper

proposes the local emotion extraction and retrieval

method with using the sketch query method. The

images are retrieved by using the 160 diversified

emotion words and the emotional similarities

between two images are calculated by considering

the semantic relations between emotion words.

2 EMOTION COLORS

In order to implement the emotion-based image

retrieval system, the emotions in images have to be

represented first. This paper uses the method that

substitutes colors into emotion words to extract the

emotional meaning that’s intrinsic to the images.

These emotion colors are obtained from the color

imaging chart of Nagumo (Nagumo 2000). The

imaging chart sets the vertical axis and horizontal

Figure 2: Imaging chart of Nagumo.

axis to time and energy respectively (Figure 2). The

chart has intended to understand the emotion of

images by analyzing them into these two elements

and by obtaining their coordinates. The time axis

indicates future as it moves up (+) and represents

past as it moves down (-) from the center. The axis

‘energy’ gets stronger as it moves to the left and it

gets weaker as it moves to the right.

The color imaging chart is divided into 4 image

zones such as B (Budding), G (Growth), R (Ripen)

and W (Withering) by the axes of time and energy.

There are 23 standard groups (

231

gg L

) in 4 image

zones. Each standard group is indicated by the center,

major-axis and minor-axis of oval. The center

coordinates of each group were obtained by

considering the intersection of two axes as the origin

and by calculating the relative position and size of

each group in the imaging chart.

3 IMAGE RETRIEVAL USING

EMOTION SKETCH

This section introduces a method that automatically

extracts the emotion features of images in the sketch

method by using the color emotion-word in the

Section 2 and this method calculates the similarity

between images.

3.1 Extraction of Emotion Words

Color R Color G Color B Romantic Innocent Limber Tender

0 157 165 1 -1 -1 -1

67 164 113 -1 2 -1 -1

150 200 172 1 -1 3 4

247 197 200 1 2 -1 4

Figure 3: Relation between colors and emotion words.

The emotion-based image retrieval system needs

to extract the emotion words that are included in the

image. For each emotion word, Nagumo has

suggested a color palette that is made up of 6~24

emotion colors. The emotion colors correspond to

the 160 color emotion words, and each color can

hold multiple color emotion words. In other words,

one color can hold romantic and lively emotions at

the same time, as is shown in the Figure 3. Therefore,

the relations of 160 color emotion words that

correspond to each color were obtained by being

considered the emotion number, if holding an

emotion word for each color, or by being set -1. The

total emotion colors that are arranged in this way is

120 units.

In the sketch method, the image is divided into a

total of 289 sub-areas (17ⅹ 17) (

17,171,1

EE L

). In

this paper, in order to obtain the emotion words of

QUERY-BY-EMOTION SKETCH FOR LOCAL EMOTION-BASED IMAGE RETRIEVAL

645

each sub-area, we take a histogram (

1601

HH L

) of

160 emotion words by using all the pixels within this

sub-area, and we determine the emotion word that

has the largest number of emotion words as being

the representative emotion word. In other words, as

for the sketch value of sub-area, this paper takes the

emotion word that holds the greatest histogram value

for being the emotion word of a sub-area:

bxy

1601

max

≤≤

(1)

Since the color difference may occur in the input

process, such as image scanning, we consider all the

colors that have the distance within the allowable

error range for the RGB value as identical emotion

colors. Since the color change is too small to be

visually distinguished by humans, this paper has set

the error range as ‘10’.

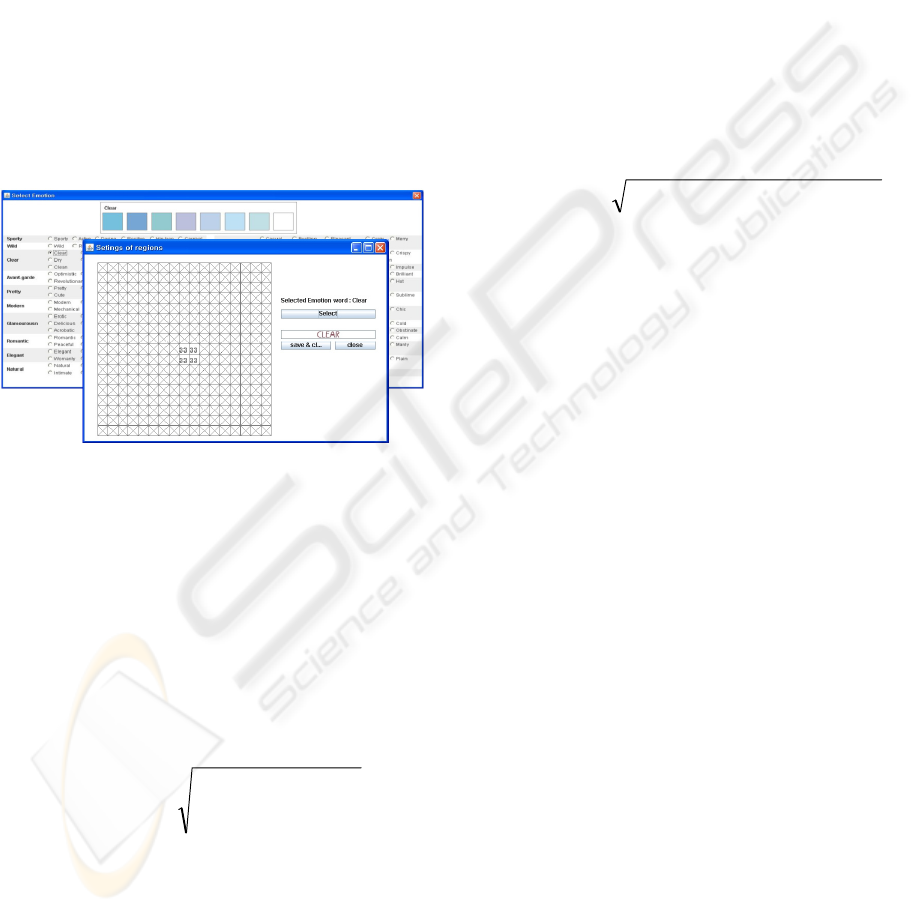

Figure 4: Screenshot of emotion sketch query : ‘clear’.

Figure 4 shows an input screen of emotion

sketch query. This paper has provided a means of

selecting emotion words for the desired part of an

image to be retrieved from the images that are

divided into 289 sub-areas.

3.2 Similarity of Emotion Words

In order to retrieve the images of similar emotion

from the sketch query, the distance

between two

images A and B can be calculated using Eq. (1) as:

∑∑

−=

)(),(

xyE

EEBAd

(2)

Here,

and

refers to the x

, y

emotion word

from the emotion sketch of images A and B.

Since the sketch value

and

of Eq.(2) is

one of 160 emotion words, the similarity of emotion

words can be calculated by digitizing emotion words.

It would be difficult to correctly reflect the actual

relationships between emotion words with using the

simple differences between the numbers that are set

to emotion words as in Eq.(2). Thus, this paper has

used the relationship of standard groups that are

obtained from the color imaging chart that’s shown

in the Figure 2. In other words, the system calculates

the distance between standard groups

that

include the corresponding emotion words and the

emotion words within the group are then compared

with each other. The Eq.(2) may be converted as

follows:

∑∑

)},(),({),(

xyE

EEdGGdBAd

Here

xynkxy

GgeE =∈=

. The distance between

standard groups can be obtained by using the center

(

)

cycx ,

of these standard groups.

)()(),(

cycycxcxGGd −+−=

It is not easy to digitize the distance

between

emotion words. This paper has considered all the

emotion words within the same group as being

individual emotions and it has defined them as

follows:.

EEd

≠

⎩

⎨

⎧

),(

Here, t can be smaller than the distance between the

closest standard groups. As shown in Figure 2 and

Table 1, this paper has set t to ‘0.3’ since the

distance between ‘sporty’ and ‘dynamic’ that are the

closest groups within the color imaging chart is

about 0.36.

4 EXPERIMENTAL RESULTS

The database of the proposed image retrieval system

was designed by using JAVA and MySQL on

Windows XP platform of Pentium ® 4 CPU 3.0GHz

and 1GB RAM. As for the test images, we have used

the Corel database that is most commonly used for

the performance evaluation of the content-based

image retrieval method. The Corel database is

comprised of 9,908 images that belong to the

semantic category such as butterfly, cosmos,

sunrise/sunset, flower, character, mountain, national

flag and boat.

Figure 5 shows the retrieval results of the center

areas of the images that hold the emotion ‘clear’ by

using the emotion sketch of Figure 4. Also by using

the emotion sketch, it is possible to retrieve the

images where two emotions are mixed. Figure 6

ICAART 2010 - 2nd International Conference on Agents and Artificial Intelligence

646

shows the image retrieval result that holds the ‘clear’

emotion in the center and the ‘street-fashion’

emotion in the circumference.

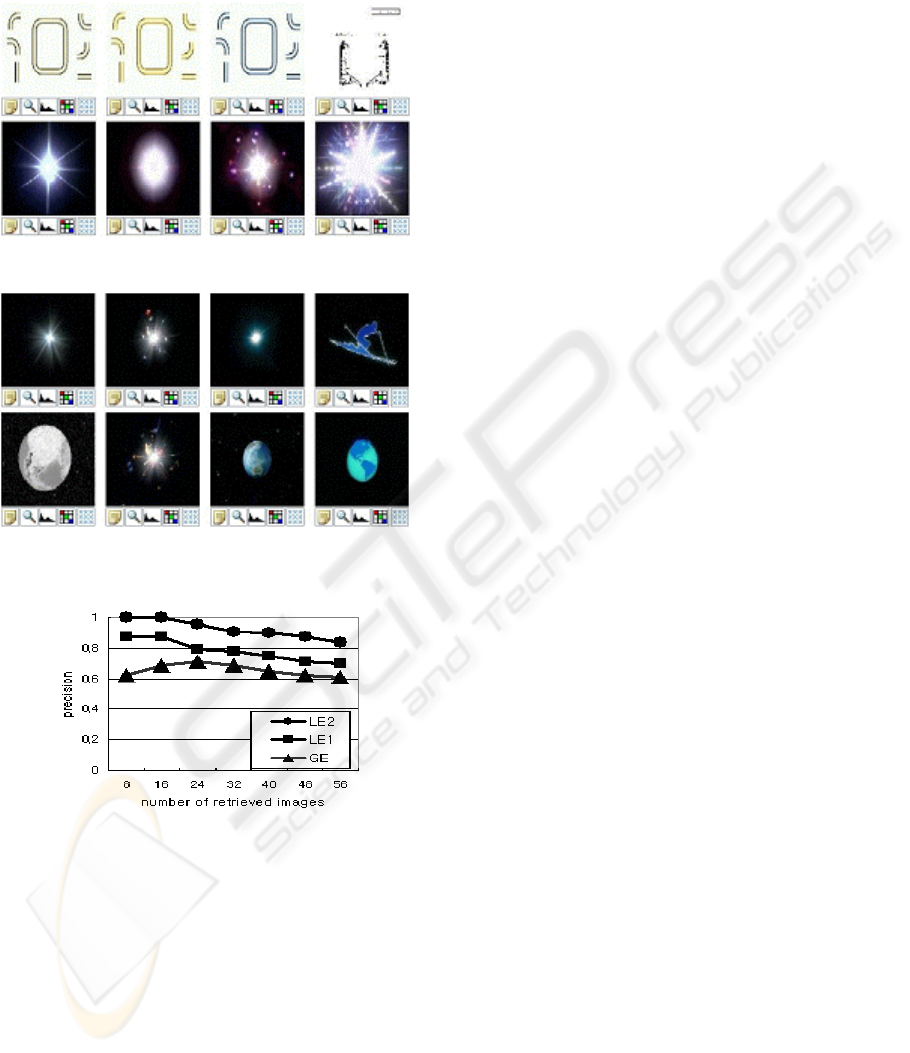

Figure 5: Retrieved results using Figure 2.

Figure 6: Retrieved results using two emotions ‘clear’ and

‘street-fashion’.

Figure 7: Retrieved results on the Corel database.

This paper has assessed the retrieval results

according to the precision and the number of

retrieved images. Precision is defined as the ratio of

the properly retrieved images to all the retrieved

images, and it is used to evaluate the ability of a

system to retrieve only proper images. The number

of retrieved images refers to the number of images

that are retrieved from the Corel database.

Figure 7 shows the average that has queries of 20

emotion words from the Corel database. The

experiment has been made for global emotion

retrieval (GE), local emotion retrieval by using only

one sub-area (LE1), and local emotion retrieval by

using two sub-areas (LE2). Figure 7 shows that the

retrieval result of using the proposed emotion sketch

gives better precision than the global approach.

5 CONCLUSIONS

This paper has proposed the image retrieval system

of using emotion sketch. The proposed retrieval

system as a content-based image retrieval system

includes the following technologies:

● Automatically extracting emotions from

images by using emotion colors and emotion

color words.

● Allowing the user to easily select the emotions

of each sub-area by providing convenient GUI

as is shown in Figure 4.

● Enabling the comparison of the emotional

similarities between images by suggesting a

method that can quantitatively calculate the

similarity of emotion words.

Also as compared to the results of existing emotion-

based image retrieval studies, this paper has

proposed a method that can find various emotions

that are scattered on the image rather than finding

one global emotion from one image.

REFERENCES

Colombo, C., Del Bimbo, A., and Pala, P., 1999.

“Semantics in visual information retrieval,” IEEE

Multimedia, vol. 6, no. 3, pp. 38-53.

Lee, Kyoung-Mi, et. al, 2008. “Textile image retrieval

integrating contents, emotion and metadata,” Journal

of KSII, vol. 9, no. 5, pp. 99-108.

Marsicoi, M. De, Cinque, L. and Levialdi, S., 1997.

“Indexing pictorial documents by their content: A

survey of current techniques,” Image vision computing,

vol. 15, pp. 119–141.

Nagumo, H., “Color image chart,” Chohyung, 2000.

Wang, W. and He, Q., 2008. "A survey on emotional

semantic image retrieval,” In International Conference

on Image Processing, pp. 117-120.

Wang, S., 2001. “A robust CBIR approach using local

color histograms,” Technical report TR 01-13, U. of

Alberta Edmonton, Alberta, Canada.

Yoshida, K., Kato, T., and Yanaru, T., 1998. “Image

retrieval system using impression words,” IEEE

Transactions on Systems, Man, and Cybernetics, vol.3,

no.11-14, pp. 2780-2784.

Yoshitaka, A. and Ichikawa, T., 1999. “A survey on

content-based retrieval for multimedia databases,”

IEEE transactions on Knowledge Data Engineering,

vol. 11, pp. 81–-93.

QUERY-BY-EMOTION SKETCH FOR LOCAL EMOTION-BASED IMAGE RETRIEVAL

647
