MapO2R: MAPPING OBJECT ORIENTED

APPLICATIONS TO RELATIONAL DATABASES

A Case of Study

J. J. Astrain, A. C´ordoba and J. Villadangos

Dept. Ingenier´ıa Matem´atica e Inform´atica, Universidad P´ublica de Navarra, Campus de Arrosad´ıa, 31006 Pamplona, Spain

Keywords:

Object mapping, Relational databases, Case study.

Abstract:

This paper presents an open education tool which enables students to acquire best practices on object ori-

ented design and programming. This tool analyzes different mapping strategies to store objects into relational

databases. The tool evaluates the performances of different mapping strategies offering a measure of their costs

in terms of time spent in database operations. Students can select and evaluate their object-relational mapping

proposals in order to discover the best design and implementation solutions for different case studies.

1 INTRODUCTION

Object-relational mapping consists on transforming

between object and relational modeling approaches

and between the systems that support them. Object-

relational mapping requires the understanding of both

object and relational modeling, their similarities and

their differences. When dealing with real systems

implementing object and relational models, we of-

ten discover deﬁciencies and inconsistencies with the

theoretical relational approaches and a lack of stan-

dardization concerning object modeling. Thus object-

relational mapping becomes a complicated task.

In object-relational databases (RDBMSs) the data

resides in the database and is manipulated collec-

tively with queries in a query language, while object-

oriented databases (OODBMSs) are essentially a per-

sistent object store for software written in an object-

oriented programming language, with a programming

API for storing and retrieving objects. Querying sup-

port is very limited in OODBMSs, while the object re-

trieval from RDBMSs requires hard mapping efforts.

Object-relational mapping is used to map object ori-

ented programming to RDBMSs.

In object-relational mapping products, the abil-

ity to directly manipulate data stored in a relational

database using an object programming language is

called transparent persistence (Barry, 2005). Most of

these products deal with the problem of translating

objects to relational tables and viceversa, but they use

different mappings to tackle the existing impedance

between object oriented programming and relational

databases. Some problems related to this impedance

arrives (Objectmatter, 2005): a) while objects have

state, behavior, identity and data, an RDBMS stores

data only; b) while objects are traversed using direct

references, RDBMS tables are related to values in for-

eign and primary keys; c) current RDBMS have no

equivalence to object inheritance for data and behav-

ior; and d) the goal of relational modeling is to nor-

malize data, whereas the goal of object-oriented de-

sign is to model a business process by creating real-

world objects with data and behavior.

Beneﬁts of using object oriented applications (as

encapsulation, isolation, easy business logic mainte-

nance or component reusability) advise to continue

using object oriented designs. But relational models

offer an interesting way to store and manage knowl-

edge information that must be considered. Relational

theory is concerned with knowledge and object tech-

niques are concerned with behavior. Mapping be-

tween the two models requires deciding how the two

worlds can refer to each other. Furthermore, relational

databases have been deﬁcient for multiple decades in

correctly implementing the core concepts of relational

theory, and object modeling is not standardized. Be-

cause of these deﬁciencies object-relational mapping

is more complicated than it needs to be. A good map-

ping can signiﬁcantly reduce development time oth-

erwise spent with manual data handling in SQL and

JDBC, and it also can signiﬁcantly reduce the time

spent by the RDBMS when accessing the stored data.

This paper presents an open education tool

(MapO2R) which enables students to understand the

335

J. Astrain J., Córdoba A. and Villadangos J. (2010).

MapO2R: MAPPING OBJECT ORIENTED APPLICATIONS TO RELATIONAL DATABASES - A Case of Study.

In Proceedings of the 2nd International Conference on Computer Supported Education, pages 335-340

DOI: 10.5220/0002767903350340

 SciTePress

object-relational mapping. A tool which allows deﬁn-

ing and analyzing different mappings over different

RDBMSs providing a benchmark between different

mapping proposals. This tool allows students to select

those mappings that perform better for each problem.

The paper is organized as follows: section 2 de-

scribes the concepts that students would acquire using

MapO2R; section 3 analyzes different mapping tech-

niques (their beneﬁts and drawbacks); section 4 de-

scribes the internals of the tool; section 5 is devoted

to present and analyze a case study where different

mappings are compared over relational databases; and

ﬁnally, conclusions and references end the paper.

2 LEARNING CONCEPTS

The tool allows the student acquiring some essential

concepts. Each object has a unique object identi-

ﬁer (OID), which distinguishes it univocally from all

other objects. At the creation step, a unique and uni-

vocal OID is assigned to each object, whether its state

happens to be equal to other objects previously cre-

ated. The state of an object is the set of current values

of the attributes associated with a given identity. Ob-

jects can havea single state through their whole life or

can go through many state transitions. Due to object

encapsulation, the state is an abstraction which is only

visible by examining the behavior of the object. Both

OID and object state are stored into the RDBMS.

Objects provide an abstraction that clients can in-

teract with. The behavior of an object is the collec-

tion of provided interactions (called methods or oper-

ations and, collectively, an interface) and the response

to these method calls (or messages). Interactions with

an object must be through its interface and all knowl-

edge about an object is from its behavior (returned

values or side effects) to the interface interaction.

Encapsulation provides an abstraction that makes

possible the user to use this abstraction without know-

ing the implementation of the object. The user can

known the state and behavior of an object, but not

their implementation. That ensures an easy way to

develop complex applications, using modular tech-

niques and the power of object oriented design. Other

concepts concerning relations among objects that are

commonly used are inheritance, association and ag-

gregation relationships. Inheritance applies to types

(the speciﬁcation of an interface that objects will sup-

port) or to classes (that deﬁne the implementation for

multiple objects). When applied to types, inheritance

speciﬁes that an object can be used just like an ob-

ject of both types. All objects that have a certain type,

have also the new inherited type. When applied to

classes, inheritance speciﬁes that a class uses the im-

plementation of another class with possible overriding

modiﬁcation implying type inheritance or not. Asso-

ciation is related to objects that establish a relation-

ship (1-N, M-N) between them. And aggregation im-

plies that an object is part of another object.

In the relational side, concepts as attribute, rela-

tionship, domain and tuple must be also introduced.

A relationship is a truth predicate that deﬁnes what

attributes are involved in the predicate and what the

meaning of the predicate is. An attribute identiﬁes

a name that participates in the relationship and spec-

iﬁes the domain from which values of the attribute

must come. A domain is simply a data type and a tu-

ple is a truth statement in the context of a relation. A

tuple has attribute values which match the required at-

tributes in the relation and that state the condition that

is known to be true. The state of an object is directly

related to the attribute values of a certain tuple or a set

of them. The object type determines the domains of

all the attributes of a tuple. Concepts as aggregation,

association and inheritance concern the relationships.

3 OBJECT-RELATIONAL

MAPPING

Performance is limited by other secondary goals as

ﬂexibility and maintenance of the relational storage,

as redundancy and fault tolerance, as space con-

sumption and many others. The number, frequency

and distribution of the read/write operations has also

an important contribution in the ﬁnal performance

result obtained for a certain mapping schema. The

application style determines the read/write operations

that are performed over the persistent storage system

implemented over an RDBMS. MapO2R considers

different approaches and strategies that can be applied

when mapping object-oriented applications to re-

lational schemas as Keller presented in (Keller, 1997).

Aggregation can be mapped using two different

strategies:

1. Single Table Aggregation: it is the optimal solu-

tion in terms of performance since only one table

is accessed to retrieve an aggregating object with

all its aggregated objects. As drawback, it can in-

troduce data redundance.

2. Foreign Key Aggregation: it increases the

number of database operations since it needs a

join operation or at least two database accesses.

This schema follows the normalization theory,

but it can provide poor results when access-

CSEDU 2010 - 2nd International Conference on Computer Supported Education

336

ing/retrieving aggregated objects is performed to-

gether with the aggregating object. This strategy

is more ﬂexible and scalable, since it allows an

easy way to support new aggregated objects. As

drawback, aggregated objects are not automati-

cally deleted on deletion of the aggregating ob-

jects, the mapping must to deal with this task.

Inheritance can be mapped using three different

strategies:

1. Single Table Inheritance: as happened in the sin-

gle table aggregation case, it is the optimal so-

lution in terms of performance, but it introduces

data redundance, poor scalability, contradicts the

normalization theory and can introduce data in-

consistency when performing schema evolutions.

2. Inheritance Tree: it minimizes or eliminates data

redundance. This schema provides a high scala-

bility degree. The main drawback is the number of

database operations needed to insert, delete or up-

date objects. So, performances decrease notably.

3. Path Table: it makes easy to perform path navi-

gation across the objects against data redundancy

and performances. Parent attributesare duplicated

in each inheritance class.

An important factor is the inheritance hierarchy

depth. Some solutions that work acceptable with ﬂat

inheritance hierarchies become inefﬁcient and com-

plicated with very deep inheritance hierarchies. Poly-

morphic read operations support and space storing re-

duction obtained when using multiple tables inheri-

tance introduce low or very low write/update perfor-

mances. Mapping solutions that clutter a single ob-

ject’s data across several tables might be fast for poly-

morphic reading, although they are very hard to main-

tain in case new object attributes are added or existing

object attributes are deleted.

Schema evolution becomes a nightmare when

multiple inheritance is allowed. When considering

unique inheritance, the use of a unique table in a

schema evolution implies the modiﬁcation of the

number and/or types of the ﬁelds of a table. This fact

force to realize a big effort to ensure the consistency

of the table. The system must ensure that previous

and new data is consistently stored. When using

multiple tables, scalability is easier to implement

although the hierarchy depth can become a problem.

Path navigation is complex and expensive in terms

of database operations. The use of a inheritance

tree strategy minimizes the data redundancy existent

in the single table inheritance and in the path table

strategies, but is very difﬁcult to perform path nav-

igation across object attributes since a great number

of complex queries must be performed. Note that

multiple inheritance is not considered.

Association can be mapped using different strategies:

1. Foreign Key Association: using two tables for a

1:N association, where the N is mandatory.

2. Association Table: using a new table to map N:M

associations.

Association presents the same drawbacks and ad-

vantages previously described for the aggregation

scenario, but involving two o three tables respectively.

4 MapO2R INTERNALS

MapO2R is a JAVA application that interacts with

some RDBMSs located in different sites. Both com-

puters (client and server) are interconnected by a

switched Gigabit Ethernet LAN. MapO2R supports

the following RDBMSs: MS Access 2007, Oracle 9i,

SQL Server 2008, MySQL 5.1 and PostgreSQL 8.4.1.

Due to its modularity and scalability, MapO2R can

support other RDBMSs by adding the corresponding

plugin. MapO2R follows a client-server architecture.

MapO2R acts on two stages: the generation and

the benchmarking (queries) stages. In the genera-

tion stage, the student selects an RDBMS and the

number of registers to consider (in the domain [500,

2,000,000] registers). Those registers are generated

automatically in order to obtain the benchmarking of

all the mappings described in Section 2. The bench-

marking stage provides the results obtained including

the average, the harmonic average, the median and

the standard deviation. Furthermore, the scale can be

either linear either logarithmic. Results can be pro-

vide in terms of ﬁgures or tables. The time is al-

ways measured in milliseconds. In order to obtain

reliable benchmarking results, each query (INSERT,

SELECT, DELETE and UPDATE) is performed fol-

lowing the number of iterations selected by the stu-

dent (ten iterations by default).

MapO2R does not maintain a JDBC connection

pool. Database session is closed and reopened for

each iteration. If a student selects an UPDATE query

over a set of 1,000 registers, with 25 iterations, the

session between the the application and the RDBMS

server is closed an reopened 25 times. The results ob-

tained from each set of queries are stored in a ﬁlesys-

tem in order to allow the comparison among the per-

formances provided for both different mapping strate-

gies and RDBMSs. MapO2R allows the visualization

of the results and also allows exporting the benchmark

results to CSV, plain text or MS Excel formats.

MapO2R: MAPPING OBJECT ORIENTED APPLICATIONS TO RELATIONAL DATABASES - A Case of Study

337

5 CASE STUDY

MapO2R is used on the Analysis and Design Software

course of the Computer Science degree (Software En-

gineering) at the State University of Navarra. It has

been validated during the courses 07/08 and 08/09 by

54 students. Students have answered a questionnaire

concerning MapO2R and its relevance in the student’s

learning process at the end of each course, . In this

section we include a practical session example, and

the evaluation of the tool by students.

5.1 Practical Session

This practical session focus on the analysis and eval-

uation of the mapping schemas proposed by students.

First of all, students analyze a given case study and

with the aid of MapO2R obtains the differentmapping

schemas. Then, students select the databases where

they want to apply the mappings. Results obtained al-

low the validation of the students mapping proposals.

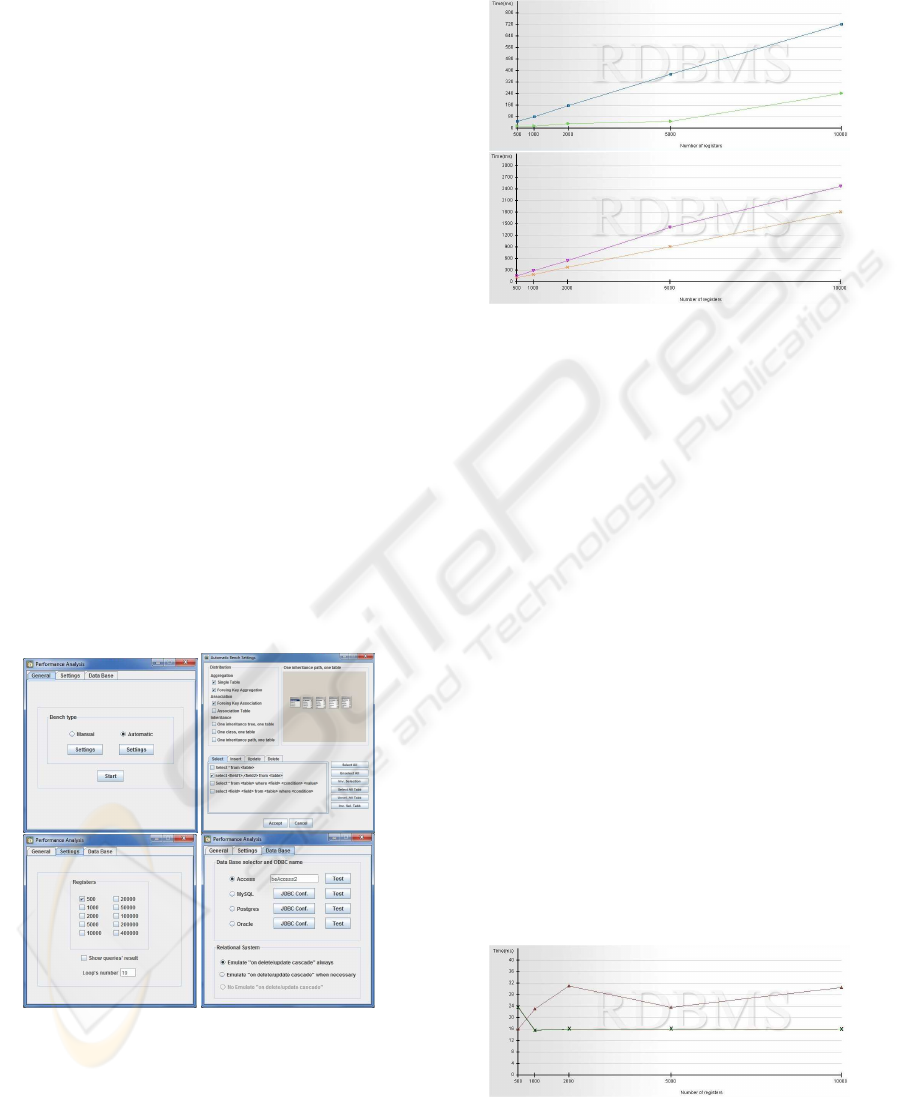

Figure 1 shows the different GUIs that allow the

conﬁguration of the benchmark: automatic or man-

ually execution of the benchmark, automatic bench-

mark settings, number of registers to be evaluated and

database to be used, respectively. As it can be appre-

ciated in Figure 1 (upper right corner), the student can

select the mapping related to each association, aggre-

gation or inheritance operation, and even select the

kind of SQL query (select, update, insert and delete).

Figure 1: Benchmark conﬁguration.

We present the results obtained for a basic case

study, where aggregation, inheritance and associ-

ation relationships are evaluated over a MySQL

database. The practical sessions take place in a

laboratory equipped with 25 PCs with Windows XP

(SP2), where 20 of them are used by students (with

MapO2R) and the rest host the different databases.

Figure 2: Select queries for the aggregation schema, follow-

ing a certain criterion (up) or not (down).

Aggregation: Figure 2 presents the time spent when

performing select queries following a certain criterion

or not. Select queries performed following a certain

criterion have a lower cost than recovering all the ob-

jects (all the rows of the table), and the use of the for-

eign key table strategy reduces notably the time spent

when looking for a certain ﬁeld only stored in one of

the tables. When the query is performed over ﬁelds

contained in both tables, the use of a single table per-

forms better than de foreign key strategy. The queries

involved in the comparison are:

SELECT * FROM Clients SELECT Clients.ClientID, Clients.Surname,

Clients.Name, Clients.TotalAmmount, Adress.Street, Adress.ZIPCode, Adress.City

FROM Address INNER JOIN Clients ON Address.AdressID = Clients.BillAdress

The cost of inserting new objects following a cer-

tain criterion is higher than the simple insertion (with-

out criteria), as it can be seen in Figure 3. The queries

involved in the comparison are:

INSERT INTO Clients VALUES (’123456789’,’Manuel’,’Ruiz Lopez’, 1500,

’Main street’,’Madrid’,’28115’,’Oak’,’Guadalajara’,’19030’)

INSERT INTO Address VALUES (’123456789’,’Main street’, ’Madrid’,’28115’)

INSERT INTO Address VALUES (’987654321’,’Oak’, ’Guadalajara’, ’19030’)

INSERT INTO Clients VALUES (’123456789’,’Manuel’, ’Ruiz Lopez’, 1500,

’123456789’, ’987654321’)

Figure 3: Insert queries for the aggregation schema.

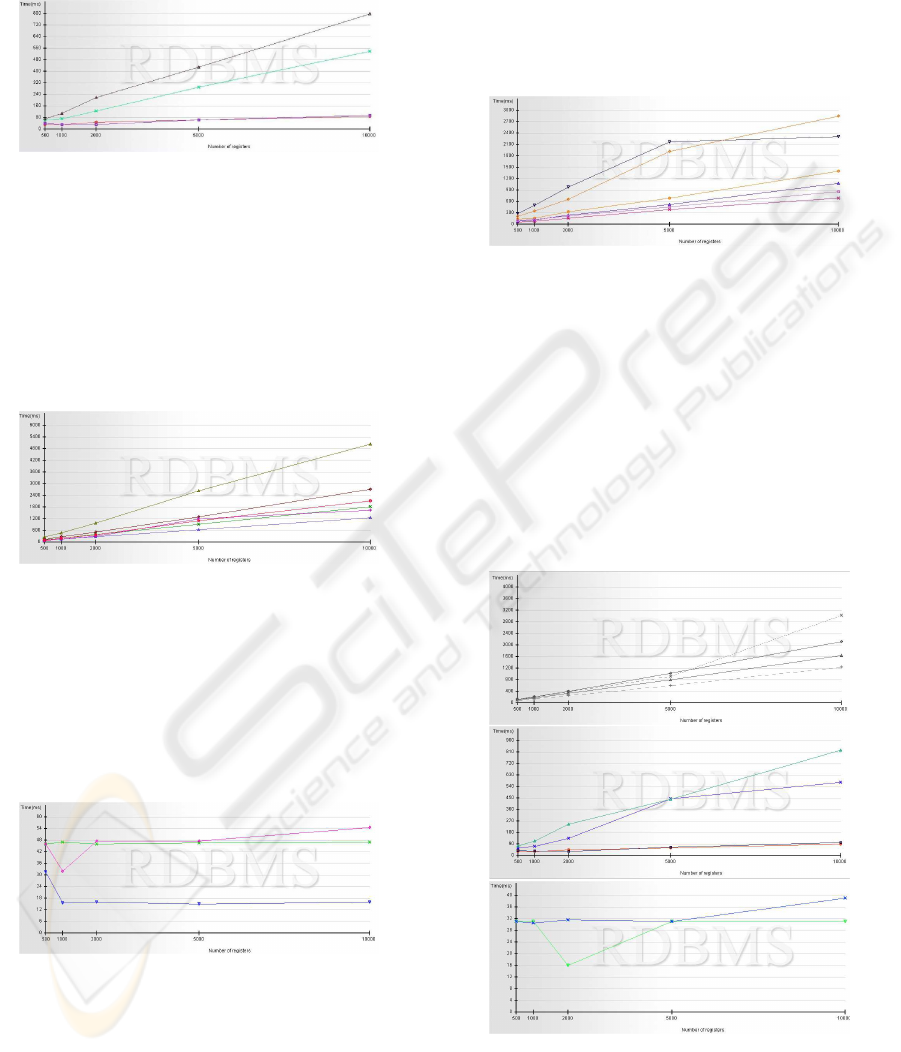

Figure 4 shows that the deletion cost is lower

when using the foreign key aggregation. It is inter-

CSEDU 2010 - 2nd International Conference on Computer Supported Education

338

esting to remark that the deletion of certain rows fol-

lowing a certain criterion has a higher cost than the

deletion of all the table.

Figure 4: Delete queries for the aggregation schema.

Inheritance: Figure 5 presents the median time spent

in select queries for the three inheritance mappings

proposed. Symbols x and N (lowest one) represent the

values obtained for a unique table inheritance map-

ping, ♦ and + for the inheritance tree mapping, and ◦

and N for the inheritance path mapping. Higher costs

are related to the path strategy, followed by the tree

strategy. The use of a unique table has the lowest cost.

Figure 5: Select queries for the inheritance schema.

As it can be seen in ﬁgure 6, the time spent in in-

sert operations does not depend on the number of reg-

isters (objects), and is almost constant. On this ﬁgure,

the lowest curve represents the cost of the insertion

when using a unique table strategy. So the path and

tree strategies have a higher cost in terms of time than

the unique table strategy.

Figure 6: Insert queries for the inheritance schema.

Figure 7 presents the median time spent in delete

queries for different inheritance mappings. On this

ﬁgure, symbols • and  represent the values obtained

for a unique table inheritance mapping, N and x for

the inheritance tree mapping, and H and ♦ for the

inheritance path mapping. For each case, the upper

value corresponds to the deletion of all the registers

of a table (all the objects in the object oriented do-

main), and the lower one corresponds to the deletion

of certain registers-objects that veriﬁes a certain crite-

rion. As it can be observed, deletion costs (measured

in time terms) increase linearly with the number of

registers (objects) managed, although the tangents are

very different.

Figure 7: Delete queries for the tree inheritance mappings.

Association: Figure 8 (up) shows the linear cost of

select queries, where the foreign key strategy per-

forms better than the association table strategy. The

deletion of a certain object has a higher cost when

we follow a certain criterion for the table association

strategy when the ﬁeld to compare is located in the

association table. The use of the foreign key strat-

egy is faster than the use of an association table. Fig-

ure 8 (down) shows that differences between using

both strategies is not relevant when performing inser-

tions.

Figure 8: Select, delete and insert queries (respectively) for

the association schema.

MapO2R: MAPPING OBJECT ORIENTED APPLICATIONS TO RELATIONAL DATABASES - A Case of Study

339

5.2 MapO2R Evaluation

We have performed some questionnaires to students

in order to validate the accuracyof MapO2R. Students

are asked for the goodness and usefulness degree of

the tool MapO2R in their learning process.

The questionnaire consists on 20 questions con-

cerning many aspects of the tool and the mapping

learning. Students are ask about their opinion about

the use of the MapO2R tool (interactivity, ease of use,

user-friendly...) and about the mapping learning us-

ing MapO2R (does MapO2R help to understand the

different mapping strategies?). Each question is rated

in the interval [0,20], where 0 represents a total dis-

agreement and 20 a total agreement.

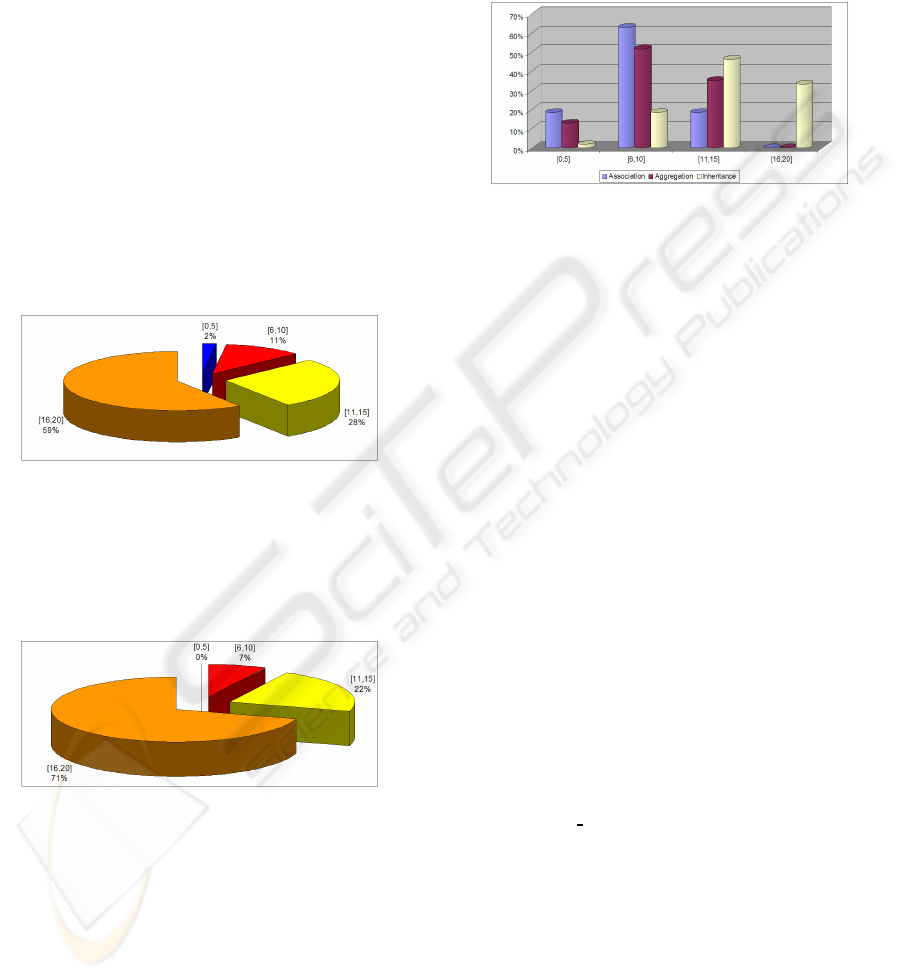

Figure 9 shows the overall assessment of the stu-

dents to the MapO2R tool. The 87% of the students

consider MapO2R a useful tool to learn the object-

relational mapping.

Figure 9: Overall assessment to MapO2r.

As Figure 10 shows, a 93% of the students con-

sider that MapO2R is a good tool for the learning of

the object-relational mapping. The 91% (49/5) of the

students declare they would use again the tool.

Figure 10: Learning degree for the object-relational map-

ping using MapO2R.

Figure 11 shows that the inheritance is more difﬁ-

cult to understand instead the aggregation or the asso-

ciation. Students consider the inheritance mappings

more complex and hard to implement than associa-

tion and aggregation. The 33% of the students con-

sider the inheritance very complex and 46% consider

it complex. So, the 79% of the students ﬁnd the in-

heritance difﬁcult and complex, while only 81% and

64% of the students ﬁnd the association and the ag-

gregation (respectively) easy and simple.

The analysis of the questionnaires shows that

MapO2R is suitable for learning object-relational

mappings. Due to its ease of use, suitable graphical

interface, the ability to play practical scenarios and

the ability to import and export the results, students

consider MapO2R a valid learning tool.

Figure 11: Learning complexity degree.

6 CONCLUSIONS

This paper presents an open education tool, MapO2R,

which enables students to acquire best practices on

object-relational mapping. Students can evaluate ex-

perimentally different mapping strategies, identify-

ing the most adequate for each proposed scenario.

MapO2R implements the mapping language deﬁned

by Keller (Keller, 1997). MapO2R has been evalu-

ated favorably by the students that have used it.

ACKNOWLEDGEMENTS

Research partially supported by the Spanish Research

Council under research grant TIN2008-03687.

REFERENCES

Barry, D. K. (2005). Transparent persistence in

object-relational mapping. http://www.service-

architecture.com/object-relational-mapping/articles/

transparent persistence.html.

Keller, W. (1997). Mapping objects to tables - a pattern

language. In Proc. Of European Conference on Pat-

tern Languages of Programming Conference (Euro-

PLOP)97.

Objectmatter (2005). Object relational mapping strategies,

http://www.objectmatter.com/vbsf/docs/maptool/

ormapping.html.

CSEDU 2010 - 2nd International Conference on Computer Supported Education

340
